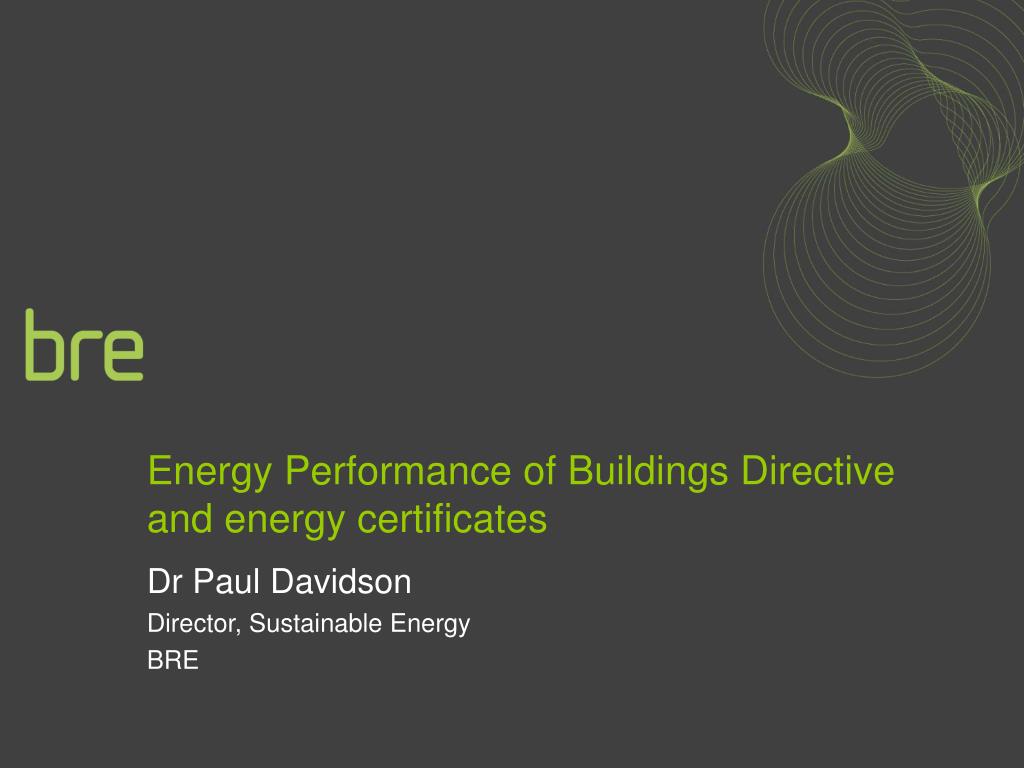

  1. Energy Performance of Buildings Directiveand energy certificates Dr Paul Davidson Director, Sustainable Energy BRE

  2. Contents • The EU EPBD • UK implementation • Minimum standards – Part L • Calculation methods • Energy certificates • Implications for local authorities

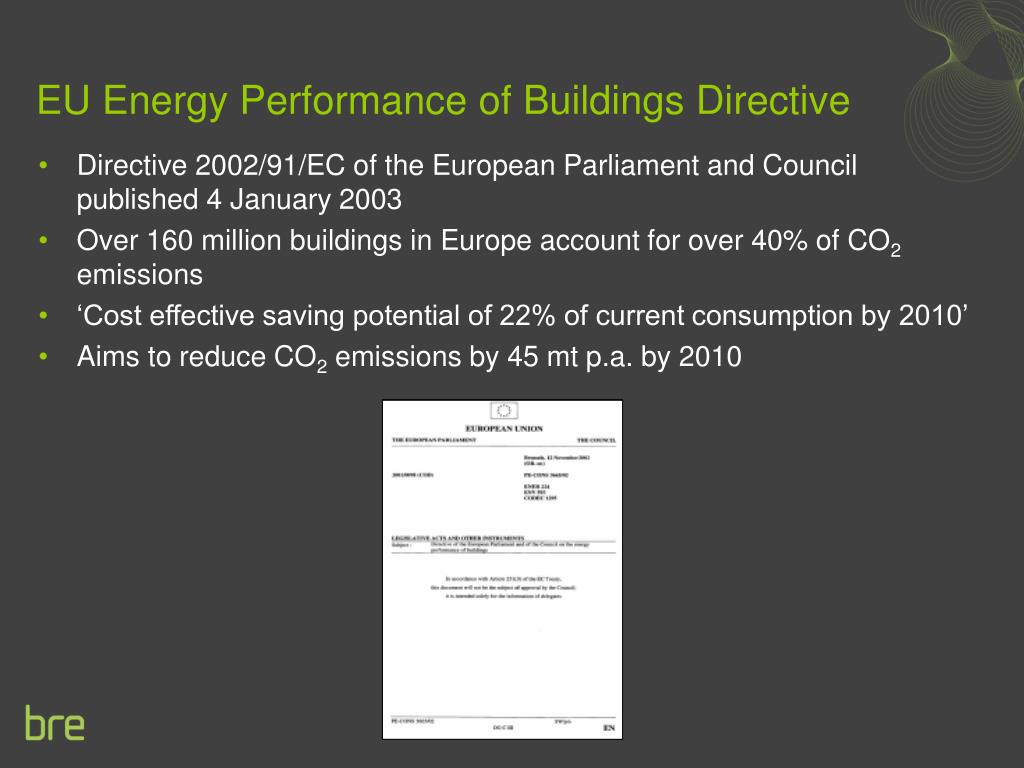

  3. EU Energy Performance of Buildings Directive • Directive 2002/91/EC of the European Parliament and Council published 4 January 2003 • Over 160 million buildings in Europe account for over 40% of CO2 emissions • ‘Cost effective saving potential of 22% of current consumption by 2010’ • Aims to reduce CO2 emissions by 45 mt p.a. by 2010

  4. Energy Performance of Buildings Directive(EPBD) Requires Member States to introduce by end 2005 plans for: • Minimum Energy Performance Standards • an acceptable methodology for calculating the integrated energy performance of buildings • minimum energy performance standards for new buildings • minimum energy performance requirements for largeexisting buildings subject to major renovation • Energy performance certificates • provided to prospective purchaser/tenant • prominent display of the energy certificate in all public buildings and “institutions providing public services” • Regular inspection associated with • boilers • air-conditioning systems

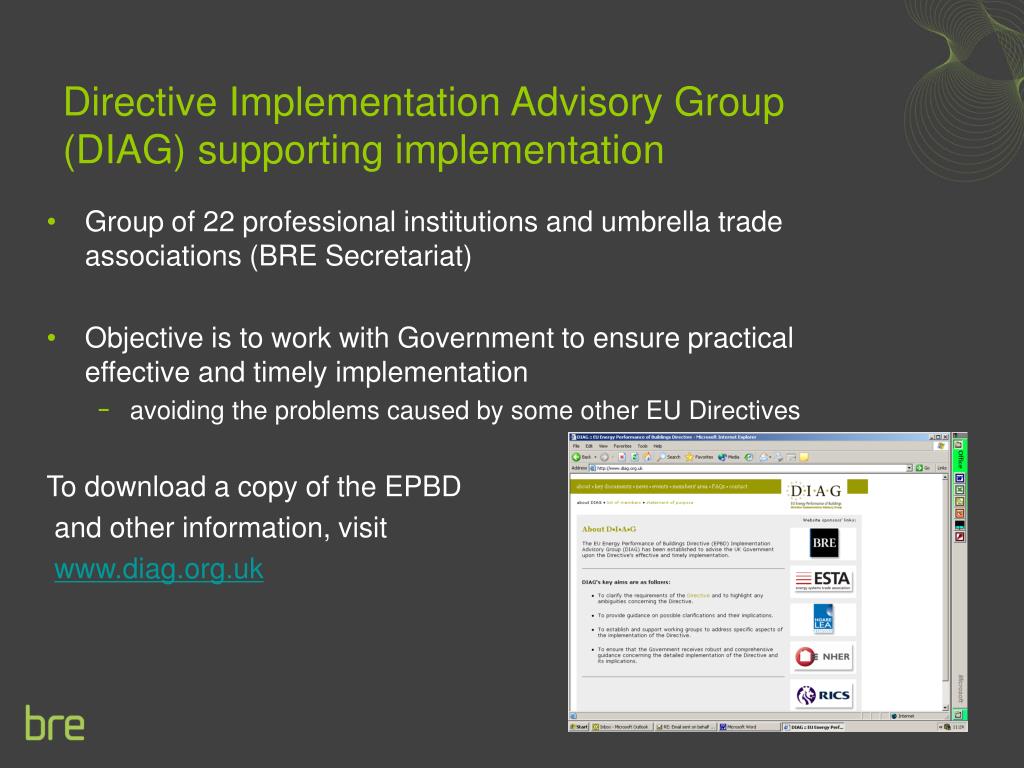

  5. Directive Implementation Advisory Group (DIAG) supporting implementation • Group of 22 professional institutions and umbrella trade associations (BRE Secretariat) • Objective is to work with Government to ensure practical effective and timely implementation • avoiding the problems caused by some other EU Directives To download a copy of the EPBD and other information, visit www.diag.org.uk

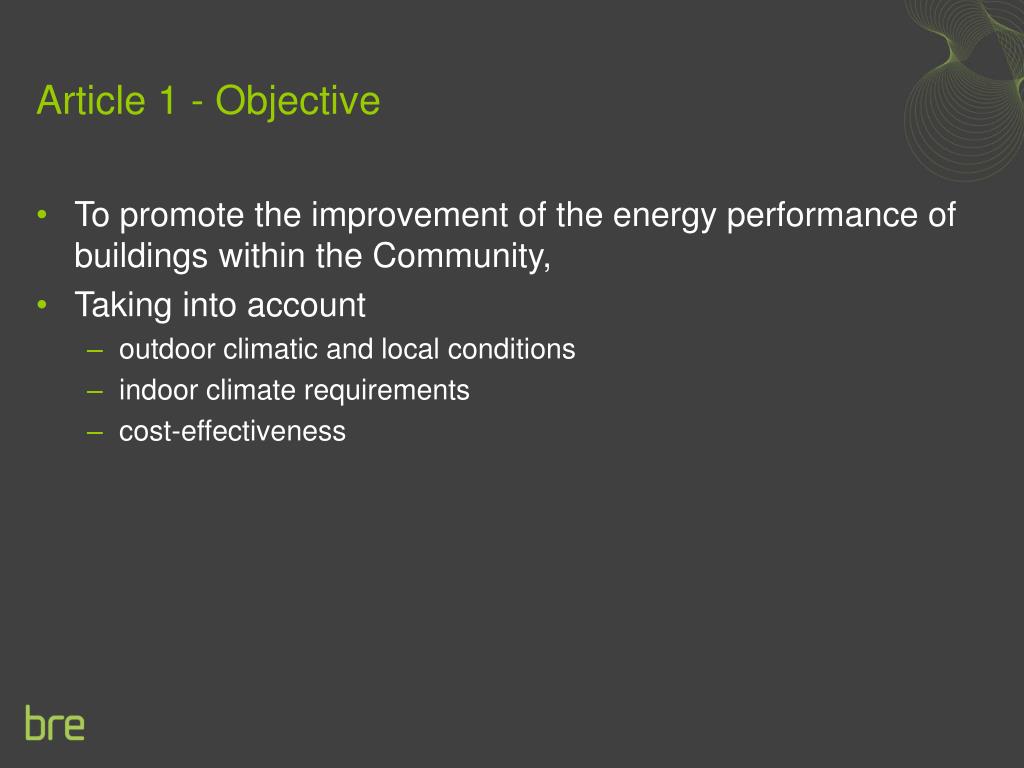

  6. Article 1 - Objective • To promote the improvement of the energy performance of buildings within the Community, • Taking into account • outdoor climatic and local conditions • indoor climate requirements • cost-effectiveness

  7. Article 3 - National Calculation Methodology • Adopt a national calculation methodology (Annex) • Must be transparent • May include CO2 emission indicator • Must be reviewed regularly (Article 13) by committee (Article 14). • Implement through UK Building Regulations • Dwellings: SAP • Other buildings: Simplified Building Energy Model (SBEM) for most situations. • Commercial software to take on more complex buildings.

  8. Annex General framework for calculation of energy performance • Envelope, including airtightness • Heating and hot water services • Air-conditioning • Ventilation • Lighting • Outdoor climate • Solar gains and protection • Indoor climate • Renewables, chp and daylighting • Doesn’t specifically mention controls – but vital

  9. Article 4 - Energy performance requirements • Need to set legal minimum energy performance standards • Based on national methodology • Differentiate between new and existing buildings • Take indoor climate conditions into account (eg ventilation) • Review at regular intervals not exceeding 5 years • Some buildings may be exempt (eg historic buildings) • Implement through Building Regulations

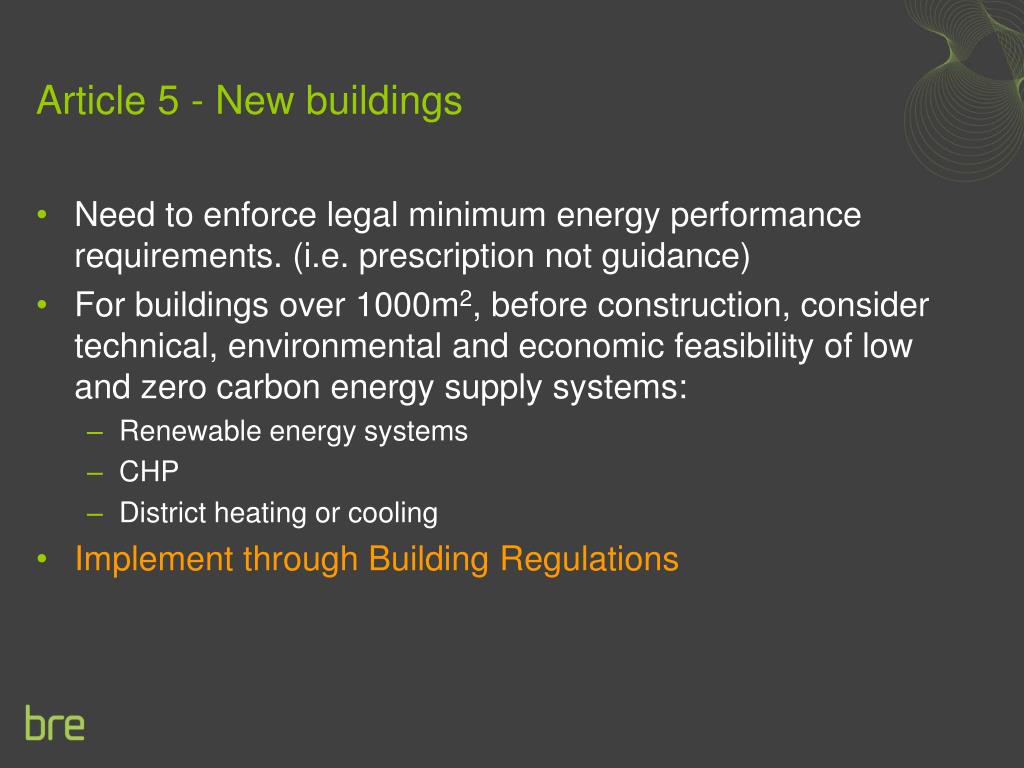

  10. Article 5 - New buildings • Need to enforce legal minimum energy performance requirements. (i.e. prescription not guidance) • For buildings over 1000m2, before construction, consider technical, environmental and economic feasibility of low and zero carbon energy supply systems: • Renewable energy systems • CHP • District heating or cooling • Implement through Building Regulations

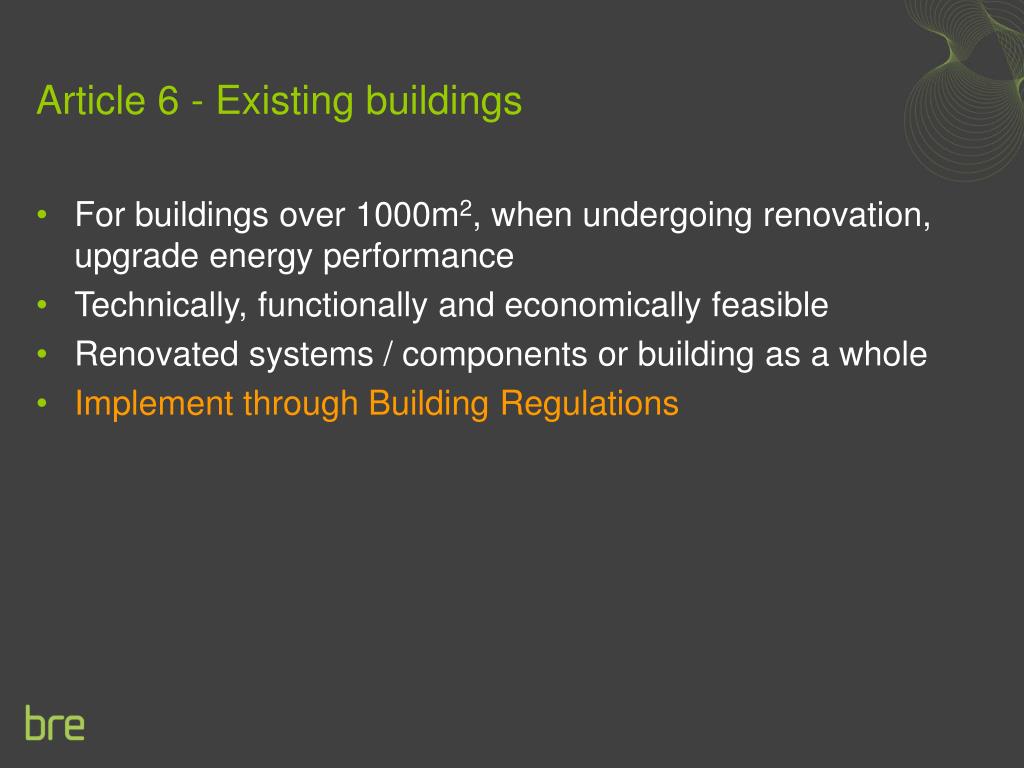

  11. Article 6 - Existing buildings • For buildings over 1000m2, when undergoing renovation, upgrade energy performance • Technically, functionally and economically feasible • Renovated systems / components or building as a whole • Implement through Building Regulations

  12. Article 7 - Energy Performance Certificates 7.1 Supply Energy Performance certificates  10 years old when buildings are constructed, sold or rented out. 7.2 Must include benchmarks and recommendations for improvement 7.3 Buildings >1000 m2 occupied by public organisations and visited by large numbers of the public must display certificate prominently. • New build - Building Regulations Part L • Recent government statement on principles • Calculated Asset rating for Article 7.1 • Measured Operational rating for Article 7.3 • Intend to widen display requirement to all public and private buildings – following further consultation

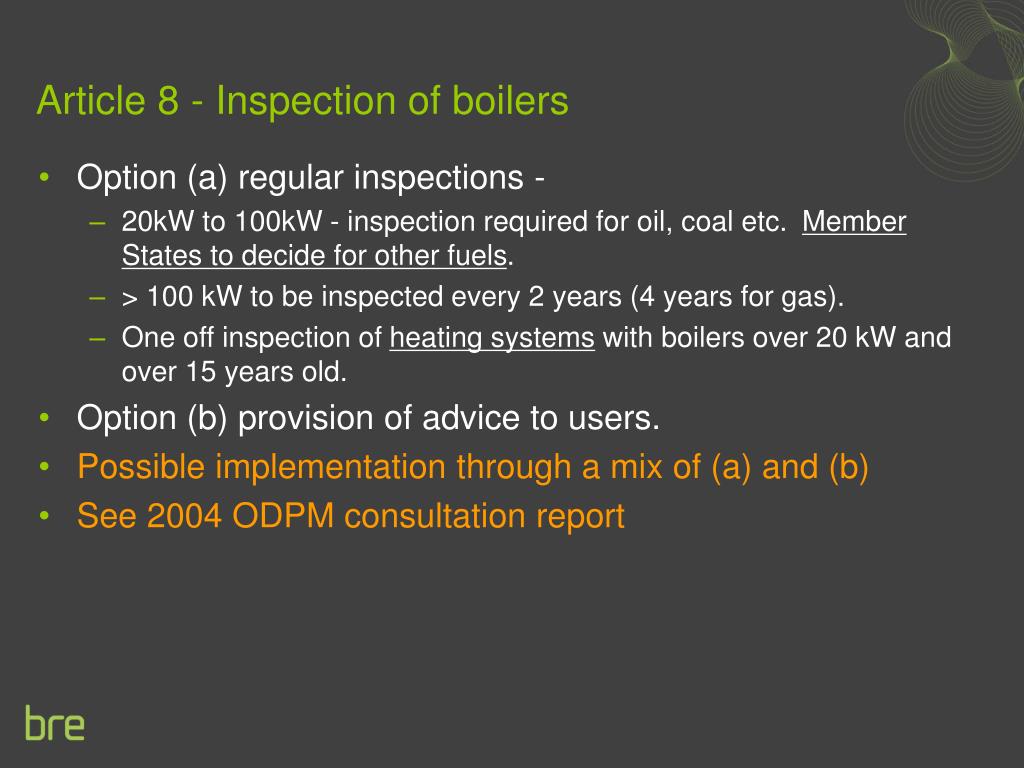

  13. Article 8 - Inspection of boilers • Option (a) regular inspections - • 20kW to 100kW - inspection required for oil, coal etc. Member States to decide for other fuels. • > 100 kW to be inspected every 2 years (4 years for gas). • One off inspection of heating systems with boilers over 20 kW and over 15 years old. • Option (b) provision of advice to users. • Possible implementation through a mix of (a) and (b) • See 2004 ODPM consultation report

  14. Article 9 - Inspection of air conditioning systems • Regular inspection of systems with rated output > 12 kW • Inspections must include: • Assessment of efficiency and sizing • Advice on possible improvement or replacement. • Possible implementation routes: • Put the requirement into Building Regulations using powers under the Sustainable & Secure Buildings Act 2004. • Refer to the proposed new CIBSE TM as approved guidance. • Expert panel of CIBSE and FETA members has made proposals.

  15. Article 10 - Certification and inspection • To be “carried out in an independent manner by qualified and/ or accredited experts … …”. • So new qualification systems required for building energy surveyors and plant inspectors. • Industry has reported with recommendations – keen to have Government approval schemes. • See DIAG website www.diag.org.uk • Home Inspector qualification covers home energy rating • New Competent Person scheme for non-dwellings • See www.bre.co.uk/energyrating

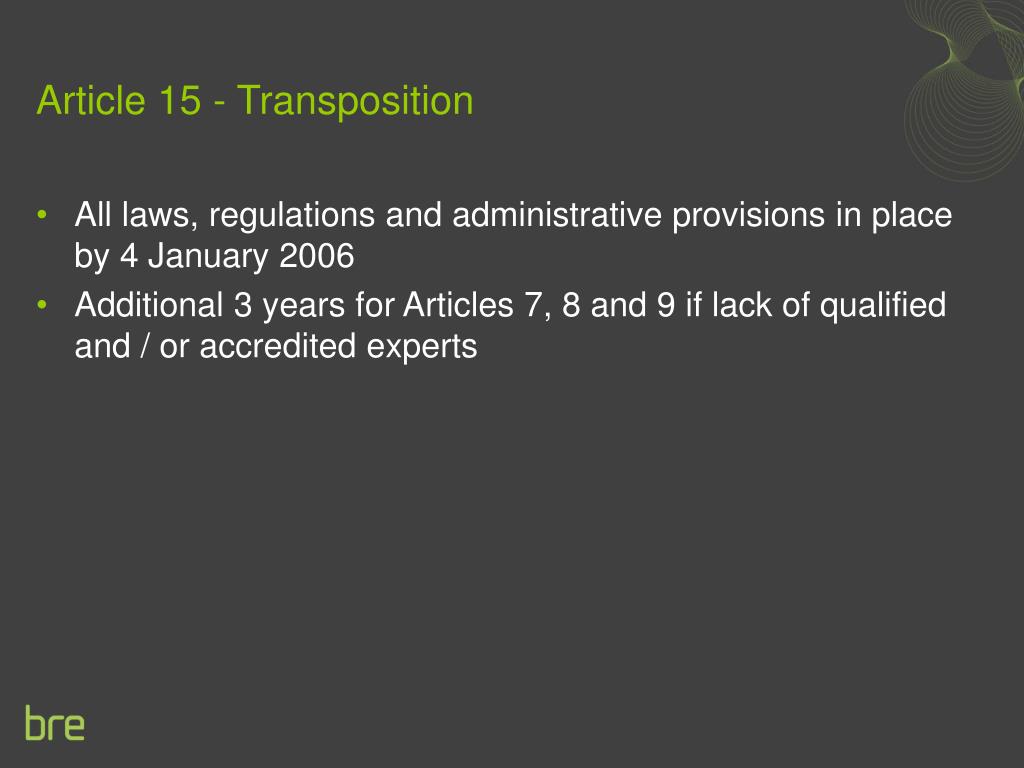

  16. Article 15 - Transposition • All laws, regulations and administrative provisions in place by 4 January 2006 • Additional 3 years for Articles 7, 8 and 9 if lack of qualified and / or accredited experts

  17. Other policy driversEnergy White Paper (2003)Sustainable Development Strategy (2005)

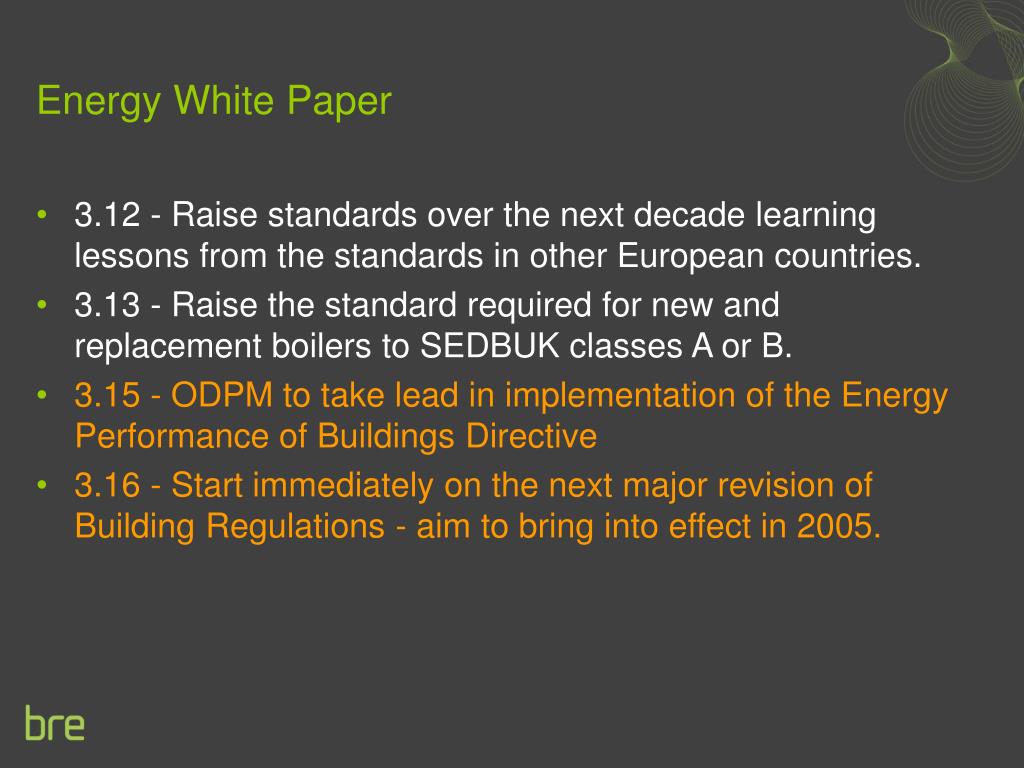

  18. Energy White Paper • 3.12 - Raise standards over the next decade learning lessons from the standards in other European countries. • 3.13 - Raise the standard required for new and replacement boilers to SEDBUK classes A or B. • 3.15 - ODPM to take lead in implementation of the Energy Performance of Buildings Directive • 3.16 - Start immediately on the next major revision of Building Regulations - aim to bring into effect in 2005.

  19. Building Regulations Part L (E&W) – aims of the review • To see what further contribution the Regulations can make towards achieving the Government’s carbon emissions targets whilst:- • Remaining proportionate • Continuing to provide satisfactory design flexibility • Avoiding unacceptable technical risks. • To implement EPBD Articles 3,4,5 & 6

  20. Principal changes to Part L • Moves to a whole building approach based on energy/carbon targets • Aims to reduce energy requirements by around 25% • implies significant improvements in insulation and heating system efficiency • provides incentive for low and zero carbon technologies, especially with fuels other than gas • Extends coverage of measures installed in existing buildings • Implements EPBD articles • Simplified ADs rely on second tier documents

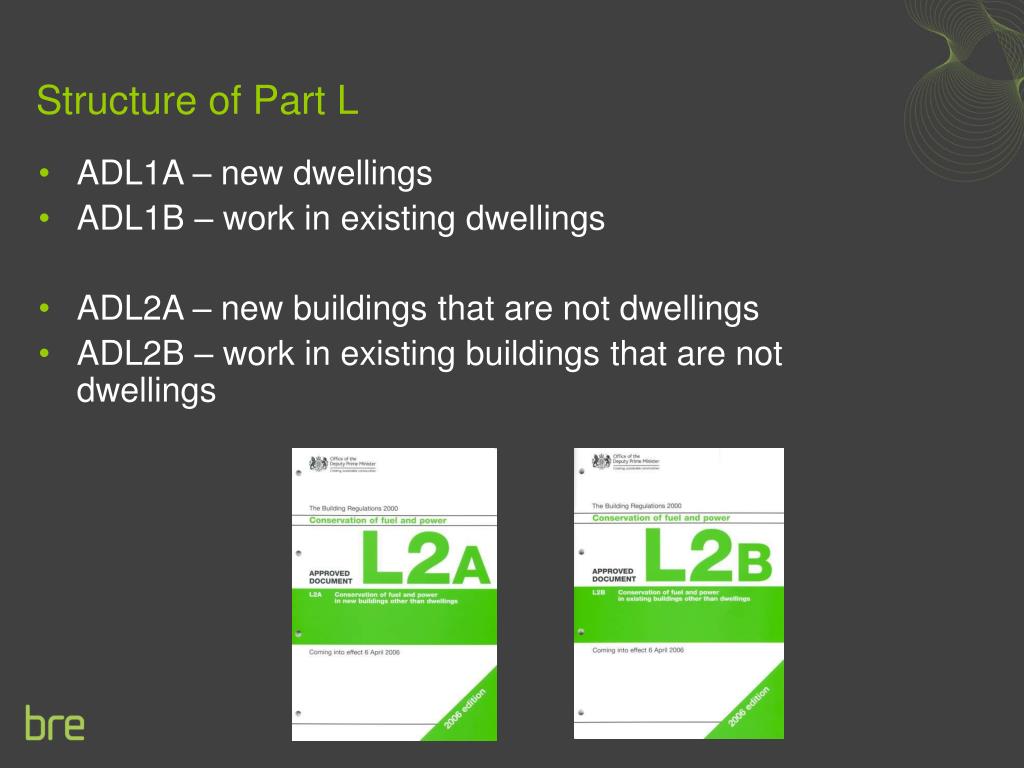

  21. Structure of Part L • ADL1A – new dwellings • ADL1B – work in existing dwellings • ADL2A – new buildings that are not dwellings • ADL2B – work in existing buildings that are not dwellings

  22. Part L – The Requirement Part L Conservation of fuel and power L1. Reasonable provision shall be made for the conservation of fuel and power in buildings by: a) limiting heat gains and losses: i. through thermal elements and other parts of the building fabric; and ii. From pipes ducts and vessels used for space heating, space cooling and hot water services; b. providing and commissioning energy efficient fixed building services with effective controls; and c. providing to the owner sufficient information about the building, the fixed building services and their maintenance requirements so that the building can be operated in such a manner as to use no more fuel and power than is reasonable in the circumstances.

  23. Regulation 17 – EPBD Article 3, 4 & 5 (ADL2A) 17A. The Secretary of State shall approve a methodology of calculation of the energy performance of buildings. 17B. The Secretary of State shall approve minimum energy performance requirements for new buildings, in the form of target CO2 emission rates, which shall be based upon the methodology pursuant to regulation 17A. 17C. Where a building is erected, it shall not exceed the target CO2 emission rate for the building pursuant to regulation 17B. 17E. In this Part ‘building’ means the building as a whole or parts of it that have been designed or altered to be used separately.

  24. Regulation 17 – EPBD Article 6 (ADL2B) • 17D. (1) Paragraph (2) applies to an existing building with a total useful floor area over 1000m2 where the proposed building work consists of or includes: • an extension • the initial provision of any fixed building services; or • an increase to the installed capacity of any fixed building services • (2) Subject to paragraph (3), where this regulation applies, such work, if any, shall be carried out as is necessary to ensure that the building complies with the requirements of Part L of Schedule 1. • (3) Nothing in paragraph (2) requires work to be carried out if it is not technically, functionally and economically feasible.

  25. The compliance route for new buildings - ADL2A • Meet the carbon target • Based on a whole building energy calculation • Meet the worst acceptable standards • Envelope insulation • Air permeability • Efficiency of building services • Control of summer overheating • Quality of construction & commissioning • Provision of information

  26. Carbon emissions • Calculate carbon emissions from ‘notional’ building • 2002 elemental standards • Calculate carbon emissions target (TER) • Improvement factor + renewables benchmark • Calculate predicted carbon emissions from actual building (BER) • Same occupancy as notional building • Preliminary calculation of BER at design stage • Final calculation of BER as built • BER must be lower than TER

  27. Building certification – EPBD Article 7 • Asset rating • Operational rating • Implementation now decided in principle • Three year extension to train experts • Develop certification schemes • Home inspectors to prepare information for home information packs

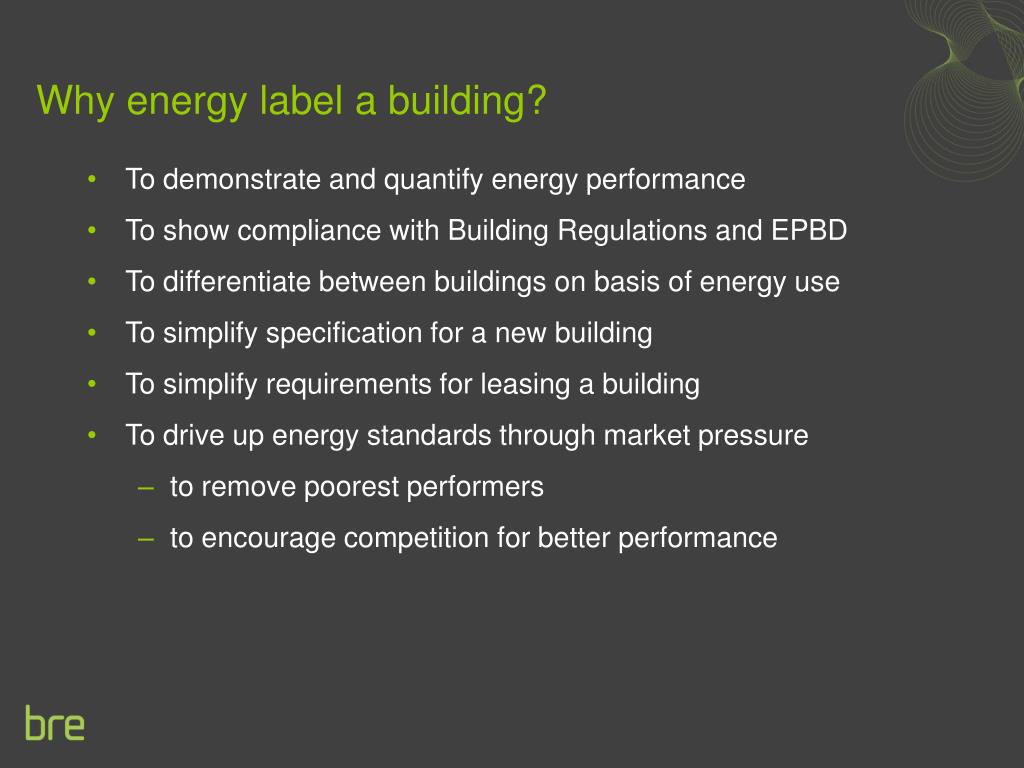

  28. Why energy label a building? • To demonstrate and quantify energy performance • To show compliance with Building Regulations and EPBD • To differentiate between buildings on basis of energy use • To simplify specification for a new building • To simplify requirements for leasing a building • To drive up energy standards through market pressure • to remove poorest performers • to encourage competition for better performance

  29. Energy labels for buildings • Almost all relate only to components • Some have a performance threshold • pass criteria raised from time to time, but once given, label remains • Others place absolute performance on a relative scale

  30. Energy rating definitions • New Building Design Rating • a calculation of building energy performance carried out as part of building control submission • used to show compliance with Part L energy performance requirements • New Building Asset Rating • a calculation of intrinsic energy performance “as-built” • rating base line to be the equivalent ‘notional building’ • Existing Building Asset Rating • provided to prospective purchaser or tenant • based on the intrinsic energy performance of the building • Operational Rating • used for public display/disclosure purposes • based on actual building performance/energy management • derived from metered energy data and floor area

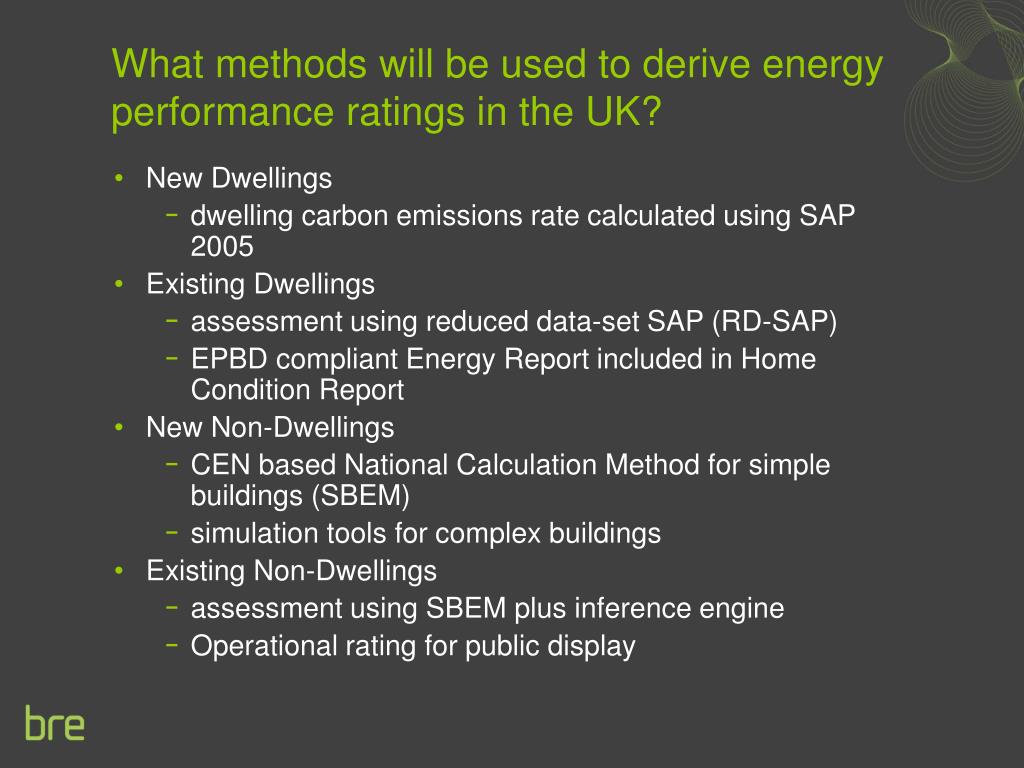

  31. What methods will be used to derive energy performance ratings in the UK? • New Dwellings • dwelling carbon emissions rate calculated using SAP 2005 • Existing Dwellings • assessment using reduced data-set SAP (RD-SAP) • EPBD compliant Energy Report included in Home Condition Report • New Non-Dwellings • CEN based National Calculation Method for simple buildings (SBEM) • simulation tools for complex buildings • Existing Non-Dwellings • assessment using SBEM plus inference engine • Operational rating for public display

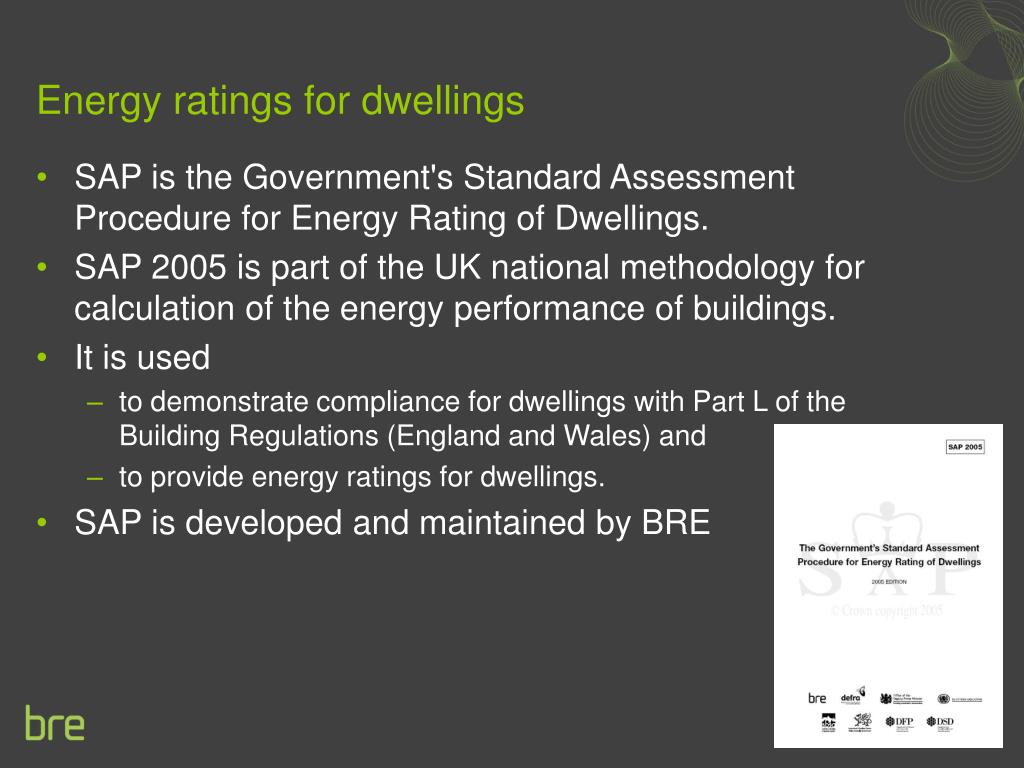

  32. Energy ratings for dwellings • SAP is the Government's Standard Assessment Procedure for Energy Rating of Dwellings. • SAP 2005 is part of the UK national methodology for calculation of the energy performance of buildings. • It is used • to demonstrate compliance for dwellings with Part L of the Building Regulations (England and Wales) and • to provide energy ratings for dwellings. • SAP is developed and maintained by BRE

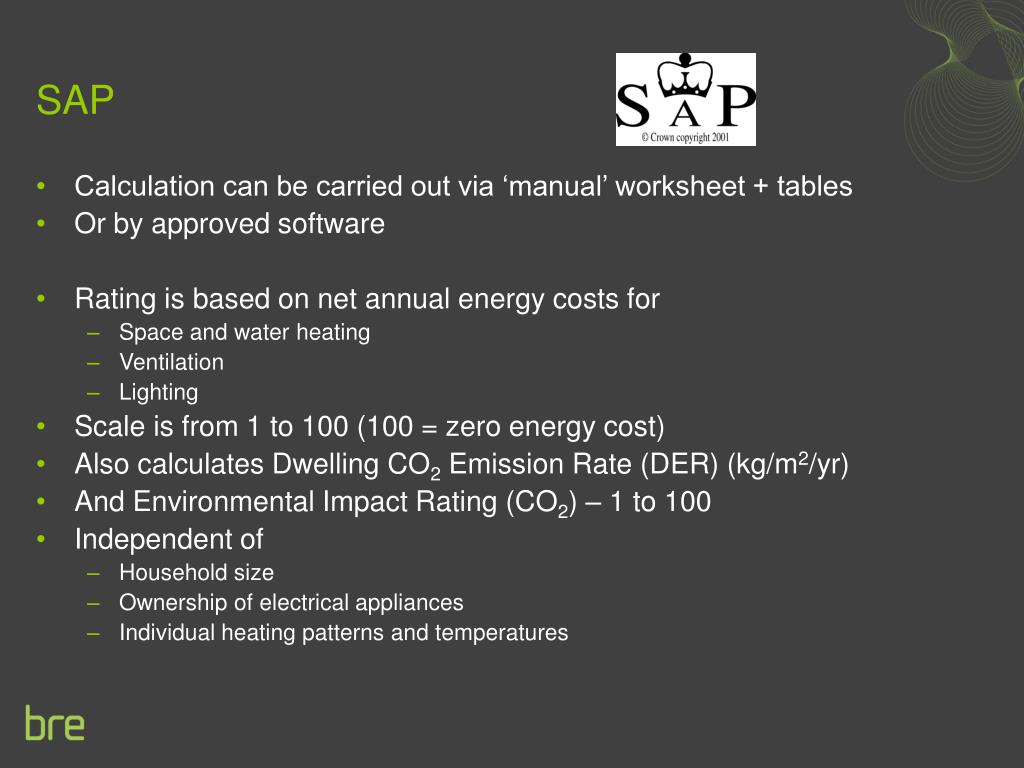

  33. SAP • Calculation can be carried out via ‘manual’ worksheet + tables • Or by approved software • Rating is based on net annual energy costs for • Space and water heating • Ventilation • Lighting • Scale is from 1 to 100 (100 = zero energy cost) • Also calculates Dwelling CO2 Emission Rate (DER) (kg/m2/yr) • And Environmental Impact Rating (CO2) – 1 to 100 • Independent of • Household size • Ownership of electrical appliances • Individual heating patterns and temperatures

  34. Reduced Data SAP for existing dwellings • Based on site survey • Limited collection of data • Default U-values based on age and type of construction • Provides recommendations for improvements

  35. Part of Home Condition Report

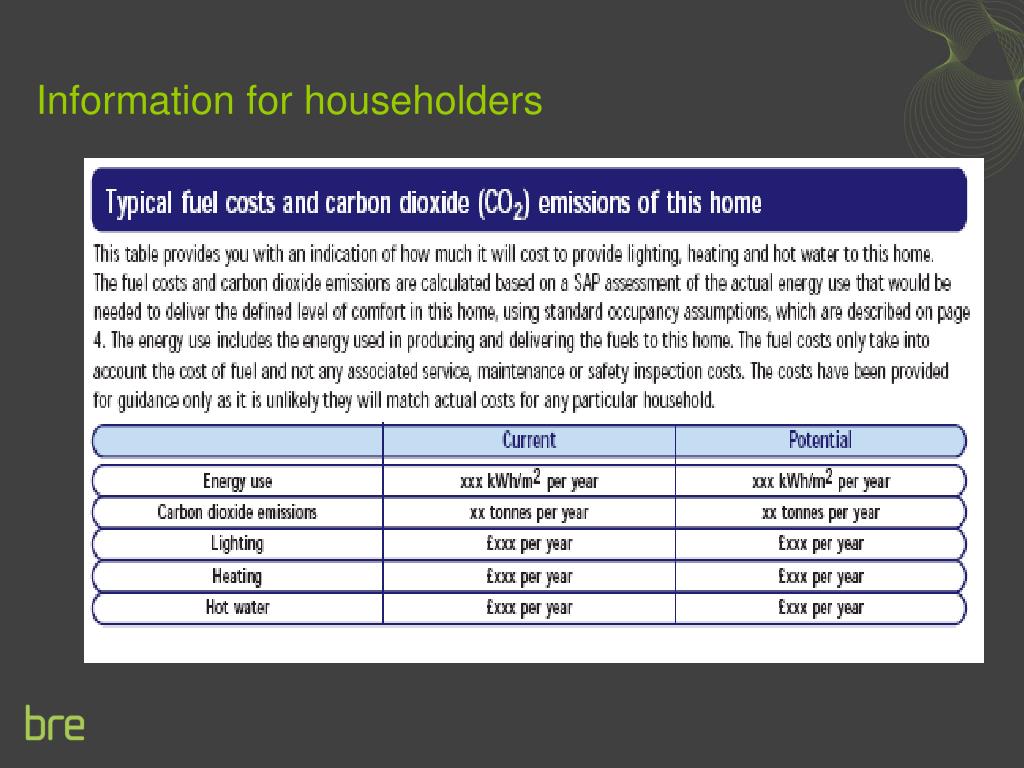

  36. Information for householders

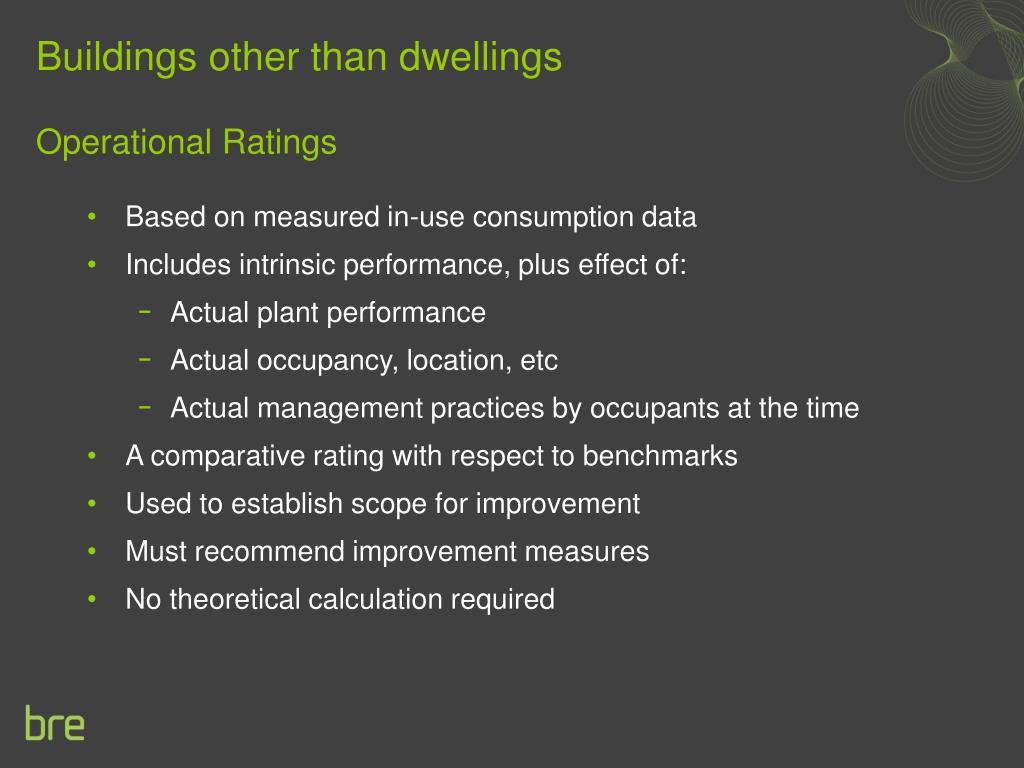

  37. Buildings other than dwellingsOperational Ratings • Based on measured in-use consumption data • Includes intrinsic performance, plus effect of: • Actual plant performance • Actual occupancy, location, etc • Actual management practices by occupants at the time • A comparative rating with respect to benchmarks • Used to establish scope for improvement • Must recommend improvement measures • No theoretical calculation required

  38. Buildings other than dwellingsCalculation methods • Either use simulation software (such as IES and TAS) • Or a new, simplified calculation tool – SBEM • SBEM (Simplified Building Energy Model) was developed by BRE for ODPM in 2005 • Now the default calculation method for energy performance evaluation

  39. SBEM – meeting two inter-related requirements • Building Regulations Part L2a • New revision came into force April 2006 • New buildings – design approval and completion • Energy Performance of Buildings Directive • Minimum energy performance for new buildings (Part L2A) • Energy certificate required when sold or leased • Energy certificate required for public display?

  40. SBEM produces an Asset Rating • The calculated intrinsic performance of the building as built • Normalised to standard conditions (weather, occupancy) • Recognises different ‘activity areas’ • Applicable to both new and existing buildings • Automatically compares with a ‘Notional Building’ as the baseline • Used to demonstrate compliance with minimum standard • And perhaps to generate a comparative rating (‘A-G’ or 0-100) • Used to compare one building with others • Also need a ‘Design rating’ before building is built • Government has not yet finalised Asset Rating definition

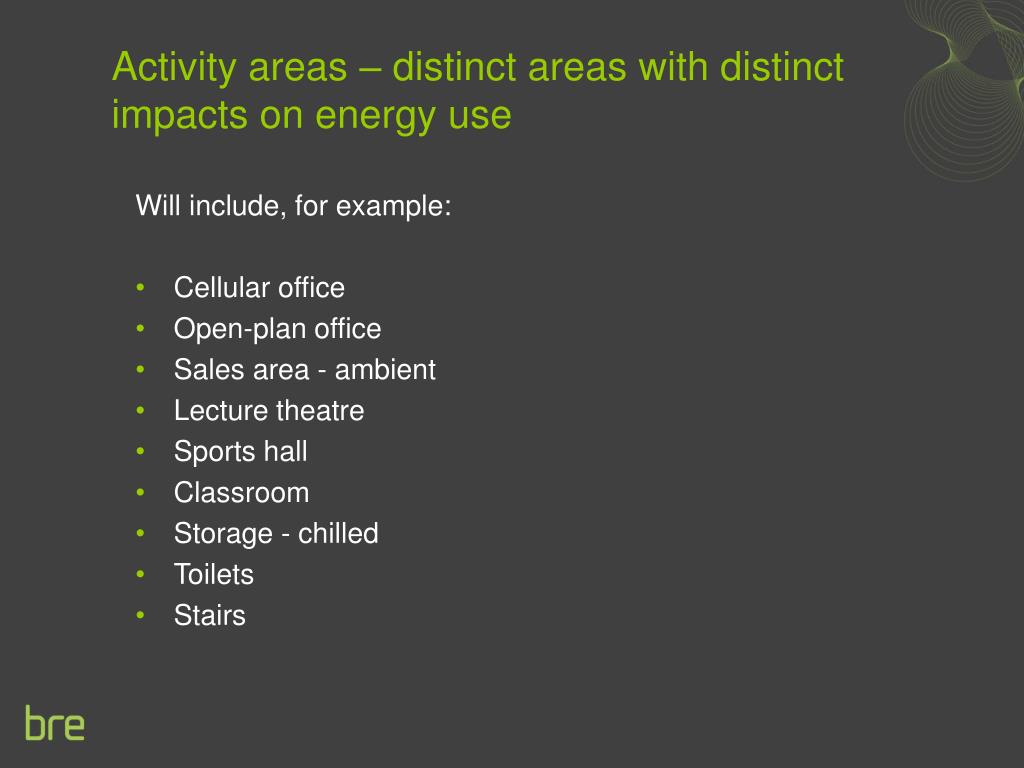

  41. Activity areas – distinct areas with distinct impacts on energy use Will include, for example: • Cellular office • Open-plan office • Sales area - ambient • Lecture theatre • Sports hall • Classroom • Storage - chilled • Toilets • Stairs

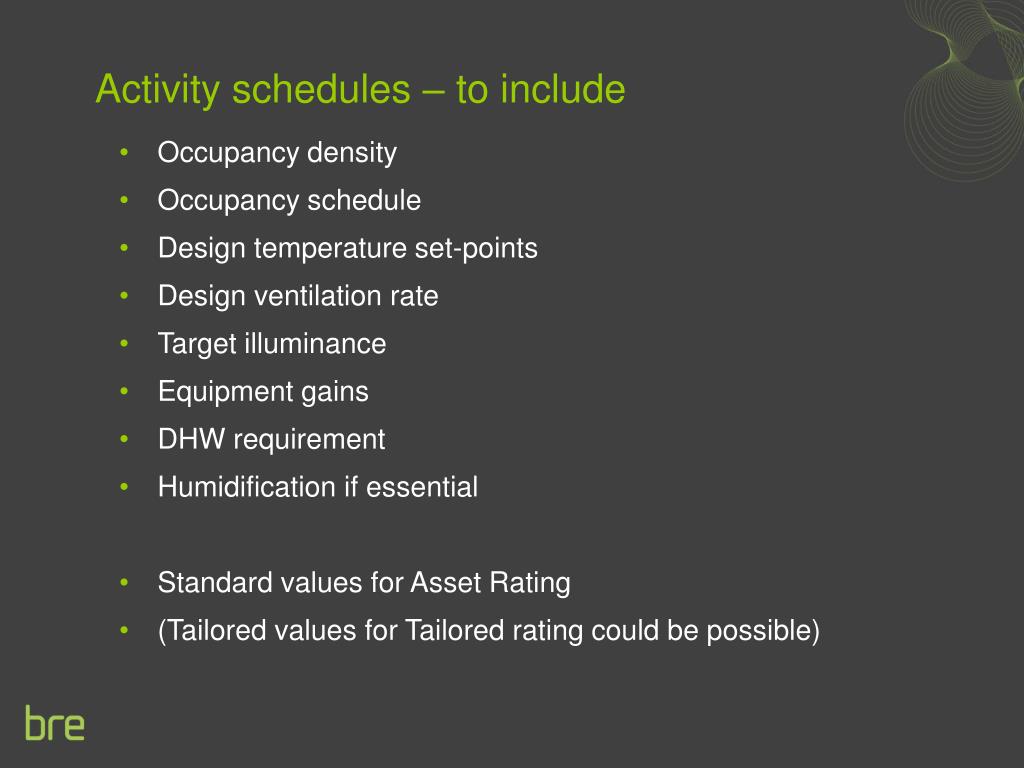

  42. Activity schedules – to include • Occupancy density • Occupancy schedule • Design temperature set-points • Design ventilation rate • Target illuminance • Equipment gains • DHW requirement • Humidification if essential • Standard values for Asset Rating • (Tailored values for Tailored rating could be possible)

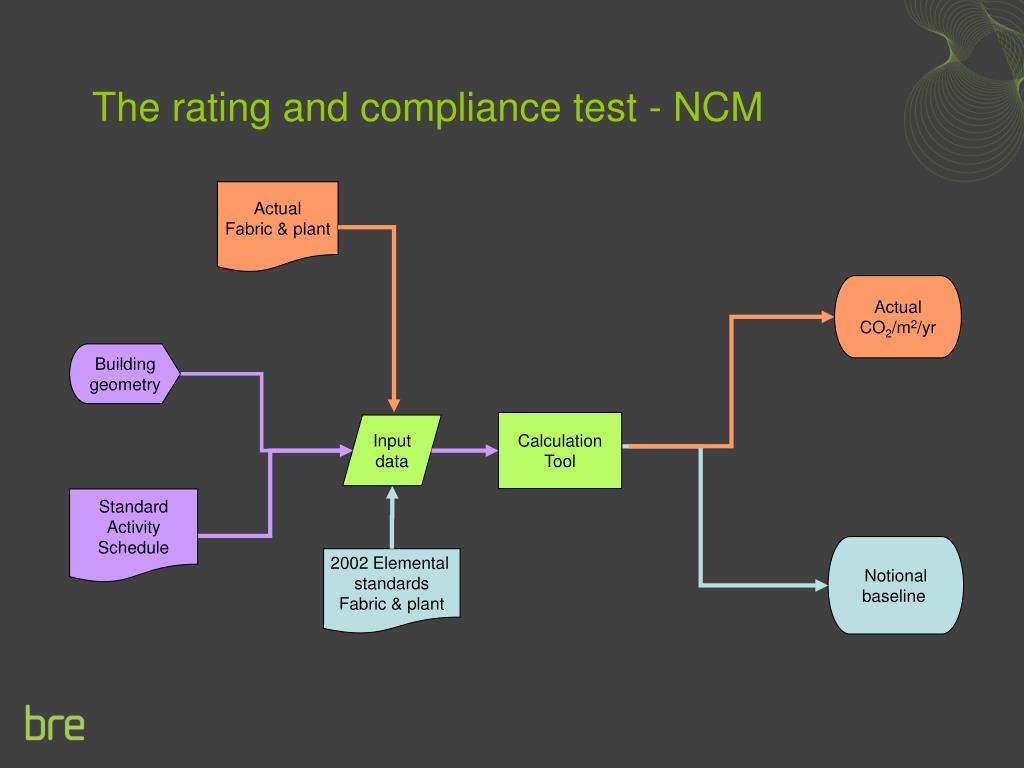

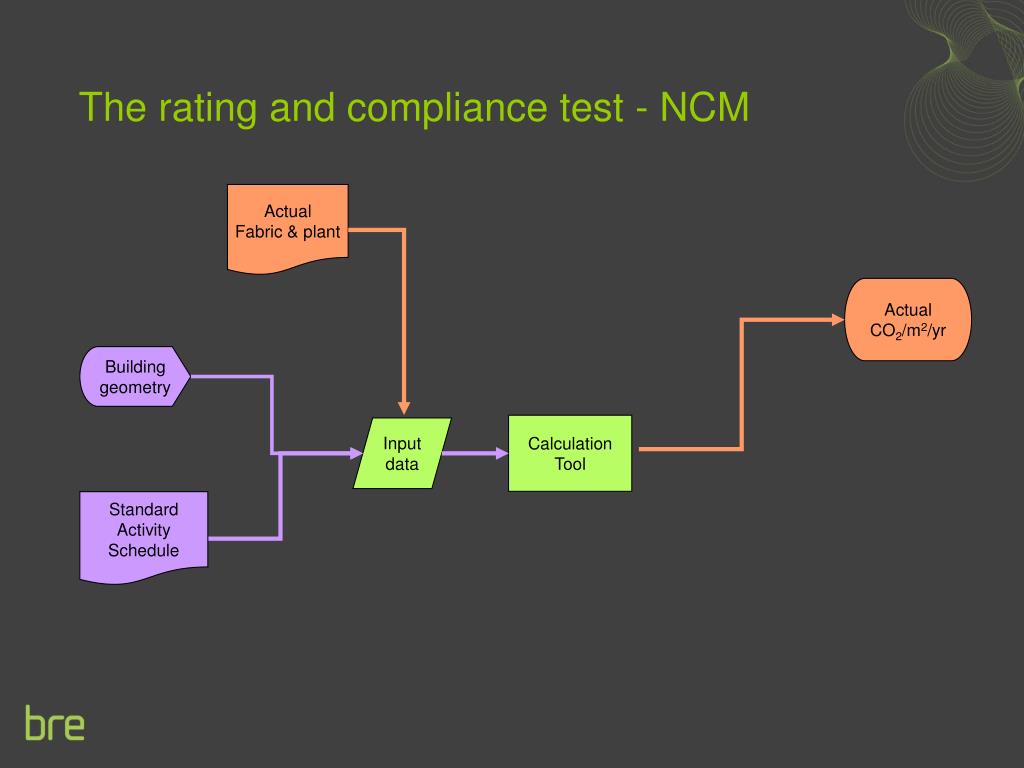

  43. Actual Fabric & plant Actual CO2/m2/yr Calculation Tool Input data The rating and compliance test - NCM Building geometry Standard Activity Schedule

  44. Actual Fabric & plant Actual CO2/m2/yr Calculation Tool Input data Notional baseline 2002 Elemental standards Fabric & plant The rating and compliance test - NCM Building geometry Standard Activity Schedule

  45. National Calculation Method – overview of iSBEM approach Calculation core SBEM Interface iSBEM User Interface Activity Database Fabric database Service database

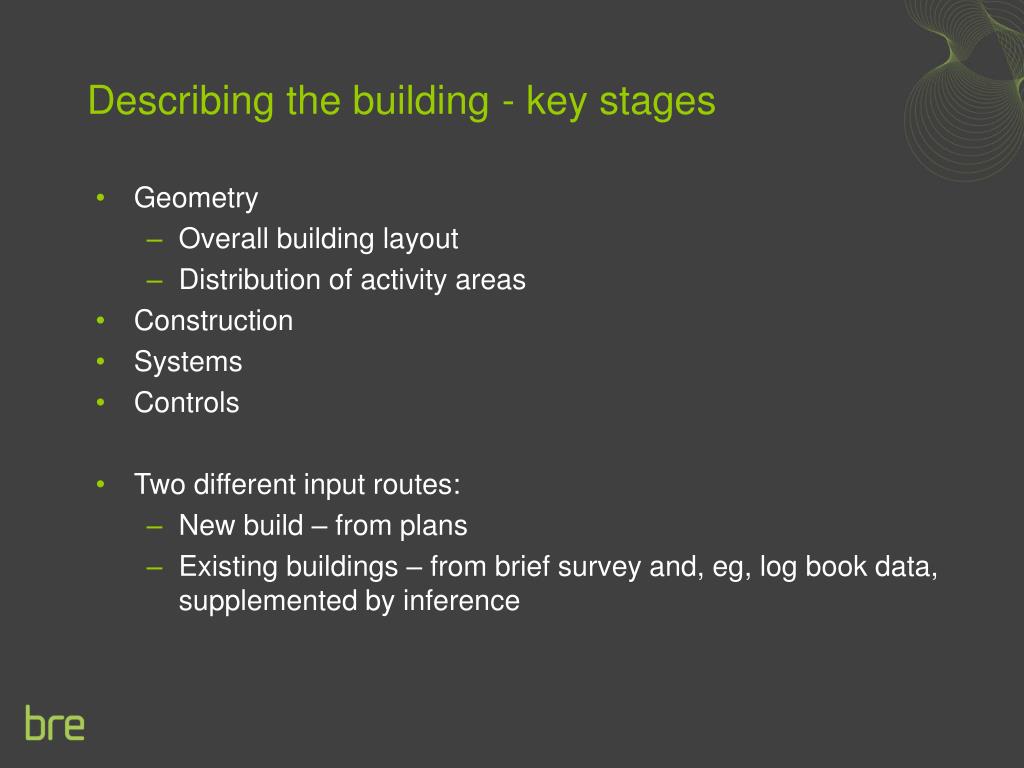

  46. Describing the building - key stages • Geometry • Overall building layout • Distribution of activity areas • Construction • Systems • Controls • Two different input routes: • New build – from plans • Existing buildings – from brief survey and, eg, log book data, supplemented by inference

  47. iSBEM – General information
