Presentation Transcript
The eu energy performance of buildings directive epbd

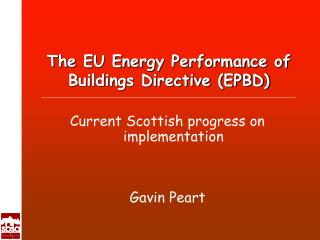

The EU Energy Performance of Buildings Directive (EPBD)

Current Scottish progress on implementation

Gavin Peart


Epbd background
EPBD – Background

  • An EU Directive is a set of rules imposed on Member States by the European Parliament

  • It applies to all Member States

  • We can’t avoid implementation in Scotland

  • The ‘top line’ of this Directive is to ‘promote improvement in energy performance’


Epbd set in context
EPBD – Set in context

  • Review of the Scottish Building Standards System – The Building (Scotland) Act 2003

  • Review of Section 6: Energy

  • Housing Act (Single Survey)

  • Scottish Housing Quality Standard (SHQS)


Epbd and new scottish system
EPBD and new Scottish System

Review of building standards system:

  • Started before EPBD negotiations

  • Implementation timescale

  • New system essential to EPBD implementation

  • New system started on 1 May 2005


Epbd and review of energy stds
EPBD and review of Energy Stds

  • Current functional standards & guidance = level transposition

  • Drivers for the review

  • Consultation on proposed Energy Standards is now underway


Epbd and housing act
EPBD and Housing Act

  • Energy certification in consultation

  • ‘Single survey’


Epbd and shqs
EPBD and SHQS

  • Commitments for 2015


Epbd who does what
EPBD – Who does what

  • SBSA – lead for Scotland

  • ODPM BR Division – lead for E & W (assisted by DEFRA)

  • DFP BR Unit – lead for NI

  • ODPM BR Division - negotiate for UK


Aims of epbd
Aims of EPBD

Reduce energy use in buildings

to:

  • Meet EU’s Kyoto Protocol commitments

    and at same time:

  • Perceptibly increase user comfort

    but without requiring:

  • huge additional expenditure

    Exemptions:

  • Buildings that are not cooled or heated


How will epbd do this
How will EPBD do this?

Member States must:

  • Adopt a methodology

  • Set minimum standards for new build

  • Give consideration to LZC technologies

  • Use minimum standards for renovations

  • Require energy performance certificates

  • Require advice/inspection of boilers & air-con


Methodologies
Methodologies

They are needed for:

  • Setting standards (SAP and SBEM)

  • Generation of energy performance certificates

    The types of building:

  • Domestic (SAP)

  • Non-domestic (SBEM)

    Directive compliant? - Yes


Setting standards
Setting standards

  • No level of energy performance specified for MSs to achieve

  • Review standards at least every 5 years

  • Exempt buildings

  • Reverse engineering

    Directive compliant? - Yes


New buildings
New buildings

New build must meet minimum standards:

  • Building regulations & guidance

  • The building standards system

    New buildings (1000m2) must take LZC

    energy generating technologies, etc. into

    account where feasible

  • Output of research on SBSA website

    Directive compliant? - Yes


Existing buildings
Existing buildings

The EPBD allows 2 options on tackling

renovations in (1000m2) buildings:

  • The renovated systems will need to

    meet standards, or

  • The renovated building as a whole

    will need to meet standards

    First option adopted

    Directive compliant? - Yes


Next stages
Next stages

  • Notify Europe

  • Consultation


Energy performance certificate
Energy performance certificate

The purpose of an EPC is to provide

information to owners, tenants and visitors

Building (Scotland) Act 2003 powers:

  • Require owners to obtain them through enforcement notices

  • Require display in buildings

  • Penalties for non-compliance

  • Register?


Epc timetable
EPC Timetable

  • Construction

  • Sale

  • Rental

  • Large public buildings


Energy performance certificate1
Energy performance certificate

The EPBD requires an EPC:

  • Construction, sale, rental and displayed at all times in (1000m2) public buildings

  • Consultation

  • Guidance

  • Drafting secondary legislation

  • Certification work


Energy performance certificate2
Energy performance certificate

Methodologies – not all finalised – but will

include:

  • SAP

  • SBEM

  • RDSAP

  • SERT?

  • DSM?

    Appearance of EPC not finalised – but

    will include:

  • Numeric indicator of performance (CO2)

  • Heating type

  • Energy used

  • A-G banding

  • Benchmarks

  • Cost-effective recommendations


Inspection of boilers
Inspection of boilers

Two options:

  • Inspection and offer advice – but independent manner of inspections; or

  • Offer advice (with possibly some inspections) – but there are reporting requirements

    Second option proposed – SBSA are working

    with EST as a partner organisation


Inspection of boilers1
Inspection of boilers

Partner organisation

  • Technical advice to users already drafted

  • Send out advice – target audience

  • Use BSR as resource (+ other avenues)

  • Feedback


Inspection of air conditioning
Inspection of air-conditioning

Only one option:

  • Inspection and advice done in an independent manner

  • We set a functional standard and use continuing requirement powers in Building (Scotland) Act 2003

  • Inspection work


Summary of implementation
Summary of implementation

  • Have notified Europe about Art. 3,4,5 & 6 and the derogations

  • Public consultation April/May 2006 (12weeks)

  • Submit timetable for derogation of EPCs and boiler/air-con system inspections (Summer 2006)

  • Summer 2006 start boiler advice


Summary of implementation1
Summary of implementation

  • Once non-domestic methodology available, commence roll-out of EPCs for public buildings

  • Spring 2007, implement changes to energy standards in Scottish Regs and EPCs for construction

  • 2008?, align with Single Survey and EPCs at sale

  • Jan 2009, EPCs at rental

  • 2007/2008 phased air-con system inspections


Key articles
Key Articles

Art 3 Adoption of a methodology

Art 4 Setting energy performance reqmts

Art 5 New buildings (min stds & LZC sys)

Art 6 Existing buildings (renovations)

Art 7 Energy performance certificates

Art 8 Inspection of boilers

Art 9 Inspection of air-conditioning

Art 10 Independent experts


QUESTIONS?

[email protected]

website

www.sbsa.gov.uk
