Presentation Transcript


A portable readout system for microstrip silicon sensors alibava

A portable readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 1

A portable readout system for microstrip silicon sensors (ALIBAVA)

Bernabeu, J.a, Casse, G.b, García, C.a, Greenall, A.b, Lacasta, C.a, Lozano, M.c, Marco-Hernández, R.a, Martí i García, S.a, Martinez, R.bMiñano, M.a, Pellegrini, G.c, Smith, N. A.b, Ullán, M.c

a Instituto de Física Corpuscular (IFIC), Universidad de Valencia-CSIC,Valencia, Spain.

b Department of Physics, Oliver Lodge Laboratory, University of Liverpool, Liverpool, UK.

c Instituto de Microelectrónica de Barcelona, IMB-CNM, CSIC, Barcelona, Spain


Outline

A portable readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 2

Outline

  • Motivations.

  • System requirements.

  • System architecture.

  • Daughter board:

    • Block diagram.

    • Beetle chip.

    • Fan-ins.

  • Mother board:

    • Block diagram.

    • FPGA logic.

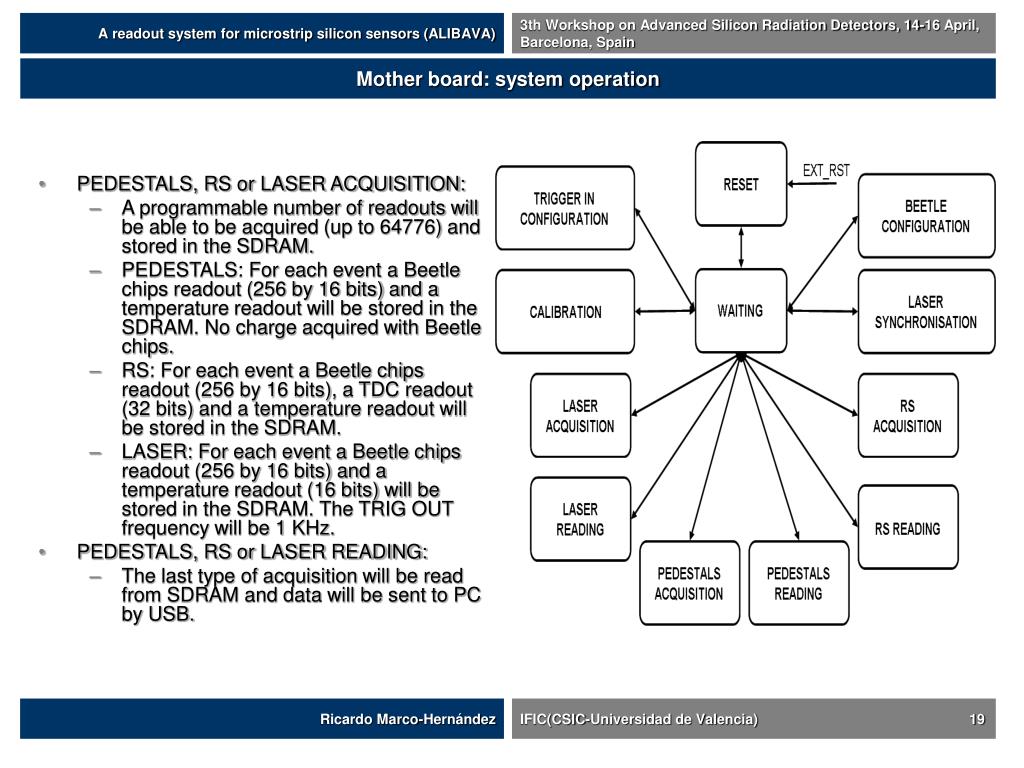

    • System operation.

  • PC software characteristics.

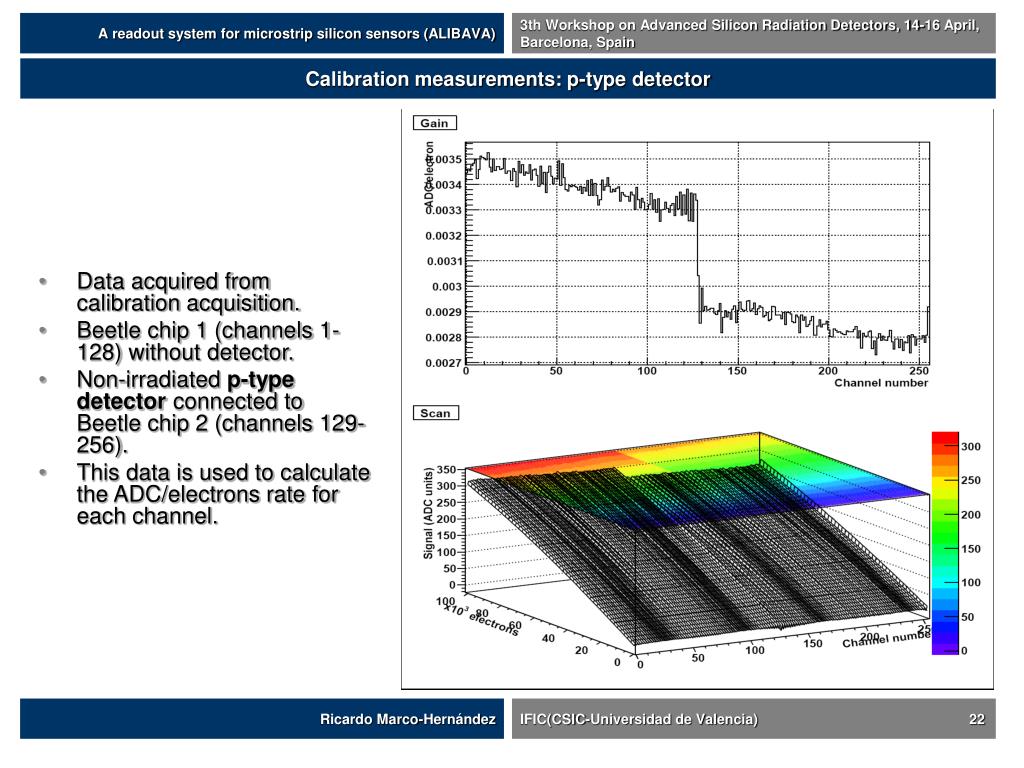

  • Calibration measurements.

  • Measurements with laser setup.

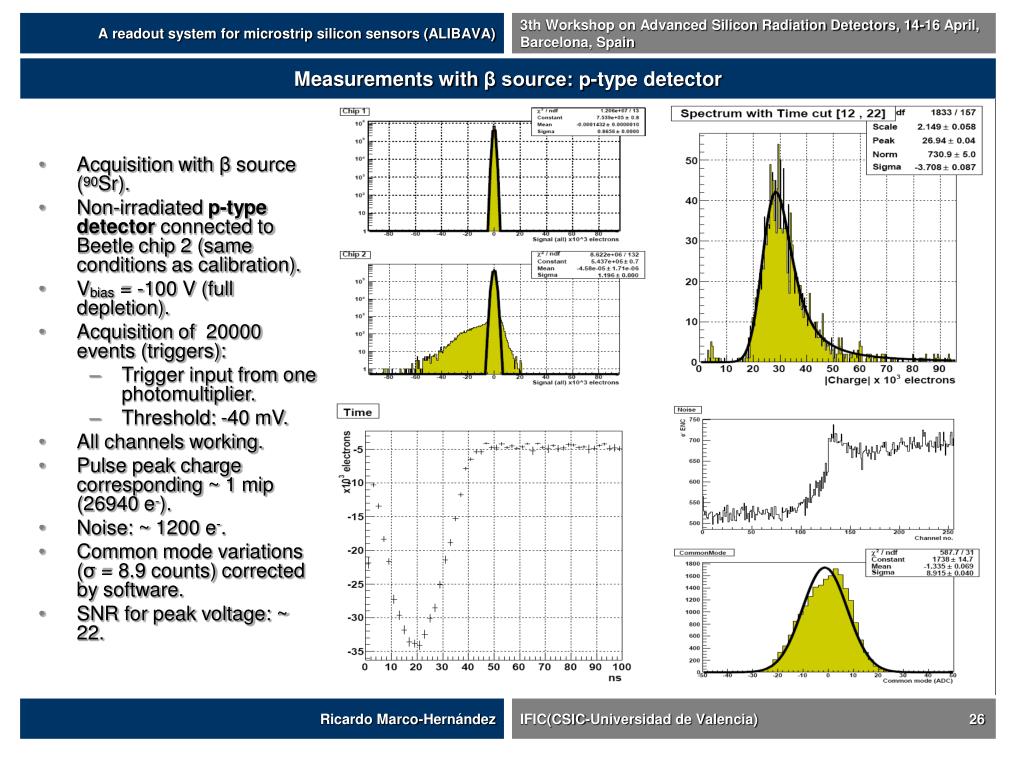

  • Measurements with β source.

  • Conclusions and outlook.


Motivations

A portable readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 3

Motivations

  • Study the main properties of highly irradiated microstrip silicon sensors: SLHC.

  • Particularly the collected charge: detector performance.

  • Difficulty for obtaining this type of measurements:

    • Required equipment is expensive.

    • A large number of channels has to be measured.

    • There is minimum standardization.

  • Testing with an electronic system as similar as possible to those used at LHC experiments: a LHC front end readout chip should be used.

  • Analogue readout is preferred for accurate pulse shape reconstruction.


System requirements

A portable readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 4

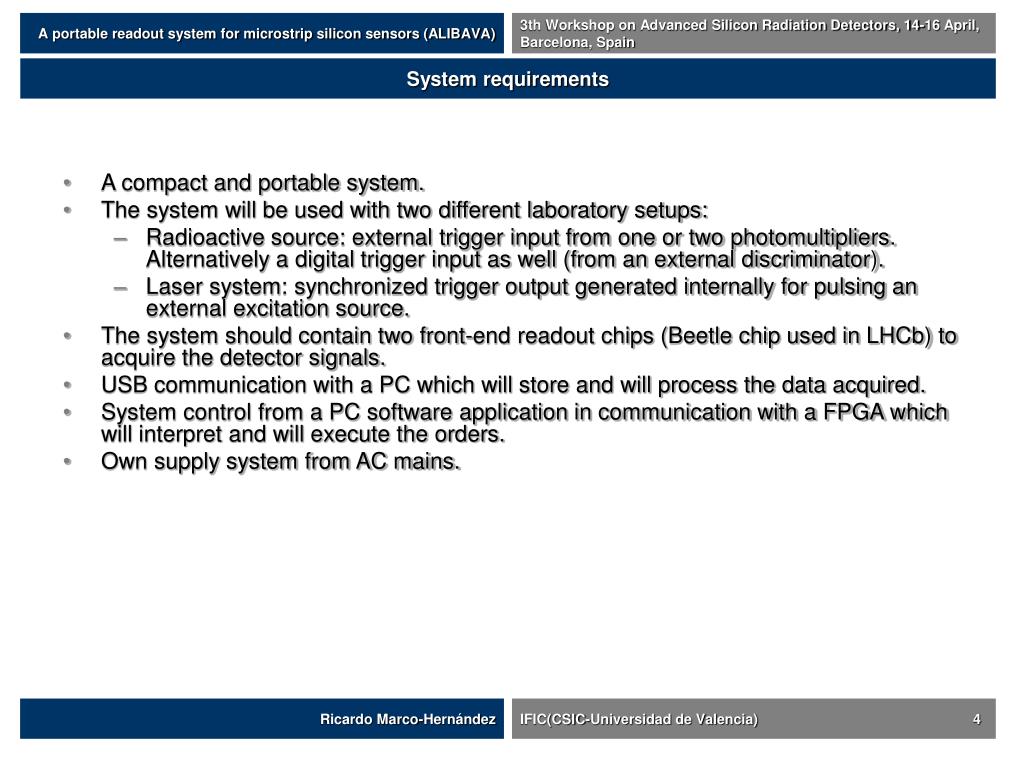

System requirements

  • A compact and portable system.

  • The system will be used with two different laboratory setups:

    • Radioactive source: external trigger input from one or two photomultipliers. Alternatively a digital trigger input as well (from an external discriminator).

    • Laser system: synchronized trigger output generated internally for pulsing an external excitation source.

  • The system should contain two front-end readout chips (Beetle chip used in LHCb) to acquire the detector signals.

  • USB communication with a PC which will store and will process the data acquired.

  • System control from a PC software application in communication with a FPGA which will interpret and will execute the orders.

  • Own supply system from AC mains.


System requirements1

A portable readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 5

System requirements

  • A compact and portable system.

  • The system will be used with two different laboratory setups:

    • Radioactive source: external trigger input from one or two photomultipliers

    • Laser system: synchronized trigger output generated internally for pulsing an external excitation source.

  • The system should contain two front-end readout chips (Beetle chip used in LHCb) to acquire the detector signals.

  • USB communication with a PC which will store and will process the data acquired.

  • System control from a PC software application in communication with a FPGA which will interpret and will execute the orders.

  • Own supply system from AC mains.

The main goal is reconstructing the analogue pulse shape from the readout chip front-end with the highest fidelity from the acquired data.


System architecture

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 6

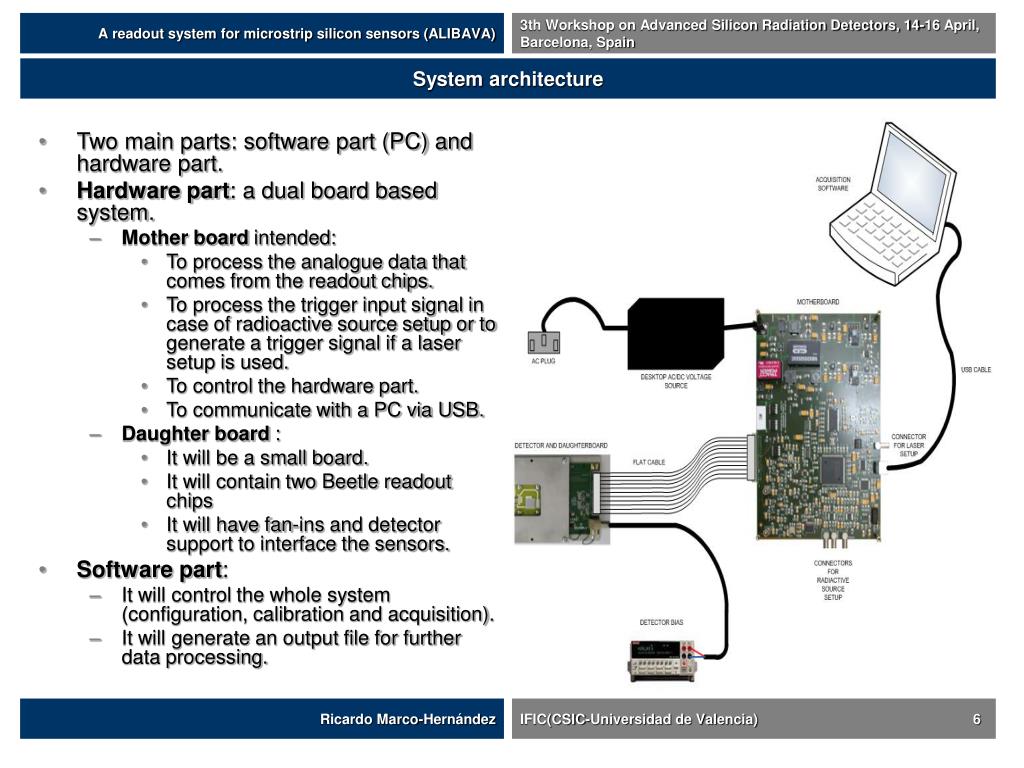

System architecture

  • Two main parts: software part (PC) and hardware part.

  • Hardware part: a dual board based system.

    • Mother board intended:

      • To process the analogue data that comes from the readout chips.

      • To process the trigger input signal in case of radioactive source setup or to generate a trigger signal if a laser setup is used.

      • To control the hardware part.

      • To communicate with a PC via USB.

    • Daughter board :

      • It will be a small board.

      • It will contain two Beetle readout chips

      • It will have fan-ins and detector support to interface the sensors.

  • Software part:

    • It will control the whole system (configuration, calibration and acquisition).

    • It will generate an output file for further data processing.


Daughter board block diagram

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 7

Daughter board: block diagram

  • Two Beetle readout chips in parallel mode (256 input channels).

  • A buffer stage for each analogue output of the Beetle chips:

    • Differential current to differential voltage buffer (AD8132) implemented.

    • Buffered signals are sent to the mother board with impedance matched.

  • Fast control (LVDS signals) and slow control (I2C bus) shared by Beetle chips.

  • A thermistor (NTC) for sensing the temperature close to the Beetle chips.

  • Low voltage DC level (5 V) for Beetle chips (2.5 V) and buffer stage power supply (3 V).

  • High voltage DC level for silicon detector(s) bias through a power lemo connector.

  • Fan-ins and detector board.


Daughter board beetle chip

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 8

Daughter board: Beetle chip

  • Readout chip developed at ASIC laboratory of the University of Heildelberg.

  • Front-end output signal: signal that will be reconstructed from analogue readout onto one port.

  • This signal is sampled into the analogue pipeline (128x187 cells) with the frequency of the Beetle chip clock (40 MHz).

  • Vp = kQ. Tp ~ 25 ns. Total pulse length about 65-70 ns.

  • The analogue pipeline programmable latency fixed to 128 CLK cycles (3.2 µs).

  • The TRIGGER signal will have to be active 128 CLK cycles (3.2 µs) after a particular front-end signal point of interest has been sampled.


Daughter board beetle chip output format

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 9

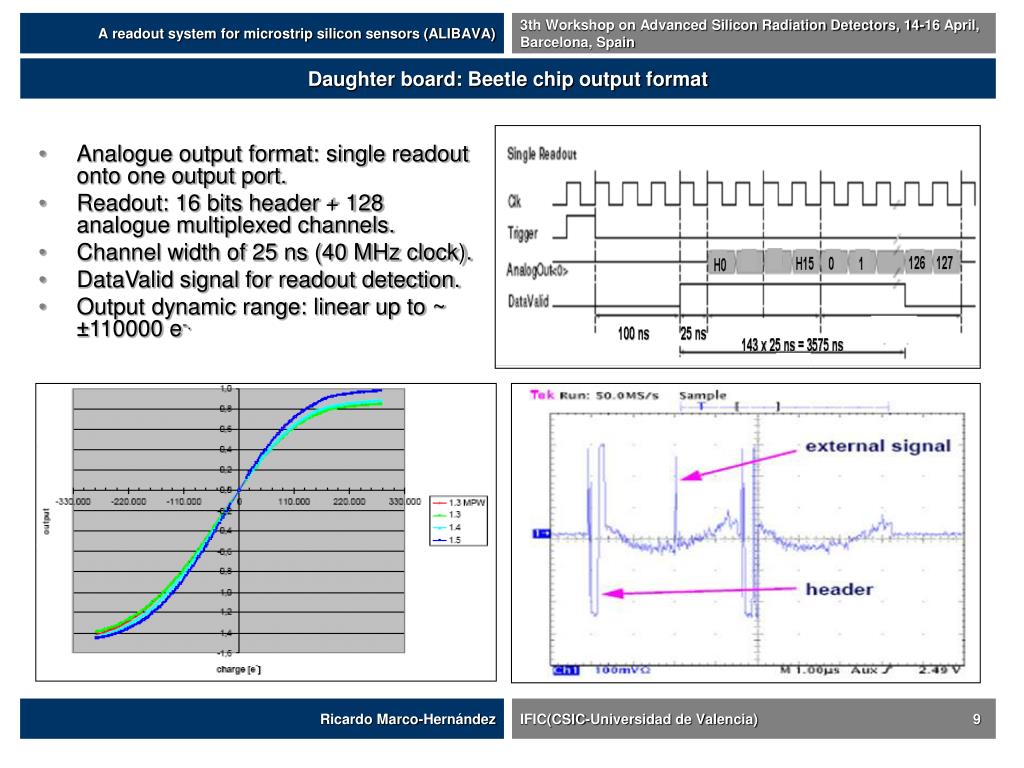

Daughter board: Beetle chip output format

  • Analogue output format: single readout onto one output port.

  • Readout: 16 bits header + 128 analogue multiplexed channels.

  • Channel width of 25 ns (40 MHz clock).

  • DataValid signal for readout detection.

  • Output dynamic range: linear up to ~ ±110000 e-.


Daughter board detector support

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 10

Daughter board: detector support

  • Fan-ins:

    • Three fan-ins: chip fan-in, intermediate fan-in and detector fan-in.

    • Each fan-in has pads of 80 um pitch not staggered and 10 rows for multiple wire bonding.

  • Text-box:

    • Daughter board and detector boards are fixed to base plate for facilitating wire-bonding.

  • Two flavours of detector board exist:

    • Small, for 1cm2 sensors (board dimensions ~37mm x 32mm).

    • Large, for 1cm x 3cm sensors (board dimensions ~37mm x 50mm).


Mother board block diagram

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 11

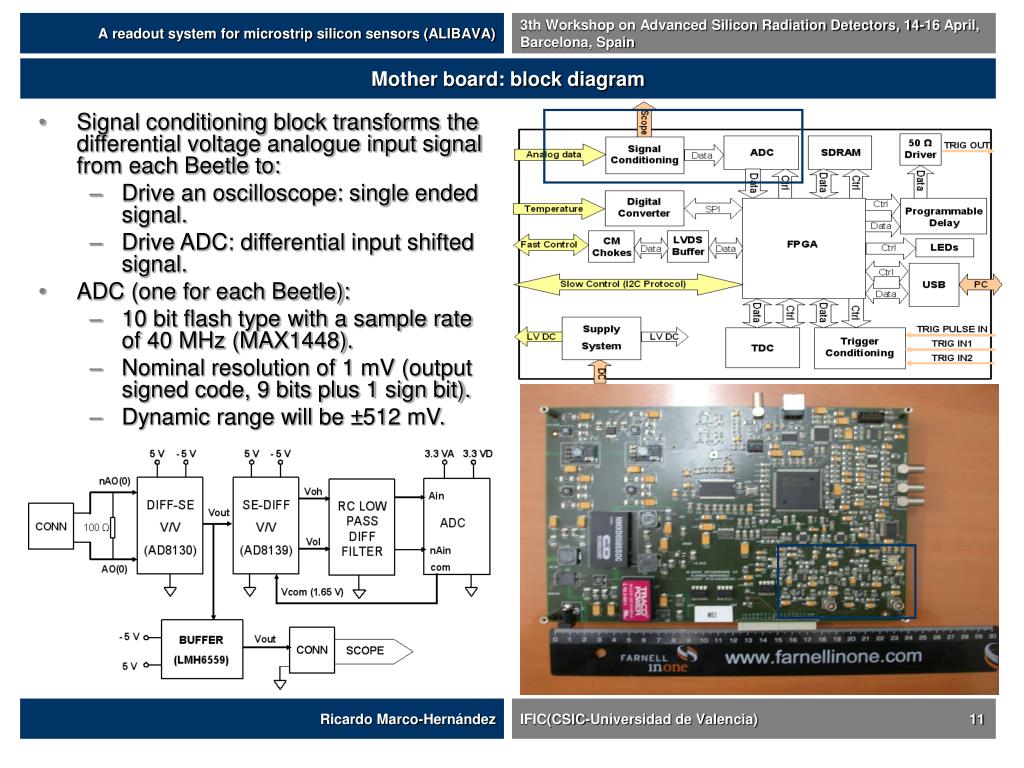

Mother board: block diagram

  • Signal conditioning block transforms the differential voltage analogue input signal from each Beetle to:

    • Drive an oscilloscope: single ended signal.

    • Drive ADC: differential input shifted signal.

  • ADC (one for each Beetle):

    • 10 bit flash type with a sample rate of 40 MHz (MAX1448).

    • Nominal resolution of 1 mV (output signed code, 9 bits plus 1 sign bit).

    • Dynamic range will be ±512 mV.


Mother board block diagram1

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 12

Mother board: block diagram

  • In case of radioactive source setup for obtaining a time stamp of each trigger.

  • Trigger conditioning:

    • Leading-edge discrimination for two photomultiplier analogue input signals.

    • Level conversion for an auxiliary signal (current or voltage).

    • Two dual LVPECL high speed comparators (MAX9601).

    • Four programmable voltage thresholds: generated with a quad 12 bits DAC (DAC7614).

  • TDC: measurement of t between input trigger and a periodic reference signal (100 ns).

    • A TDC integrated circuit (TDC-GP1).

    • Nominal resolution: 600 ps.

    • 100 ns dynamic range.


Mother board block diagram2

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Programmable delay

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 13

Mother board: block diagram

  • In case of laser setup.

  • A synchronised output trigger signal (TRIG OUT) will be generated to drive a laser source to reconstruct the Beetle front-end pulse shape.

  • Programmable delay circuit (3D7428):

    • Resolution: 1 ns.

    • Range: up to 255 ns.

    • Programmed by FPGA by serial interface.

  • Following this block a 50 Ω driver will be incorporated for driving a pulse generator input.


Mother board block diagram3

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 14

Mother board: block diagram

  • SDRAM (256 Mb): for acquisition data storage.

  • TEMPERATURE CONVERTER: NTC thermistor signal digitalization.

  • SLOW CONTROL: generated directly by the FPGA. External pull-up resistors for SDA and SCL lines.

  • FAST CONTROL:

    • LVDS driver (DS90LV47A) and LVDS receiver (DS90LV48A).

    • Six CM noise suppressor chokes (23Z105SM).

  • USB: USB controller (FT245R) for USB to FIFO parallel (8 bits) bidirectional data transfer.

  • SUPPLY SYSTEM:

    • DC input (5V) from AC adapter.

    • Digital levels from 2 DC-DC converter (1.2 V and 3.3 V) + 1 linear regulator (2.5 V).

    • Analogue levels from DC-DC converter (±5V) + 1 linear regulator (3.3V).

    • Daughter board level from DC-DC converter (5V).


Mother board fpga logic

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 15

Mother board: FPGA logic

  • FPGA hardware:

    • Xilinx Spartan-3 (XS3400-PQ208) clocked at 40 MHz.

    • External reset push button.

    • On-system configuration PROM memory.

    • Two LEDs for system status.

  • FPGA logic operation:

    • Custom logic blocks (VHDL) for low level hardware control.

    • Centralized control from a CFSM.

  • FPGA logic blocks:

    • A CFSM (Central Finite State Machine) will control the different blocks depending on the current state of the system.

    • Radioactive source: the DAC CONTROL, TRIGGER IN and TDC CONTROL will be used for processing the trigger inputs and obtaining a time stamp of each trigger.

    • Laser setup: the TRIGGER OUT block will generate the output trigger signal and will control the programmable delay circuit.


Mother board fpga logic1

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 16

Mother board: FPGA logic

  • FPGA logic blocks:

    • ADC CONTROL: readout of the digitized data frames when the input DataValid (fast control) signal will be active. This digitized data will be stored in a internal FIFO RAM.

    • BEETLE FAST CONTROL: generation of fast control signals (Clk, Trigger, Testpulse and Reset) depending on the state of the system.

    • BEETLE SLOW CONTROL: I2C master controller for writing/reading the Beetle internal registers (slow control) for configuration.

    • SDRAM CONTROL: implements a controller for interfacing the SDRAM and the CFSM.

    • USB CONTROL: interface between the USB controller and the CFSM.

    • CLOCK GENERATOR: required internal clock and reset signals generation.


Mother board fpga logic2

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 17

Mother board: FPGA logic

  • FPGA logic:

    • The CFSM and SDRAM CONTROL have been implemented with an embedded system (soft processor + SDRAM peripheral).

    • Soft processor: Microblaze (32 bits RISC) at 40 MHz.

    • SDRAM controller included as standard peripheral for the Microblaze.

    • ARBITRER : custom block of registers for communication between the embedded processor and the custom logic blocks.

    • FSLs (Fast Simplex Links): unidirectional FIFOs for fast communication between the ARBITRER and the Microblaze.

  • The functionality of the system is programmed as a standard C program in the processor (firmware): great flexibility for changes.


Mother board system operation

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 18

Mother board: system operation

  • RESET:

    • System initialization.

    • With a power on, with an external reset or by software reset.

  • WAITING:

    • The system will wait for an order coming from the PC software to go to another state.

  • BEETLE CONFIGURATION:

    • Beetle chips configuration registers programming.

  • CALIBRATION:

    • System calibration by the Beetle internal test pulse generator.

    • Known amplitude readouts will be acquired.

  • TRIGGER IN CONFIGURATION:

    • DAC voltage thresholds will be programmed.

    • Trigger inputs scheme will be configured.

  • LASER SYHRONIZATION:

    • The system will be synchronized for the Beetle front end pulse reconstruction.

    • By delaying the TRIG OUT signal in 1 ns steps.


Mother board system operation1

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 19

Mother board: system operation

  • PEDESTALS, RS or LASER ACQUISITION:

    • A programmable number of readouts will be able to be acquired (up to 64776) and stored in the SDRAM.

    • PEDESTALS: For each event a Beetle chips readout (256 by 16 bits) and a temperature readout will be stored in the SDRAM. No charge acquired with Beetle chips.

    • RS: For each event a Beetle chips readout (256 by 16 bits), a TDC readout (32 bits) and a temperature readout will be stored in the SDRAM.

    • LASER: For each event a Beetle chips readout (256 by 16 bits) and a temperature readout (16 bits) will be stored in the SDRAM. The TRIG OUT frequency will be 1 KHz.

  • PEDESTALS, RS or LASER READING:

    • The last type of acquisition will be read from SDRAM and data will be sent to PC by USB.


Pc software

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 20

PC software

  • Functions:

    • Control the whole system (configuration, calibration and acquisition).

    • User interface with the system (GUI).

    • Generation of information (output files).

  • Two software levels:

    • Low level for software/mother board communication by USB: VCP (virtual com port) driver (2.4 Mb/s) used.

    • High level: GUI and output file generation for further processing.

  • Programming language: C++

  • Operating system compatibility:

    • Linux version fully operational.

    • Windows beta version.

  • There are also macros for ROOT in order to process the data acquired with the software.


Calibration measurements n type detector

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 21

Calibration measurements: n-type detector

  • Data acquired from calibration acquisition.

  • Beetle chip 1 (channels 1-128) without detector.

  • Non-irradiated n-type detector connected to Beetle chip 2 (channels 129-256).

  • First 14 and last 14 channels of Beetle 2 without detector: detector of 100 channels.

  • Some channels does not operate due ‘shorts’ at the bonds: reduced gain.

  • This data is used to calculate the ADC/electrons rate for each channel.


Calibration measurements p type detector

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 22

Calibration measurements: p-type detector

  • Data acquired from calibration acquisition.

  • Beetle chip 1 (channels 1-128) without detector.

  • Non-irradiated p-type detector connected to Beetle chip 2 (channels 129-256).

  • This data is used to calculate the ADC/electrons rate for each channel.


Measurements with laser setup n type detector

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 23

Measurements with laser setup: n-type detector

  • Data acquired by means of a laser scan.

  • Non-irradiated n-type detector connected to Beetle chip 2 (same conditions as on calibration).

  • Vbias = 200 V (full depletion).

  • Laser light:

    • Wavelength: 1060 nm (near infrared).

    • Laser energy of photons: 1.17 eV.

  • Laser scan:

    • Scan delay range: 1040-1140 ns.

    • Delay step: 1 ns.

    • 100 samples per step.

  • Some channels does not work due to bad bonds.


Measurements with laser setup p type detector

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 24

Measurements with laser setup: p-type detector

  • Data acquired by means of a laser scan.

  • Non-irradiated p-type detector connected to Beetle chip 2 (same conditions as on calibration).

  • Vbias = -100 V (full depletion).

  • Laser light:

    • Wavelength: 1060 nm (near infrared).

    • Laser energy of photons: 1.17 eV.

  • Laser scan:

    • Scan delay range: 1040-1160 ns.

    • Delay step: 1 ns.

    • 100 samples per step.

  • All channels work correctly.


Measurements with source n type detector

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 25

Measurements with β source: n-type detector

  • Acquisition with β source (90Sr).

  • Non-irradiated n-type detector connected to Beetle chip 2 (same conditions as calibration).

  • Vbias = 200 V (full depletion).

  • Acquisition of ~ 19000 events (triggers):

    • Trigger input from one photomultiplier.

    • Threshold: -40 mV.

  • Some channels are noisy due to bad bonds.

  • Pulse peak charge corresponding ~ 1 mip (24810 e-).

  • Noise: ~ 1200 e-.

  • Common mode variations (σ= 5.88 counts) corrected by software.

  • SNR for peak voltage: ~ 21.


Measurements with source p type detector

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 26

Measurements with β source: p-type detector

  • Acquisition with β source (90Sr).

  • Non-irradiated p-type detector connected to Beetle chip 2 (same conditions as calibration).

  • Vbias = -100 V (full depletion).

  • Acquisition of 20000 events (triggers):

    • Trigger input from one photomultiplier.

    • Threshold: -40 mV.

  • All channels working.

  • Pulse peak charge corresponding ~ 1 mip (26940 e-).

  • Noise: ~ 1200 e-.

  • Common mode variations (σ= 8.9 counts) corrected by software.

  • SNR for peak voltage: ~ 22.

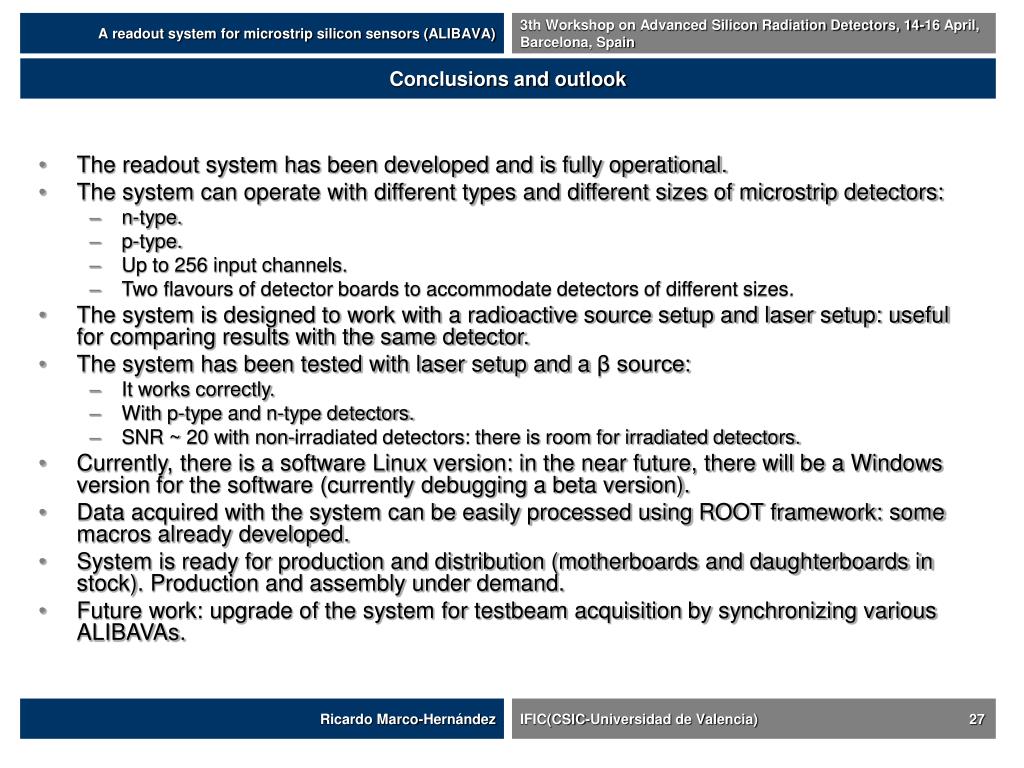

Conclusions and outlook

A readout system for microstrip silicon sensors (ALIBAVA)

3th Workshop on Advanced Silicon Radiation Detectors, 14-16 April, Barcelona, Spain

Ricardo Marco-Hernández

IFIC(CSIC-Universidad de Valencia) 27

Conclusions and outlook

  • The readout system has been developed and is fully operational.

  • The system can operate with different types and different sizes of microstrip detectors:

    • n-type.

    • p-type.

    • Up to 256 input channels.

    • Two flavours of detector boards to accommodate detectors of different sizes.

  • The system is designed to work with a radioactive source setup and laser setup: useful for comparing results with the same detector.

  • The system has been tested with laser setup and a β source:

    • It works correctly.

    • With p-type and n-type detectors.

    • SNR ~ 20 with non-irradiated detectors: there is room for irradiated detectors.

  • Currently, there is a software Linux version: in the near future, there will be a Windows version for the software (currently debugging a beta version).

  • Data acquired with the system can be easily processed using ROOT framework: some macros already developed.

  • System is ready for production and distribution (motherboards and daughterboards in stock). Production and assembly under demand.

  • Future work: upgrade of the system for testbeam acquisition by synchronizing various ALIBAVAs.


  • Login
