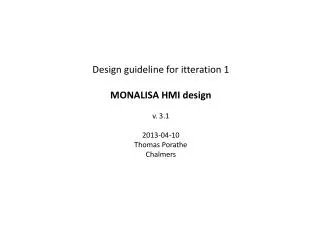

  1. Design guideline for itteration 1 MONALISA HMI design v. 3.1 2013-04-10 Thomas Porathe Chalmers

  2. History v. 1. 2012-12-07 Onboard: How to create new route v. 2. 2012-12-13 Onboard: New route from library, order a new route from STCC v. 3.1 2013-04-10 First iteration of STCC HMI design

  3. Innehåll • Historik 2 • Innehåll 3 • Skapa ny rote manuellt 4 • Hämta färdig route från eget bibliotek 9 • Modifiera route från eget bibliotek 10 • Beställ STCC route 11 • Navigationsgränsnitt14 • STCC operator view: voyage monitoring 15 • STCC operator view: Route request 19

  4. SHIP A. Skapa ny route Högerklickmenyerna i detta dokument tar bara med MONALISA funktioner. Get route from… Place Waypoint A1 Place Waypoint WP 0 Högerklick En “planerad route” är brun (mörk orange), tunn och streckad A2 Vänsterklick WP 1 WP 0 A3 Vänsterklick WP 2 WP 1 WP 0 A4 Dubbelklick eller högerklick (dubbelklick går direkt till A6) WP 3 WP 2 WP 1 WP 0 A5 Vänsterklick WP 3 WP 2 WP 1 End route WP 0

  5. SHIP A6 WP 4 Route info x WP 2 WP 1 Route Time Settings Route Time Settings dialogen öppnar automatiskt när man klickar på End Route i högerklickmenyn i (A5). WP 0 Route 32 S Vinga - Gäveskär Optional timing of route ETD WP 1 ETA WP 4 Standard Speed Cross track dist. Show X track kn NM Automatically checked for Safety depth of 11.0 m. hh:mm hh:mm Använd automatgenererat namn eller ändra till eget 5.3 0.2 X När man fyllt i två av inställningarna fylls den tredje i automatiskt 11 m: Länk till ”Fartygsinställningar”. Där man kan ändra djupgåendet. Route details Cancel Save/OK Route details x S Vinga - Gäveskär Cancel Save/OK Klicka på en rad zoomar sjökortet in på den WP:n Klicka på route-namnet zoomar ut till hela routen i fönstret Save/OK: ”Save” om routen/en förändring är osparad, annars ”OK”

  6. SHIP Cross trackerror, XTE: svart, 90 % transparant A7 WP 3 WP 2 WP 1 Vi har nu en planerad route som är sparad i route biblioteket. Den är antingen tidssatt eller inte. Den visar antingen X-track eller inte. Vid Mouse Over på waypoitarna så visas info för respektive waypoint. WP 0 WP info x WP info x WP 2 Date: 07.12.2012 Time: -- Speed: -- X Track: -- NM, Show: Lat. 50 45.179N Long. 000 55.283E WP 0 Date: 07.12.2012 Time: 10:30 Speed: 18.4 kn X Track: 0.2 NM, Show: Lat. 50 45.179N Long. 000 55.283E X Skicka en route till STCC A8 WP 3 WP 2 WP 1 Högerklicka någonstans på den planerade routen och välj Send to STCC. WP 0 Add WP Show STCC info Show route info Show leg info Delete leg 2 Activate route Send to STCC

  7. SHIP A9 STCC info x WP 3 WP 2 WP 1 Route “S Vinga– Gäveskär” sent to STCC Date: 07.12.2012 Time: 07:30 Status: Pending Pending. När routen skickats till STCC markerar ett rörligt, men bara svagt synligt, mönster att routen är skickad för godkännande. WP 0 Cancel request Fall 1: Svar kommer: STCC godkänner routen A10 WP 3 WP 2 WP 1 En godkänd route kommer tillbaka med ett kvitto och markeras med en grön transparent heldragen underlay som betyder “STCC-godkänd route”. STCC info x Route “S Vinga– Gäveskär” STCC Agreed Valid: 07.12.2012 Time: 10:30 – 11.30 Status: Route agreed WP 0 Grön heldragen transparent förstärkning betyder att routen är STCC-godkänd Acknowledge Aktiverad route är röd, fet och heldragen A11 WP 3 WP 2 WP 1 Routen kan nu “aktiveras” (skickas till nav-systemet ombord) Show STCC info Send to STCC Show route info Show leg info Delete leg 3 Activate route WP 0 Activate route

  8. SHIP Nytt ETA. STCCs nya route baseras förslagsvis på inlagd Speed. Detailed Route Time Settings-fönstret (punkt 6 ovan) finns tillgänglig för den nya STCC routen. A12 Fall 2: STCC godkänner inte routen New WP 2 WP 3 WP 1 I det andra fallet blir routen inte godkänd, utan kommer tillbaka med ett ändringsförslag. WP 0 WP 2 Green moving hashed pattern indikerar “STCC suggestion” Godkänn med “Accept” STCC info x Route “S Vinga – Gäveskär” STCC Change request Change: WP 3 new position (+ 35 nm) Reason: Original route passes through an area where an oil cleanup operation is ongoing. The new suggested route is north of this area. Optional action is to slow down and wait for operation to finish (est. 10 hrs.) Red static hashed pattern indikerar “STCC not recommended” (se “Reasons”) Stena Danica: Chatt-fönster Om ”Reject” skickas ett Reject-meddelande till STCC och dialogen stängs. Systemet går tillbaka till punkt 7 ovan. Send Reject Wait Accept Om ”Wait” skickas ett Wait-meddelande till STCC och dialogen ligger kvar som ovan. (Eller stängs med x-rutan och öppnas igen med högerklick: Show STCC info. Om ”Accept” öppnas Route Time Settings dialogen i punkt 6 ovan. Navigatören måste där ta ställning till nytt ETA eller välja en högre hastighet. Sedan skicka på nytt.

  9. SHIP B. Hämta färdig route från eget bibliotek B1 …own route library Get route from… Place Waypoint Own library STCC SMHI … Högerklicka och välj ”Get route from…” och ” own route library”. I dialogen visas alla sparade router. Välj önskad. Systemet zoomar ut med hela routen i skärmfönstret (ej i fig. nedan). Route from own library x Select library route Se sektion D Click to select a route… Göteborg – Bält - Muga Muga – Flint - Göteborg Göteborg – Skagen – Rotterdam Solstad – Brofjorden Bordaux – Europort Hull – Göteborg Garangemouth - Brofjorden Click to select a route… ETD WP 1 ETA WP 4 Standard Speed Cross track dist. Show X track kn NM Set any two of these three attributes. Route is automatically checked for draught 11.0 m. Göteborg – Bält – Muga hh:mm hh:mm 18.4 0.1 X WP 0 Route details Cancel OK WP 1 WP 2

  10. SHIP C. Modifiera route från eget bibliotek C1 Route from own library x Select library route Göteborg – Bält - Muga ETD WP 1 ETA WP 4 Standard Speed Cross track dist. Show X track kn NM Set any two of these three attributes. Route is automatically checked for draught 11.0 m. hh:mm WP 0 hh:mm 18.4 0.1 X WP 1 Add WP Add WP Show STCC info Sent to STCC Show route info Show leg info Delete leg 2 Activate route Route details Cancel Save as… WP 2 WP 3 Börja modifiera befintlig route. OK-knappen byter namn till Save as… I övrigt som ovan.

  11. SHIP D. Beställ STCC Route D1 Get route from… Place Waypoint Own library STCC SMHI … Get route from STCC x STCC Route Time Settings Skag- Muga Departure from ETD: Destination ETA Standard Speed Cross track dist. Show X track kn NM Set either ETA or Standard speed. Route is automatically checked for draught 11.0 m. Add WP present position Högerklicka på kartan och välj ”Get route from…” och ”STCC” Get route from STCC-dialogen öppnar. Döp routen om önskat. Kicka på ”Add WP on present position” för att placera en avgångsposition (kan flyttas genom att klicka och dra). Ange önskad ETD. Ange ankomst hamn genom att zooma kartan till rätt position och klicka på ”Add destination WP” (justera sedan genom att klicka och dra). Ange sedan önskad ETA – eller ange en önskad hastighet – systemet räknar sedan ut nödvändig hastighet – eller ETA. Djupgående och andra fartygsspecifika parametrar följer automatiskt med i beställningen. hh:mm Add destination WP hh:mm 5.3 0.2 X Cancel Request STCC Green Route Request STCC Standard Route

  12. SHIP STCC info x D2 Request route “Skag– Muga” sent to STCC Date: 07.12.2012 Time: 07:30 Status: Pending Routen visas direkt mellan avgångs-och ankomsthamn medan systemet arbetar. Cancel request

  13. SHIP STCC info x Request STCC Standard Route “Göteborg – Bält – Muga” Comments: You must go through the Great Baelt due to you draught. In the Cadet channel there are ongoing underwater works to watch up for. .. The offered route is an STCCStandard Route Skag- Muga ETD WP 1 ETA WP 4 Standard Speed Cross track dist. Show X track kn NM Set any two of these three attributes. Route is automatically checked for draught 11.0 m. D2 Routen visas när beställningen är levererad. Samma handskakningsdialog som tidigare i sektion A12. hh:mm hh:mm 18.4 0.1 X WP 10 WP 9 WP 8 Save as… Route details WP 11 WP 0 WP 1 Stena Danica: WP 2 WP 7 WP 3 Send Reject Wait Accept Request STCC Green Route WP 4 WP 5 WP 6

  14. SHIP E. Navigationsgränsnitt E1 Efter att routen aktiverats startar seglatsen COG 175.4° SOG 18.4 kn Lat 59° 15.794 N Long 17° 13.859 E Wind 124° 6.2 m/s ROT Route: Skag - Muga Next WP: WP 1 Course: 175° Dist. 23.4 NM WP 10 WP 9 WP 8 WP 11 WP 0 • 0.5 • ° /min WP 1 WP 2 WP 7 WP 3 STCC monitoring service Turn Sb 1 hr. 12 min. to 178 deg. Meet Tarnland on port, side in 23 min. WP 4 WP 5 WP 6 Send

  15. SHORE F. STCC operator view: voyage monitoring F1 STCC view shows all agreed routes in transparent green, width = XTE (to give some intuetive senses of ship size)

  16. SHORE F. STCC operator view: voyage monitoring F2 A click on a route opens Voyage plan info window. (If a route is under another route, a second click opens the one under, etc.) Voyage plan info x Danube Highway (C6VH4) Rostock - Bremerhafen COG: 014, SOG: 14.3 kn TD: 07.12.2012, 04:15 ETA: 09.12.2012 07:30 Zoom to ship in screen Open ship details Open VP details Close

  17. SHORE F. STCC operator view: voyage monitoring F3 Clicking on “Open ship details” opens window with AIS information and Text box Voyage plan info x Ship details x Danube Highway (C6VH4) Rostock - Bremerhafen COG: 014, SOG: 14.3 kn TD: 07.12.2012, 04:15 ETA: 09.12.2012 07:30 Danube Highway Callsign: C6VH4 Type: Cargo ship Destination: Bremerhafen Leangt: 148 m DRAUGHT Widht: 25 m COG: 014, SOG: 14.3 kn Zoom to ship in screen Open ship details/Text Open VP details Close Close STCC Sweden: Send

  18. SHORE F. STCC operator view: voyage monitoring F4 Clicking on OpenVP detailsopensVoyage plan detailswindow Voyage plan info x Danube Highway (C6VH4) Rostock - Bremerhafen COG: 014, SOG: 14.3 kn TD: 07.12.2012, 04:15 ETA: 09.12.2012 07:30 Zoom to ship in screen Open ship details Open VP details Close Voyage plan details x Danube Highway (C6VH4): Rostock - Bremerhafen Open ship details Close

  19. SHORE G. STCC operator view: Route request Every time a route request is received at the STCC operator station the Route Request window opens with received ship highlighted and a SOUND SIGNAL. Pending route requests also shown in the list. The Route requests window can be closed, but a Route requests pending button/alert is visible on screen. G1 Route requests pending Route requests Handle request Open ship details Handle request Open ship details Close

  20. SHORE G. STCC operator view: Handle request Handle route request ̶ □ x When the Handle request button is clicked, a new window with a new instant of the chart is opened (should be moved to a separate screen and opened to full screen) G2 Danube Highway (C6VH4) Route requests pending Close Route requests Handle request Open ship details Handle request Open ship details Close

  21. SHORE G. STCC operator view: Handle request Handle route request ̶ □ x G3 Stena Nautica (SGQU) Voyage plan info x Stena Nautica (SGQU) Varberg- Grenå COG: 236, SOG: 14.8 kn TD: 07.12.2012, 04:15 ETA: 09.12.2012 07:30 The route request Is opened full screen on a separate monitor. The ship’s suggeted route arrives at STCC via the Optimizing module. If it does not pass the Optimizer (as in this case). It is dashed and red. The violation areas are marked with a circle and a label. Further info by clicking the label. Zoom to ship in center 1. Separation Tyko Open ship details/Text Open VP details Hide other routes Close Close 2. Safety depth Opens Voyage plan info window for ship “Tyko”

  22. SHORE G. STCC operator view: Handle request Handle route request ̶ □ x G4 Stena Nautica (SGQU) Voyage plan info x Stena Nautica (SGQU) Varberg- Grenå COG: 236, SOG: 14.8 kn TD: 07.12.2012, 04:15 ETA: 09.12.2012 07:30 To send back a change suggestion, right click on the new, changed route and choose Select and send route. Open Voyage plan details Place Waypoint Select and send route Zoom to ship in center 1. Separation Tyko Open ship details/Text Open VP details Hide other routes Close Close 2. Safety depth

  23. SHORE G. STCC operator view: Handle request Handle route request ̶ □ x G5 Stena Nautica (SGQU) Voyage plan info x Stena Nautica (SGQU) Varberg- Grenå COG: 236, SOG: 14.8 kn TD: 07.12.2012, 04:15 ETA: 09.12.2012 07:30 To send back a change suggestion, right click on the new, changed route and choose Select and send route. The result onboard looks as in Figure A12. Zoom to ship in center 1. Separation Tyko Open ship details/Text STCC route suggestion x Open VP details Route “Varberg– Grenå” Stena Nautica (SGQU) Change: WP 2 to new position (+ 8 M) Hide other routes Close Close Reason: The original route passed the shallow water area N of Anholt. There was also a close quarter situation originally SW of Middlegrund. 2. Safety depth Send Close
