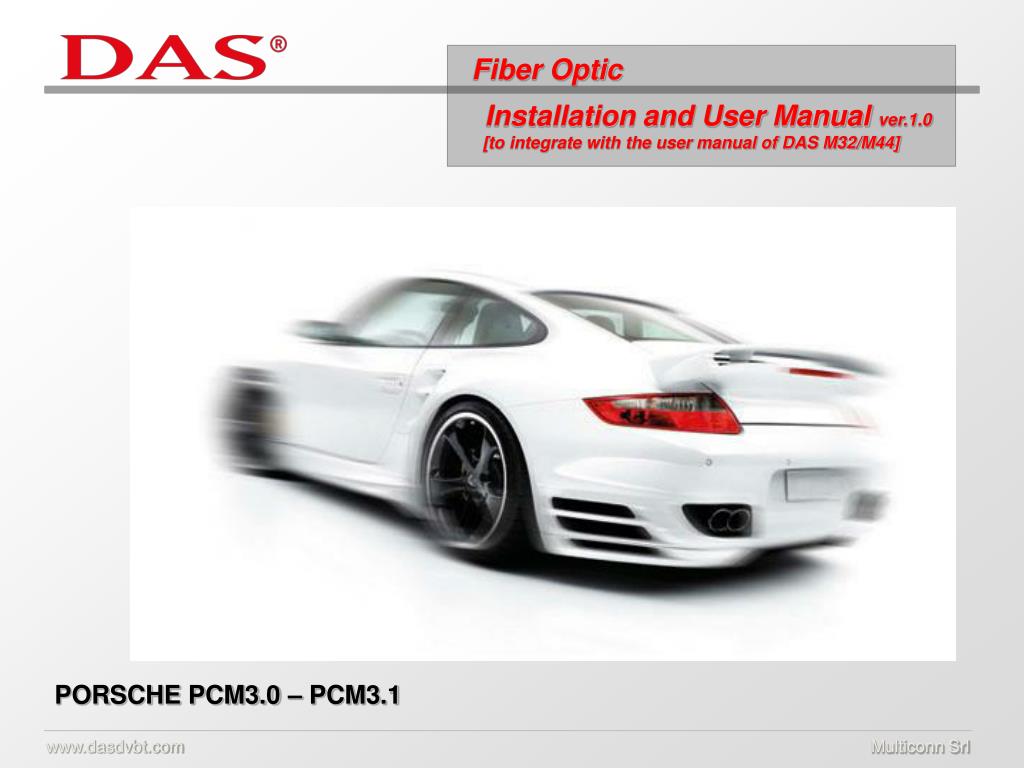

  1. Fiber Optic Installation and User Manual ver.1.0 [to integrate with the user manual of DAS M32/M44] PORSCHE PCM3.0 – PCM3.1 Multiconn Srl www.dasdvbt.com

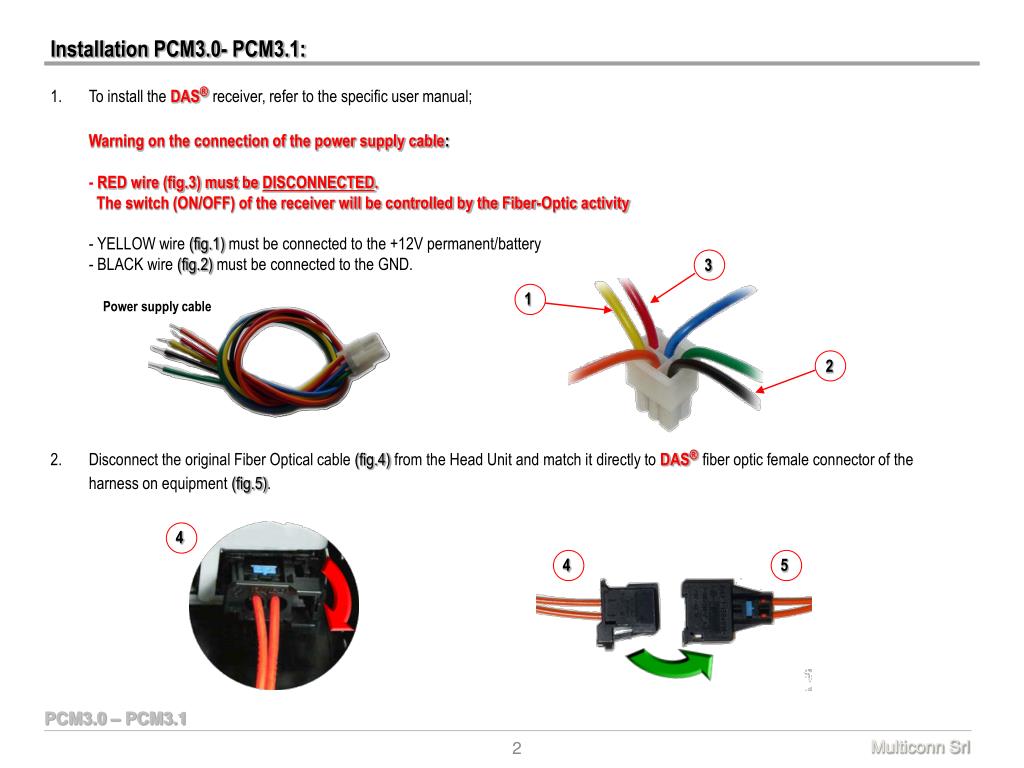

  2. 3 4 4 5 1 2 Installation PCM3.0- PCM3.1: • To install the DAS®receiver, refer to the specific user manual; Warning on the connection of the power supply cable: • - RED wire (fig.3) must be DISCONNECTED. • The switch (ON/OFF) of the receiver will be controlled by the Fiber-Optic activity - YELLOW wire (fig.1) must be connected to the +12V permanent/battery - BLACK wire (fig.2) must be connected to the GND. Power supply cable • Disconnect the original Fiber Optical cable (fig.4) from the Head Unit and match it directly to DAS®fiber optic female connector of the harness on equipment (fig.5). PCM3.0 – PCM3.1 Multiconn Srl 2

  3. 9 8 9 7 7 8 6 5 8 9.1 • Match the two other connectors of DAS® harness (fig.6) respectively inside the original accessory (fig.7) and the other one inside DAS® receiver (fig.8). • Connect one of the 3 DAS®Video-OUT (fig.8) trough the adapter cables on equipment (fig.9) and the needed accessory with white Fakra connector (DCABMQS-RCA in fig.9.1) with the Video-IN on the Head Unit (fig.10). PCM3.0 – PCM3.1 Multiconn Srl 3

  4. 10 9.1 The PCM3.0 - PCM3.1 Head Unit module (fig.10). Video-IN White cover Black 12P Insert the 2 female crimped pins of DAS cable (fig.9.1 DCABMQS-RCA) inside the black 12P housing and then in white Fakra cover. In case these connectors are already available in the unit, just connect the pins in the pin-out position recommended below. Insert the wire with label + in pin 27 (positive signal). If the pin 27 is already used by rear camera, connect to pin 26 Insert the wire with label - inside the pin 24 (negative signal). If the pin 24 is already used by rear camera connect pin 25 PCM3.0 – PCM3.1 Multiconn Srl 4

  5. User Manual PCM3.0: • To enter in DAS TV tuner: • press SOURCE then select TV icon on touch screen monitor and touch the screen to view images. • Or press and hold TUNER button, until the TV icon will appear on touch screen monitor Next Channel(RIGHT arrow on remote control) Previous Channel(LEFT arrow on remote control) WARNING:For the basic settings such as color, contrast, brightness and format, please refer to the menu of the car and make sure that the format is congruent with the set menu on the DAS. PCM3.0 Multiconn Srl 5

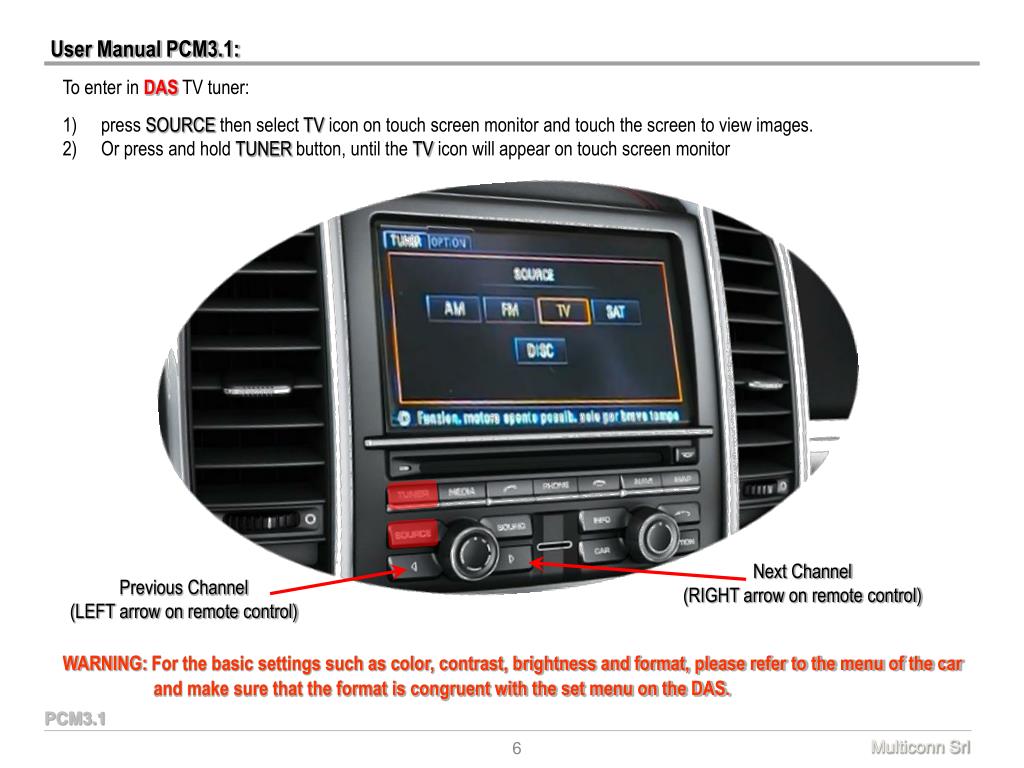

  6. User Manual PCM3.1: • To enter in DAS TV tuner: • press SOURCE then select TV icon on touch screen monitor and touch the screen to view images. • Or press and hold TUNER button, until the TV icon will appear on touch screen monitor Next Channel(RIGHT arrow on remote control) Previous Channel(LEFT arrow on remote control) WARNING:For the basic settings such as color, contrast, brightness and format, please refer to the menu of the car and make sure that the format is congruent with the set menu on the DAS. PCM3.1 Multiconn Srl 6

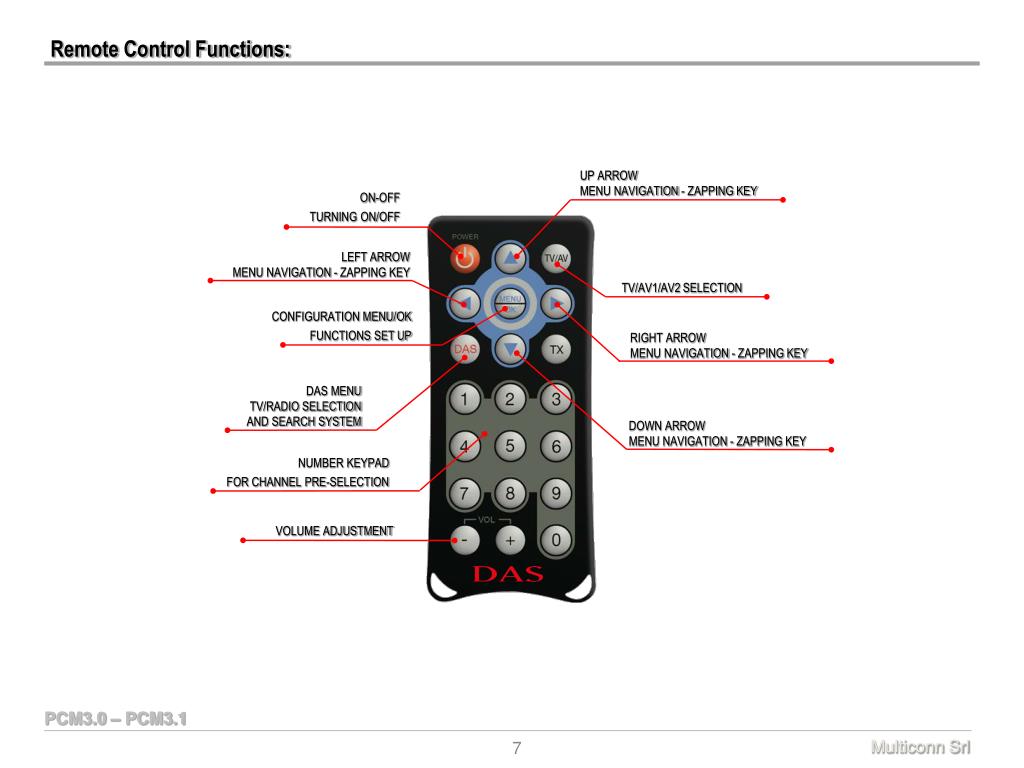

  7. Remote Control Functions: UP ARROW MENU NAVIGATION - ZAPPING KEY ON-OFF TURNING ON/OFF LEFT ARROW MENU NAVIGATION - ZAPPING KEY TV/AV1/AV2 SELECTION CONFIGURATION MENU/OK FUNCTIONS SET UP RIGHT ARROW MENU NAVIGATION - ZAPPING KEY DAS MENU TV/RADIO SELECTION AND SEARCH SYSTEM DOWN ARROW MENU NAVIGATION - ZAPPING KEY NUMBER KEYPAD FOR CHANNEL PRE-SELECTION VOLUME ADJUSTMENT PCM3.0 – PCM3.1 Multiconn Srl 7

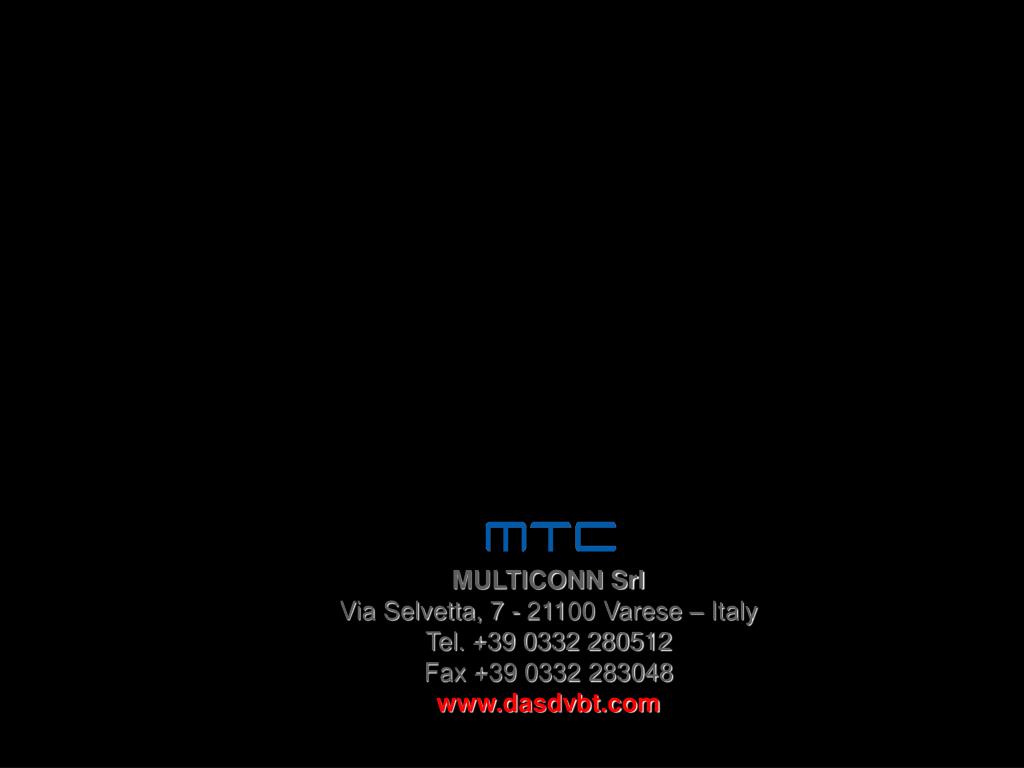

  8. MULTICONN Srl Via Selvetta, 7 - 21100 Varese – Italy Tel. +39 0332 280512 Fax +39 0332 283048 www.dasdvbt.com
