1 / 5

MUSSARI SRL

MUSSARI SRL. TRAFILERIA TUBI ACCIAIO INOSSIDABILE SALDATI E SENZA SALDATURA. MUSSARI S.R.L. Via Repubblica, 11B – 22075 LURATE CACCIVIO CO ITALY Website www.mussari.com E-mail info@mussari.com PHONE ++39 031390677 – 031492476 FAX 0039 031 390010. PRODUCTION STANDARDS :

Sophia
Download Presentation

MUSSARI SRL

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. MUSSARI SRL TRAFILERIA TUBI ACCIAIO INOSSIDABILE SALDATI E SENZA SALDATURA

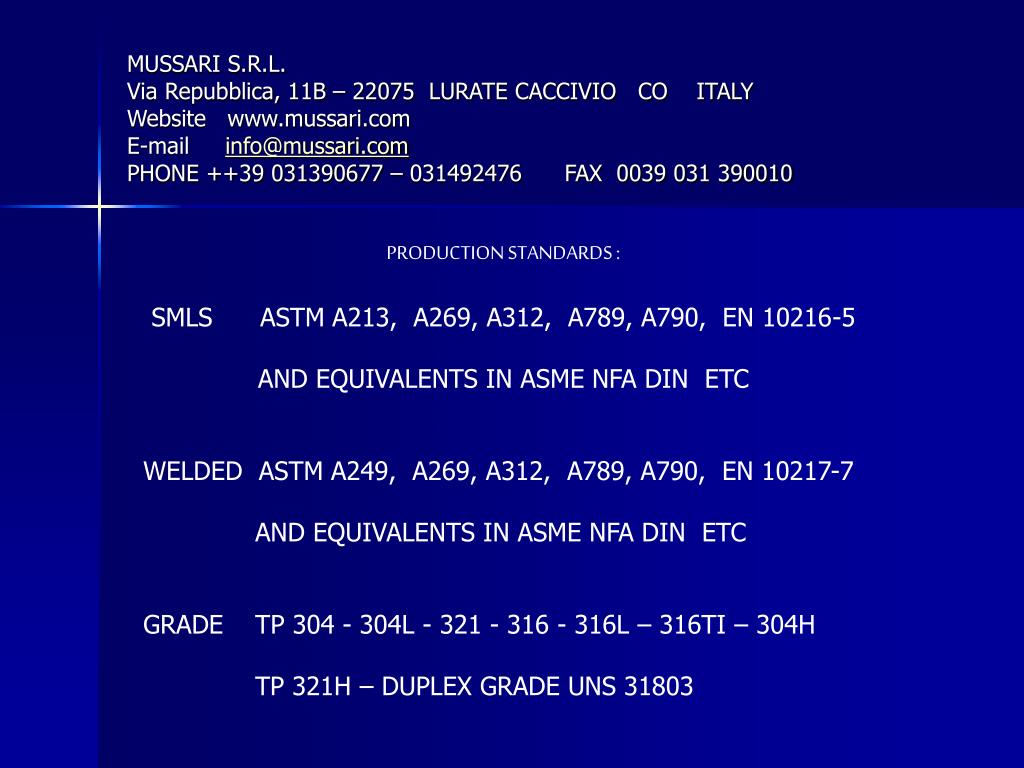

  2. MUSSARI S.R.L.Via Repubblica, 11B – 22075 LURATE CACCIVIO CO ITALYWebsite www.mussari.com E-mail info@mussari.comPHONE ++39 031390677 – 031492476 FAX 0039 031 390010 PRODUCTION STANDARDS : SMLS ASTM A213, A269, A312, A789, A790, EN 10216-5 AND EQUIVALENTS IN ASME NFA DIN ETC WELDED ASTM A249, A269, A312, A789, A790, EN 10217-7 AND EQUIVALENTS IN ASME NFA DIN ETC GRADE TP 304 - 304L - 321 - 316 - 316L – 316TI – 304H TP 321H – DUPLEX GRADE UNS 31803

  3. MUSSARI S.R.L.Via Repubblica, 11B – 22075 LURATE CACCIVIO CO ITALYWebsite www.mussari.com E-mail info@mussari.comPHONE ++39 031390677 – 031492476 FAX 0039 031 390010 Size range WELDED FROM 2 mm. O.D. TO 57 mm. O.D. SEAMLESS FROM 2 mm. O.D. TO 57 mm. O.D. Thickness – wall WELDED FROM 0.2 mm. TO 4 mm. SEAMLESS FROM 0,2 mm. TO 6 mm. Lenghts from 400 mm. to approximately 14000 mm. Heat treatment : BRIGHT ANNEALING

  4. MUSSARI S.R.L.Via Repubblica, 11B – 22075 LURATE CACCIVIO CO ITALYWebsite www.mussari.com E-mail info@mussari.comPHONE ++39 031390677 – 031492476 FAX 0039 031 390010 We also produce when not specified by the standards Tubes 4/4 hard, ½ hard, ¼ hard AND with tensile test value on request ex : 750 – 900 MM2 Tubes with tolerances specified by the customer on O.D.-ID ex : +/- 0.05 mm. Roughness on OD-ID ex : ra max 1,6 O.D. ra max 0,6 I.D. On request TRAFILERIE MUSSARI produce TUBES GRINDED/POLISHED

  5. MUSSARI S.R.L.Via Repubblica, 11B – 22075 LURATE CACCIVIO CO ITALYWebsite www.mussari.com E-mail info@mussari.comPHONE ++39 031390677 – 031492476 FAX 0039 031 390010 TRAFILERIE MUSSARI supply raw materials only in certified mills All the tubes are manufatured and tested acc.to international Standards. Quality sistem is certified and approved for ISO 9001-2000 by TUV SUD Certificate EN 10204 3 .1 STD EN 10204 3 .2 ON REQUEST
