Multiconn srl

Fiber Optic

Installation and User Manual ver.1.0

[to integrate with the user manual of DAS M32/M44]

BMW - iDRIVE Professional Navigation CCC (1-2 buttons)

Multiconn Srl

www.dasdvbt.com


Multiconn srl

3

1

4

4

5

2

Installation:

WARNING:before installing the DAS® tuner verify that the system of the car MUST be professional and not Business. With Business system the TV tuner does not work.

To unlock the system use an interface or contact directly an official BMW center.

To install the DAS®receiver, refer to the specific user manual;

Pay attention on the connection of the power supply cable:

- RED wire (fig.3) must be DISCONNECTED.

The switch (ON/OFF) of the receiver will be controlled by the Fiber-Optic activity

- YELLOW wire (fig.1) must be connected to the +12V permanent/battery

- BLACK wire (fig.2) must be connected to the GND.

Power supply cable

  • Disconnect the original Fiber Optical cable (fig.4) from one of the original multimedia accessories inside the car (DVD, GPS, Amplifier, etc…) and match it directly to DAS®fiber optic female connector of the harness on equipment (fig.5).

BMW – CCC system

Multiconn Srl

2


Multiconn srl

9

8

9

7

7

8

6

5

8

9.1

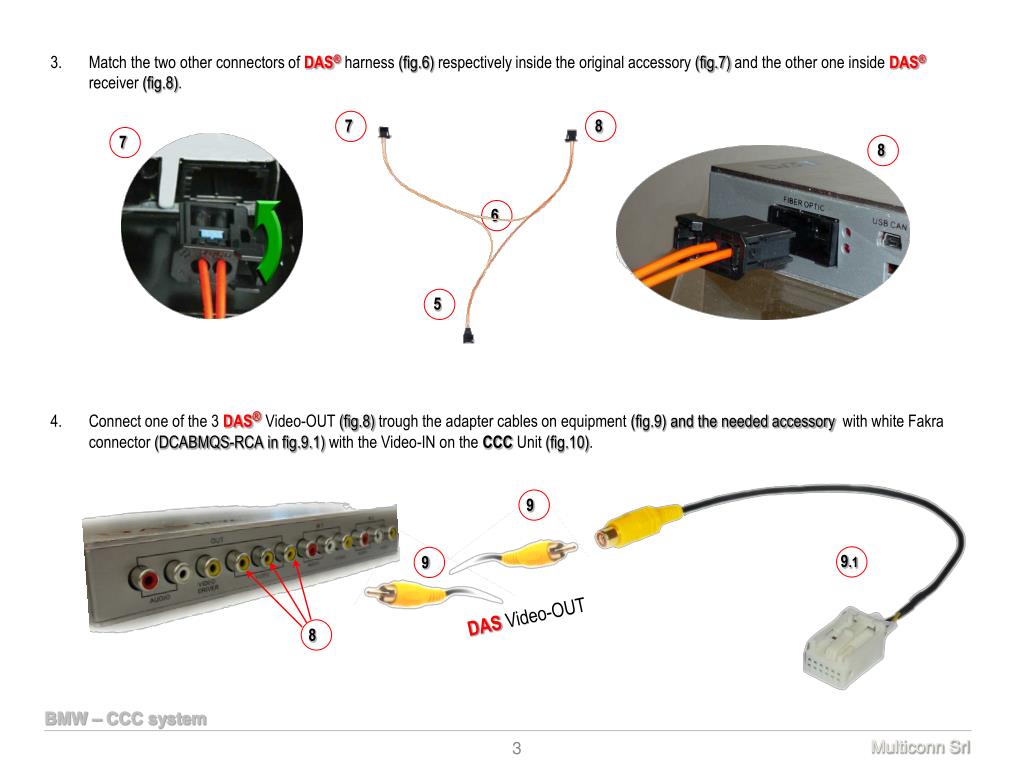

  • Match the two other connectors of DAS® harness (fig.6) respectively inside the original accessory (fig.7) and the other one inside DAS® receiver (fig.8).

  • Connect one of the 3 DAS®Video-OUT (fig.8) trough the adapter cables on equipment (fig.9) and the needed accessory with white Fakra connector (DCABMQS-RCA in fig.9.1) with the Video-IN on the CCC Unit (fig.10).

DAS Video-OUT

BMW – CCC system

Multiconn Srl

3


Multiconn srl

Video-IN

10

9.1

11

The CCC unit location on dashboard (fig.10)and the rear side (fig.11).

Insert the 2 female crimped pins of DAScable (fig.9.1 DCABMQS-RCA) inside the black 12P housing and then in white Fakra cover.If the connectors are already available in the unit, just connect the pins in the pin-out position recommended below.

Insert the wire with label + in pin 4 (positive signal).

Insert the wire with label - inside the pin 2 (negative signal).

If the pin 2 and 4 are already used by the rear camera, disconnect them and connect to a yellow RCA to video-IN 1 on DAS receiver.

To shift automatically the signal from TV to REAR CAMERA, connect the green wire of the power supply cable (refer to the DAS user manual) directly to the rear camera installed inside the vehicle.

BMW – CCC system

Multiconn Srl

4


Multiconn srl

12

13

User Manual:

Before coding the TV function using anaftermarket OBD interface, please check if the OEM start-up screen (with logo BMW) has a background grey/silver colour (fig.12); if the colour is brown (fig.13) go directly to an official BMW service to upgrade the entertainment software of the car.

brown colour

necessary upgrade the software in a BMW service

BMW – CCC system

Multiconn Srl

5


Multiconn srl

To enter in DAS TV tuner with the iDrive select Enterntainment and select TV (like the original TV Tuner).

WARNING:For the basic settings such as color, contrast, brightness and format, please refer to the menu of the car and make sure that the format is congruent with the set menu on the DAS.

BMW – CCC system

Multiconn Srl

6


Multiconn srl

CCC iDrive controller

  • With the CCC platform, we can find 2 iDrive versions:

  • - Controlled: where iDrive rotation is bound, not free;

  • Free running: where iDrive rotation is free in both directions;

  • To use the iDrive “controlled” in “free running” mode, operate in the following way:

  • Press the iDrive after to have selected TV;

  • Then will appear a graphic overlay with Autostore message;

  • Wait 2/3 seconds till the message Autostore disappears;by this time the iDrive is changed in “free running”

  • Important: the other menu of the car are now not available

  • To return in controlled mode and use the other menu of the car, press the iDrive again.

PUSH

CCC iDrive controller

Right rotation = UPon remote control (dropdown menu)

Left rotation = Down on remote control (dropdown menu)

Down Joystick Scroll= OK/Menu

Right Joystick Scroll=

Right arrow on remote

Left Joystick Scroll=

Left arrow on remote

BMW – CCC system

Multiconn Srl

7


Multiconn srl

Remote Control Functions:

UP ARROW

MENU NAVIGATION - ZAPPING KEY

ON-OFF

TURNING ON/OFF

LEFT ARROW

MENU NAVIGATION - ZAPPING KEY

TV/AV1/AV2 SELECTION

CONFIGURATION MENU/OK

FUNCTIONS SET UP

RIGHT ARROW

MENU NAVIGATION - ZAPPING KEY

DAS MENU

TV/RADIO SELECTION

AND SEARCH SYSTEM

DOWN ARROW

MENU NAVIGATION - ZAPPING KEY

NUMBER KEYPAD

FOR CHANNEL PRE-SELECTION

STEERING WHEEL CONTROL

VOLUME ADJUSTMENT

BMW – CCC system

Multiconn Srl

8


Multiconn srl

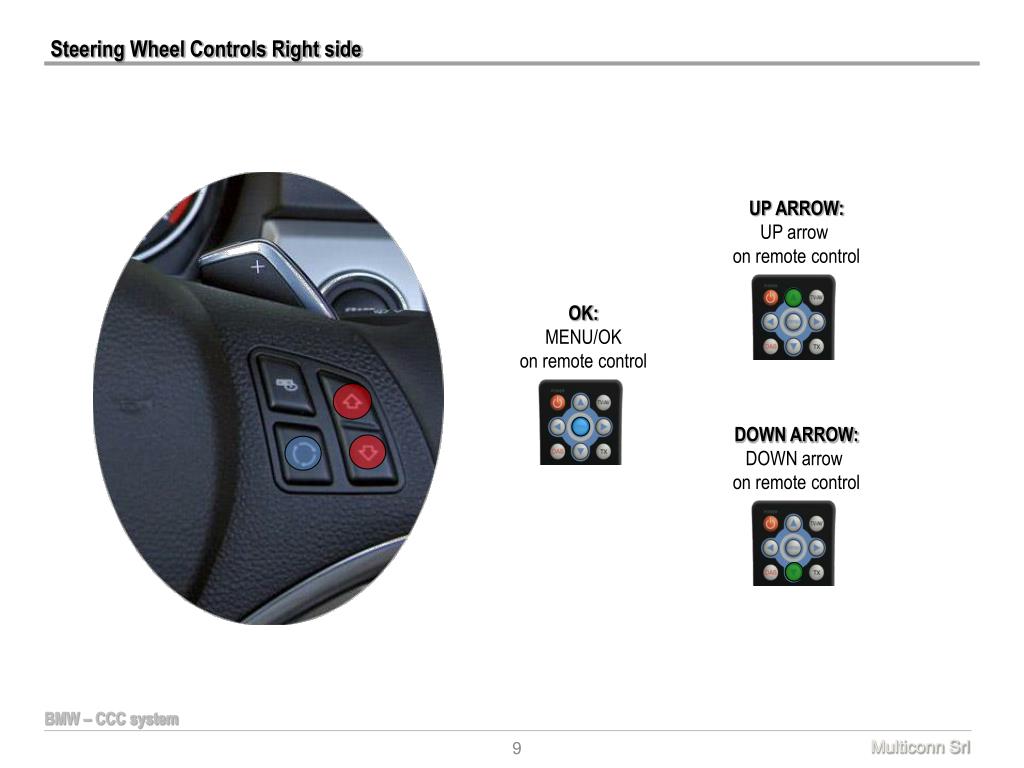

Steering Wheel Controls Right side

UP ARROW:

UP arrow on remote control

OK:

MENU/OK on remote control

DOWN ARROW:

DOWN arrow on remote control

BMW – CCC system

Multiconn Srl

9


Multiconn srl

MULTICONN Srl

Via Selvetta, 7 - 21100 Varese – Italy

Tel. +39 0332 280512

Fax +39 0332 283048

www.dasdvbt.com
