  1. Sequence Alignment Kun-Mao Chao (趙坤茂) Department of Computer Science and Information Engineering National Taiwan University, Taiwan WWW: http://www.csie.ntu.edu.tw/~kmchao

  2. Useful Websites • MIT Biology Hypertextbook • http://www.mit.edu:8001/afs/athena/course/other/esgbio/www/7001main.html • The International Society for Computational Biology: • http://www.iscb.org/ • National Center for Biotechnology Information (NCBI, NIH): • http://www.ncbi.nlm.nih.gov/ • European Bioinformatics Institute (EBI): • http://www.ebi.ac.uk/ • DNA Data Bank of Japan (DDBJ): • http://www.ddbj.nig.ac.jp/

  3. orz’s sequence evolution • the origin? • their evolutionary relationships? • their putative functional relationships? • orz (kid) • OTZ (adult) • Orz (big head) • Crz (motorcycle driver) • on_ (soldier) • or2 (bottom up) • oΩ (back high) • STO (the other way around) • Oroz (me)

  4. What? THETR UTHIS MOREI MPORT ANTTH ANTHE FACTS The truth is more important than the facts.

  5. Dot Matrix C G G A T C A T Sequence A:CTTAACT Sequence B:CGGATCAT CTTAACT

  6. Pairwise Alignment Sequence A: CTTAACT Sequence B: CGGATCAT An alignment of A and B: C---TTAACTCGGATCA--T Sequence A Sequence B

  7. Pairwise Alignment Sequence A: CTTAACT Sequence B: CGGATCAT An alignment of A and B: Mismatch Match C---TTAACTCGGATCA--T Deletion gap Insertion gap

  8. Alignment Graph C G G A T C A T Sequence A: CTTAACT Sequence B: CGGATCAT CTTAACT C---TTAACTCGGATCA--T

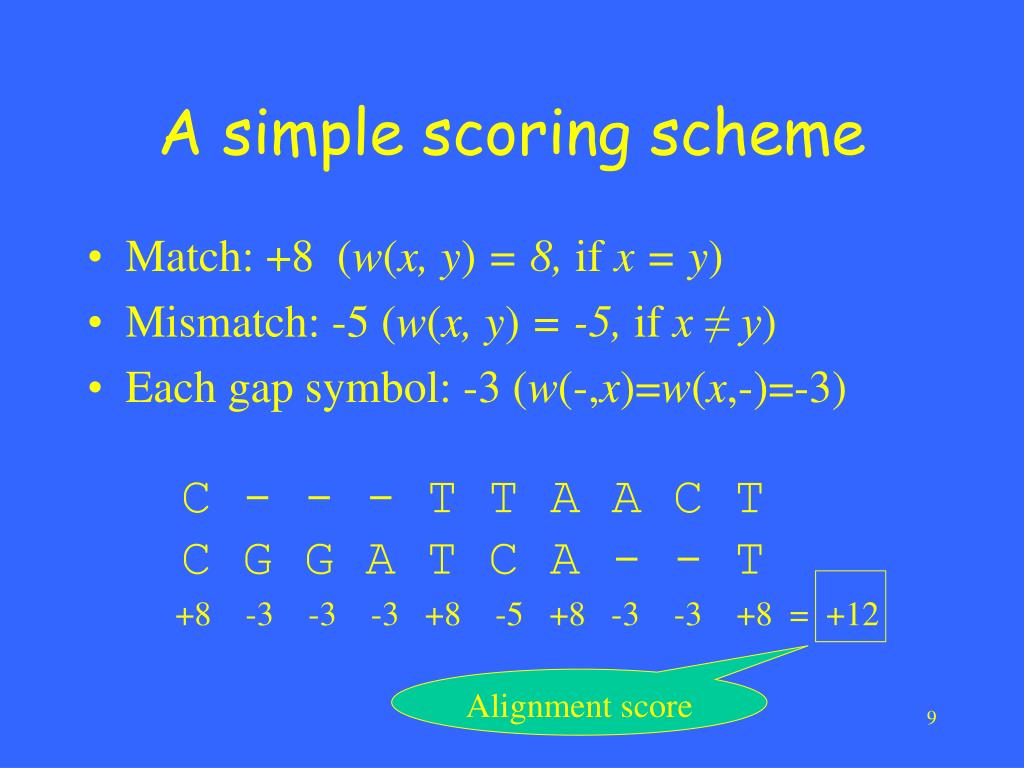

  9. A simple scoring scheme • Match: +8 (w(x, y) = 8, if x = y) • Mismatch: -5 (w(x, y) = -5, if x ≠ y) • Each gap symbol: -3 (w(-,x)=w(x,-)=-3) C - - - T T A A C TC G G A T C A - - T +8 -3 -3 -3 +8 -5 +8 -3 -3 +8 = +12 Alignment score

  10. An optimal alignment-- the alignment of maximum score • Let A=a1a2…am and B=b1b2…bn . • Si,j: the score of an optimal alignment between a1a2…ai and b1b2…bj • With proper initializations, Si,j can be computedas follows.

  11. ComputingSi,j j w(ai,bj) w(ai,-) i w(-,bj) Sm,n

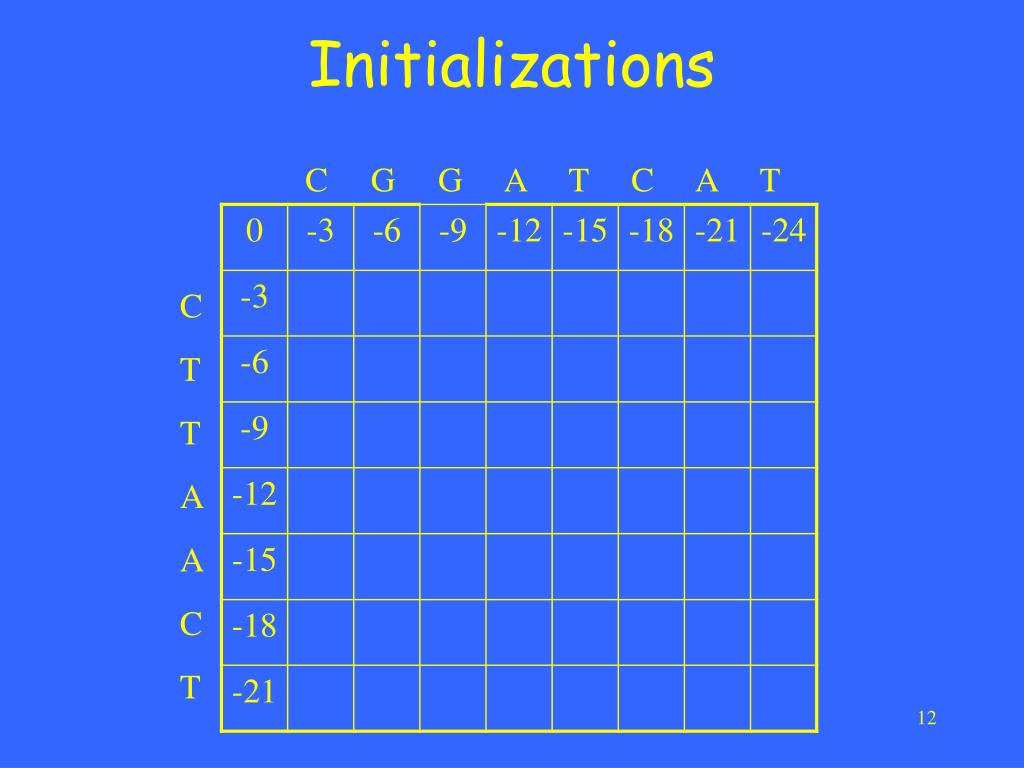

  12. Initializations C G G A T C A T CTTAACT

  13. S3,5 = ? C G G A T C A T CTTAACT

  14. S3,5 = 5 C G G A T C A T CTTAACT optimal score

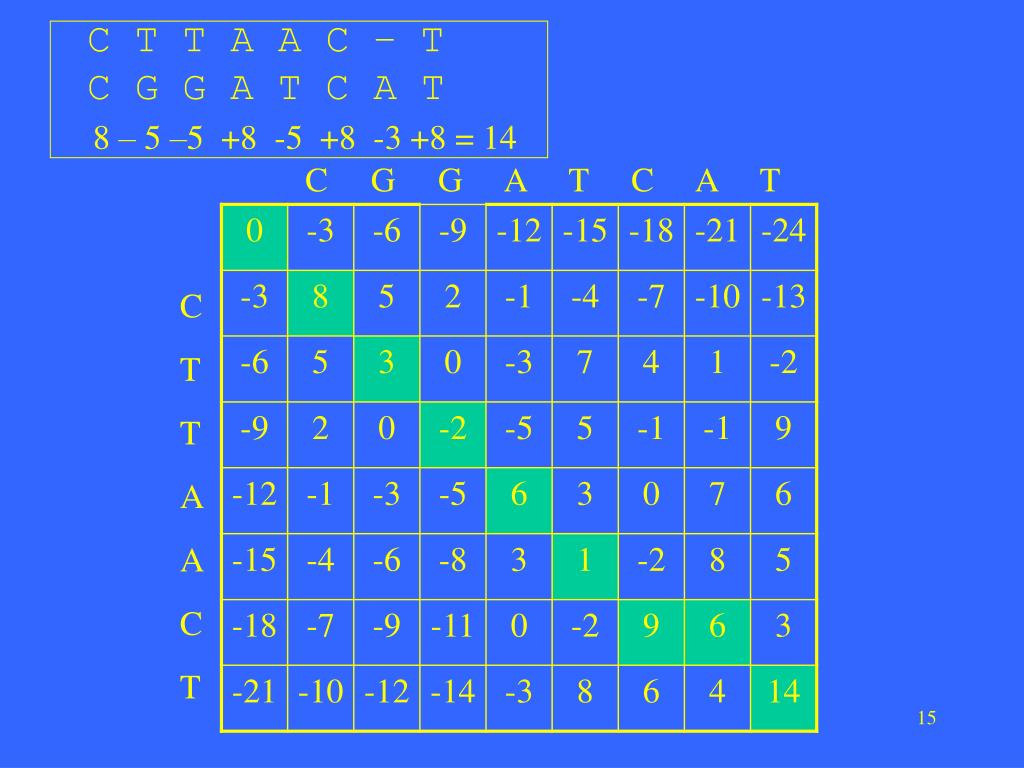

  15. C T T A A C – TC G G A T C A T 8 – 5 –5 +8 -5 +8 -3 +8 = 14 C G G A T C A T CTTAACT

  16. Now try this example in class Sequence A: CAATTGA Sequence B: GAATCTGC Their optimal alignment?

  17. Initializations G A A T C T G C CAATTGA

  18. S4,2 = ? G A A T C T G C CAATTGA

  19. S5,5 = ? G A A T C T G C CAATTGA

  20. S5,5 = 14 G A A T C T G C CAATTGA optimal score

  21. C A A T - T G AG A A T C T G C -5 +8 +8 +8 -3 +8 +8 -5 = 27 G A A T C T G C CAATTGA

  22. Global Alignment vs. Local Alignment • global alignment: • local alignment:

  23. Maximum-sum interval • Given a sequence of real numbers a1a2…an, find a consecutive subsequence with the maximum sum. 9 –3 1 7 –15 2 3 –4 2 –7 6 –2 8 4 -9 For each position, we can compute the maximum-sum interval starting at that position in O(n) time. Therefore, a naive algorithm runs in O(n2) time.

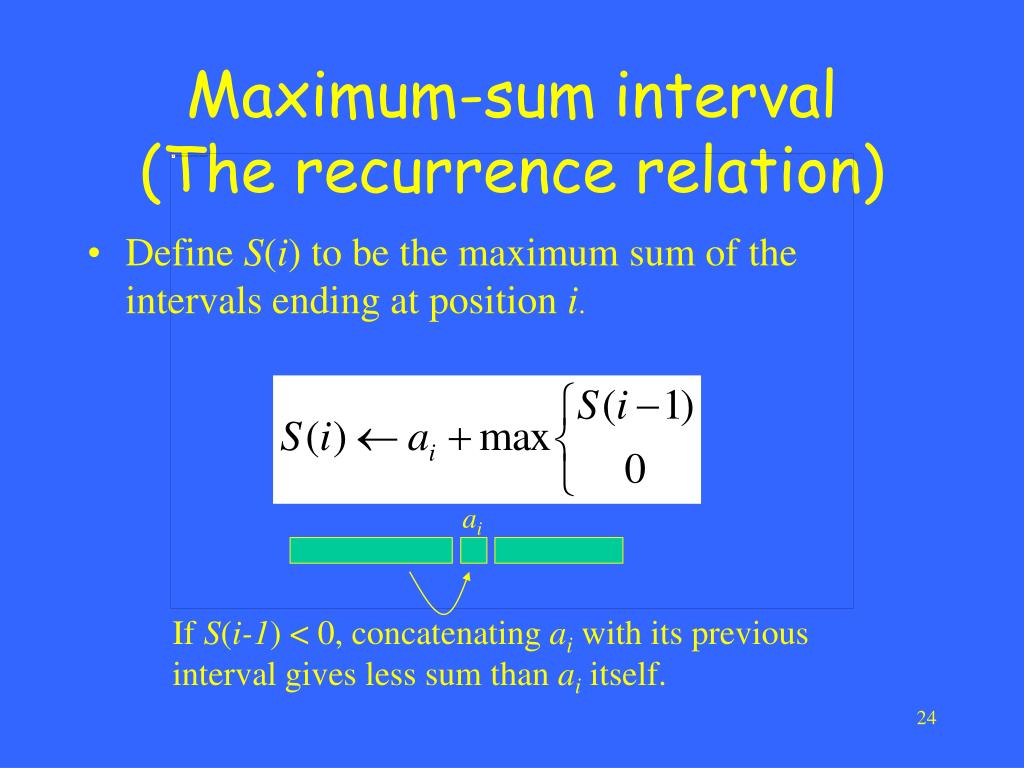

  24. ai Maximum-sum interval(The recurrence relation) • Define S(i) to be the maximum sum of the intervals ending at position i. If S(i-1) < 0, concatenating ai with its previous interval gives less sum than ai itself.

  25. Maximum-sum interval(Tabular computation) 9 –3 1 7 –15 2 3 –4 2 –7 6 –2 8 4 -9 S(i) 9 6 7 14 –1 2 5 1 3 –4 6 4 12 16 7 The maximum sum

  26. Maximum-sum interval(Traceback) 9 –3 1 7 –15 2 3 –4 2 –7 6 –2 8 4 -9 S(i) 9 6 7 14 –1 2 5 1 3 –4 6 4 12 16 7 The maximum-sum interval: 6 -2 8 4

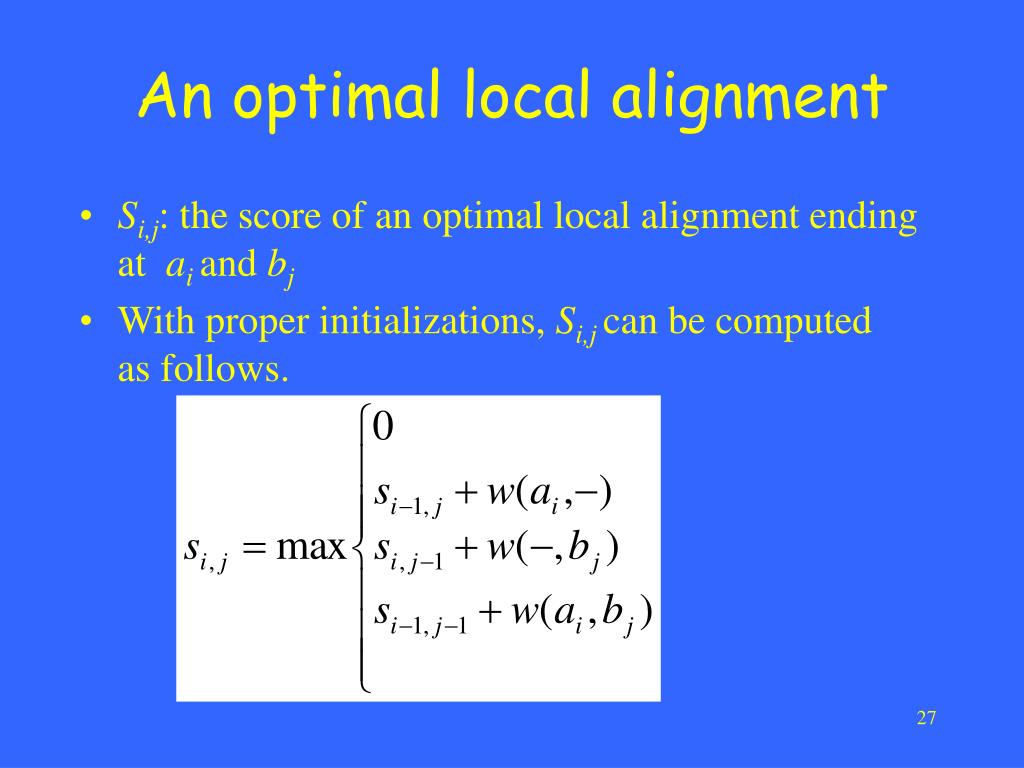

  27. An optimal local alignment • Si,j: the score of an optimal local alignment ending at ai and bj • With proper initializations, Si,j can be computedas follows.

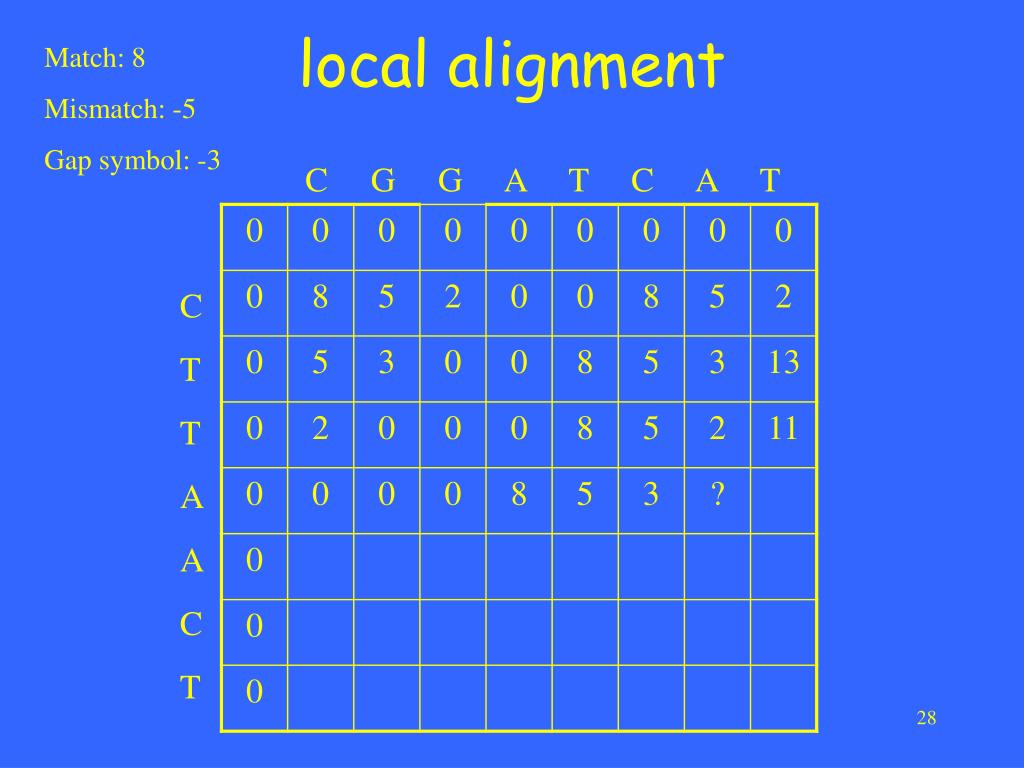

  28. Match: 8 Mismatch: -5 Gap symbol: -3 local alignment C G G A T C A T CTTAACT

  29. Match: 8 Mismatch: -5 Gap symbol: -3 local alignment C G G A T C A T CTTAACT The best score

  30. A – C - TA T C A T 8-3+8-3+8 = 18 C G G A T C A T CTTAACT The best score

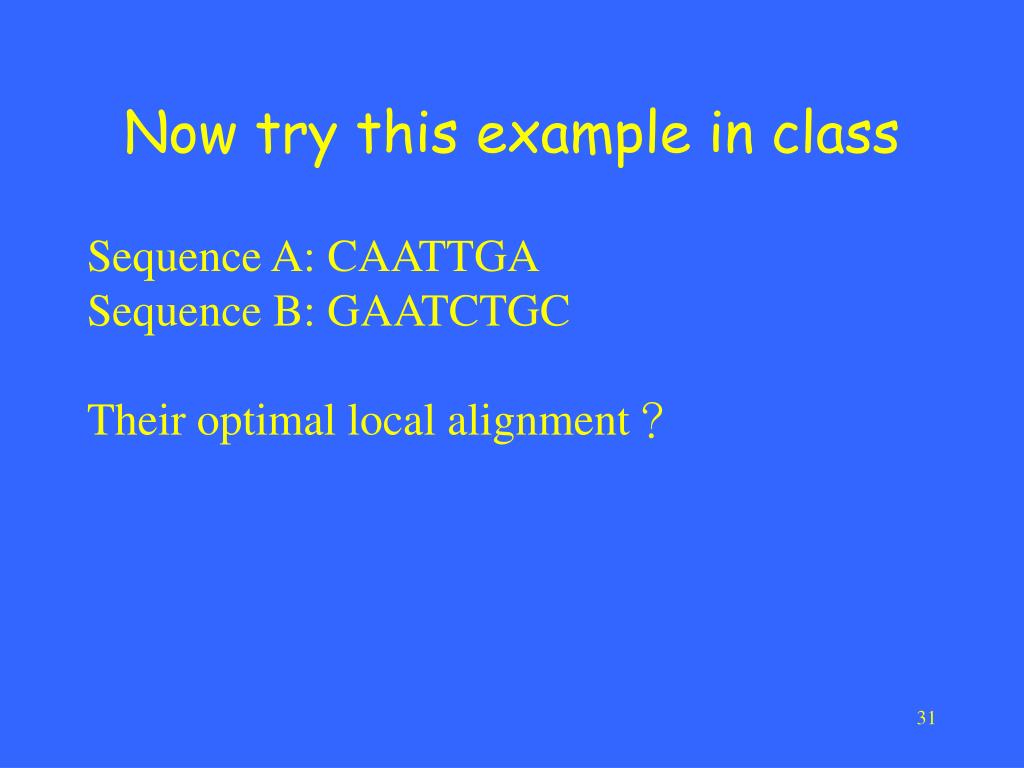

  31. Now try this example in class Sequence A: CAATTGA Sequence B: GAATCTGC Their optimal local alignment?

  32. Did you get it right? G A A T C T G C CAATTGA

  33. A A T – T GA A T C T G 8+8+8-3+8+8 = 37 G A A T C T G C CAATTGA

  34. Affine gap penalties • Match: +8 (w(a, b) = 8, if a = b) • Mismatch: -5 (w(a, b) = -5, if a ≠ b) • Each gap symbol: -3 (w(-,b) = w(a,-) = -3) • Each gap is charged an extra gap-open penalty: -4. -4 -4 C - - - T T A A C TC G G A T C A - - T +8 -3 -3 -3 +8 -5 +8 -3 -3 +8 = +12 Alignment score: 12 – 4 – 4 = 4

  35. Affine gap panalties • A gap of length k is penalized x + k·y. gap-open penalty • Three cases for alignment endings: • ...x...x • ...x...- • ...-...x gap-symbol penalty an aligned pair a deletion an insertion

  36. Affine gap penalties • Let D(i, j) denote the maximum score of any alignment between a1a2…ai and b1b2…bj endingwith a deletion. • Let I(i, j) denote the maximum score of any alignment between a1a2…ai and b1b2…bj endingwith an insertion. • Let S(i, j) denote the maximum score of any alignment between a1a2…ai and b1b2…bj.

  37. Affine gap penalties (A gap of length k is penalized x + k·y.)

  38. D D D I I I S S S Affine gap penalties -y w(ai,bj) -x-y D -x-y I S -y

  39. Constant gap penalties • Match: +8 (w(a, b) = 8, if a = b) • Mismatch: -5 (w(a, b) = -5, if a ≠ b) • Each gap symbol: 0 (w(-,b) = w(a,-) = 0) • Each gap is charged a constant penalty: -4. -4 -4 C - - - T T A A C TC G G A T C A - - T +8 0 0 0 +8 -5 +8 0 0 +8 = +27 Alignment score: 27 – 4 – 4 = 19

  40. Constant gap penalties • Let D(i, j) denote the maximum score of any alignment between a1a2…ai and b1b2…bj endingwith a deletion. • Let I(i, j) denote the maximum score of any alignment between a1a2…ai and b1b2…bj endingwith an insertion. • Let S(i, j) denote the maximum score of any alignment between a1a2…ai and b1b2…bj.

  41. Constant gap penalties

  42. Restricted affine gap panalties • A gap of length k is penalized x + f(k)·y. where f(k) = k for k <= c and f(k) = c for k > c • Five cases for alignment endings: • ...x...x • ...x...- • ...-...x • and 5. for long gaps an aligned pair a deletion an insertion

  43. Restricted affine gap penalties

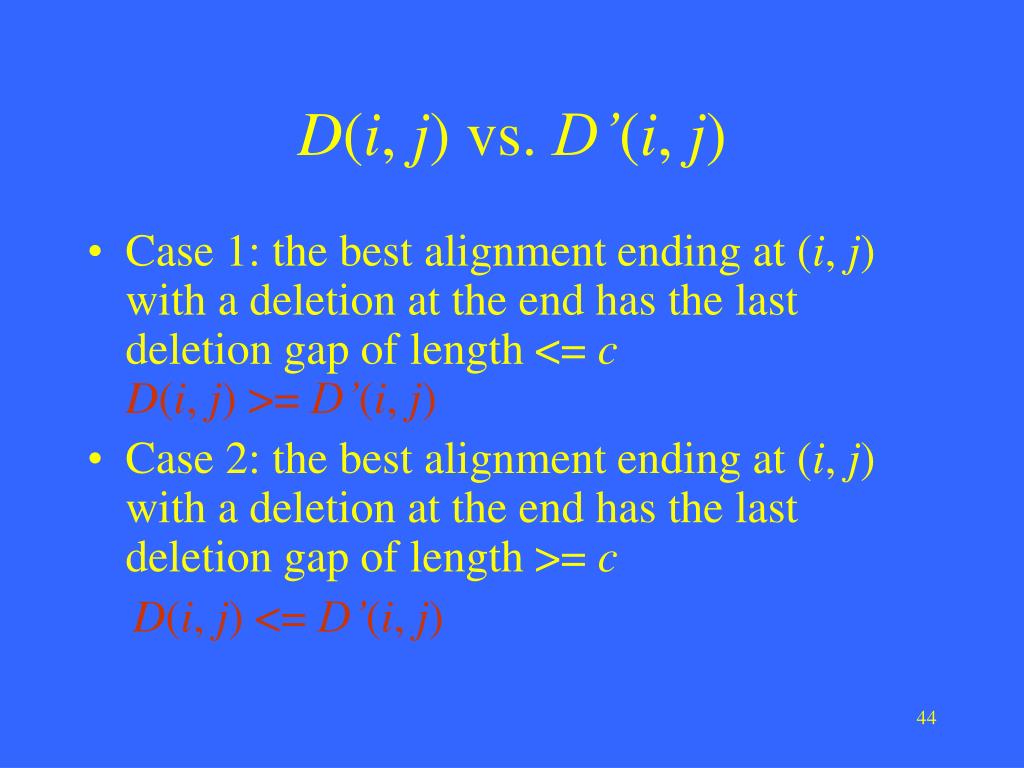

  44. D(i, j) vs. D’(i, j) • Case 1: the best alignment ending at (i, j) with a deletion at the end has the last deletion gap of length <= c D(i, j) >= D’(i, j) • Case 2: the best alignment ending at (i, j) with a deletion at the end has the last deletion gap of length >= c D(i, j) <= D’(i, j)

  45. Max{S(i,j)-x-ky, S(i,j)-x-cy} S(i,j)-x-cy c k
