Projectile motion cliff problems

Projectile Motion – Cliff Problems


Bell ringer

Bell Ringer

  • Recall that an object’s motion horizontally and vertically are independent. If I throw a football perfectly horizontally to the right at 5 m/s, what will its horizontal speed be after 1 second, if it hasn’t yet hit the ground? (ignore air resistance)

5 m/s

? m/s

-9.8 m/s


Reading quiz

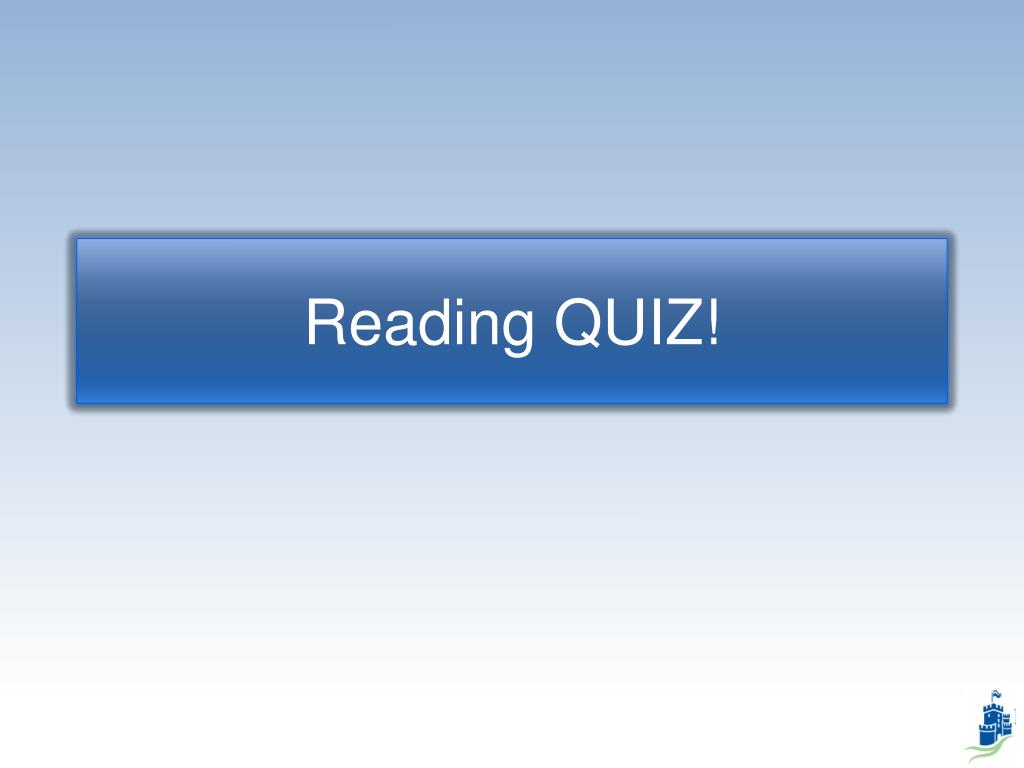

Reading QUIZ!


Reading quiz1

Reading Quiz

  • Everything away except notes if you have them

  • No harm in guessing

  • 3 Questions

  • Good Luck


What was this section about

What was this section about?

  • Projectile Motion

  • Roller Coasters

  • Circular Motion

  • Momentum


Which of these pictures did appear in the reading

Which of these pictures DID appear in the reading?

a)

  • Picture Choice 1

  • Picture Choice 2

  • Picture Choice 3

c)

b)


Which of these terms was not discussed in the reading

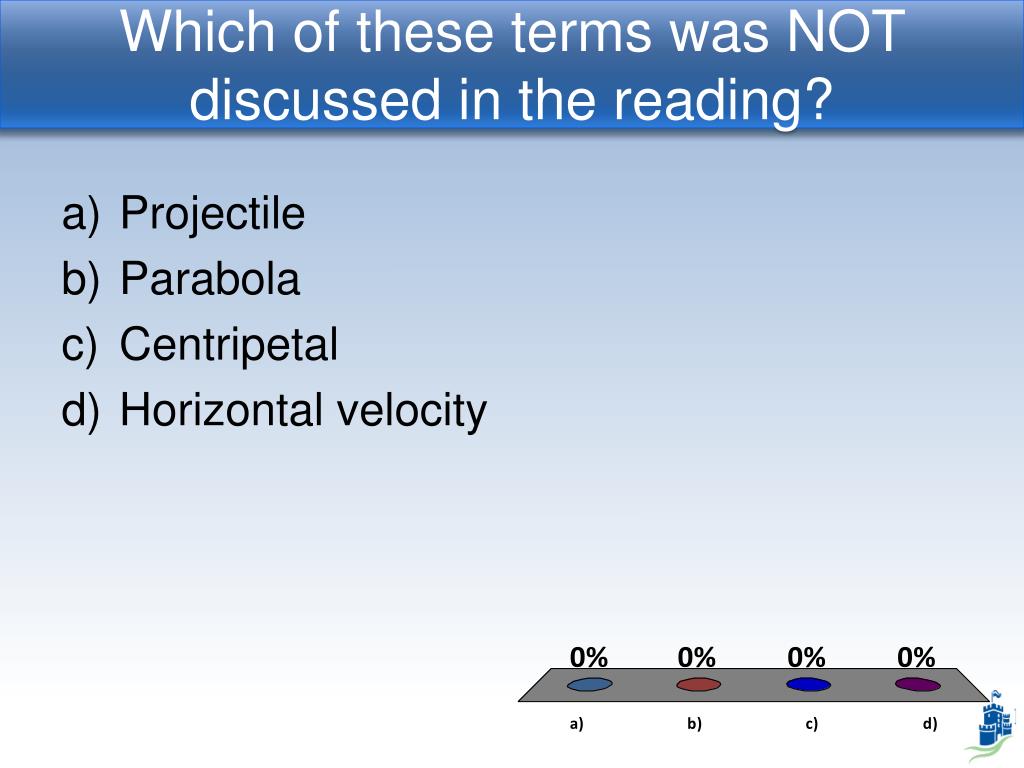

Which of these terms was NOT discussed in the reading?

  • Projectile

  • Parabola

  • Centripetal

  • Horizontal velocity


Objectives announcements

Objectives / Announcements

  • SWBAT…

    • Separate a projectile motion problem into its x and y pieces

    • Complete simple cliff-style projectile motion problems


Docket

Docket

  • Bell Ringer

  • Y problem

  • X Problem

  • Cliff Problems!


Docket1

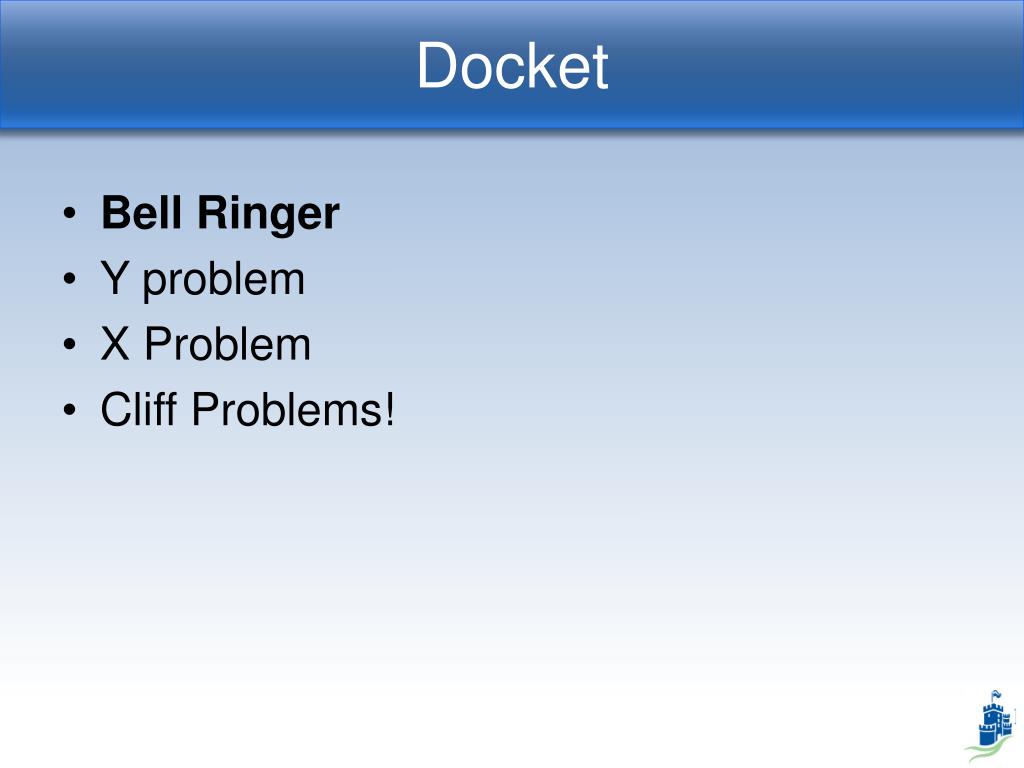

Docket

  • Bell Ringer

  • Y problem

  • X Problem

  • Cliff Problems!


Do now

Do Now

  • Recall that an object’s motion horizontally and vertically are independent. If I throw a football perfectly horizontally to the right at 5 m/s, what will its horizontal speed be after 1 second, if it hasn’t yet hit the ground? (ignore air resistance)

Is there anything pushing on the ball horizontally?

No, only gravity pushes on it. If there is no push, speed doesn’t change!

5 m/s

0 m/s

After 0.5 sec

? m/s

5 m/s

After 1 sec

-9.8 m/s


Docket2

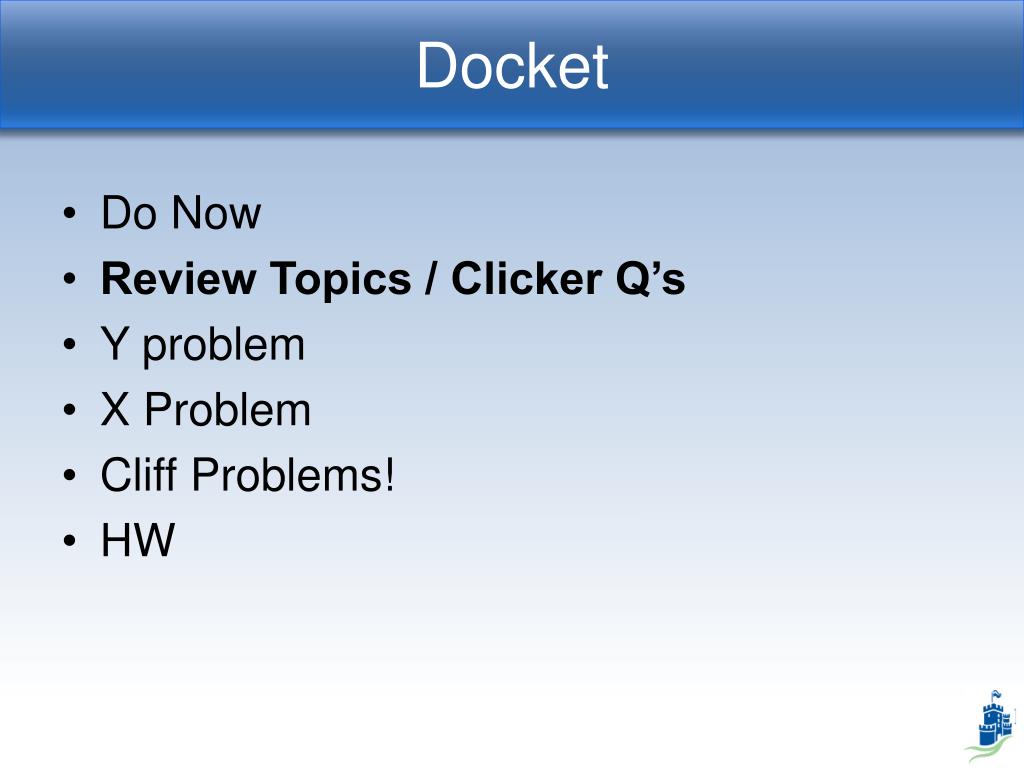

Docket

  • Do Now

  • Review Topics / Clicker Q’s

  • Y problem

  • X Problem

  • Cliff Problems!

  • HW


Projectile motion notes

Projectile Motion Notes

Projectile: An object that moves through space acted only upon by the earth’s gravity.

A projectile may start at a given height and move toward the ground in an arc.

A projectile may also start at a given level and move up and then back down.


Rules

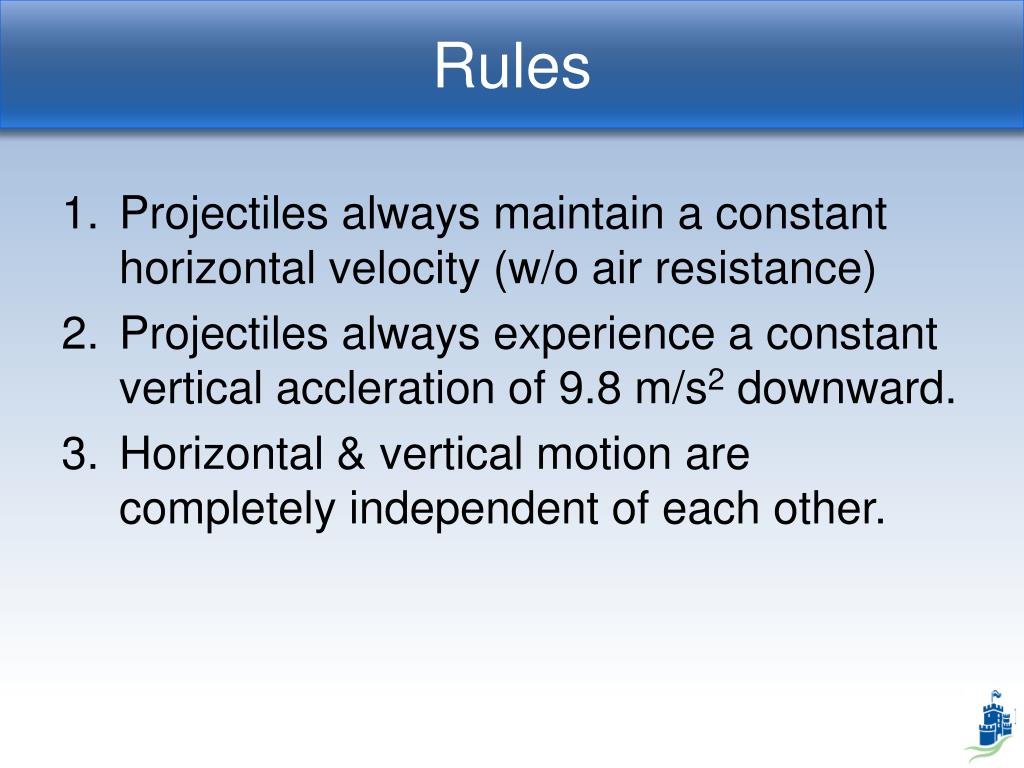

Rules

  • Projectiles always maintain a constant horizontal velocity (w/o air resistance)

  • Projectiles always experience a constant vertical accleration of 9.8 m/s2 downward.

  • Horizontal & vertical motion are completely independent of each other.


Projectile motion cliff problems

  • For projectiles beginning and ending at the same height, the time it go up = the time it takes to go home.

  • Objects dropped from a moving vehicle have the same velocity as the moving vehicle.


Write this down

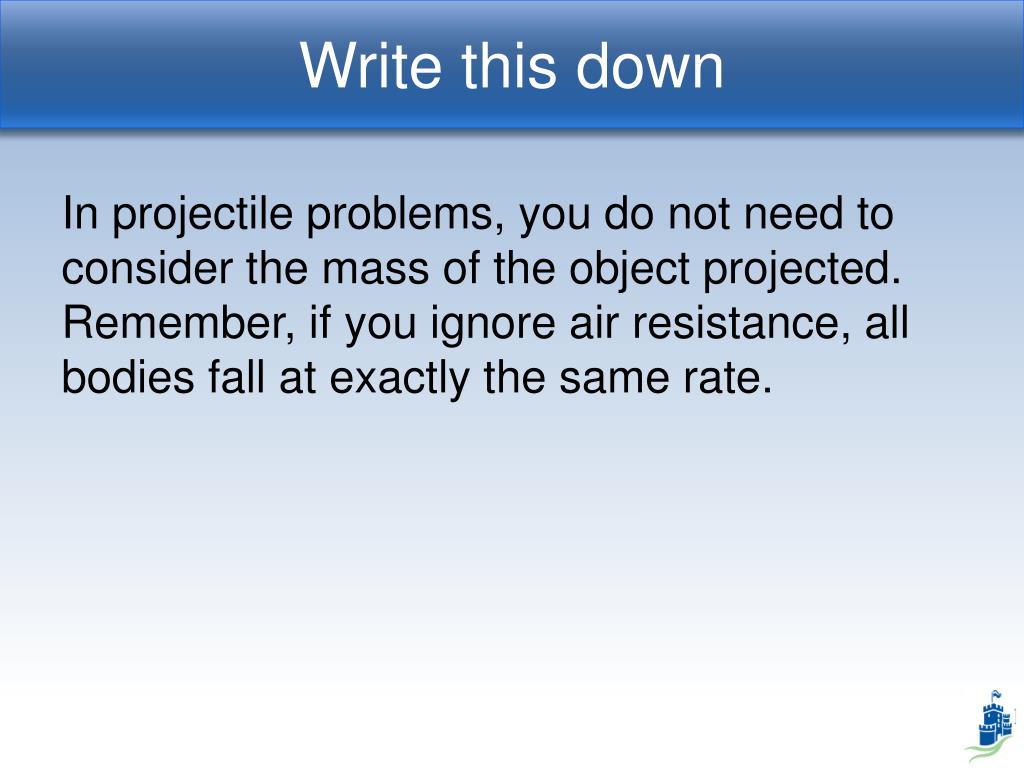

Write this down

In projectile problems, you do not need to consider the mass of the object projected. Remember, if you ignore air resistance, all bodies fall at exactly the same rate.


The horizontal component x is a constant velocity problem

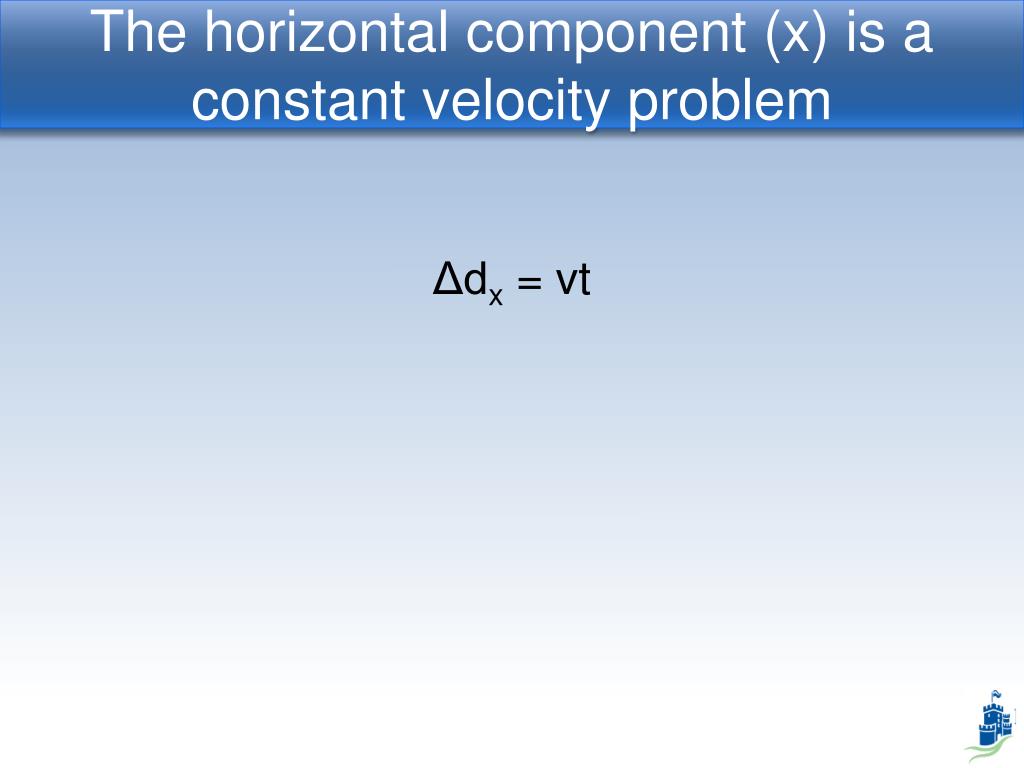

The horizontal component (x) is a constant velocity problem

Δdx = vt


The vertical component y is a free fall problem

The vertical component (y) is a free fall problem

To simplify calculations, the initial vertical velocity, vyi, will be left out of all equations in which an object is projected horizontally.

So,

Δdy = (1/2)gt2


Example 1

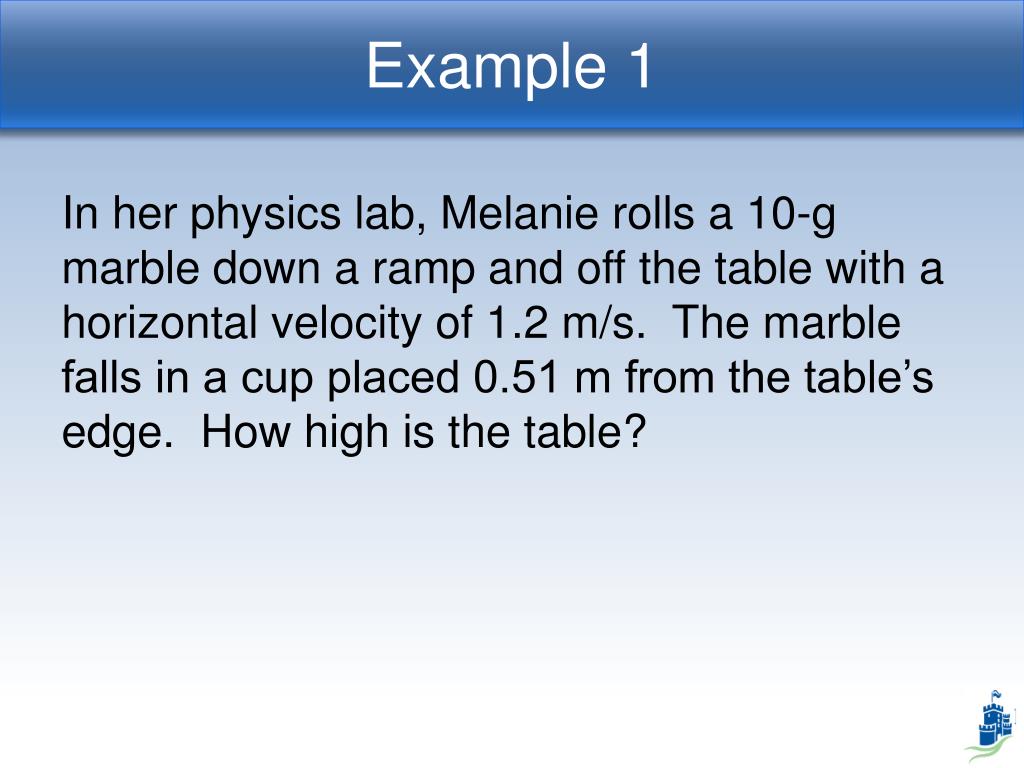

Example 1

In her physics lab, Melanie rolls a 10-g marble down a ramp and off the table with a horizontal velocity of 1.2 m/s. The marble falls in a cup placed 0.51 m from the table’s edge. How high is the table?


Projectile motion cliff problems

Batman flies off of the top of a 19.6 meter building at 7 m/s to the right. How far will he land from the school?

X Problem

Y Problem


Trig

7 m/s

19.6 m

?


Projectile motion cliff problems

D’andre throws a baseball horizontally from 2 meters off of the ground towards home plate which is 10 meters away. How fast should he throw it so that it lands on the plate?

X Problem

Y Problem


Trig

vi = ?

2m

10 m


You try

You Try!

X Problem

Y Problem

You are horizontally throwing water balloons at your friend from on top of a ladder. If the person is 18 meters from your ladder, and you can throw at 22 m/s, how high up the ladder should you climb?


vi = 22 m/s

?m

3.3m

18m
