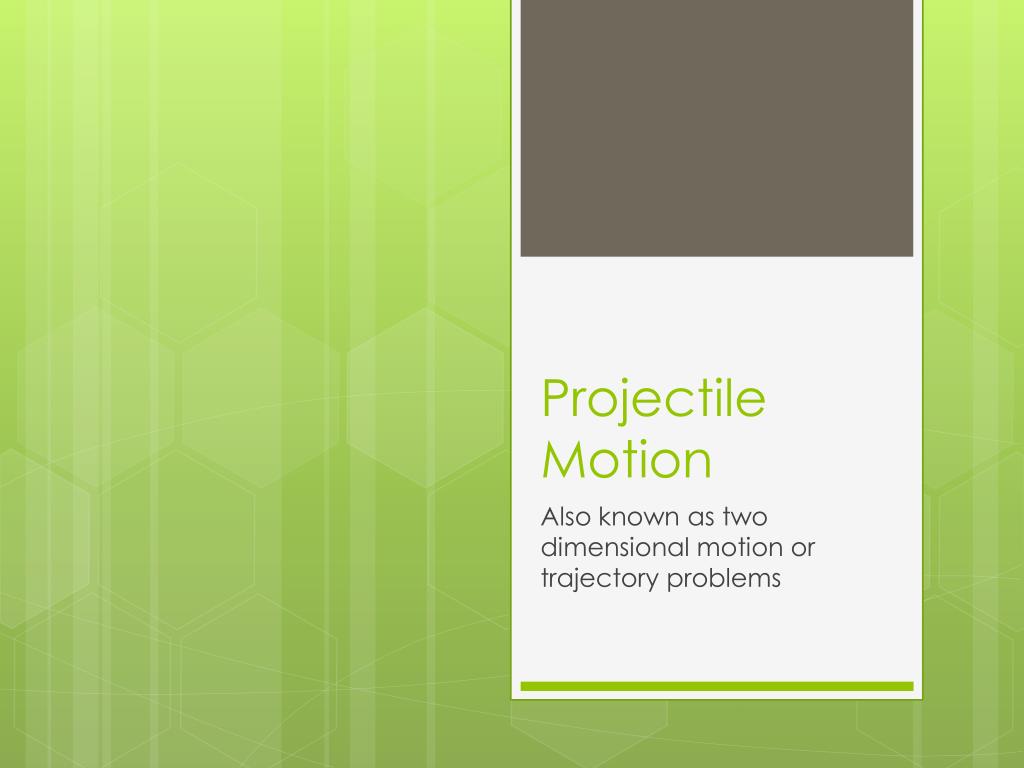

  1. Projectile Motion Also known as two dimensional motion or trajectory problems

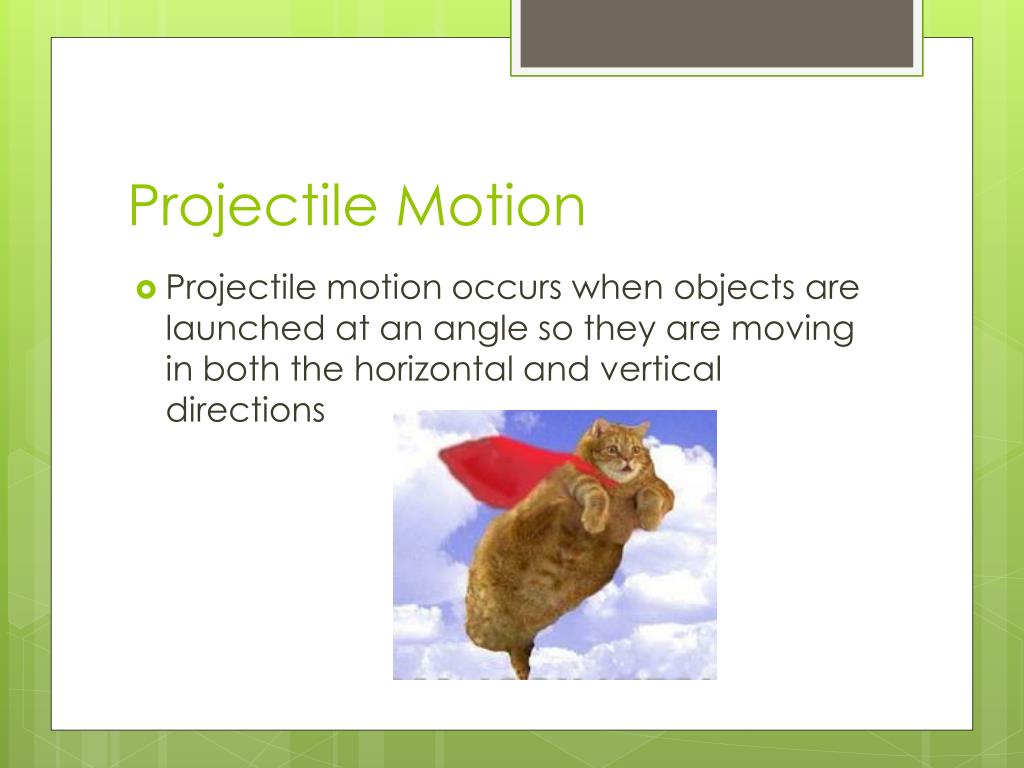

  2. Projectile Motion • Projectile motion occurs when objects are launched at an angle so they are moving in both the horizontal and vertical directions

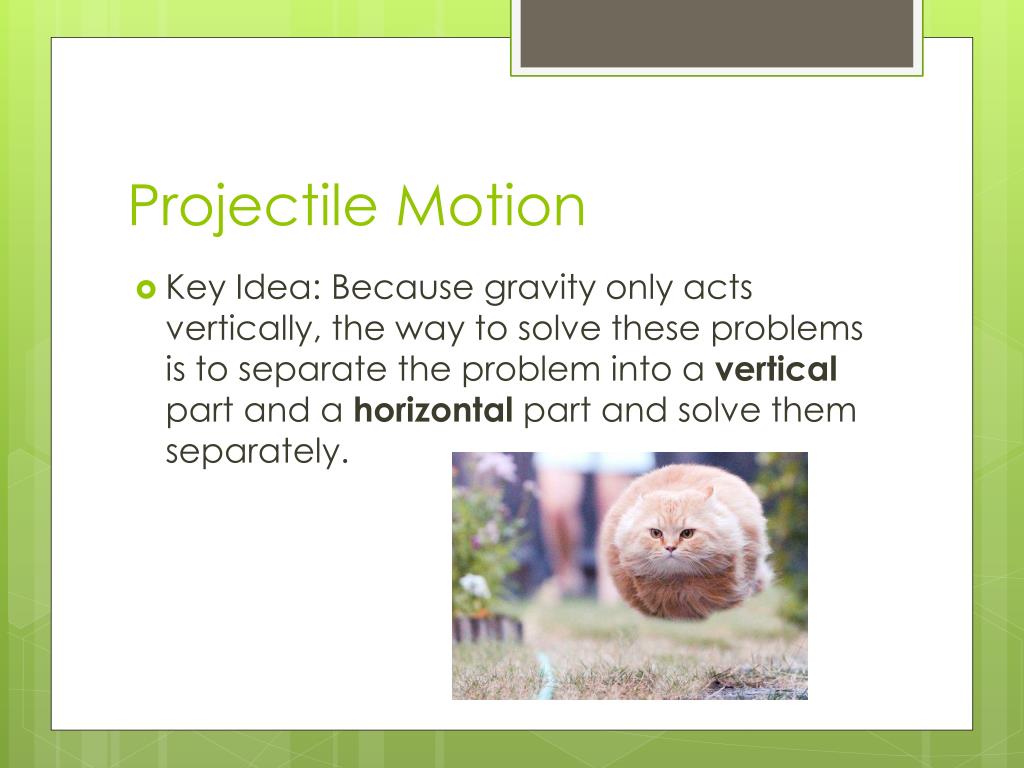

  3. Projectile Motion • Key Idea: Because gravity only acts vertically, the way to solve these problems is to separate the problem into a vertical part and a horizontal part and solve them separately.

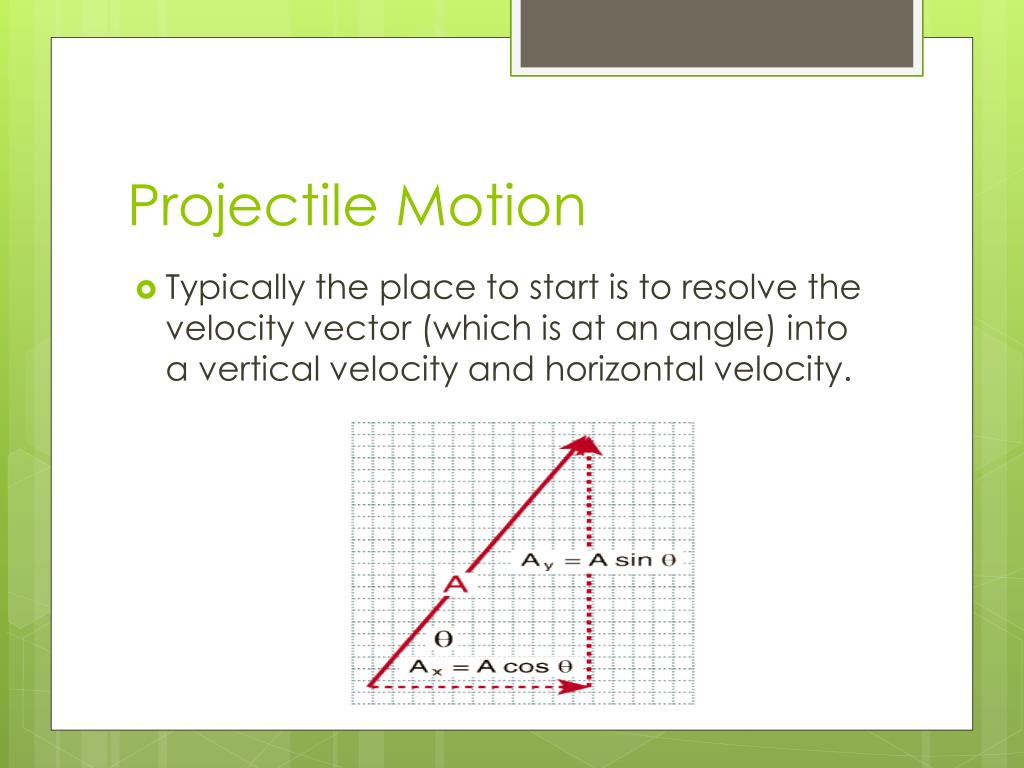

  4. Projectile Motion • Typically the place to start is to resolve the velocity vector (which is at an angle) into a vertical velocity and horizontal velocity.

  5. Projectile Motion • Solve the problem by keeping the vertical and horizontal components in separate tables • VerticalHorizontal • The variable which is common to both is time.

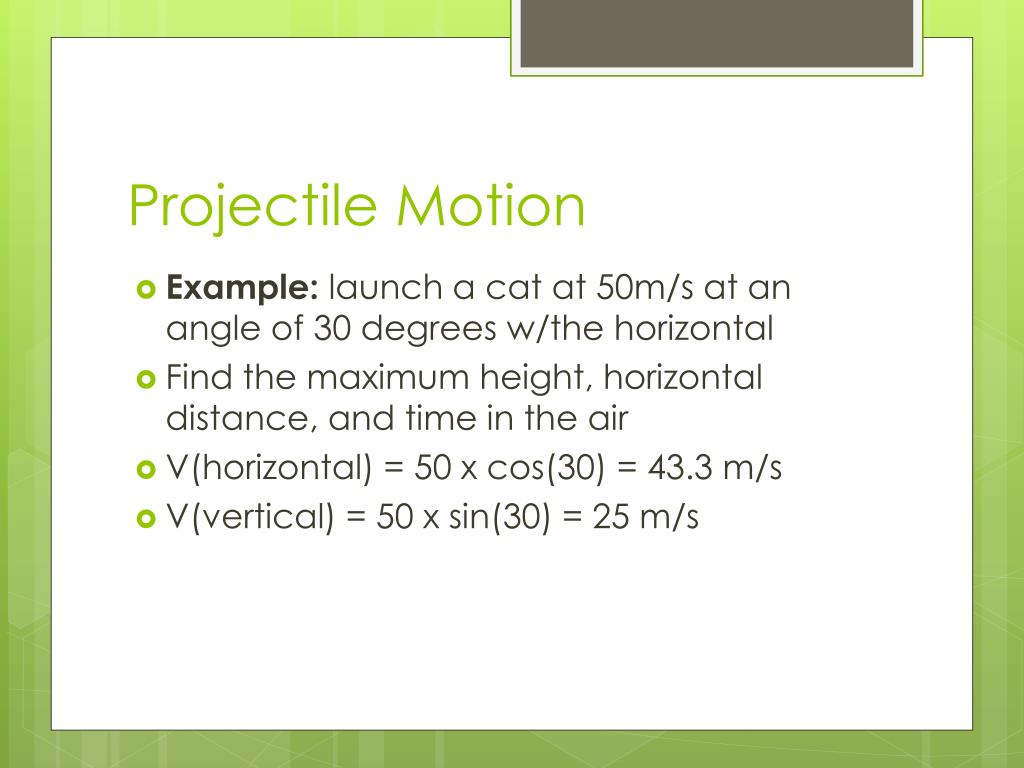

  6. Projectile Motion • Example: launch a cat at 50m/s at an angle of 30 degrees w/the horizontal • Find the maximum height, horizontal distance, and time in the air • V(horizontal) = 50 x cos(30) = 43.3 m/s • V(vertical) = 50 x sin(30) = 25 m/s

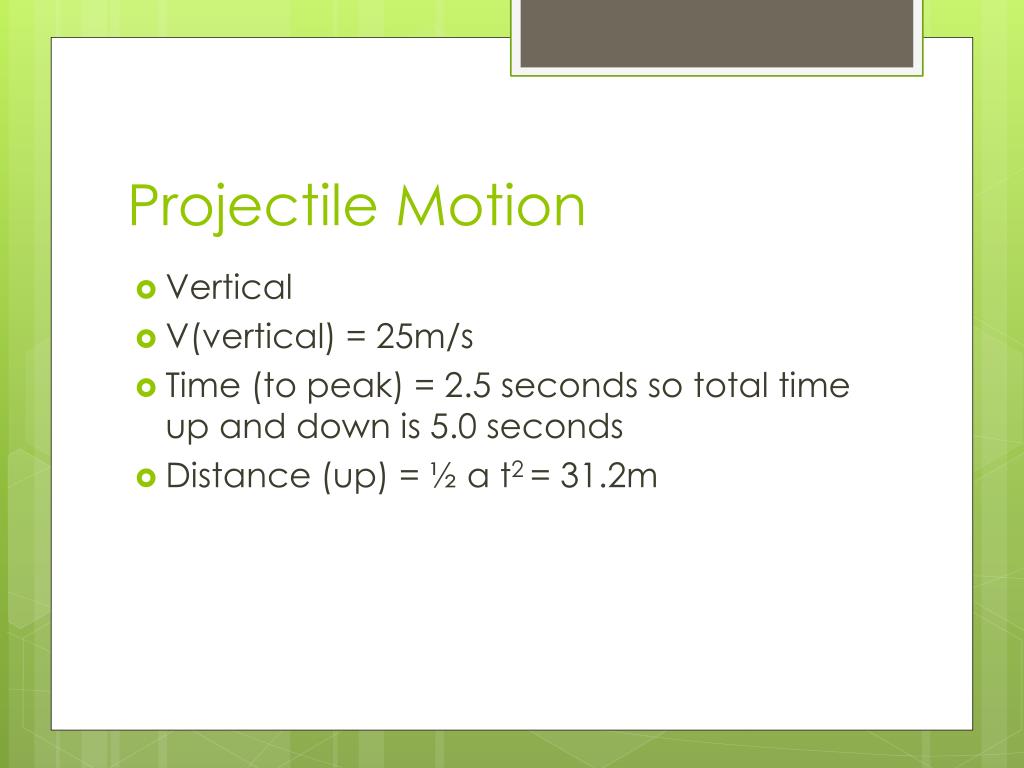

  7. Projectile Motion • Vertical • V(vertical) = 25m/s • Time (to peak) = 2.5 seconds so total time up and down is 5.0 seconds • Distance (up) = ½ a t2 = 31.2m

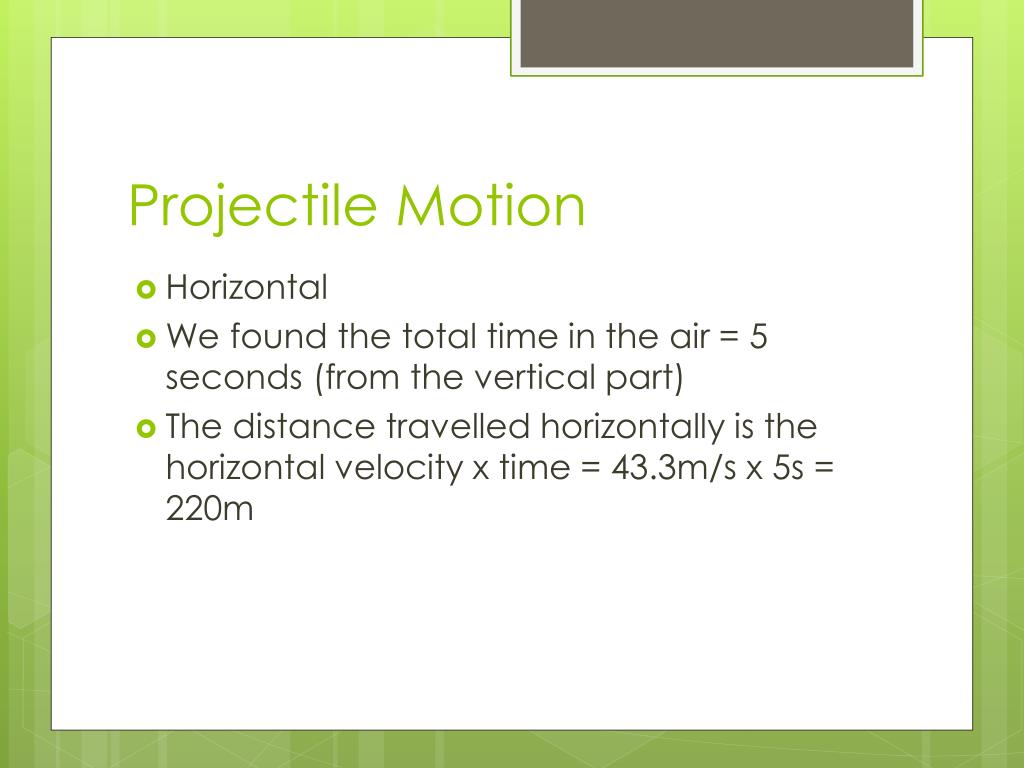

  8. Projectile Motion • Horizontal • We found the total time in the air = 5 seconds (from the vertical part) • The distance travelled horizontally is the horizontal velocity x time = 43.3m/s x 5s = 220m

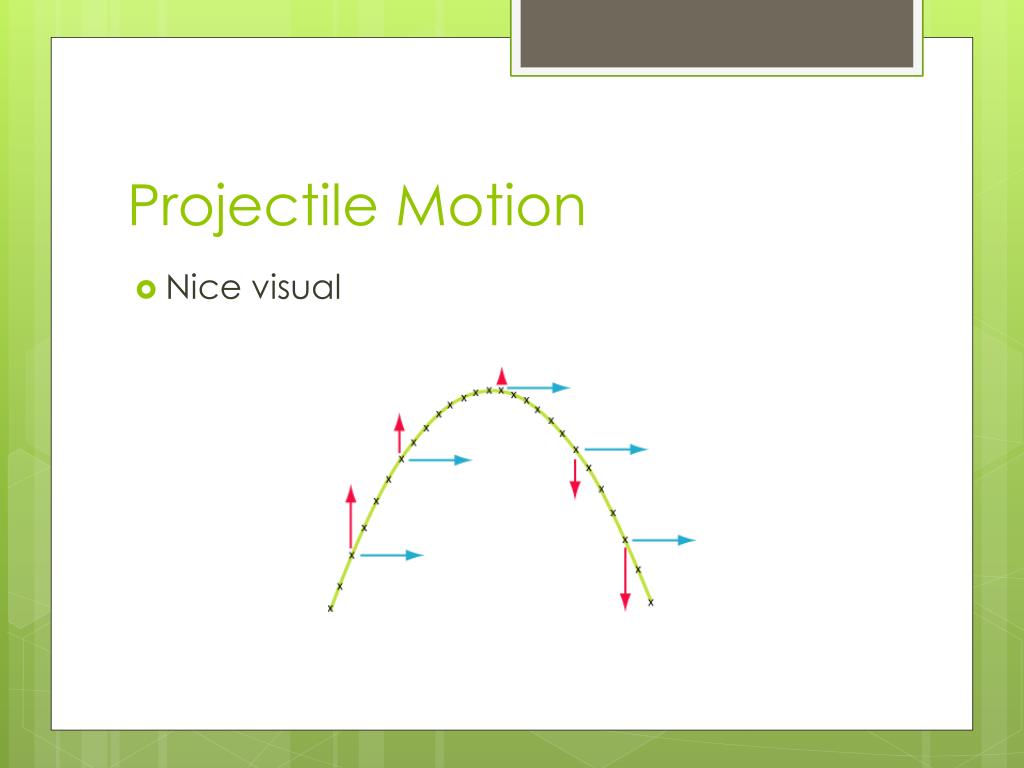

  9. Projectile Motion • Nice visual

  10. Projectile Motion • Nicer visual
