  1. Graph TheorySummer Math Workshop for High School & Middle School Teachers Sarah HollidayJune 12, 2009

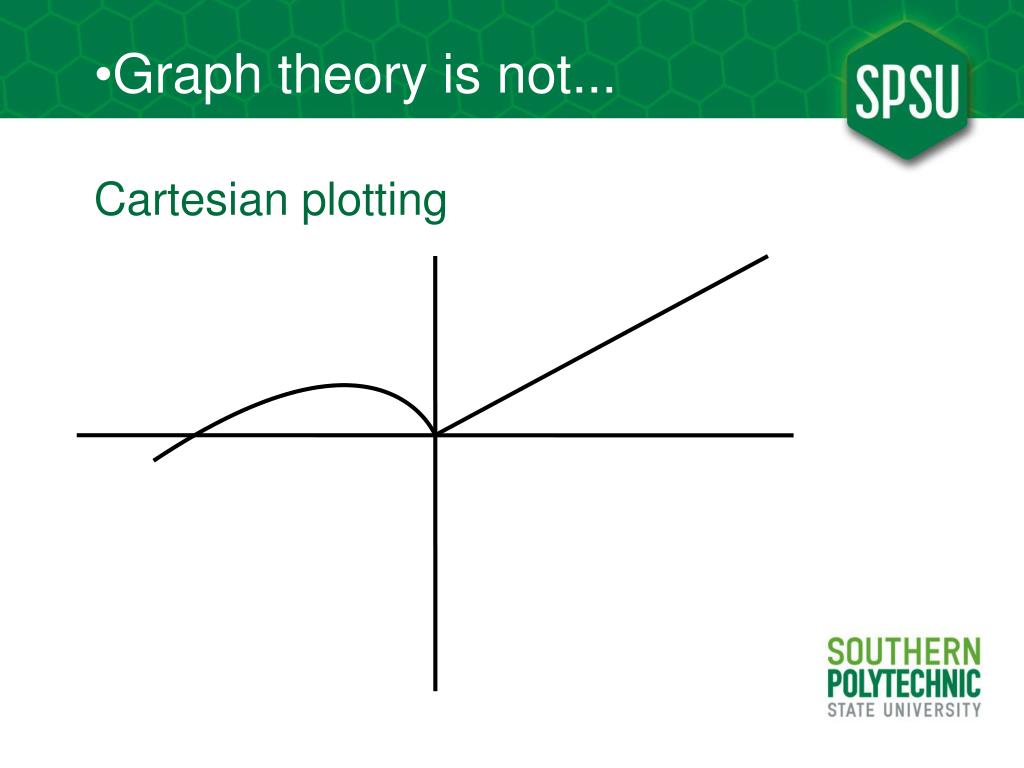

  2. Graph theory is not... • Cartesian plotting

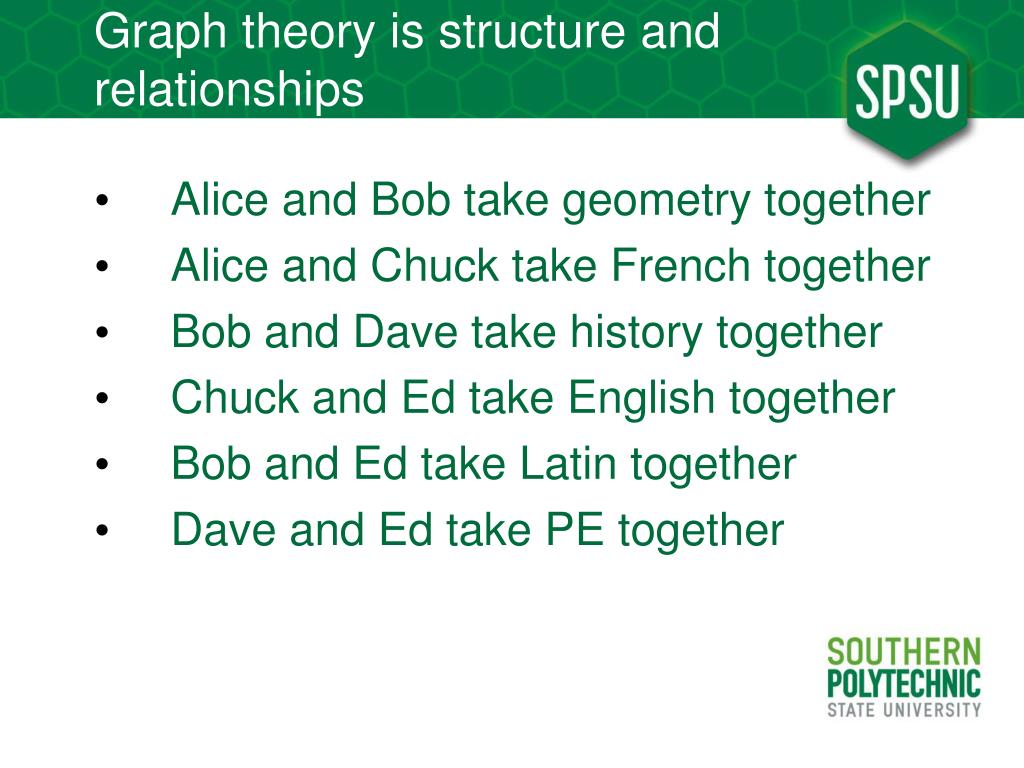

  3. Graph theory is structure and relationships • Alice and Bob take geometry together • Alice and Chuck take French together • Bob and Dave take history together • Chuck and Ed take English together • Bob and Ed take Latin together • Dave and Ed take PE together

  4. Graph theory is structure and relationships A B C E D

  5. Graph theory is not... • Just pictures

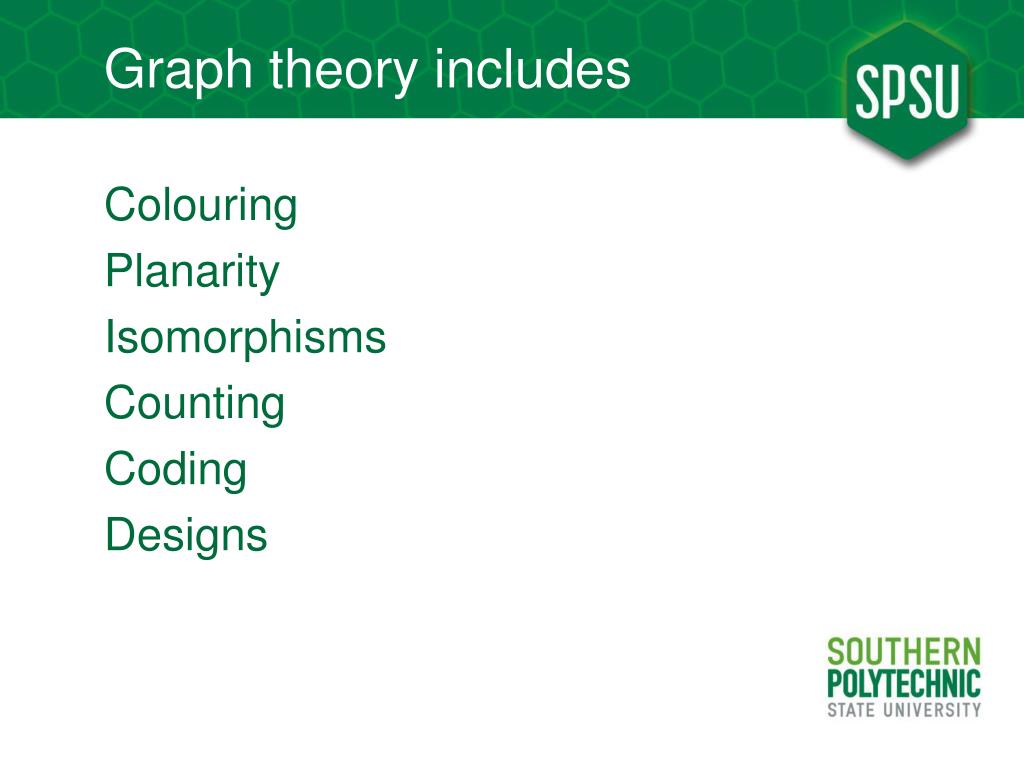

  6. Graph theory includes • Colouring • Planarity • Isomorphisms • Counting • Coding • Designs

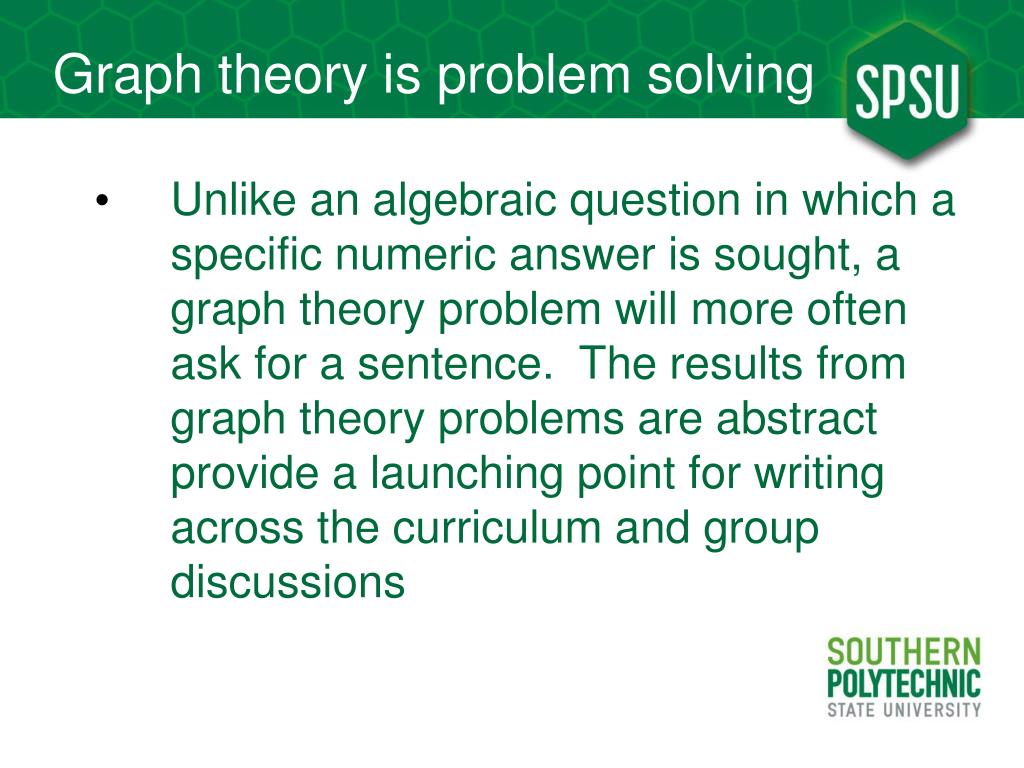

  7. Graph theory is problem solving • Unlike an algebraic question in which a specific numeric answer is sought, a graph theory problem will more often ask for a sentence. The results from graph theory problems are abstract provide a launching point for writing across the curriculum and group discussions

  8. Colouring: • Colouring a graph is the process of assigning labels to the vertices. • A proper colouring is one in which no two adjacent vertices have the same colour or assigned label. • A minimum proper colouring is a proper colouring using the fewest possible colours.

  9. Colouring:

  10. A colouring: 2 2 1 3 5 2 3 3 4 2

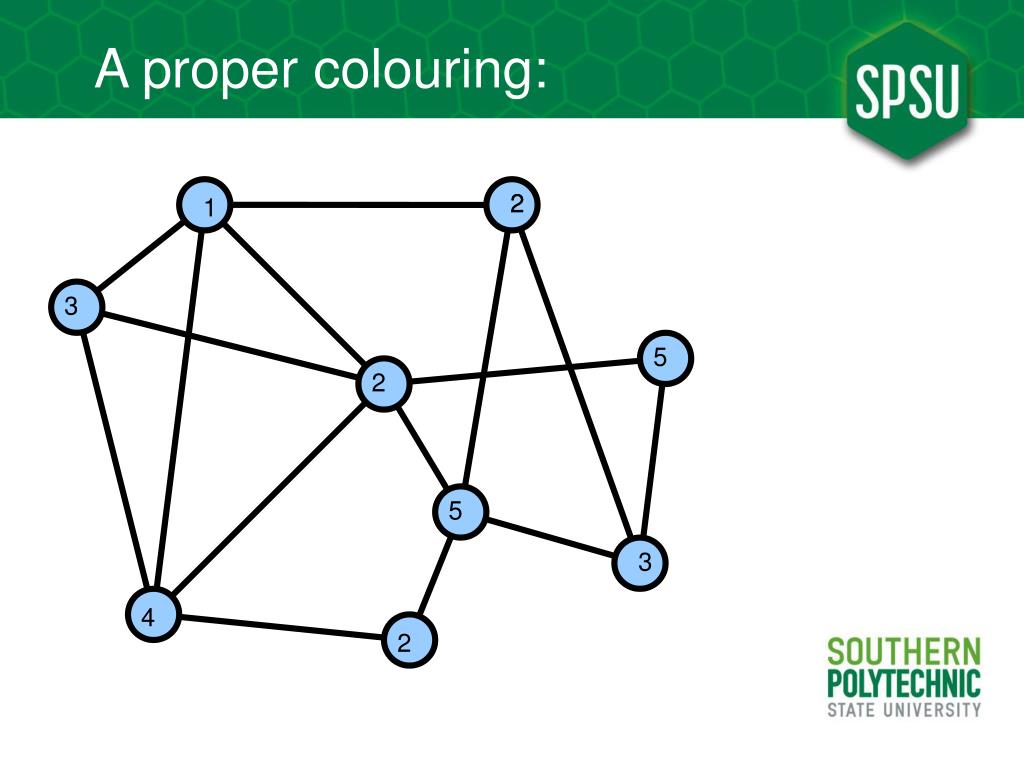

  11. A proper colouring: 2 2 1 3 5 2 5 3 4 2

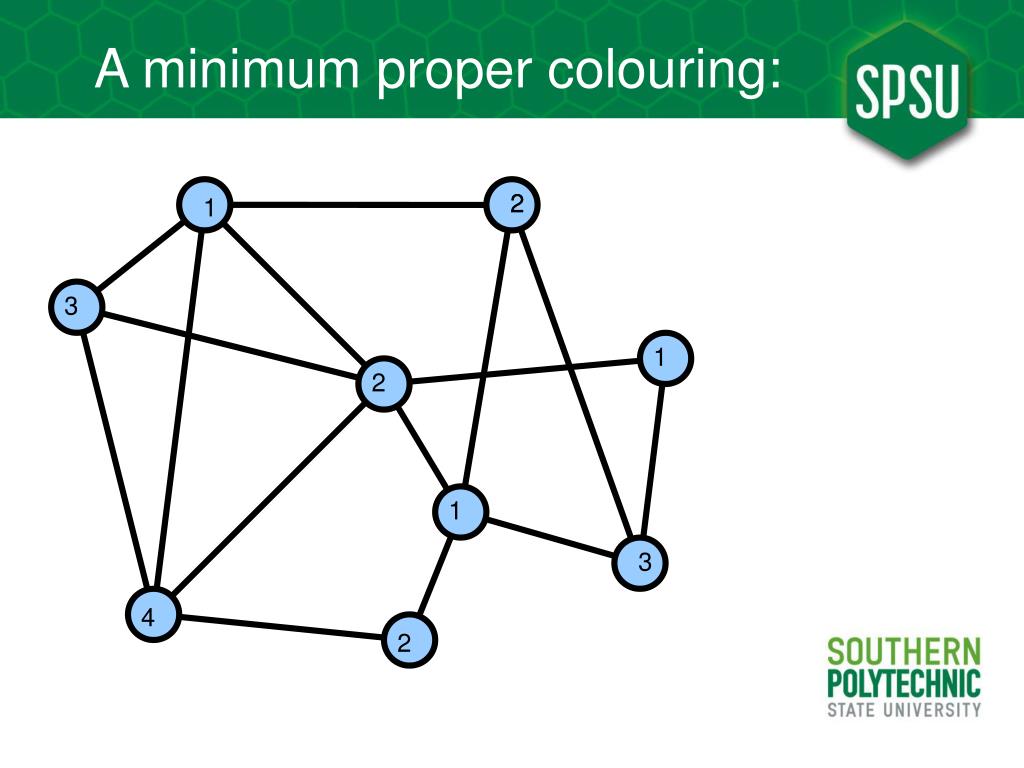

  12. A minimum proper colouring: 2 2 1 3 1 2 1 3 4 2

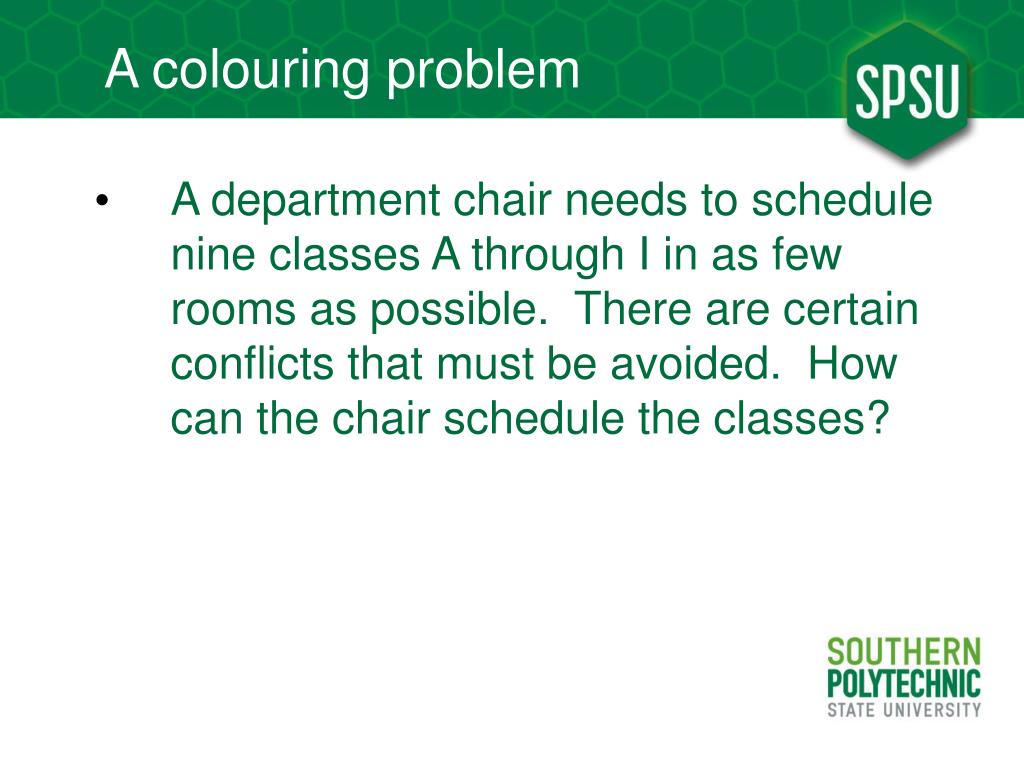

  13. A colouring problem • A department chair needs to schedule nine classes A through I in as few rooms as possible. There are certain conflicts that must be avoided. How can the chair schedule the classes?

  14. A colouring problem • Sue teaches classes A, B, C, and D. • Tim teaches classes E, F, and G. • Una teaches classes H and I. • Classes A, F, and I use the projector. • Classes B, E, G, and H use the legos.

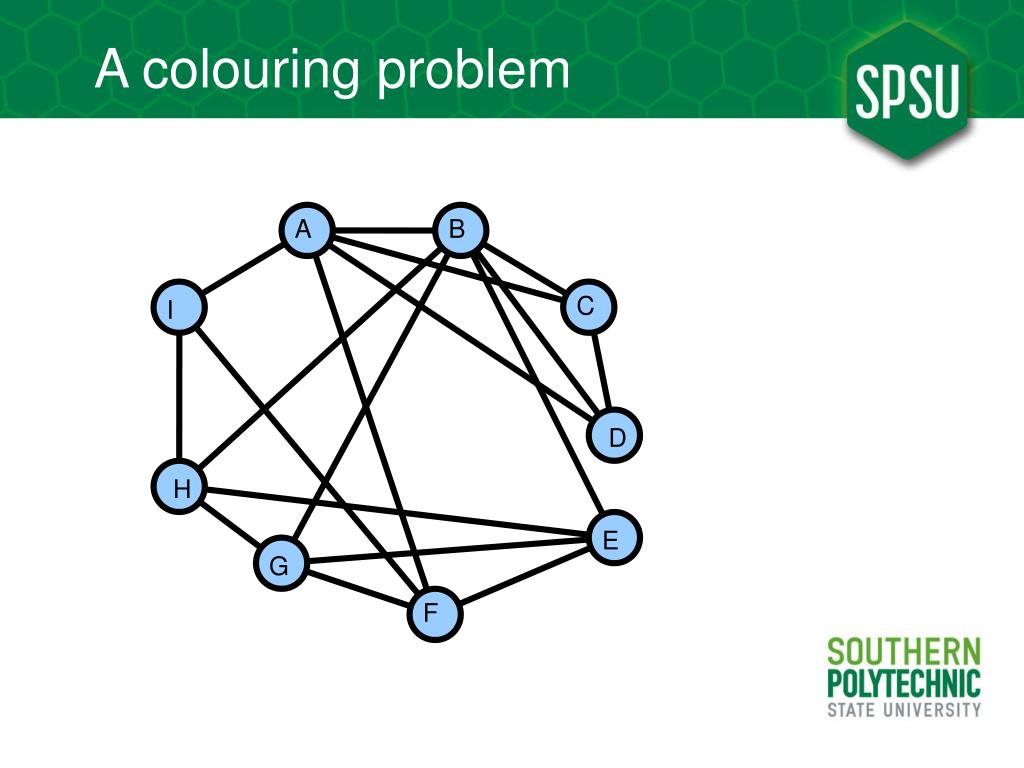

  15. A colouring problem A B C I D H E G F

  16. A colouring problem 1 2 A B 3 3 C I 4 D H 4 E 1 G F 3 2

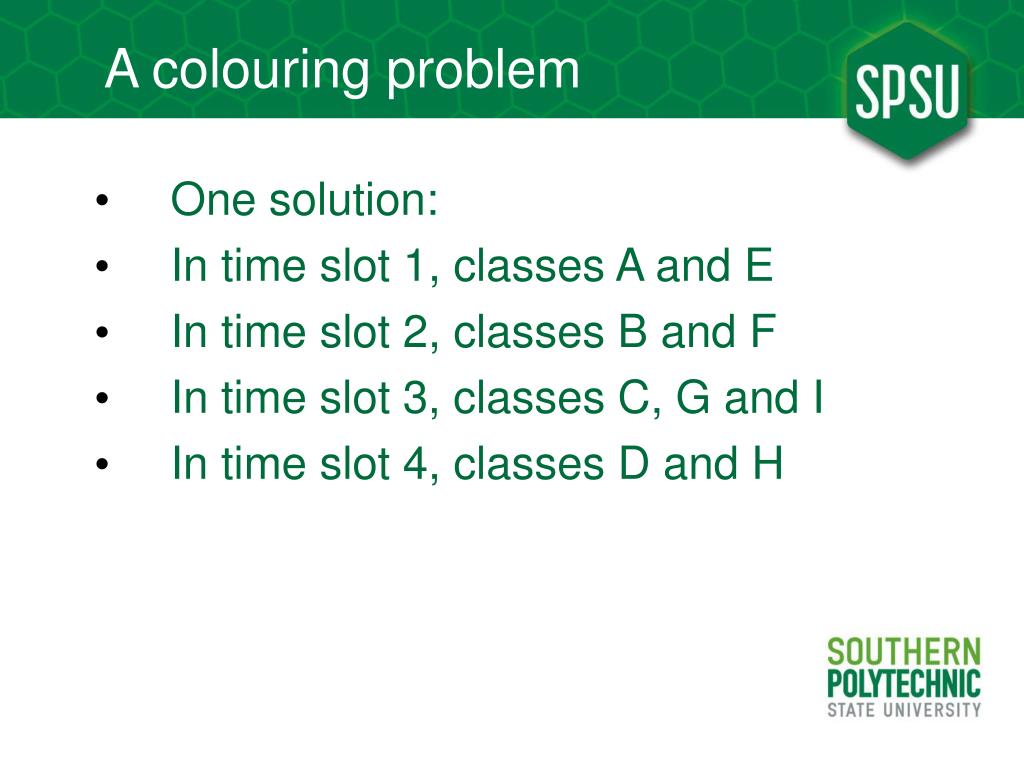

  17. A colouring problem • One solution: • In time slot 1, classes A and E • In time slot 2, classes B and F • In time slot 3, classes C, G and I • In time slot 4, classes D and H

  18. Colouring: maps • We can use a graph to represent physical relationships. We will mark a vertex for each state, and draw an edge between two vertices that share a border (not just a corner).

  19. Colouring: maps

  20. Colouring: maps

  21. Colouring: maps • How many colours are required to properly colour a map or a graph that represents a map? • The second example shows us that four colours suffice. • A graph that has a map representation is called planar.

  22. Planarity: • A graph that can be represented using vertices and edges that do not cross is planar; we say that the graph can be drawn in the plane.

  23. Planarity:

  24. Planarity: B A D C

  25. Planarity: B A D C

  26. Planarity:

  27. Planarity:

  28. Planarity:

  29. Planarity: Euler's formula • The problem of determining which graphs are planar was indirectly addressed by Euler in the formula V-E+F=2, where V is the number of vertices, E edges and F faces.

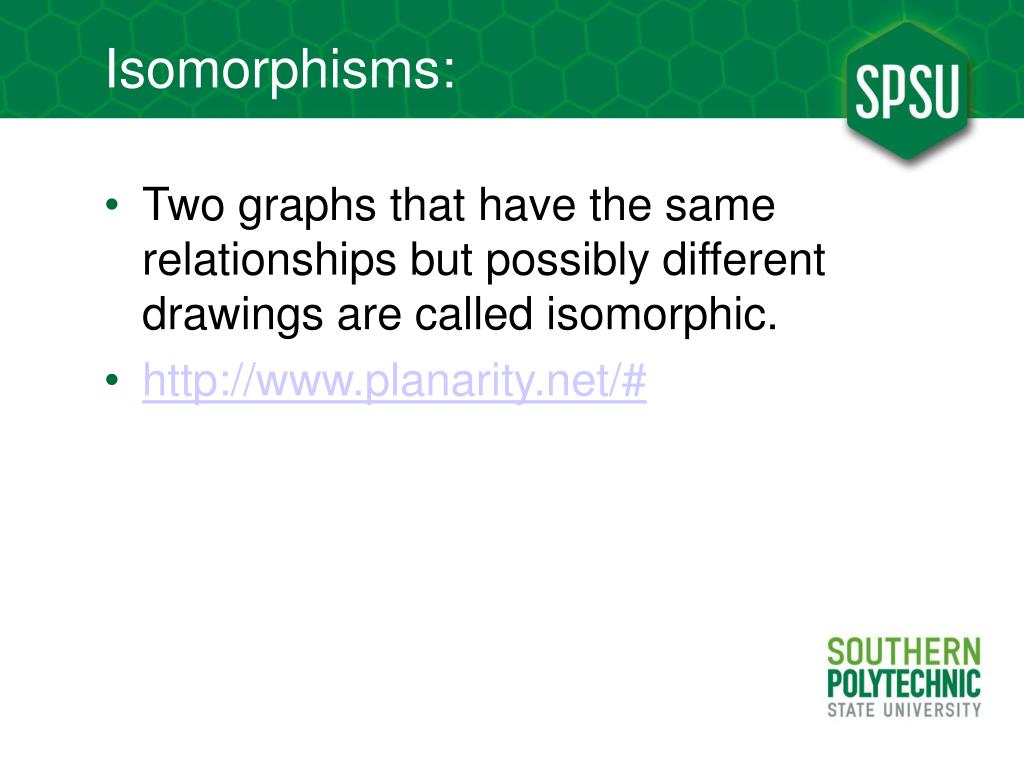

  30. Isomorphisms: • Two graphs that have the same relationships but possibly different drawings are called isomorphic. • http://www.planarity.net/#

  31. Counting: • One family of graphs is called the complete graphs, or cliques. These graphs include all possible edges between each pair of vertices. • An interesting exercise that illustrates some of the fun of graph theory is to count the number of edges in a clique on n vertices.

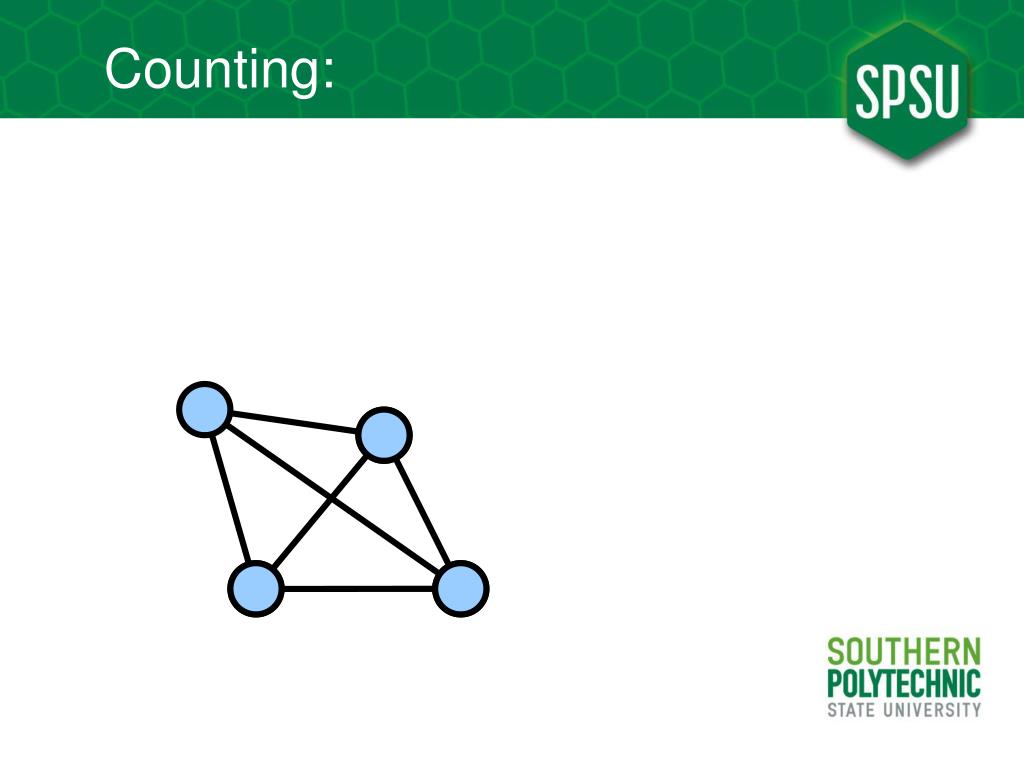

  32. Counting:

  33. Counting:

  34. Counting:

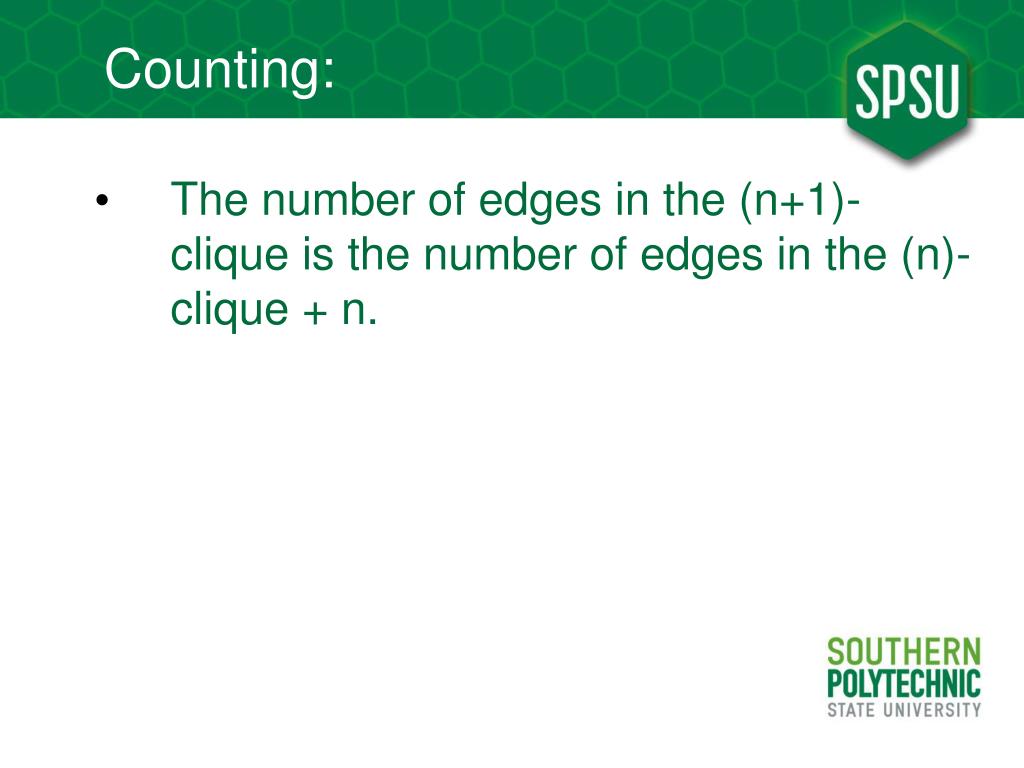

  35. Counting: • The number of edges in the (n+1)-clique is the number of edges in the (n)-clique + n.

  36. Counting: • There are n vertices. Each vertex is adjacent to all the others. There are (n-1) other vertices, so that makes n(n-1) edge-ends. Each edge has two ends, so there are n(n-1)/2 edges in an n-clique.

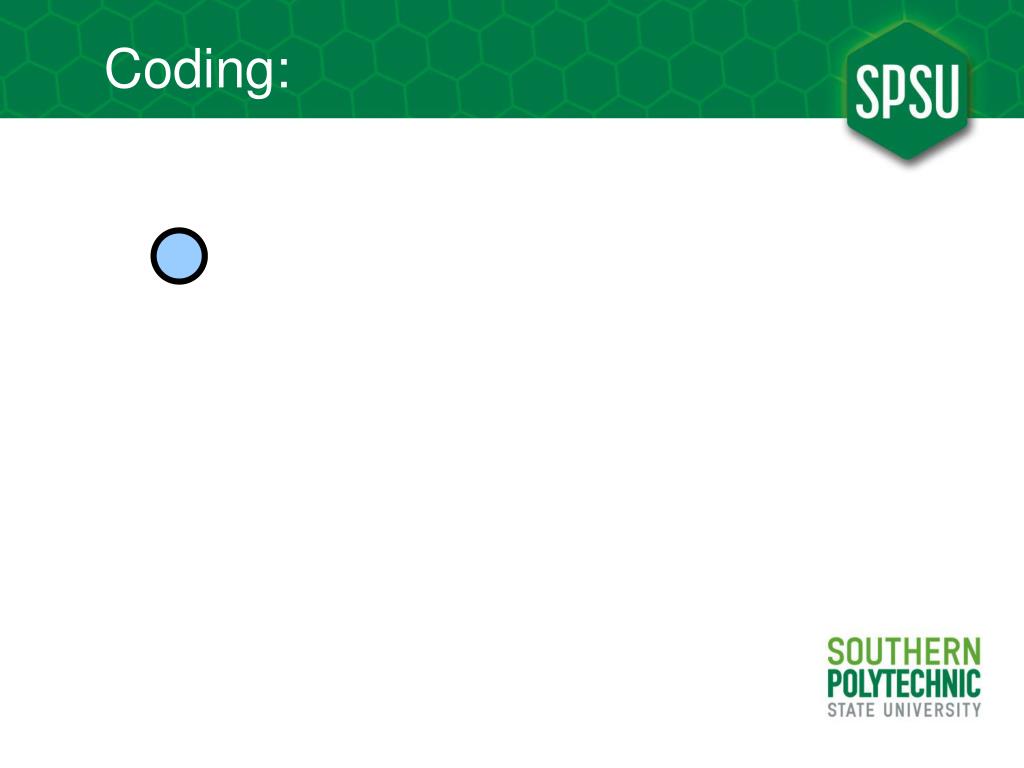

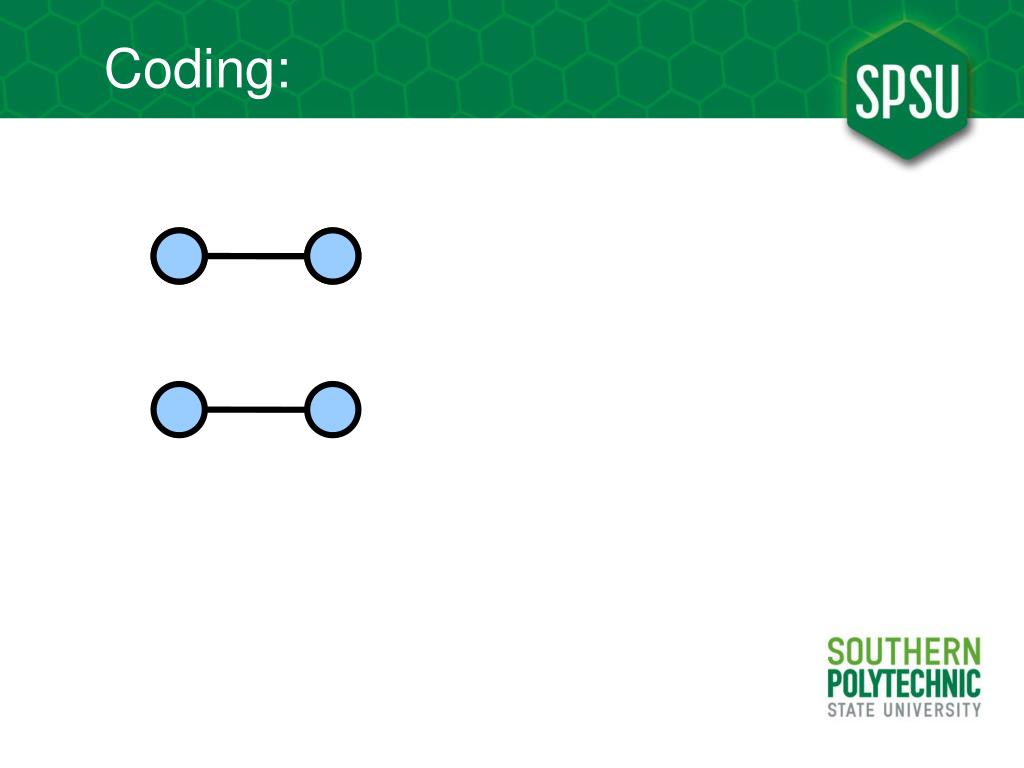

  37. Coding:

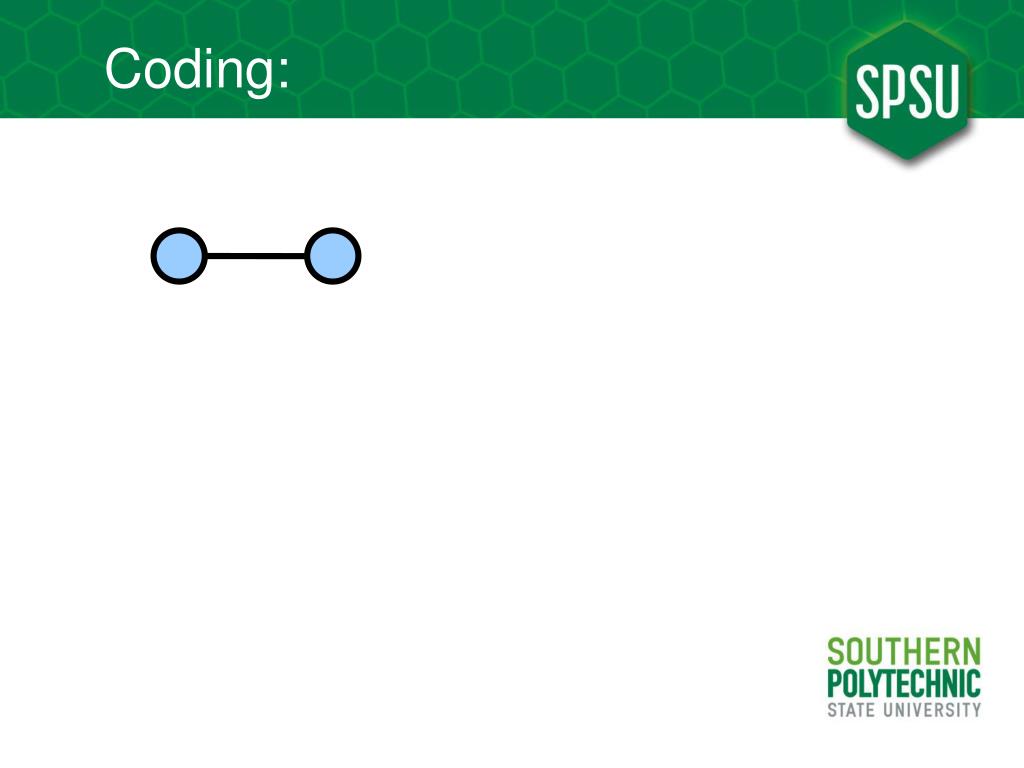

  38. Coding:

  39. Coding:

  40. Coding:

  41. Coding:

  42. Coding:

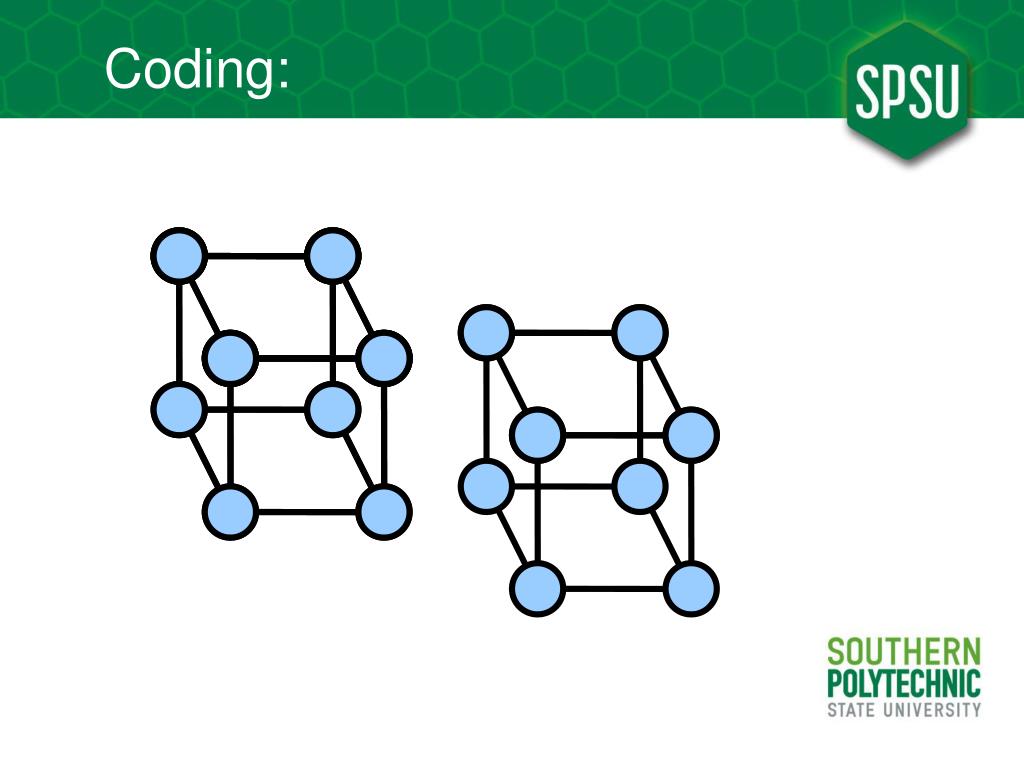

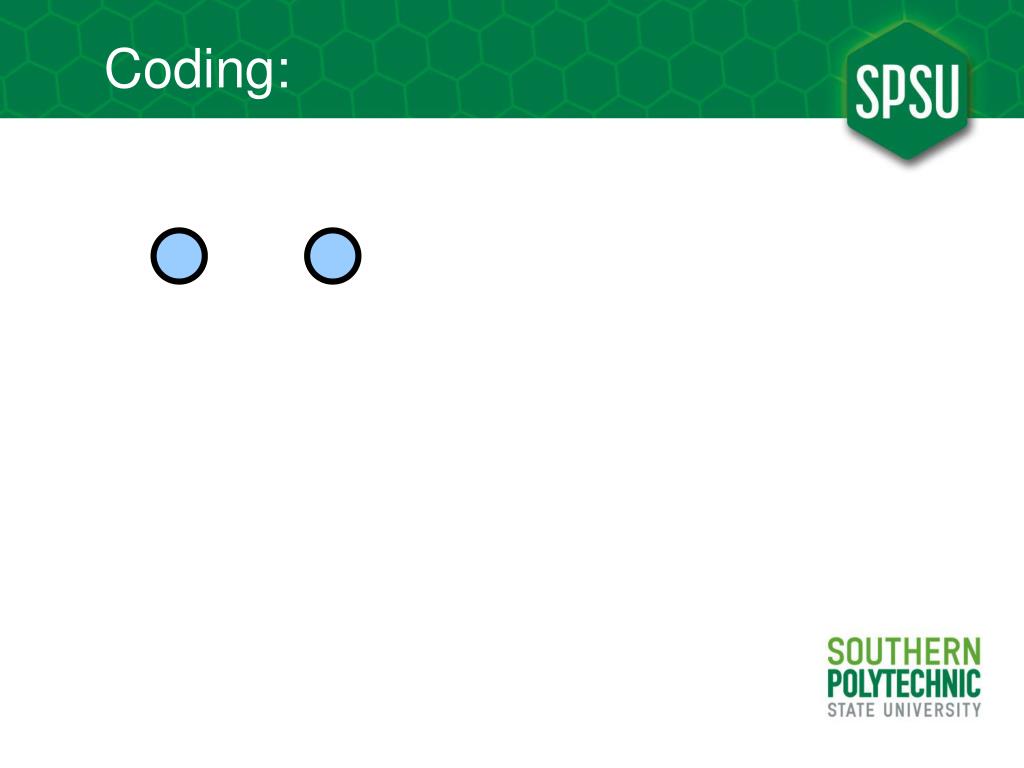

  43. Coding:

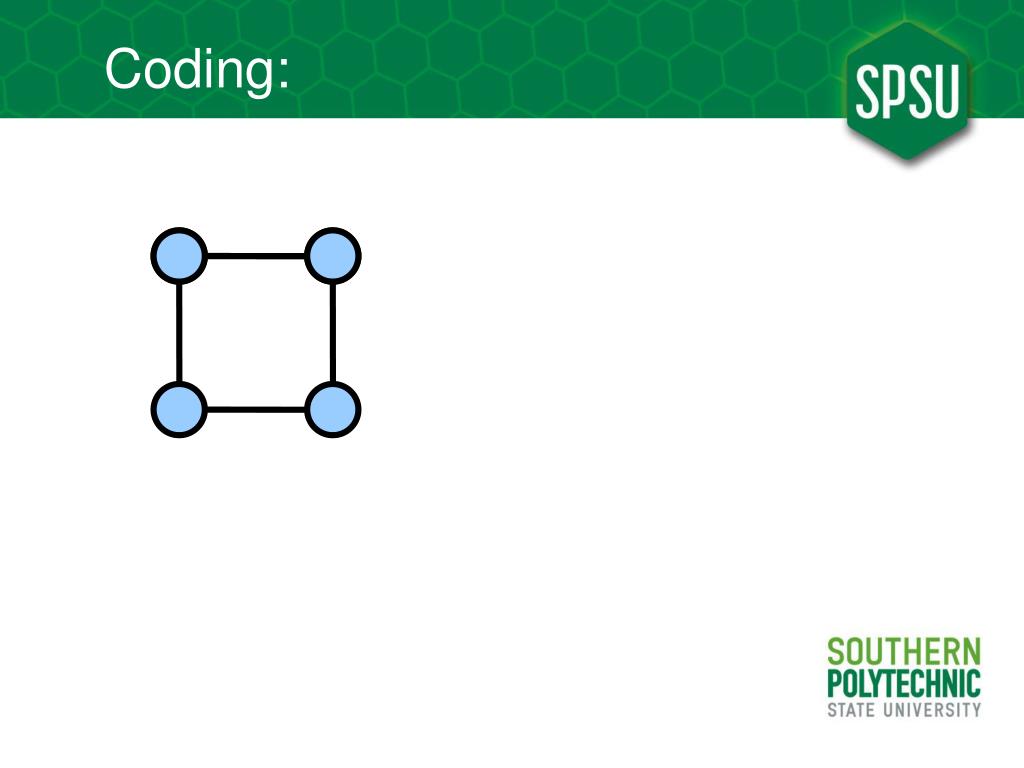

  44. Coding:

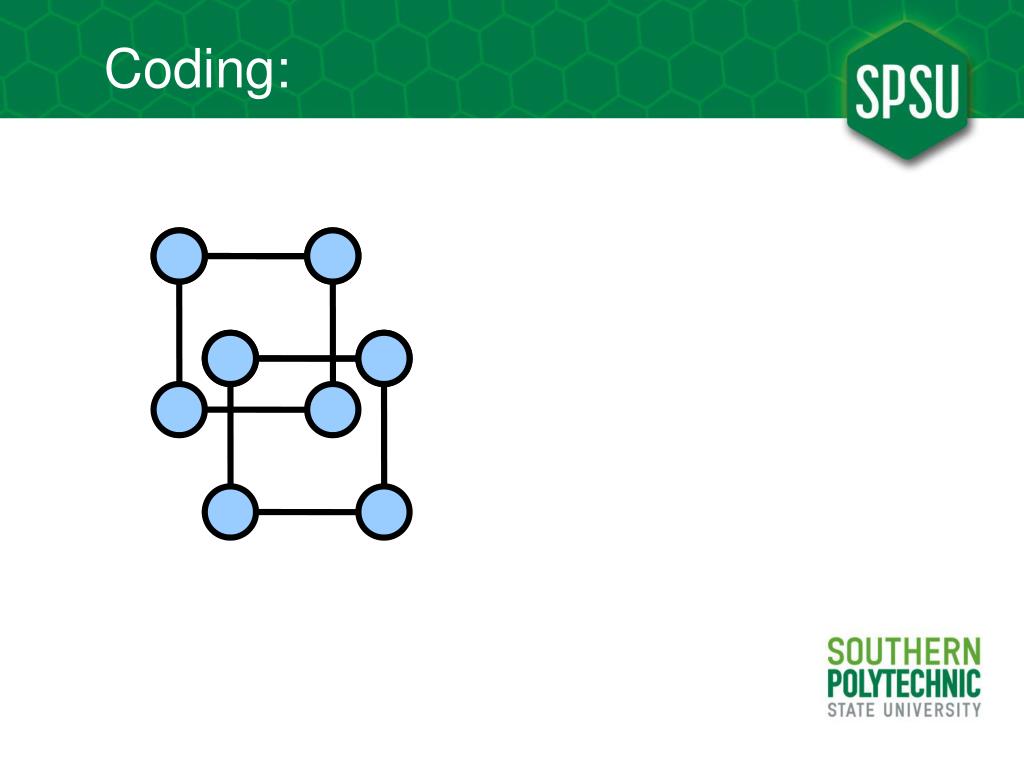

  45. Coding:

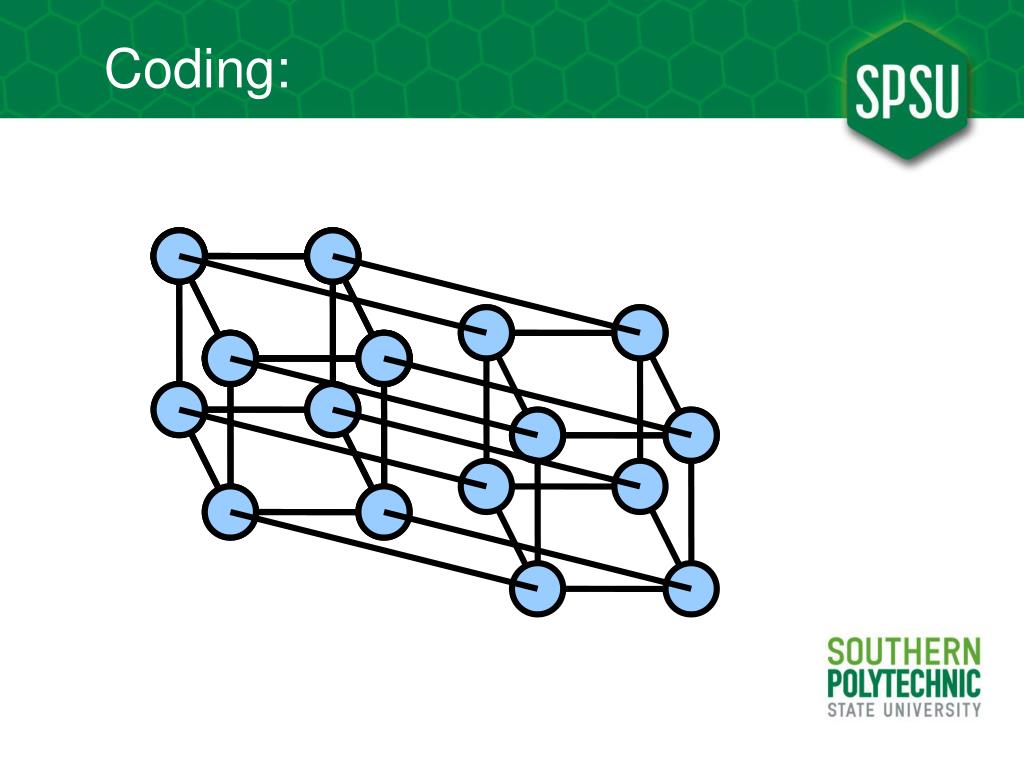

  46. Coding:

  47. Coding: 0 1

  48. Coding: 00 01 10 11

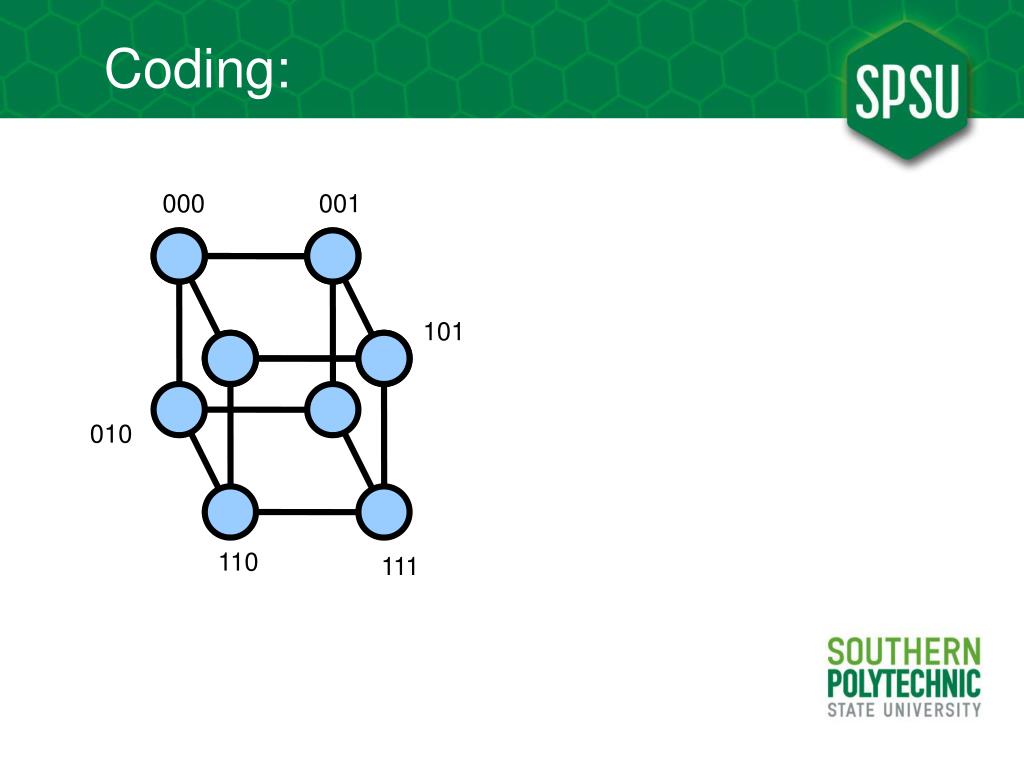

  49. Coding: 000 001 101 010 110 111

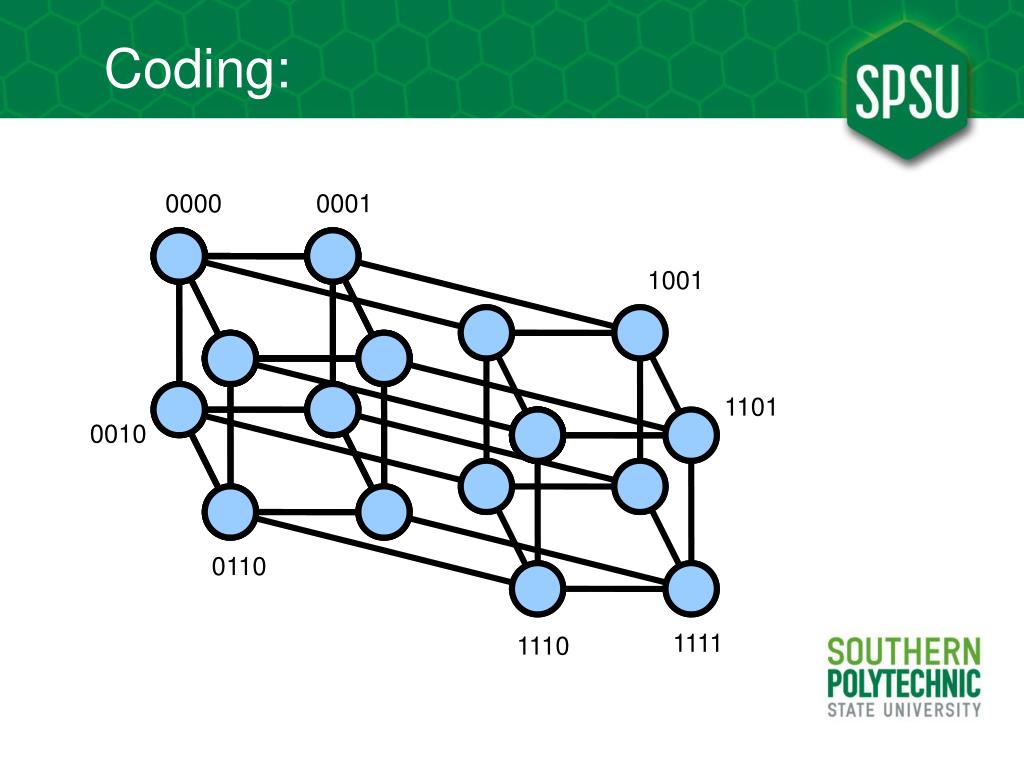

  50. Coding: 0000 0001 1001 1101 0010 0110 1111 1110
