  1. SAS Code and Macros: How They Interact Bruce Gilsen Federal Reserve Board February 2010

  2. Introduction • Experienced users often confused about relationship between • SAS code (DATA and PROC steps) • Macros • Have “the talk” with Federal Reserve users often • Helpful, important to understand • This paper: • Informal explanation • Simple examples

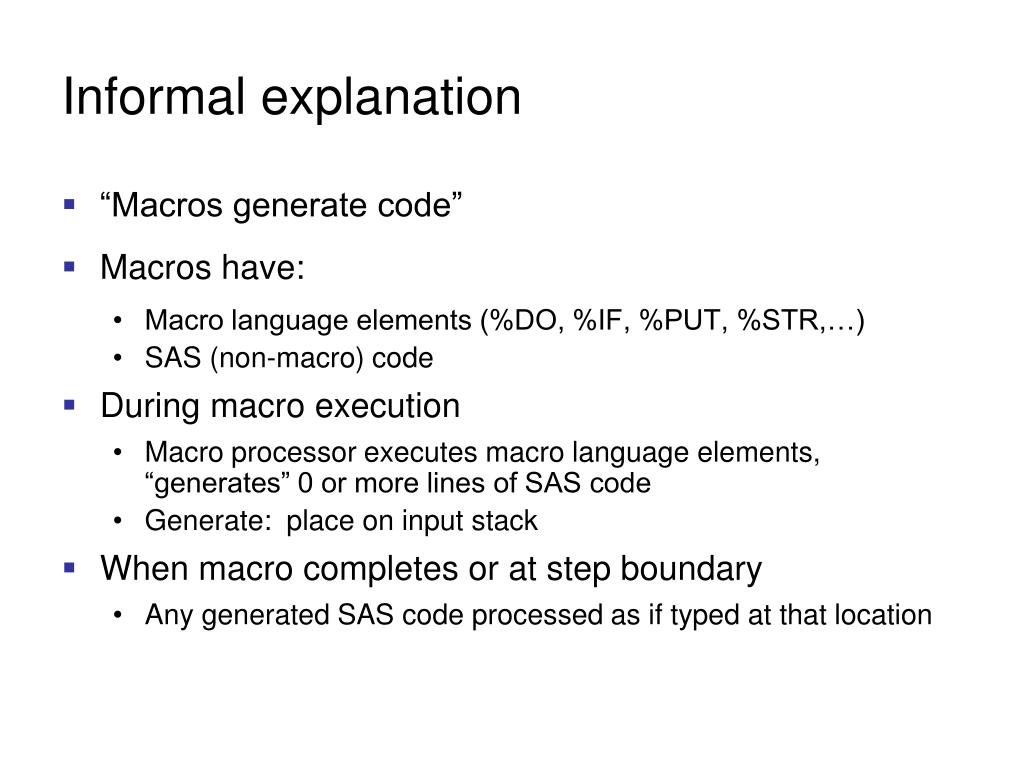

  3. Informal explanation • “Macros generate code” • Macros have: • Macro language elements (%DO, %IF, %PUT, %STR,…) • SAS (non-macro) code • During macro execution • Macro processor executes macro language elements, “generates” 0 or more lines of SAS code • Generate: place on input stack • When macro completes or at step boundary • Any generated SAS code processed as if typed at that location

  4. Informal explanation • Can use macros to generate SAS code • Large block of code: DATA step, PROC step, multiple steps • Single SAS statement • Part of a SAS statement

  5. Example 1: SAS code but no macro language elements • %macro mac1; • data one; (1) • x1=11; (2) • x2=22; (3) • x3=33; (4) • run; (5) • %mend mac1; (6) • %mac1; (7) • When %MAC1 invoked with (7) • SAS statements (1) – (5) generated • (5): Step boundary: DATA step ONE compiled, executed • (6): Ends macro • Useful if need DATA step in multiple places

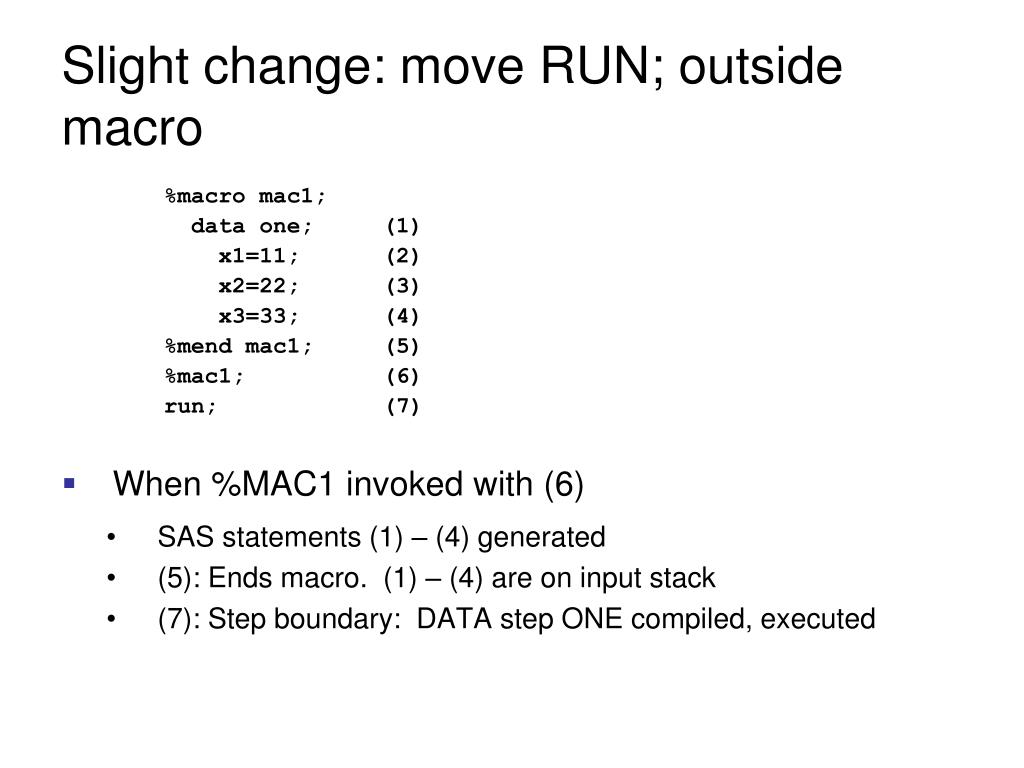

  6. Slight change: move RUN; outside macro • %macro mac1; • data one; (1) • x1=11; (2) • x2=22; (3) • x3=33; (4) • %mend mac1; (5) • %mac1; (6) • run; (7) • When %MAC1 invoked with (6) • SAS statements (1) – (4) generated • (5): Ends macro. (1) – (4) are on input stack • (7): Step boundary: DATA step ONE compiled, executed

  7. Example 2: SAS code and macro language elements w/a step boundary • DATA steps • Macro language elements - %LET, %PUT • Illustrate effect of step boundary

  8. %macro mac2; • data one; (1) • x=1; (2) • %let blah=11; (3) • %put in DATA step before PUT statement blah=&blah; (4) • put x=; (5) • %let blah=22; (6) • %put in DATA step after PUT statement blah=&blah; (7) • run; (8) • %put after DATA step; (9) • %mend mac2; (10) • %mac2;

  9. %macro mac2; • data one; (1) • x=1; (2) • %let blah=11; (3) • %put in DATA step before PUT statement blah=&blah; (4) • put x=; (5) • %let blah=22; (6) • %put in DATA step after PUT statement blah=&blah; (7) • run; (8) • %put after DATA step; (9) • %mend mac2; (10) • (1), (2): SAS statements, generated • (3), (4): Macro language element, immediately executed • (5): SAS statement, generated • (6), (7): Macro language element, immediately executed • (8): Step boundary, DATA step ONE is (1), (2), (5), (8) • ONE compiled, executed • (5) writes x=1 to SAS log • (9): Macro language element, immediately executed • Order in log: (4), (7), (5), (9)

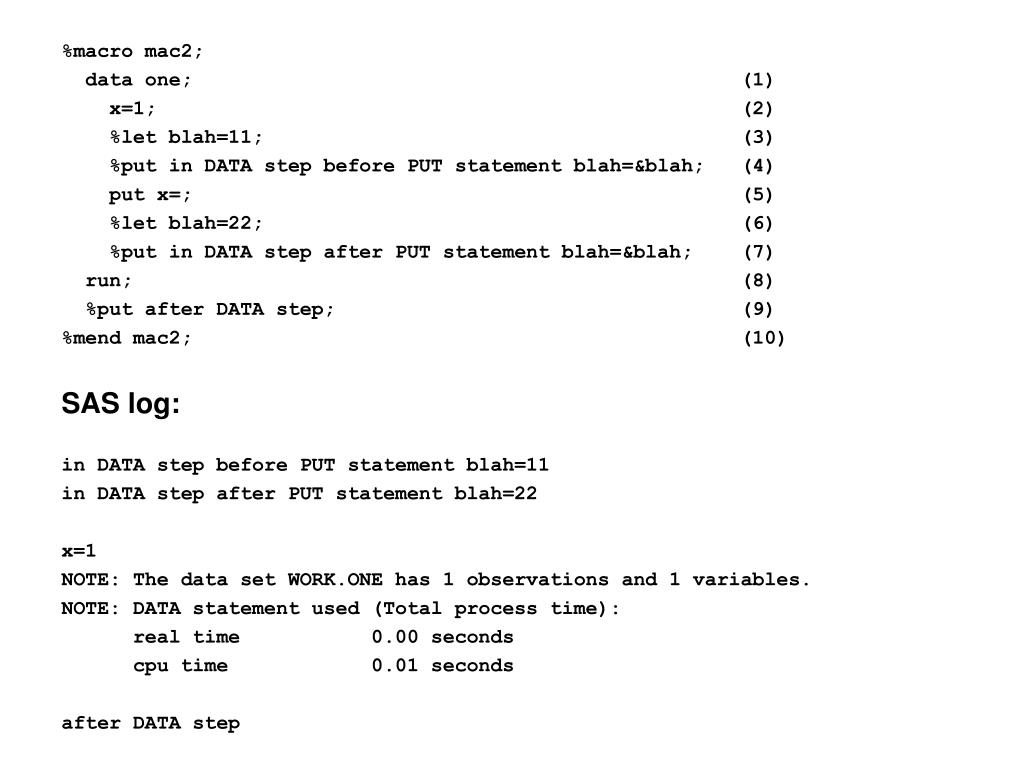

  10. %macro mac2; • data one; (1) • x=1; (2) • %let blah=11; (3) • %put in DATA step before PUT statement blah=&blah; (4) • put x=; (5) • %let blah=22; (6) • %put in DATA step after PUT statement blah=&blah; (7) • run; (8) • %put after DATA step; (9) • %mend mac2; (10) • SAS log: • in DATA step before PUT statement blah=11 • in DATA step after PUT statement blah=22 • x=1 • NOTE: The data set WORK.ONE has 1 observations and 1 variables. • NOTE: DATA statement used (Total process time): • real time 0.00 seconds • cpu time 0.01 seconds • after DATA step

  11. Example 3: Use macro language to conditionally generate SAS statement • Want “x2=22;” in DATA step only when &MACVAR=1 • If &MACVAR=1 • data one; • x1=11; • x2=22; • x3=33; • run; • If &MACVAR not = 1 • data one; • x1=11; • x3=33; • run;

  12. %let macvar=1; * Condition is true ; • %macro mac3; • data one; (1) • x1=11; (2) • %if &macvar=1 %then %do; (3) • x2=22; (4) • %end; • x3=33; (5) • run; (6) • %mend mac3; (7) • %mac3 • (1), (2): SAS statements, generated • (3): Macro processor replaces &MACVAR with its value, 1 • Original statement: %if &macvar=1 %then %do; • After replacement: %if 1=1 %then %do; • (3): True, so (4) is generated • (5), (6): SAS statements, generated • (6): Step boundary, ONE compiled, executed • (7): Ends macro execution

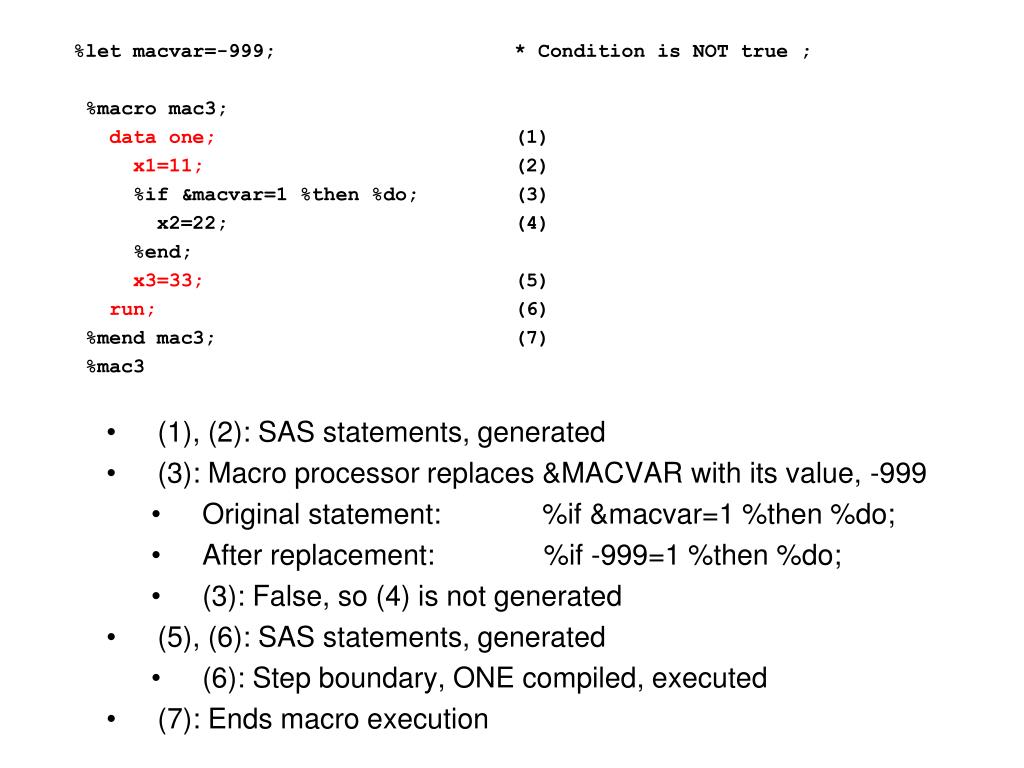

  13. %let macvar=-999; * Condition is NOT true ; • %macro mac3; • data one; (1) • x1=11; (2) • %if &macvar=1 %then %do; (3) • x2=22; (4) • %end; • x3=33; (5) • run; (6) • %mend mac3; (7) • %mac3 • (1), (2): SAS statements, generated • (3): Macro processor replaces &MACVAR with its value, -999 • Original statement: %if &macvar=1 %then %do; • After replacement: %if -999=1 %then %do; • (3): False, so (4) is not generated • (5), (6): SAS statements, generated • (6): Step boundary, ONE compiled, executed • (7): Ends macro execution

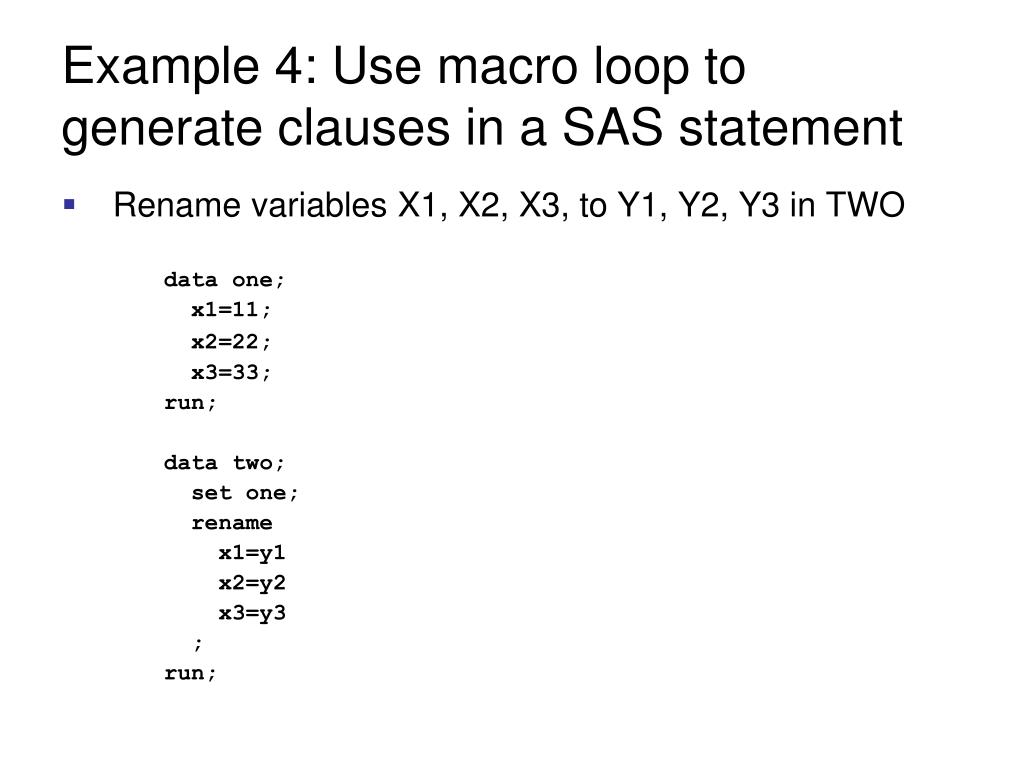

  14. Example 4: Use macro loop to generate clauses in a SAS statement • Rename variables X1, X2, X3, to Y1, Y2, Y3 in TWO • data one; • x1=11; • x2=22; • x3=33; • run; • data two; • set one; • rename • x1=y1 • x2=y2 • x3=y3 • ; • run;

  15. Can generate clauses in a macro loop • More generalized • Macro loop hard coded to 3 in example, data driven in real application • data two; • set one; • rename • x1=y1 • x2=y2 • x3=y3 • ; • run;

  16. data two; * Hard-coded ; • set one; • rename • x1=y1 • x2=y2 • x3=y3 • ; • run; • %macro mac4; * Same code generated in a macro ; • %local j; • data two; • set one; • rename • %do j = 1 %to 3; • x&j = y&j • %end; • ; • run; • %mend mac4; • %mac4;

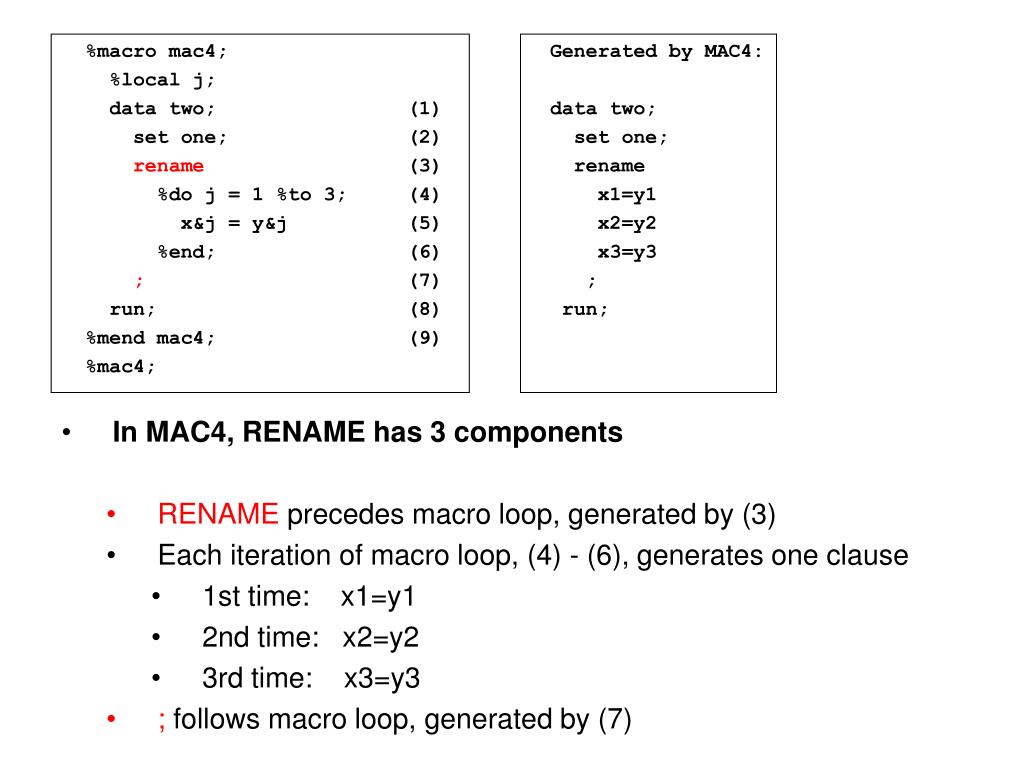

  17. %macro mac4; Generated by MAC4: • %local j; • data two; (1) data two; • set one; (2) set one; • rename (3) rename • %do j = 1 %to 3; (4) x1=y1 • x&j = y&j (5) x2=y2 • %end; (6) x3=y3 • ; (7) ; • run; (8) run; • %mend mac4; (9) • %mac4; • In MAC4, RENAME has 3 components • RENAME precedes macro loop, generated by (3) • Each iteration of macro loop, (4) - (6), generates one clause • 1st time: x1=y1 • 2nd time: x2=y2 • 3rd time: x3=y3 • ; follows macro loop, generated by (7)

  18. %do j = 1 %to 3; (4) • x&j = y&j (5) • %end; (6) • (4): Replace J with value, 1. 1 within loop bounds, 1 to 3, %DO continues. • (5): SAS statement generated: x1= y1 • (6): %END ends %DO, macro returns to (4) • (4): Increment J to 2. 2 within loop bounds, %DO continues. • (5): SAS statement generated: x2= y2 • (6): %END ends %DO, macro returns to (4) • (4): Increment J to 3. 3 within loop bounds, %DO continues. • (5): SAS statement generated: x3= y3 • (6): %END ends %DO, macro returns to (4) • (4): Increment J to 4. 4 outside loop bounds, %DO ends.

  19. %macro mac4; • %local j; • data two; (1) • set one; (2) • rename (3) • %do j = 1 %to 3; (4) • x&j = y&j (5) • %end; (6) • ; (7) • run; (8) • %mend mac4; (9) • %mac4; • (1) - (3): SAS statements, generated • (4) - (6): Executed by macro processor, generates • 1st time: x1=y1 • 2nd time: x2=y2 • 3rd time: x3=y3 • (7), (8): SAS statements, generated • (8): Step boundary, TWO compiled, executed • (9): Ends macro execution

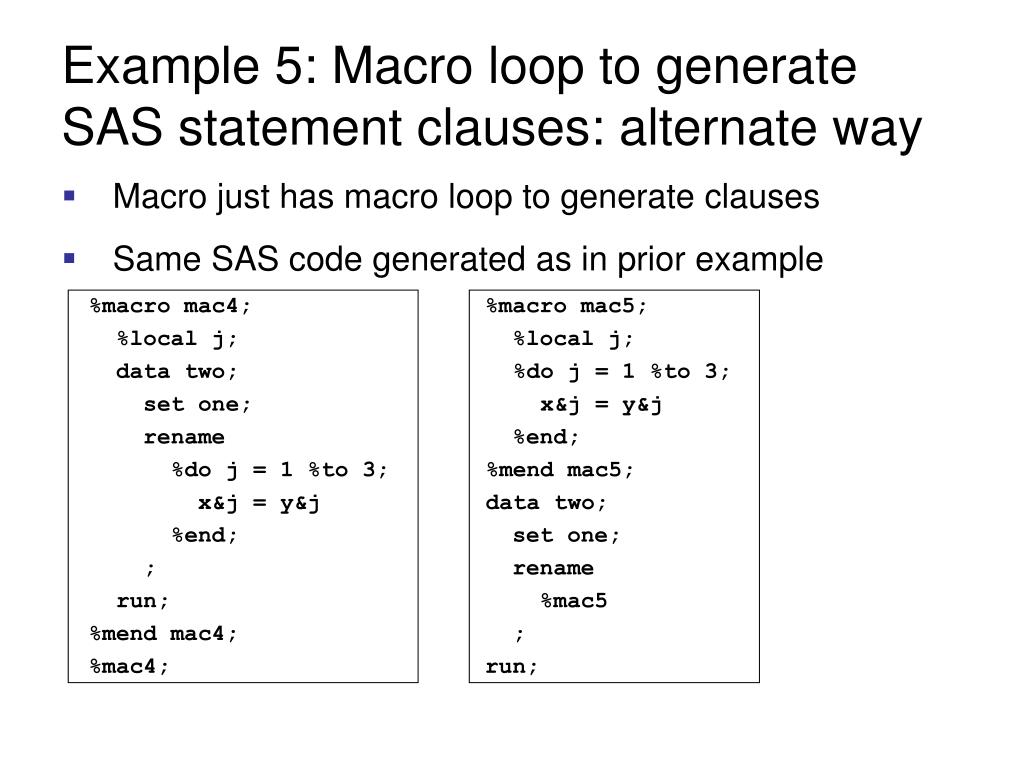

  20. Example 5: Macro loop to generate SAS statement clauses: alternate way • Macro just has macro loop to generate clauses • Same SAS code generated as in prior example %macro mac4; %macro mac5; %local j; %local j; data two; %do j = 1 %to 3; set one; x&j = y&j rename %end; %do j = 1 %to 3; %mend mac5; x&j = y&j data two; %end; set one; ; rename run; %mac5 %mend mac4; ; %mac4; run;

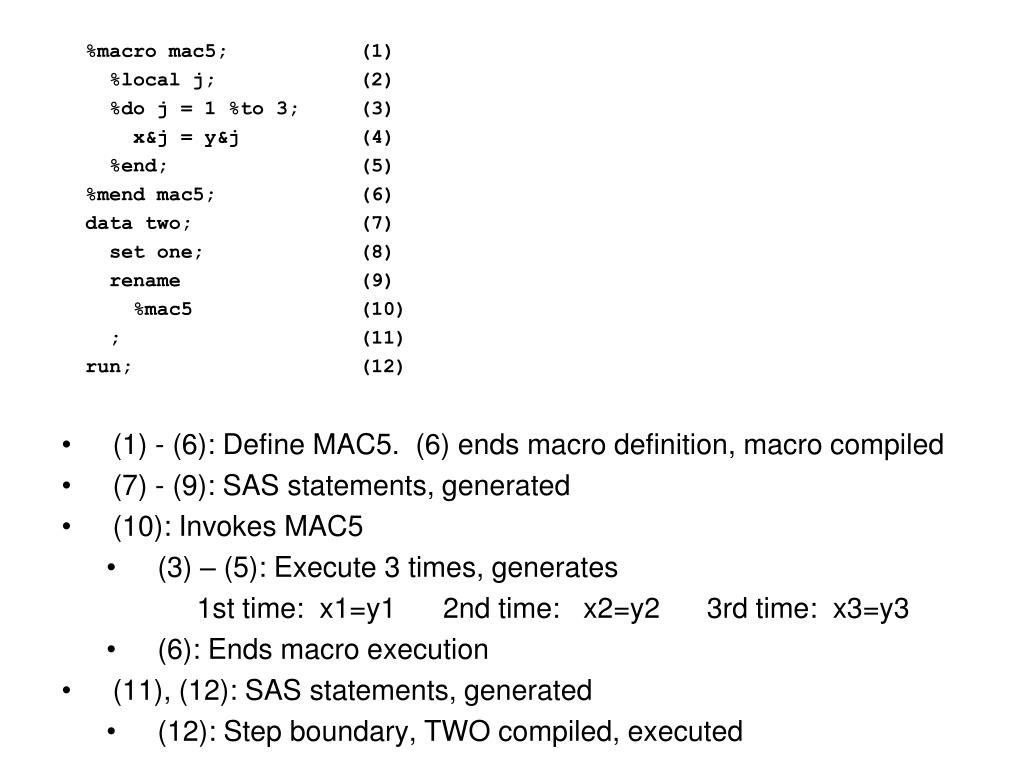

  21. %macro mac5; (1) • %local j; (2) • %do j = 1 %to 3; (3) • x&j = y&j (4) • %end; (5) • %mend mac5; (6) • data two; (7) • set one; (8) • rename (9) • %mac5 (10) • ; (11) • run; (12) • (1) - (6): Define MAC5. (6) ends macro definition, macro compiled • (7) - (9): SAS statements, generated • (10): Invokes MAC5 • (3) – (5): Execute 3 times, generates 1st time: x1=y1 2nd time: x2=y2 3rd time: x3=y3 • (6): Ends macro execution • (11), (12): SAS statements, generated • (12): Step boundary, TWO compiled, executed

  22. Example 6: Use “Data driven” code to rename variables • Rename all variables in data set that start with “X”, preface with “OLD_” • X  OLD_X • XYZ  OLD_XYZ • Unknown: # of variables starting with “X”, their names • Data driven, loop bounds • Hard coded in earlier examples • Build from data, more generalized

  23. DICTIONARY tables: introduction • Read-only SAS data views, current session information • Active data libraries, SAS data sets, external files • SAS macros, option settings, etc. • Updated as session progresses • To access a table • PROC SQL (this paper) • In any PROC or DATA step, refer to table’s PROC SQL view in SASHELP library • Documentation • Introduction: “SAS Language Reference: Concepts” • Details: PROC SQL chapter, “Base 9.1.3 Procedures Guide”

  24. Read variables starting with “X” from Dictionary table, copy to macro variables data one; proc sqlnoprint; x1=11; select count(*) (1) y=22; into :num_vars xxx=33; from dictionary.columns xyz=44; where libname="WORK“ run; and memname="ONE" and upcase(substr(name,1,1))="X"; %let num_vars=&num_vars; (2) select name (3) into :var1-:var&num_vars from dictionary.columns where libname="WORK" and memname="ONE" and upcase(substr(name,1,1))="X"; quit;

  25. Read variables starting with “X” from Dictionary table, copy to macro variables data one; proc sqlnoprint; x1=11; select count(*) (1) y=22; into :num_vars xxx=33; from dictionary.columns xyz=44; where libname="WORK“ run; and memname="ONE" and upcase(substr(name,1,1))="X"; %let num_vars=&num_vars; (2) • Summary function COUNT counts # variable names in WORK.ONE that start with “X” • Result, 3, stored in &NUM_VARS • Assign macro variable to itself: removes leading, trailing blanks

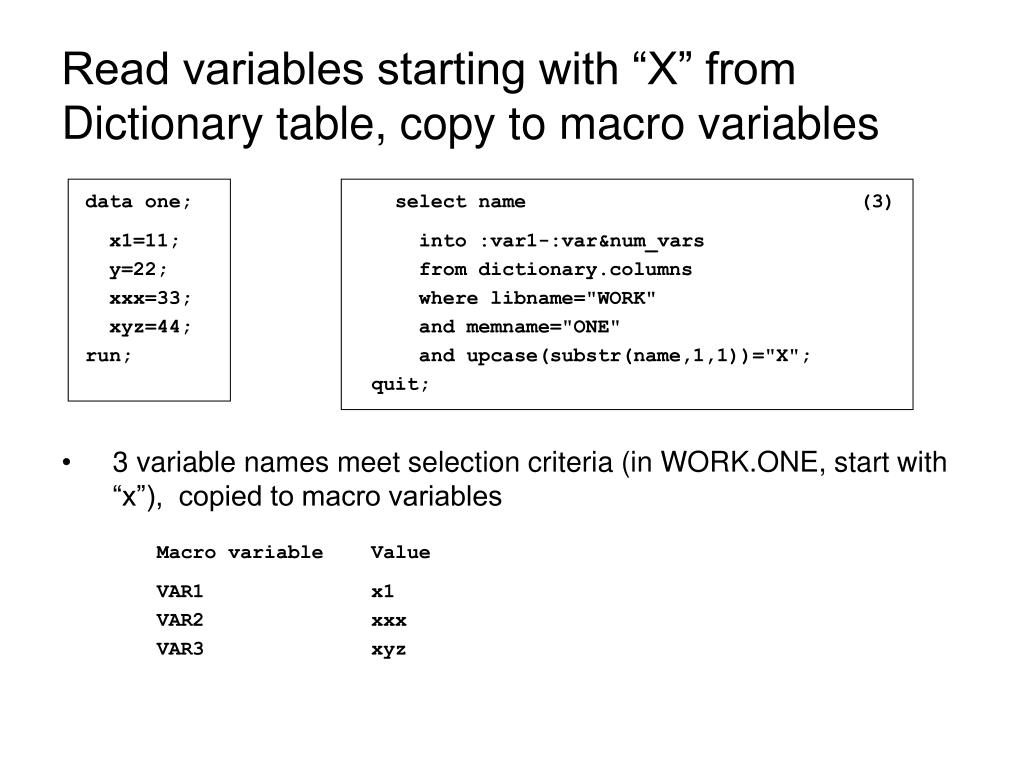

  26. Read variables starting with “X” from Dictionary table, copy to macro variables data one; select name (3) x1=11; into :var1-:var&num_vars y=22; from dictionary.columns xxx=33; where libname="WORK" xyz=44; and memname="ONE" run; and upcase(substr(name,1,1))="X"; quit; • 3 variable names meet selection criteria (in WORK.ONE, start with “x”), copied to macro variables Macro variable Value VAR1 x1 VAR2 xxx VAR3 xyz

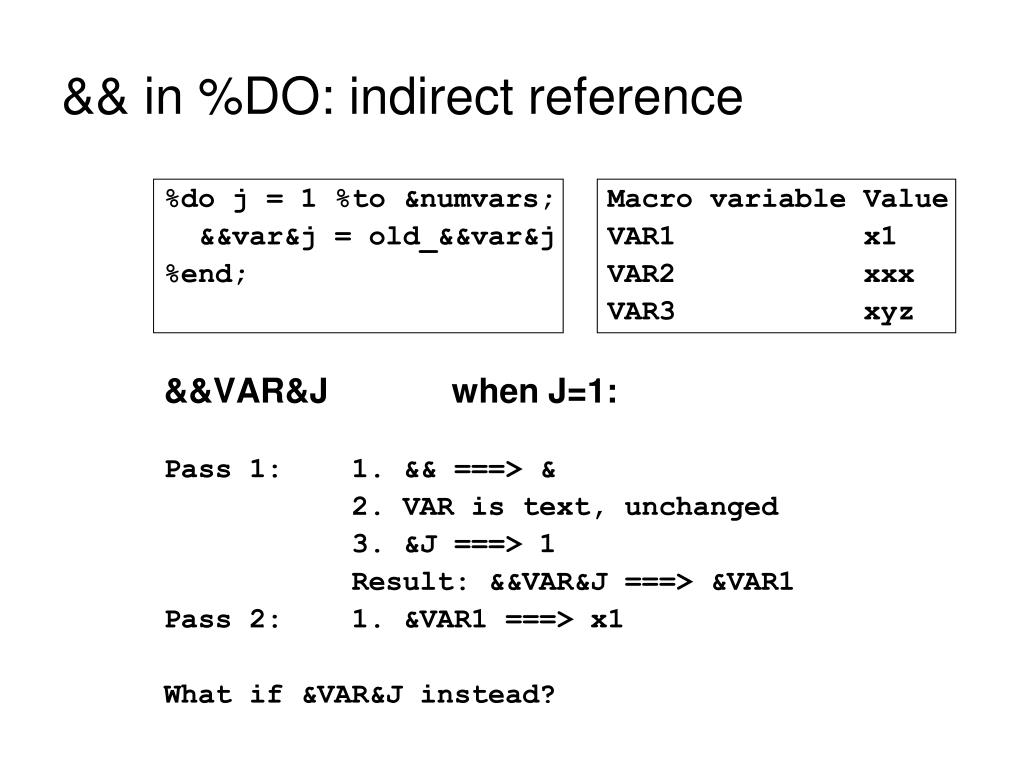

  27. && in %DO: indirect reference • %do j = 1 %to &numvars; Macro variable Value • &&var&j = old_&&var&j VAR1 x1 • %end; VAR2 xxx • VAR3 xyz • &&VAR&J when J=1: • Pass 1: 1. && ===> & • 2. VAR is text, unchanged • 3. &J ===> 1 • Result: &&VAR&J ===> &VAR1 • Pass 2: 1. &VAR1 ===> x1 • What if &VAR&J instead?

  28. %do j = 1 %to &num_vars; (6)Macro variable Value • &&var&j = old_&&var&j (7) VAR1 x1 • %end; (8) VAR2 xxx • VAR3 xyz • (6): Replace J with value, 1. 1 within loop bounds, 1 to 3, %DO continues. • (7): SAS statement generated: x1= old_x1 • (8): %END ends %DO, macro returns to (4) • (6): Increment J to 2. 2 within loop bounds, %DO continues. • (7): SAS statement generated: xxx= old_xxx • (8): %END ends %DO, macro returns to (4) • (6): Increment J to 3. 3 within loop bounds, %DO continues. • (7): SAS statement generated: xyz= old_xyz • (8): %END ends %DO, macro returns to (4) • (6): Increment J to 4. 4 outside loop bounds, %DO ends.

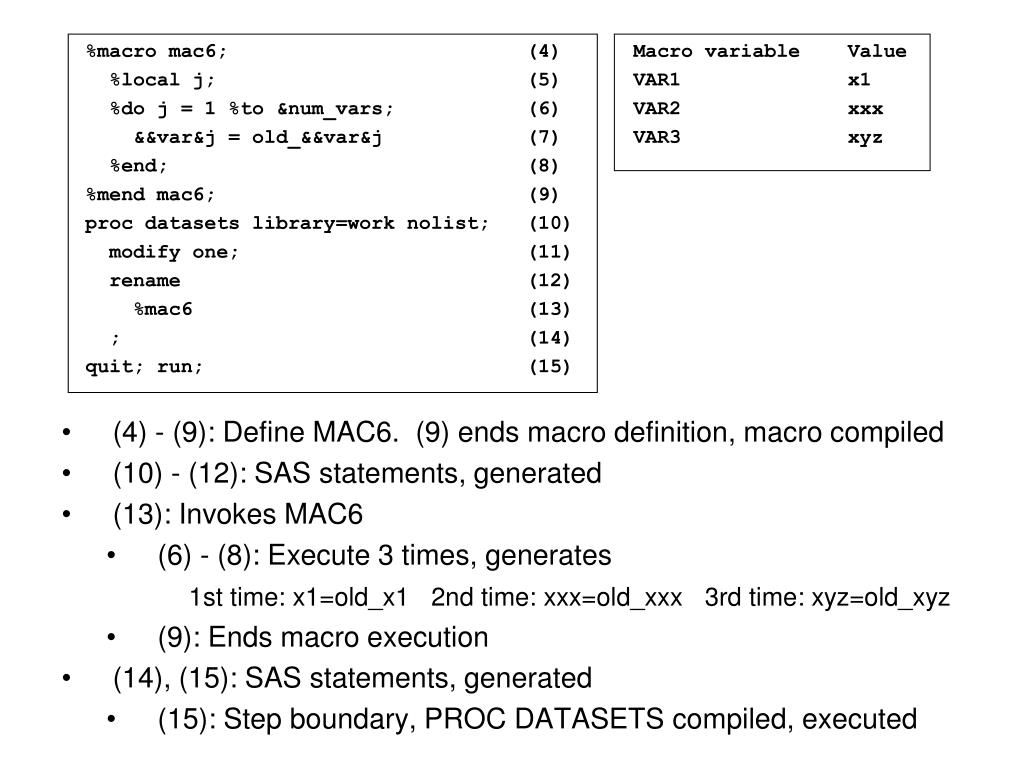

  29. %macro mac6; (4) Macro variable Value • %local j; (5) VAR1 x1 • %do j = 1 %to &num_vars; (6) VAR2 xxx • &&var&j = old_&&var&j (7) VAR3 xyz • %end; (8) • %mend mac6; (9) • proc datasets library=work nolist; (10) • modify one; (11) • rename (12) • %mac6 (13) • ; (14) • quit; run; (15) • (4) - (9): Define MAC6. (9) ends macro definition, macro compiled • (10) - (12): SAS statements, generated • (13): Invokes MAC6 • (6) - (8): Execute 3 times, generates 1st time: x1=old_x1 2nd time: xxx=old_xxx 3rd time: xyz=old_xyz • (9): Ends macro execution • (14), (15): SAS statements, generated • (15): Step boundary, PROC DATASETS compiled, executed

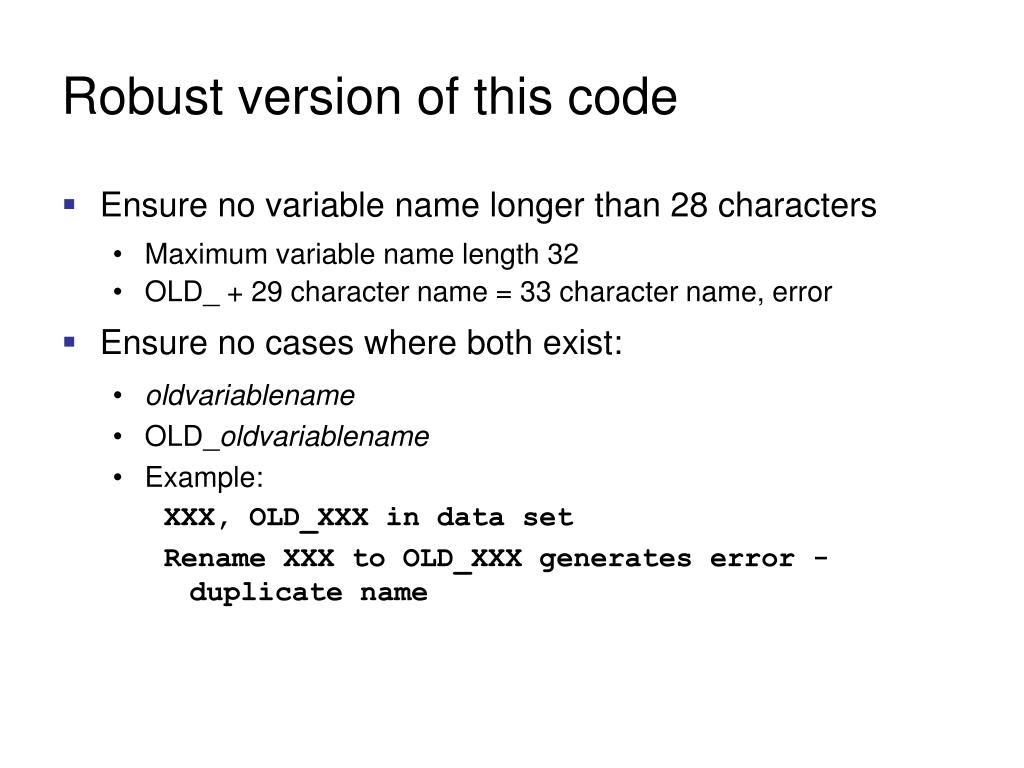

  30. Robust version of this code • Ensure no variable name longer than 28 characters • Maximum variable name length 32 • OLD_ + 29 character name = 33 character name, error • Ensure no cases where both exist: • oldvariablename • OLD_oldvariablename • Example: • XXX, OLD_XXX in data set • Rename XXX to OLD_XXX generates error - duplicate name

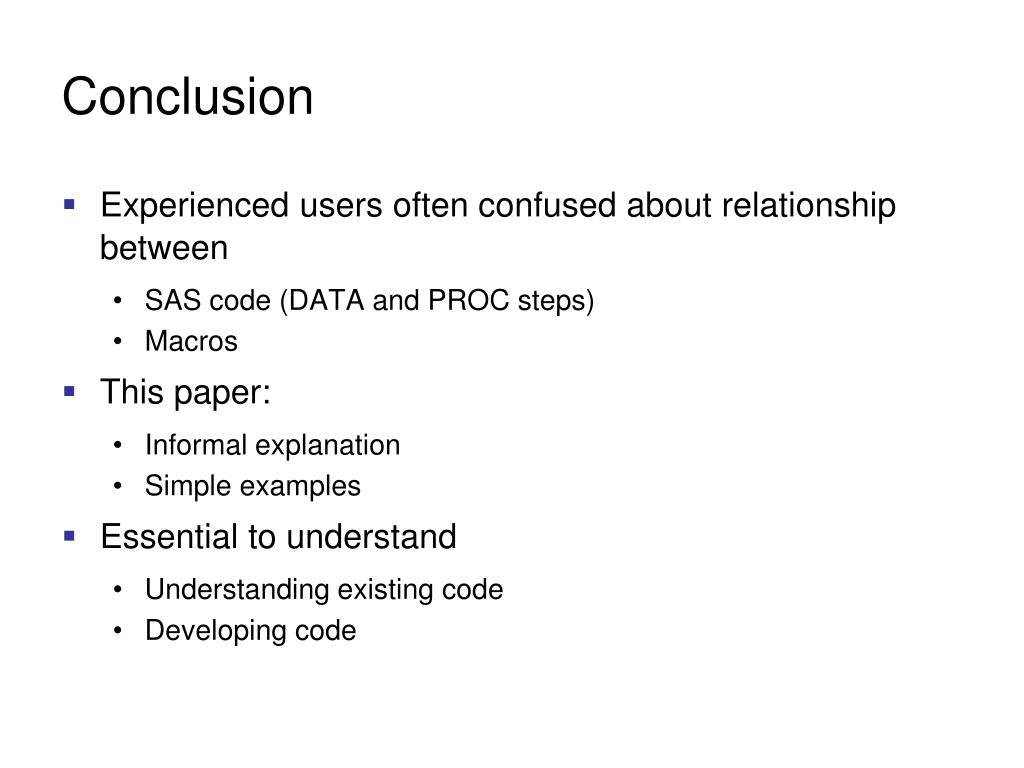

  31. Conclusion • Experienced users often confused about relationship between • SAS code (DATA and PROC steps) • Macros • This paper: • Informal explanation • Simple examples • Essential to understand • Understanding existing code • Developing code

  32. For more information, please contact • Bruce Gilsen • Federal Reserve Board, mail stop 157 • Washington, DC 20551 • phone: 202-452-2494 • e-mail: bruce.gilsen@frb.gov • SAS is a registered trademark or trademark of SAS • Institute Inc. in the USA and other countries. ® • indicates USA registration. • Other brand and product names are registered • trademarks or trademarks of their respective • companies.
