  1. University Center-Black Box Audio Visual Training

  2. LCD Projector/Built In Screen • Laptop Connection (VGA Cord) • Control Panel • Black Box (DVD/VCR inside) Black Box Black Box Equipment in class

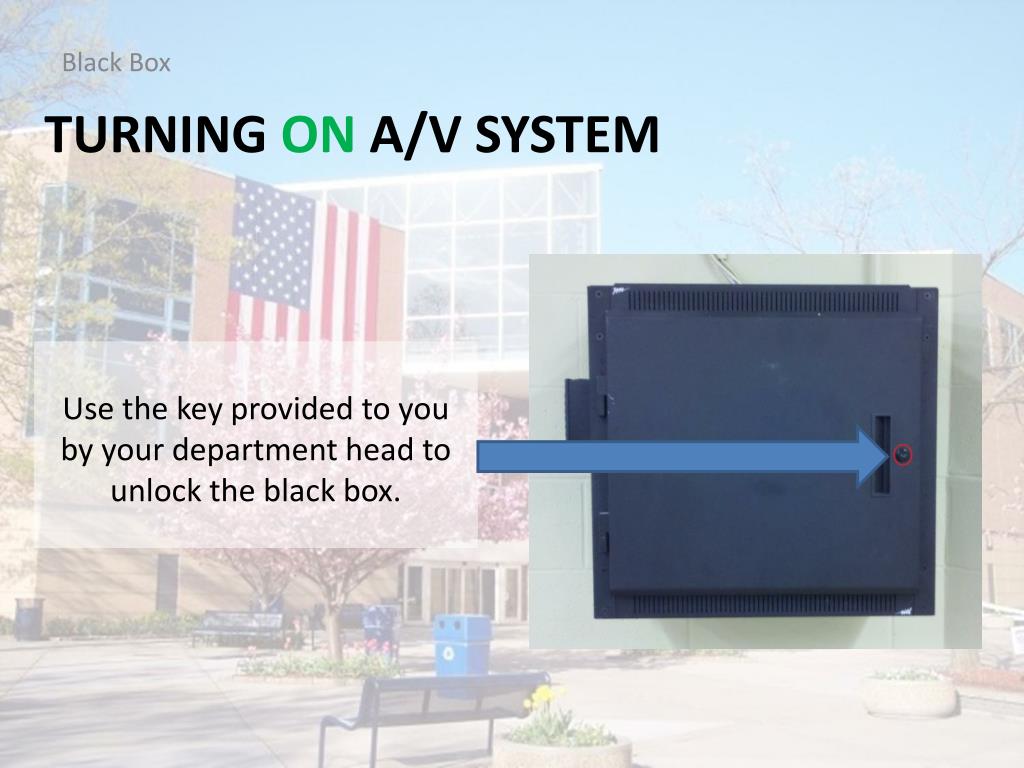

  3. Black Box Use the key provided to you by your department head to unlock the black box. Turning on A/v System

  4. Once the black box is open, pull out the drawer located inside and you’ll find a VGA cord, plug it into your laptop. If you have a Mac laptop use your VGA adapter. Black Box Turning on A/v System

  5. Black Box *Make sure Master Switch is on inside the black box. Turning on A/v System *Master Switch will light up red if it is in the ON position. Master Switch should never be turned off.

  6. Black Box • Press the “ON” button located on the top left hand side of the control panel and the projector will begin turning on. Turning on A/v System

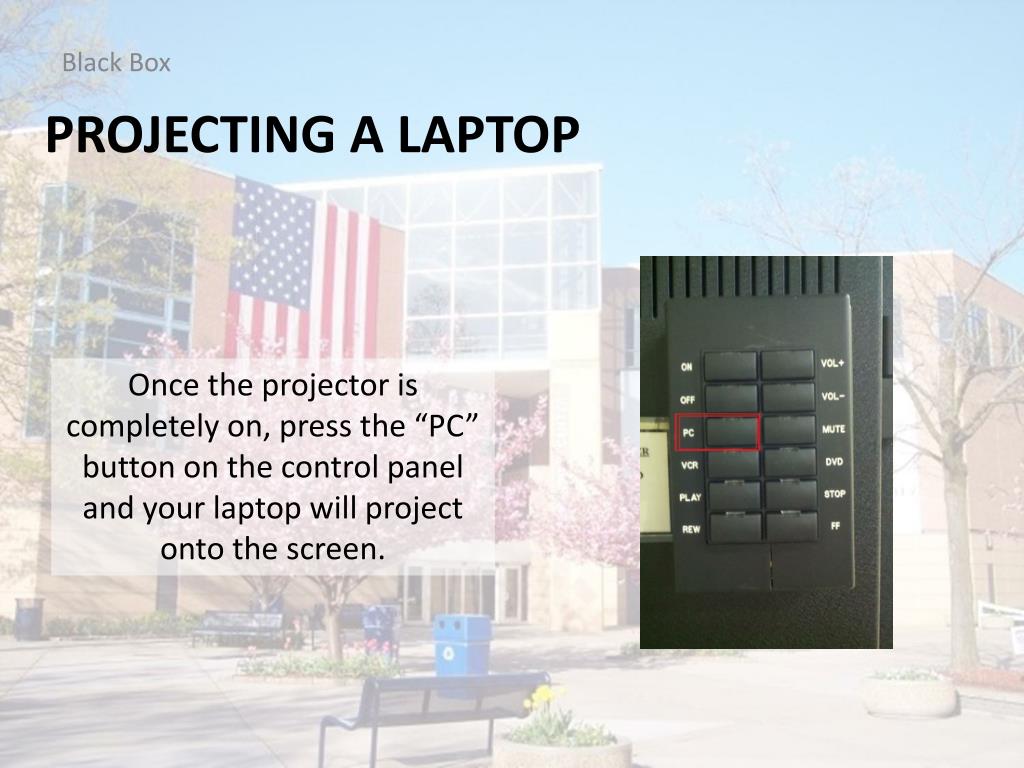

  7. Black Box Once the projector is completely on, press the “PC” button on the control panel and your laptop will project onto the screen. Projecting a laptop

  8. If your PC laptop does not project onto the screen, press and hold the “FN” key located on the bottom left hand side of your keyboard. While holding the “FN” key press the “F8” key, if you have a Dell laptop. “ F4” key, if you have an HP laptop. or “F5” key, if you have a Toshiba/Sony laptop. Then release them both at the same time. Black Box Projecting a Laptop

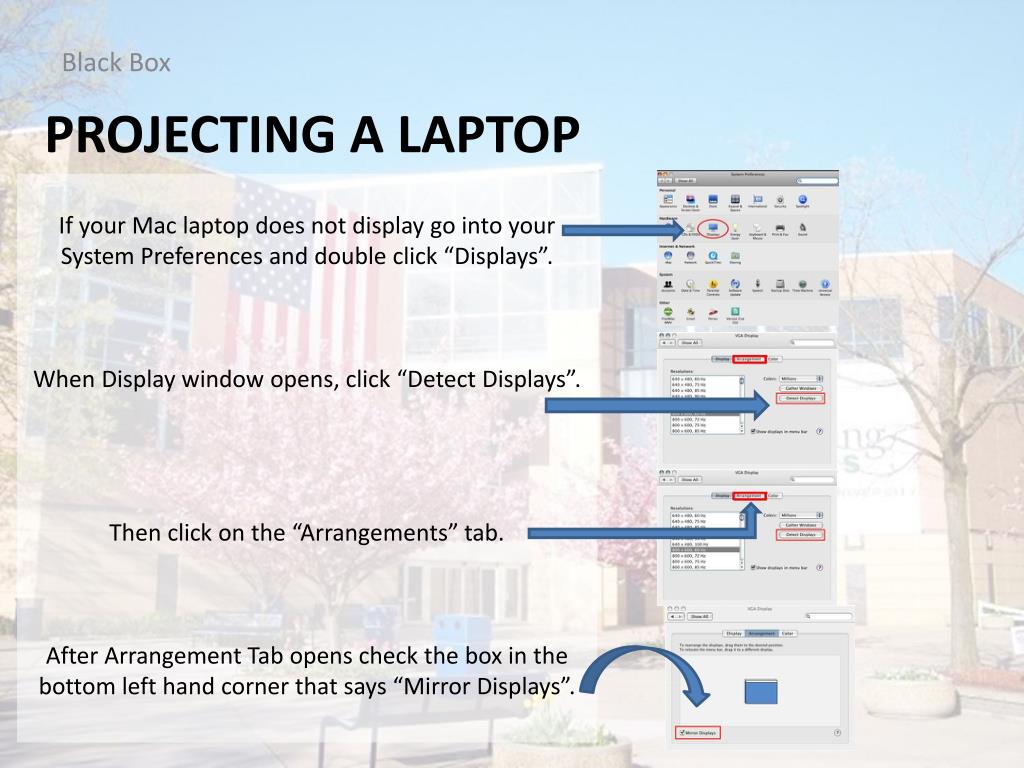

  9. If your Mac laptop does not display go into your System Preferences and double click “Displays”. When Display window opens, click “Detect Displays”. Then click on the “Arrangements” tab. After Arrangement Tab opens check the box in the bottom left hand corner that says “Mirror Displays”. Black Box Projecting a laptop

  10. Black Box To adjust the volume coming from your *laptop press the “VOL +” and “VOL –” buttons on the right hand side of the control panel. Projecting a Laptop *Please note, volume must also be turned up on your laptop to receive sound.

  11. Black Box To play a DVD, turn on your DVD/VCR combo player by pressing the “Power” button on the bottom left hand corner of the player. Projecting a DVD

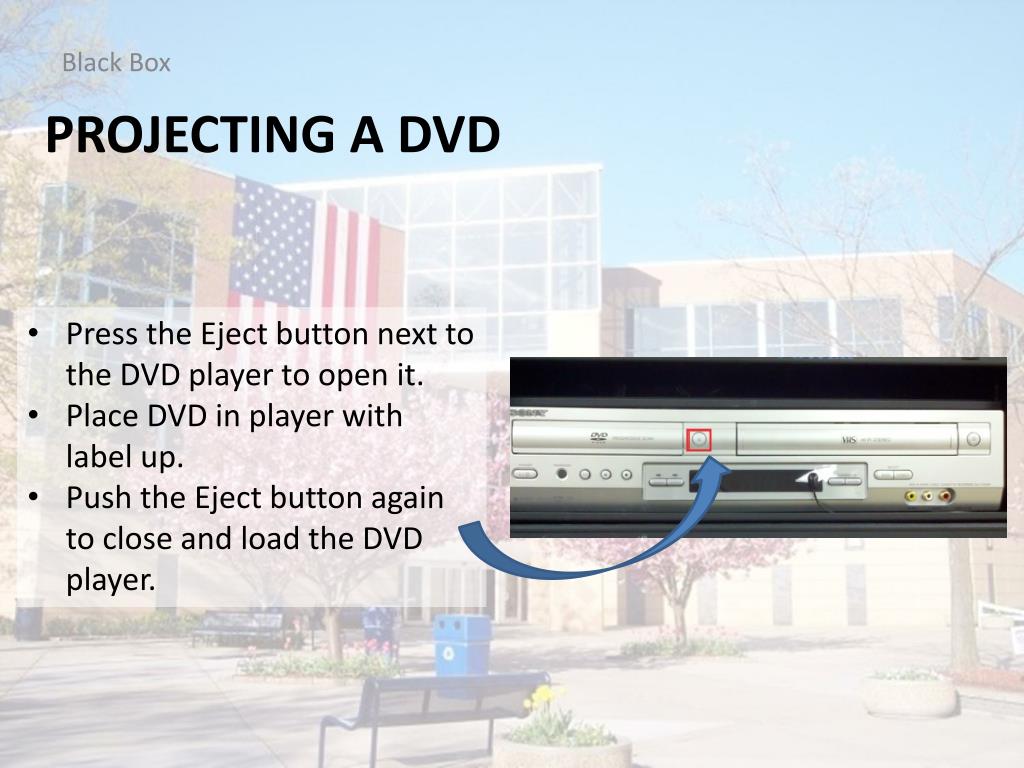

  12. Press the Eject button next to the DVD player to open it. • Place DVD in player with label up. • Push the Eject button again to close and load the DVD player. Black Box Projecting a DVD

  13. Black Box Press the “DVD” button on the right hand side of the control panel to have projector display the DVD player. Projecting a DVD

  14. There are 3 ways to control your DVD: • Use control buttons located on the bottom of control panel. • 2. Use control buttons located on the DVD player itself. • 3.Use the remote located in the Black Box drawer if there is a menu you need to navigate through. Black Box Projecting a DVD

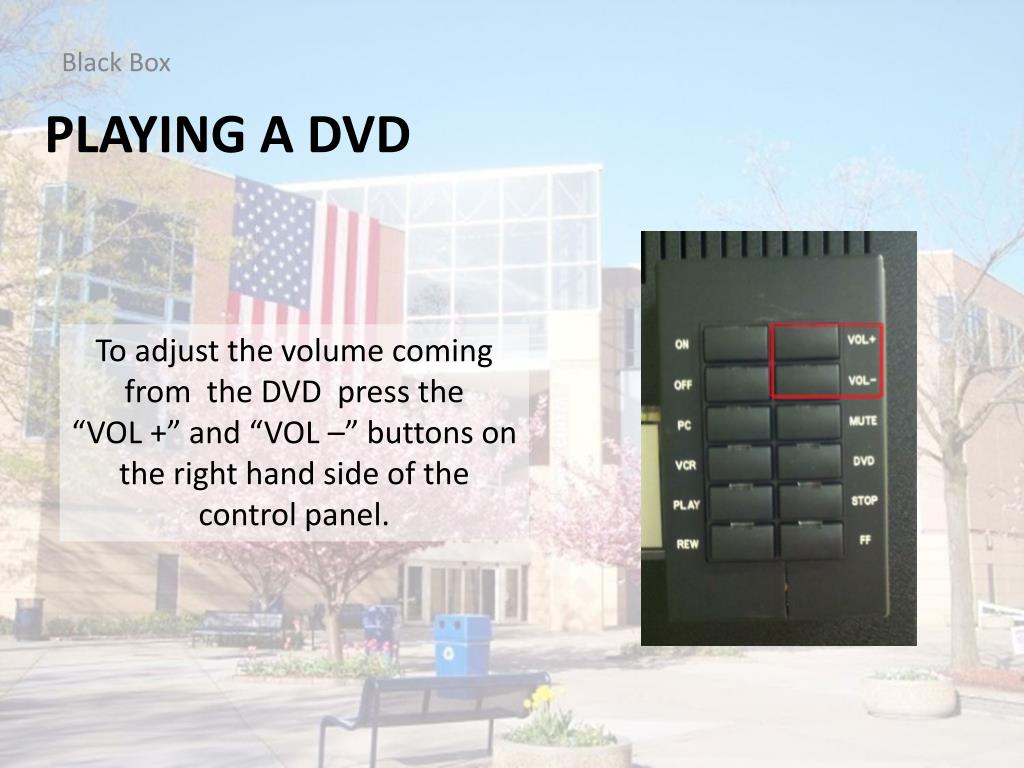

  15. To adjust the volume coming from the DVD press the “VOL +” and “VOL –” buttons on the right hand side of the control panel. Black Box Playing a DVD

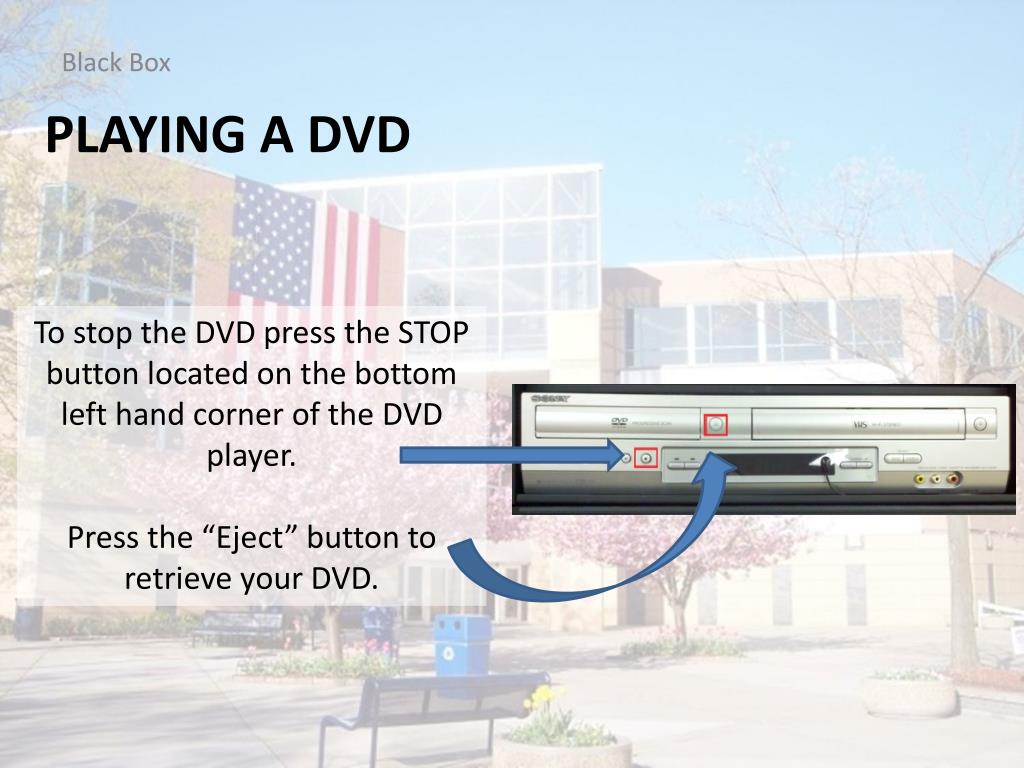

  16. To stop the DVD press the STOP button located on the bottom left hand corner of the DVD player. Press the “Eject” button to retrieve your DVD. Black Box Playing a DVD

  17. Black Box To play a VHS, turn on your DVD/VCR combo player by pressing the “Power” button on the bottom left hand corner of the player. Projecting a VHS

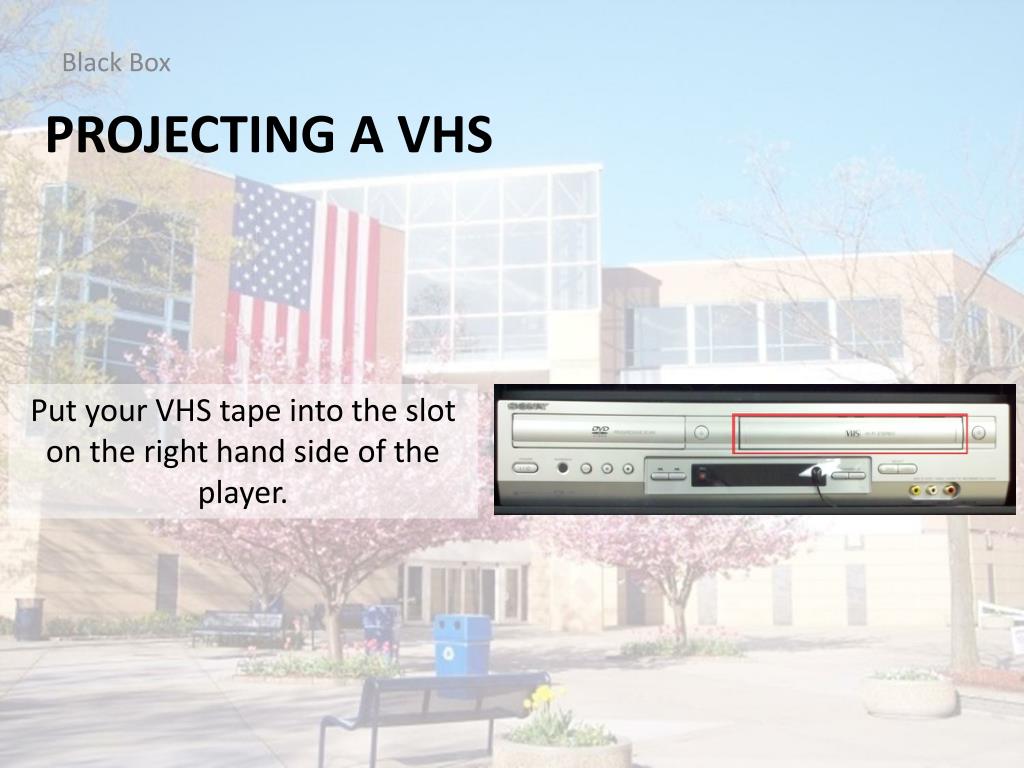

  18. Black Box Put your VHS tape into the slot on the right hand side of the player. Projecting a VHS

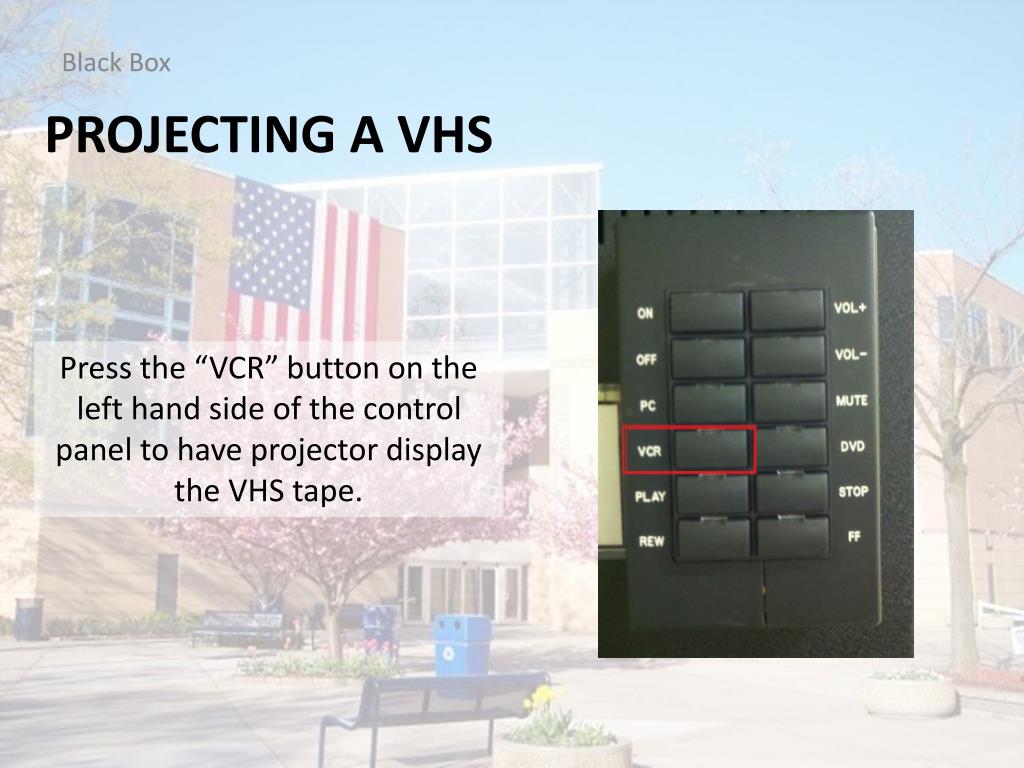

  19. Black Box Press the “VCR” button on the left hand side of the control panel to have projector display the VHS tape. Projecting a VHS

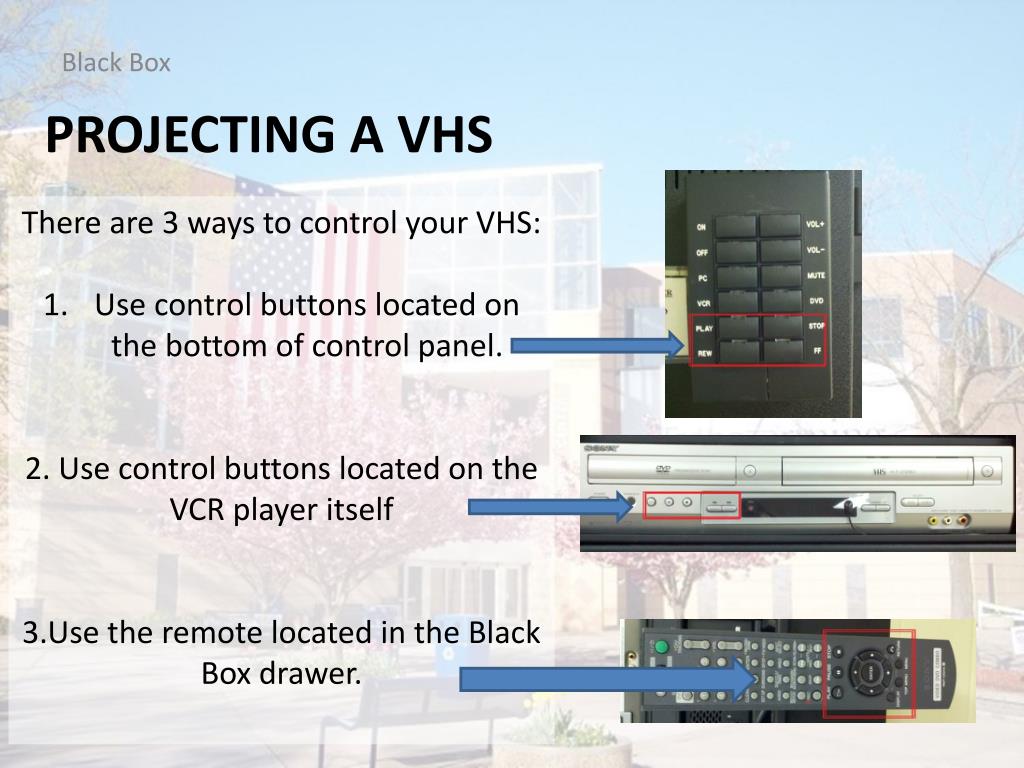

  20. There are 3 ways to control your VHS: • Use control buttons located on the bottom of control panel. • 2. Use control buttons located on the VCR player itself • 3.Use the remote located in the Black Box drawer. Black Box Projecting a VHS

  21. To adjust the volume coming from the VHS press the “VOL +” and “VOL –” buttons on the right hand side of the control panel. Black Box Projecting a VHS

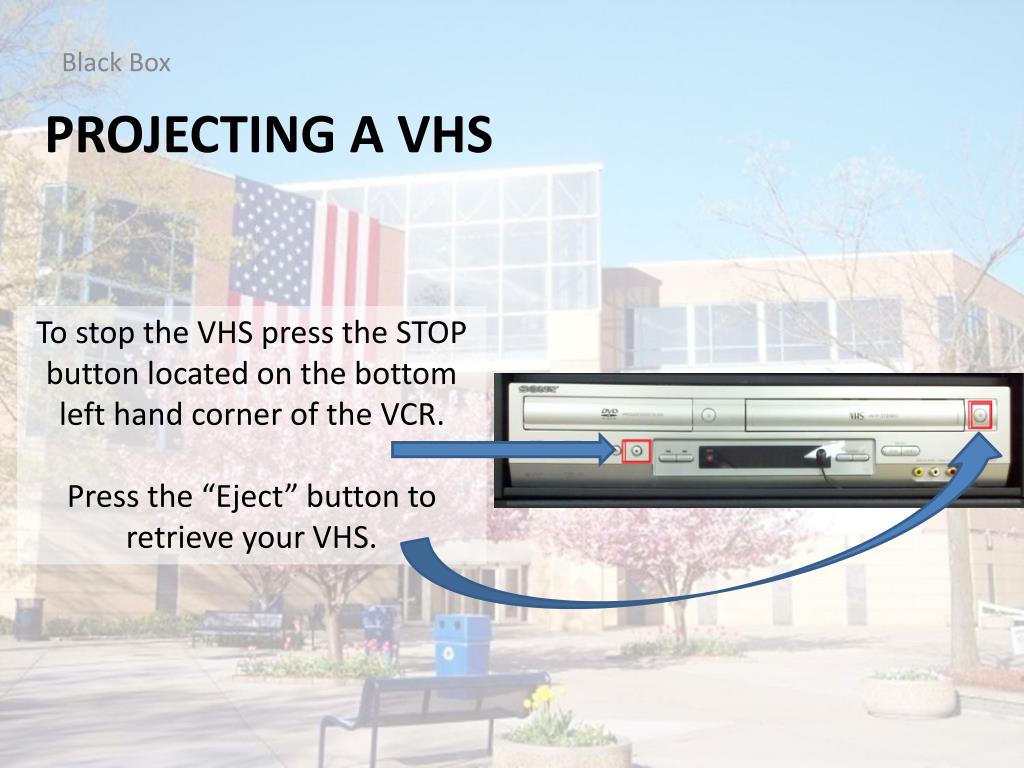

  22. To stop the VHS press the STOP button located on the bottom left hand corner of the VCR. Press the “Eject” button to retrieve your VHS. Black Box Projecting a VHS

  23. To turn off the A/V System press the “OFF” button located on the top left hand corner of the control panel twice. Black Box Turning oFF the A/v System

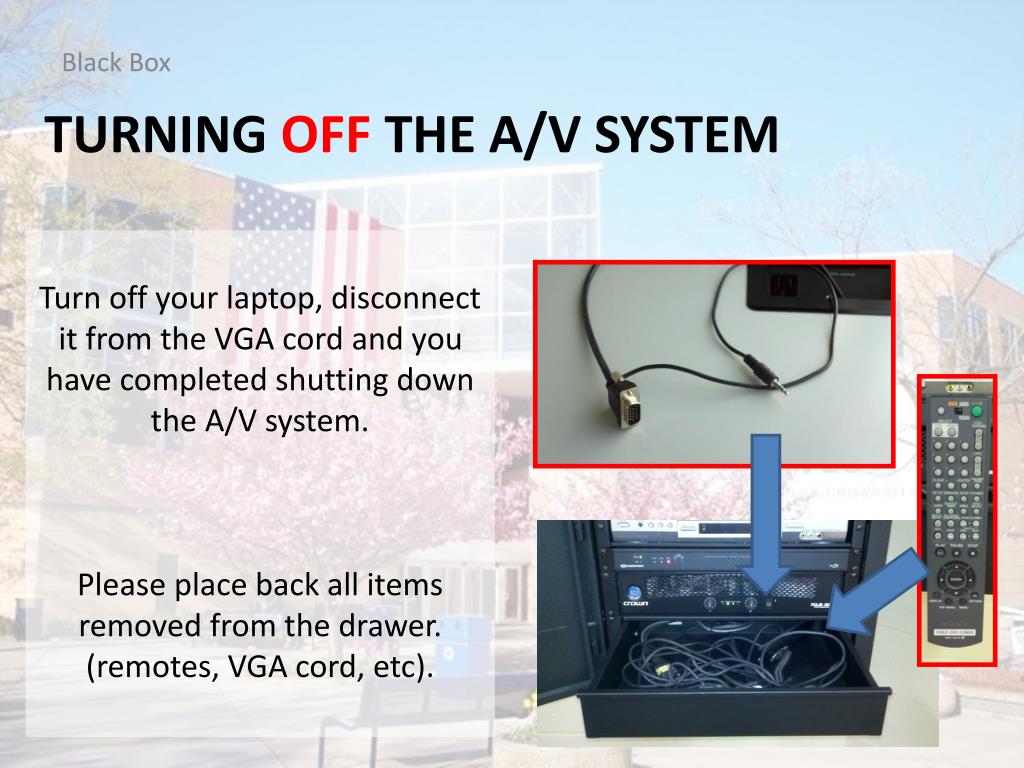

  24. Turn off your laptop, disconnect it from the VGA cord and you have completed shutting down the A/V system. Please place back all items removed from the drawer. (remotes, VGA cord, etc). Black Box Turning oFF the A/v System

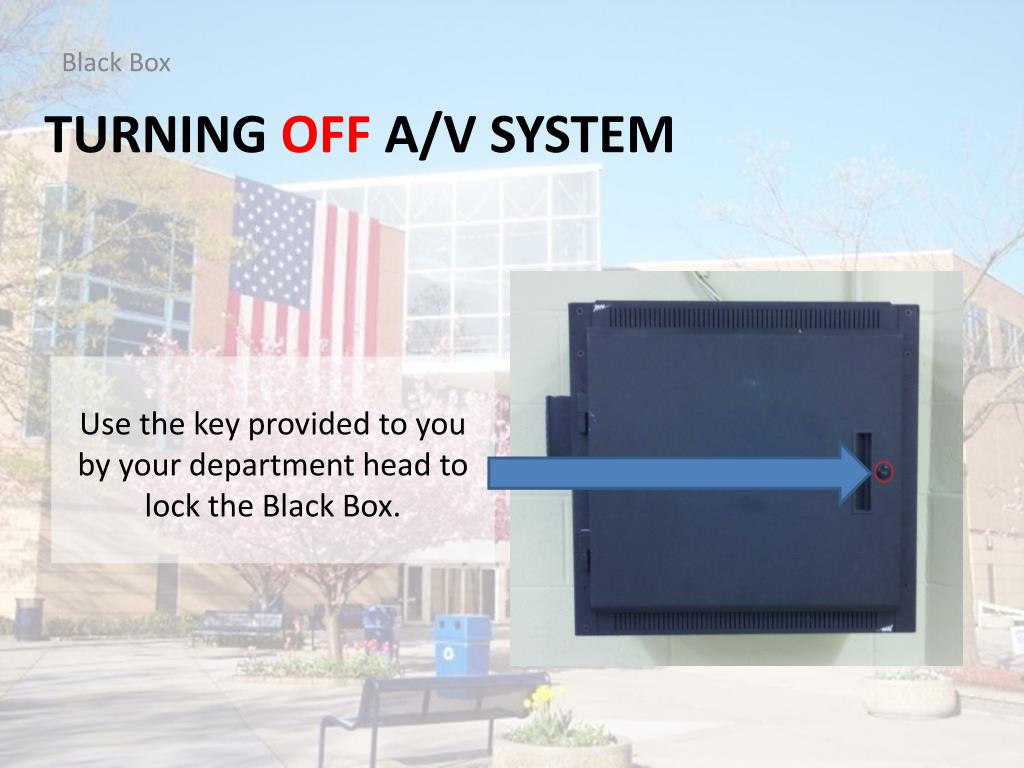

  25. Black Box Use the key provided to you by your department head to lock the Black Box. Turning OFF A/v System

  26. Office Phone: Ext. 76120 • Office Email: avt@kean.edu • Office Location: Technology Building Room 110 • Office Website: http://www.kean.edu/~avt/ Black Box Audio Visual Contact info This presentation was created by Katherine Roba kroba@kean.edu ~ 908 737 6122
