  1. 24th ACM SOSP (November, 2013) Best Paper Towards Optimization-Safe Systems: Analyzing the Impact of Undefined Behavior Xi Wang, NickolaiZeldovich, M. FransKaashoek, Armando Solar-Lezama MIT CSAIL

  2. Outline • Introduction • Model for Unstable Code • Design & Implementation • Evaluation A Seminar at Advanced Defense Lab

  3. Introduction • The specifications of C-family languages designate certain code fragments as having undefined behavior. • giving compilers the freedom to generate instructions • Aiming for system programming, the specifications choose to trust programmersand assume that their code will never invoke undefined behavior. A Seminar at Advanced Defense Lab

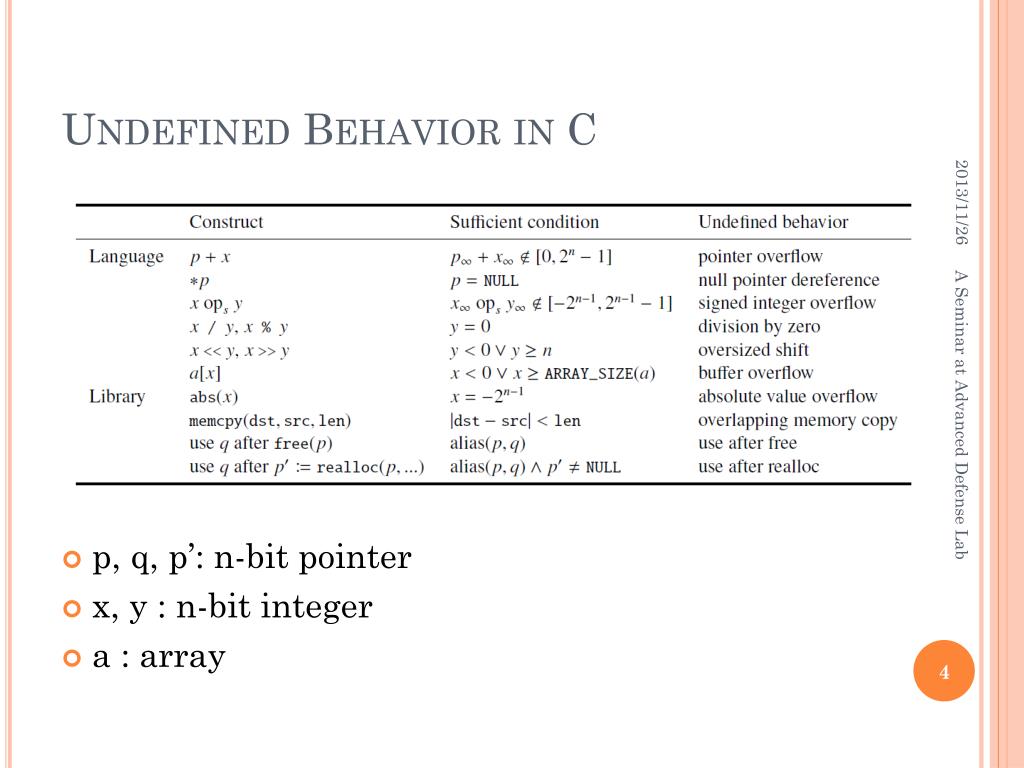

  4. Undefined Behavior in C • p, q, p’: n-bit pointer • x, y : n-bit integer • a : array A Seminar at Advanced Defense Lab

  5. Compiler Optimization • One way in which compilers exploit undefined behavior is to optimize a program under the assumption that the program NEVER invokes undefined behavior. • Consequence: • Origin program ≠ Optimized program • We call such code optimization-unstable code, or just unstable code for short. A Seminar at Advanced Defense Lab

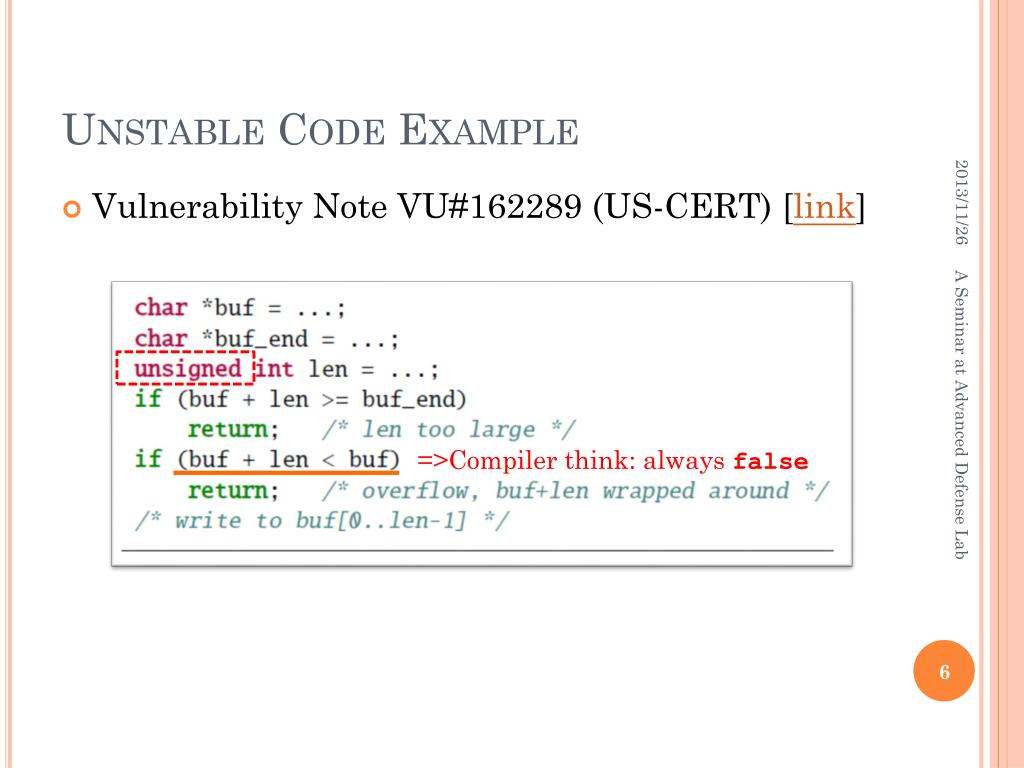

  6. Unstable Code Example • Vulnerability Note VU#162289 (US-CERT) [link] A Seminar at Advanced Defense Lab =>Compiler think: always false

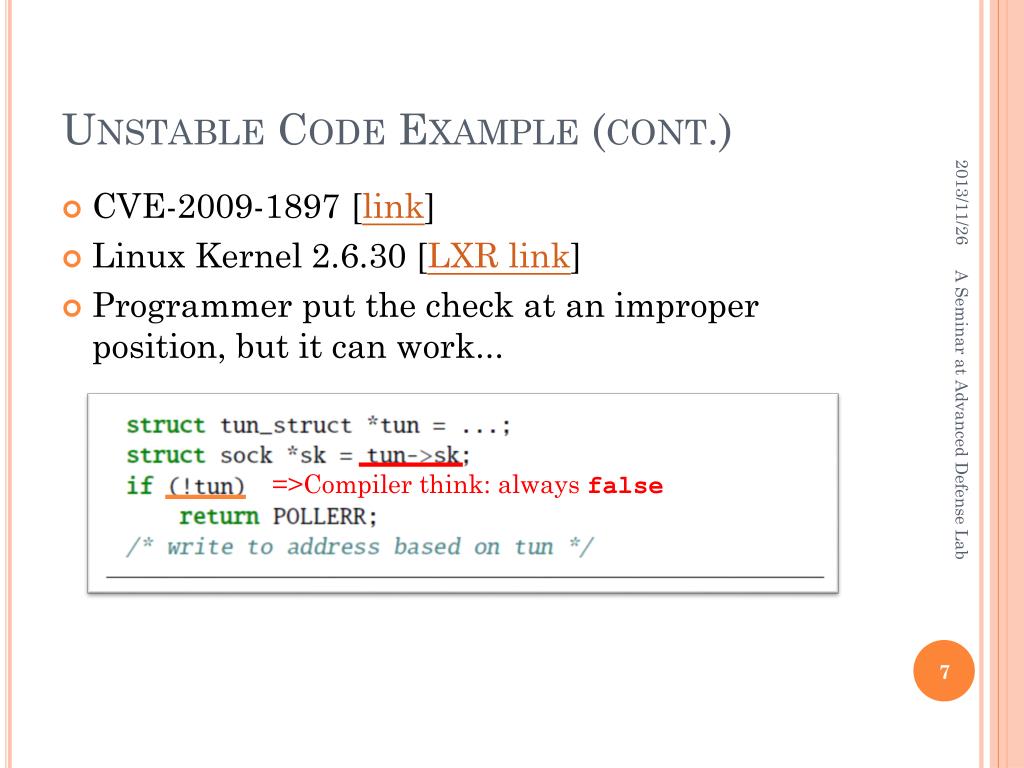

  7. Unstable Code Example (cont.) • CVE-2009-1897 [link] • Linux Kernel 2.6.30 [LXR link] • Programmer put the check at an improper position, but it can work... A Seminar at Advanced Defense Lab =>Compiler think: always false

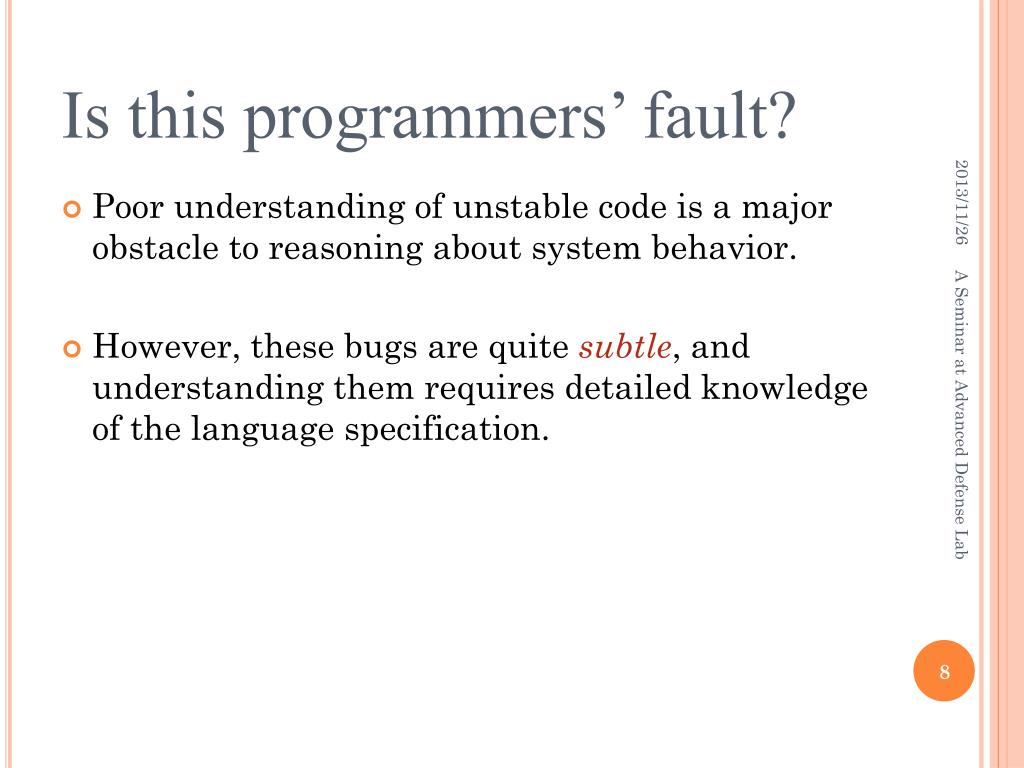

  8. Is this programmers’ fault? • Poor understanding of unstable code is a major obstacle to reasoning about system behavior. • However, these bugs are quite subtle, and understanding them requires detailed knowledge of the language specification. A Seminar at Advanced Defense Lab

  9. Is this compilers’ fault? • A story: GCC bug #30475 (2007/01/15) [link] • “This will create MAJOR SECURITY ISSUES in ALL MANNER OF CODE. I don’t care if your language lawyers tell you gccis right. . . . FIX THIS! NOW!” • A GCC user • “I am not joking, the C standard explictly says signed integer overflow is undefined behavior. . . . GCC is not going to change.” • A GCC developer A Seminar at Advanced Defense Lab

  10. Unstable Code Test • The default optimization level for release build is -O2. A Seminar at Advanced Defense Lab

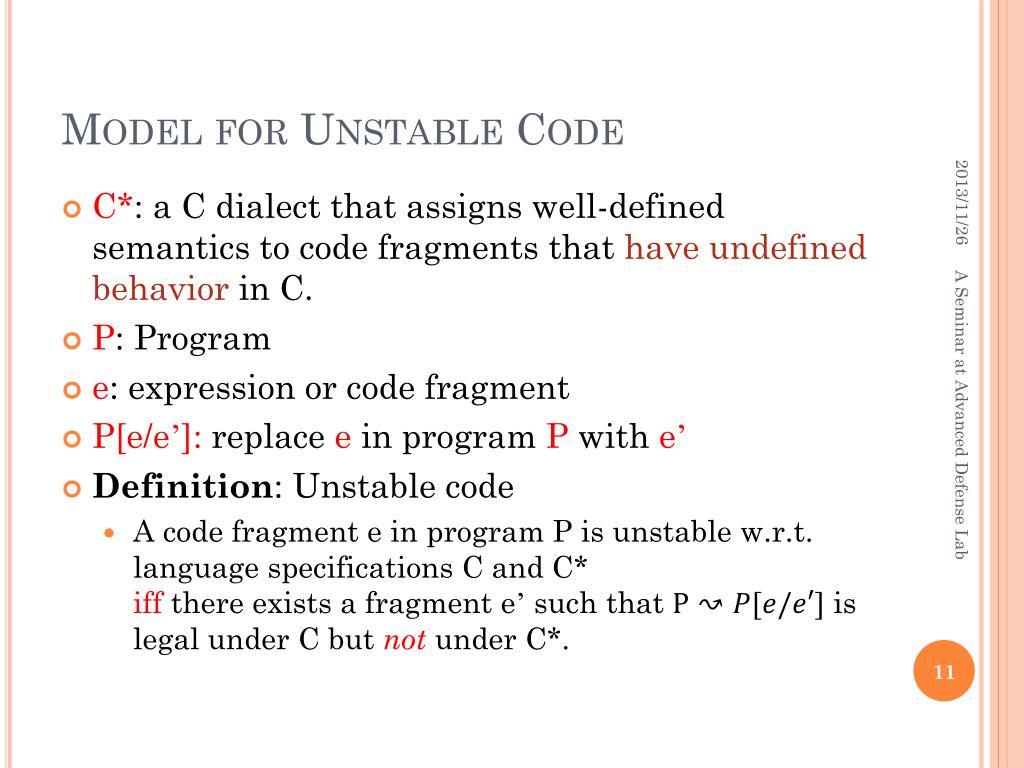

  11. Model for Unstable Code • C*: a C dialect that assigns well-defined semantics to code fragments that have undefined behavior in C. • P: Program • e: expression or code fragment • P[e/e’]: replace e in program P with e’ • Definition: Unstable code • A code fragment e in program P is unstable w.r.t. language specifications C and C* iffthere exists a fragment e’such that is legal under C but not under C*. A Seminar at Advanced Defense Lab

  12. Approach for Identifying Unstable Code • Stack does this using a two-phase scheme • Run optimizer Owithout taking advantage of undefined behavior, which resembles optimizations under C* • Run optimizer Oagain, this time taking advantage of undefined behavior, which resembles (more aggressive) optimizations under C. A Seminar at Advanced Defense Lab

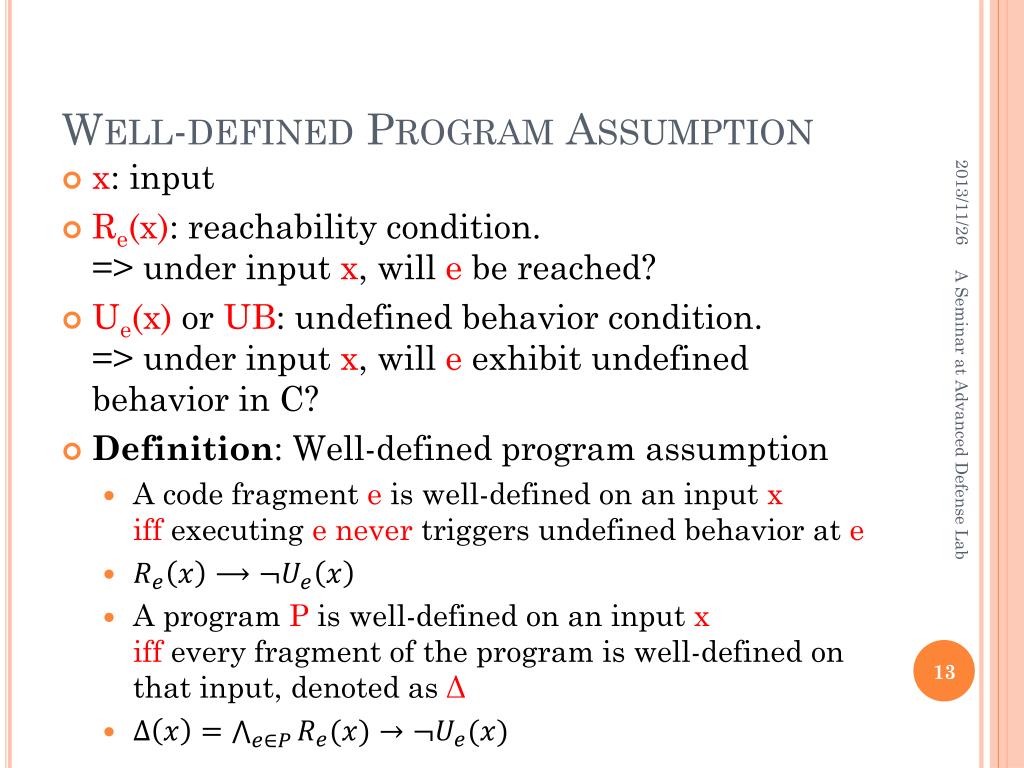

  13. Well-defined Program Assumption • x: input • Re(x): reachability condition.=> under input x, will e be reached? • Ue(x) or UB: undefined behavior condition.=> under input x, will e exhibit undefined behavior in C? • Definition: Well-defined program assumption • A code fragment e is well-defined on an input xiffexecuting enevertriggers undefined behavior at e • A program Pis well-defined on an input xiff every fragment of the program is well-defined on that input, denoted as Δ A Seminar at Advanced Defense Lab

  14. Eliminating Unreachable Code • Theorem: Elimination • In a well-defined program P, an optimizer can eliminate code fragment e, if there is no input x that both reaches e and satisfies the well-defined program assumption Δ(x) A Seminar at Advanced Defense Lab

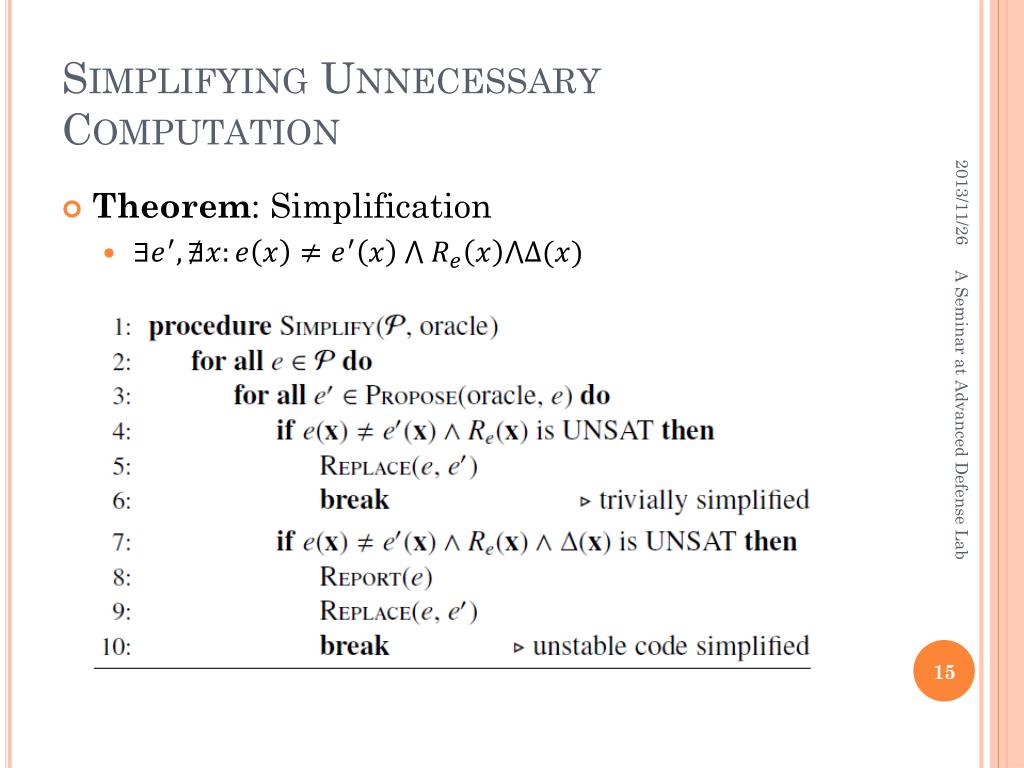

  15. Simplifying Unnecessary Computation • Theorem: Simplification A Seminar at Advanced Defense Lab

  16. Simplification Oracle • Boolean oracle: propose true and false in turn for a booleanexpression, enumerating possible values • Algebra oracle: propose to eliminate common terms on both sides of a comparison if one side is a subexpression of the other • x + y < x => y < 0 A Seminar at Advanced Defense Lab

  17. Limitation • It is possible to exploit the well-defined program assumption in other forms. A Seminar at Advanced Defense Lab

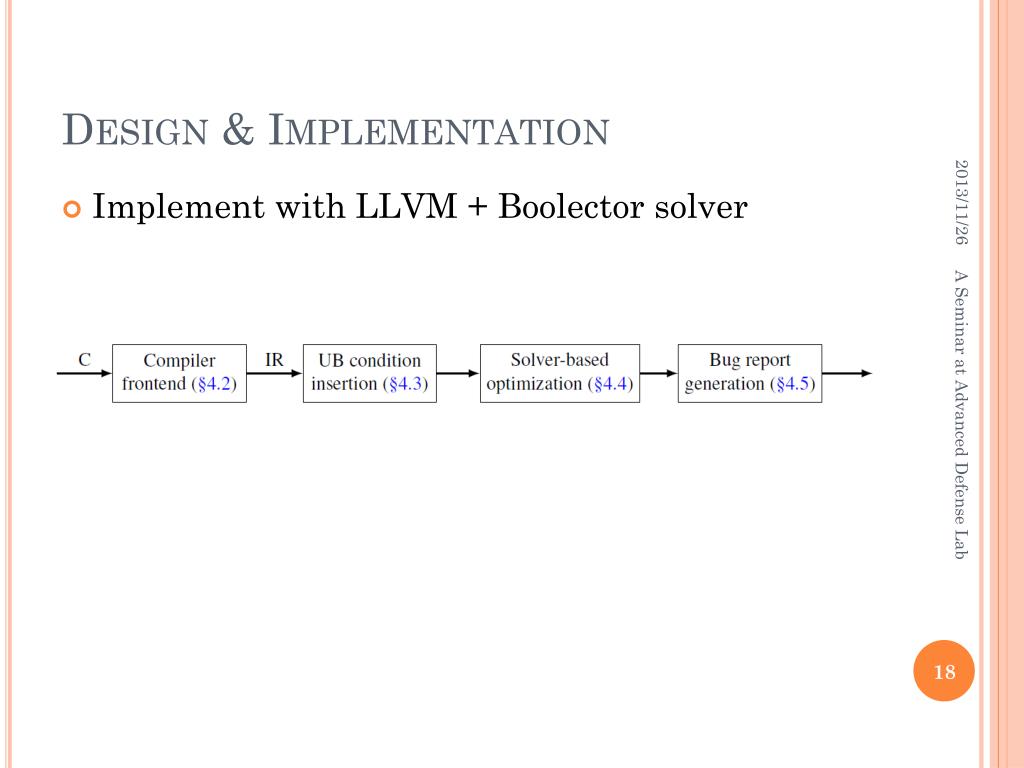

  18. Design & Implementation • Implement with LLVM + Boolector solver A Seminar at Advanced Defense Lab

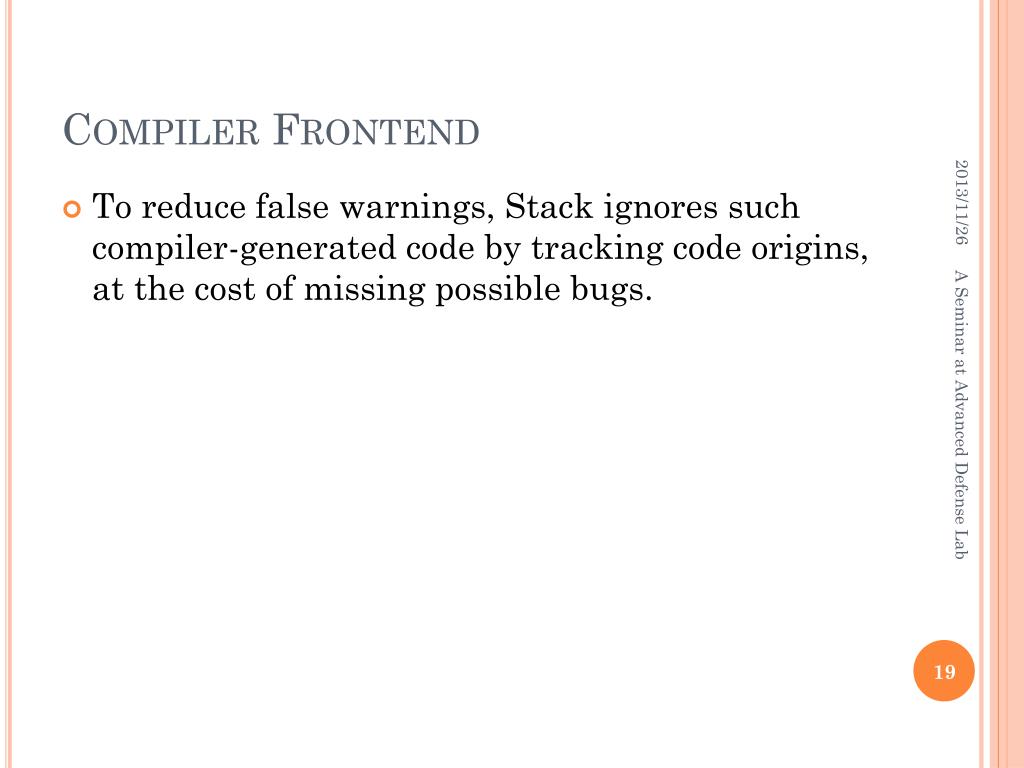

  19. Compiler Frontend • To reduce false warnings, Stack ignores such compiler-generated code by tracking code origins, at the cost of missing possible bugs. A Seminar at Advanced Defense Lab

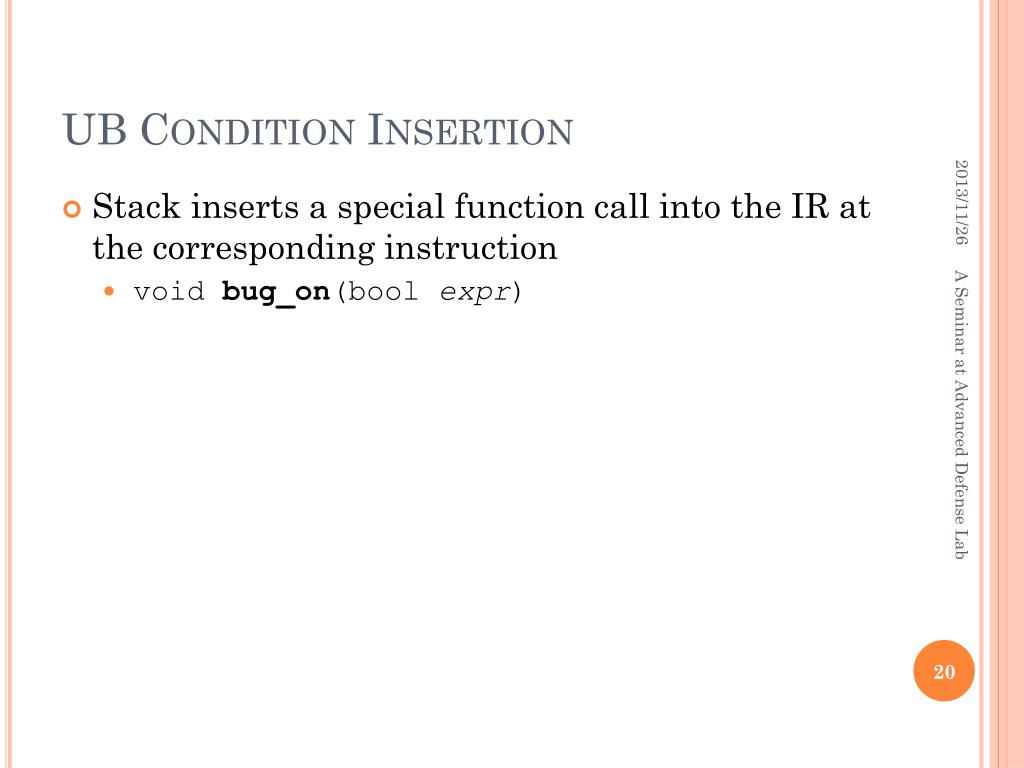

  20. UB Condition Insertion • Stack inserts a special function call into the IR at the corresponding instruction • void bug_on(boolexpr) A Seminar at Advanced Defense Lab

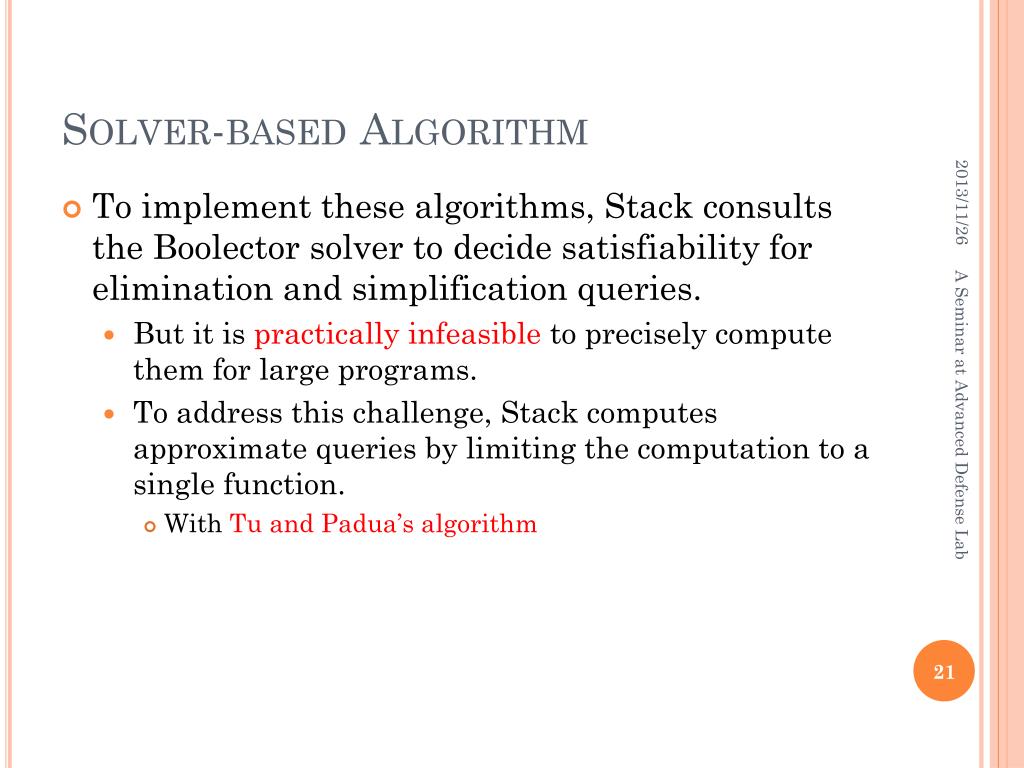

  21. Solver-based Algorithm • To implement these algorithms, Stack consults the Boolectorsolver to decide satisfiability for elimination and simplification queries. • But it is practically infeasible to precisely compute them for large programs. • To address this challenge, Stack computes approximate queries by limiting the computation to a single function. • With Tu and Padua’s algorithm A Seminar at Advanced Defense Lab

  22. Evaluation • New bug: 160 (July 2012  March 2013) A Seminar at Advanced Defense Lab

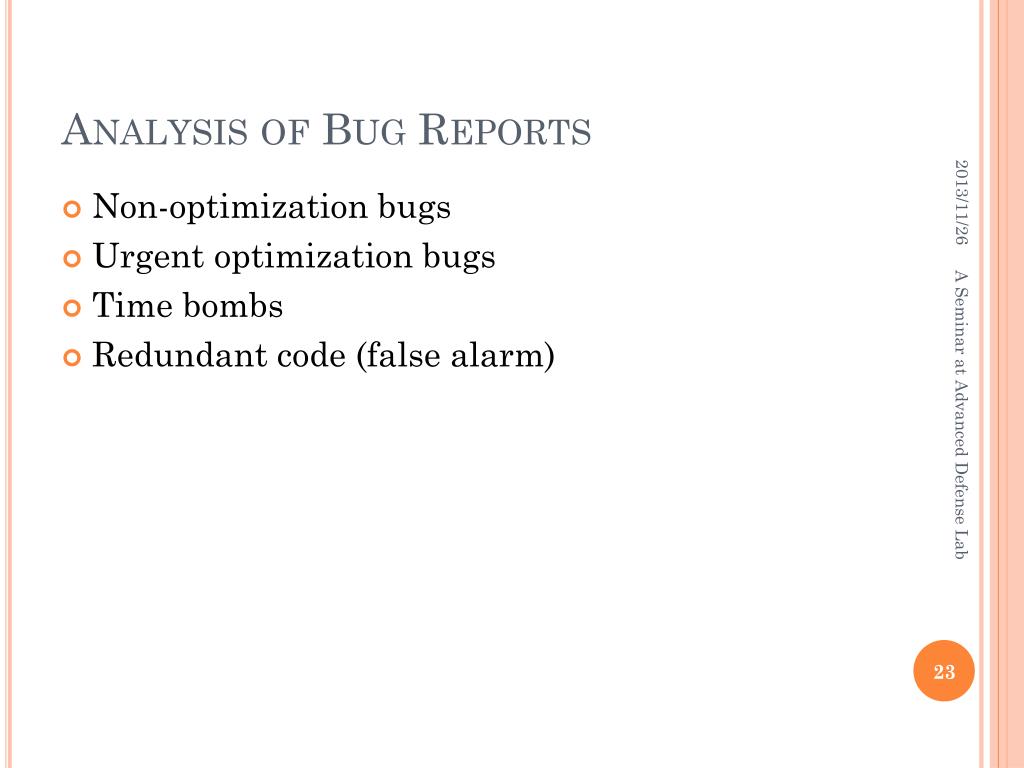

  23. Analysis of Bug Reports • Non-optimization bugs • Urgent optimization bugs • Time bombs • Redundant code (false alarm) A Seminar at Advanced Defense Lab

  24. Analysis of Bug Reports (cont.) • Non-optimization Bugs • Example: PostgreSQL [link] A Seminar at Advanced Defense Lab Time bomb!!

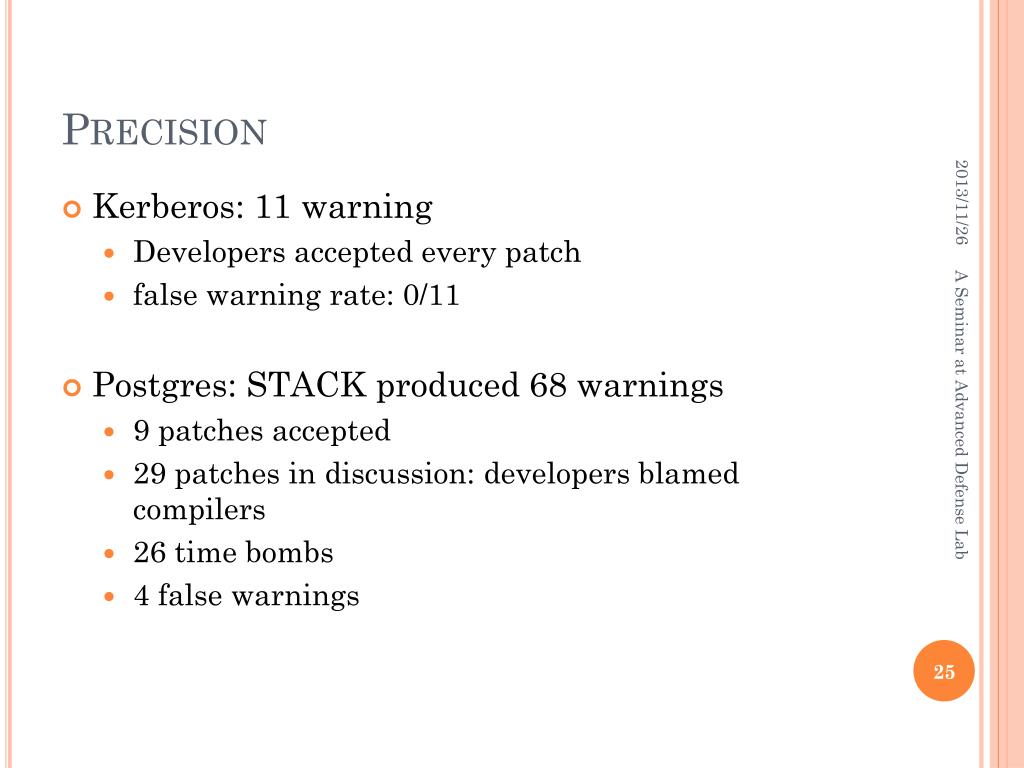

  25. Precision • Kerberos: 11 warning • Developers accepted every patch • false warning rate: 0/11 • Postgres: STACK produced 68 warnings • 9 patches accepted • 29 patches in discussion: developers blamed compilers • 26 time bombs • 4 false warnings A Seminar at Advanced Defense Lab

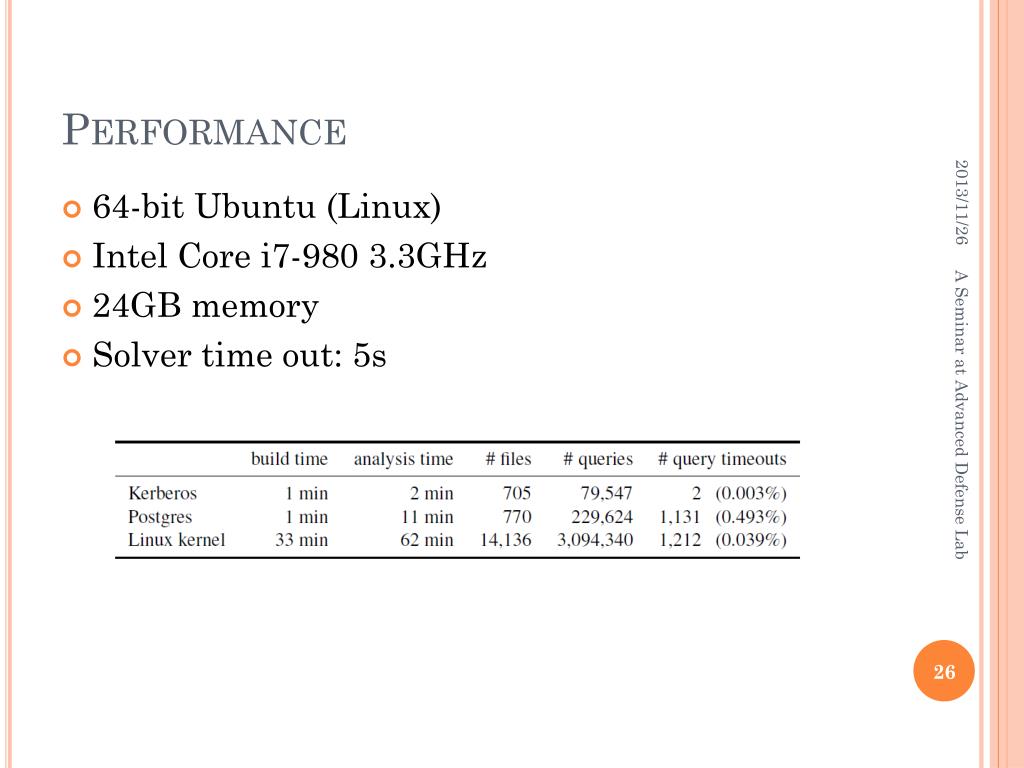

  26. Performance • 64-bit Ubuntu (Linux) • Intel Core i7-980 3.3GHz • 24GB memory • Solver time out: 5s A Seminar at Advanced Defense Lab

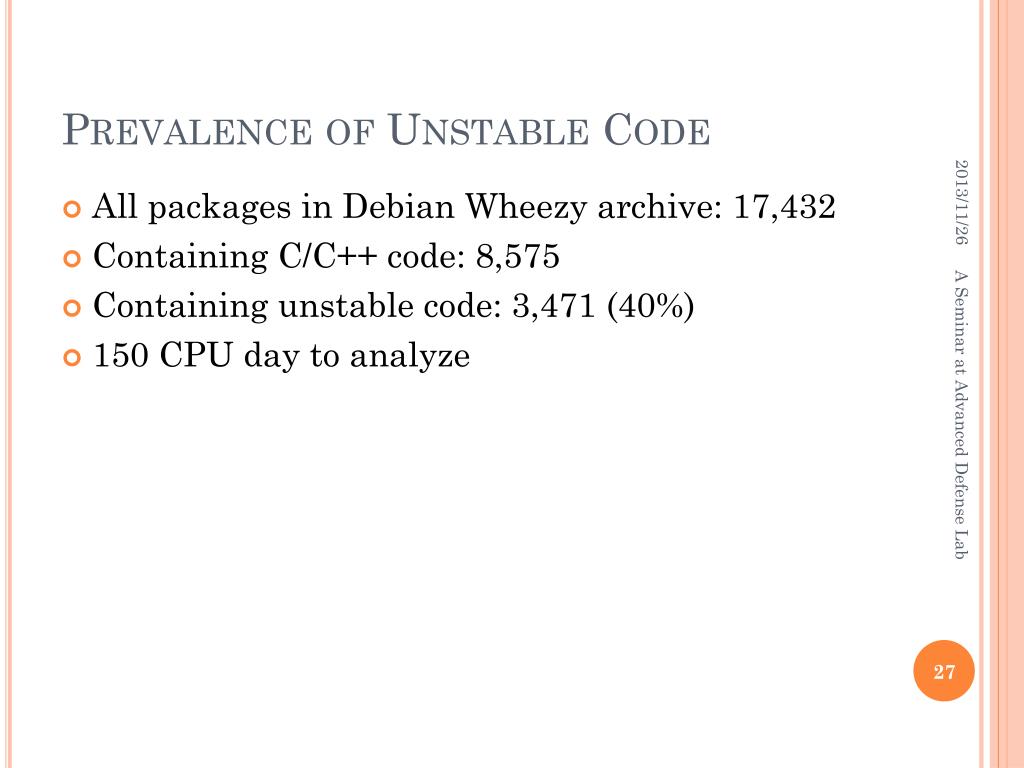

  27. Prevalence of Unstable Code • All packages in Debian Wheezy archive: 17,432 • Containing C/C++ code: 8,575 • Containing unstable code: 3,471 (40%) • 150 CPU day to analyze A Seminar at Advanced Defense Lab

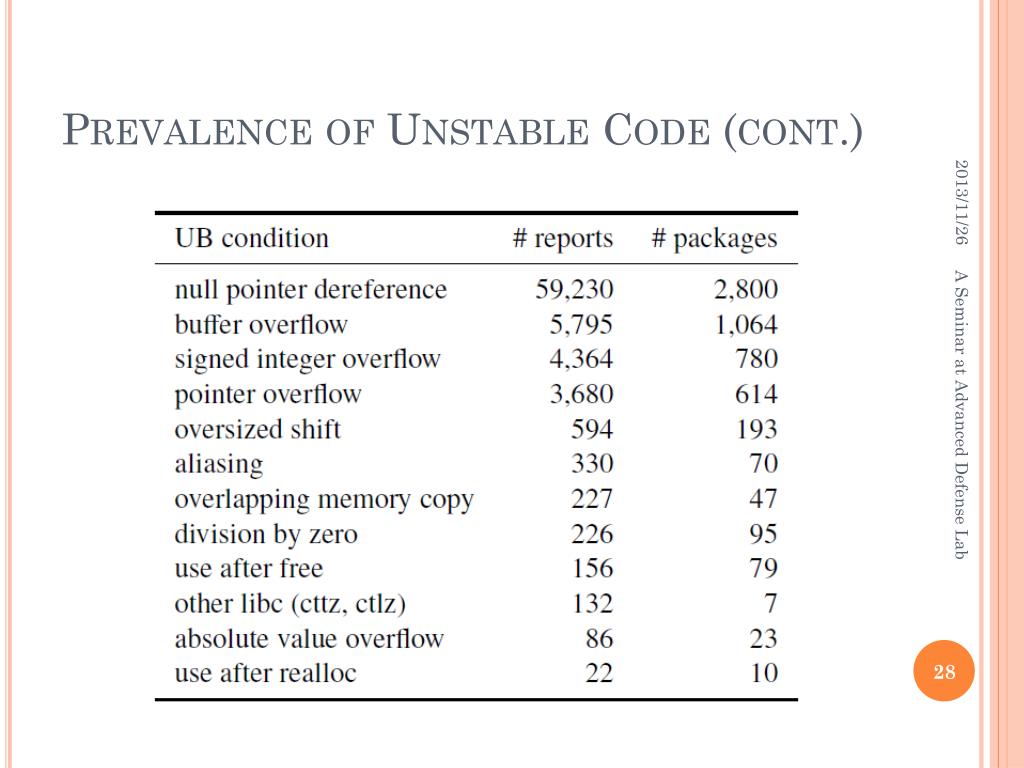

  28. Prevalence of Unstable Code (cont.) A Seminar at Advanced Defense Lab

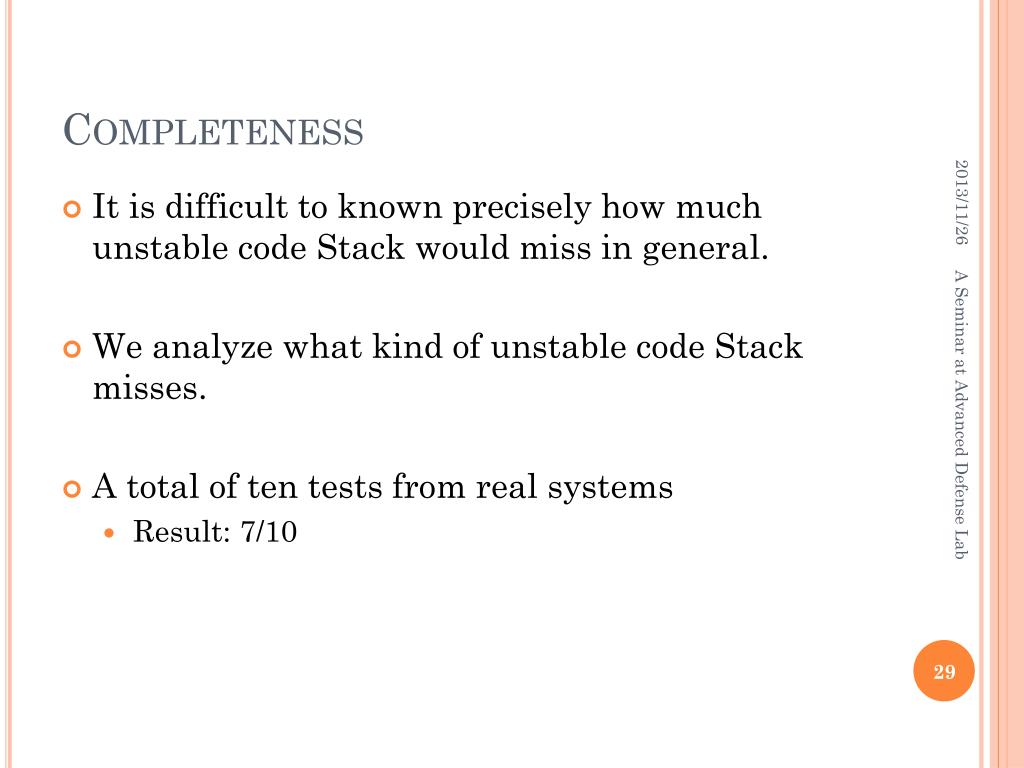

  29. Completeness • It is difficult to known precisely how much unstable code Stack would miss in general. • We analyze what kind of unstable code Stack misses. • A total of ten tests from real systems • Result: 7/10 A Seminar at Advanced Defense Lab

  30. Q & A A Seminar at Advanced Defense Lab
