  1. Predicting the Future The GTEM “Tamed?” Mathew Aschenberg Derrell Gottwald Charles Grasso Echostar TechnologyEchostar Technology Echostar Technology Agency Engineer Quality Assurance Engineer Senior Agency Engineer (303)706-5064 (303) 706-5236 (303) 706 – 5467 Email: matt.aschenberg@echostar.com Email: derrell.gottwald@echostar.com Email:charles.grasso@echostar.com

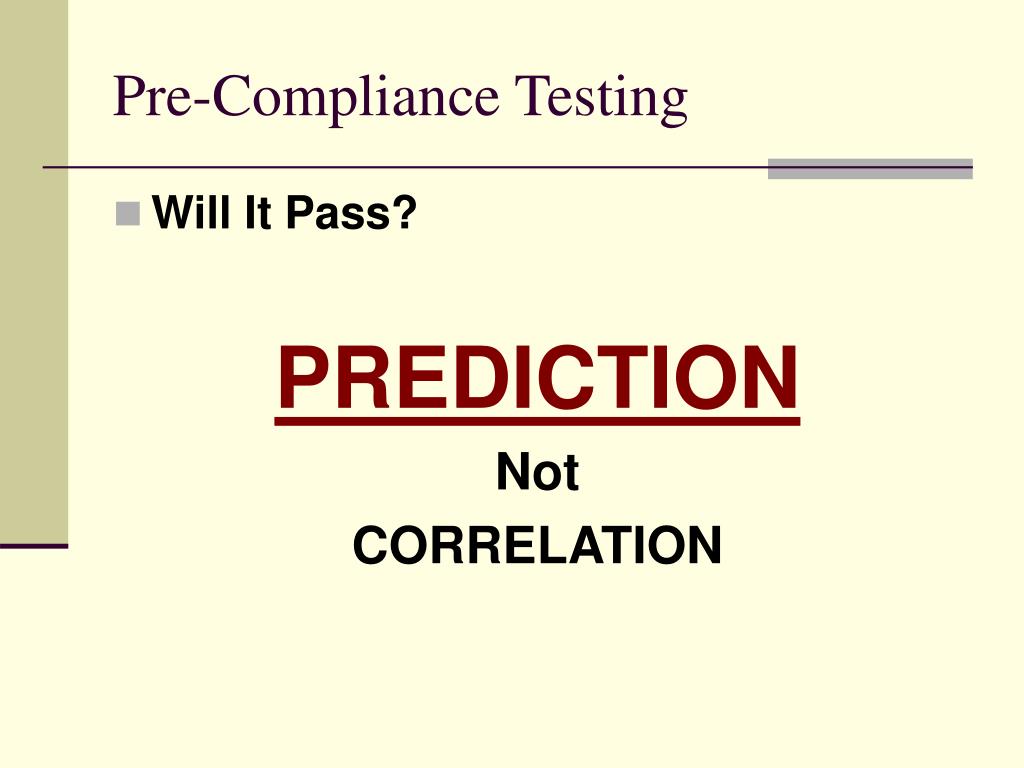

  2. Pre-Compliance Testing • Will It Pass? PREDICTION Not CORRELATION

  3. Site to Site Differences Acceptable correlation differences Calibration variation Tester differences/preferences Weather Voltage supplied (120 vs. 115) Measurement Uncertainty vs. Correlation

  4. Measurement Uncertainty vs. Correlation EUT Variation • Cable Layout • System state • Seam contact

  5. Statistical Review

  6. The Prediction Process

  7. Preparing the Wort

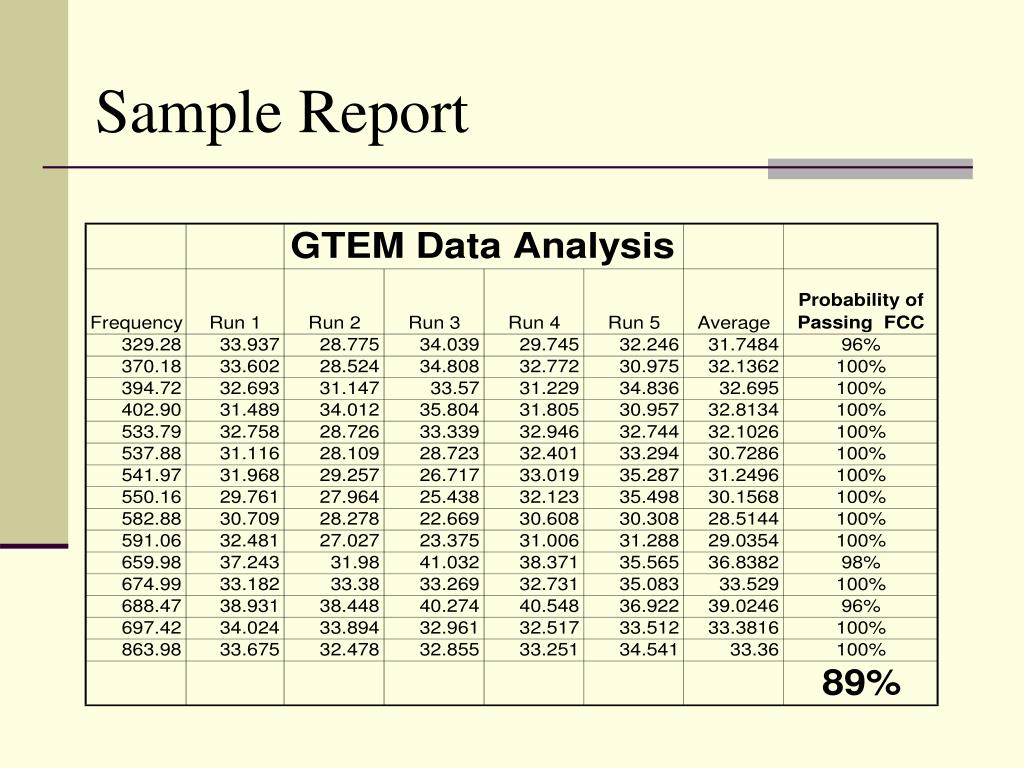

  8. Sample Report

  9. Benefits of Process • Accounts for site differences • Provides a linear gauge of unit performance • Self-Reinforcing - Improves with time • Transferable to other tests

  10. Future Work • Incorporate frequency specific statistics • Account for inter-relatedness between emissions

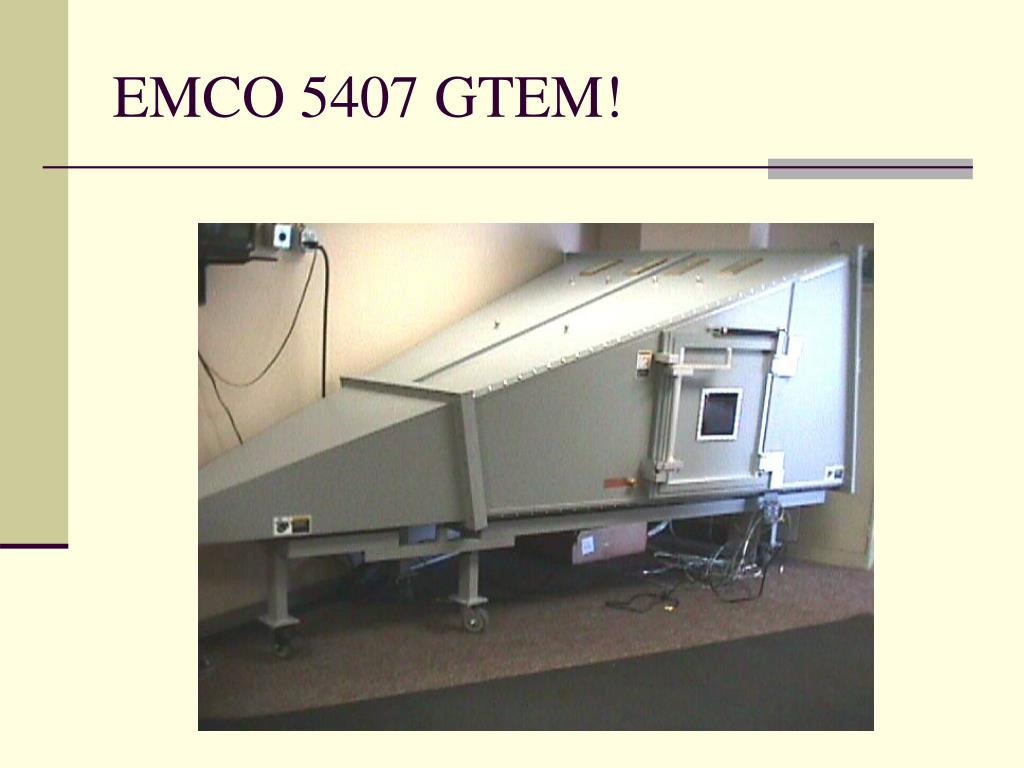

  11. EMCO 5407 GTEM!

  12. GTEM Overview • 50Ω transmission line • 3-orthogonal axis measurements • Spherical not cylindrical measurements • Size limited • Cables present problems

  13. Summary: • Correlation between OATS and non-traditional sites can be difficult to achieve. • A method is proposed that accounts for site differences and provides for prediction instead of correlation. • Using this method a GTEM, for example, can be used to provide useful pre-compliance data.
