Presentation Transcript


National spatial data infrastructure concepts and components l.jpg

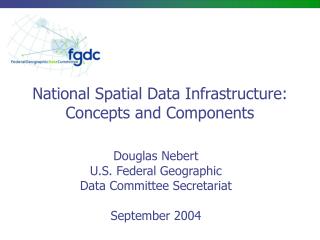

National Spatial Data Infrastructure:Concepts and Components

Douglas Nebert

U.S. Federal Geographic

Data Committee Secretariat

September 2004


What is a spatial data infrastructure sdi l.jpg

What is a Spatial Data Infrastructure (SDI)?

“The SDI provides a basis for spatial data discovery, evaluation, and application for users and providers within all levels of government, the commercial sector, the non-profit sector, academia and by citizens in general.”

--The SDI Cookbook http://www.gsdi.org


Who needs access to coordinated geographic information l.jpg

Who needs access to coordinated geographic information?

  • Land Records Adjudication

  • Disaster Response

  • Transportation Management

  • Water, gas & electric planning

  • Public Protection

  • Defense

  • Natural Resource Management

  • Telecommunications Infrastructure

  • Economic Development

  • Civic Entrepreneurs

  • Regional Stewards


Components of a spatial data infrastructure sdi l.jpg

Components of a Spatial Data Infrastructure (SDI)

  • Policies & Institutional Arrangements (governance, data privacy & security, data sharing, cost recovery)

  • People (training, professional development, cooperation, outreach)

  • Data (digital base map, thematic, statistical, place names)

  • Technology (hardware, software, networks, databases, technical implementation plans)


Why build an sdi l.jpg

Why build an SDI?

  • Build data once and use it many times for many applications

  • Integrate distributed providers of data: Cooperative governance

  • “Place-based management”

  • Share costs of data creation and maintenance

  • Support sustainable economic, social, and environmental development


The outcomes of an nsdi l.jpg

The outcomes of an NSDI

  • The participant members (contributors and users) are known and can interact

  • Core and specialized map and data services are easily discoverable and accessible

  • Decision-makers and analysts have ready access to the right geo-information for input to analytical and visual models – indicators, models, trends, patterns


Benefits of an nsdi l.jpg

Benefits of an NSDI

  • Development of a private sector involved with data sales and added value

  • A chance for communities of all sizes and capabilities to participate in the knowledge economy

  • A more informed voter/citizen

  • Increased access to distributed geo-information through standards


Creating the motivation l.jpg

Creating the motivation

  • Development of an SDI should be a voluntary and have long-term vision

  • Government roles may require both incentives and directives

  • Commercial and non-commercial participants should find SDI appealing as a market

  • The correct solution for NSDI must be defined by the community


Government role in infrastructure l.jpg

Government Role in Infrastructure

  • National Interstate Highway system built for defense logistics, now baseline for commerce

  • DARPA/ARPA advanced Internet infrastructure design, establishing the backbone

  • Promotes standards to enable compatible solutions

  • We cannot imagine the fullest extent of how the NSDI will be populated or what applications will live upon it!


Here s one overview of the pieces of the nsdi l.jpg

Here’s one overview of the pieces of the NSDI


Slide11 l.jpg

  • The first task is to inventory who has what data of what type and quality

  • A standardized form of metadata was published in June 1994 by the FGDC. An international standard now exists and will be adopted by the US beginning in 2005

Metadata


Metadata l.jpg

Metadata...

  • Provides documentation of existing internal geospatial data resources within an organisation (inventory)

  • Permits structured search and comparison of held spatial data by others (catalog)

  • Provides end-users with adequate information to take the data and use it in an appropriate context (documentation)


Metadata formats l.jpg

Metadata Formats

  • The FGDC Content Standard for Digital Geospatial Metadata (CSDGM, 1998) is expressed in XML for exchange and text and HTML for presentation

  • Participants in the Geospatial Data Clearinghouse offer other metadata formats, including Dublin Core, ANZLIC, and expressions of ISO 19115

  • Any metadata format can be presented by requesting the HTML format


Slide14 l.jpg

  • Metadata describes existing data holdings for order, retrieval, or local use

  • Metadata should be used to describe all types of data, emphasis on ‘truth in labeling’

Metadata

Geospatial Data


Slide15 l.jpg

Framework

GEOdata

  • Special-use thematic layers are built and described as available geospatial data

  • Common data layers are being defined in the Framework activity

Metadata


Framework supports l.jpg

Framework supports...

  • Community development of sets of spatial features, feature representation, and attribution to a lowest common denominator

  • Participant collecting, converting, or associating information to common Framework data standards with an encoding format to facilitate exchange

  • Multiple representations of real-world features at different scales and times by feature identifier and generalization


Framework data standards l.jpg

Framework Data Standards

  • Eleven abstract data content standards are being promulgated through the ANSI process to become American National Standards in 2005

  • Each thematic content standard has an informative annex describing its implementation as XML/GML Application Schemas using OGC Web Feature Services


Slide18 l.jpg

Framework

GEOdata

The NSDI includes the services to help discover and interact with data

Services

Metadata


Slide19 l.jpg

Framework

GEOdata

An important common service in SDI is that of discovering resources through metadata

Discovery

Access

Processing

Services

Metadata

This Discovery Service is the core function of the NSDIClearinghouse for geospatial information and the GOS geodata.gov portal


Nsdi clearinghouse network and geodata gov portal l.jpg

NSDI Clearinghouse Network and geodata.gov portal

  • Supports uniform, distributed search through a single user interface to all domestic metadata collections to find data and maps

  • A free advertising mechanism to provide world access to your holdings under the principle of “truth-in-labeling”

  • Search for spatial data through fields and full-text in the metadata and categorical browsing

  • Links through to full data access and online web mapping services, where available


Geospatial data clearinghouse l.jpg

Geospatial Data Clearinghouse

  • The Geospatial Data Clearinghouse Network includes nearly 300 distributed collections of metadata searched via the Z39.50 protocol, “GEO” Profile

  • geodata.gov harvests XML forms of domestic metadata from Z39.50 and browseable Web directories into a searchable cache


Slide22 l.jpg

Framework

GEOdata

  • A second class of services provides standardised access to geospatial information

Discovery

Access

Processing

Services

Metadata

  • This may be made via static files on ftp or via online data streaming services. These services deliver ‘raw’ data, not maps.


Data access concepts l.jpg

Data Access Concepts

  • Standardisation of data access implies several things:

    • Definition of model used for the data to be exchanged

    • Adoption of an exchange or encoding format

    • Agreement on data access protocol(s)

  • Organisations should strive to identify the mode(s) of operation to simplify data exchange


Data access examples l.jpg

Data Access Examples

  • Administrative boundary data conforming to the GlobalMap data model, packaged as Vector Product Format (VPF), made accessible over ftp

  • Panchromatic 10m, single-band, rectified imagery to a specific coordinate reference system, packaged as GEOTIFF with LZW compression, made accessible on CD-ROM


Slide25 l.jpg

Framework

GEOdata

A third class of services provides additional processing on geospatial information

Discovery

Access

Processing

Services

Metadata


Processing services l.jpg

Processing Services

  • These include capabilities that extend and enhance the delivery of data through processes applied to raw data:

    • Web Mapping Services (OGC WMS)

    • Symbolization (OGC SLD)

    • Coordinate Transformation (OGC WCTS)

    • Analysis or topologic overlay services

    • Routing services


Geospatial interoperability reference model girm l.jpg

Geospatial Interoperability Reference Model (GIRM)

  • Voluntary technical participation in the NSDI is defined through the GIRM

  • The GIRM includes data standards, formats, protocols, and interface specifications to maximize interoperability

  • http://gai.fgdc.gov/girm/


Slide28 l.jpg

Framework

GEOdata

  • Standardization makes SDI work

  • Standards touch every SDI activity

Discovery

Access

Processing

Services

Metadata

Standards

Standards include specifications, formal

standards, and documented practices


Fgdc standards l.jpg

FGDC Standards...

  • Created by FGDC working groups and thematic subcommittees as national standards, representing community consensus view of data theme or common approach

  • Submitted for 90-day public review

  • Reviewed across disciplines for uniformity

  • Published as US Federal Standards

  • Standards by ISO, OGC, W3C and other standardization bodies are used FIRST, if they exist!

  • http://www.fgdc.gov/standards/standards.html


Roles of standards bodies l.jpg

Software interfaces

(Implementation

Specifications)

Endorsed practices and specifications

OpenGIS

Consortium

Other

NSDIs

NSDI

ISO TC 211

National

Standards

Content standards,

Authority for data

Foundations for

implementation.

(Abstract standards)

Roles of standards bodies


Slide31 l.jpg

Framework

GEOdata

Partnerships extend our capabilities

Partnerships

Discovery

Access

Processing

Services

Metadata

Standards


Partnerships are the glue l.jpg

Partnerships are the glue...

  • FGDC has recognized 40+ geographic data councils across the country to establish 2-way coordination mechanisms

  • FGDC has funded numerous agencies with “seed” funding to further existing efforts along common lines

  • Partnerships extend local capabilities in technology, skills, logistics, and data

  • The National Map is a partnership designed to serve Framework data themes from distributed participating organizations for multiple purposes


Regional consortia l.jpg

Regional consortia

  • Locally formed, interdependent

  • Inclusive, voluntary, open

  • State, local, federal, tribal, academic, private sector

  • Expanded from existing collaborations


Best practices l.jpg

Best practices

  • Treat data as strategic, capital assets and public goods

  • Collaborate and Coordinate

  • Align roles, responsibilities and resources for data stewardship

  • Organize Effective and Efficient Production and Stewardship of Data

  • Pool and Leverage Investments


Slide35 l.jpg

Framework

GEOdata

Treated together this comprises the NSDI

Partnerships

Partnerships

Discovery

Access

Processing

Clearinghouse (catalog)

Services

Metadata

Metadata

GEOdata

Framework

Standards

Standards


Initiatives and future directions l.jpg

Initiatives and Future Directions

  • Geospatial One-Stop and the geodata.gov portal

  • An Enterprise Architecture for the NSDI

  • NSDI/FGDC Future Directions Initiative


Geospatial one stop l.jpg

Geospatial One-Stop

  • One of 24 official E-Government initiatives started in late 2002

  • Focused on the use and re-use of data and services between government (G2G) and the citizen (G2C)

  • Involves all sectors (federal, state, local government, academia, commercial)


How does onestop support nsdi l.jpg

How does OneStop support NSDI?

  • GOS has a timeline for implementation of NSDI components by all partners

  • Deploys a “one-stop” portal (geodata.gov) for quick access to community data, services, and related resources

  • Standards are being developed with multi-sectoral stakeholders as national (ANSI) standards, not FGDC ones

  • Goals include measures of costs and savings through cost-sharing in data acquisition, processing, and service of geospatial data


Some operational features l.jpg

Some operational features

  • geodata.gov will speed and simplify search and browse of metadata as a replacement for the domestic NSDI Gateways

  • Metadata are harvested from remote collections into a single metadata ‘cache’ to speed search and ranking

  • Browsing for geospatial data is made possible through common ISO 19115 Topic Categories

  • Current portal is an operational prototype based on research and development efforts, March-September 2004


Portal at geodata gov l.jpg

Portal at geodata.gov

  • Map services can be registered and visualized in viewer where links provided in metadata (Online_Linkage)

  • Other resource types: Data, static maps, and applications can be registered through metadata

  • Channels (thematic communities) post and arbitrate selected browseable content

  • Operational portal is to be awarded by competitive procurement in Q1 2005


Enterprise architecture nsdi as the enterprise l.jpg

Enterprise Architecture: NSDI as the Enterprise

  • Develop an Enterprise Architecture for the NSDI to encourage the identification of geospatial data service producers and consumers, and optimize resourcing for relevant programs within and across agency lines

  • Deliverables to include:

    • Common terminology and scope to effort Business, Data and Technology Reference models

    • Validation of Reference Models via active prototyping and demonstration

    • A consensus process to evolve reference models via broad NSDI Stakeholder / Community involvement


Nsdi future directions initiative l.jpg

NSDI Future Directions Initiative

  • Purpose: Draft a National Geospatial Strategy for the further development of the National Spatial Data Infrastructure (NSDI)

  • Product: A Plan of Action for the FGDC and the geospatial community


Drivers l.jpg

Drivers

  • Revised OMB Circular A-16 (2002)

  • E-Government Act 2002 (Section 216)

  • President’s Management Agenda

  • Proposed Legislation

  • GAO Reports


Future direction actions l.jpg

Making Framework Real

Framework Standards Development

Publishing Metadata

Implementing Standards/Web Protocols

Urban Areas

Communicating The Message

Business Case

Strategic Communications Plan

Training and Education

Partnerships with Purpose

Restructure FGDC

Tribal Engagement

State Councils

Engaging Non-Geospatial Organizations

Future Direction Actions


Douglas nebert l.jpg

Douglas Nebert

Federal Geographic Data Committee Secretariat

[email protected]

http://www.fgdc.gov

(703) 648-4151


  • Login
