TOWARDS EQUIVALENCE CHECKING BETWEEN TLM and RTL MODELS

1. TOWARDS EQUIVALENCE CHECKING BETWEEN TLM and RTL MODELS PRINCIPLES OF SEQUENTIAL EQUIVALENCE VERIFICATION CMPE 58Q Giray Kömürcü Boğaziçi University

2. MOTIVATION • Verification is a crucial step in microelectronic design cycle • Has to be done in a limited time with 100% success

3. OUTLINE PART 1 • Sequential Circuit Representations • Introduction to Sequential Equivalence • State & Sequential Equivalence • Product Machine • Approaches to Sequential Equivalence Verification • BDD-Based Symbolic • CNF-Based Induction • Structure Driven

4. SEQUENTIAL CIRCUIT REPRESENTATION • m # of inputs • l # of outputs • n # of memory elements • k # of internal signals • Clock(clk) signal

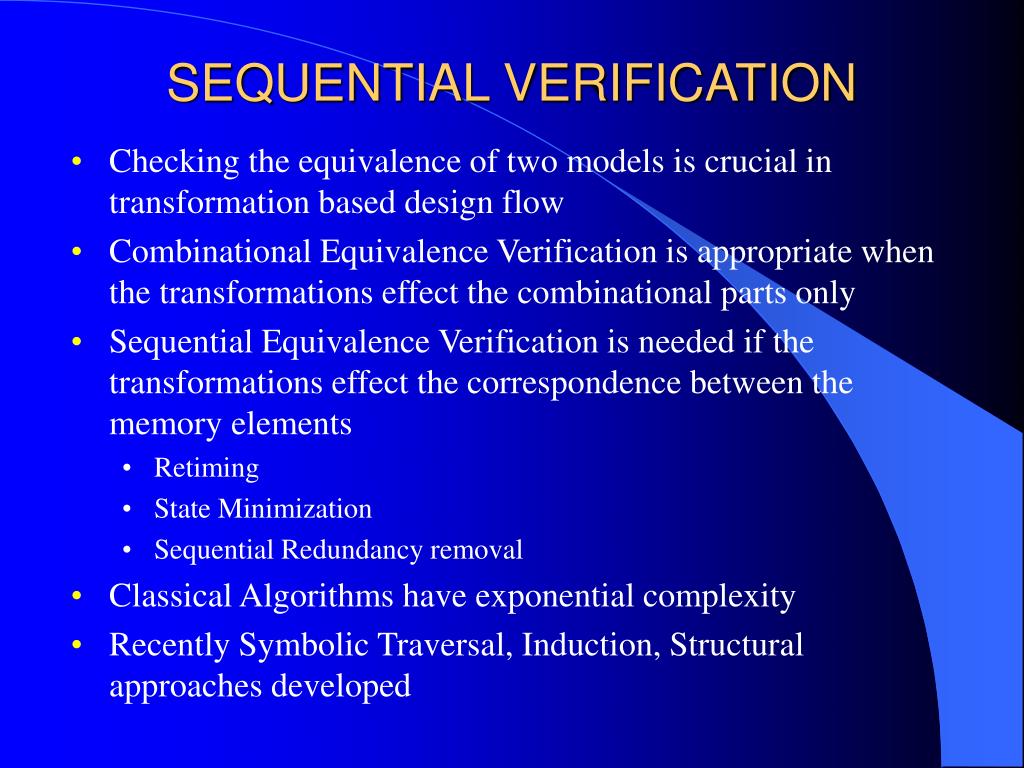

5. SEQUENTIAL VERIFICATION • Checking the equivalence of two models is crucial in transformation based design flow • Combinational Equivalence Verification is appropriate when the transformations effect the combinational parts only • Sequential Equivalence Verification is needed if the transformations effect the correspondence between the memory elements • Retiming • State Minimization • Sequential Redundancy removal • Classical Algorithms have exponential complexity • Recently Symbolic Traversal, Induction, Structural approaches developed

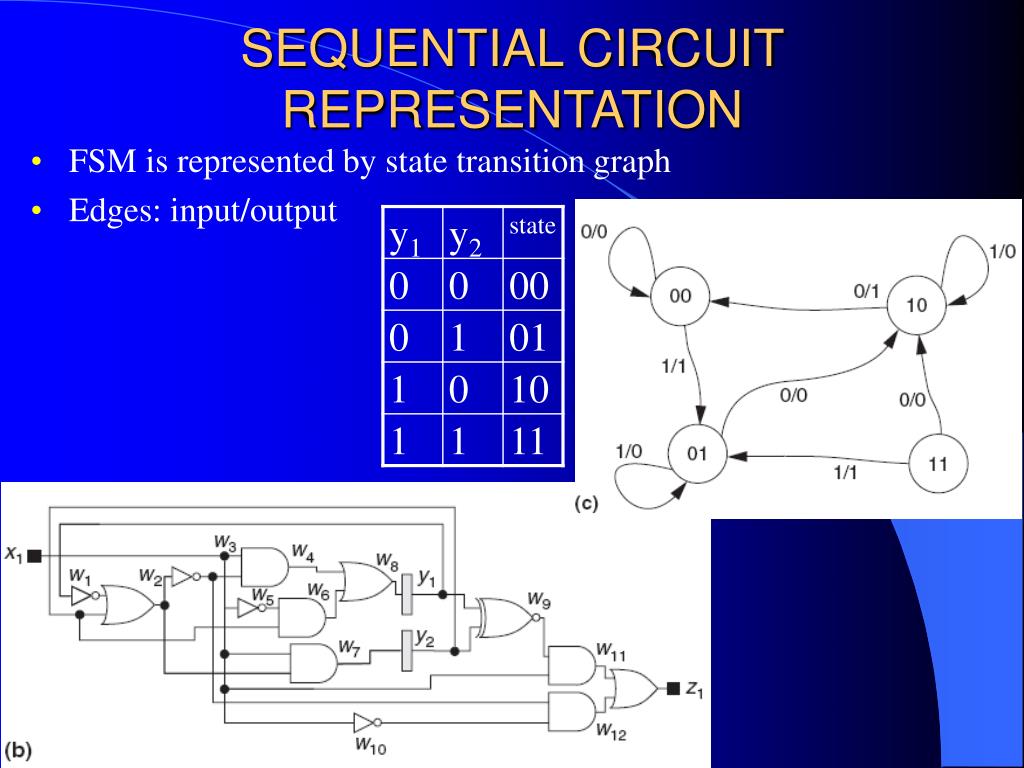

6. SEQUENTIAL CIRCUIT REPRESENTATION • FSM is represented by state transition graph • Edges: input/output

7. STATE EQUIVALENCE • Two states s1, s2 of a FSM M are equivalent (s1~s2) if: • For every possible input sequence applied from these states results the same output sequence • If (s1!~ s2) they are distinguishable • Sequence that results in different outputs is distinguishing sequence

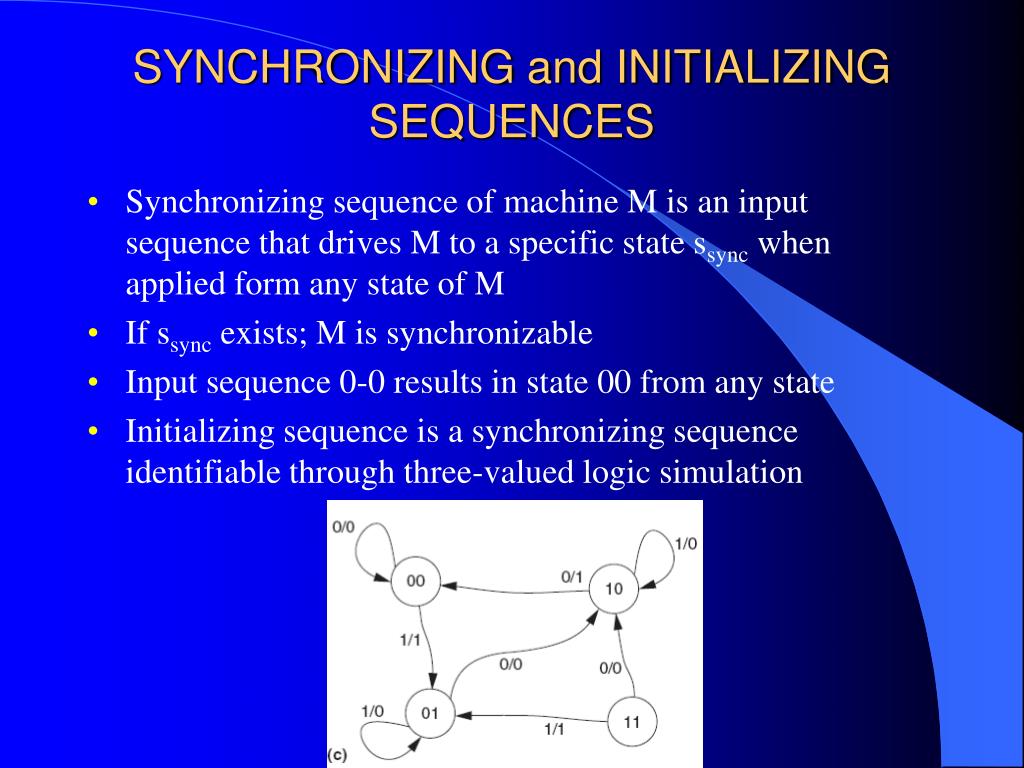

8. SYNCHRONIZING and INITIALIZING SEQUENCES • Synchronizing sequence of machine M is an input sequence that drives M to a specific state ssync when applied form any state of M • If ssync exists; M is synchronizable • Input sequence 0-0 results in state 00 from any state • Initializing sequence is a synchronizing sequence identifiable through three-valued logic simulation

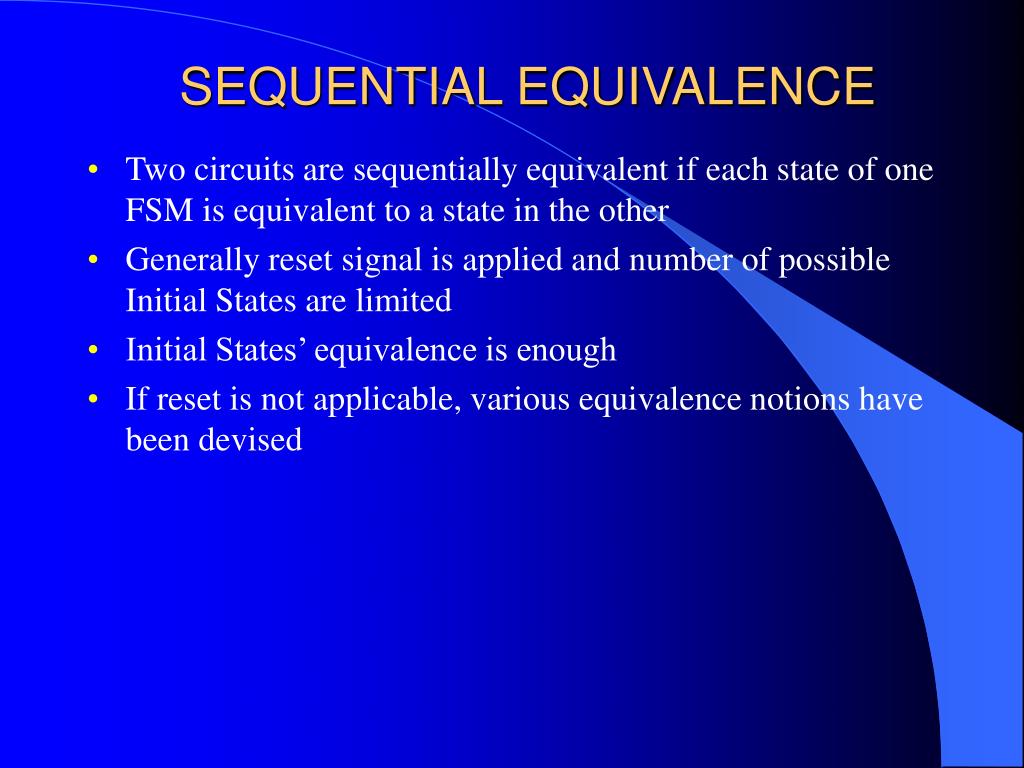

9. SEQUENTIAL EQUIVALENCE • Two circuits are sequentially equivalent if each state of one FSM is equivalent to a state in the other • Generally reset signal is applied and number of possible Initial States are limited • Initial States’ equivalence is enough • If reset is not applicable, various equivalence notions have been devised

10. PRODUCT MACHINE • Miter Circuit is used to check equivalence • FSM of Miter is called Product Machine • Each state of product machine is a state pair s1s2 • If output of a state is 0 its unsafe • State sj is reachable from si if an input sequence takes the machine from si to sj • Two states s1 of M1 and s2 of M2 are equivalent if all states reachable from state s1s2 are safe

11. PRODUCT MACHINE

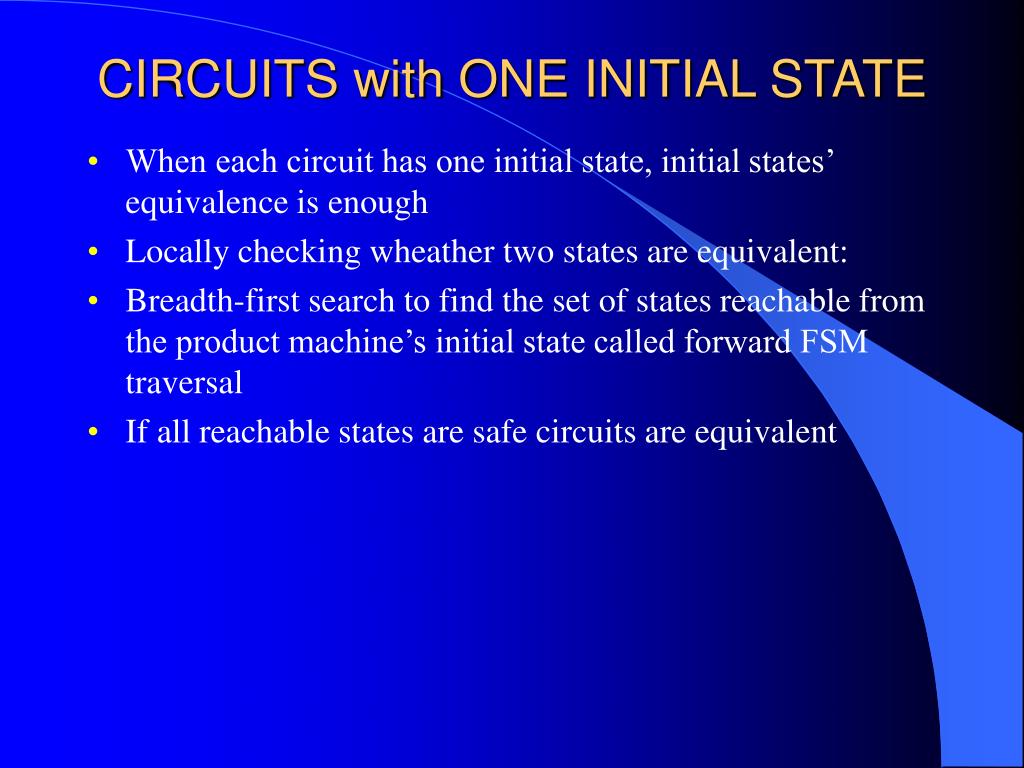

12. CIRCUITS with ONE INITIAL STATE • When each circuit has one initial state, initial states’ equivalence is enough • Locally checking wheather two states are equivalent: • Breadth-first search to find the set of states reachable from the product machine’s initial state called forward FSM traversal • If all reachable states are safe circuits are equivalent

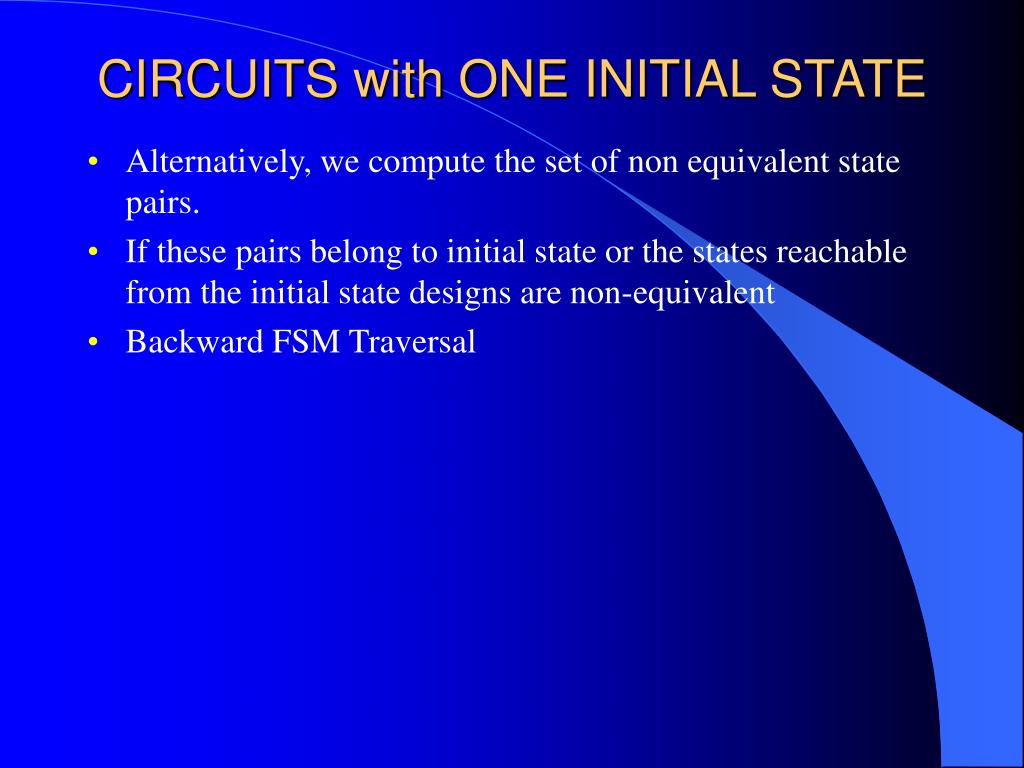

13. CIRCUITS with ONE INITIAL STATE • Alternatively, we compute the set of non equivalent state pairs. • If these pairs belong to initial state or the states reachable from the initial state designs are non-equivalent • Backward FSM Traversal

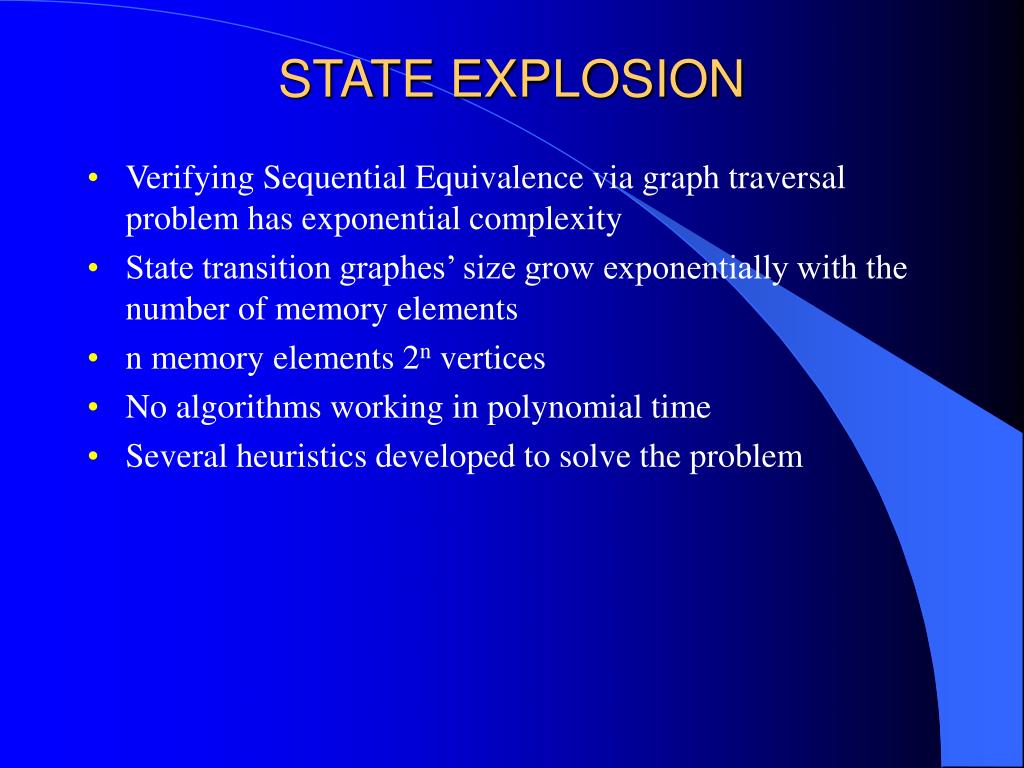

14. STATE EXPLOSION • Verifying Sequential Equivalence via graph traversal problem has exponential complexity • State transition graphes’ size grow exponentially with the number of memory elements • n memory elements 2n vertices • No algorithms working in polynomial time • Several heuristics developed to solve the problem

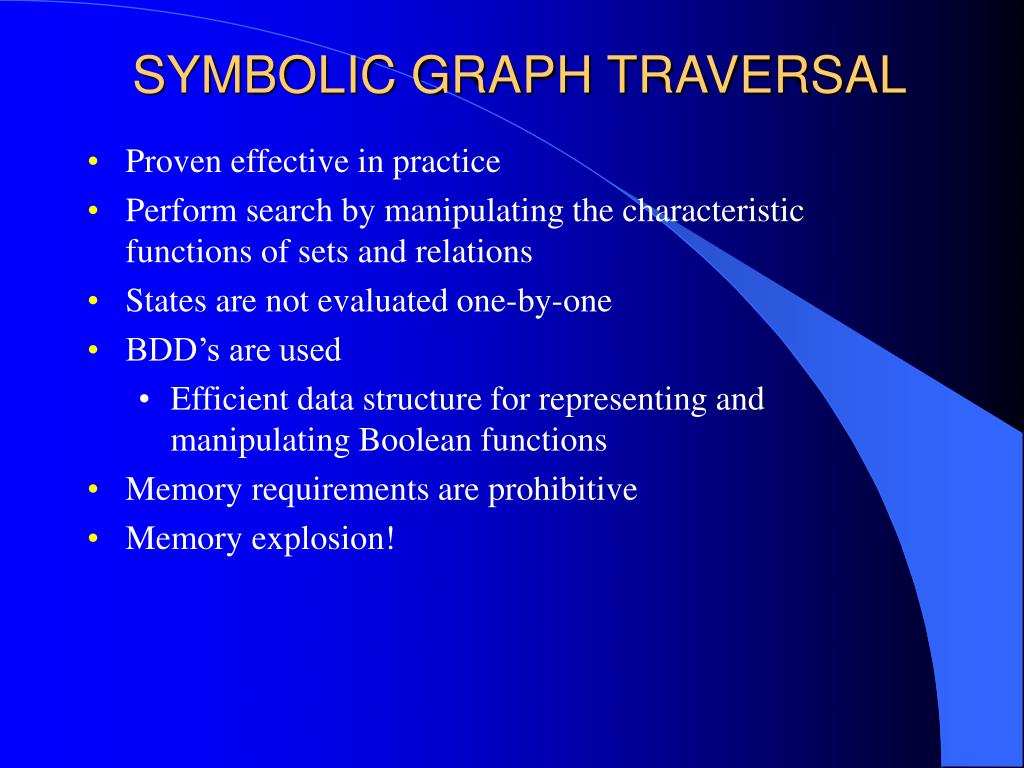

15. SYMBOLIC GRAPH TRAVERSAL • Proven effective in practice • Perform search by manipulating the characteristic functions of sets and relations • States are not evaluated one-by-one • BDD’s are used • Efficient data structure for representing and manipulating Boolean functions • Memory requirements are prohibitive • Memory explosion!

16. CNF BASED INDUCTION • If we show that the initial state is safe • And every safe state transitions to safe states only • We can conclude that all reachable states are safe • Sufficient but not necessary • Ssafe might have transitions to unsafe states but if Ssafe is not reachable from initial state this is not a problem • Can be solved via increasing the induction depth

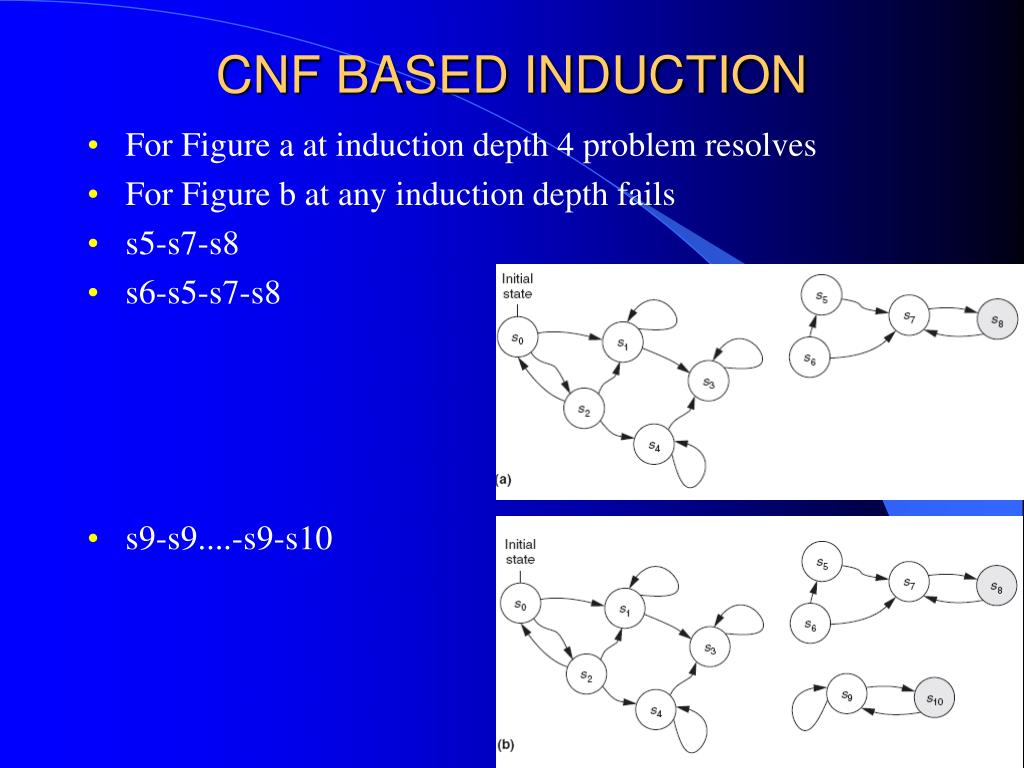

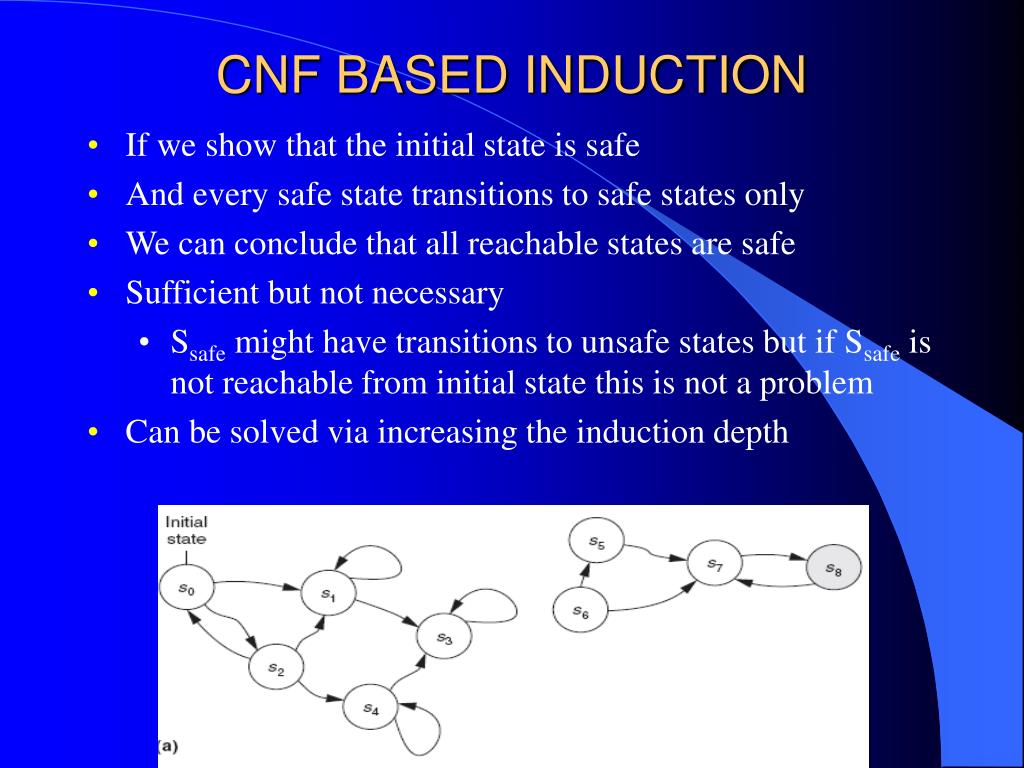

17. CNF BASED INDUCTION • For Figure a at induction depth 4 problem resolves • For Figure b at any induction depth fails • s5-s7-s8 • s6-s5-s7-s8 • s9-s9....-s9-s10

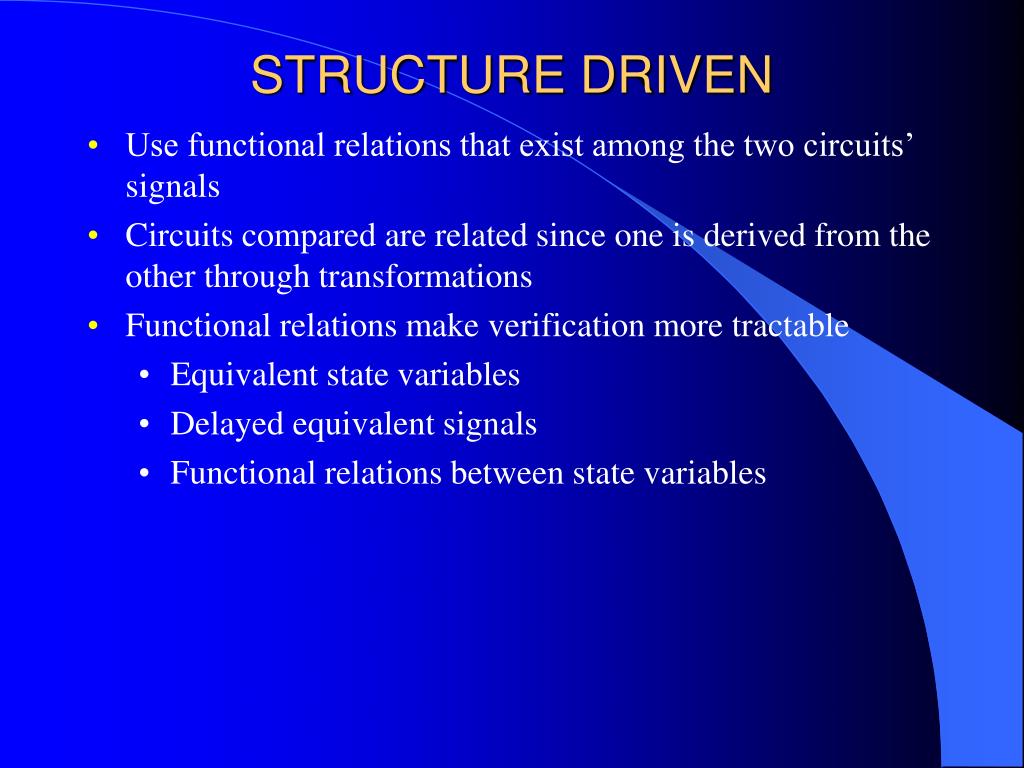

18. STRUCTURE DRIVEN • Use functional relations that exist among the two circuits’ signals • Circuits compared are related since one is derived from the other through transformations • Functional relations make verification more tractable • Equivalent state variables • Delayed equivalent signals • Functional relations between state variables

19. STRUCTURE DRIVEN • Example: State variables y2, y5 are equivalent • Speed up verification

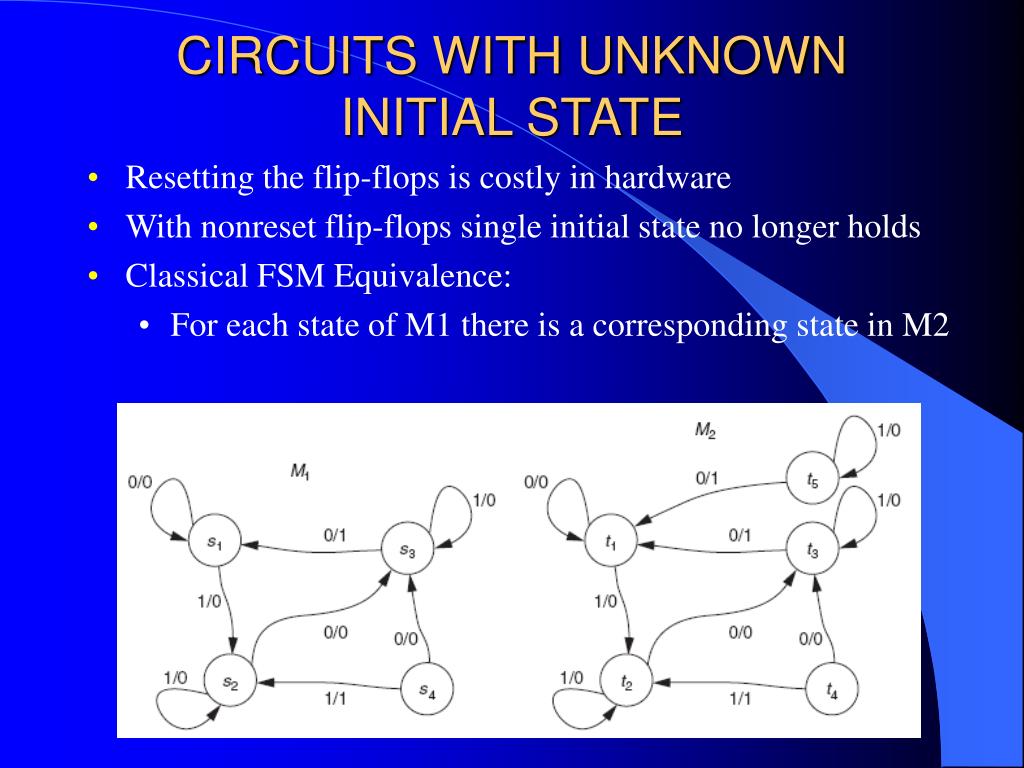

20. CIRCUITS WITH UNKNOWN INITIAL STATE • Resetting the flip-flops is costly in hardware • With nonreset flip-flops single initial state no longer holds • Classical FSM Equivalence: • For each state of M1 there is a corresponding state in M2

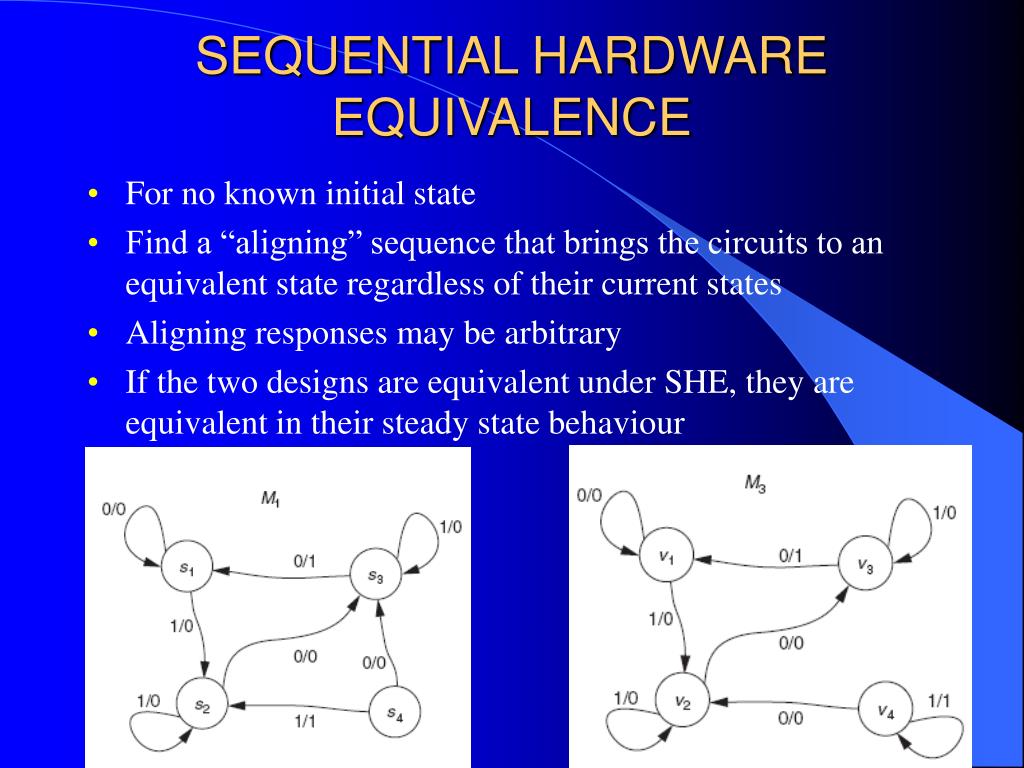

21. SEQUENTIAL HARDWARE EQUIVALENCE • For no known initial state • Find a “aligning” sequence that brings the circuits to an equivalent state regardless of their current states • Aligning responses may be arbitrary • If the two designs are equivalent under SHE, they are equivalent in their steady state behaviour

22. SAFE REPLACEMENT EQUIVALENCE • No Assumptions about a circuits operation • Machine M2 is a safe replacement for M1(M2 ≤ safeM1) iff:Any state s2 of M2 & for any input sequence • There exists a state s1 of M1 produce the same output to same input • M1 and M2 are self replacement equivalent if: • M2 ≤ safeM1 & M1 ≤ safeM2 • I/O behavior of every state of M2 (M1) can be reproduced by some state of M1 (M2) • States do not have to be equivalent

23. SAFE REPLACEMENT EQUIVALENCE • M3 ≤ safeM1 do not hold (11 input to v4 outputs 11 in M3 & not in M1) • M4 ≤ safeM1 holds

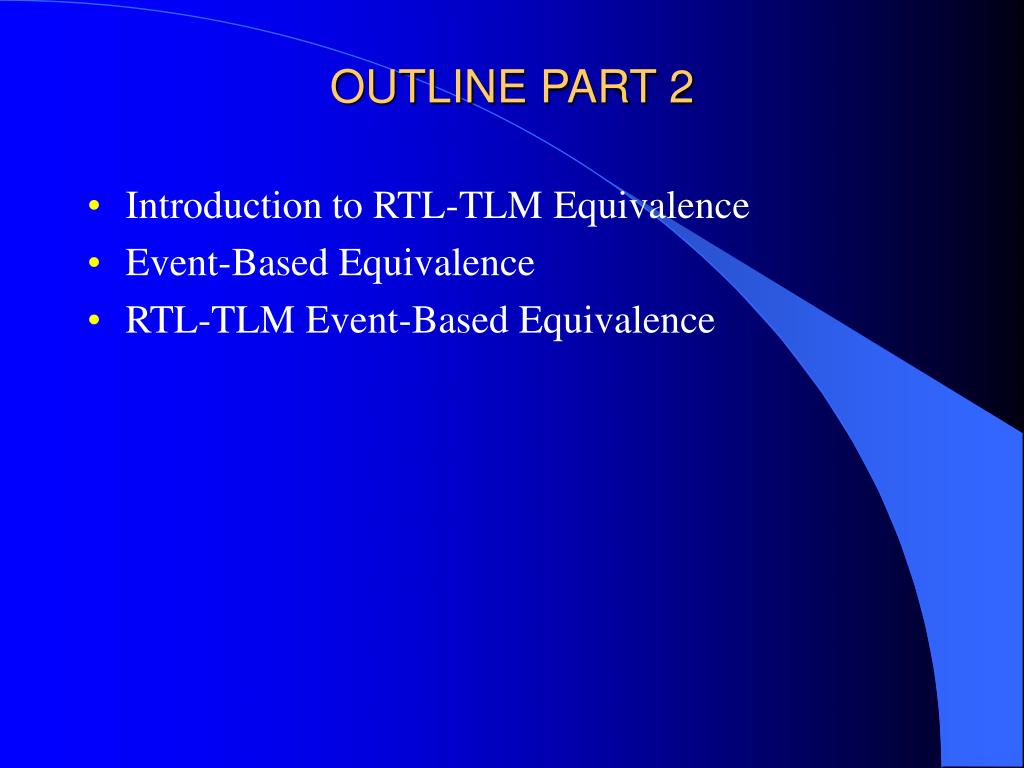

24. OUTLINE PART 2 • Introduction to RTL-TLM Equivalence • Event-Based Equivalence • RTL-TLM Event-Based Equivalence

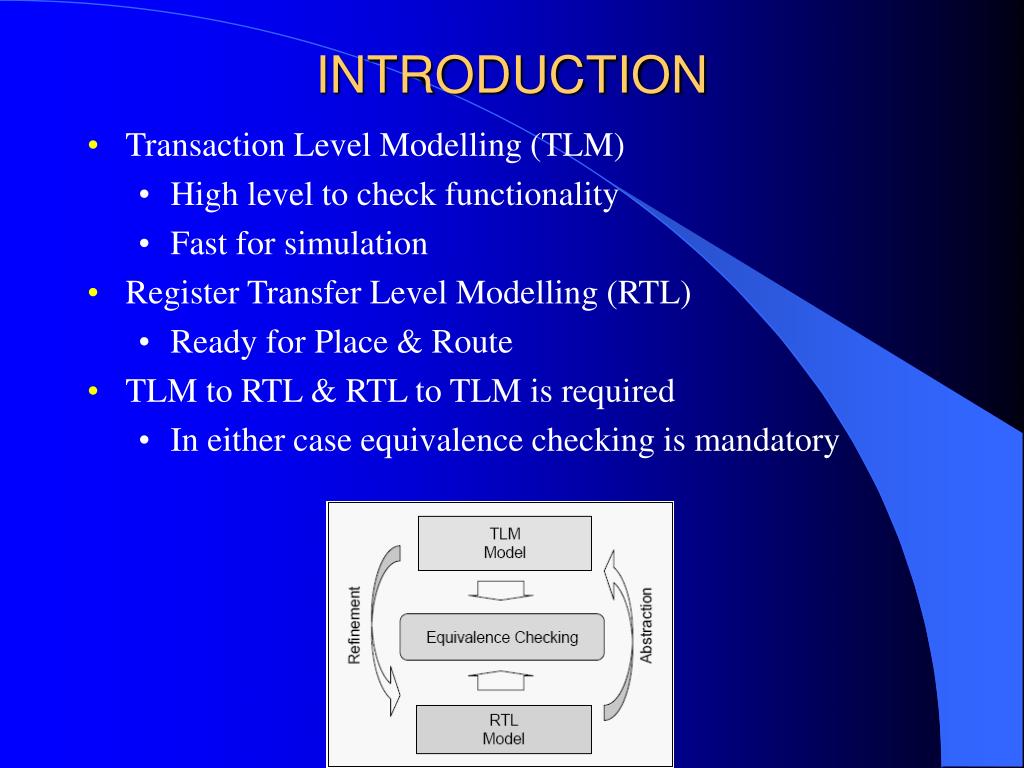

25. INTRODUCTION • Transaction Level Modelling (TLM) • High level to check functionality • Fast for simulation • Register Transfer Level Modelling (RTL) • Ready for Place & Route • TLM to RTL & RTL to TLM is required • In either case equivalence checking is mandatory

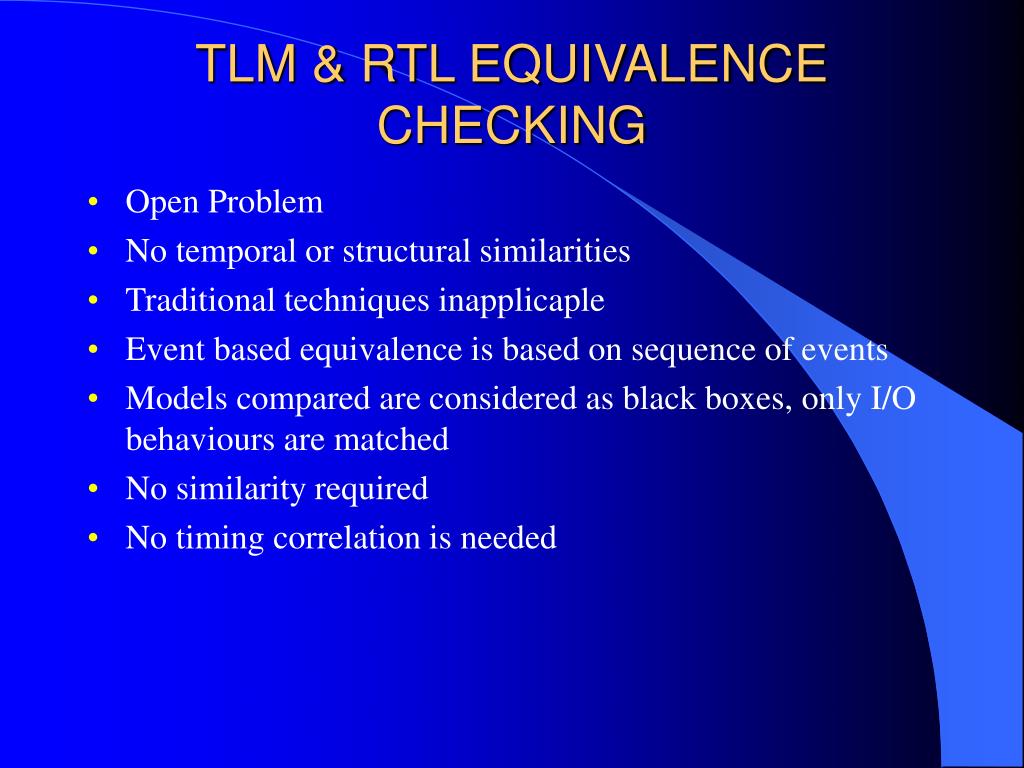

26. TLM & RTL EQUIVALENCE CHECKING • Open Problem • No temporal or structural similarities • Traditional techniques inapplicaple • Event based equivalence is based on sequence of events • Models compared are considered as black boxes, only I/O behaviours are matched • No similarity required • No timing correlation is needed

27. EVENT BASED EQUIVALENCE • Event: Something happening at a certain time during the evaluation of the system model • Sequence of events will be compared • Ordering Sequences of Events by “Happens Before” • a “happens before( )” b, if a is executed before b • If a b & b c then a c • If neither a b nor b a, a & b are concurrent; a||b • At different abstraction levels internal structures are very different for the same functionality so equivalence should be proved in terms of sequence of events • Informally outputs to same inputs should be the same • Definition of equivalence can be applied to formally prove that two models abstracted or refined from each other is correct by construction

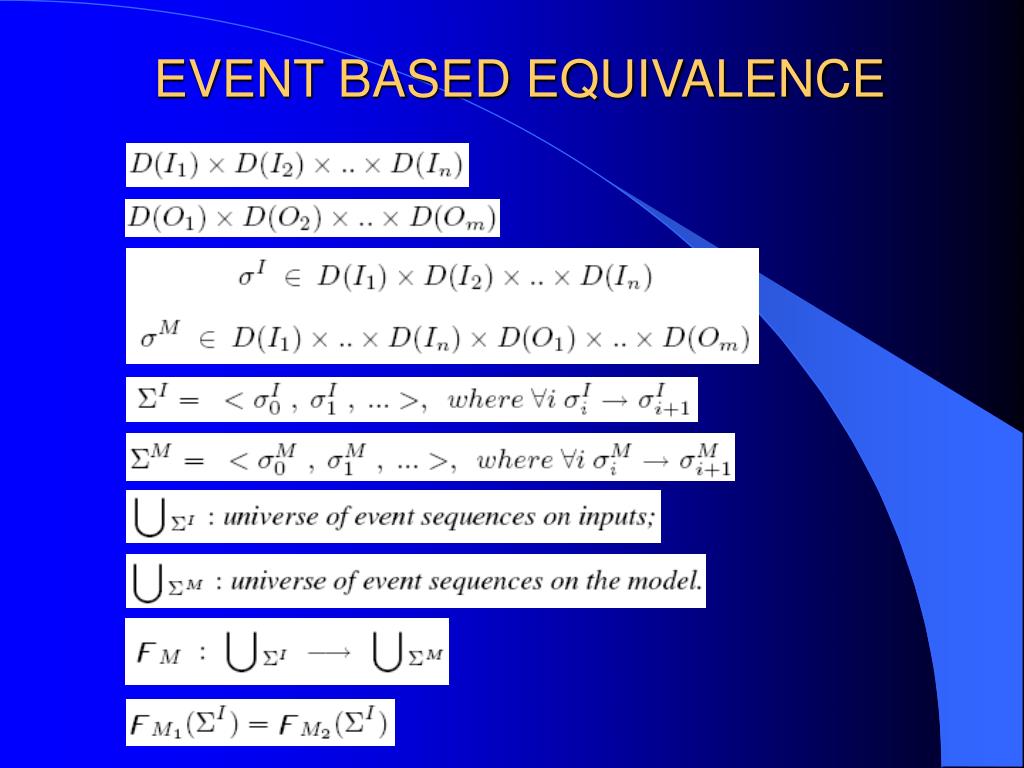

28. EVENT BASED EQUIVALENCE

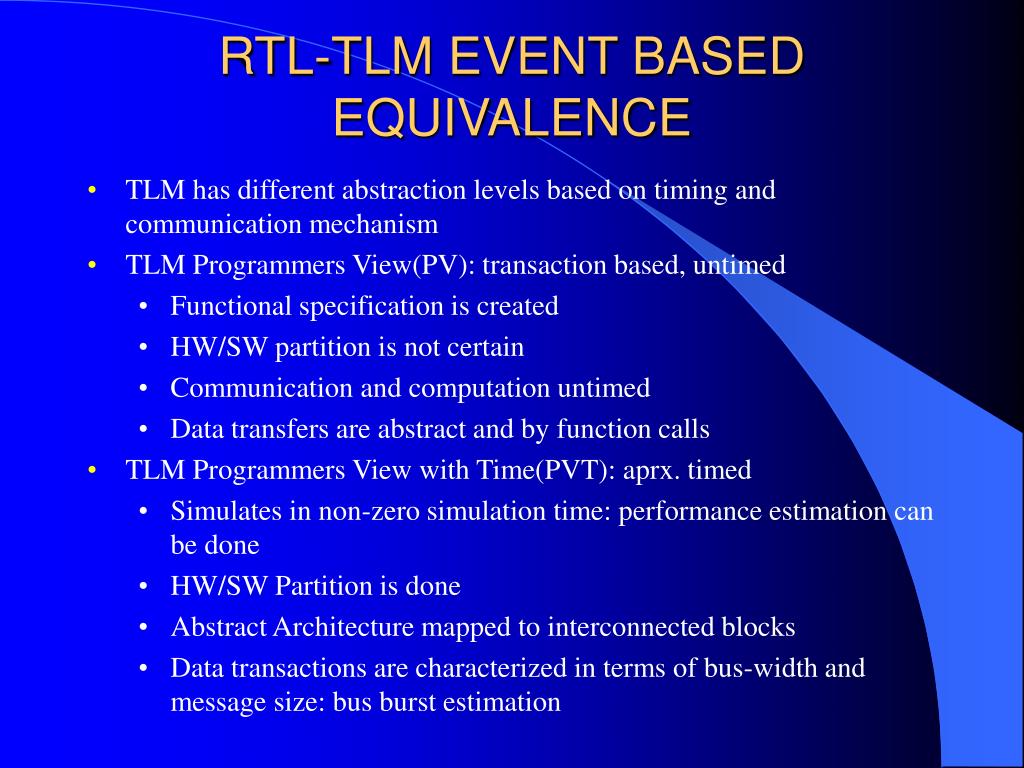

29. RTL-TLM EVENT BASED EQUIVALENCE • TLM has different abstraction levels based on timing and communication mechanism • TLM Programmers View(PV): transaction based, untimed • Functional specification is created • HW/SW partition is not certain • Communication and computation untimed • Data transfers are abstract and by function calls • TLM Programmers View with Time(PVT): aprx. timed • Simulates in non-zero simulation time: performance estimation can be done • HW/SW Partition is done • Abstract Architecture mapped to interconnected blocks • Data transactions are characterized in terms of bus-width and message size: bus burst estimation

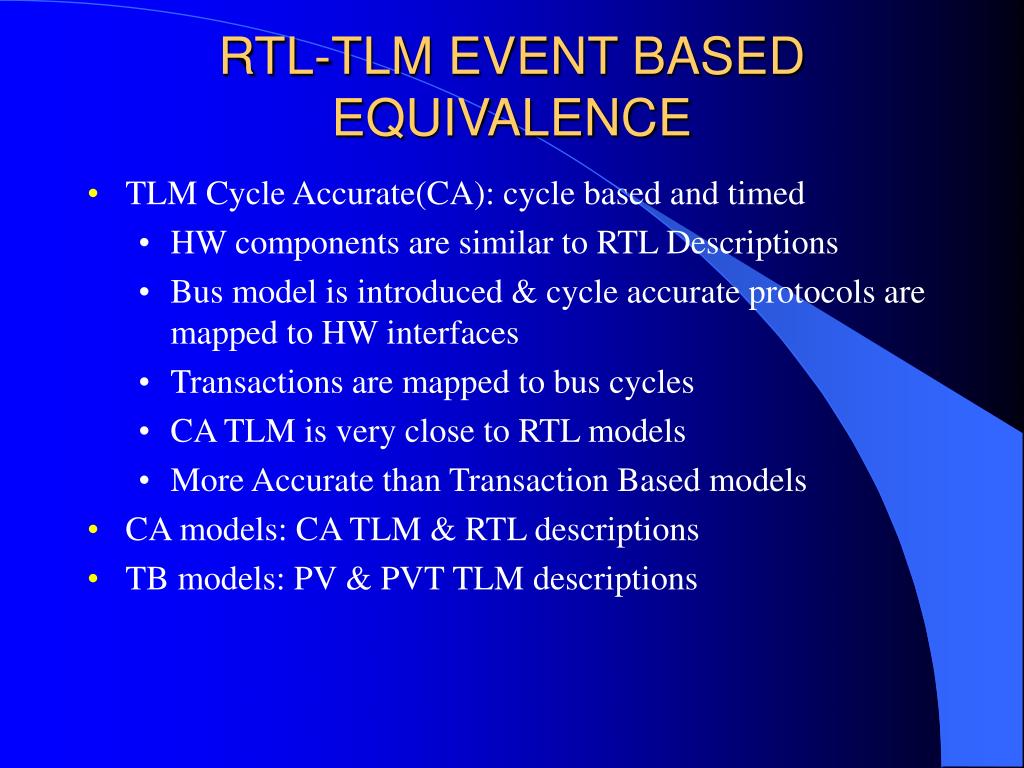

30. RTL-TLM EVENT BASED EQUIVALENCE • TLM Cycle Accurate(CA): cycle based and timed • HW components are similar to RTL Descriptions • Bus model is introduced & cycle accurate protocols are mapped to HW interfaces • Transactions are mapped to bus cycles • CA TLM is very close to RTL models • More Accurate than Transaction Based models • CA models: CA TLM & RTL descriptions • TB models: PV & PVT TLM descriptions

31. TB EVENTS vs CA EVENTS • Both TB & CA event sequences can be ordered according to “Happen Before” relation • Def: In a TB Model an event occurs when a transaction starts or finishes. In a CA Model an event occurs when a read on PI or write on PO is performed

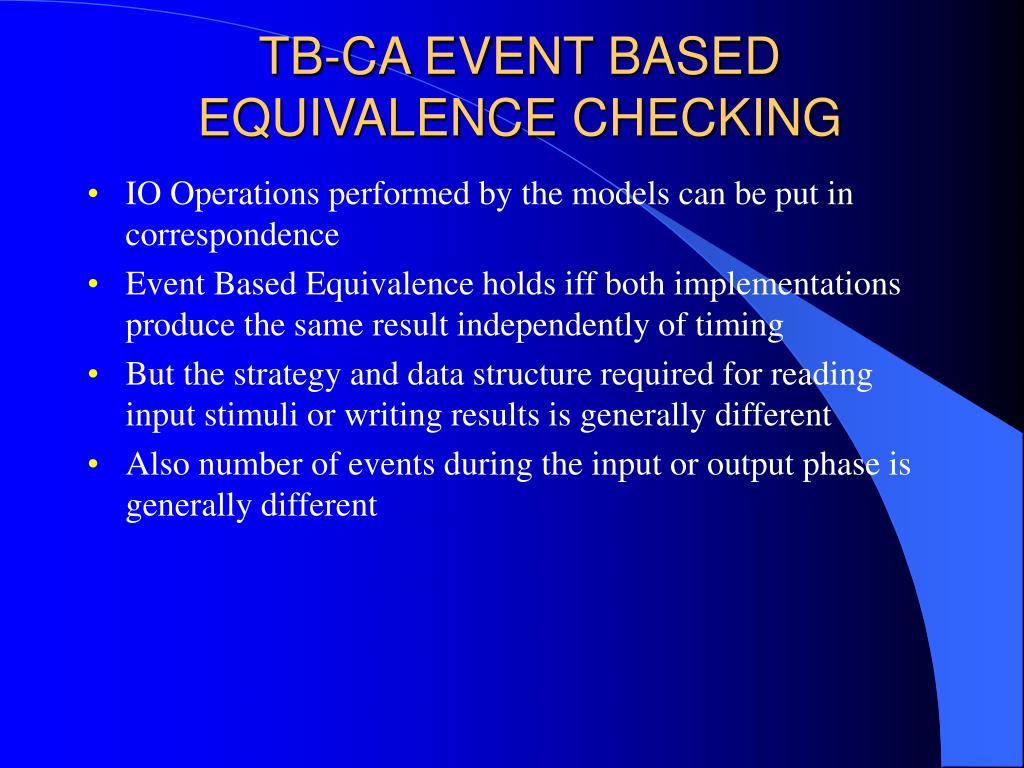

32. TB-CA EVENT BASED EQUIVALENCE CHECKING • IO Operations performed by the models can be put in correspondence • Event Based Equivalence holds iff both implementations produce the same result independently of timing • But the strategy and data structure required for reading input stimuli or writing results is generally different • Also number of events during the input or output phase is generally different

33. TB-CA EVENT BASED EQUIVALENCE CONDITIONS • Designers should provide the set of relevant IO objects and correspondence of PIs/POs between the CA & TB models • PIs & POs may differ in type and in number • The sequences of events observed during the evolution of the models to be compared must correspond • Such correspondence is automatically achieved by two abstraction functions; one for CA and one for TB

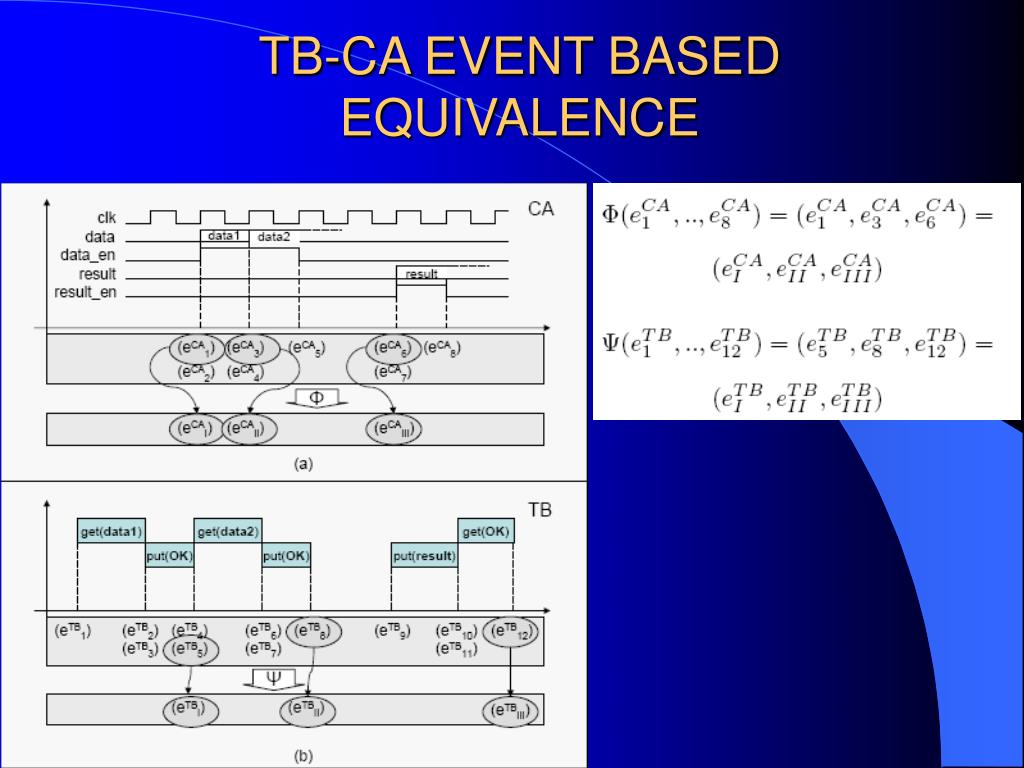

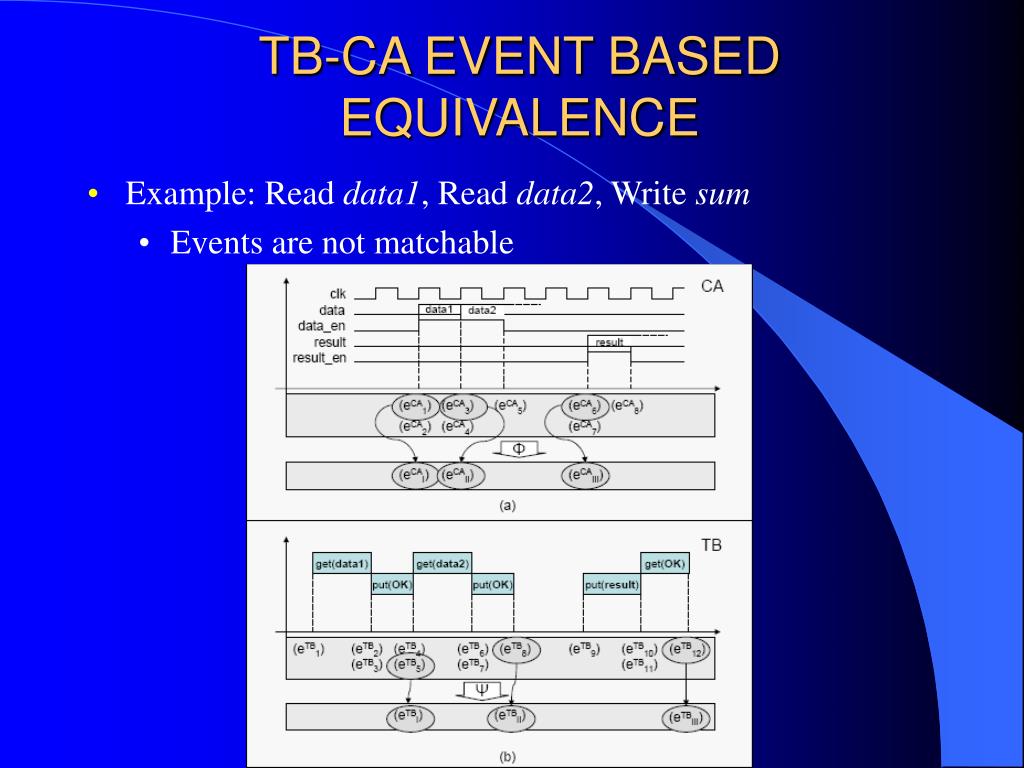

34. TB-CA EVENT BASED EQUIVALENCE • Example: Read data1, Read data2, Write sum • Events are not matchable

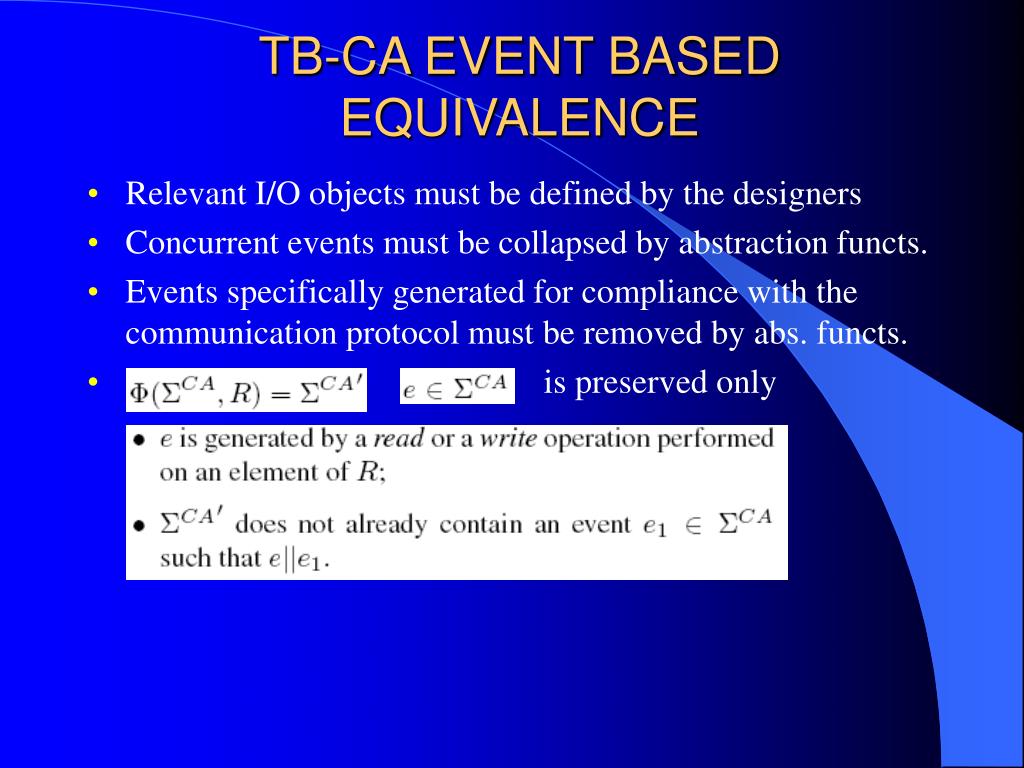

35. TB-CA EVENT BASED EQUIVALENCE • Relevant I/O objects must be defined by the designers • Concurrent events must be collapsed by abstraction functs. • Events specifically generated for compliance with the communication protocol must be removed by abs. functs. • is preserved only

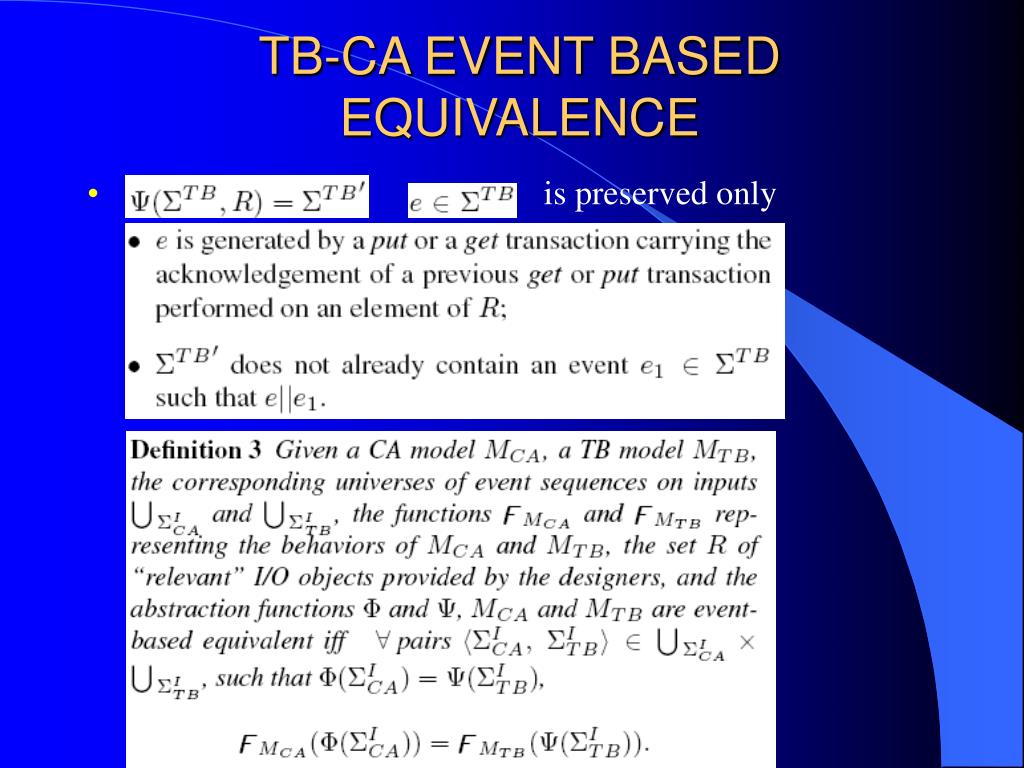

36. TB-CA EVENT BASED EQUIVALENCE • is preserved only

37. TB-CA EVENT BASED EQUIVALENCE

38. CONCLUSION • Sequential synthesis and optimization of digital circuits requires robust equivalence checking • Heuristic approaches increase the capacity of basic approaches • Still inadequate for large designs • More research is needed for sequential equivalence checking for a reliable system that can be used in the industry widely • RTL-TLM event based equivalence is a newly developed promising approach

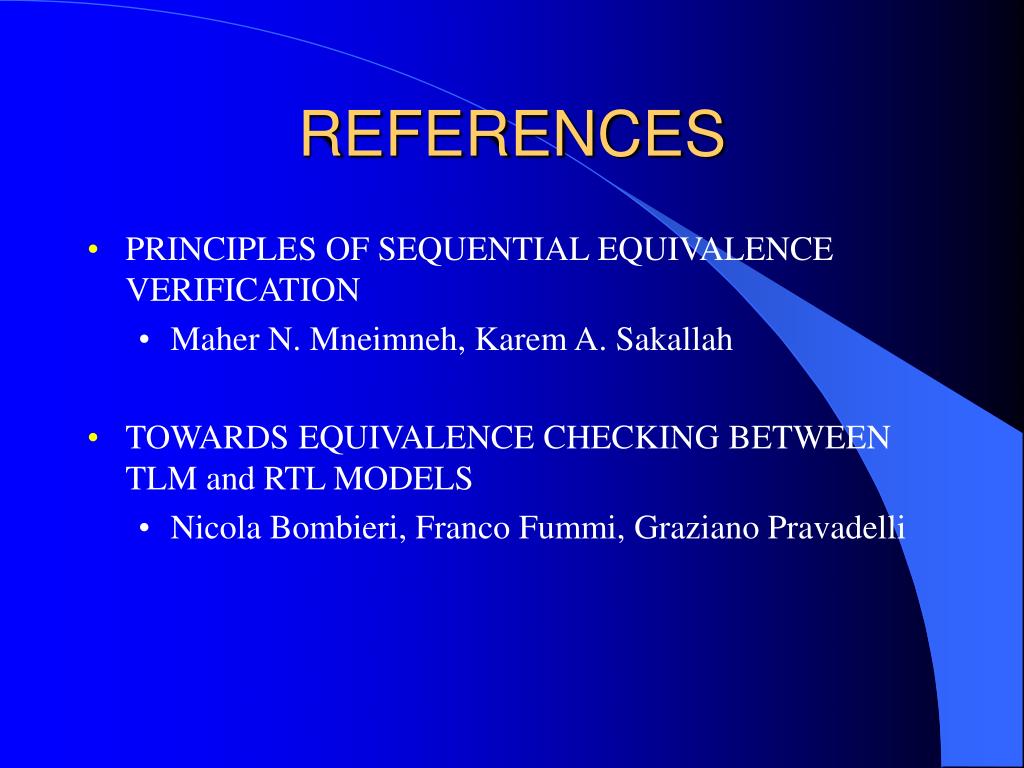

39. REFERENCES • PRINCIPLES OF SEQUENTIAL EQUIVALENCE VERIFICATION • Maher N. Mneimneh, Karem A. Sakallah • TOWARDS EQUIVALENCE CHECKING BETWEEN TLM and RTL MODELS • Nicola Bombieri, Franco Fummi, Graziano Pravadelli
