  1. Operational Amplifier555 Timers Term 4 Projects

  2. Operational Amplifier An Op Amp is made of:  1) Gain "Block" 2) Feedback  3) A Network

  3. - + Gain "Block"

  4. - + Feedback

  5. Network R2 R1 - +

  6. R2 G = R1 Gain

  7. “Stair-stepping” Gain

  8. 555 Timer • Timing Circuit • Oscillator • Controllable

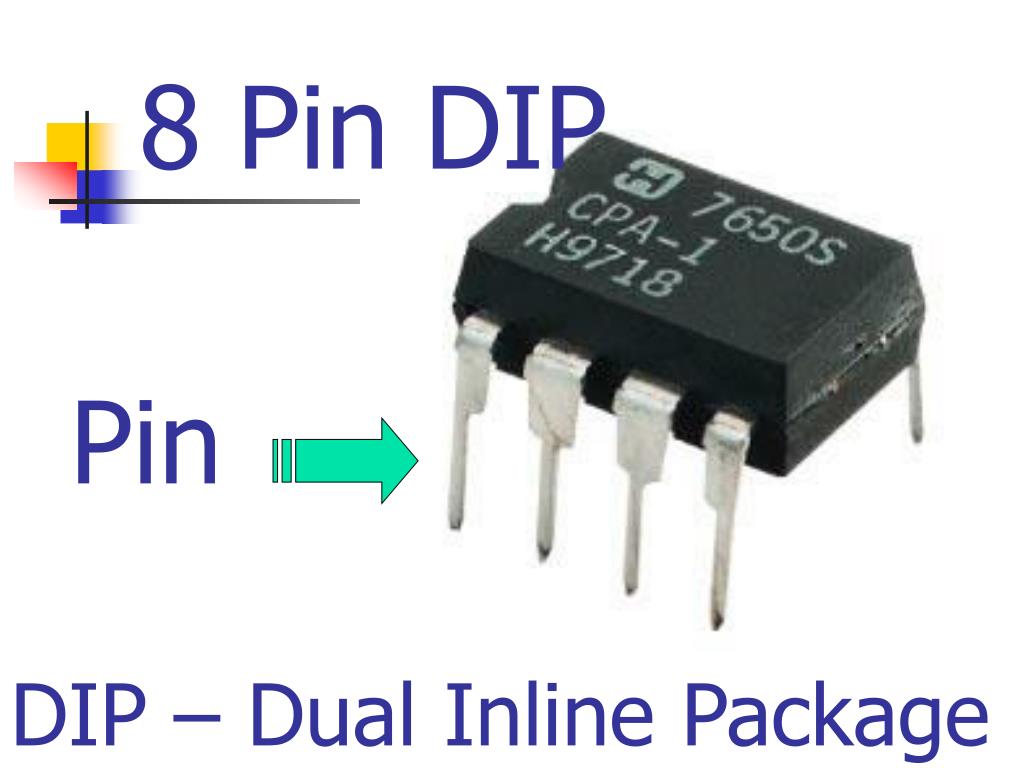

  9. Pin 8 Pin DIP DIP – Dual Inline Package

  10. 1 8 2 7 3 6 4 5 555 Timer Pins Vcc Gnd Trigger Discharge Output Threshold Control Voltage Reset

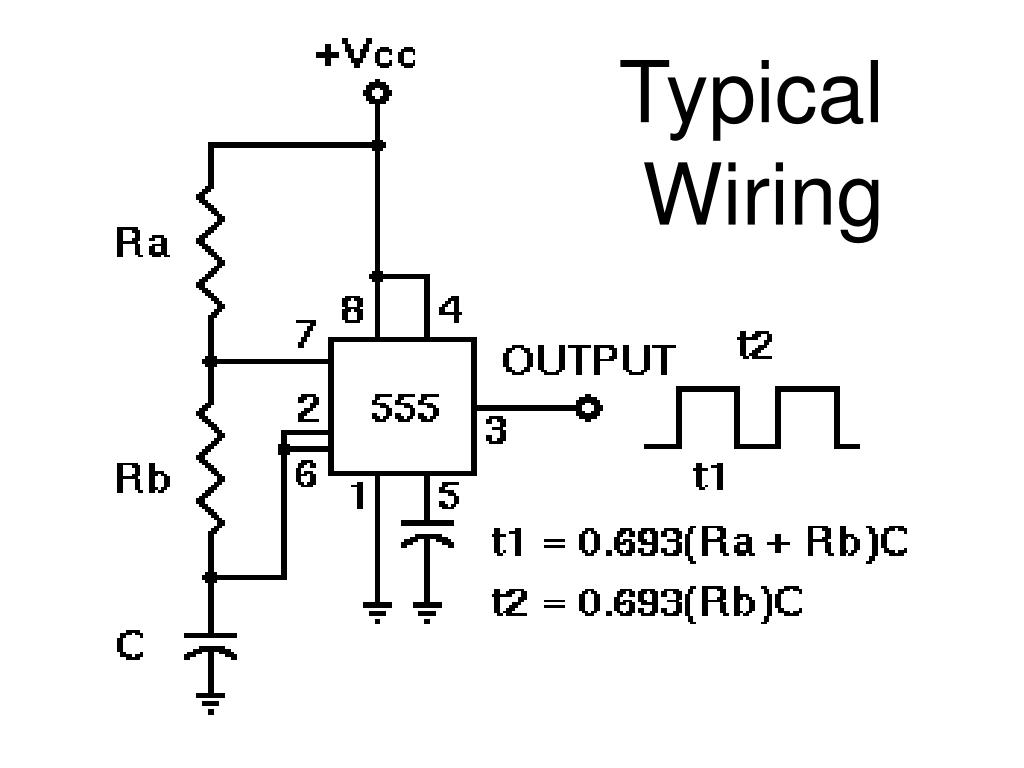

  11. Typical Wiring

  12. Pin 3Output T1 T2 T1=0.693(Ra+Rb)C (Charge) T2=0.693(Rb)C (Disharge)

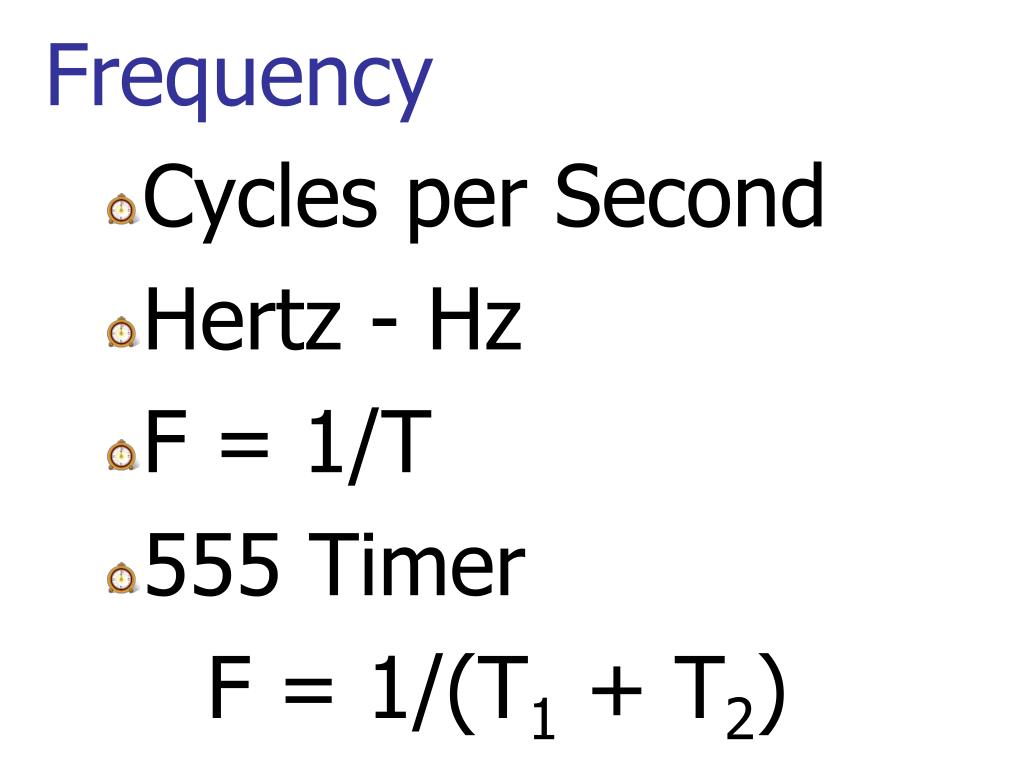

  13. Frequency • Cycles per Second • Hertz - Hz • F = 1/T • 555 Timer F = 1/(T1 + T2)

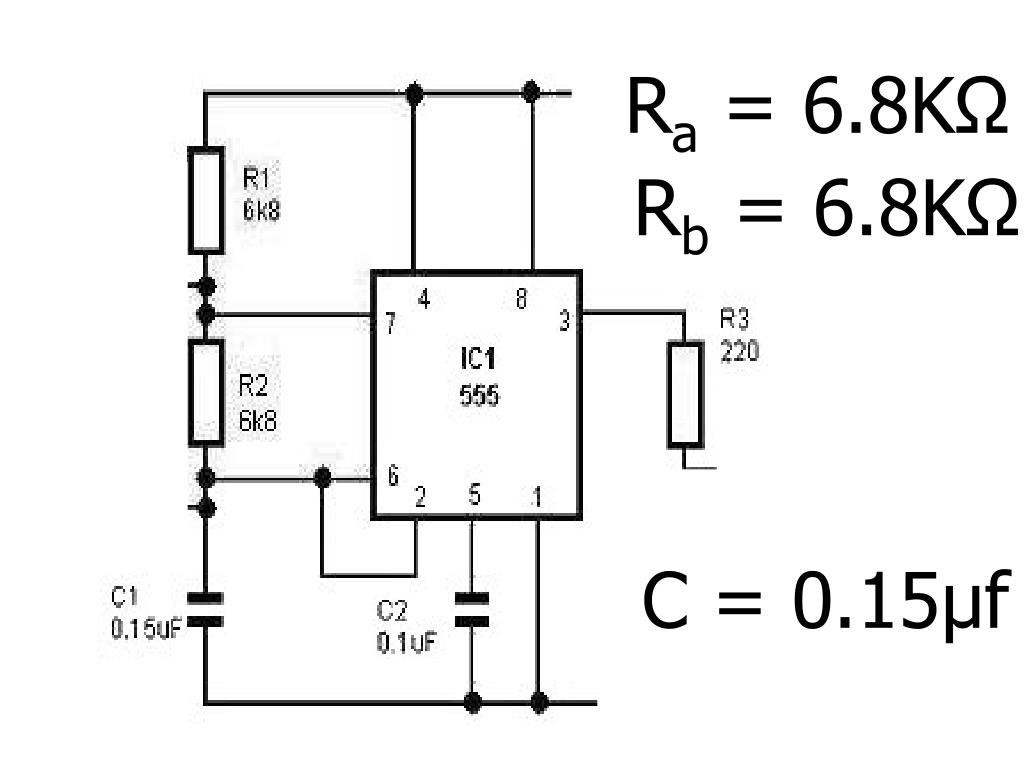

  14. Ra = 6.8KΩ Example Rb = 6.8KΩ C = 0.15µf

  15. T1=0.693(6.8kΩ+6.800k) 0.15μf T1=0.693(6800Ω+6800Ω) 0.00000015f T1= 1.41ms T2=0.693(6.8kΩ) 0.15μf T2=0.693(6800Ω) 0.00000015f T2=0.707 ms F = 1/(T1+ T2) F = 1/(1.41 ms + 0.707 ms) F = 1/(0.00141s + 0.000707s) F = 472Hz
