  1. Phase two Group Members Tatiana Ruiz Judith Webb Paul Salvo Old Town Library

  2. Planning – Complete • Analysis – 90% complete • Data Dictionary Incomplete • Design – 42% complete • Program design and test needed • IO Screens and DB design largely complete • Implementation – 0% complete Work Update Plan Old Town Library

  3. Customer Information • Access customer information • Access customer book status • Reports for overdue /damaged books • Process and collect late fees and replacement costs • Inventory Maintenance • Detailed book search • Monitor physical and e-book inventories • Monitor book demand Business Processes Old Town Library

  4. Provide a new system of inventory management • Easier lookup and modifications to customer records • Generate reports on inventory, past due accounts, and system activity • Generate reports for on-line activity System Request Old Town Library

  5. Context Diagram External Entities Customers Librarian Old Town Library

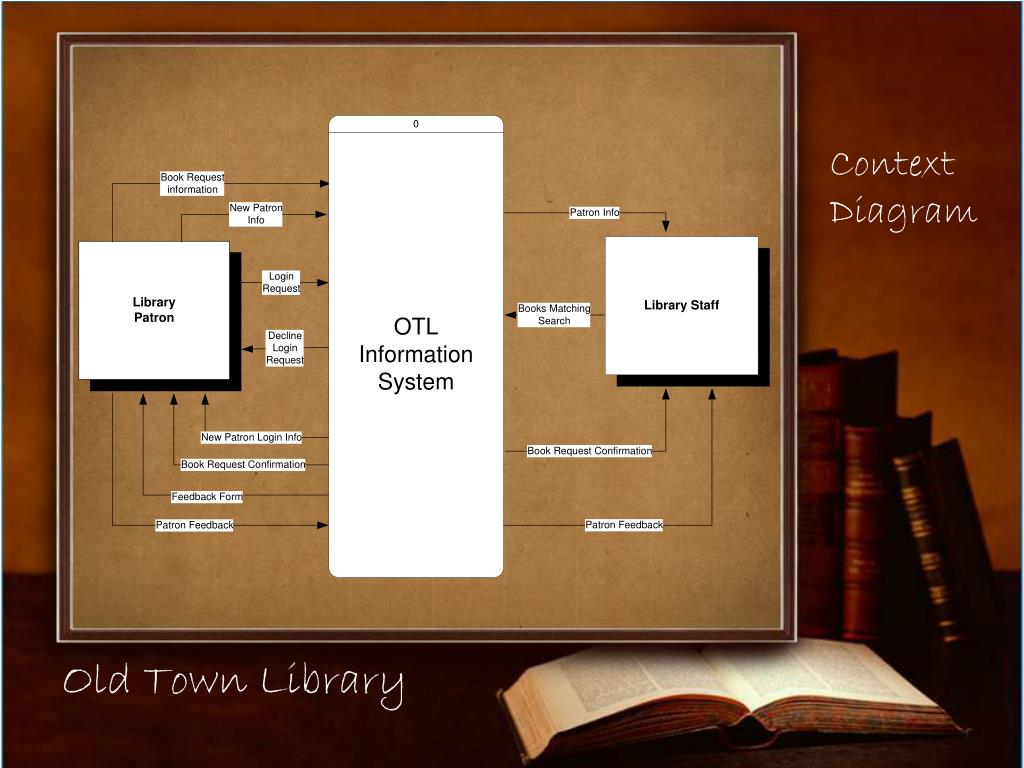

  6. Context Diagram Old Town Library

  7. Processes • Customer Verification • Book Requests • Book Due Reminder • Feedback • Data Stores • D1 Login Database • D2 Customer Database • D3 Book Inventory Database • D4 Checkout Database • D5 Feedback Database Level 0 Processes / Data stores Old Town Library

  8. Level 0 Online Library System Old Town Library

  9. Processes • 1.1 New Customer Processing • 1.2 Customer Login • 1.3 Customer Management • Data Stores • D1 Login Database • D2 Customer Database Level 1 Processes / Data stores Old Town Library

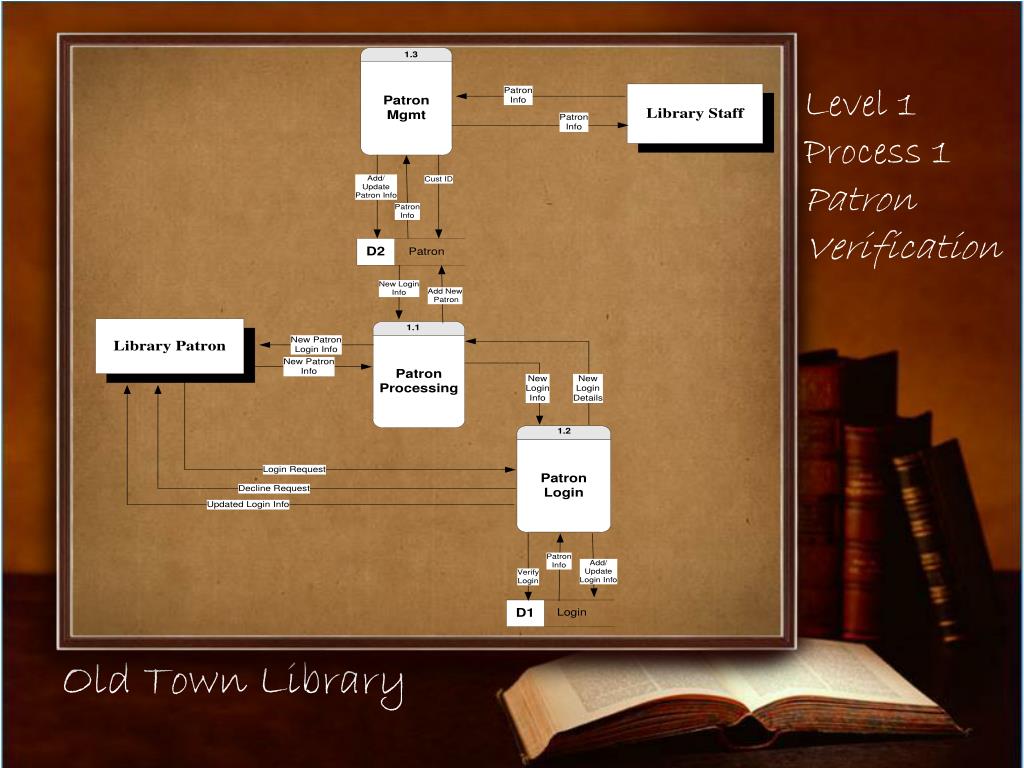

  10. Level 1 Process 1 Patron Verification Old Town Library

  11. Level 1 Process 2 Processes / Data Stores • Processes • 2.1 Book Request • 2.2 Send Book Confirmation • 2.3 Book Pickup Management • Data Stores • D2 Customer Database • D3 Book Inventory Database • D4 Schedule Book Pickup Database Old Town Library

  12. Level 1 Process 2.1 Book Request Old Town Library

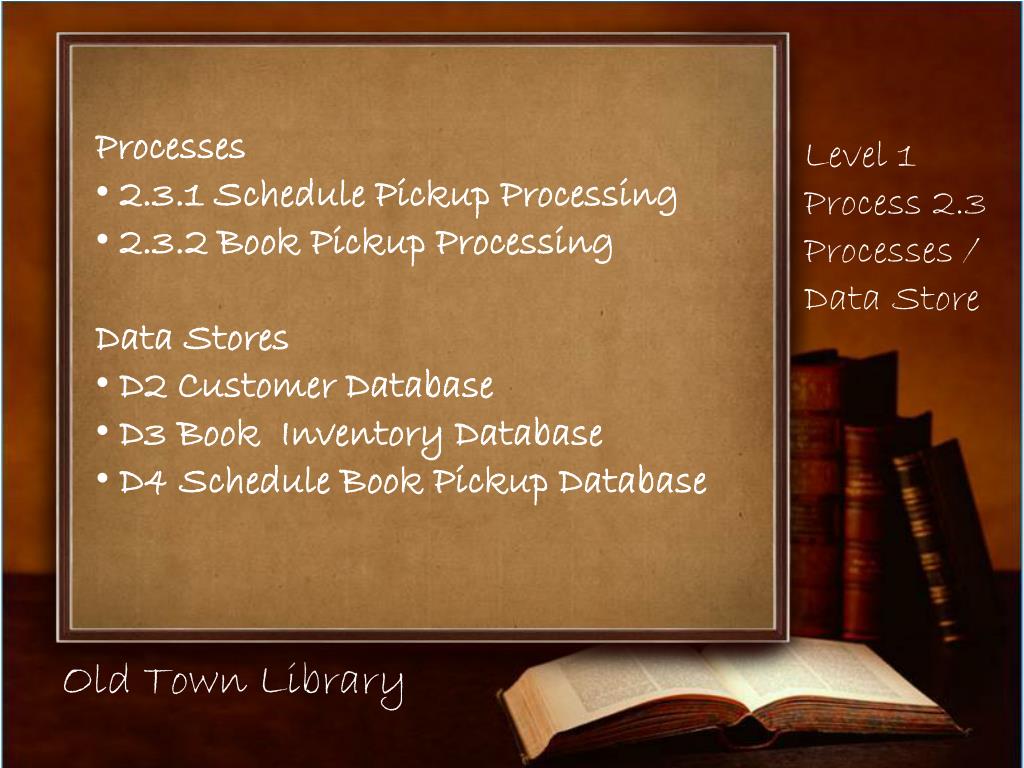

  13. Processes • 2.3.1 Schedule Pickup Processing • 2.3.2 Book Pickup Processing • Data Stores • D2 Customer Database • D3 Book Inventory Database • D4 Schedule Book Pickup Database Level 1 Process 2.3 Processes / Data Store Old Town Library

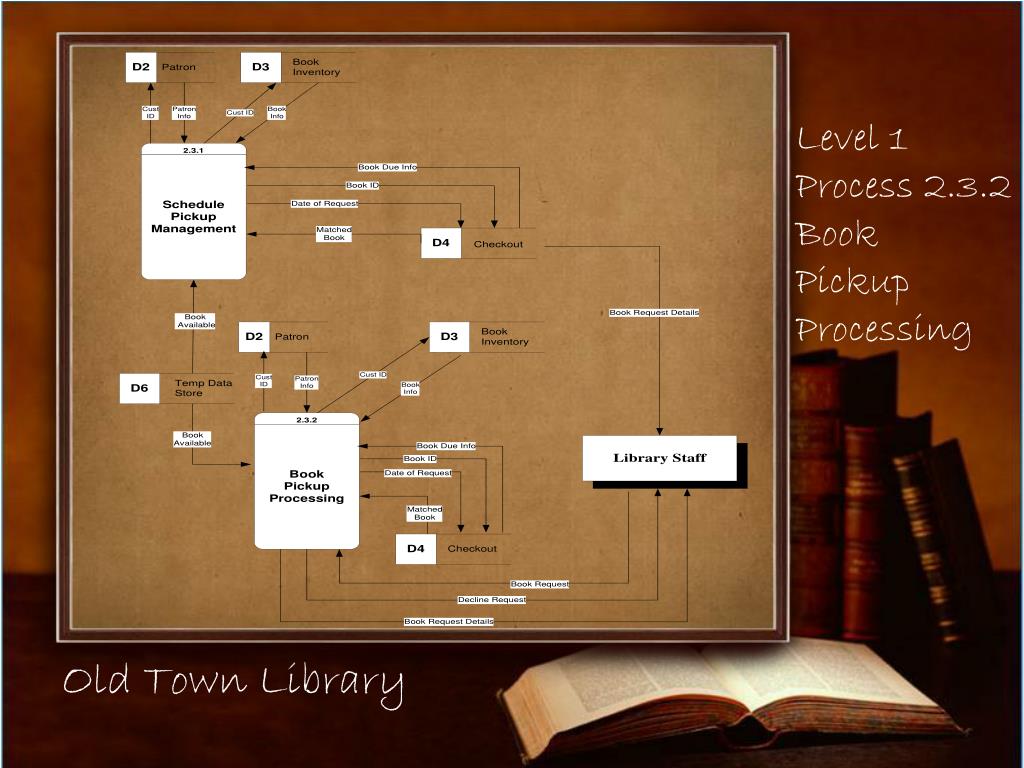

  14. Level 1 Process 2.3.2 Book Pickup Processing Old Town Library

  15. Any Questions? Old Town Library
