ECAL Prototype DCS system using PVSS. Günther Dissertori (for Alison Lister) ETHZ. 8.7.2003. Contents:. Proposed layout of the DCS SM0 and SM1 layouts Status of implemented sub-systems Conclusions. 8.7.2003. Proposed layout. Proposed layout. Separate into 4 sections of sub-detector:

Download Presentation

ECAL Prototype DCS system using PVSS

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Ecal prototype dcs system using pvss

ECALPrototype DCS system using PVSS

Günther Dissertori

(for Alison Lister)

ETHZ

8.7.2003


Ecal prototype dcs system using pvss

Contents:

  • Proposed layout of the DCS

  • SM0 and SM1 layouts

  • Status of implemented sub-systems

  • Conclusions

8.7.2003

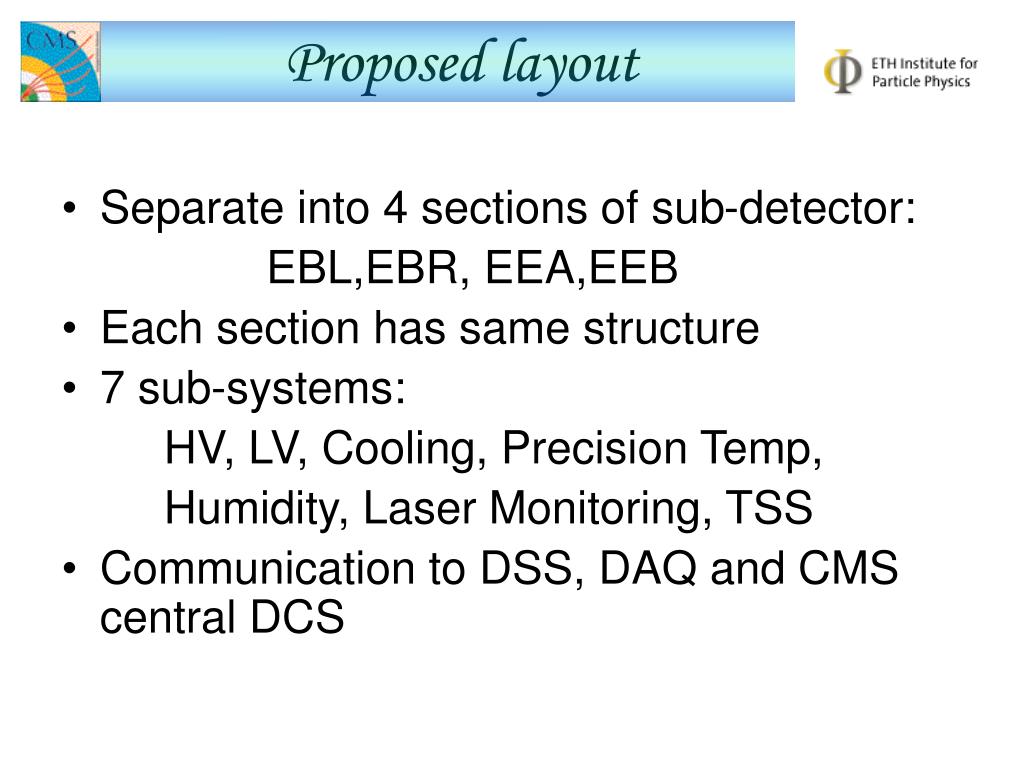

Proposed layout

Proposed layout


Proposed layout1

Proposed layout

  • Separate into 4 sections of sub-detector:

    EBL,EBR, EEA,EEB

  • Each section has same structure

  • 7 sub-systems:

    HV, LV, Cooling, Precision Temp,

    Humidity, Laser Monitoring, TSS

  • Communication to DSS, DAQ and CMS central DCS

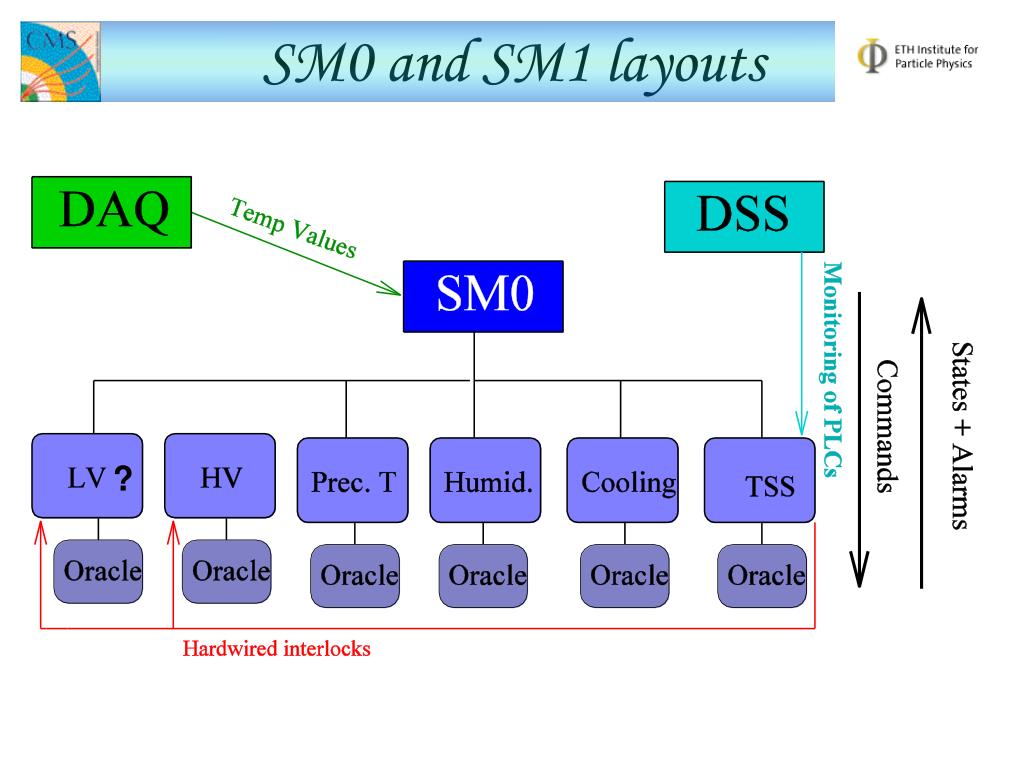

Sm0 and sm1 layouts

SM0 and SM1 layouts

?


Status of implemented sub systems

Status of implemented sub-systems

  • DSS monitors the PLCs of the TSS

  • Internal structure reflecting that of the figure

  • All testbeam data sent to Oracle devdb. Easy to retrieve data to text files

  • Only systems not implemented: Laser monitoring and LV


Supervisory system

Supervisory System:

  • Based on FwFSM, Finite State Machine, sends commands, receives states

  • As a separate PVSS system

  • Will communicate with all other systems

  • Implemented into the Hierarchy (FSM) so far for Cooling and HV systems. Others to follow....


Supervisory system1

Supervisory System:


Status of implemented sub systems1

Status of implemented sub-systems

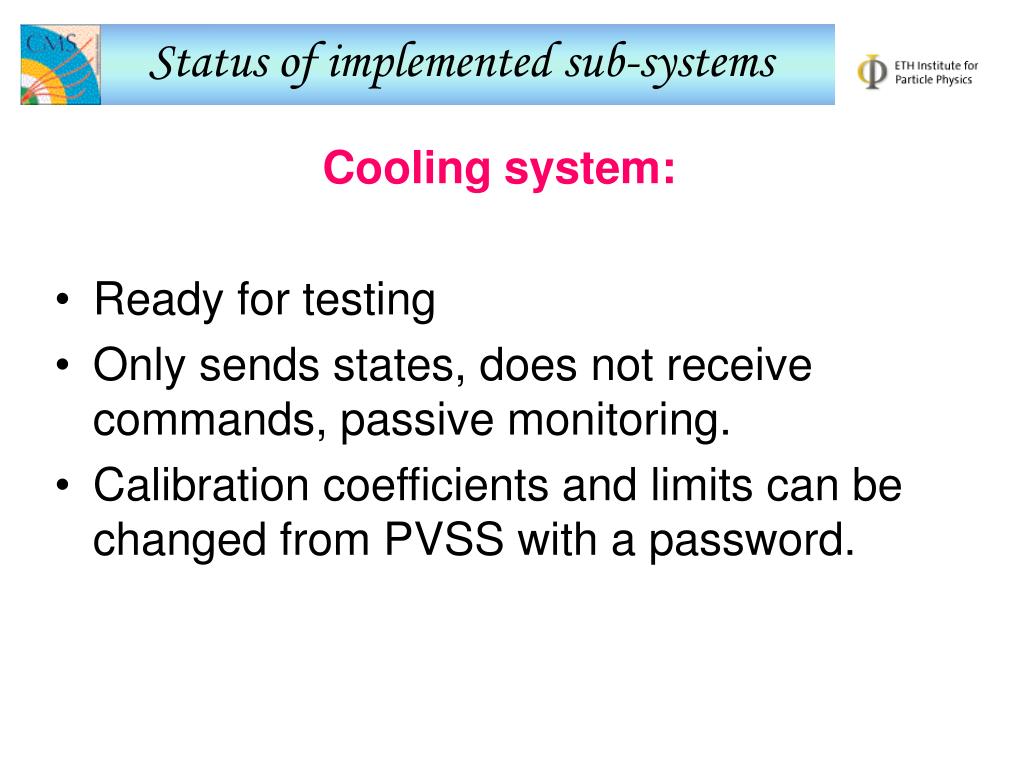

Cooling system:

  • Ready for testing

  • Only sends states, does not receive commands, passive monitoring.

  • Calibration coefficients and limits can be changed from PVSS with a password.

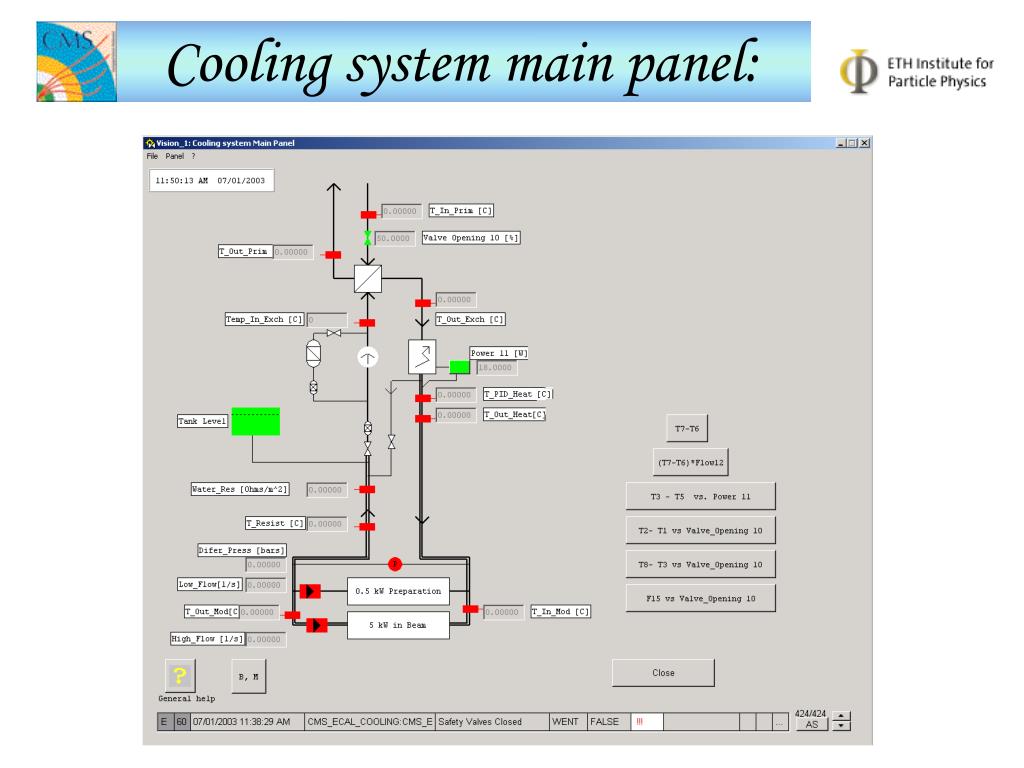

Cooling system main panel

Cooling system main panel:


Status of implemented sub systems2

Status of implemented sub-systems

HV:

  • installed on final PC, long term stability tests started

  • Need a password to change any settings and turn on/off channels.

    Precision Temp:

  • development started: SM0 will have 2 parallel systems: 1 using ELMB, other using Keithley

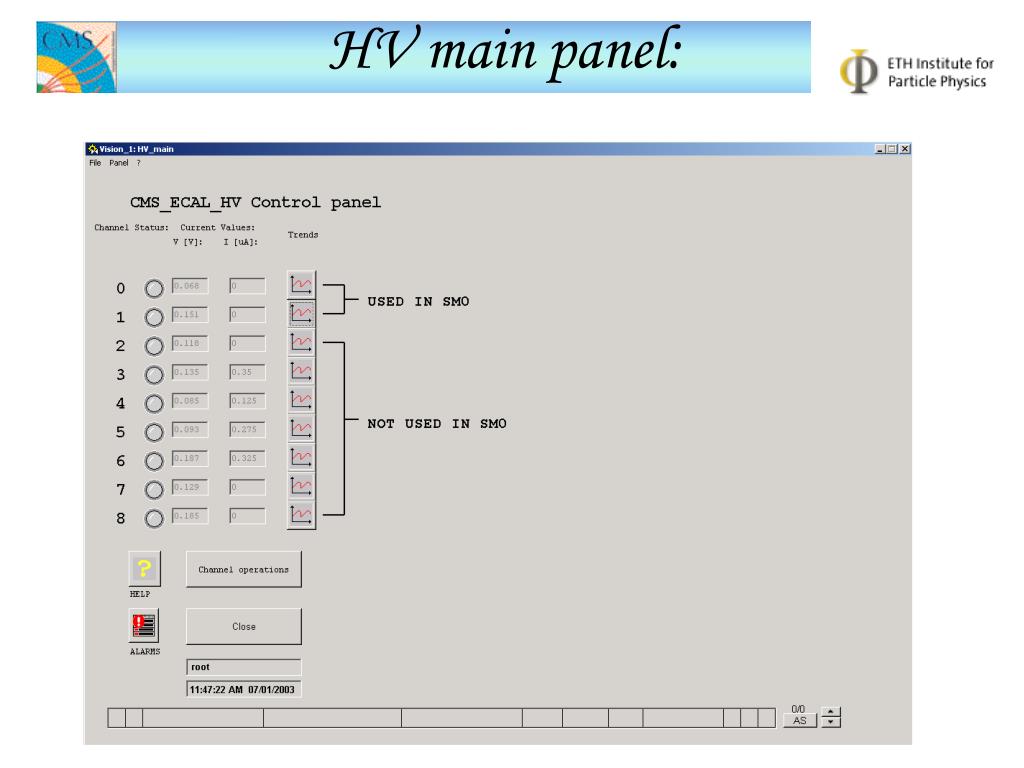

Hv main panel

HV main panel:


Precision temp main panel

Precision Temp main panel:

PROTOTYPE ONLY: for the Keithley system!


Status of implemented sub systems3

Status of implemented sub-systems

Humidity:

  • System similar to the Precision Temp, to be implemented

    TSS:

  • Implemented by the Belgrade group

  • Being tested at the moment


Status of implemented sub systems4

Status of implemented sub-systems

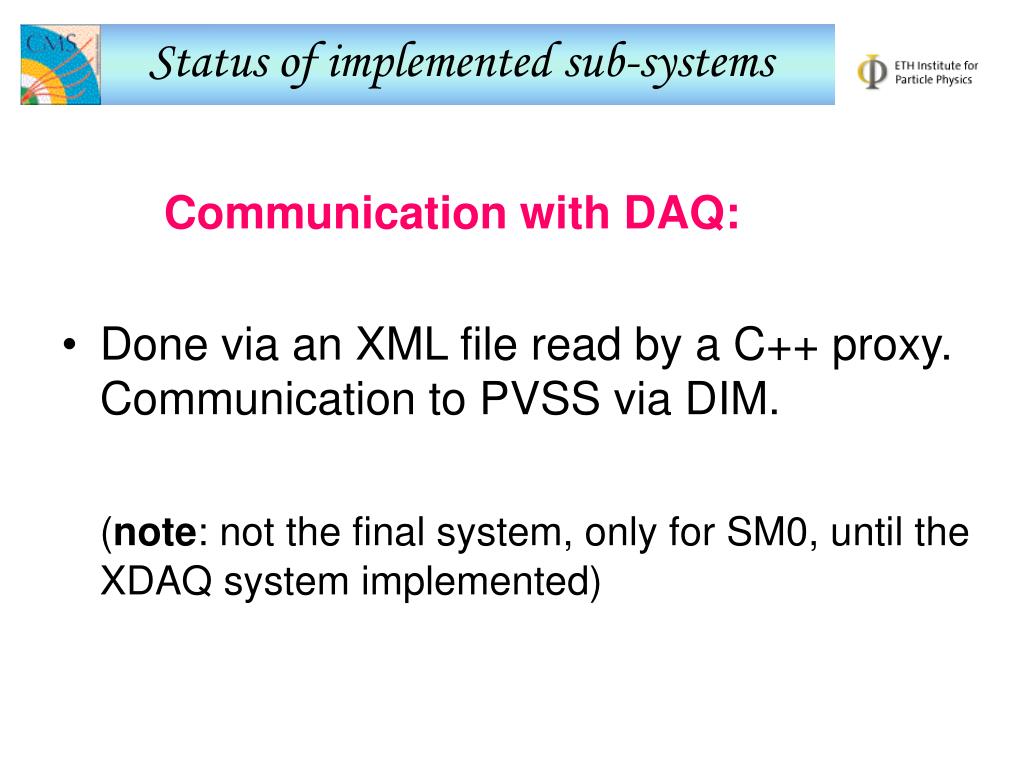

Communication with DAQ:

  • Done via an XML file read by a C++ proxy. Communication to PVSS via DIM.

    (note: not the final system, only for SM0, until the XDAQ system implemented)


Status of implemented sub systems5

Status of implemented sub-systems

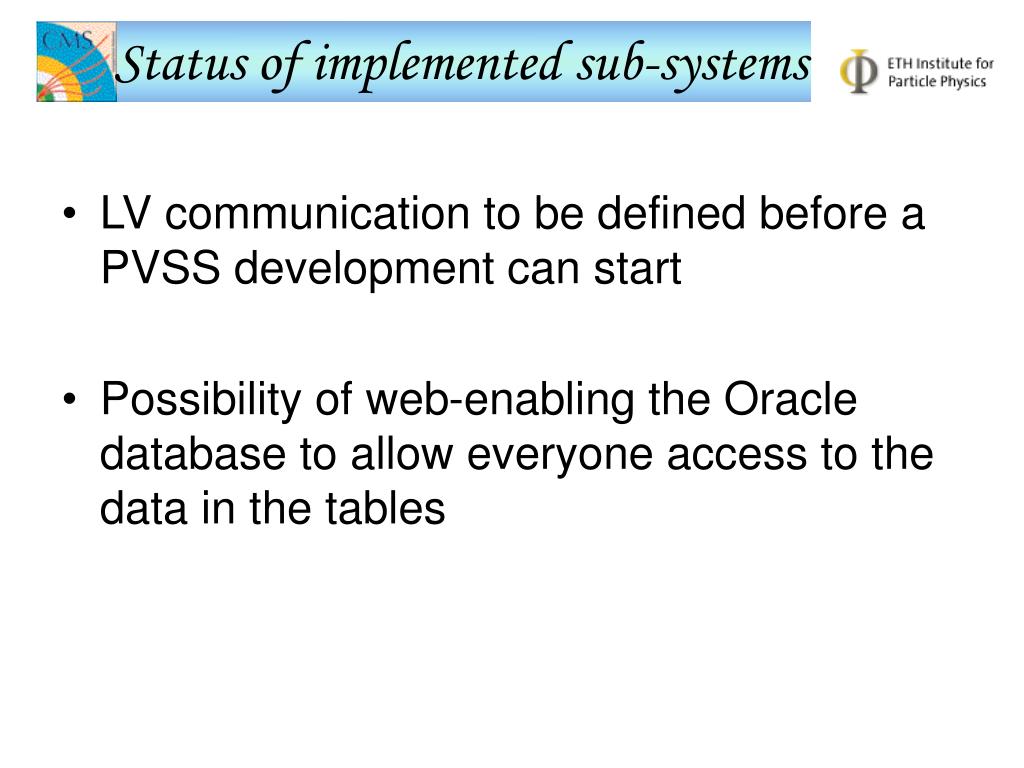

  • LV communication to be defined before a PVSS development can start

  • Possibility of web-enabling the Oracle database to allow everyone access to the data in the tables

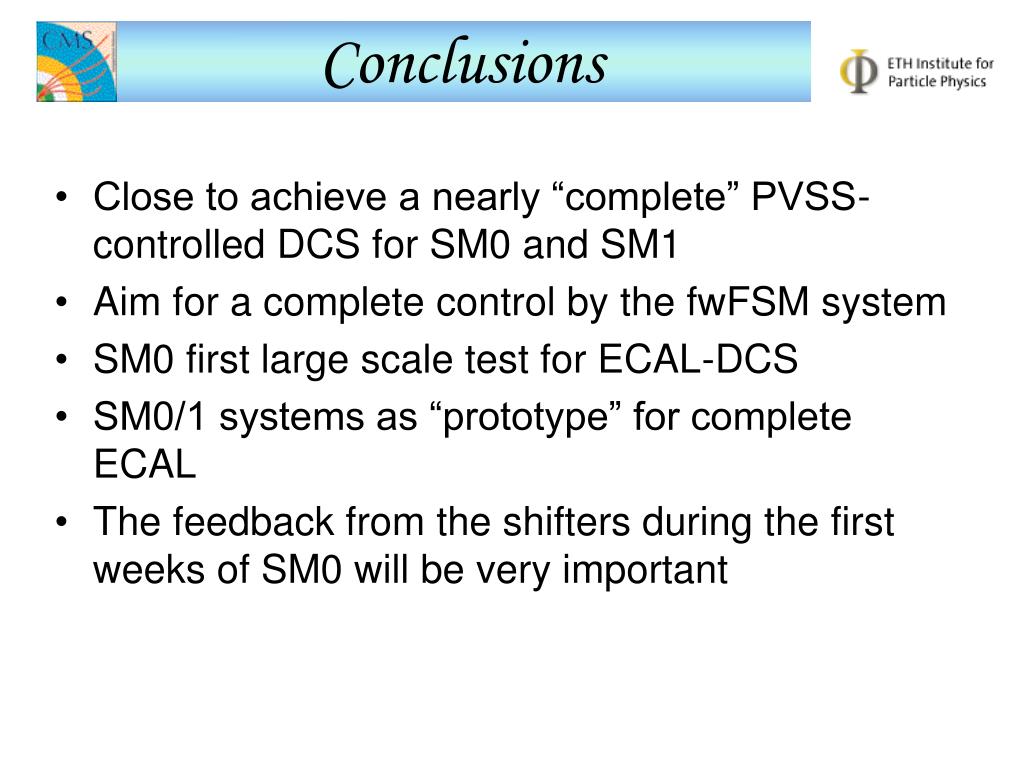

Conclusions

Conclusions

  • Close to achieve a nearly “complete” PVSS-controlled DCS for SM0 and SM1

  • Aim for a complete control by the fwFSM system

  • SM0 first large scale test for ECAL-DCS

  • SM0/1 systems as “prototype” for complete ECAL

  • The feedback from the shifters during the first weeks of SM0 will be very important
