Fm electronics product information product finder

FM Electronics Product Information & Product Finder

Find Part by Description

I need POLICE response

Audible only (Bells only)

8000 series External

4000 series Class 3

4000 series Class 6

I Know the Part Number

Link to website

EXIT TO WINDOWS

TIP: You can press the Esc key to exit this programme at any time


Fm electronics product information product finder

For Police response the system MUST be:

1: Installed by an Inspectorate recognised company.

2: Be monitored by an Alarm Receiving Centre (ARC).

3: Be maintained by an Inspectorate recognised installer.

(Alarm Inspectorate usually = NACOSS or SSAIB)

Are you Inspectorate recognised?

Not Inspectorate Recognised

Inspectorate Recognised


Fm electronics product information product finder

You need an inspectorate recognised company for this installation,

If

You heard about our product from an alarm installer you will need your installer to supply and fit the system, we supply trade only.

If

From another source, (Internet etc..) Look in your telephone directory for NACOSS or SSAIB recognised installers who can assist you or contact FM Electronics who will give you contact details for your nearest installer(s).

Return to Main Menu


Fm electronics product information product finder

You require the FM4000 series product

How many zones do you require?

Up to 8 zones (circuits)

Up to 64 zones (circuits)

More than 64 zones (circuits)


Fm electronics product information product finder

We do not have a single panel with more than 64 zones, please contact your installation company or Technical Support at FM Electronics on 01594 827070 for further assistance.

Return to main menu

Back to panel menu


Fm electronics product information product finder

FM4000

8 Zone Control Panel + Fire & Panic zones plus up to 8 set/unset devices (keypads or remote controls in any combination)

Dimensions 270mm wide x 155mm tall x 80mm deep approx.

Requires a 12V 2.1Ah battery. Our part no. BAT1.

Connections required = mains supply, external sounder & communications device (digi, stu etc.)

Absolute maximum working range from furthest device to the control panel 100 metres (this is measured in free space.) The actual maximum working range achieved will vary from site to site and signal strength should be checked before installation is commenced.

Checking signal strength

Exit to Main Menu

Devices for this panel


Fm electronics product information product finder

Detection Devices

Set/Unset Devices

4180 Radio Keypad

4650-GB Contact Transmitter

4660-GB Smoke Detector

4173-GB Remote control

4600-GB Infra-red detector

Accessories

4005 Tamper Module

4007 Remote Antenna

4655 Inertia transmitter

Exit to main menu

Back to FM4000 menu


Fm electronics product information product finder

Signal strength can be measured using the control panel, a transmitting device (pir, contact, remote control etc.. (the remote is the easiest) a 12V battery for the control panel and a volt meter.

To test the strength, position the panel in it’s proposed location,power up the control panel (just the 12v battery is sufficient) connect a voltmeter with the DC range selected across the two terminals inside the control panel labelled DVM and press the reset switch, just to the right of the connections terminals. The meter should now read 0V. Go to the required location for the furthest device and send a learn signal from the transmitter (or a PA from a remote control.) The panel will now latch the received signal strength from the device at the panel.

(Contact Technical Support at FM Electronics on 01594 827070 if further details are required.)

Return to Panel Menu

Return to Main Menu


Fm electronics product information product finder

FM4000X & FM4001(used together)

64 Zone Control Panel + 8 Fire & 8 Panic zones plus up to 8 set/unset devices (keypads or remote controls in any combination)

Dimensions 270mm wide x 320mm tall x 80mm deep approx.

Requires a 12V 2.1Ah battery. Our part no. BAT1

Connections required = mains supply, external sounder & communications device (digi, stu etc.)

Absolute maximum working range from furthest device to the control panel 100 metres (this is measured in free space.) The actual maximum working range achieved will vary from site to site and signal strength should be checked before installation is commenced.

Checking signal strength

Exit to Main Menu

Devices for this panel


Fm electronics product information product finder

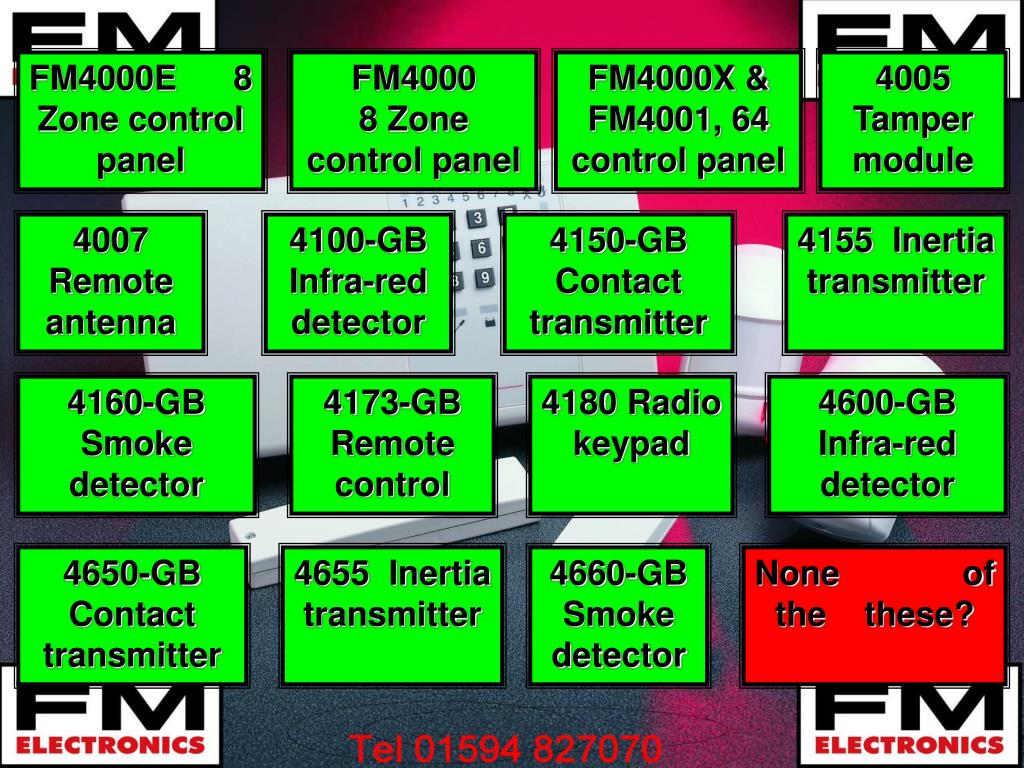

FM4000E 8 Zone control panel

FM4000 8 Zone control panel

FM4000X & FM4001, 64 control panel

4005 Tamper module

4007 Remote antenna

4100-GB Infra-red detector

4150-GB Contact transmitter

4155 Inertia transmitter

4160-GB Smoke detector

4173-GB Remote control

4180 Radio keypad

4600-GB Infra-red detector

4650-GB Contact transmitter

4655 Inertia transmitter

4660-GB Smoke detector

None of the these?


Fm electronics product information product finder

FM8000-BNC 8 Zone control panel

FM8016 Indicator panel

R1 Single Zone receiver

8008 8 Zone receiver

FSM Engineers test receiver

R1B Plug in receiver

RP2 Repeater station

TPHP 10mW PA transmitter

DK3-HP Radio keypad

TR4-HP Remote control

TSD-HP Smoke detector

10GP General purpose TX

PEN-173 Pendant PA transmitter

125-HP High power PIR

115H-HPWP Horizontal curtain PIR

None of the these?


Fm electronics product information product finder

125-HPWP General purpose PIR

145-HPWP Corridor PIR

HG1 High gain antenna

HG2 Directional antenna

HS1 Right angle stub antenna

HS2 Straight stub antenna

6143 Mains relay timer unit

6501 Transistor relay module

SA1 External bell box

DSA1 Dummy bell box

2100 SD1+ autodialler

SB Swivel bracket for external pir’s

BAT1 12Volt 2.1 Ampere hour battery

BAT2 9Volt alkaline battery

BAT3 9Volt lithium battery

None of the these?


Fm electronics product information product finder

BAT4 12Volt N-cell battery

BAT5 Lithium coin cell

BAT6 1.5Volt AA cell

BAT7 12Volt for Ramtech

BAT100 100 x BAT2 Better price

BAT240 240 x BAT2 Better price

BAT 525 25 x BAT5 Better Price

BAT640 40 x BAT6 Better Price

142012 inertia sensor

LENSPACK 2 alternative lenses

None of the these?

Back to start of list.

Escape to main Menu


Fm electronics product information product finder

Ring Technical Support at FM Electronics for further assistance on 01594 827070.

Return to previous page

Exit to Main Menu


Fm electronics product information product finder

Detection Devices

Set/Unset Devices

4180 Radio Keypad

4650-GB Contact Transmitter

4660-GB Smoke Detector

4173-GB Remote control

4600-GB Infra-red detector

Accessories

4005 Tamper Module

4007 Remote Antenna

4655 Inertia transmitter

Exit to main menu

Back to FM4000X menu


Fm electronics product information product finder

4650-GB Contact Transmitter

Designed to detect the opening of doors, windows etc. This unit has a built in back tamper, lid tamper & reed switch that can be used with a magnet of your choice. Please note a magnet is not supplied with this unit.

Dimensions 40mm wide x 160mm tall x 28mm deep approx.

Can be connected to any normally closed detection device with a normally closed tamper loop.

Can be connected to any normally open push to set, where a push to set button is required.

Can be used for both push to set and detection at the same time.

Powered by 2 AA batteries, our part number BAT6

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

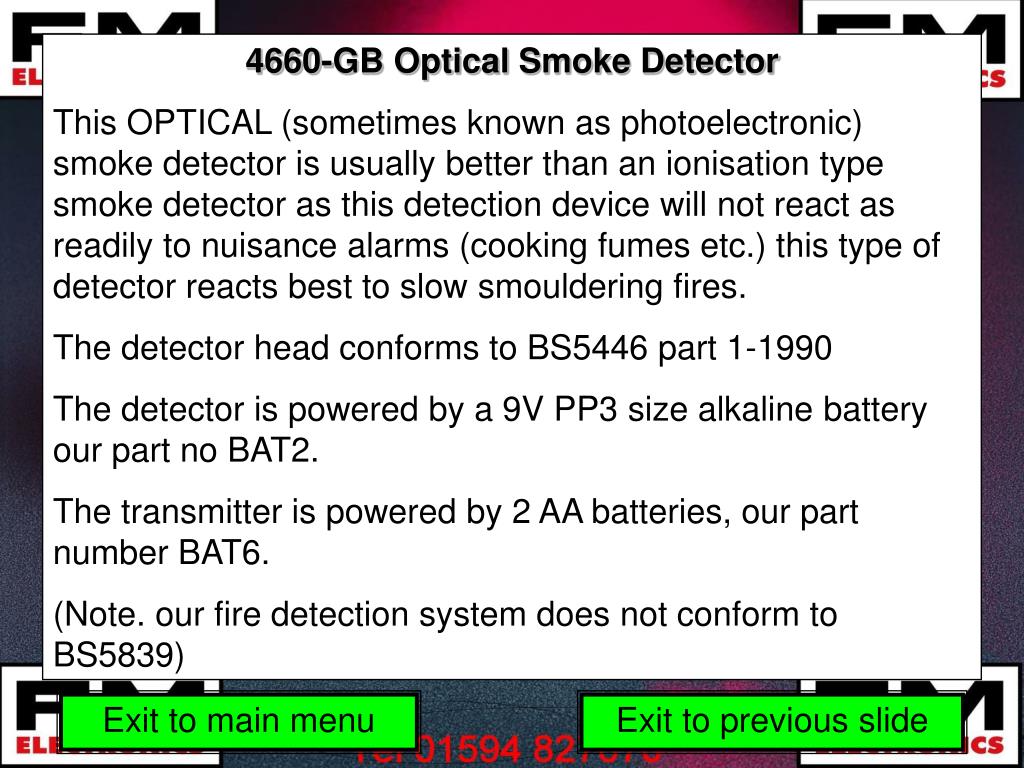

4660-GB Optical Smoke Detector

This OPTICAL (sometimes known as photoelectronic) smoke detector is usually better than an ionisation type smoke detector as this detection device will not react as readily to nuisance alarms (cooking fumes etc.) this type of detector reacts best to slow smouldering fires.

The detector head conforms to BS5446 part 1-1990

The detector is powered by a 9V PP3 size alkaline battery our part no BAT2.

The transmitter is powered by 2 AA batteries, our part number BAT6.

(Note. our fire detection system does not conform to BS5839)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4600-GB General Purpose PIR

Dimensions 63mm wide x 110mm tall x 60mm deep approx.

12 metre 90 degree general purpose pir. This unit has 3 pulse count selection options, with a choice of single, 2 or 4 pulses required to generate an alarm condition.

Ideal mounting height = 2.2 metres (max.= 2.5 metres.)

2 interchangable lenses are available for this unit. (see LENSPACK below)

Powered by 2 AA batteries, our part number BAT6

Batteries should be changed annually.

LENSPACK

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

LENSPACK

2 Interchangeable lenses for the 4000 series PIR’s

Lens 1: A 10 metre horizontal curtain lens (sometimes known as a ‘pet alley’). When this lens is fitted and the pcb inside the detector is positioned as far down as the tilt adjustment will allow, this detector will ignore any movement below the height at which it is mounted. Not suitable for use where the pet may climb to higher surfaces. (FM part no 366 009)

Lens 2: A 25 metre corridor lens, with 4 creep zones. (FM part no. 366 008)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4600-GB General Purpose PIR

Dimensions 63mm wide x 110mm tall x 60mm deep approx.

12 metre 90 degree general purpose pir. This unit has 3 pulse count selection options, with a choice of single, 2 or 4 pulses required to generate an alarm condition.

Ideal mounting height = 2.2 metres (max.= 2.5 metres.)

2 interchangable lenses are available for this unit. (see LENSPACK below)

Powered by 2 AA batteries, our part number BAT6

Batteries should be changed annually.

LENSPACK

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4655 Inertia Transmitter

Designed to detect the vibration caused by the forcing open of doors, windows etc. Dimensions : transmitter 40mm wide x 160mm tall x 28mm deep - sensor 20mm x 45mm x 15mm deep + 2metres of cable.

Sensitivity adjustment inside unit with an LED to indicate vibration required to activate the unit.

Supplied with 1 sensor. For optimum system performance use 1 transmitter with 1 sensor.

An additional sensor can be wired in series if required, our part no. 142012. (2 sensors per transmitter is the maximum recommended).

Powered by an alkaline PP3 battery, our part number BAT2

142012 Sensor

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4173-GB Remote Control

3 button remote control, designed to unset, part set, fully set or activate a Panic alarm on any 4000 series control panel.

The panic is activated by pressing the unset and the full set buttons together.

Green LED on the front of the unit illuminates when the unit is operated to indicate the battery is still serviceable.

Batteries typically will last 2 years in normal use.

Powered by 2 CR2032 batteries, our part number BAT5.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4600-GB General Purpose PIR

Dimensions 63mm wide x 110mm tall x 60mm deep approx.

12 metre 90 degree general purpose pir. This unit has 3 pulse count selection options, with a choice of single, 2 or 4 pulses required to generate an alarm condition.

Ideal mounting height = 2.2 metres (max.= 2.5 metres.)

2 interchangable lenses are available for this unit. (see LENSPACK below)

This device is supervised at approximately 20 minute intervals.

Powered by 2 AA batteries, our part number BAT6, battery life 1 year.

LENSPACK

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4180 Radio Keypad

A radio keypad designed to unset, part set, fully set or activate a Panic alarm on any 4000 series control panel.

The panic is activated by pressing any two vertical keys from the top three rows together.

Green LED on the front of the unit illuminates when the unit is operated to indicate a correct code has been entered.

An audible warning will sound from the keypad if the keypad battery is near to the end of it’s service life.

Batteries typically will last 1 year in normal use.

Powered by a quality alkaline PP3 size battery, our part number BAT2

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4100-GB General Purpose PIR

Dimensions 63mm wide x 110mm tall x 60mm deep approx

12 metre 90 degree general purpose pir. This unit has 3 pulse count selection options, with a choice of single, 2 or 4 pulses required to generate an alarm condition.

Ideal mounting height = 2.2 metres (max.= 2.5 metres.)

2 interchangable lenses are available for this unit. (see LENSPACK below)

Powered by 2 AA batteries, our part number BAT6

Batteries should be changed annually.

LENSPACK

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4150-GB Contact Transmitter

Designed to detect the opening of doors, windows etc. This unit has a built in back tamper, lid tamper & reed switch that can be used with a magnet of your choice, note a magnet is not supplied with this unit.

Dimensions 40mm wide x 160mm tall x 28mm deep approx

Can be connected to any normally closed detection device with a normally closed tamper loop.

Can be connected to any normally open push to set, where a push to set button is required.

Can be used for both push to set and detection at the same time.

Powered by 2 AA batteries, our part number BAT6

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4155 Inertia Transmitter

Detects the vibration caused by forcing doors, windows etc. Dimensions : transmitter 40mm wide x 160mm tall x 28mm deep - sensor 20mm x 45mm x 15mm deep + 2 metres of 4 core alarm cable

Sensitivity adjustment inside unit with an LED to indicate vibration required to activate the unit.

Supplied with 1 sensor. For optimum system performance use 1 transmitter with 1 sensor.

An additional sensor can be wired in series if required, our part no. 142012. (2 sensors per transmitter is the maximum recommended).

Powered by an alkaline PP3 battery, our part number BAT2

142012 Sensor

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4160-GB Optical Smoke Detector

This OPTICAL (sometimes known as photoelectronic) smoke detector is usually better than an ionisation type smoke detector as this detection device will not react as readily to nuisance alarms (cooking fumes etc.). This type of detector reacts best to slow smouldering fires.

The detector head conforms to BS5446 part 1-1990

The detector part of this unit is powered by a 9V PP3 size alkaline battery. Our part no BAT2.

The transmitter part of this unit is powered by 2 AA batteries, our part number BAT6

(Please note our fire detection system does not conform to BS5839). (Probably better to use 4660-GB for fire systems.)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

FM8000 Control Panel

8 Zone Control Panel + Fire & Panic zones

Can accept any number set/unset devices (keypads and/or remote controls in any combination)

Dimensions 270mm wide x 155mm tall x 80mm deep.

Requires a 12V 2.1Ah battery. Our part no. BAT1.

Connections = Mains supply, clean contact relays for external sounder, strobe & Autodialler (SD1+, Vocalizer etc.) 12 Volt Auxiliary power supply rated at 0.5Amp continuous 1 amp intermittent.

The radio range from the detection devices to the panel should be checked before each installation (Maximum 500 metres)

Devices for this panel

Exit to Main Menu

Back to previous page


Fm electronics product information product finder

Detection Devices

Set/Unset Devices

4150-GB Contact Transmitter

4160-GB Smoke Detector

4173-GB Remote control

4180 Radio Keypad

4100-GB Infra-red detector

Accessories

4007 Remote Antenna

4155 Inertia transmitter

Exit to main menu

Back to Previous slide


Fm electronics product information product finder

4005 Antenna Tamper Module (For 4007 Antenna)

All antenna’s connected to CLASS 6 systems must be tamper protected, either mechanically, electronically or by any combination of the two techniques.

This tamper module checks the integrity of the connection between the antenna and the module, creating a tamper fault if this connection is lost.

The unit is designed to be connected in series with the tamper loop, generating a tamper fault on the control panel if this connection is lost. There is an indicator fitted to the module to indicate to the engineer the tamper fault originates from the antenna module.

Fits inside any of the FM4000 series panels.

4007 Antenna

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

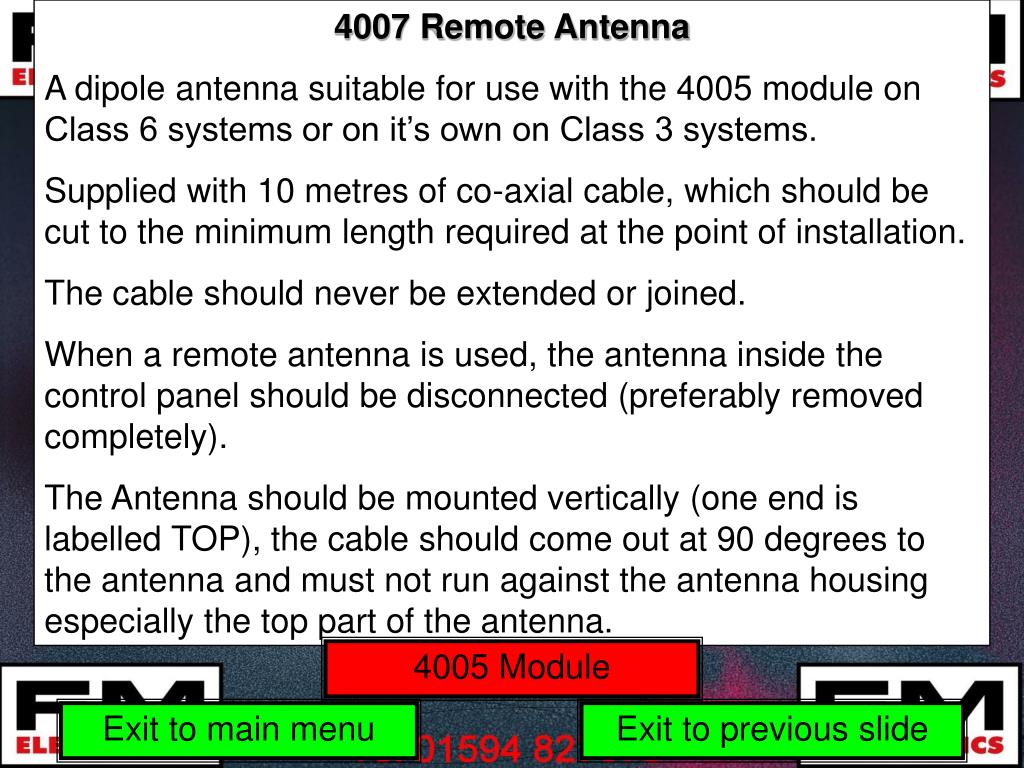

4007 Remote Antenna

A dipole antenna suitable for use with the 4005 module on Class 6 systems or on it’s own on Class 3 systems.

Supplied with 10 metres of co-axial cable, which should be cut to the minimum length required at the point of installation.

The cable should never be extended or joined.

When a remote antenna is used, the antenna inside the control panel should be disconnected (preferably removed completely).

The Antenna should be mounted vertically (one end is labelled TOP), the cable should come out at 90 degrees to the antenna and must not run against the antenna housing especially the top part of the antenna.

4005 Module

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

FM4000E

8 Zone Control Panel + Fire & Panic zones plus up to 8 set/unset devices (keypads or remote controls in any combination)

Dimensions 270mm wide x 155mm tall x 80mm deep.

Requires a 12V 2.1Ah battery. Our part no. BAT1.

Connections = For mains supply, external sounder & Autodialler.

Absolute maximum working range from furthest device to the control panel 100 metres (this is measured in free space.) The actual maximum working range achieved will vary from site to site and signal strength should be checked before installation is commenced.

Checking signal strength

Exit to Main Menu

Devices for this panel


Fm electronics product information product finder

External panel/receiver selector.

FM8000 series Panels

Receiver / Interfaces

FM8000-BNC 8 Zone control panel

8008 8 zone receiver

R1 Single zone receiver

FM8016 Indicator panel

R1B Plug in receiver

Test Equipment

Repeater

FSM Engineers test receiver

RP2 Repeater station


Fm electronics product information product finder

FM8016 Indicator Panel

14 zones, tamper & low battery indication

This panel is typically used with panic buttons or smoke detectors, where 24 hour protection is required.

Dimensions 270mm wide x 155 tall x 80mm deep.

Requires a 12V 2.1Ah battery. Our part no. BAT1.

Connections = Mains supply, clean contact relays for external sounder, strobe & Autodialler (SD1+, Vocalizer etc.)

12Volt Auxiliary power supply rated at 0.5Amp continuous 1 amp intermittent.

Back to previous menu

Exit to Main Menu

Devices for this panel


Fm electronics product information product finder

Do you require a FOB (Push button transmitter) for the 4000 series or the 8000 series?

4000 Series

8000 Series


Fm electronics product information product finder

You require the 4173-GB, 3 button remote control.

More information about this device

Back to main menu

Back system select menu


Fm electronics product information product finder

Do you require a single button unit or a four button unit?

Single Button

Four Button


Fm electronics product information product finder

You require a TR4-HP

More information about the TR4-HP

Back to main menu

Back system select menu


Fm electronics product information product finder

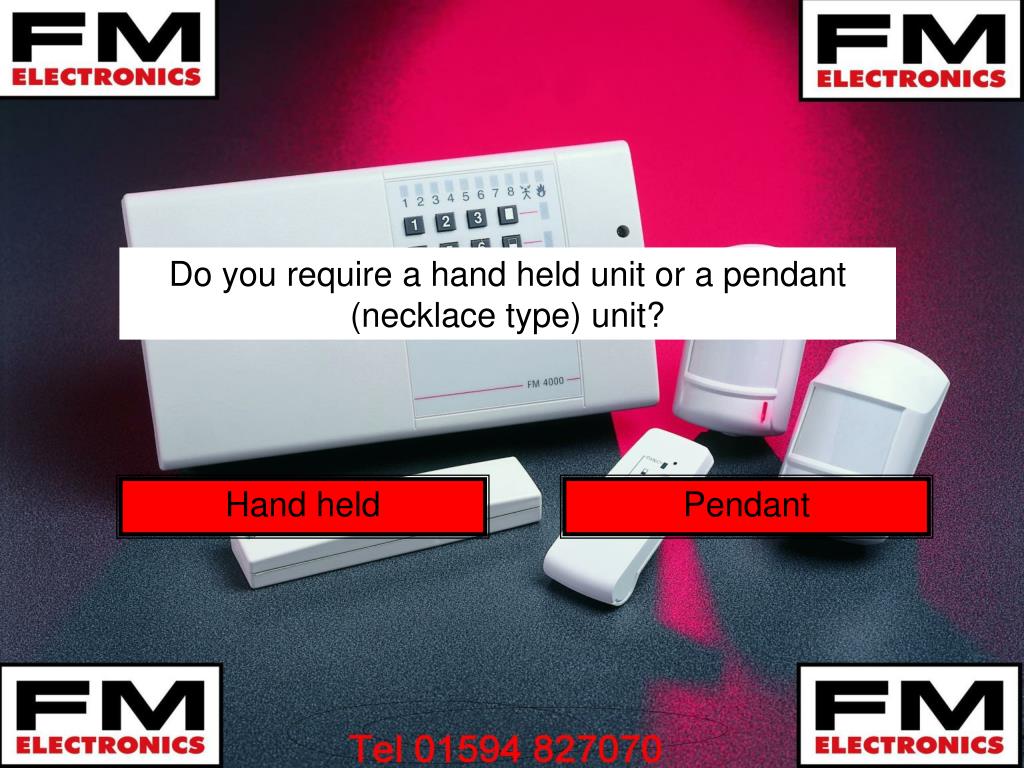

Do you require a hand held unit or a pendant (necklace type) unit?

Hand held

Pendant


Fm electronics product information product finder

The part number you require is TPHP

More information about this device

Back to main menu

Back to system select menu


Fm electronics product information product finder

The part number you require is PEN 173

NOTE:- YOU MUST KNOW THE SITE CODE AND THE ZONE NUMBER. BEFORE ORDERING THIS UNIT

THESE ARE FACTORY PRESET AND NOT USER AJUSTABLE.

IF IN DOUBT CONTACT TECHNICAL SUPPORT AT FMELECTRONICS ON 01594 827070

More information about this device

Back to main menu

Back to system select menu


Fm electronics product information product finder

TR4-HP Remote Control

4 button remote control, designed to unset, part set, full set or activate a Panic alarm on the FM8000 control panel.

The buttons from left to right are Unset (Black), Part Set (Grey), Full Set (grey) & Panic (red), these buttons are protected by a sliding cover to prevent accidental operation.

Green LED on the front of the unit illuminates when the unit is operated to indicate the battery is still serviceable

Typically the battery will last 1 year in normal use.

Powered by 1 quality alkaline PP3 size battery, our part number BAT2

Maximum radio range 500 metres, the maximum will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

TPHP Hand held Panic Transmitter

Operated by a single Red button, which can be protected from accidental operation by a sliding cover.

The unit can be user programmed to send any site code and zone to any receiver in the 8000 series product range.

Green LED on the front of the unit illuminates when the unit is operated to indicate the battery is still serviceable

Typically the battery will last 1 year in normal use.

Powered by 1 quality alkaline PP3 size battery, our part number BAT2

Absolute maximum radio range 500 metres. (This is under ideal conditions), the actual range achieved will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

PEN173 Pendant Panic Transmitter

Operated by pressing a single button, on the front of the unit or by breaking the neck cord.

The unit is FACTORY PROGRAMMED to send the required site code and zone. (We MUST know which SITE CODE & ZONE is required, before an order is placed).

Green LED on the front of the unit illuminates when the unit is operated to indicate the battery is still serviceable

Powered by 1 Quality Alkaline N cell, our part number BAT4 this will last 1 year in normal use.

Absolute maximum radio range 100metres. (This is under ideal conditions), the actual range achieved will vary from site to site, and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

Remote Controls & Keypads.

Detection Devices

TR4-HP Remote control

115H-HPWP 10 Metre horizontal PIR

125-HPWP 12 Metre general purpose PIR

DK3-HP Radio keypad

145-HPWP 35 metre corridor PIR

Panic Buttons

Select your panic button here

10GP General purpose transmitter


Fm electronics product information product finder

Do you require a hand held unit or a pendant (necklace type) unit?

Hand held

Pendant


Fm electronics product information product finder

The part number you require is TPHP

More information about this device

Back to main menu

Back to controls, panic & detection devices.


Fm electronics product information product finder

The part number you require is PEN 173

NOTE:- YOU MUST KNOW THE SITE CODE AND THE ZONE NUMBER. BEFORE PLACING AN ORDER FOR THIS UNIT

THESE ARE FACTORY PRESET AND NOT USER AJUSTABLE.

IF IN DOUBT CONTACT TECHNICAL SUPPORT AT FM ELECTRONICS ON 01594 827070

More information about this device

Back to main menu

Back to controls, panic & detection devices.


Fm electronics product information product finder

DK3-HP Radio Keypad

A radio keypad designed to unset, part set, full set or activate a Panic alarm on the FM8000 control panel.

The panic is activated by pressing any two vertical keys from the top two rows together.

Green LED on the front of the unit illuminates when the unit is sending it’s signal to the control panel.

An audible warning will sound from the keypad if the battery is near to the end of it’s service life.

The Battery typically will last 1 year in normal use.

Powered by a quality alkaline PP3 size battery, our part number BAT2

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

115H-HPWP Horizontal curtain PIR

Dimensions 80mm wide x 160mm tall x 58mm deep approx. (excluding Antenna).

10 metre 90 degree horizontal curtain pir, sometimes known as a ‘Pet Alley’ detector.

Suggested mounting height = 1.5 metres, note if this unit is mounted too high, it may be possible to walk through an area without being detected

Powered by 1 PP3 battery, our part number BAT2

Battery should be changed annually.

Maximum radio range 500 metres in ideal conditions, the actual working achieved will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

125-HPWP General Purpose PIR

Dimensions 80mm wide x 160mm tall x 58mm deep approx. (excluding Antenna)

12 metre 90 degree general purpose pir

Suggested mounting height = 2.2 metres, maximum mounting height = 2.5 metres. Note if this unit is mounted too high, it may be possible to walk through without being detected.

Powered by 1 PP3 battery, our part number BAT2

Battery should be changed annually.

Maximum radio range 500 metres in ideal conditions, the actual working achieved will vary from site to site and should be checked at each installation.

Exit to previous slide

Exit to main menu


Fm electronics product information product finder

145-HPWP Corridor PIR

Dimensions 80mm wide x 160mm tall x 58mm deep approx. (excluding Antenna)

35 metre corridor pir.

Suggested mounting height = 2.2 metres, maximum mounting height = 2.5 metres. Note if this unit is mounted too high, the maximum detection range will not be achieved.

Powered by 1 PP3 battery, our part number BAT2.

Battery should be changed annually.

Maximum radio range 500 metres in ideal conditions, the actual working achieved will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

10GP General Purpose Transmitter

Dimensions 80mm wide x 125mm tall x 58mm deep approx. excluding antenna and cable entry gland.

10 milli Watt general purpose transmitter.

Can be triggered by any normally open or any normally closed device.

Powered by a 12V DC power supply OR 1 PP3 battery, our part number BAT2.

Battery should be changed annually.

Maximum radio range 500 metres in ideal conditions, the actual working achieved will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

R1 Single Zone Receiver

Dimensions 80mm wide x 150mm tall x 50mm deep approx. excluding antenna.

Clean Contact change over relay, can be programmed to latch or change over momentarily in alarm. The relay will switch a maximum of 1 amp, (and 28 Volts).

Powered by a 12VDC power supply, typically draws 70milli amps.

Generally used to add a panic button to a hard wired alarm system.

Supplied with a BNC connector and helical stub antenna, remote antenna’s (HG1 & HG2) can be used with this receiver if required.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

R1B Single Zone Receiver Sounder

Dimensions 80mm wide x 150mm tall x 50mm deep approx. excluding antenna & power supply.

Contains a piezo sounder which can be either momentary or latching in alarm.

Simply plugs into the mains.

Generally used for annunciation purposes with PIR's or as a warning device with panic buttons

Supplied with a BNC connector and helical stub antenna, remote antenna’s (HG1 & HG2) can be used with this receiver if required.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

8008 General Purpose Receiver

Dimensions 113mm wide x 164mm tall x 40mm deep approx. excluding antenna.

Contains 8 clean contact relays which can be normally closed or open in alarm. Max current 1amp (28 Volts Max.)

Requires a 12 Volt supply, draws 17 milli amps with all relays relaxed & a maximum of 300 milli amps with all the relays energised.

Generally used as an interface to hard wired alarm systems, the outputs are programmable so may be suitable for other applications.

Supplied with a BNC connector and helical stub antenna, remote antenna’s (HG1 & HG2) can be used with this receiver if required.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

You require the FM4000 series product

How many zones do you require?

Up to 8 zones (circuits)

Up to 64 zones (circuits)

More than 64 zones (circuits)


Fm electronics product information product finder

FM4000X & FM4001(used together)

64 Zone Control Panel + 8 Fire & 8 Panic zones plus up to 8 set/unset devices (keypads or remote controls in any combination)

Dimensions 270mm wide x 320mm tall x 80mm deep approx.

Requires a 12V 2.1Ah battery. Our part no. BAT1.

Connections required = Mains supply, external sounder & communications as required

Absolute maximum working range from furthest device to the control panel 100 metres (this is measured in free space.) The actual maximum working range achieved will vary from site to site and signal strength should be checked before installation is commenced.

Checking signal strength

Exit to Main Menu

Devices for this panel


Fm electronics product information product finder

FSM Field Test Receiver

Dimensions 80mm wide x 150mm tall x 50mm deep approx. excluding antenna.

Suitable for use with the FM8000 series products only.

Powered by a quality Alkaline PP3 size battery, our part no. BAT2. Battery OK indicator on the front of unit no longer illuminates in use, when the battery needs replacing.

Indicates data valid & zone transmitted from the transmitting device, a valuable addition to an engineers toolkit.

Supplied with a BNC connector and helical stub antenna, remote antenna’s (HG1 & HG2) can be connected to this test receiver if required.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

RP2 Repeater

Repeats all signals used on FM8000, 8016, 8008, R1 & R1B (includes set-unset signals from remote controls & keypads)

Receives signals on 1 house code and transmits the signal on to the control panel on a different hose code.

Dimensions 270mm wide x 155 tall x 80mm deep. (excluding aerials)

Requires a 12V 2.1Ah battery.

Connections = Mains supply, 2 x BNC connectors for antenna’s, 2 stub antenna’s supplied, remote antenna’s HG1 or HG2 may be used if appropriate. ( Contact Technical Support at FM Electronics on 01594 827070 for advise on antenna selection if unsure)

Exit to Main Menu

Back to previous page


Fm electronics product information product finder

Find a part by description.

Remotes, PA’s FOB’s etc.

Control Panels

Infra Red Detectors

Aerials

Keypads

Batteries

Contacts / Transmitters

Relays / Timers

Repeater

Interfaces / Receivers

Back to main menu


Fm electronics product information product finder

Find a part by description.

Do you require a control panel for

An internal intruder alarm system?

An external intruder alarm system?


Fm electronics product information product finder

Find a part by description.

Do you require the system to be

Monitored with police response?

Local audible (bells) only?


Fm electronics product information product finder

Find a part by description.

Do you require the system to

Operate like a conventional alarm system with set / unset facilities?

To be a display which will operate and sound every time a device is activated?


Fm electronics product information product finder

Find a part by description.

The only repeater we have is the RP2 for the 8000 series panel

RP2 Repeater


Fm electronics product information product finder

TSD-HP Optical Smoke Detector

This OPTICAL (sometimes known as photoelectronic) smoke detector is usually better than an ionisation type smoke detector, as this detection device will not react as readily to nuisance alarms (cooking fumes etc.), this type of detector reacts best to slow smouldering fires.

The detector head conforms to BS5446 part 1-1990

The detector is powered by 2 x 9V PP3 size alkaline batteries our part no BAT2.

Maximum radio range 500 metres under ideal conditions.

(Please note our fire detection system does not conform to BS5839)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

125-HP High Power General Purpose PIR

Dimensions 70mm wide x 115mm tall x 38mm deep approx.

12 metre 90 degree general purpose pir, with a maximum radio range of 500 metres under ideal conditions

Ideal mounting height = 2.2 metres (max.= 2.5 metres.)

Suitable for use with FM8000, FM8016, 8008, R1 or R1B, receivers or control panels.

Powered by a PP3 size quality alkaline battery, our part number BAT2

Batteries should be changed annually.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

HG1 High Gain Antenna

The HG1 is a Co-linear antenna with a 2dB gain for use with the FM8000, FM8016, 8008, R1 and R1B. This antenna can also be used with some other products, contact Technical Support at FM Electronics on 01594 827070 to check suitability.

The working range of the system can usually be increased by mounting this antenna at a high level externally.

Supplied with 10 metres of co-axial cable and a BNC socket, this cable should not be cut or extended.

Supplied with a mounting clamp suitable for 1 and a half to 2 inch mast. (3.8 - 5 cm approx.)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

HG2 Directional Antenna

The HG2 is a directional antenna with a 8dB forward gain for use with the FM8000, FM8016, 8008, R1 and R1B. This antenna can also be used with some other products, contact Technical Support at FM Electronics on 01594 827070 to check suitability.

The working range of the system can usually be approximately doubled to a maximum of 1 km by mounting this antenna at a high level externally.

Supplied with 10 metres of co-axial cable and a BNC socket, we strongly recommend this cable length is not exceeded.

Supplied with a mounting clamp suitable for 1 and a half to 2 inch mast. (3.8 - 5 cm approx..)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

HS1 Right Angled Stub Antenna

The HS1 is normally supplied as a replacement antenna for use with any device fitted with a BNC socket which is on the side of the unit the unit is in use.

All antenna’s should be vertical in normal use.

(Note if the BNC socket is on the top of the unit a HS2 straight stub antenna should be used.)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

HS2 Straight Stub Antenna

The HS2 is normally supplied as a replacement antenna for use with any device fitted with a BNC socket which is on the top of the unit when the unit is in use.

All antenna’s should be vertical in normal use.

(Note if the BNC socket is on the side of the unit a HS1 right angled stub antenna should be used.)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

6143 Mains Relay Timer

The 6143 mains relay timer will switch a maximum of 240 Volts ac witha1000 watts (resistive load), from a 12Vdc trigger.

The relay can be timed to operate between 2 & 30 minutes.

Can be used as a mains relay without the timer function if required to simply follow the input.

Can be used with a momentary or latching input.

Timer can be set up to run until the input is removed or timer expires, whichever is sooner

Requires a 12V dc power supply.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

6501 Transistor Relay Module

The 6501 relay module will switch a maximum of 1 amp at 28Volts dc .

The relay can be triggered with as little as 5Volts.

Only 1milli Amp required to drive the relay trigger.

2 clean contact change over relays available.

Requires a 12V dc power supply.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

SA1 External Bell Box

The SA1 is a self activating external sounder and strobe unit with a built in back up battery.

The unit we currently supply is the Volumatic Xtra in Yellow with a White strobe window.

This unit can be configured as either a Self Activating Bellbox (SAB) or a Self Contained Bellbox (SCB).

The bell box has 2 Led's which flash alternately when the unit is powered up. (The Led's simply flash continuously, they do not indicate whether the system is armed or disarmed).

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

DSA1 Dummy External Bell Box

The DSA1 is a bell box cover with wall mounting bracket..

The unit we currently supply is the Volumatic Xtra cover and bracket.

This box is mainly yellow, with a white window area in the bottom of the unit.

This unit makes no noises and has no lights in it.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

2100 Menvier SD1+ Speech Dialler

The SD1+ can store up to 4 telephone numbers and when activated re-play a message up to 40 seconds in length.

The SD1+ has a non volatile memory, so even if the power is disconnected, no stored information will be lost.

The unit can send up to 4 separate alarm messages, with the 4 separate trigger inputs available

A 4 digit passcode is required before any programming can be changed. (Default code = 1234)

The unit can dial any normal telephone number, most mobile telephone numbers (some phones on the ORANGE network will not work with this unit), some paging units can also be dialled by this unit.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

SB Swivel Bracket

The SB swivel bracket can be used with any External Infra Red detector (the ones in the grey ‘plastic’ housings) produced by FM Electronics.

The bracket is an L shape, and should be mounted into the base of the external detector.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT1 12Volt Lead Acid Battery

The BAT1 is a 12 Volt 2.1 Ampere hour sealed lead acid battery.

This battery is used in all FM4000 series and FM8000 series control panels

1 Battery is normally used per unit. (Note 2 batteries are required when the FM4000X & FM4001 units are used together.)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT2 9Volt Alkaline Battery

The BAT2 is a 9 Volt PP3 size alkaline battery, this battery will fit all the transmitters used in the FM8000 series and the 4155, 4180, 4190, 4193 & 4655, devices currently used in the FM4000 series, also all smoke detector heads (but not necessarily the transmitter part of the detector).

This battery was used in all the transmission devices used for the 4000 series before 1999, during this year the new -GB products were introduced, and different batteries have typically been used.

When purchased in larger quantities the price of this product improves. (See BAT100 & BAT 240)

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT3 9Volt Lithium Battery

The BAT3 is a 9 Volt PP3 size Lithium battery,

THIS BATTERY IS NO LONGER USED.

This battery this battery was originally specified for all class 6 detection devices, however the manufacturer of this battery changed the specification of this battery in 1997.

We now recommend the BAT2 for applications where this battery was originally specified.

GO TO BAT2

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT4 12Volt N cell Battery

The BAT4 is a 12 Volt N cell battery, This battery is used in the PEN173 transmitter only.

When replacing the battery in the PEN 173 ensure the new battery is making a good connection with the battery tags inside the PEN173. If necessary bend the battery tags slightly towards the centre of the unit to make a tighter connection.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT5 CR2032 Lithium Coin cell Battery

The BAT5 is a lithium coin cell battery for use in the 4173-GB remote control unit.

2 batteries are required for each 4173-GB remote control.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT6 1.5 Volt AA Size Battery

The BAT6 is an alkaline AA size battery.

2 batteries are required for each of the devices we supply which use this battery.

The following units use these batteries, 4100-GB, 4150-GB, 4160-GB (Transmitter only), 4600-GB, 4650-GB, 4660-GB (Transmitter only).

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT7 12 Volt Battery for Ramtech Receiver.

The BAT7 is Lead Acid battery with a flying connection lead for use in the Ramtech special receiver.

1 Battery is required per receiver.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT100 - 100 x BAT2.

100 x 9Volt quality alkaline batteries, the price is reduced with the volume purchased.

See BAT2

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT240 - 240 x BAT2.

100 x 9Volt quality alkaline batteries, the price is reduced with the volume purchased.

See BAT2

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT525 - 25 x BAT5.

25 x 3Volt CR2032 Lithium coin cell batteries, the price is reduced with the volume purchased.

See BAT5

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

BAT640 - 40 x BAT6.

40 x 1.5Volt quality alkaline AA size batteries, the price is reduced with the volume purchased.

See BAT6

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

142012 Aritech Sensor for Inertia Transmitters

The 142012 sensor can be used in addition to or as a replacement, with any of the Inertia transmitters supplied by us. Ideally 1 sensor per transmitter, however usually 2 sensors can be used provided both sensors are located on similar materials in both density and size, Contact Technical Support at FM Electronics on 01594 827070 to check suitability.

Part numbers of transmitters which have used this sensor include: 4155, 4655, TMA, and TMA-HP.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

Find a part by description.

Do you require an aerial

To add to the 4000 series intruder alarm system?

To add to the 8000 series intruder alarm system?

To replace an original antenna?


Fm electronics product information product finder

Find a part by description.

Will the antenna be

Fitted directly onto the transmitter or receiver?

Used away from the transmitter or receiver?


Fm electronics product information product finder

Find a part by description.

Is the BNC socket for the aerial

On the side of the transmitter or receiver?

On the top of the transmitter or receiver?


Fm electronics product information product finder

Find a part by description.

Is the system a Class 3 (Local Audible Only)or Class 6 (Police Response) system

Class 3 system (local Audible Only)

Class 6 system (Police response)


Fm electronics product information product finder

Find a part by description.

Is the aerial to be used with

A 4000 series Class 3 system (local Audible Only)

A 40000 series Class 6 system (Police response)

An 8000 series control panel


Fm electronics product information product finder

Find a part by description.

Is the aerial to be used an

external antenna which will receive a signal from any direction (Omnidirectional)

external antenna which will receive a signal from one direction only (Directional)


Fm electronics product information product finder

Find a part by description.

Is the detector to be used as

Part of an FM4000 System

Part of an FM8000 System


Fm electronics product information product finder

Find a part by description.

Is the detector to be used

Internally (we only have one option)

Externally


Fm electronics product information product finder

Find a part by description.

Which detection pattern do you require?

10 Metre 90 degree Horizontal Curtain

12 Metre 90 degree General Purpose Pattern

35 Metre corridor beam


Fm electronics product information product finder

Find a part by description.

Is the detector to be used

As part of a Class 3 system (Audible only)

As part of a Class 6 system (Police Response


Fm electronics product information product finder

Find a part by description.

Is the detector to be used

Internally

Externally


Fm electronics product information product finder

Find a part by description.

A detector should not be used externally with a Class 6 system, particularly where the system is connected to a central station for Police response. Contact Technical Support at FM Electronics on 01594 827070 for more information.

Back to find product by description

Back to the main menu


Fm electronics product information product finder

4193 Corridor PIR

Dimensions 80mm wide x 160mm tall x 58mm deep approx. (excluding Antenna)

30 metre corridor pir.

Suggested mounting height = 2.2 metres, maximum mounting height = 2.5 metres. Note if this unit is mounted too high, the maximum detection range will not be achieved.

Powered by 1 PP3 battery, our part number BAT2

Battery should be changed annually.

Maximum radio range 500 metres in ideal conditions, the actual working achieved will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

4190 General Purpose PIR

Dimensions 80mm wide x 160mm tall x 58mm deep approx. (excluding Antenna)

12 metre 90 degree general purpose pir

Suggested mounting height = 2.2 metres, maximum mounting height = 2.5 metres. Note if this unit is mounted too high, it may be possible to walk through without being detected.

Powered by 1 PP3 battery, our part number BAT2

Battery should be changed annually.

Maximum radio range 500 metres in ideal conditions, the actual working achieved will vary from site to site and should be checked at each installation.

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

Find a part by description.

Is the detector to be used

Internally

Externally


Fm electronics product information product finder

Find a part by description.

Which detection pattern would you prefer?

12 Metre 90 Degree general purpose

30 Metre Corridor


Fm electronics product information product finder

4100-GB General Purpose PIR

Dimensions 63mm wide x 110mm tall x 60mm deep approx

12 metre 90 degree general purpose pir. This unit has 3 pulse count selection options, with a choice of single, 2 or 4 pulses required to generate an alarm condition.

Ideal mounting height = 2.2 metres (max.= 2.5 metres.)

2 interchangable lenses are available for this unit. (see LENSPACK below)

Powered by 2 AA batteries, our part number BAT6

Batteries should be changed annually.

LENSPACK

Exit to main menu

Exit to previous slide


Fm electronics product information product finder

Find a part by description.

Do you require a battery for

A Control Panel, repeater or test receiver ?

A Three button remote control (4173-GB)?

A Pendant transmitter (PEN 173)?

Any other device not listed above?


Fm electronics product information product finder

Find a part by description.

Which item do you require a battery for

FM4000E

FM4000

FM4000X

FM4001

FM8000

FM8016

SP311 (receiver for Ramtech)

RP2 Repeater

FSM Test Receiver

None of these?


Fm electronics product information product finder

Find a part by description.

Which item do you require a battery for

4100-GB

4150-GB

4155

4180

4160-GB

4190

4193

4600-GB

125-HP

4650-GB

4655

4660-GB

125-B

145-B

10GP

TPHP

115H-HPWP

125-HPWP

145-HPWP

NONE OF THESE?

TPHP

TR4-HP


Fm electronics product information product finder

Find a part by description.

For Transmitters not previously listed, as a general rule if the part number has -GB after it the unit will require a BAT6, all other items a BAT2 will most probably be required.

BAT2

BAT6


Fm electronics product information product finder

Find a part by description.

Other control panels not previously listed.

C5 Five zone control panel (1986-1991 approx..)

C6 Six zone control panel (1985 - 1990 approx)

Back to Find Part by Description Menu

For all others contact Technical Support at FM Electronics on 01594 827070.


Fm electronics product information product finder

Find a part by description.

This panel requires a 12 Volt 3 Ampere hour back up battery, we no longer stock this battery, however the a BAT2 can be used but the standby time will be reduced to approximately 14 hours (from 20 hours)

Back to Find Part by Description Menu

Link to BAT1

Exit to Main Menu


Fm electronics product information product finder

Find a part by description.

This panel requires a 12V 1.2 Ampere hour battery no longer stocked by FM Electronics. Usually stocked by most security equipment distributors

Contact Technical Support at FM Electronics on 01594 827070 for further assistance.

Back to Find Part by Description Menu

Back to Main Menu


Fm electronics product information product finder

Find a part by description.

Do you require a keypad for the

FM4000E

FM4000

FM4000X

FM8000

Back to Find Part by Description Menu

Exit to main menu

Note: Our keypads are only compatible with our panels.


Fm electronics product information product finder

Find a part by description.

Do you require a Contact / Transmitter for

An existing 4000 system?

An existing 8000 system?

A new system?

Back to Find Part by Description Menu

Exit to main menu


Fm electronics product information product finder

Find a part by description.

Is the system a

Class 3 system?

Class 6 system?

Back to Find Part by Description Menu

Exit to main menu


Fm electronics product information product finder

Find a part by description.

Do you require a

Class 3 product with up to 100 metre working range?

Class 6 product with up to 100 metre working range?

Class 3 product with up to 500 metre working range?

Back to Find Part by Description Menu

Exit to main menu


Fm electronics product information product finder

Find a part by description.

Do you require

An interface to use radio devices into a wired panel?

A plug in receiver sounder?

A test receiver?

Back to Find Part by Description Menu

Exit to main menu


Fm electronics product information product finder

Find a part by description.

Do you require

A single zone for use with a panic button or similar?

Up to 6 zones + Tamper & Battery monitoring?

More than 6 zones?

Back to Find Part by Description Menu

Exit to main menu


Fm electronics product information product finder

Find a part by description.

You may be able to use more than 1 six zone receiver to get the required number of zones, contact Technical Support at FM Electronics on 01594 827070 for advice.

Link to 6 zones + Tamper & Battery monitoring unit?

Back to Find Part by Description Menu

Exit to main menu


Fm electronics product information product finder

Find a part by description.

Do you require a

Relay to use a logic level output (like a digi output on the 4000 control panel) to switch up to 28volts 1 amp?

Timer which will time between 2 & 30 minutes and switch up to 1000 watts at 240Volts AC?

Back to Find Part by Description Menu

Exit to main menu


  • Login
