  1. Connecting the WLC to the LAN

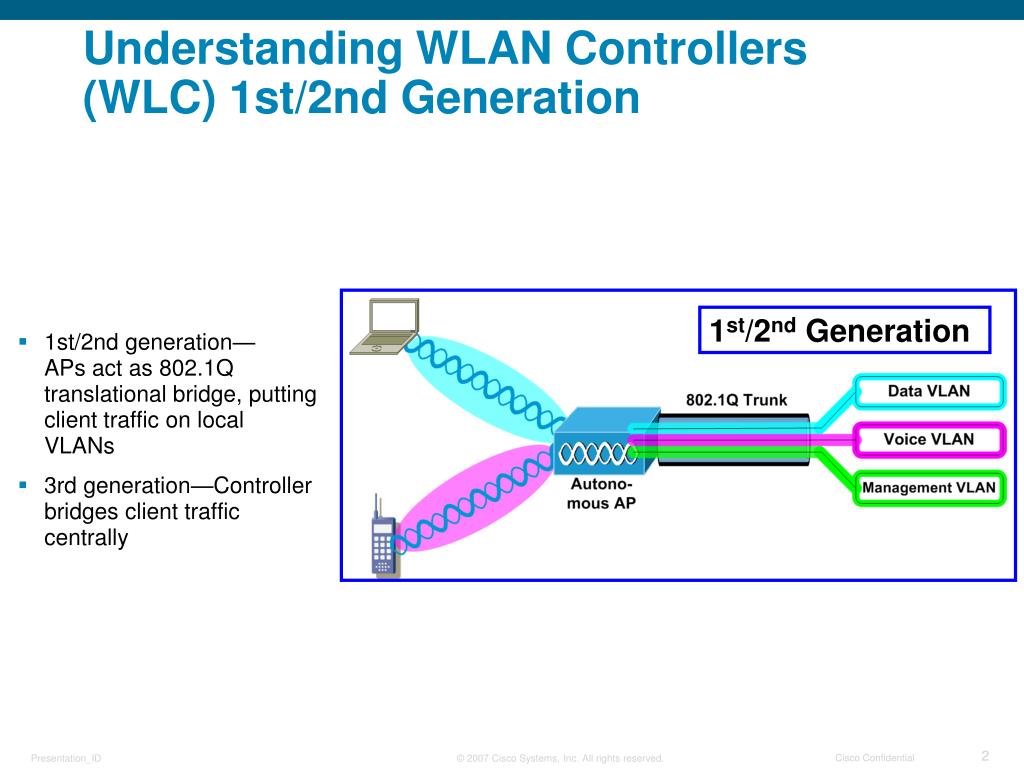

  2. Understanding WLAN Controllers(WLC) 1st/2nd Generation • 1st/2nd generation—APs act as 802.1Q translational bridge, putting client traffic on local VLANs • 3rd generation—Controller bridges client traffic centrally 1st/2nd Generation

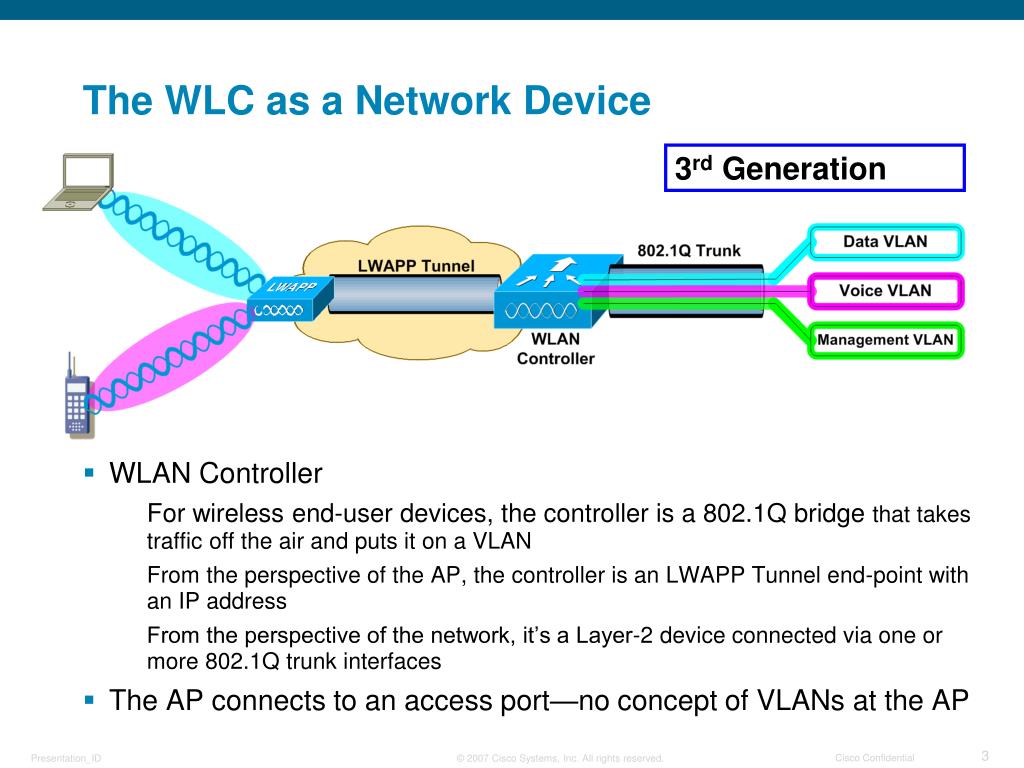

  3. The WLC as a Network Device 3rd Generation • WLAN Controller • For wireless end-user devices, the controller is a 802.1Q bridge that takes traffic off the air and puts it on a VLAN • From the perspective of the AP, the controller is an LWAPP Tunnel end-point with an IP address • From the perspective of the network, it’s a Layer-2 device connected via one or more 802.1Q trunk interfaces • The AP connects to an access port—no concept of VLANs at the AP

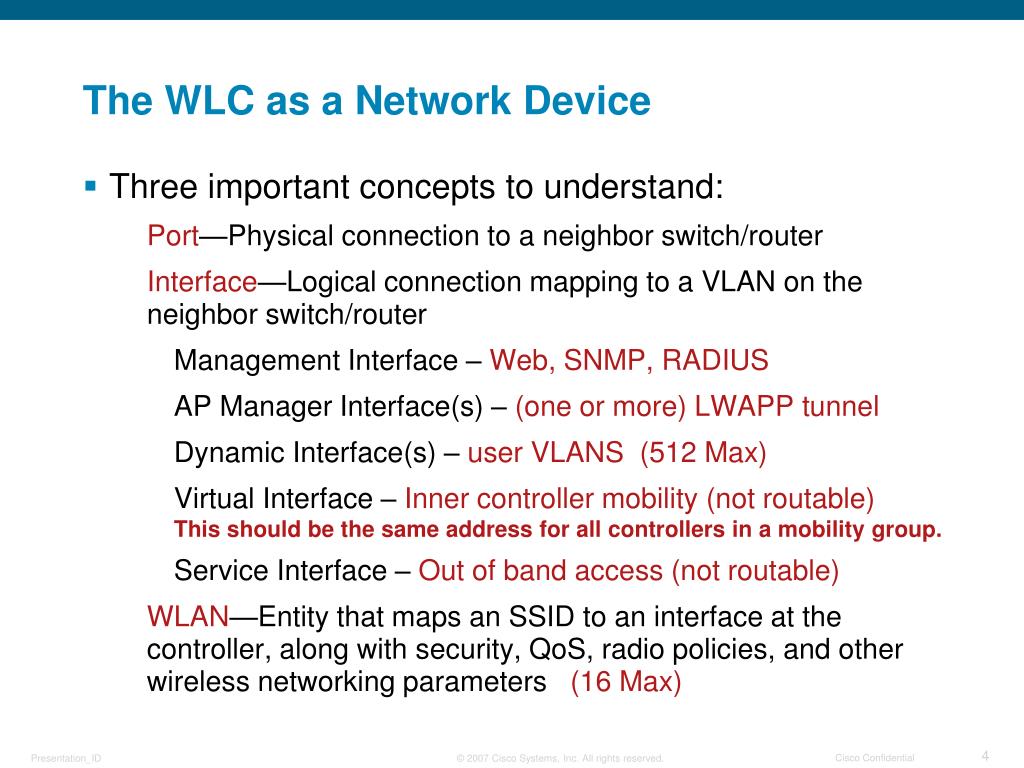

  4. The WLC as a Network Device • Three important concepts to understand: • Port—Physical connection to a neighbor switch/router • Interface—Logical connection mapping to a VLAN on the neighbor switch/router • Management Interface – Web, SNMP, RADIUS • AP Manager Interface(s) – (one or more) LWAPP tunnel • Dynamic Interface(s) – user VLANS (512 Max) • Virtual Interface – Inner controller mobility (not routable) • This should be the same addressfor all controllers in a mobility group. • Service Interface – Out of band access (not routable) • WLAN—Entity that maps an SSID to an interface at the controller, along with security, QoS, radio policies, and other wireless networking parameters (16 Max)

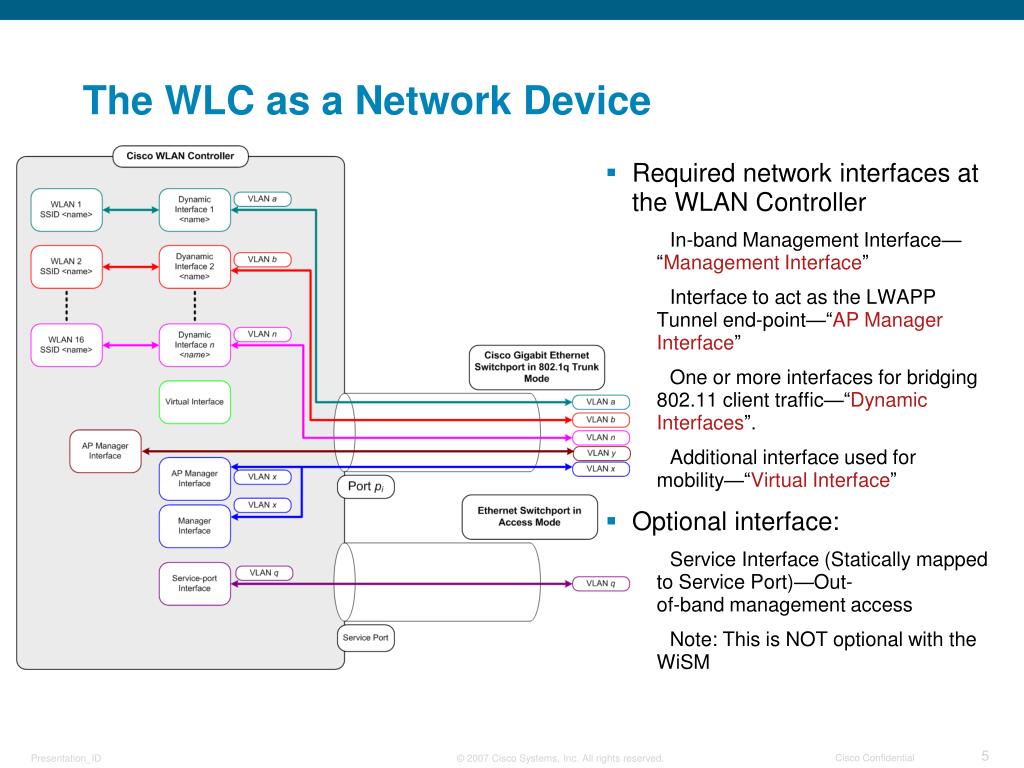

  5. The WLC as a Network Device • Required network interfaces at the WLAN Controller • In-band Management Interface—“Management Interface” • Interface to act as the LWAPP Tunnel end-point—“AP Manager Interface” • One or more interfaces for bridging 802.11 client traffic—“Dynamic Interfaces”. • Additional interface used for mobility—“Virtual Interface” • Optional interface: • Service Interface (Statically mapped to Service Port)—Out-of-band management access • Note: This is NOT optional with the WiSM

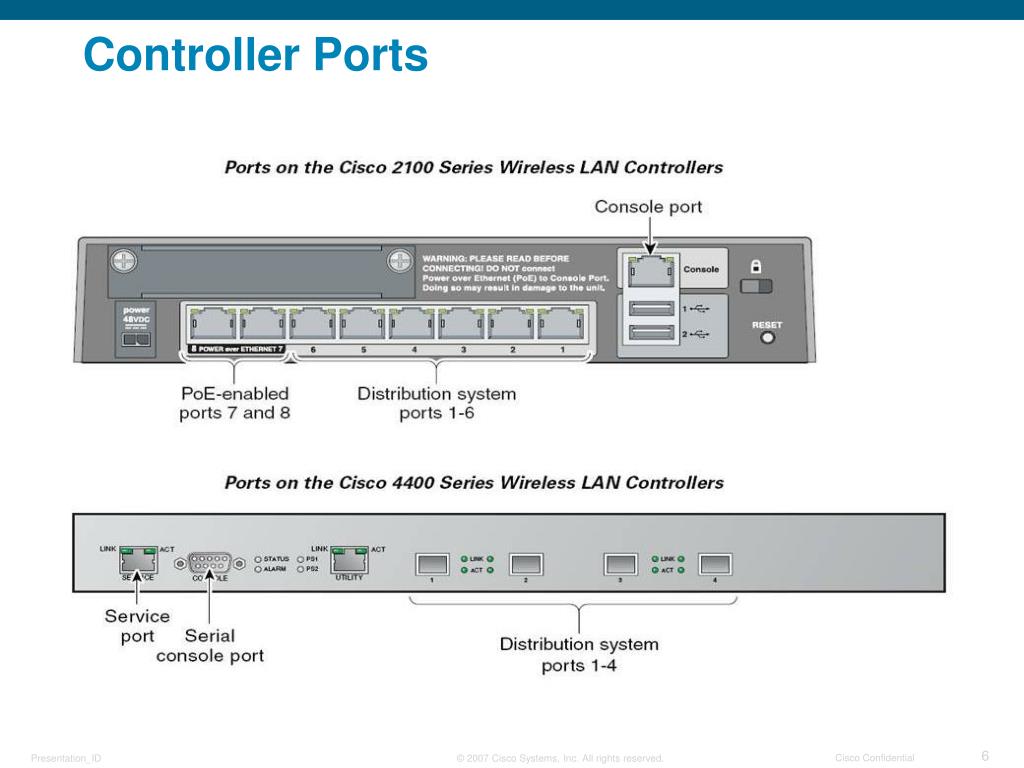

  6. Controller Ports

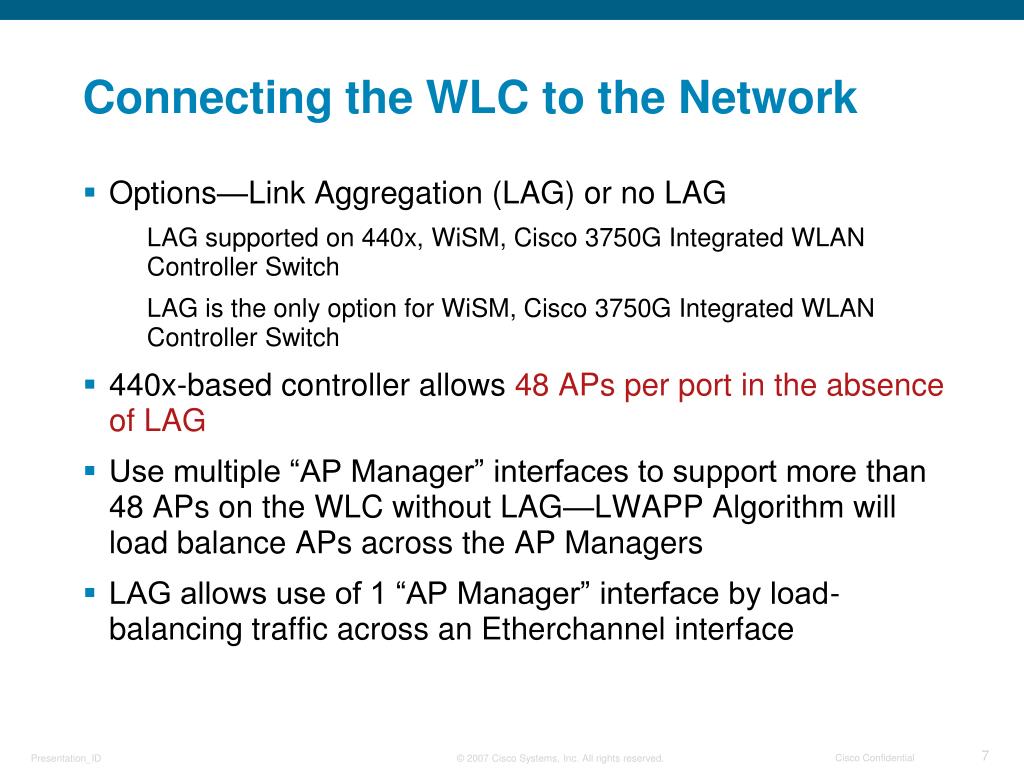

  7. Connecting the WLC to the Network • Options—Link Aggregation (LAG) or no LAG • LAG supported on 440x, WiSM, Cisco 3750G Integrated WLAN Controller Switch • LAG is the only option for WiSM, Cisco 3750G Integrated WLAN Controller Switch • 440x-based controller allows 48 APs per port in the absence of LAG • Use multiple “AP Manager” interfaces to support more than 48 APs on the WLC without LAG—LWAPP Algorithm will load balance APs across the AP Managers • LAG allows use of 1 “AP Manager” interface by load-balancing traffic across an Etherchannel interface

  8. Multiple AP Manager Interfaces

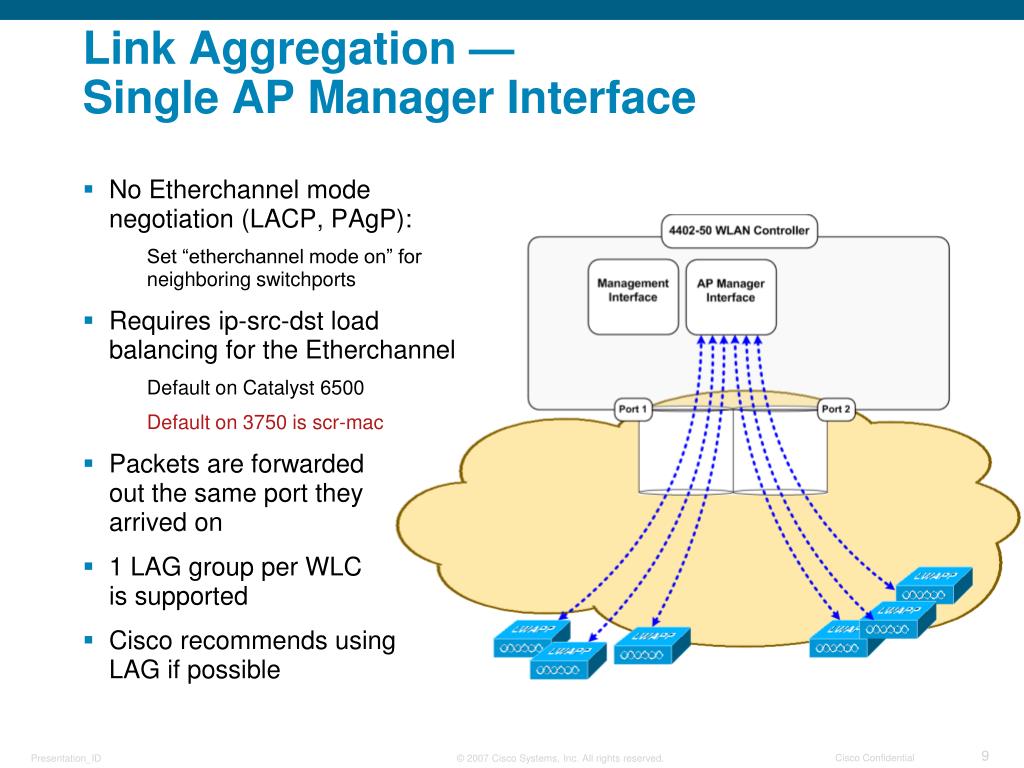

  9. Link Aggregation —Single AP Manager Interface • No Etherchannel mode negotiation (LACP, PAgP): • Set “etherchannel mode on” for neighboring switchports • Requires ip-src-dst load balancing for the Etherchannel • Default on Catalyst 6500 • Default on 3750 is scr-mac • Packets are forwarded out the same port they arrived on • 1 LAG group per WLC is supported • Cisco recommends using LAG if possible

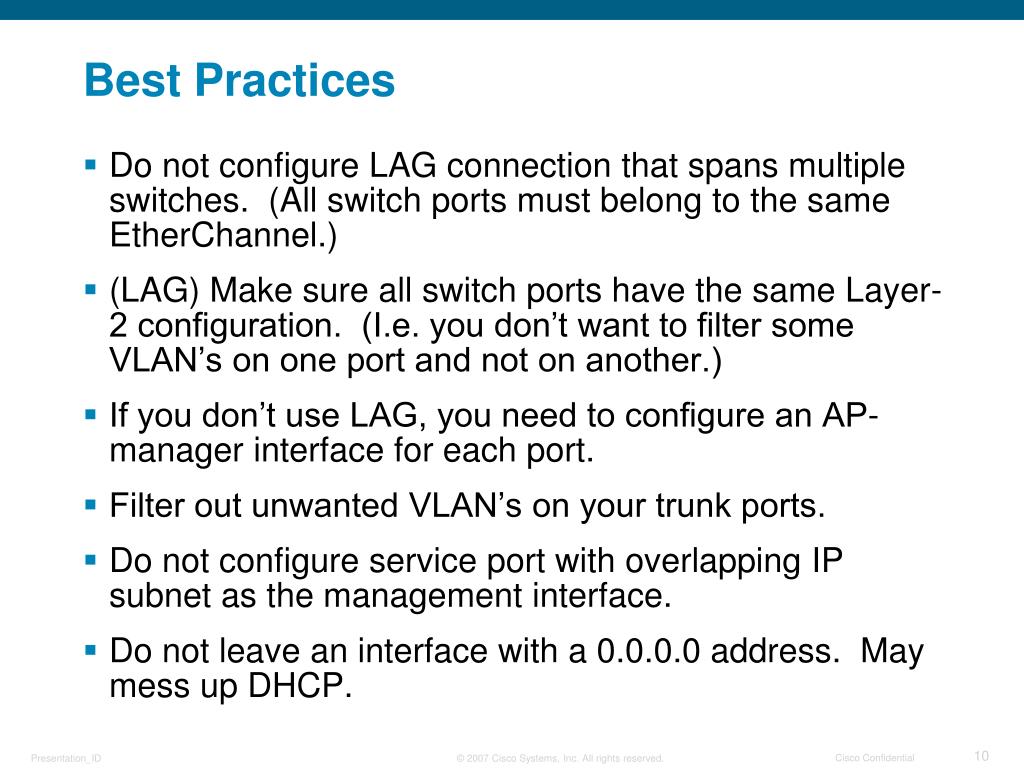

  10. Best Practices • Do not configure LAG connection that spans multiple switches. (All switch ports must belong to the same EtherChannel.) • (LAG) Make sure all switch ports have the same Layer-2 configuration. (I.e. you don’t want to filter some VLAN’s on one port and not on another.) • If you don’t use LAG, you need to configure an AP-manager interface for each port. • Filter out unwanted VLAN’s on your trunk ports. • Do not configure service port with overlapping IP subnet as the management interface. • Do not leave an interface with a 0.0.0.0 address. May mess up DHCP.
