Brownian Motion and Diffusion Equations

Brownian Motion and Diffusion Equations. History of Brownian Motion. Discovered by Robert Brown, 1827 Found that small particles suspended in liquid moved about randomly Guoy discovered that particle motion was caused collisions of molecules

liam
Download Presentation

Brownian Motion and Diffusion Equations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

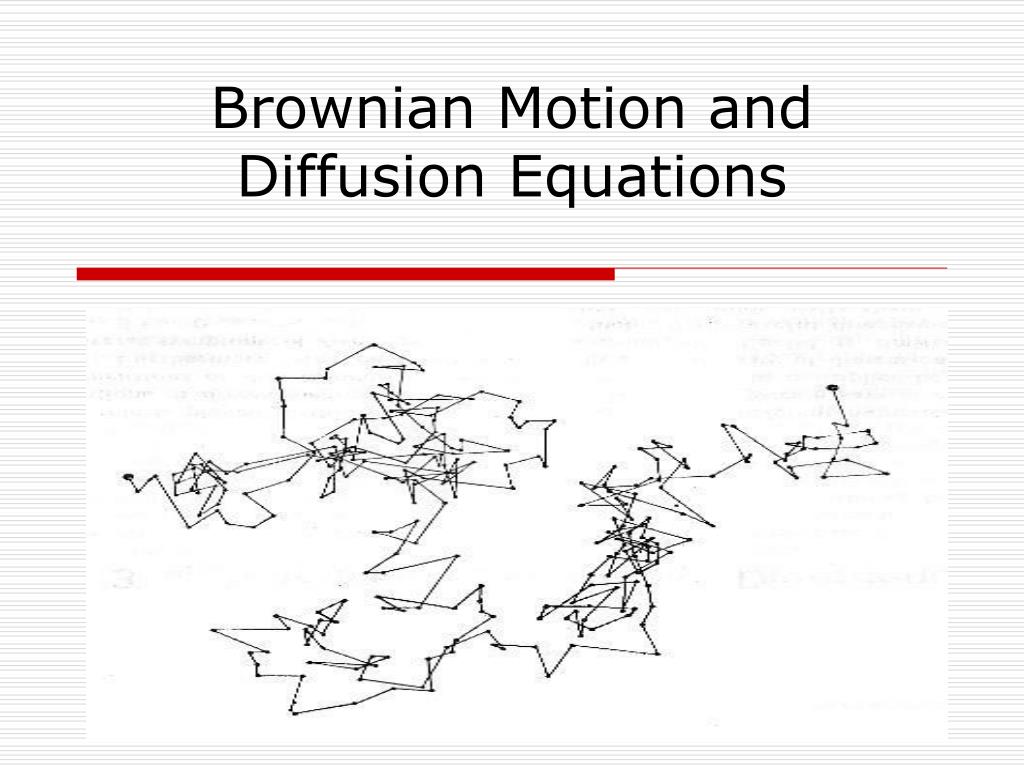

  1. Brownian Motion and Diffusion Equations

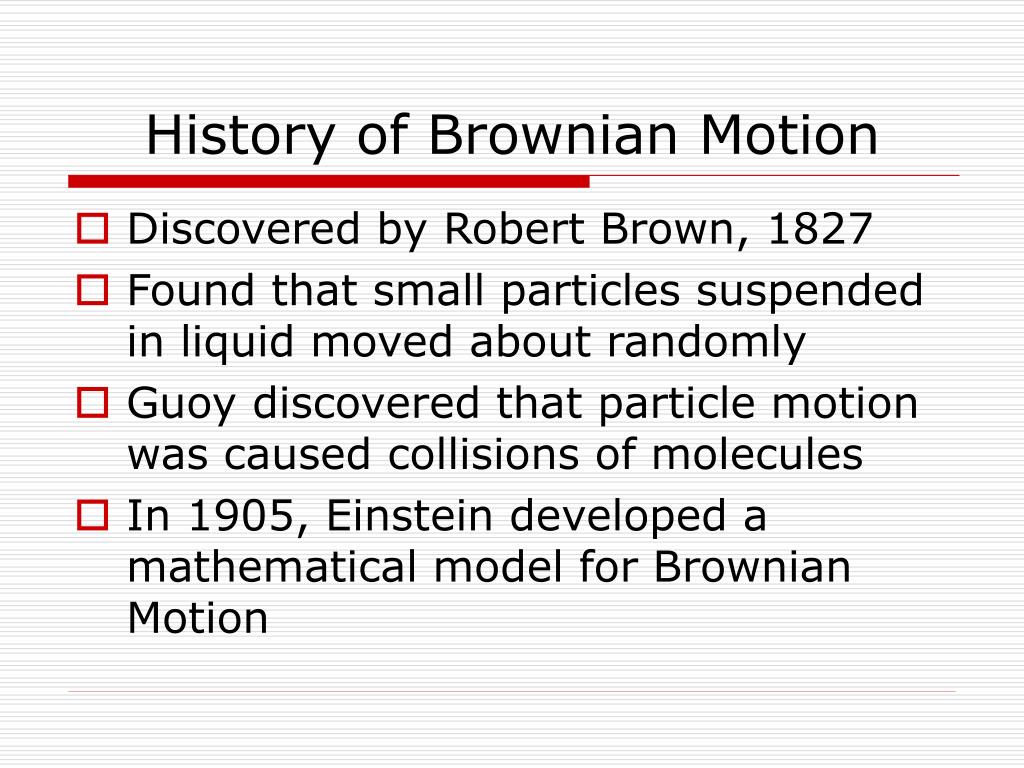

  2. History of Brownian Motion • Discovered by Robert Brown, 1827 • Found that small particles suspended in liquid moved about randomly • Guoy discovered that particle motion was caused collisions of molecules • In 1905, Einstein developed a mathematical model for Brownian Motion

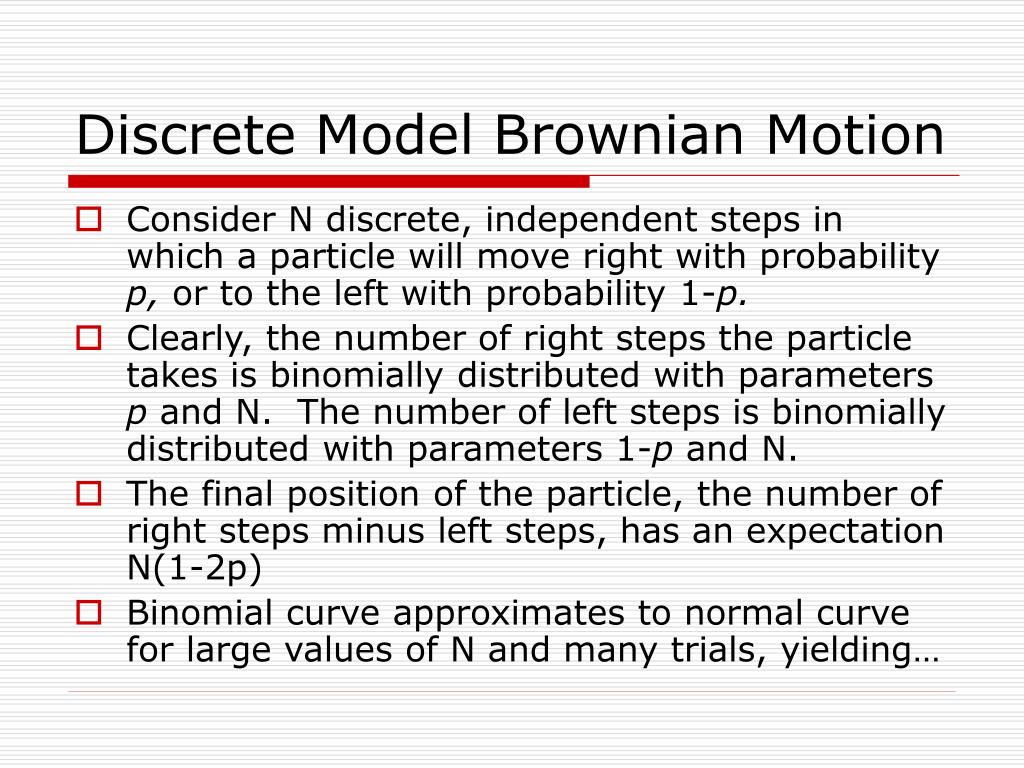

  3. Discrete Model Brownian Motion • Consider N discrete, independent steps in which a particle will move right with probability p, or to the left with probability 1-p. • Clearly, the number of right steps the particle takes is binomially distributed with parameters p and N. The number of left steps is binomially distributed with parameters 1-p and N. • The final position of the particle, the number of right steps minus left steps, has an expectation N(1-2p) • Binomial curve approximates to normal curve for large values of N and many trials, yielding…

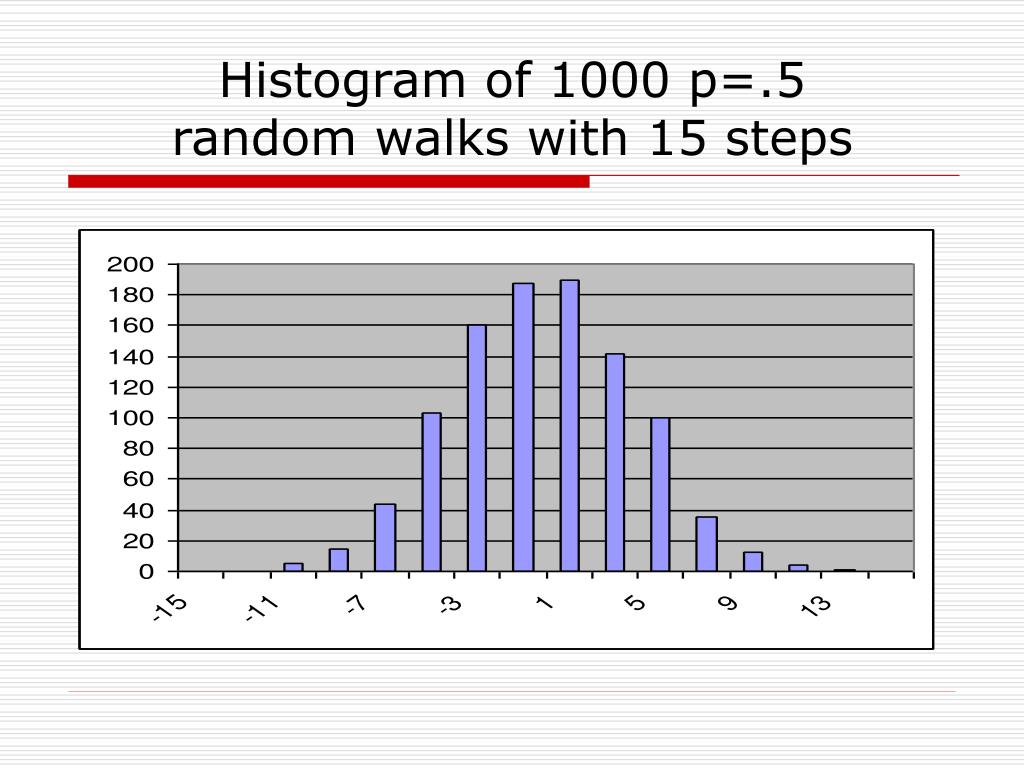

  4. Histogram of 1000 p=.5 random walks with 15 steps

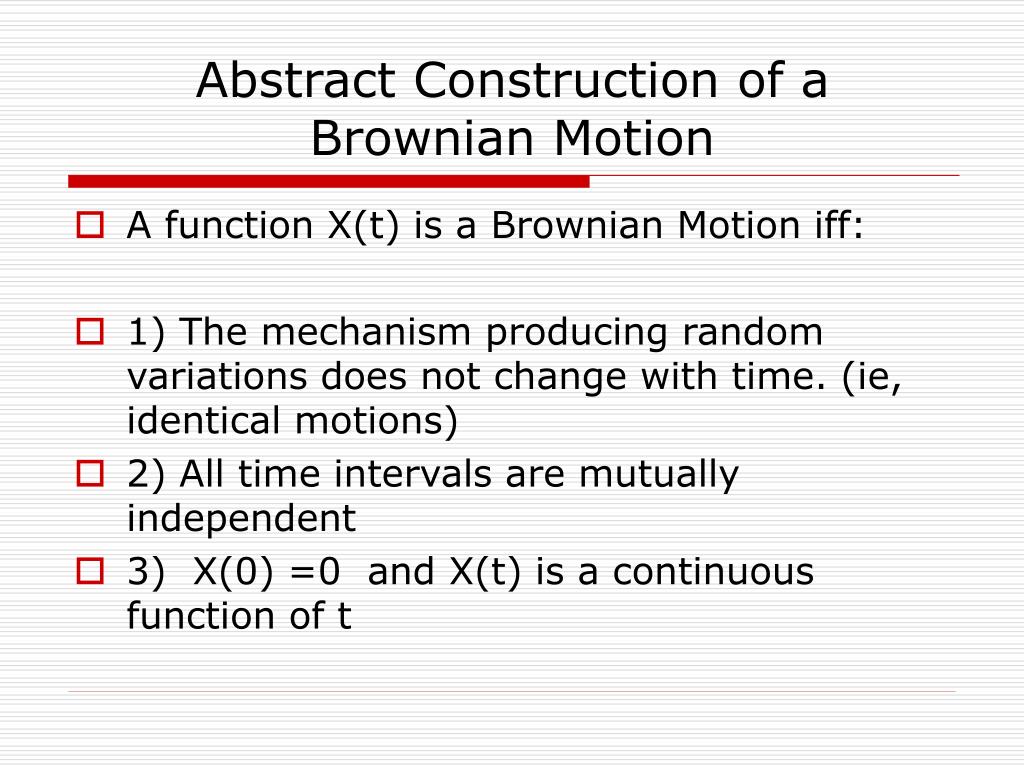

  5. Abstract Construction of a Brownian Motion • A function X(t) is a Brownian Motion iff: • 1) The mechanism producing random variations does not change with time. (ie, identical motions) • 2) All time intervals are mutually independent • 3) X(0) =0 and X(t) is a continuous function of t

  6. Questions???
