  1. CFD Modeling and Simulation for the Waller Creek Tunnel/8th St. Lateral Junction Preliminary Results By: Alden Research Laboratory Inc. 30 Shrewsbury St., Holden, MA

  2. CFD Model Geometry

  3. B A Plan View 100’ Transition 103.41’ 50’ Θ = 45o 57.75’ B A 𝜙 = 16’ 𝜙 = 16’ Profile View R = 10.21’ R = 11.175’ 19.1083’ 21.169’ 10 ‘ 10 ‘ Section A-A Section B-B

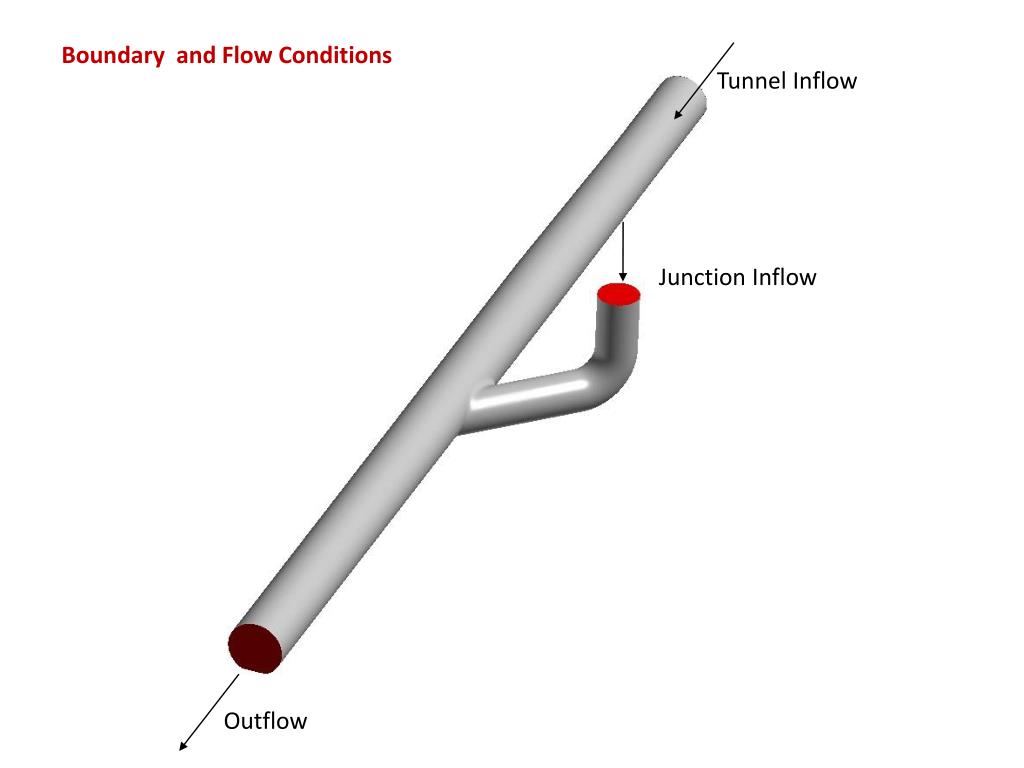

  4. Boundary and Flow Conditions Tunnel Inflow Junction Inflow Outflow

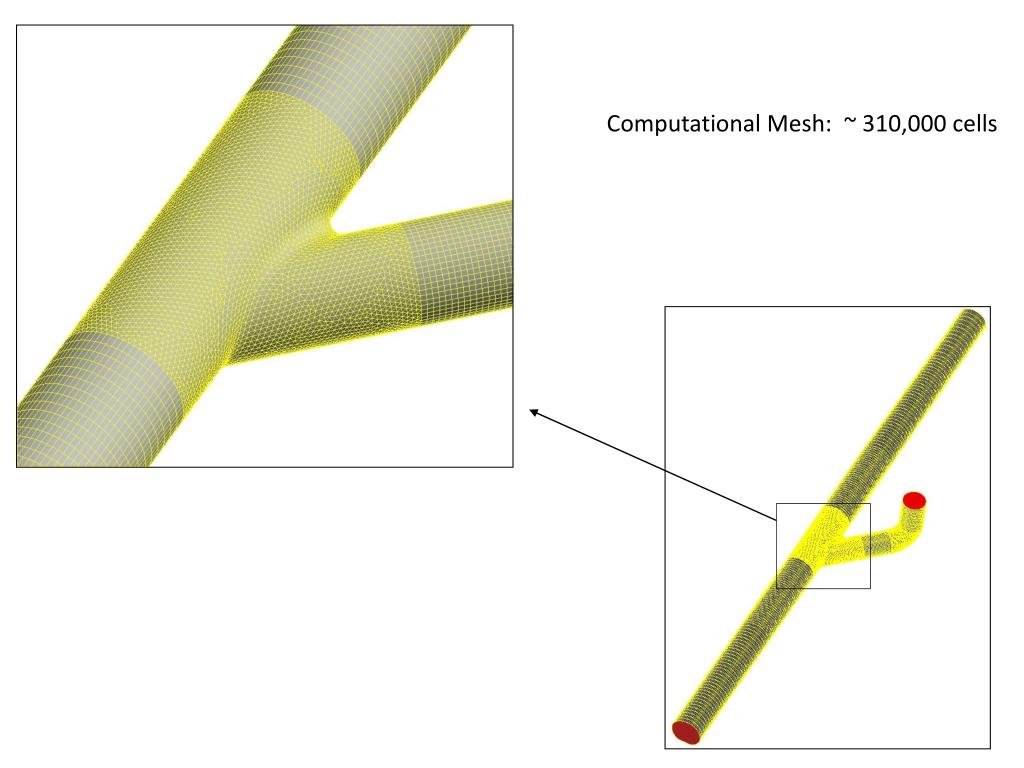

  5. Computational Mesh: ~ 310,000 cells

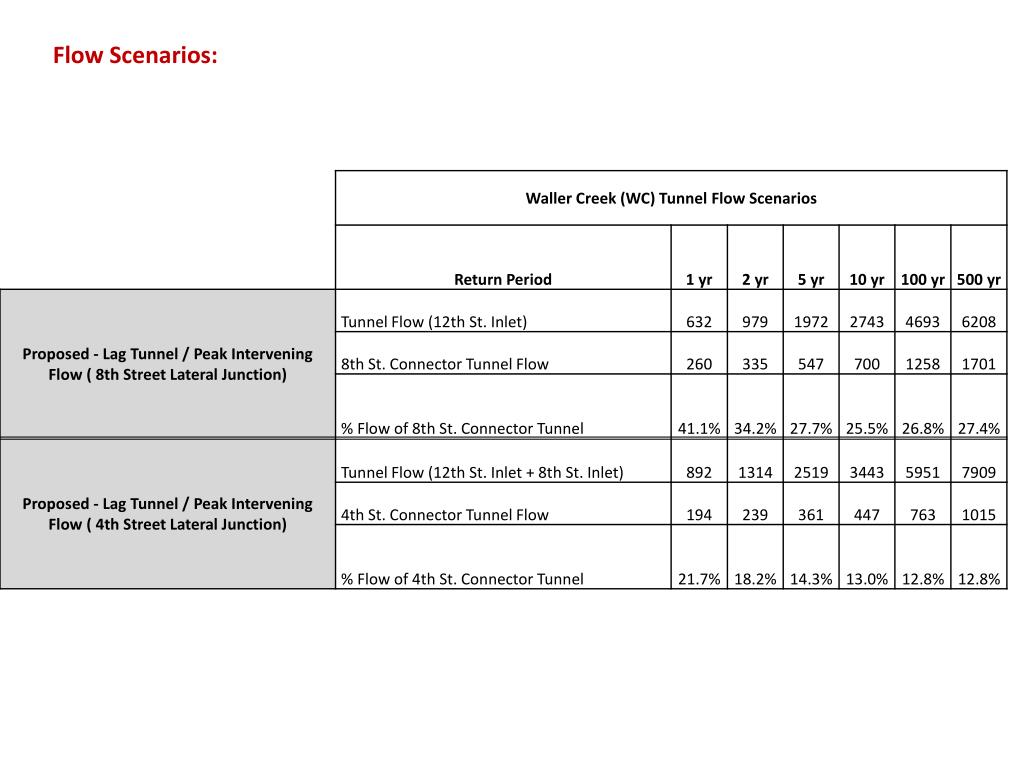

  6. Flow Scenarios:

  7. Lag Tunnel / Peak Intervening Flow ( 8th Street Lateral Junction) 100 Year Return Period (Uniform Inflow at Lateral Junction Inlet)

  8. Lag Tunnel / Peak Intervening Flow ( 8th Street Lateral Junction) 1 Year Return Period (Non-uniform Inflow at Lateral Junction Inlet)

  9. Lag Tunnel / Peak Intervening Flow ( 8th Street Lateral Junction) 1 Year Return Period (Uniform Inflow at Lateral Junction Inlet)
