Automatic-Colony-Counter-LCCA

Automatic Colony Counter LCCA-A10 is equipped with high resolution CCD Camera lens. Incorporated with advanced Smart Counter software for accurate automatic microbial colony counting. Open platform design, bottom LED light source makes it user friendly counter. Encrypted USB-key guarantees data security, and convenient data management.

labtrondigital
Download Presentation

Automatic-Colony-Counter-LCCA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

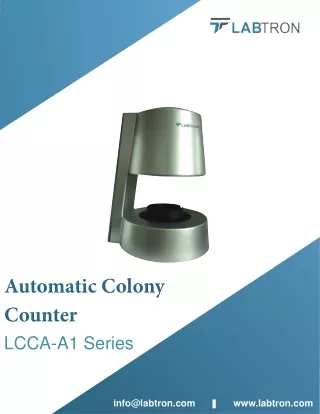

  1. Automatic Colony Counter LCCA-A1 Series info@labtron.com www.labtron.com

  2. Automatic Colony Counter LCCA-A1 Series Automatic C olony C ounter LC C A-A1 Series is equipped with high resolution C C D C amera lens. Incorporated with advanced Smart C ounter software for accurate automatic microbial colony counting. Open platform design, bottom LED light source makes it user friendly counter. Encrypted USB-key guarantees data security, and convenient data management. Features Bottom LED light source High resolution C C D C amera lens Smart counter operational interface Automatic data processing and storage Quick counting of the number of colonies Distinguishes 8 different colored colonies Manual addition and deletion of colonies C an set unwanted (non-countable) area Applications Used in automatic colony counting, reading for quantitative studies, quality and research purpose across microbiology, hospitals, cosmetic, food industries, and pharmaceuticals units. Specifications Model No. LCCA-A10 LCCA-A11 LCCA-A12 Camera CCD Resolution Counting Software Language Colony size resolution > 0.1 mm Colony color recognition Applicable methods Plate type Counting speed Light source True Color high defnition True Color high defnition CCD camera 5,000,000 pixels Smart counter software English True Color high defnition CCD camera 16,000,000 pixels Smart counter software English > 0.1 mm 8 colors CCD camera 10,000,000 pixels Smart counter software English > 0.1 mm 8 colors 8 colors Spread plate, Pour plate, Membrane flter, Spiral plate 300, less than 3 seconds Long life dual LCD light Spread plate, Pour plate, Membrane flter, Spiral plate 300, less than 3 seconds Long life dual LCD light Spread plate, Pour plate, Membrane flter, Spiral plate 300, less than 3 seconds Long life dual LCD light

  3. Working temperature 0 to 50°C Material Size of Petri dish Host Dimension Weight Power Power supply 0 to 50°C ABS plastic 90 mm and 55 mm standard 290 × 260 × 380 mm 3 kg 20 W AC 110 to 220 V, 50 Hz 0 to 50°C ABS plastic 90 mm and 55 mm standard 290 × 260 × 380 mm 3 kg 20 W AC 110 to 220 V, 50 Hz ABS plastic 90 mm and 55 mm standard 290 × 260 × 380 mm 3 kg 20 W AC 110 to 220 V, 50 Hz
