  1. CHAPTER 6 DATABASES AND DATA WAREHOUSES Opening Case Searching for Revenue - Google

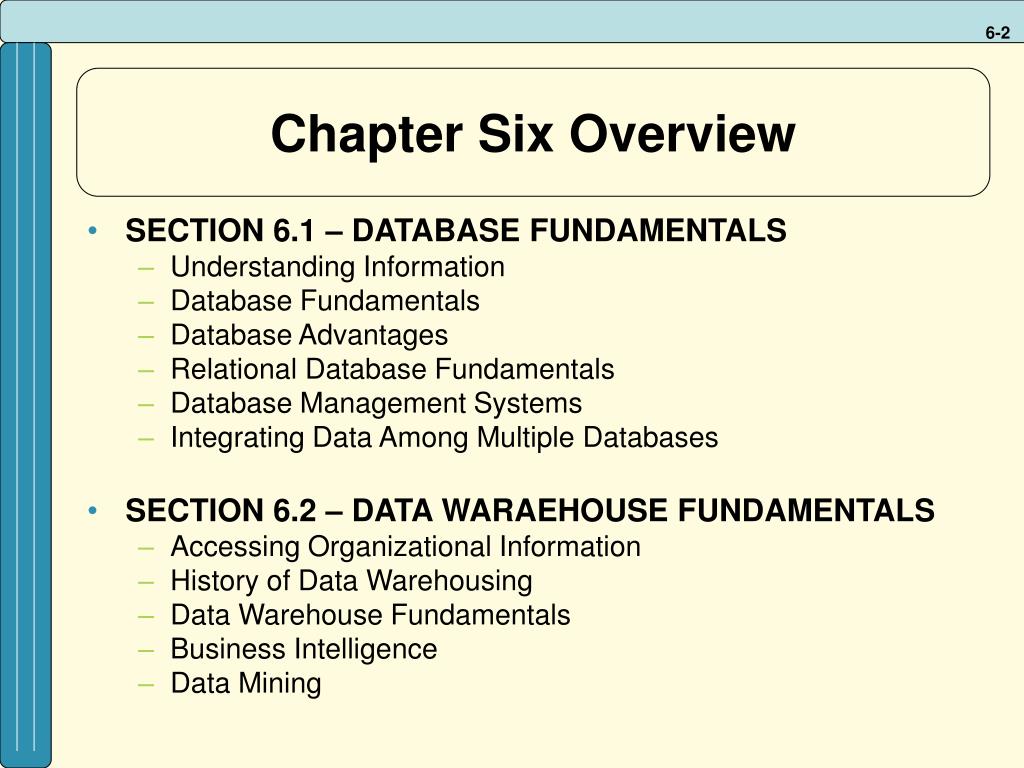

  2. Chapter Six Overview • SECTION 6.1 – DATABASE FUNDAMENTALS • Understanding Information • Database Fundamentals • Database Advantages • Relational Database Fundamentals • Database Management Systems • Integrating Data Among Multiple Databases • SECTION 6.2 – DATA WARAEHOUSE FUNDAMENTALS • Accessing Organizational Information • History of Data Warehousing • Data Warehouse Fundamentals • Business Intelligence • Data Mining

  3. SECTION 6.1 DATABASE FUNDAMENTALS

  4. LEARNING OUTCOMES • List, describe, and provide an example of each of the five characteristics of high quality information • Define the relationship between a database and a database management system • Describe the advantages an organization can gain by using a database.

  5. LEARNING OUTCOMES • Define the fundamental concepts of the relational database model • Describe the role and purpose of a database management system and list the four components of a database management system • Describe the two primary methods for integrating information across multiple databases

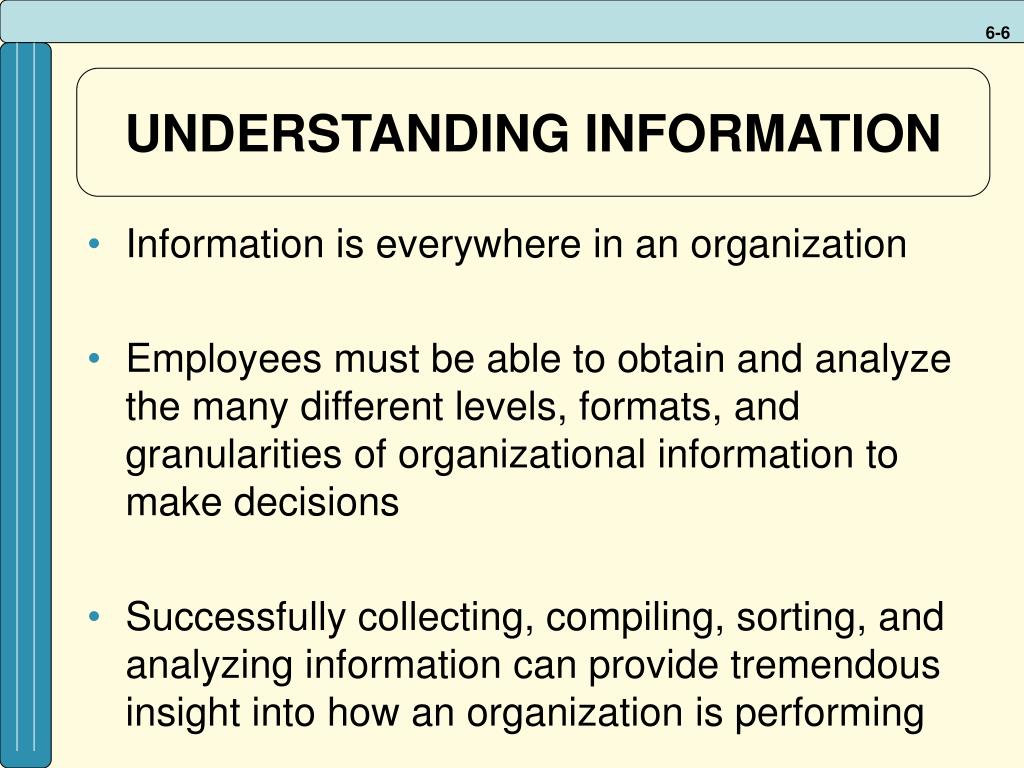

  6. UNDERSTANDING INFORMATION • Information is everywhere in an organization • Employees must be able to obtain and analyze the many different levels, formats, and granularities of organizational information to make decisions • Successfully collecting, compiling, sorting, and analyzing information can provide tremendous insight into how an organization is performing

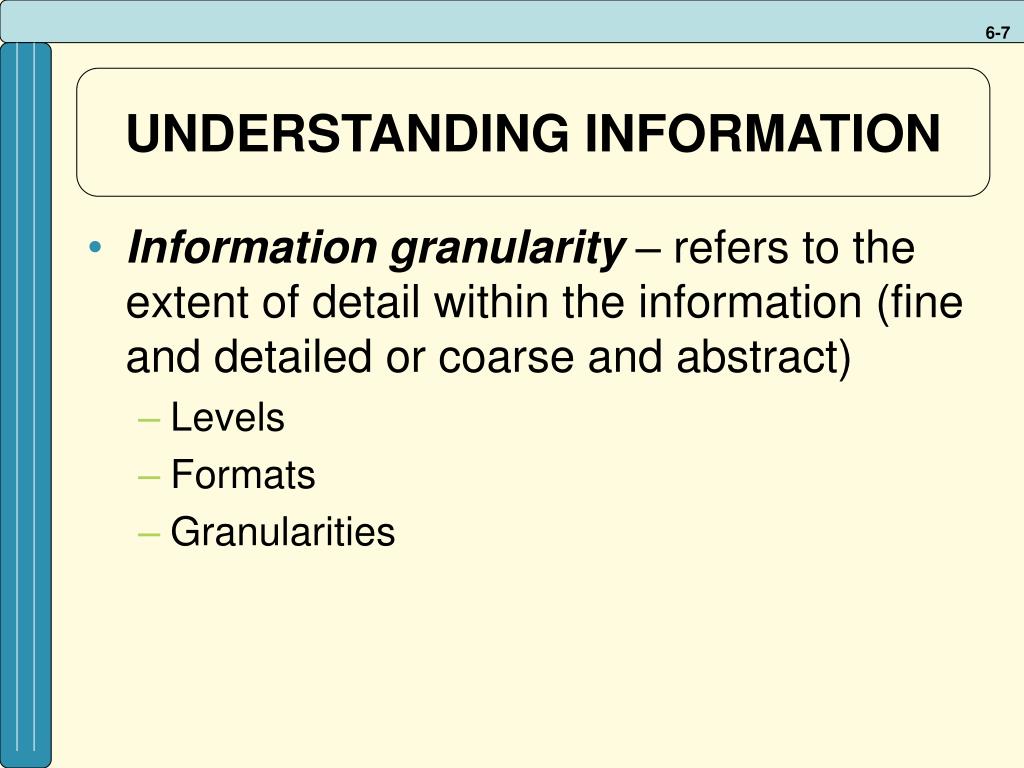

  7. UNDERSTANDING INFORMATION • Information granularity – refers to the extent of detail within the information (fine and detailed or coarse and abstract) • Levels • Formats • Granularities

  8. Information Quality • Business decisions are only as good as the quality of the information used to make the decisions • Characteristics of high quality information include: • Accuracy • Completeness • Consistency • Uniqueness • Timeliness

  9. Information Quality • Low quality information example

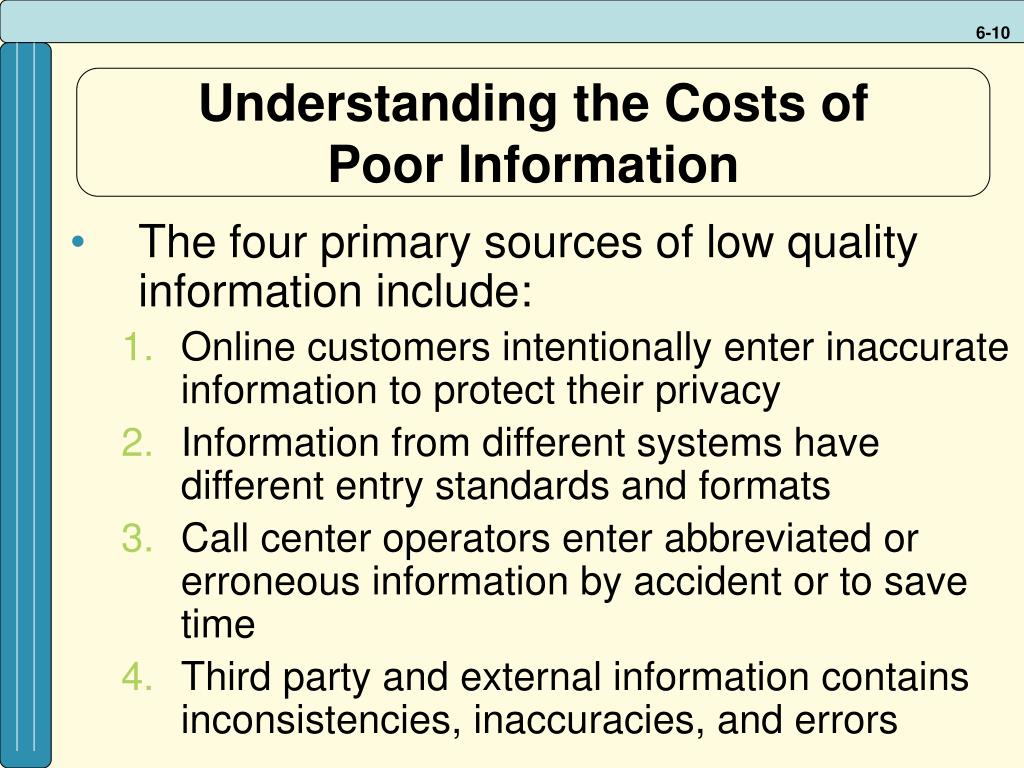

  10. Understanding the Costs of Poor Information • The four primary sources of low quality information include: • Online customers intentionally enter inaccurate information to protect their privacy • Information from different systems have different entry standards and formats • Call center operators enter abbreviated or erroneous information by accident or to save time • Third party and external information contains inconsistencies, inaccuracies, and errors

  11. Understanding the Costs of Poor Information • Potential business effects resulting from low quality information include: • Inability to accurately track customers • Difficulty identifying valuable customers • Inability to identify selling opportunities • Marketing to nonexistent customers • Difficulty tracking revenue due to inaccurate invoices • Inability to build strong customer relationships

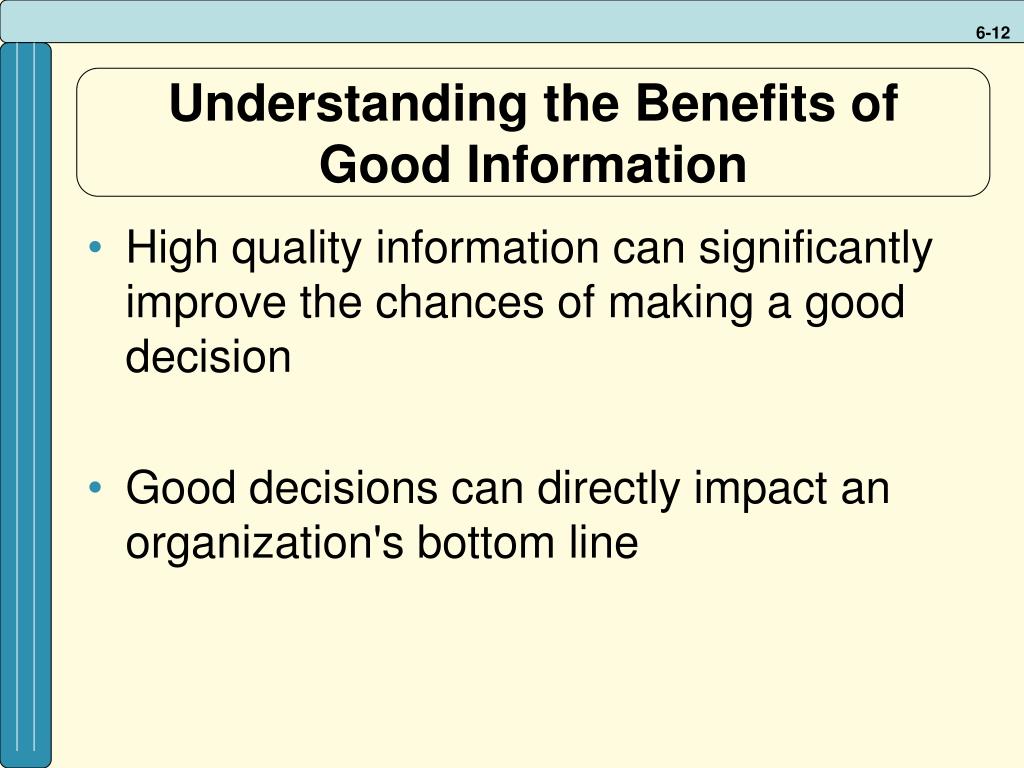

  12. Understanding the Benefits of Good Information • High quality information can significantly improve the chances of making a good decision • Good decisions can directly impact an organization's bottom line

  13. DATABASE FUNDAMENTALS • Information is everywhere in an organization • Information is stored in databases • Database – maintains information about various types of objects (inventory), events (transactions), people (employees), and places (warehouses)

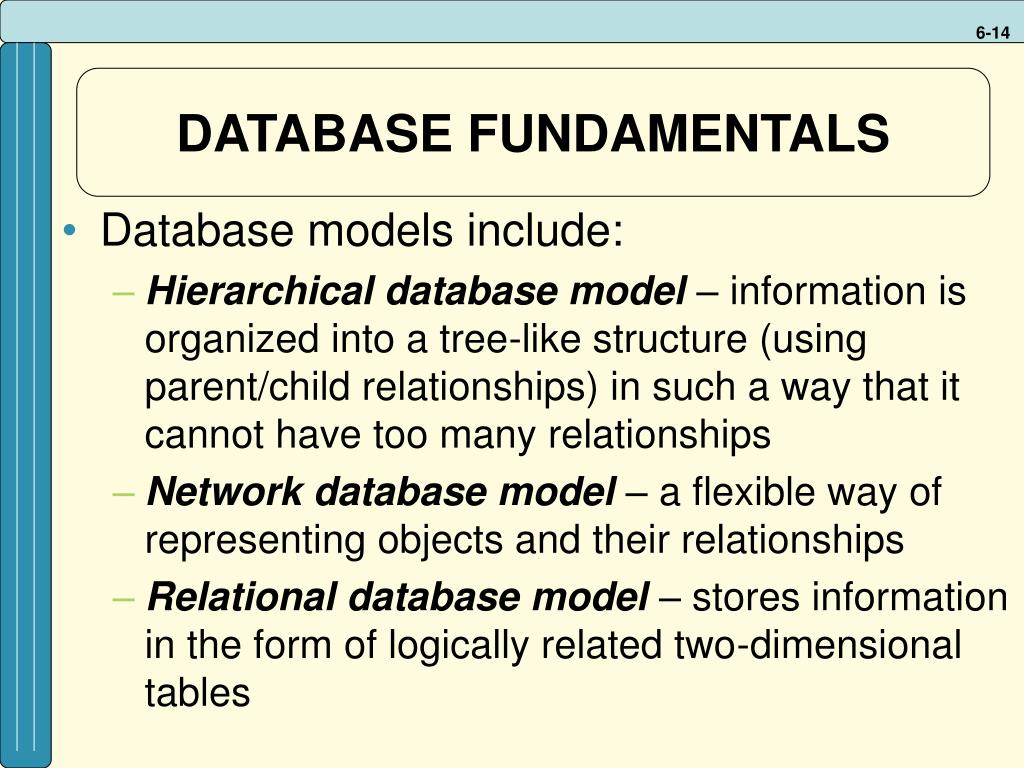

  14. DATABASE FUNDAMENTALS • Database models include: • Hierarchical database model – information is organized into a tree-like structure (using parent/child relationships) in such a way that it cannot have too many relationships • Network database model – a flexible way of representing objects and their relationships • Relational database model – stores information in the form of logically related two-dimensional tables

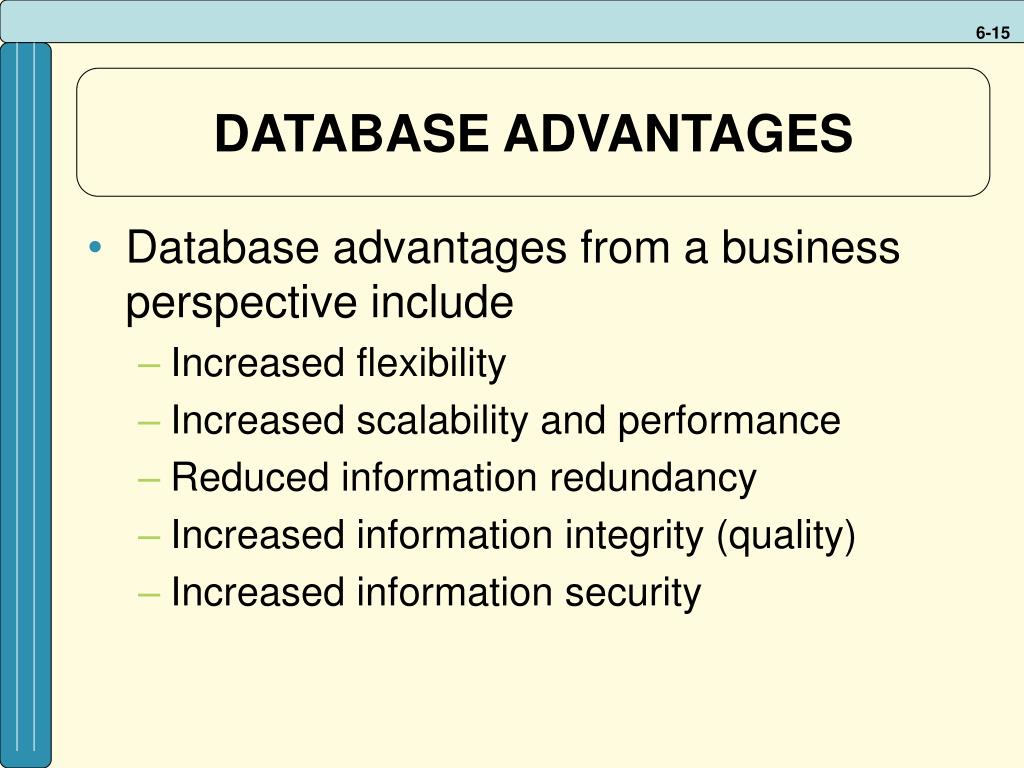

  15. DATABASE ADVANTAGES • Database advantages from a business perspective include • Increased flexibility • Increased scalability and performance • Reduced information redundancy • Increased information integrity (quality) • Increased information security

  16. Increased Flexibility • A well-designed database should: • Handle changes quickly and easily • Provide users with different views • Have only one physical view • Physical view – deals with the physical storage of information on a storage device • Have multiple logical views • Logical view – focuses on how users logically access information

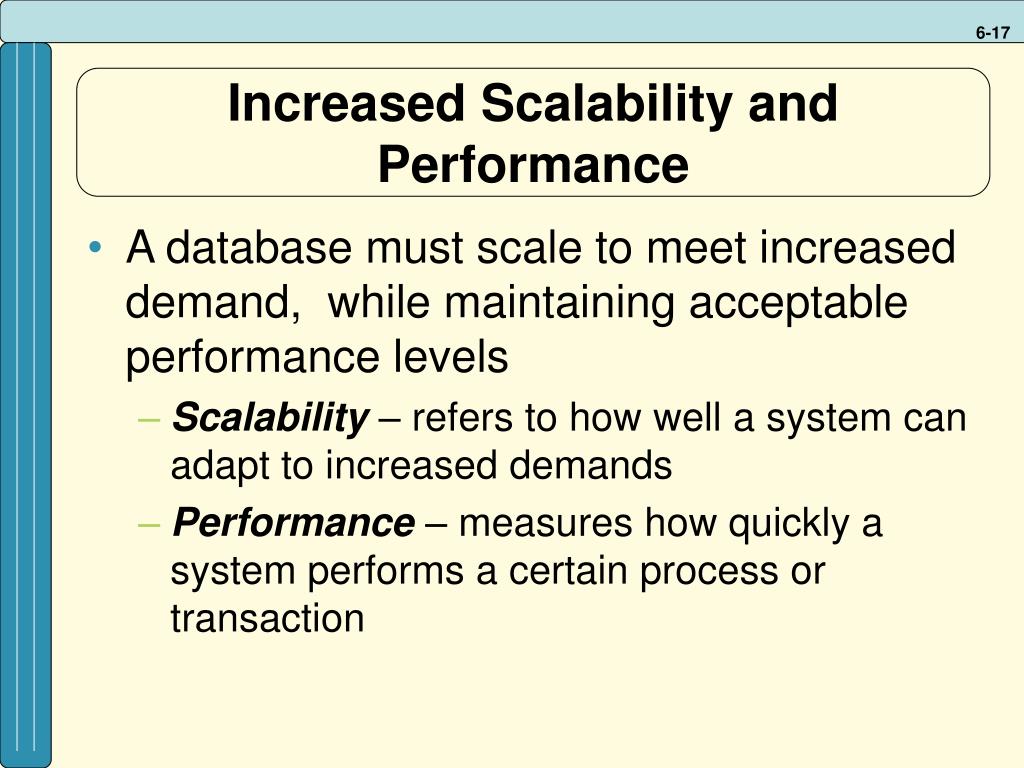

  17. Increased Scalability and Performance • A database must scale to meet increased demand, while maintaining acceptable performance levels • Scalability – refers to how well a system can adapt to increased demands • Performance – measures how quickly a system performs a certain process or transaction

  18. Reduced Redundancy • Databases reduce information redundancy • Redundancy – the duplication of information or storing the same information in multiple places • Inconsistency is one of the primary problems with redundant information

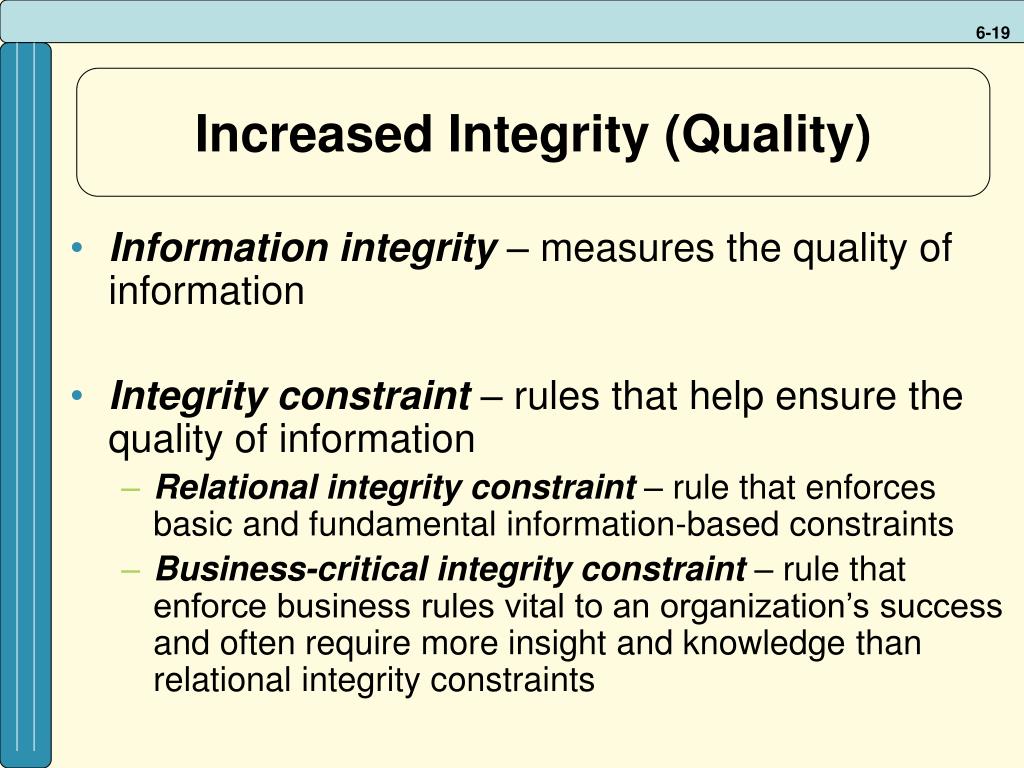

  19. Increased Integrity (Quality) • Information integrity – measures the quality of information • Integrity constraint – rules that help ensure the quality of information • Relational integrity constraint – rule that enforces basic and fundamental information-based constraints • Business-critical integrity constraint – rule that enforce business rules vital to an organization’s success and often require more insight and knowledge than relational integrity constraints

  20. Increased Security • Information is an organizational asset and must be protected • Databases offer several security features including: • Password – provides authentication of the user • Accesslevel – determines who has access to the different types of information • Accesscontrol – determines types of user access, such as read-only access

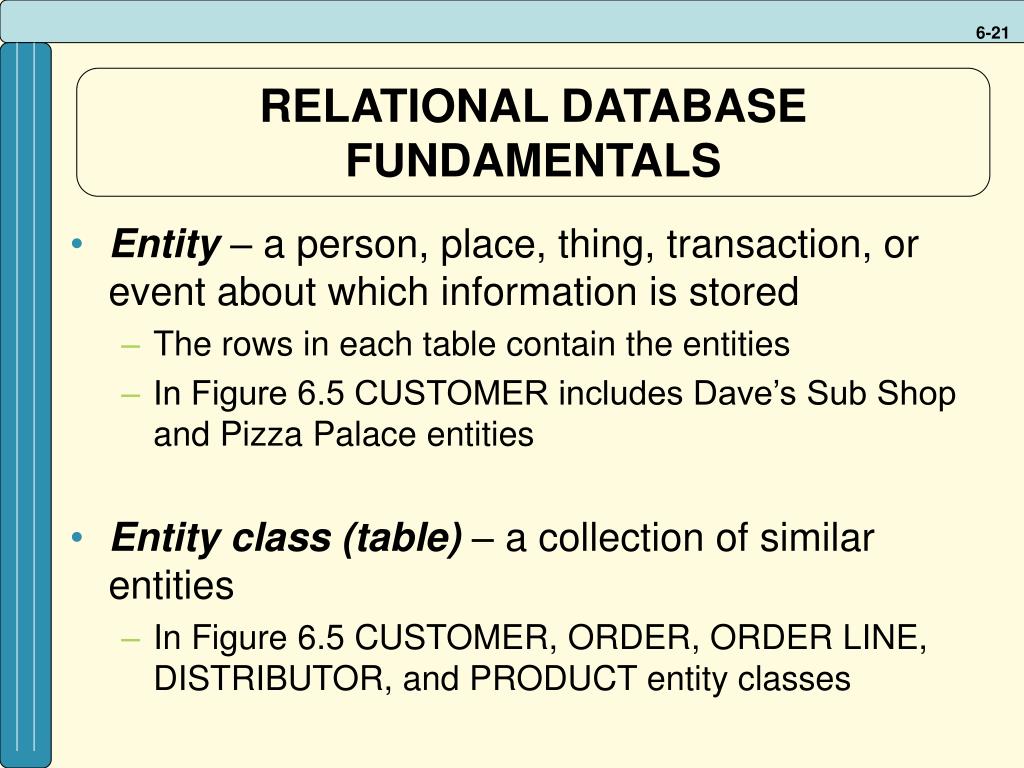

  21. RELATIONAL DATABASE FUNDAMENTALS • Entity – a person, place, thing, transaction, or event about which information is stored • The rows in each table contain the entities • In Figure 6.5 CUSTOMER includes Dave’s Sub Shop and Pizza Palace entities • Entity class (table) – a collection of similar entities • In Figure 6.5 CUSTOMER, ORDER, ORDER LINE, DISTRIBUTOR, and PRODUCT entity classes

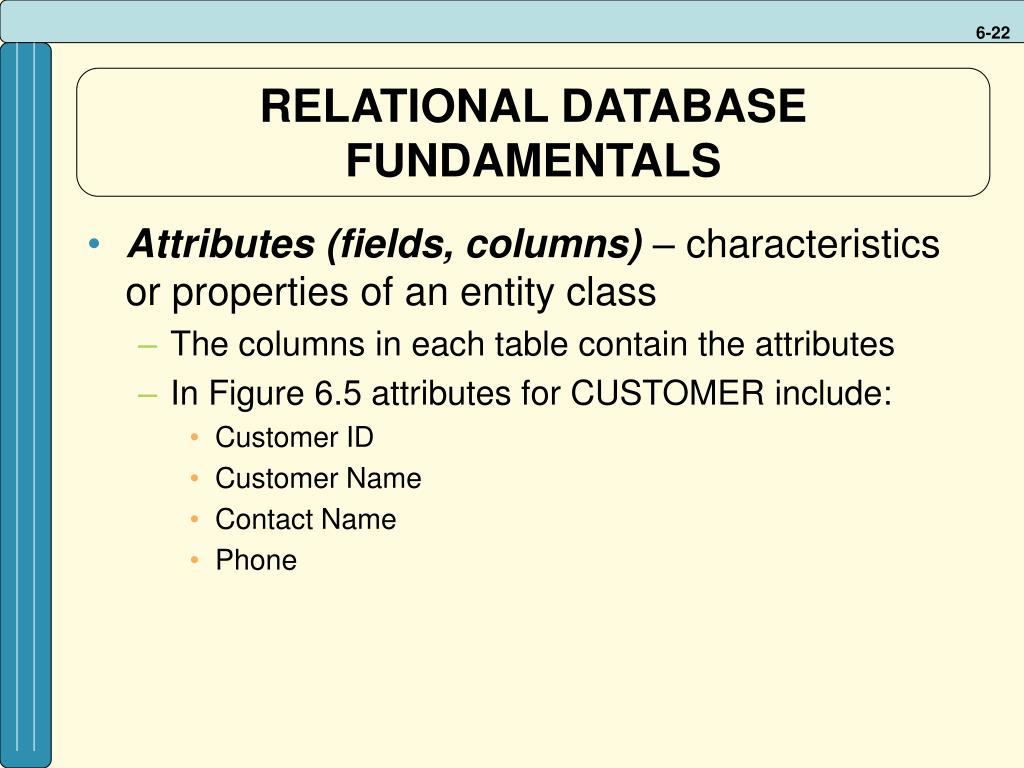

  22. RELATIONAL DATABASE FUNDAMENTALS • Attributes (fields, columns) – characteristics or properties of an entity class • The columns in each table contain the attributes • In Figure 6.5 attributes for CUSTOMER include: • Customer ID • Customer Name • Contact Name • Phone

  23. RELATIONAL DATABASE FUNDAMENTALS • Primary keys and foreign keys identify the various entity classes (tables) in the database • Primary key – a field (or group of fields) that uniquely identifies a given entity in a table • Foreign key – a primary key of one table that appears an attribute in another table and acts to provide a logical relationship among the two tables

  24. Potential relational database for Coca-Cola

  25. DATABASE MANAGEMENT SYSTEMS • Database management systems (DBMS) – software through which users and application programs interact with a database

  26. DATABASE MANAGEMENT SYSTEMS • Four components of a DBMS

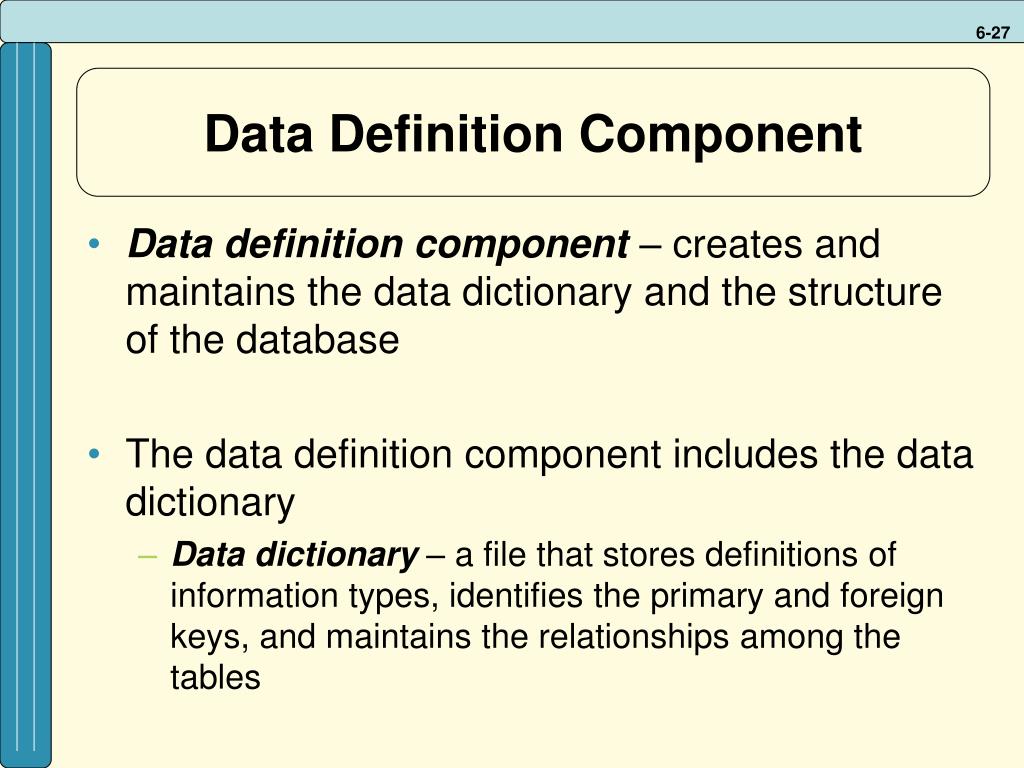

  27. Data Definition Component • Data definition component – creates and maintains the data dictionary and the structure of the database • The data definition component includes the data dictionary • Data dictionary – a file that stores definitions of information types, identifies the primary and foreign keys, and maintains the relationships among the tables

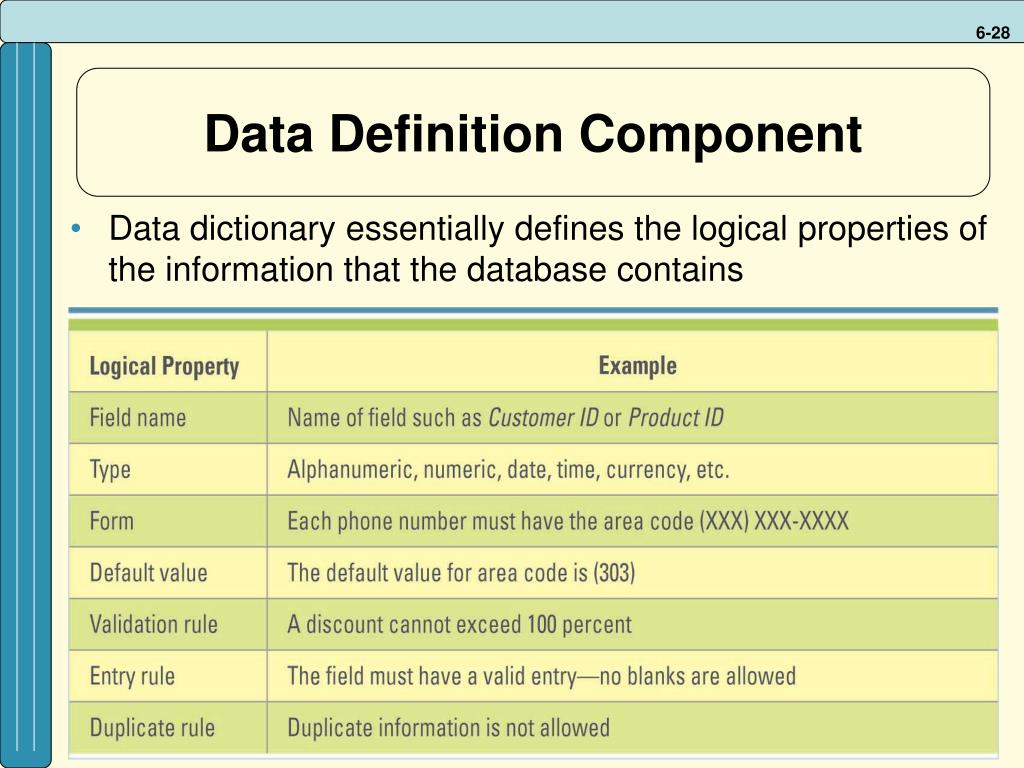

  28. Data Definition Component • Data dictionary essentially defines the logical properties of the information that the database contains

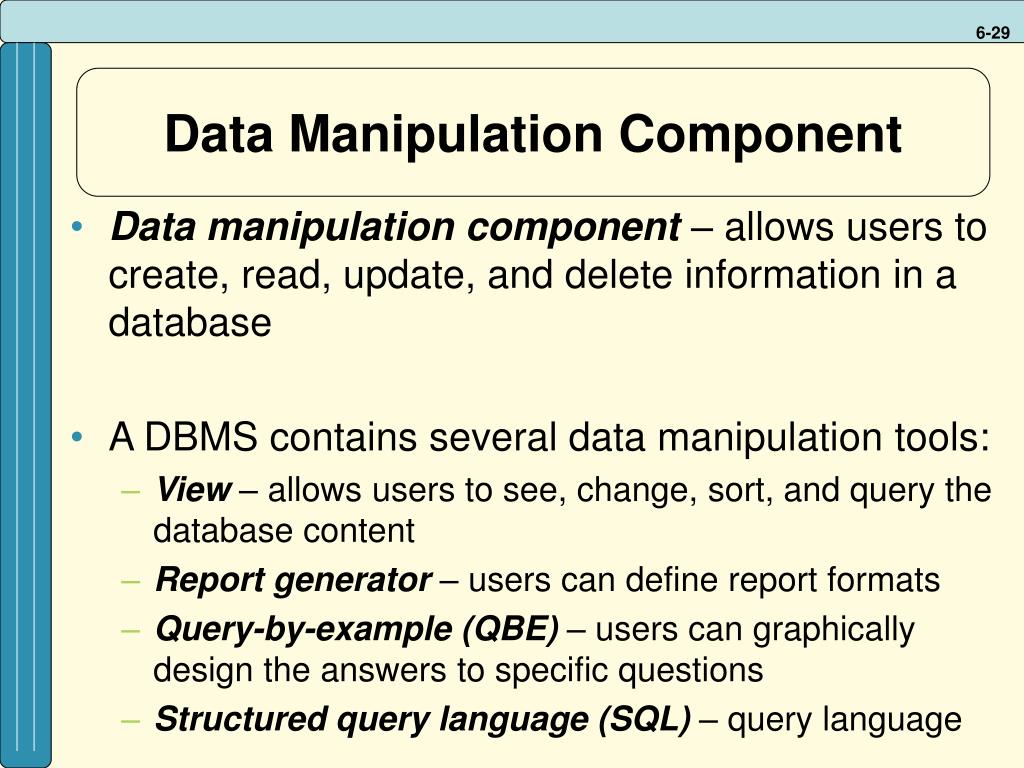

  29. Data Manipulation Component • Data manipulation component – allows users to create, read, update, and delete information in a database • A DBMS contains several data manipulation tools: • View – allows users to see, change, sort, and query the database content • Reportgenerator – users can define report formats • Query-by-example (QBE) – users can graphically design the answers to specific questions • Structured query language (SQL) – query language

  30. Data Manipulation Component • Sample report using Microsoft Access Report Generator

  31. Data Manipulation Component • Sample report using Access Query-By-Example (QBE) tool

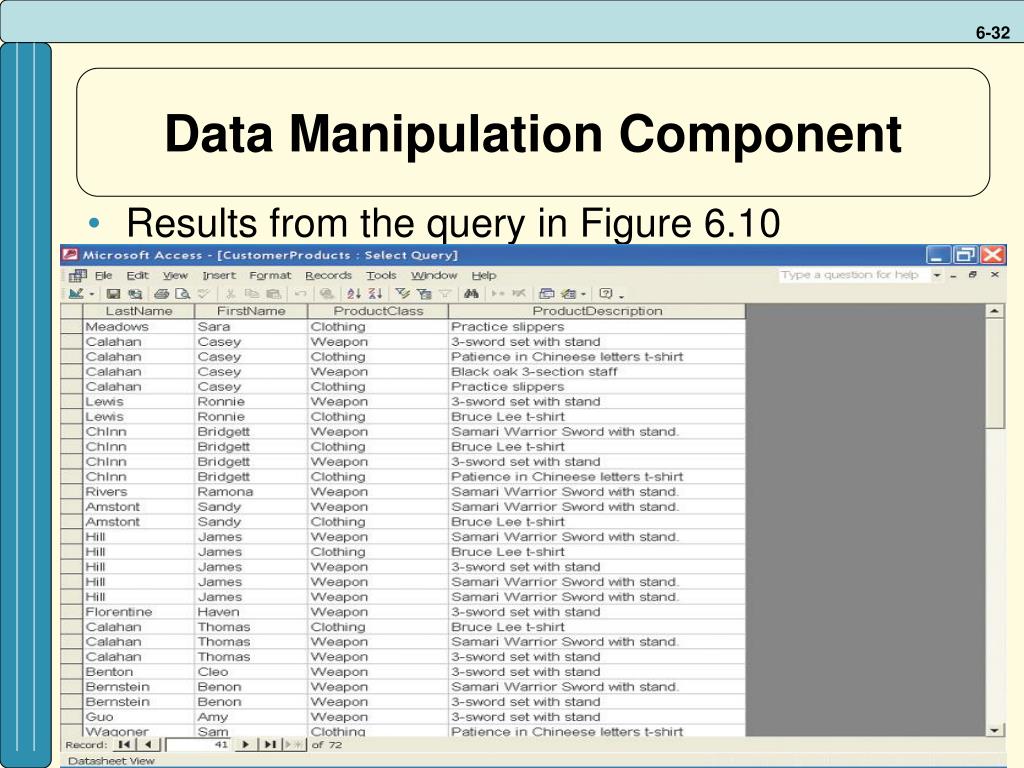

  32. Data Manipulation Component • Results from the query in Figure 6.10

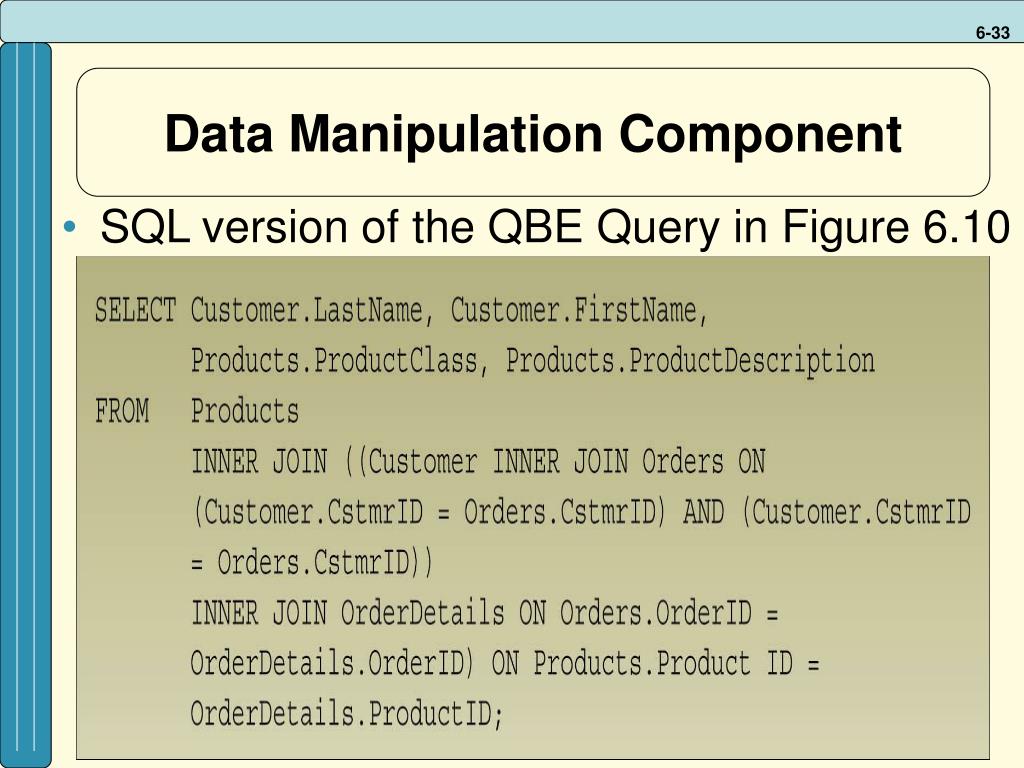

  33. Data Manipulation Component • SQL version of the QBE Query in Figure 6.10

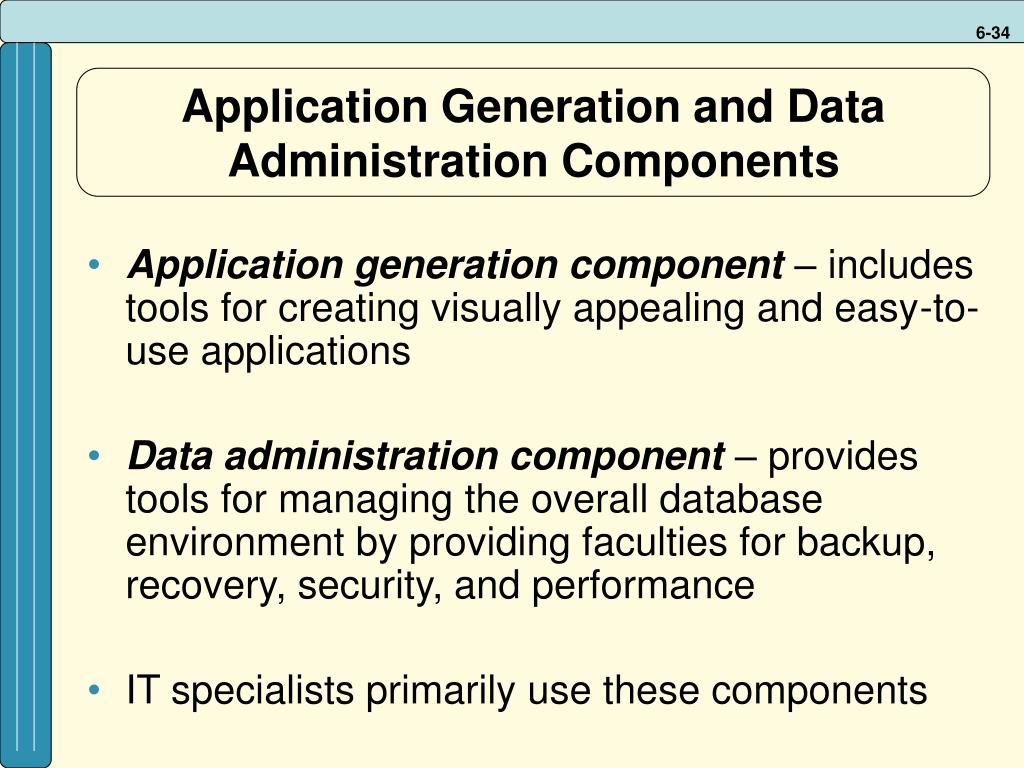

  34. Application Generation and Data Administration Components • Application generation component – includes tools for creating visually appealing and easy-to-use applications • Data administration component – provides tools for managing the overall database environment by providing faculties for backup, recovery, security, and performance • IT specialists primarily use these components

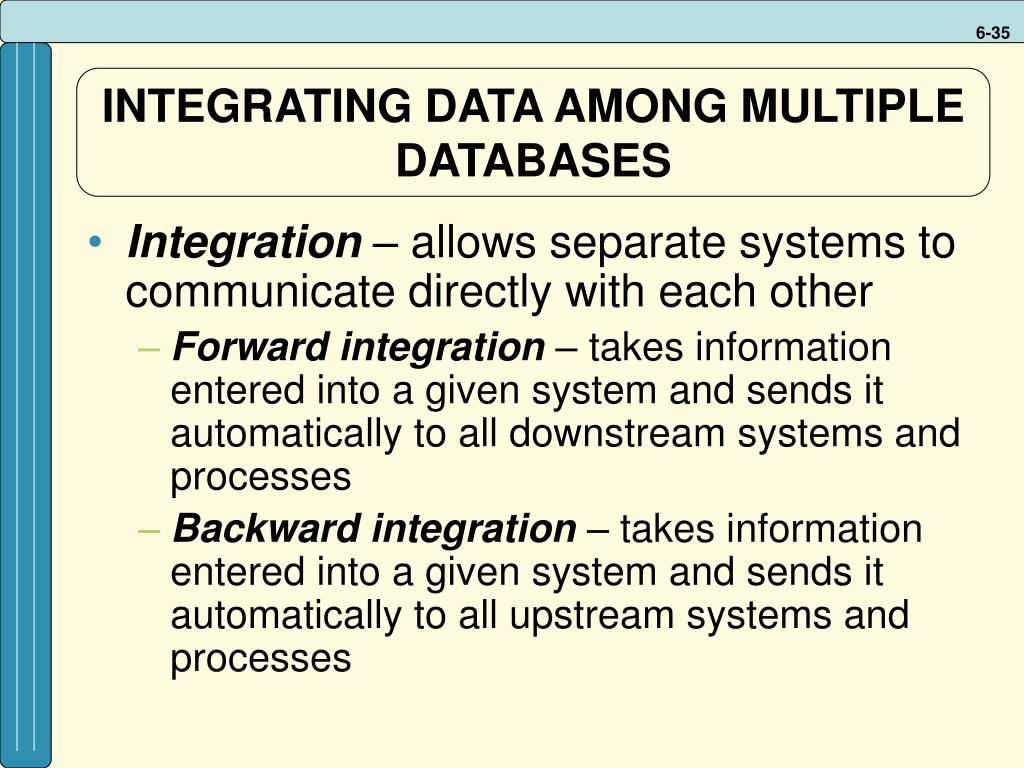

  35. INTEGRATING DATA AMONG MULTIPLE DATABASES • Integration – allows separate systems to communicate directly with each other • Forward integration – takes information entered into a given system and sends it automatically to all downstream systems and processes • Backward integration – takes information entered into a given system and sends it automatically to all upstream systems and processes

  36. INTEGRATING DATAAMONG MULTIPLE DATABASES • Forward and backward integration

  37. INTEGRATING DATAAMONG MULTIPLE DATABASES • Building a central repository specifically for integrated information

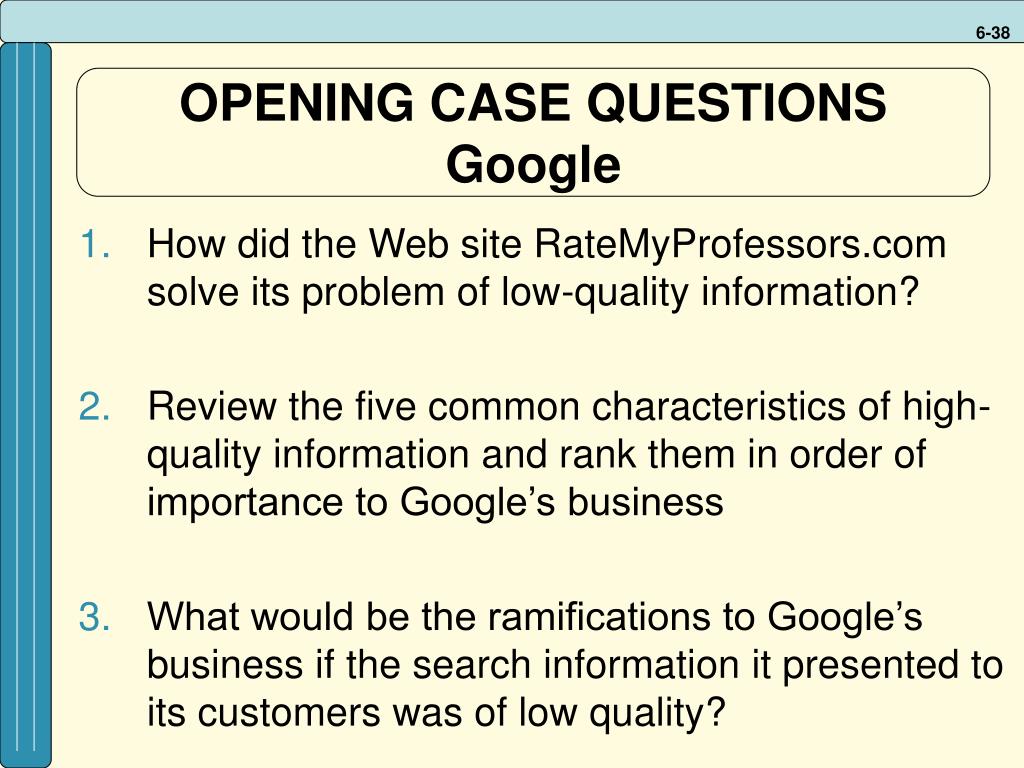

  38. OPENING CASE QUESTIONSGoogle • How did the Web site RateMyProfessors.com solve its problem of low-quality information? • Review the five common characteristics of high-quality information and rank them in order of importance to Google’s business • What would be the ramifications to Google’s business if the search information it presented to its customers was of low quality?

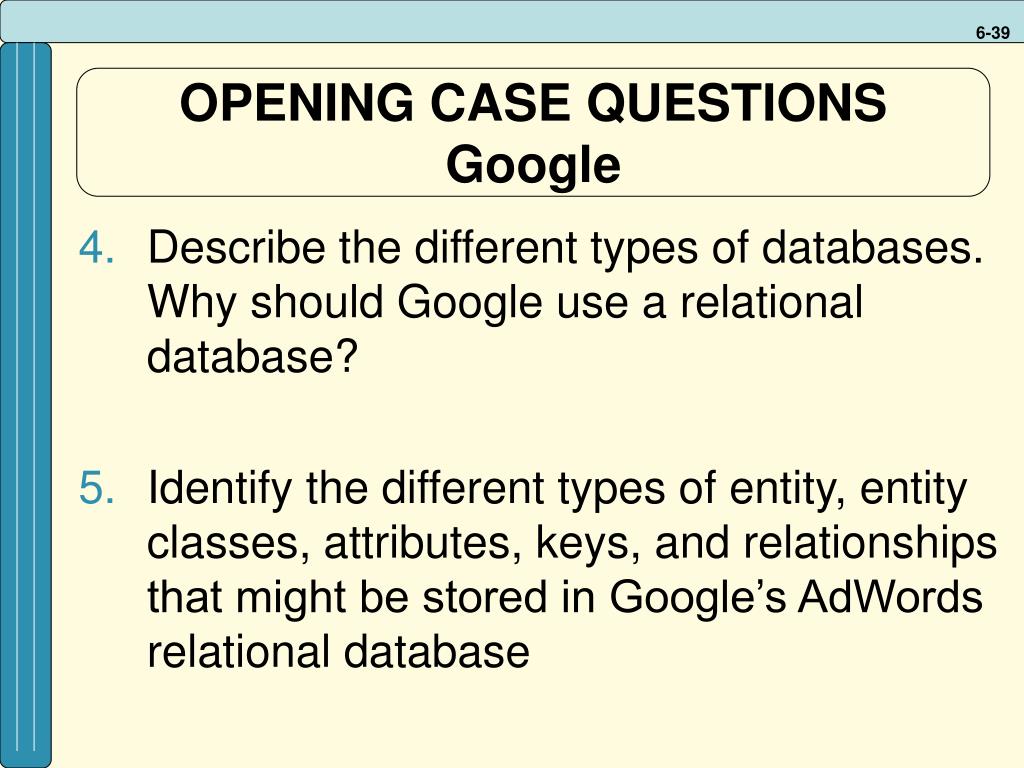

  39. OPENING CASE QUESTIONSGoogle • Describe the different types of databases. Why should Google use a relational database? • Identify the different types of entity, entity classes, attributes, keys, and relationships that might be stored in Google’s AdWords relational database

  40. SECTION 6.2 DATA WAREHOUSE FUNDAMENTALS

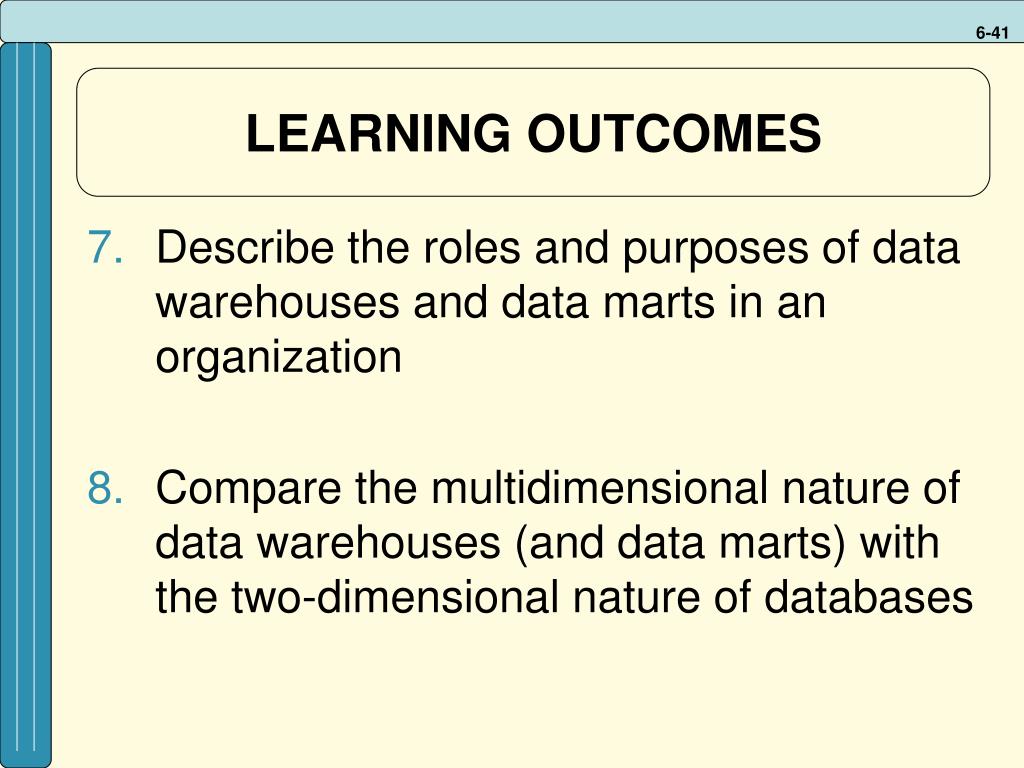

  41. LEARNING OUTCOMES • Describe the roles and purposes of data warehouses and data marts in an organization • Compare the multidimensional nature of data warehouses (and data marts) with the two-dimensional nature of databases

  42. LEARNING OUTCOMES • Identify the importance of ensuring the cleanliness of information throughout an organization • Explain the relationship between business intelligence and a data warehouse

  43. HISTORY OF DATA WAREHOUSING • Data warehouses extend the transformation of data into information • In the 1990’s executives became less concerned with the day-to-day business operations and more concerned with overall business functions • The data warehouse provided the ability to support decision making without disrupting the day-to-day operations

  44. DATA WAREHOUSE FUNDAMENTALS • Data warehouse – a logical collection of information – gathered from many different operational databases – that supports business analysis activities and decision-making tasks • The primary purpose of a data warehouse is to aggregate information throughout an organization into a single repository for decision-making purposes

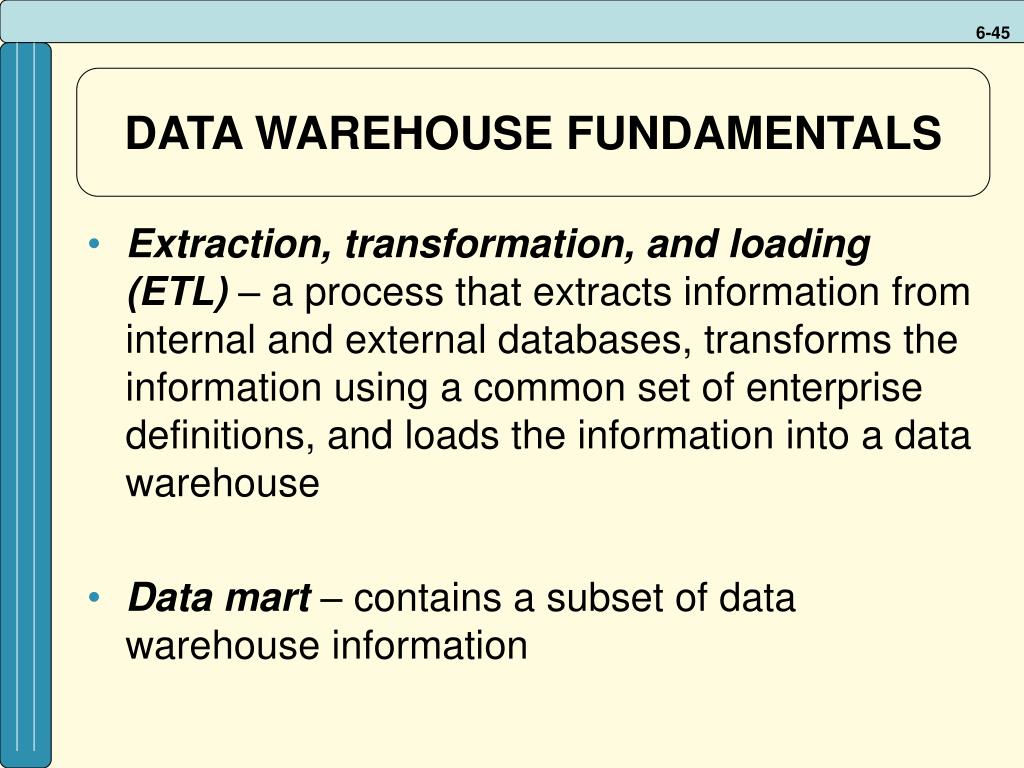

  45. DATA WAREHOUSE FUNDAMENTALS • Extraction, transformation, and loading (ETL) – a process that extracts information from internal and external databases, transforms the information using a common set of enterprise definitions, and loads the information into a data warehouse • Data mart – contains a subset of data warehouse information

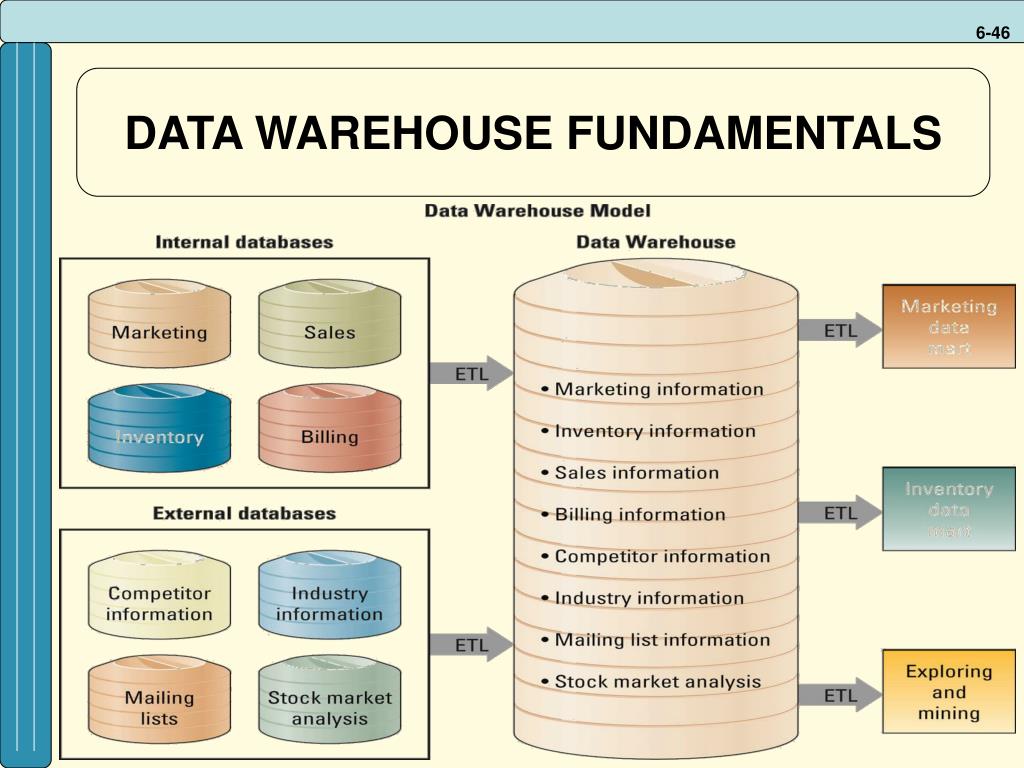

  46. DATA WAREHOUSE FUNDAMENTALS

  47. Multidimensional Analysis • Databases contain information in a series of two-dimensional tables • In a data warehouse and data mart, information is multidimensional, it contains layers of columns and rows • Dimension – a particular attribute of information

  48. Multidimensional Analysis • Cube – common term for the representation of multidimensional information

  49. Multidimensional Analysis • Data mining – the process of analyzing data to extract information not offered by the raw data alone • To perform data mining users need data-mining tools • Data-mining tool – uses a variety of techniques to find patterns and relationships in large volumes of information and infers rules that predict future behavior and guide decision making

  50. Information Cleansing or Scrubbing • An organization must maintain high-quality data in the data warehouse • Information cleansing or scrubbing – a process that weeds out and fixes or discards inconsistent, incorrect, or incomplete information
