Presentation Transcript


Spinal cord organization l.jpg

Spinal Cord Organization

January 9, 2008


Slide2 l.jpg

Spinal Cord 31 segments terminates at L1-L2 special components - conus medularis - cauda equina no input from the face


Spinal cord roots nerves l.jpg

Spinal Cord, Roots & Nerves

Dorsal root

Ventral root

Spinal nerve


Dorsal root ganglion l.jpg

Dorsal Root Ganglion

Cell bodies of 1st order sensory neurons

Afferent


Spinal cord cross section l.jpg

Spinal Cord Cross Section

Dorsal root

sensory

afferent

motor

efferent

Ventral root


Cross section of spinal cord l.jpg

Cross Section of Spinal Cord

White matter

peripheral

Gray matter

central

Central canal

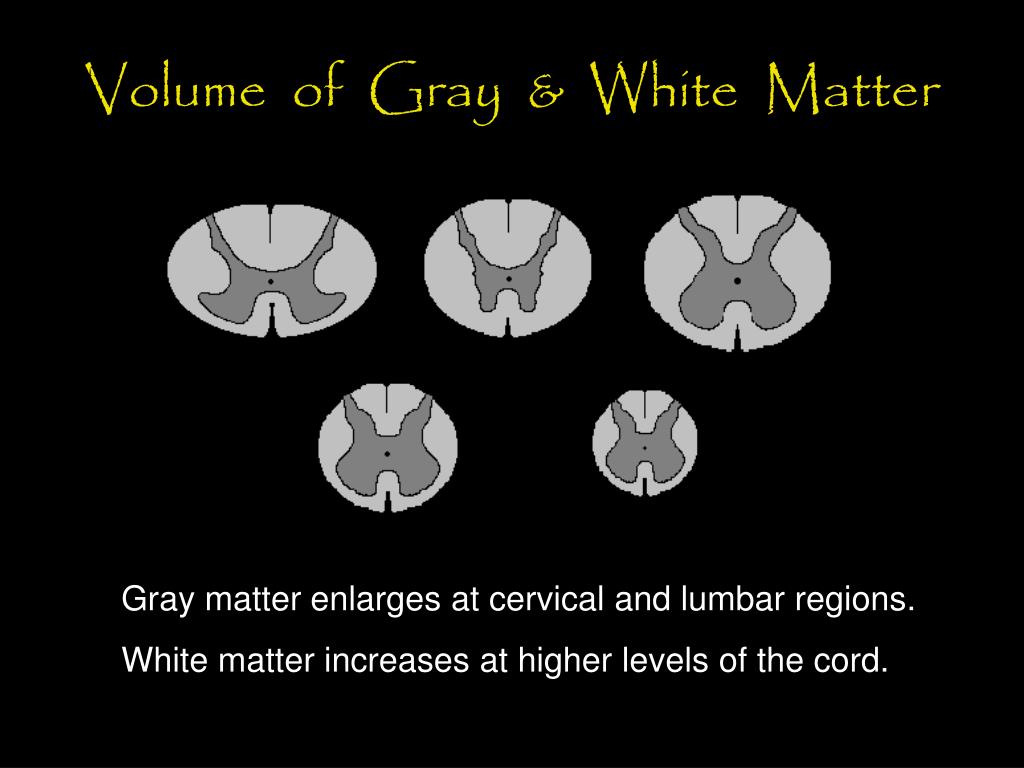

Volume of gray white matter l.jpg

Volume of Gray & White Matter

Gray matter enlarges at cervical and lumbar regions.

White matter increases at higher levels of the cord.


Central gray matter l.jpg

Central Gray Matter

Motor neurons

2nd order sensory neurons

Interneurons

Glial cells

Motor neuron = lower motor neuron

= anterior horn cell

= second order motor neuron


Organization of gray matter l.jpg

Organization of Gray Matter

Pain

Temperature

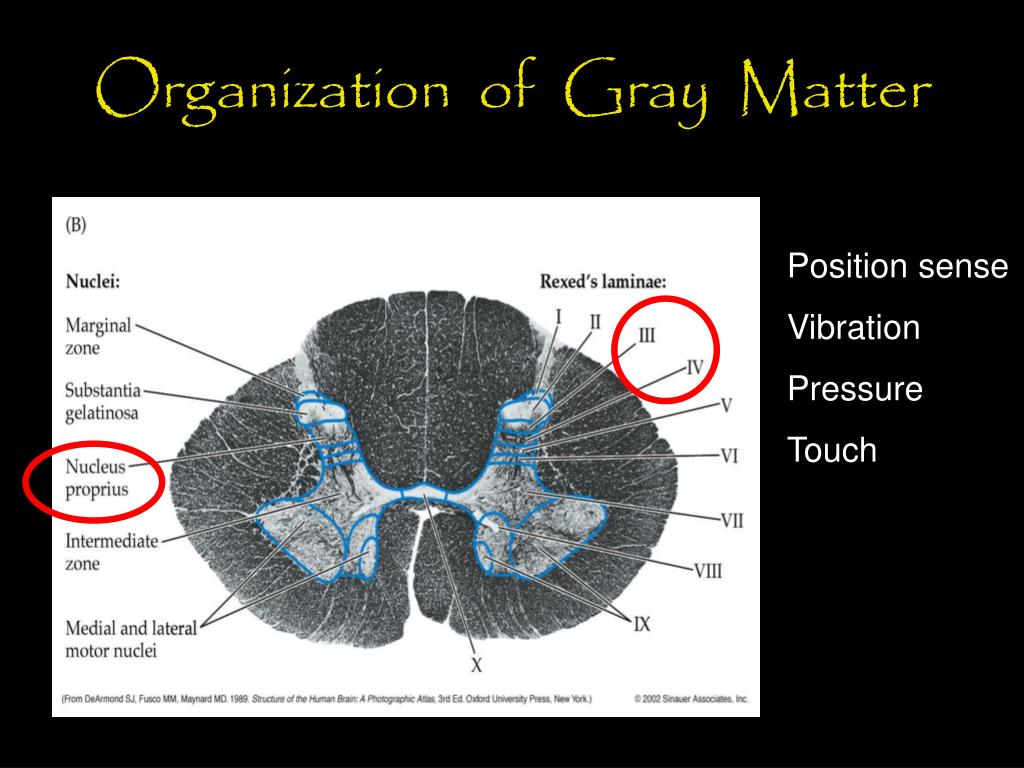

Organization of gray matter10 l.jpg

Organization of Gray Matter

Position sense

Vibration

Pressure

Touch


Organization of gray matter11 l.jpg

Organization of Gray Matter

Position sense

from legs

Between T1 and L2 enlarged

Dorsal nucleus of Clarke

2nd order sensory neuron going to cerebellum

Neck & base of Posterior Horn

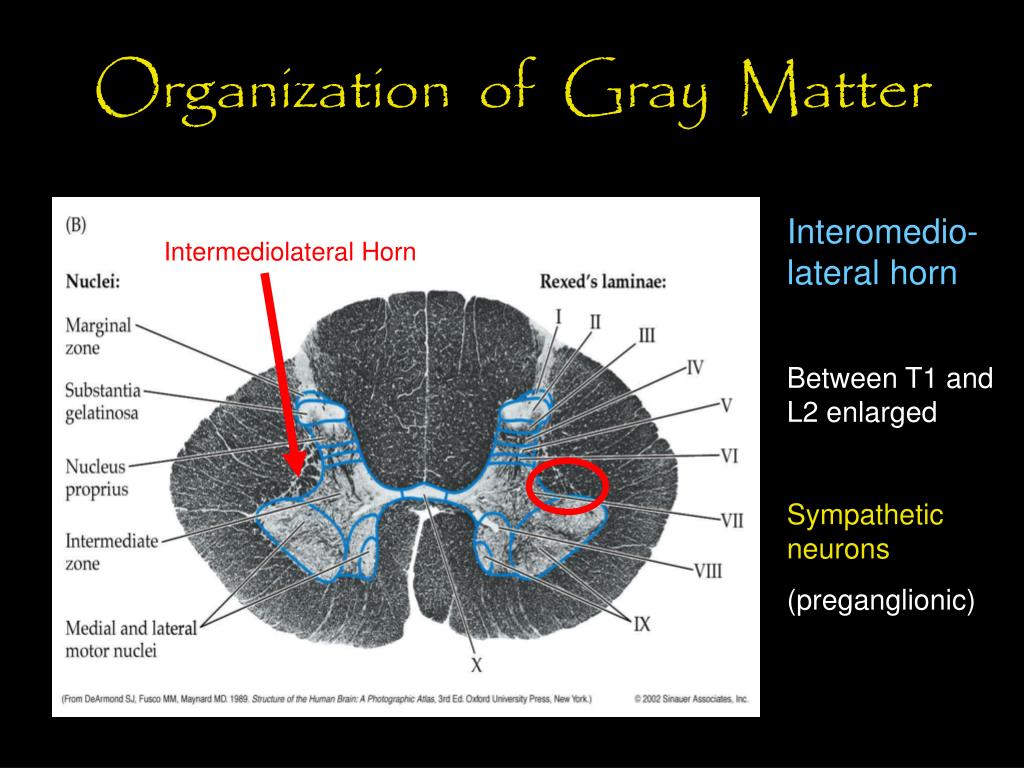

Organization of gray matter12 l.jpg

Organization of Gray Matter

Interomedio-lateral horn

Between T1 and L2 enlarged

Sympathetic neurons

(preganglionic)

Intermediolateral Horn


Sympathetic innervation l.jpg

Sympathetic Innervation


Organization of gray matter14 l.jpg

Organization of Gray Matter

.

At S2, S3, and S4

Parasympathetic neurons

(preganglionic)

Intermediolateral Horn


Parasympathetic innervation l.jpg

Parasympathetic Innervation


Organization of gray matter16 l.jpg

Organization of Gray Matter

Modulates motor activity via gamma motor neurons

Adjusts briskness of deep tendon reflexes


Organization of gray matter17 l.jpg

Organization of Gray Matter

Nuclei of alpha and gamma motor neurons

Innervates muscle spindles and muscles


Lower motor neurons l.jpg

Lower Motor Neurons

Alpha motor neurons

originate from Rexed lamina IX

ventral – dorsal organization

ventral  extensor muscles

dorsal  flexor muscles

medial – lateral organization

medial  proximal muscles

lateral  distal muscles


Somatotopic organization l.jpg

Somatotopic Organization

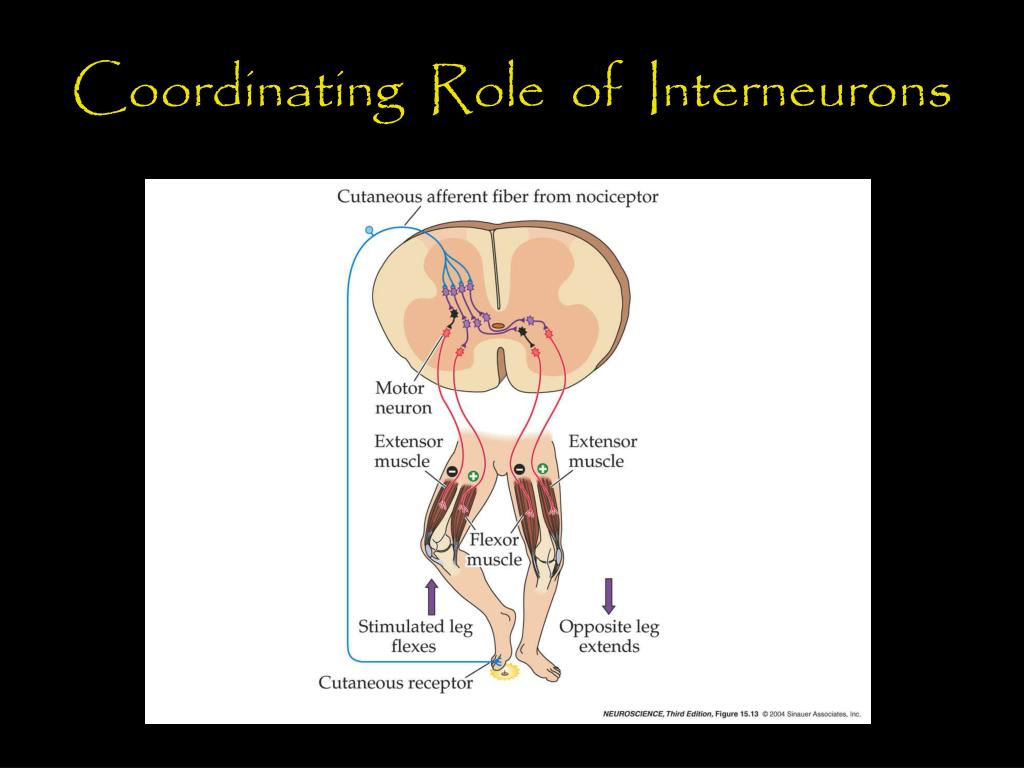

Coordinating role of interneurons l.jpg

Coordinating Role of Interneurons

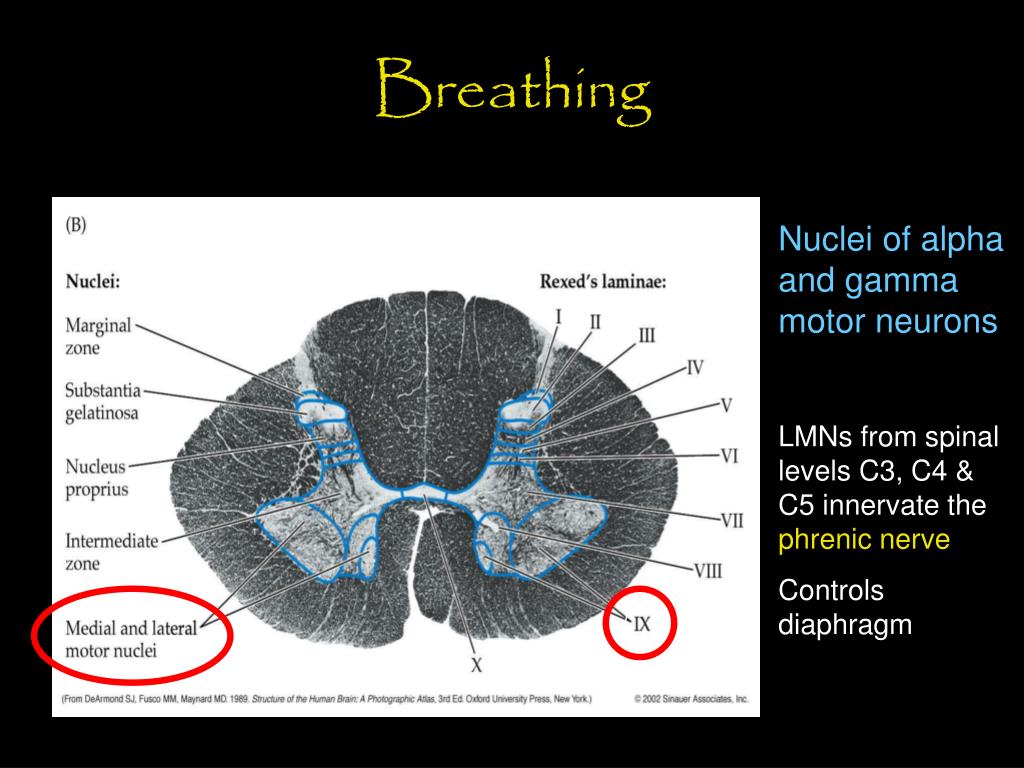

Breathing l.jpg

Breathing

Nuclei of alpha and gamma motor neurons

LMNs from spinal levels C3, C4 & C5 innervate the phrenic nerve

Controls diaphragm


Control functions l.jpg

Control Functions

Nuclei of alpha and gamma motor neurons

At levels S1 - S4 LMNs form Onuf’s nucleus

Innervates anal and urethral spincters; needed for sexual function


Sacral cord l.jpg

Sacral cord

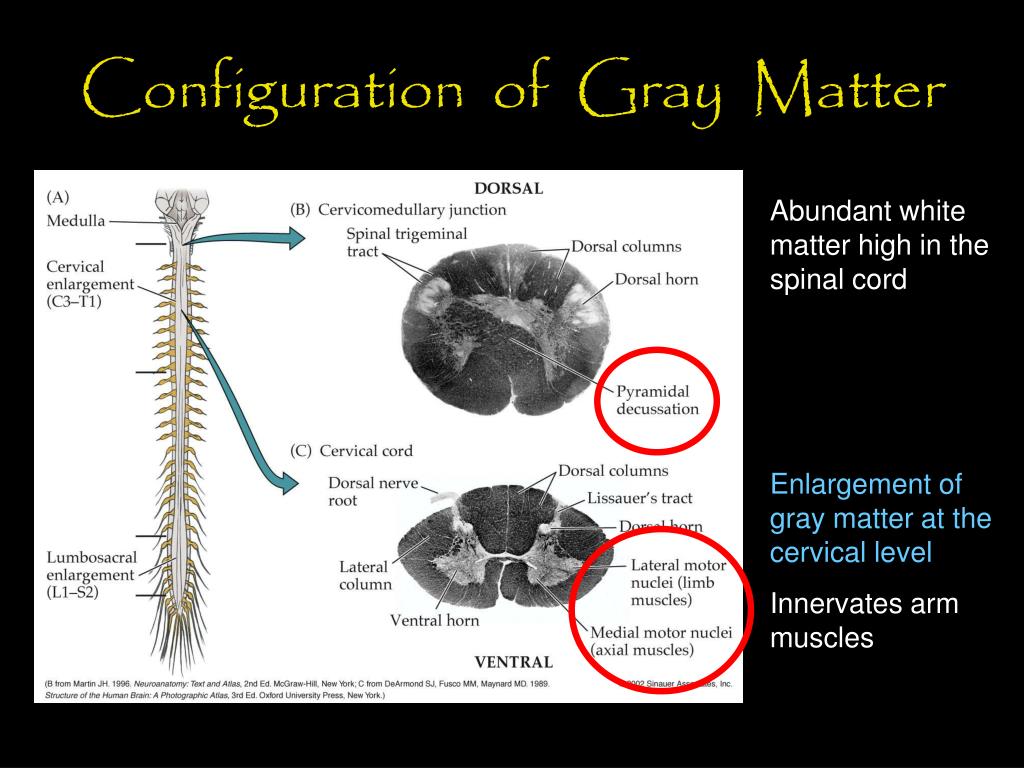

Configuration of gray matter l.jpg

Configuration of Gray Matter

Abundant white matter high in the spinal cord

Enlargement of gray matter at the cervical level

Innervates arm muscles


Configuration of gray matter25 l.jpg

Configuration of Gray Matter

Enlargement in thoracic region for sympathetic neurons

Enlargement in lumbar region for motor neurons to the legs

Minimal white matter at the lower cord


Descending motor pathway l.jpg

Descending Motor Pathway

Upper motor neuron

1st order neuron

synapses on LMN

Crossed pathway

Lateral corticospinal

Uncrossed pathway

Anterior corticospinal


Somatotopic organization27 l.jpg

Somatotopic Organization


Spinal cord tracts l.jpg

Spinal Cord Tracts

Unconscious position sense

movement

feedback


Ascending descending tracts l.jpg

↑ Sensory

Gracile tract

Leg position & vibration

Cuneate tract

Arm position & vibration

Dorsal spinocerebellar tract

Strength & muscle speed

Ventral spinocerebellar tract

Modulation; interneurons

Lateral spinothalamic tract

Pain & temperature

Anterior spinothalamic tract

Light touch

Spinocervical thalamic tract

Kinesthetic movement & discriminative touch

↓Motor

Corticospinal tract

Speed & agility

Reticulospinal tract

Differential facilitation of motor neurons

Rubrospinal tract

Fix movement errors

Lateral vestibulospinal tract

Extensor & posture

Medial vestibulospinal tract

Flexor & head position

Tectospinal tract

Head turning

Ascending & Descending Tracts

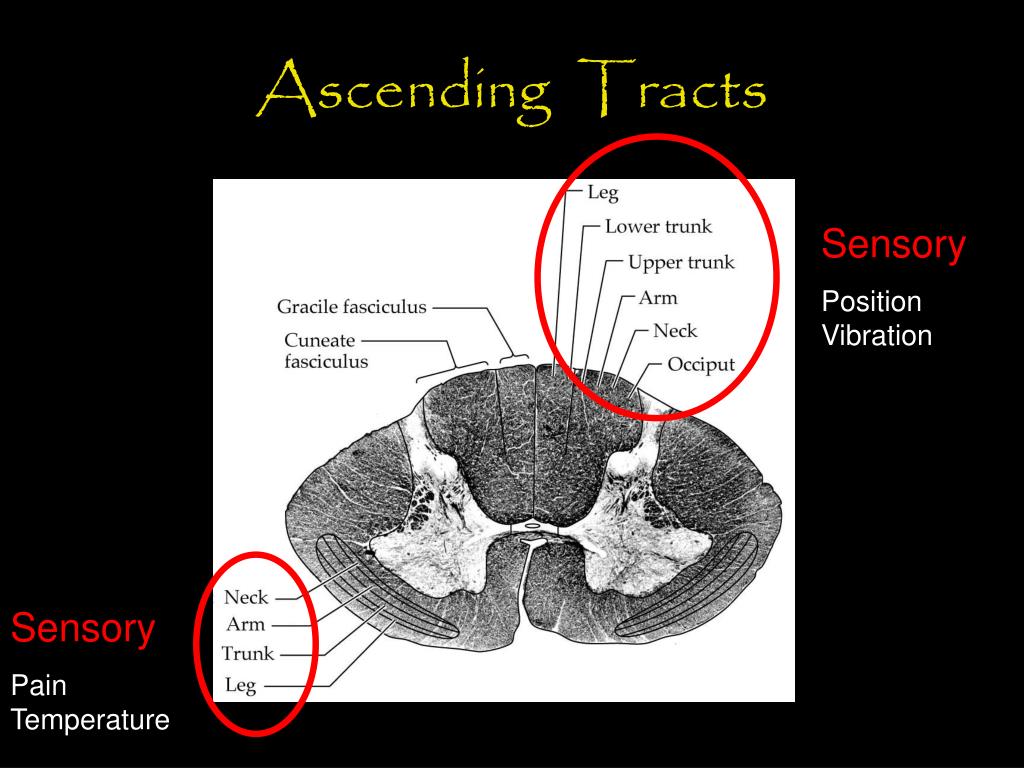

Ascending tracts l.jpg

Ascending Tracts

Sensory

Position Vibration

Sensory

Pain Temperature

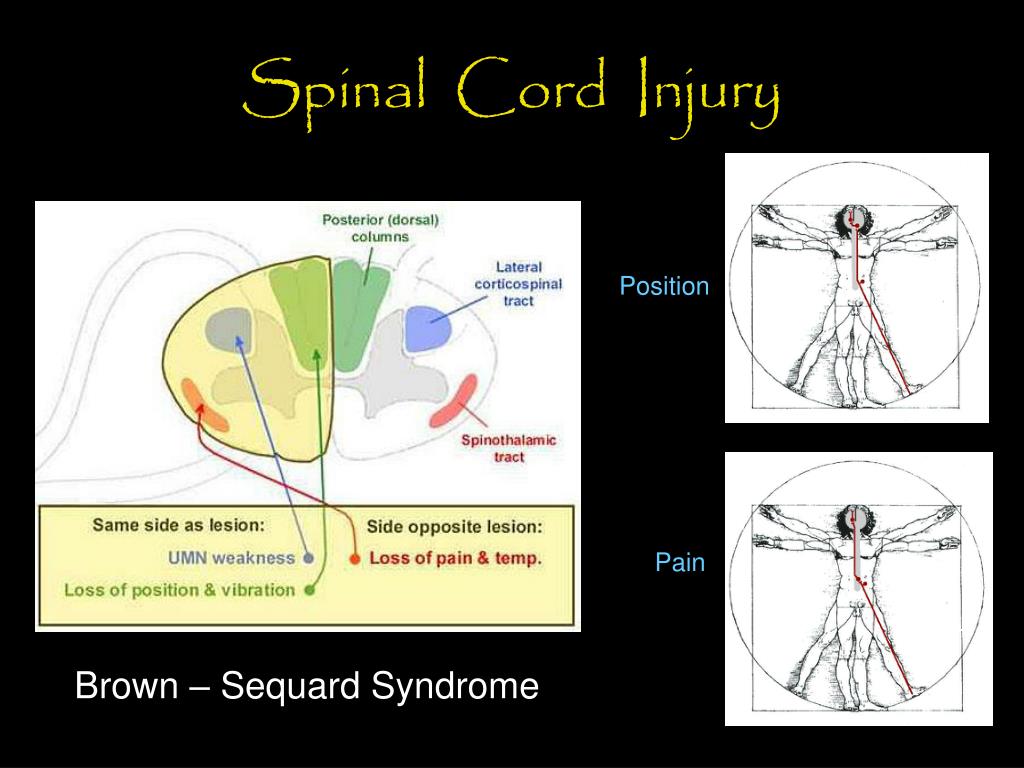

Spinal cord injury l.jpg

Spinal Cord Injury

Position

Pain

Brown – Sequard Syndrome


Transverse vs hemi cord syndrome l.jpg

Transverse vs Hemi Cord Syndrome


Anterior vs posterior cord syndromes l.jpg

Anterior vs Posterior Cord Syndromes


Blood supply to spinal cord l.jpg

Blood Supply to Spinal Cord

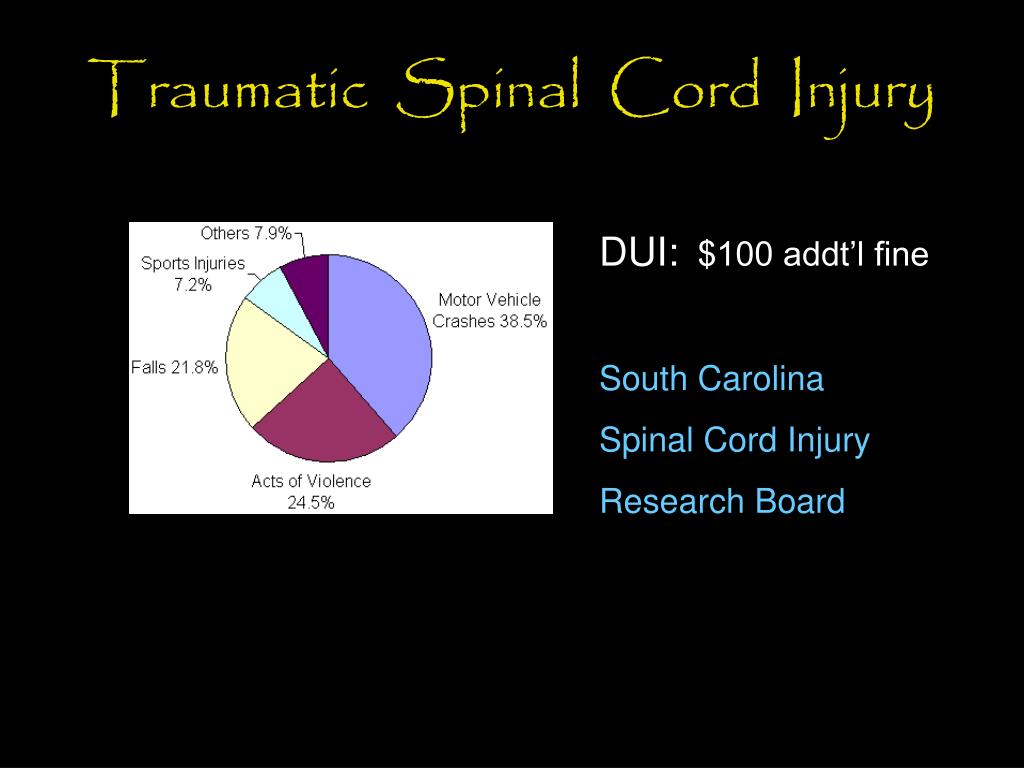

Traumatic spinal cord injury l.jpg

Traumatic Spinal Cord Injury

DUI: $100 addt’l fine

South Carolina

Spinal Cord Injury

Research Board

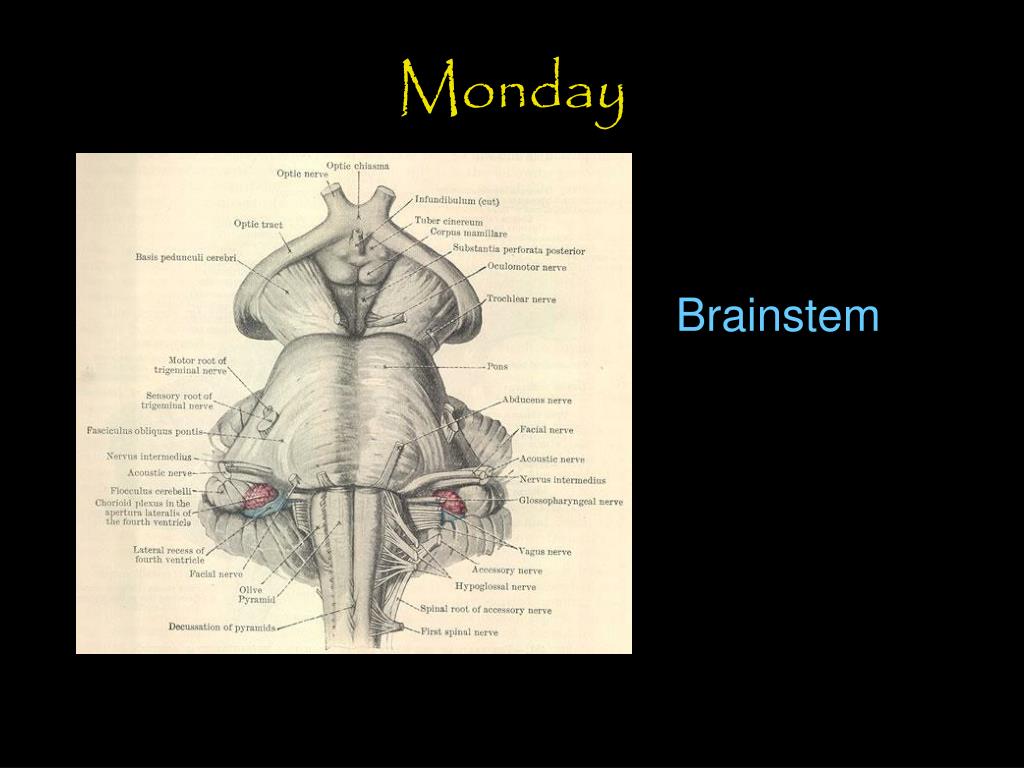

Monday l.jpg

Monday

Brainstem
