KNOWLEDGE SHARING. Cotton Fiber. Cotton is a cellulosic fibre . Cotton is used as a fibre because it has a large amorphous portion which makes the fabric comfortable. It is also soft when properly ginned and has a high absorbency power hence making it easy to use for dyeing.

Download Presentation

KNOWLEDGE SHARING

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Knowledge sharing

KNOWLEDGE SHARING

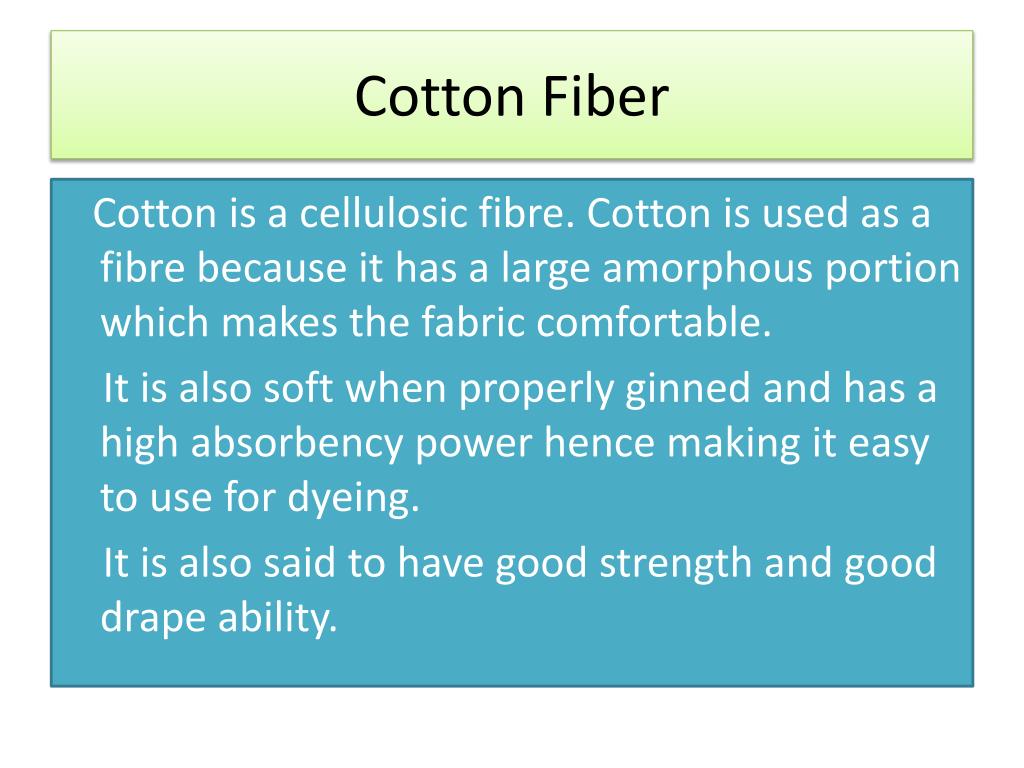

Cotton fiber

Cotton Fiber

Cotton is a cellulosic fibre. Cotton is used as a fibre because it has a large amorphous portion which makes the fabric comfortable.

It is also soft when properly ginned and has a high absorbency power hence making it easy to use for dyeing.

It is also said to have good strength and good drape ability.


Cotton growing states

Cotton Growing States

Maharashtra (26.63%),

Gujarat (17.96%) and

Andhra Pradesh (13.75%) and also

Madhya Pradesh are the leading cotton producing states, these states have a predominantly tropical wet and dry climate.

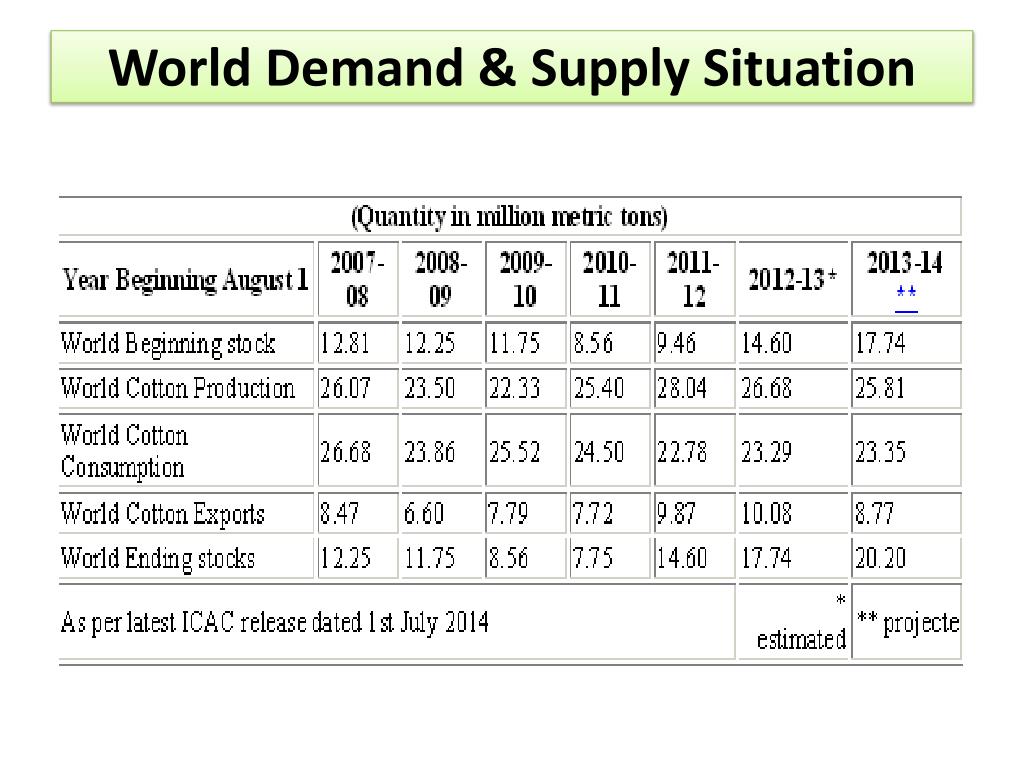

World demand supply situation

World Demand & Supply Situation

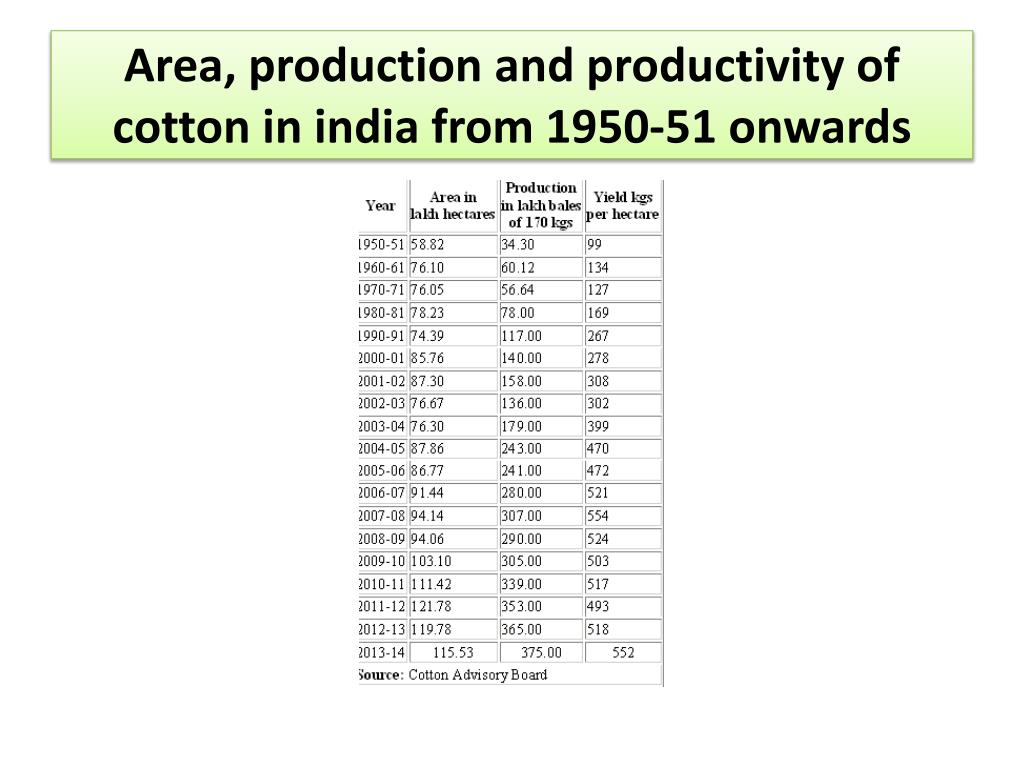

Area production and productivity of cotton in india from 1950 51 onwards

Area, production and productivity of cotton in india from 1950-51 onwards


Physical properties of cotton

Physical Properties of Cotton

  • Color: The color of cotton fibre could be white, creamy white, bluish white, yellowish white or grey.

  • Tensile Strength: Cotton is moderately strong fibre; tenacity is 26.5-44.

  • The strength is greatly affected by moisture, the wet strength of cotton is 20%, which is higher than dry strength.

  • Elongation at break: Cotton does not stress easily. It has an elongation break of 5-1%.

  • Moisture Regain: Standard moisture regain is 8.5%.


Chemical properties of cotton

Chemical Properties of Cotton

  • Effects of Acids: Cotton is attacked by hot dilute acids or cold concentrated acids which it disintegrates. It is not affected by cold weak acids.

  • Effects of Alkalis: Cotton has an excellent resistance to alkali. It swells in caustic alkalis but does not damaged. It can be washed in soap solution without any problem.

  • Effects of Organic Solvents: Cotton has high resistance to normal cleaning solvents. Cotton is dissolved by the copper complexes, such as cuprammonium hydroxide, cupriethylenediamine and concentrated 70% H2SO4.

  • Effects of Insects: Cotton is attacked by moth-grubs or beetles.

  • Effects of micro Organism:Cototn is attacked by fungi and bacteria. Mildew will feed on cotton fabric, rotting and weakling the materials. mildews and bacteria will flourish on cotton under hot and humid condition. They can be protected by impregnation with certain types of chemicals. Copper Nepthenate is one of the chemicals.

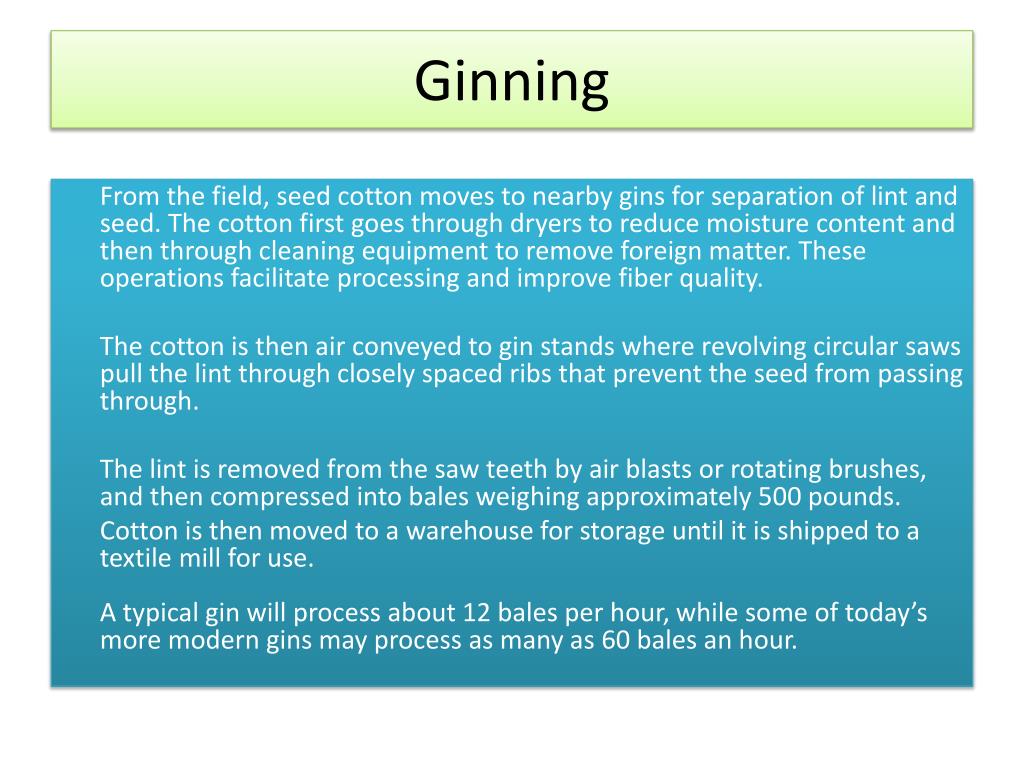

Ginning

Ginning

From the field, seed cotton moves to nearby gins for separation of lint and seed. The cotton first goes through dryers to reduce moisture content and then through cleaning equipment to remove foreign matter. These operations facilitate processing and improve fiber quality.

The cotton is then air conveyed to gin stands where revolving circular saws pull the lint through closely spaced ribs that prevent the seed from passing through.

The lint is removed from the saw teeth by air blasts or rotating brushes, and then compressed into bales weighing approximately 500 pounds.

Cotton is then moved to a warehouse for storage until it is shipped to a textile mill for use.A typical gin will process about 12 bales per hour, while some of today’s more modern gins may process as many as 60 bales an hour.


Spinning mill process flow chart

SPINNING MILL PROCESS FLOW CHART


Indian cotton quality

INDIAN COTTON QUALITY


Cotton test report

COTTON TEST REPORT


Yarn testing

YARN TESTING


Uster tester

Uster – Tester

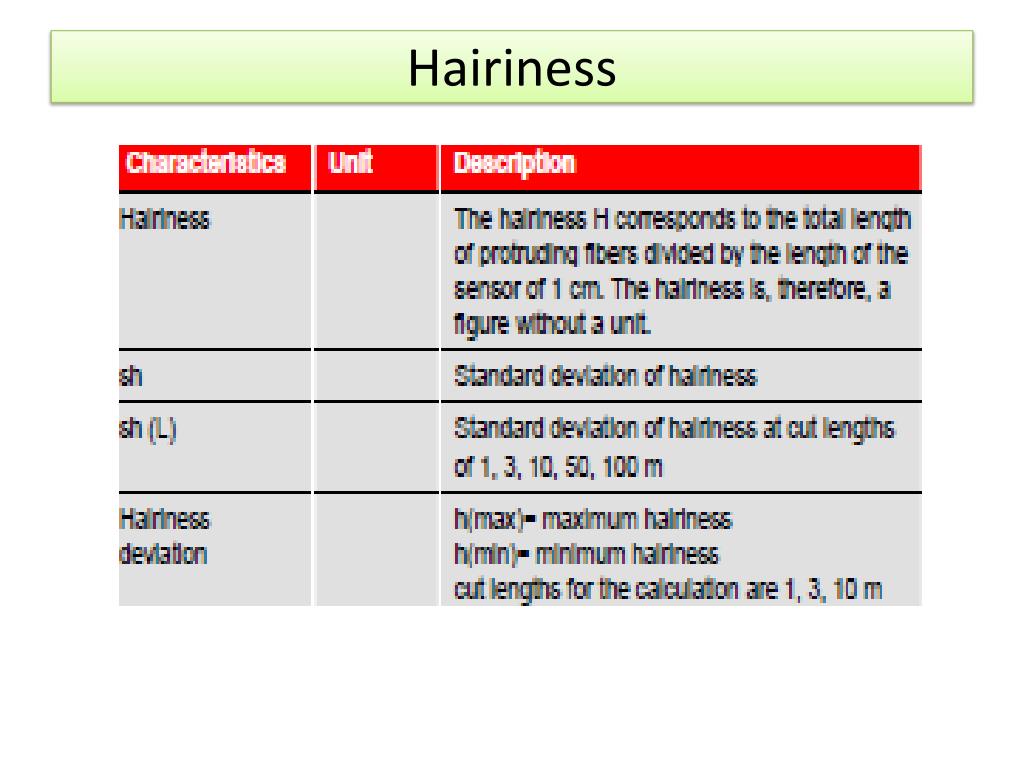

Hairiness

Hairiness


Single yarn strength and elongation

Single Yarn Strength and Elongation


Classimat testing

CLASSIMAT TESTING

Total Faults : A1 to I2Serious faults : A4,B4,C4,D4,C3,D3,D2Objectionable faults : A3,B3,C2,D2

Long thick : EFG

Long thin : H1+H2+I1+I2


Presenters remarks

PRESENTERS REMARKS

  • The functioning of machines from Blowroom to Autoconer was explained using VIDEOS.

  • Doubts raised by technicians were clarified.

  • As per feedback, this presentation and interaction has helped people in enriching the knowledge on cotton and spinning activities along with quality parameters.


Thanks

THANKS

Its

L. Narayana Prasad

Agm-Quality , Spinning Division.
