  1. Maintaining Data Integrity in EEPROM’s Ed Patnaude Maxwell Technologies San Diego, Ca

  2. Contents • EEPROM Technology • Sources of Data Corruption • Maintaining Data Integrity • Summary

  3. EEPROM Technology Most EEPROM’s utilize some variation of the “Floating Gate Technology” A positively charged gate is read as a logic 0.

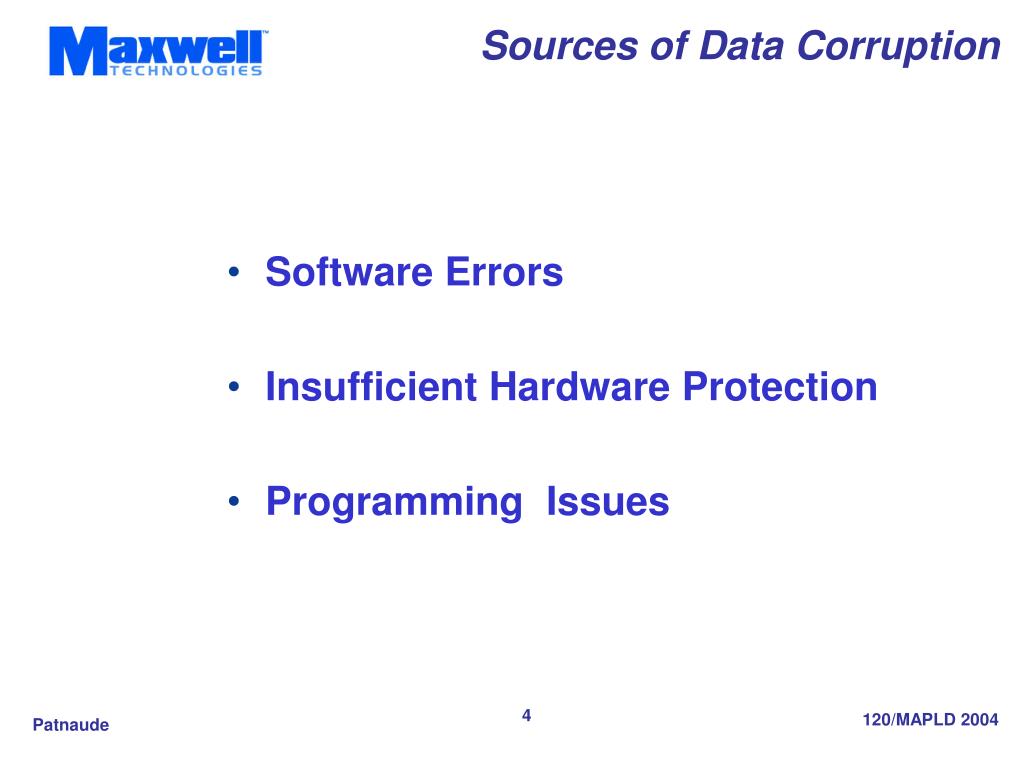

  4. Sources of Data Corruption • Software Errors • Insufficient Hardware Protection • Programming Issues

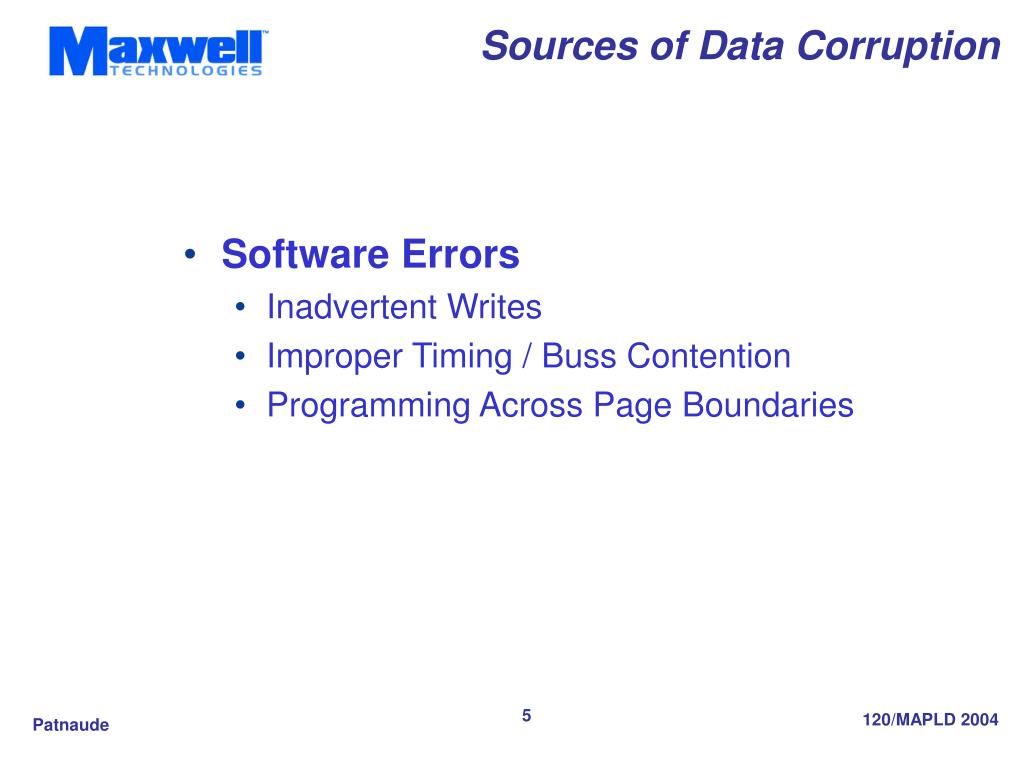

  5. Sources of Data Corruption • Software Errors • Inadvertent Writes • Improper Timing / Buss Contention • Programming Across Page Boundaries

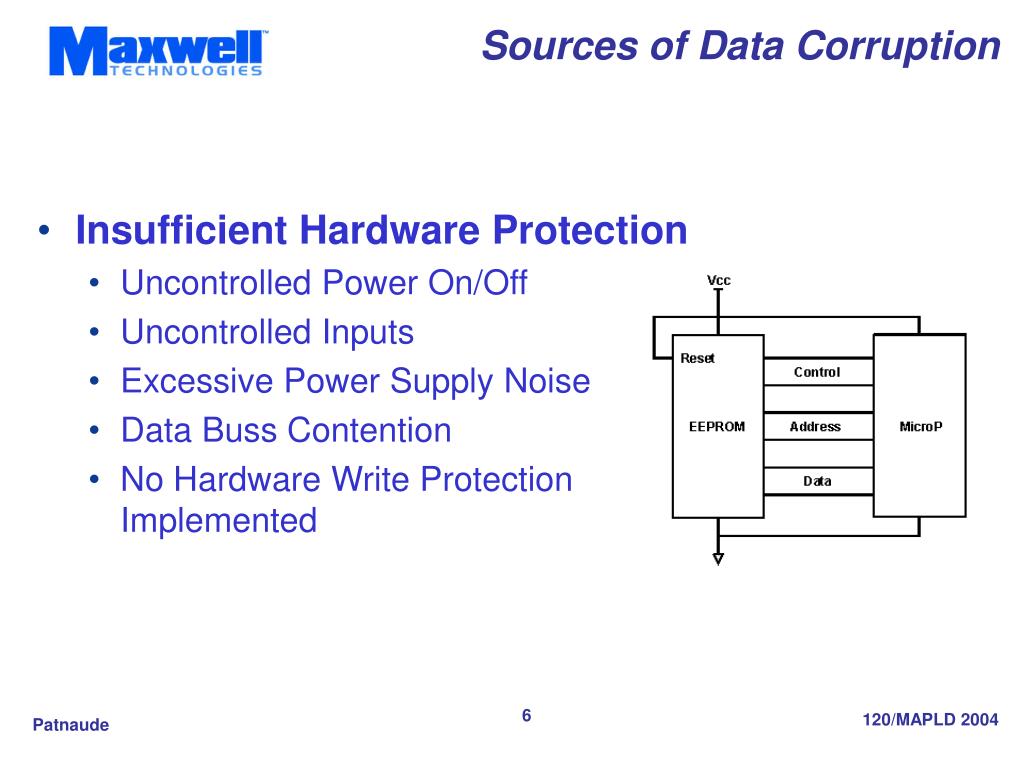

  6. Sources of Data Corruption • Insufficient Hardware Protection • Uncontrolled Power On/Off • Uncontrolled Inputs • Excessive Power Supply Noise • Data Buss Contention • No Hardware Write Protection Implemented

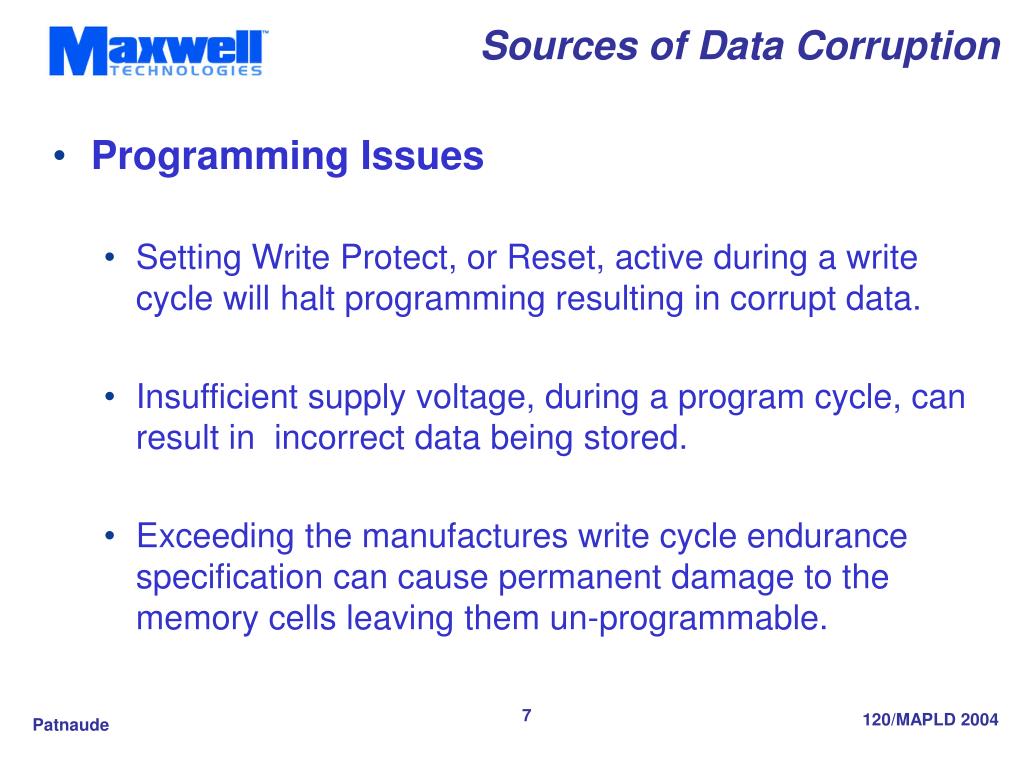

  7. Sources of Data Corruption • Programming Issues • Setting Write Protect, or Reset, active during a write cycle will halt programming resulting in corrupt data. • Insufficient supply voltage, during a program cycle, can result in incorrect data being stored. • Exceeding the manufactures write cycle endurance specification can cause permanent damage to the memory cells leaving them un-programmable.

  8. Maintaining Data Integrity • Hardware Protection • Software Protection • Proper Power Cycling • Error Detection and Correction (EDAC) • Power Supply Supervisory Circuitry • Contingency Plan

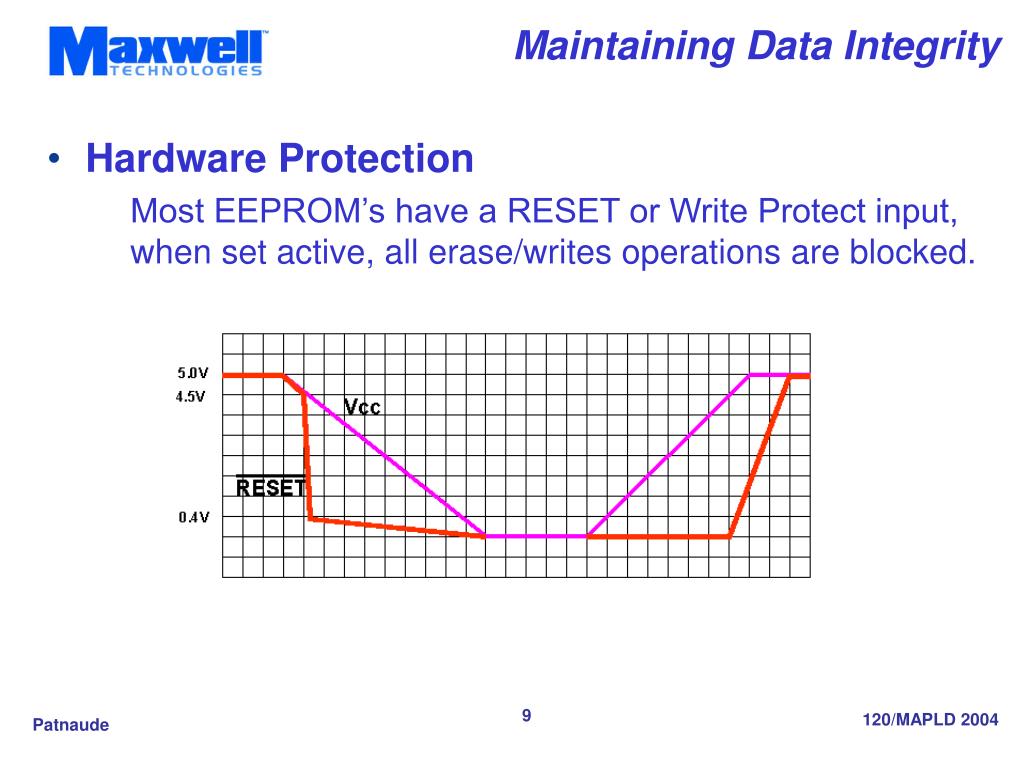

  9. Maintaining Data Integrity • Hardware Protection Most EEPROM’s have a RESET or Write Protect input, when set active, all erase/writes operations are blocked.

  10. Maintaining Data Integrity • Software Data Protection (SDP) • SDP locks the memory preventing unintentional erase/writes from occurring. • Normally implemented using the JEDEC Standard Algorithm • SDP will only protect the memory contents when the supply voltage is within the normal operating range.

  11. Maintaining Data Integrity • Proper Power Cycling • Allow Vcc to reach proper operating level before initiating any Reads or Writes to the EEPROM. • Enable the EEPROM Hardware Write Protection, or Reset, prior to power down. • Do not remove power while a write cycle is in process.

  12. Maintaining Data Integrity • Error Detection and Protection • Parity Bits • Checksum • Cyclic Redundancy Code • Error Correction Codes • Hamming Code • Reed-Solomon

  13. Maintaining Data Integrity • Power Supervisory Circuitry Monitor Supply Voltages and provide a RESET signal when the voltage drops below a pre-described level

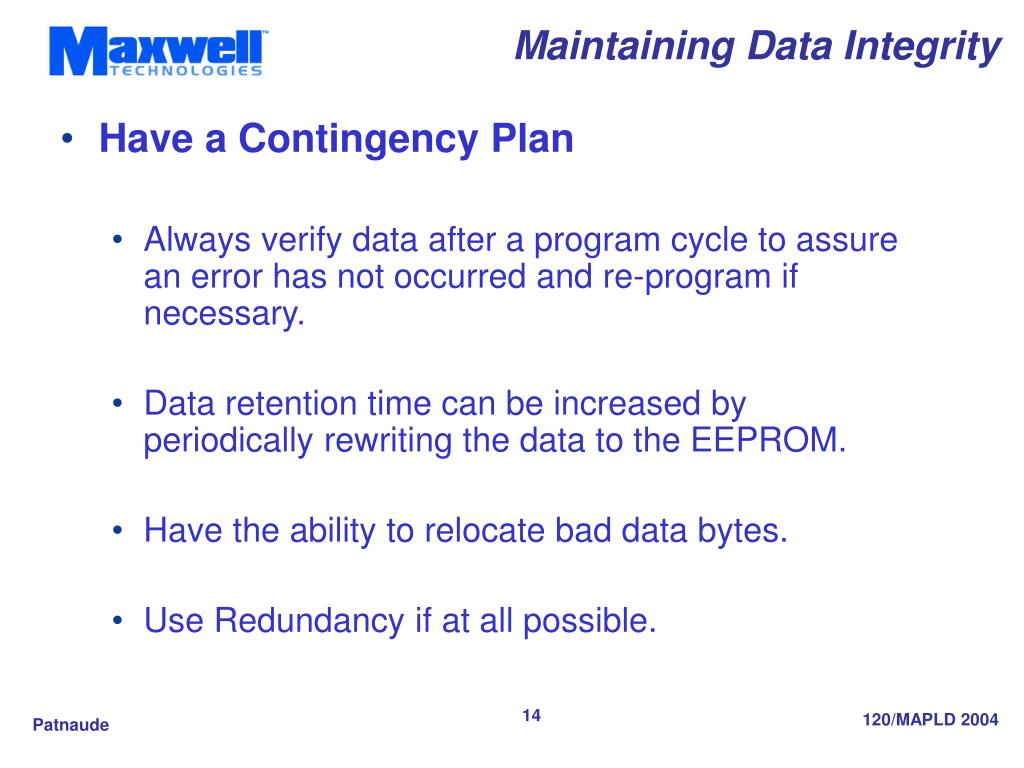

  14. Maintaining Data Integrity • Have a Contingency Plan • Always verify data after a program cycle to assure an error has not occurred and re-program if necessary. • Data retention time can be increased by periodically rewriting the data to the EEPROM. • Have the ability to relocate bad data bytes. • Use Redundancy if at all possible.

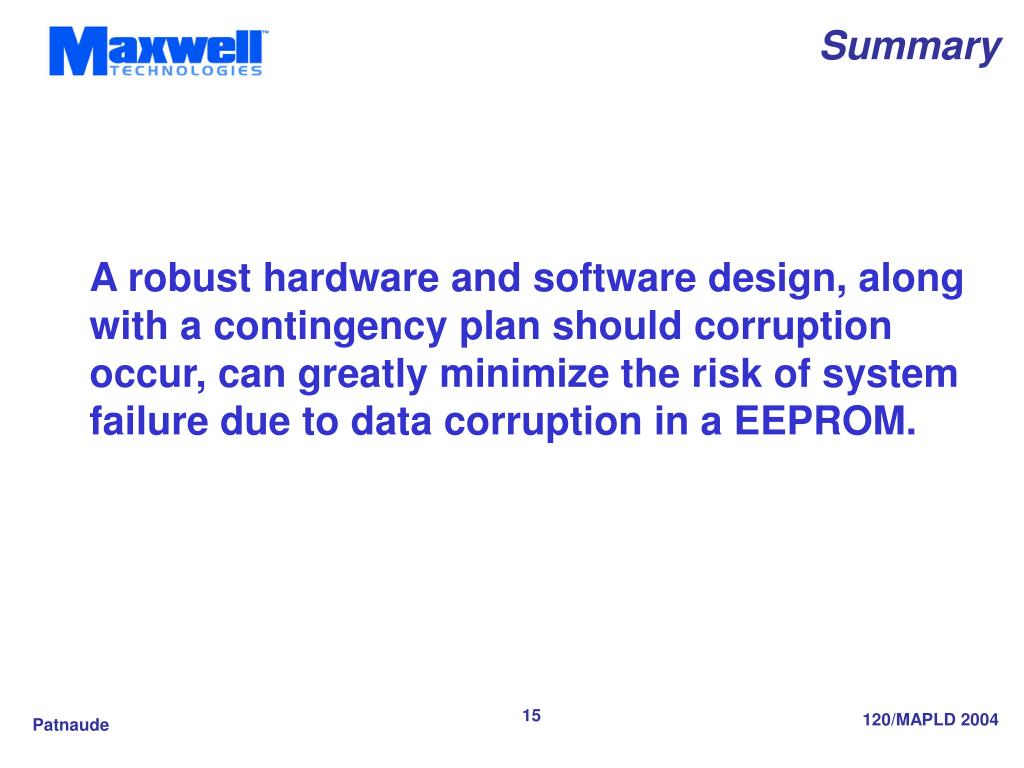

  15. Summary A robust hardware and software design, along with a contingency plan should corruption occur, can greatly minimize the risk of system failure due to data corruption in a EEPROM.
