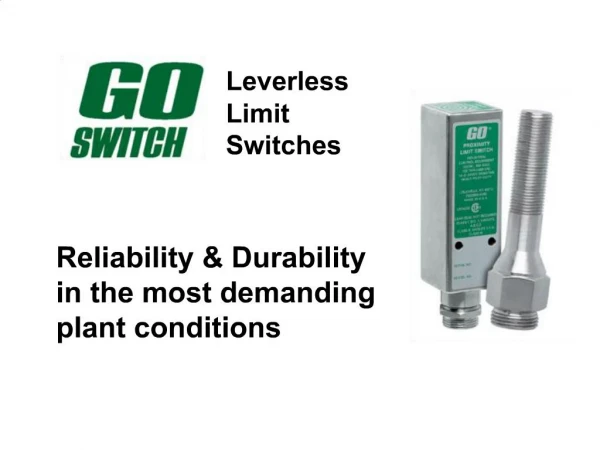

1. GO Switch leverless limit switches have been the foundation of our company for over 40 years.GO Switch leverless limit switches have been the foundation of our company for over 40 years.
2. GO Switch Training Agenda Why GO Switch is special
Competition overview
GO Switch products
Square
Round
Power
Where to sell them
3. Our experience Factory Automation
Automotive
Cement
Diecasting
Steel
Tire & Rubber
Tool & Die Process Automation
Biotech
Chemical
Food & Beverage
Hydrocarbon
Mining
Oil & Gas
Petrochemical
Power
Pulp & Paper
Water/Wastewater
6. GO SwitchCommon Features Standard temperature: -40oF to 221oF
Repeatability: 0.002”
Response time: 8 ms
Dry contact:
Consume no power to operate
No voltage drop or leakage current
Can wire AC or DC, NO or NC
Highest volt/current rating on the market for prox switch
Simple device - Intrinsically Safe
7. GO SwitchCommon Features Permanent magnets: -1% every 100 years
Options galore:
Stainless Steel, Epoxy, Exotic
SPDT, DPDT, Quick Disconnect
Explosion Proof, Hi Temp, SubSea
Target Magnets increase sensing range
Date coded for trace ability
8. GO SwitchCommon Features Heavy duty dry contacts
Excellent for both high and low loads
Vibration resistant, high contact pressure
Self-cleaning with wiping action
Contact ratings are for resistive loads
Inductive loads app 1/2 published ratings
9. Competition:Technologies Mechanical: Lever arm linked to the switch mechanism
Solid State: Electrically created magnetic field measures change in magnetic field to trip switch
Reed: Glass encapsulated switch mechanism tripped by a magnetic target
GO is a hybrid technology that combines the advantages of each of the above with none of their drawbacks
10. Competition:Limit Switch A Limit Switch is an electrical mechanical device that that provides an electrical signal through a set of contacts.
When the object to be sensed comes in contact with an actuator, this mechanical motion closes (makes) or opens (breaks) a set of contacts
Limit Switches are often applied because
They do not require external power
Have a very wide voltage and current range
Do not have leakage current
Have a higher temperature range than solid state sensors
Disadvantages
Require contact with object to be sensed
Limited sensing distance
Mechanical wear
11. Competition:Mechanical Limit Switches Lever arms bend, break and wear
Some require up to 32 in lbs to operate
GO is proximity - no contact, wear, torque
Multiple moving parts to fail:
Lever arms, rollers, springs, gears
GO has only one moving part - no metal to metal contact making it move
Hole(s) with gaskets invite moisture and dust
GO is completely potted and sealed
12. Competition:Mechanical Limit Switches Moisture problems are common:
Contact chamber not potted
Gasket dries, cracks, and fails
GO is completely potted and sealed
Repeatability is poor - lever stroke varies
GO is repeatable to 0.002” for life
Maintenance headache
GO is maintenance free
13. Competition:Proximity Switches Traditional “prox” switches are solid state devices. They use inductive sensing technology to detect the presence of absence of a metallic target
Many shapes and sizes
Square, rectangular, cylindrical, puck, etc
Can be very small
Works better in tough environments as compared to Photoelectrics and Limit Switches
Low cost
14. Competition:Inductive Proximity Sensors Solid state - consumes power to operate
GO is dry contact - consumes no power
Two piece construction is fragile
GO is one piece stainless or brass
Must stock 4 models for AC, DC, NO, NC
GO - one model does it all
Not explosion proof
GO is Class I Div I all groups
15. Competition:Inductive Proximity Sensors IS barrier brand sensitive
GO is simple device - use any barrier
GO hermetic seal is Non-Incendive
Temperature sensitive - sensing varies
GO to 400oF with stable sensing
Many wiring precautions
GO handles high loads - no voltage drop or current leakage - series or parallel
16. Competition:Reed Switches A Reed Switch consists of two magnetic contacts when approached by a target magnet, attract each other and close a circuit.
Contacts are contained in a gas filled glass tube
Can be packaged in many different sized enclosures
Designed to switch lower currents and can not handle high current loads
17. Competition:Reed Switches Switch mechanism often unreliable
GO is proven to 100s of millions of cycles
Susceptible to vibration and bounce
GO contact pressure is much greater
Glass tube hermetic seal is fragile
GO herm seal is virtually unbreakable
Require magnet to operate
GO needs only ferrous metal
18. GO SwitchSquare - 10/20 Series The original Leverless Limit Switch
Invented in 1950’s by CR Marcum
Workhorse of the industry
Same operating principle today
Simple but very clever
Materials upgraded through the years
21. GO SwitchSquare - 10/20 Series Two magnet design
Magnetic bias with see-saw armature
3/8” Side, 9/16” Extend (10), 3 3/16” Max
SPDT, DMDB, Latching
10A/120Vac, 3A/24Vdc
Silver cadmium oxide, gold flashed
Hi Temp to 350oF (10)
UL, CSA, FM, SAA, MSHA
5 conduit positions
24. GO SwitchSquare - 80 Series One magnet design
Magnetic bias with see-saw armature
1/4” End Sensing, 3 1/2” Max
SPDT, DPDT
10 amp/120Vac, 3 amp/24Vdc
Silver cadmium oxide, gold flashed
UL, CSA, FM, SAA
2 conduit position
25. GO SwitchSquare - 35 Series One magnet design
Magnetic bias with see-saw armature
SPDT
4 amp/120Vac, 3 amp/24Vdc
Hermetic seal
28. GO SwitchRound - 70 Series The global choice on linear control valves
20 years of industry success
Several look like it, none perform like it
Unmatched durability and reliability
73-13528-A2 General Purpose73-13526-A2 Class I Div II73-13523-A2 Class I Div I
29. GO SwitchRound - 70 Series Three magnet design
Magnetic bias creates magnetic spring
.100” End Sensing, 0.350” Max
SPDT, DPDT
4A/120VAC, 3A/24VDC - Industry Best
Silver palladium contacts
Sawtooth configuration
Hi Temp to 400oF
UL, CSA, FM, CENELEC, SAA
3/8”, 5/8”, 3/4” diameter std sizes
30. GO SwitchRound - 70 Series Single piece construction
Stainless steel barstock
Prevents moisture intrusion
Hermetic seals and DPDT contacts available on 7G,7H & 7I
More expensive than solid state - if they are working well, walk away - if not working, we’re in
31. Cylinder Position Sensor Stroke-To-GO Cylinder Position Sensor
Solid Stainless Steel
Competition has plastic or ceramic sensing face
3,000 psi working and 12,000 psi burst4:1 Safety Factor
Bi-color LED indicates position
360o adjustable head
32. Stroke-To-GO - How it Works
33. A look inside…
34. GO SwitchApplications Explosive Areas
Mechanical: often increases size of switch
Solid State: not available
GO Switch leads with global approvals
UL, CSA, FM, CENELEC, SAA,MSHA
Class I Div I all groups
Zone 0, Zone 1, Zone 2
ATEX Certified (Selected 70 Series Models)
35. GO SwitchApplications Hostile Conditions
Caustic chemicals
Corrosive liquids - salt water
Coal, coke, cement, or other dust
High pressure wash down, steam leaks
GO Switch is the choice:
Stainless steel housings
Epoxy/Exotic coatings
36. GO SwitchApplications Temperature Extremes
Mechanical: -20oF to 250oF
Solid State: 0oF to 158oF
Reed Switch: -40oF to 220oF
GO Switch: -40oF to 400oF
Cold: NASA -200oF, Syncrude -122oF
Heat: only GO can go above 250oF
37. GO SwitchApplications Underwater Applications
Mechanical: not a chanceSolid State: not realisticallyReed Switch: rely on a reed underwater?
GO Switch is often the only real solution Depths to 21,277 feet sea water Valves, locks, sleuth gates, military SubSea connector on 10/20, 70, 80
38. GO SwitchApplications Unusual Applications
Short stroke globe valves
Valve stem b/t QT valve and actuator
Safety showers
Security areas
Wherever reliability is critical
GO Switch has so many models that there is always a solution
39. GO SwitchPower Products - Defender Turbine Trip Valve Position Monitor
Westinghouse turbines 100+ Mega Watts
Drop-in replacement
One Defender per valve
8-18 trip valves per turbine
Throttle
Governor
Reheat
Reheat Stop
Intercept
41. GO SwitchPower Products - NuProx Nuclear Qualified Proximity Switch
CANDU Qualified for containment
1/3 the size of Namco
Eliminates torque to operate
SPDT
1 amp @ 48Vdc
42. GO SwitchWhere to Sell Them Power Generation
Refining
Oil & Gas
Chemical
Pulp & Paper
Food & Beverage
Pharmaceutical
Water & Wastewater
Off Shore Automotive
Tire & Rubber
Mining
Railroad
Cement
Steel & Aluminum
Glass
Transportation
43. GO SwitchWhere to Sell Them
