  1. Using Sound in Games Alex Baumann

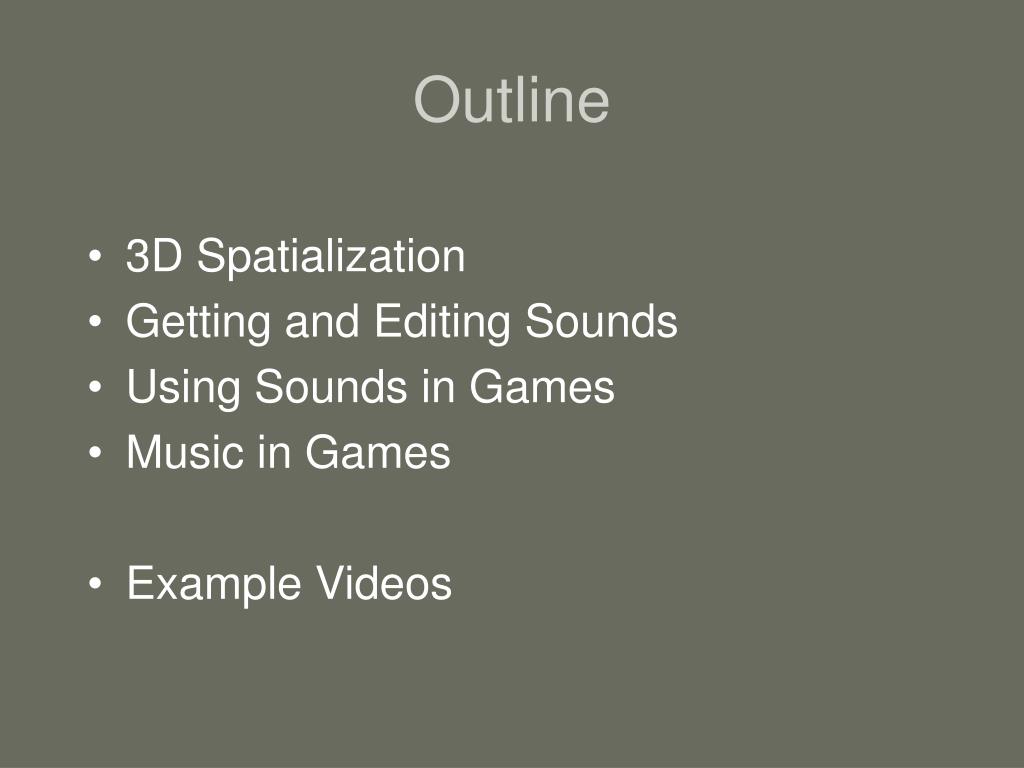

  2. Outline • 3D Spatialization • Getting and Editing Sounds • Using Sounds in Games • Music in Games • Example Videos

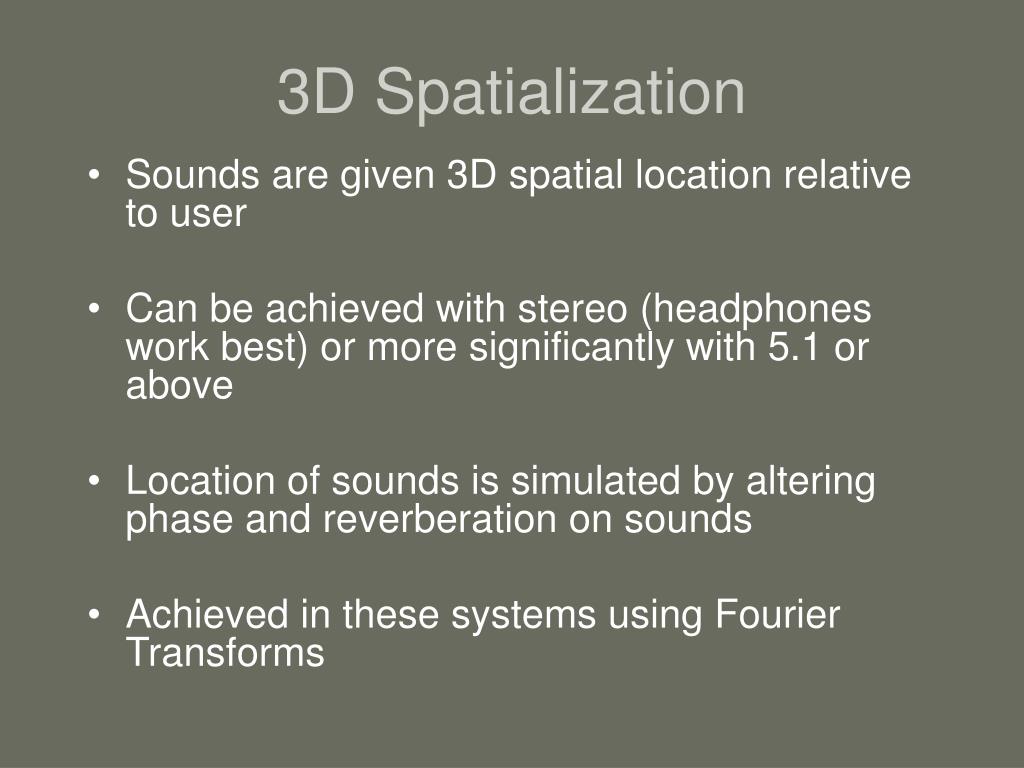

  3. 3D Spatialization • Sounds are given 3D spatial location relative to user • Can be achieved with stereo (headphones work best) or more significantly with 5.1 or above • Location of sounds is simulated by altering phase and reverberation on sounds • Achieved in these systems using Fourier Transforms

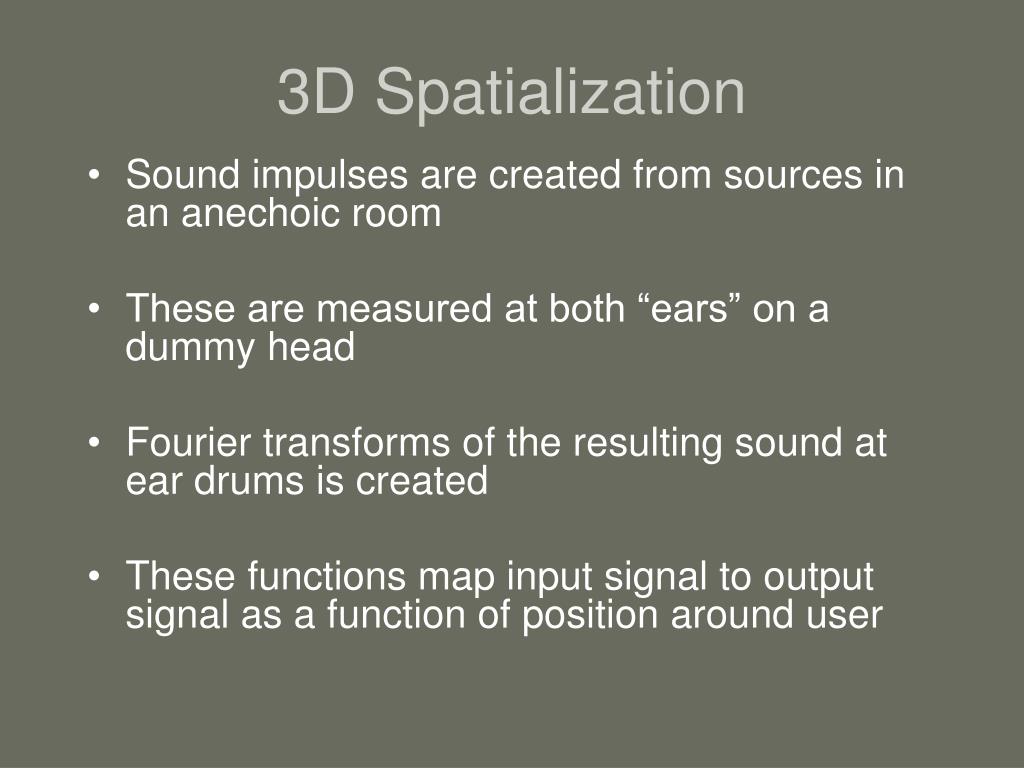

  4. 3D Spatialization • Sound impulses are created from sources in an anechoic room • These are measured at both “ears” on a dummy head • Fourier transforms of the resulting sound at ear drums is created • These functions map input signal to output signal as a function of position around user

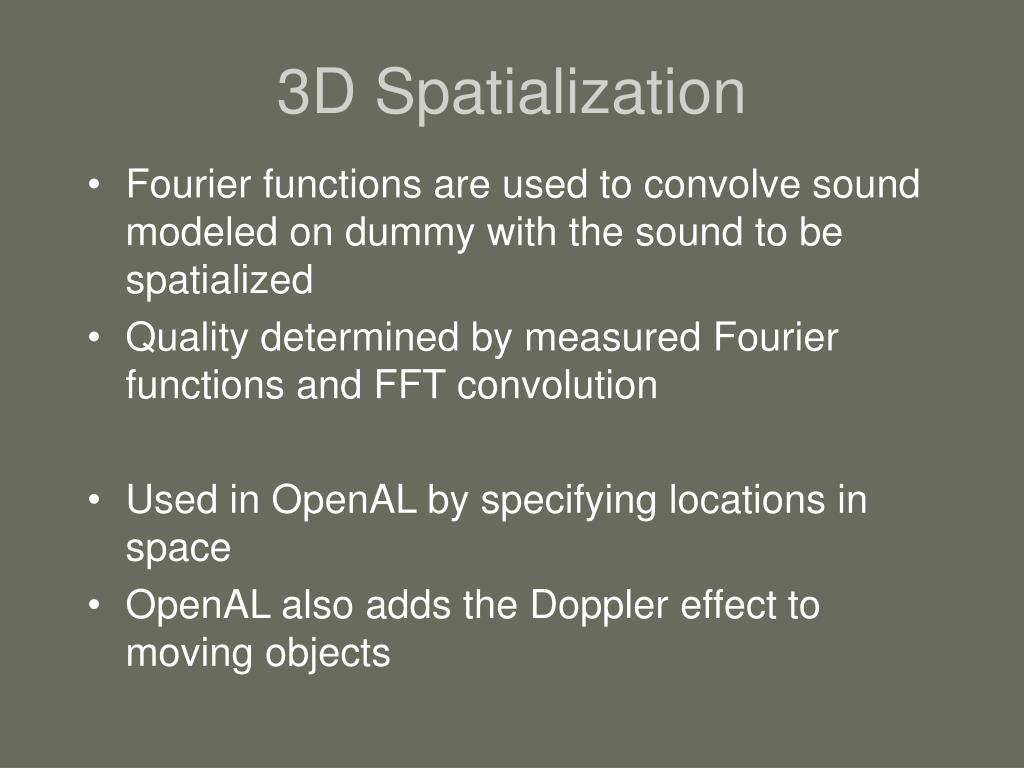

  5. 3D Spatialization • Fourier functions are used to convolve sound modeled on dummy with the sound to be spatialized • Quality determined by measured Fourier functions and FFT convolution • Used in OpenAL by specifying locations in space • OpenAL also adds the Doppler effect to moving objects

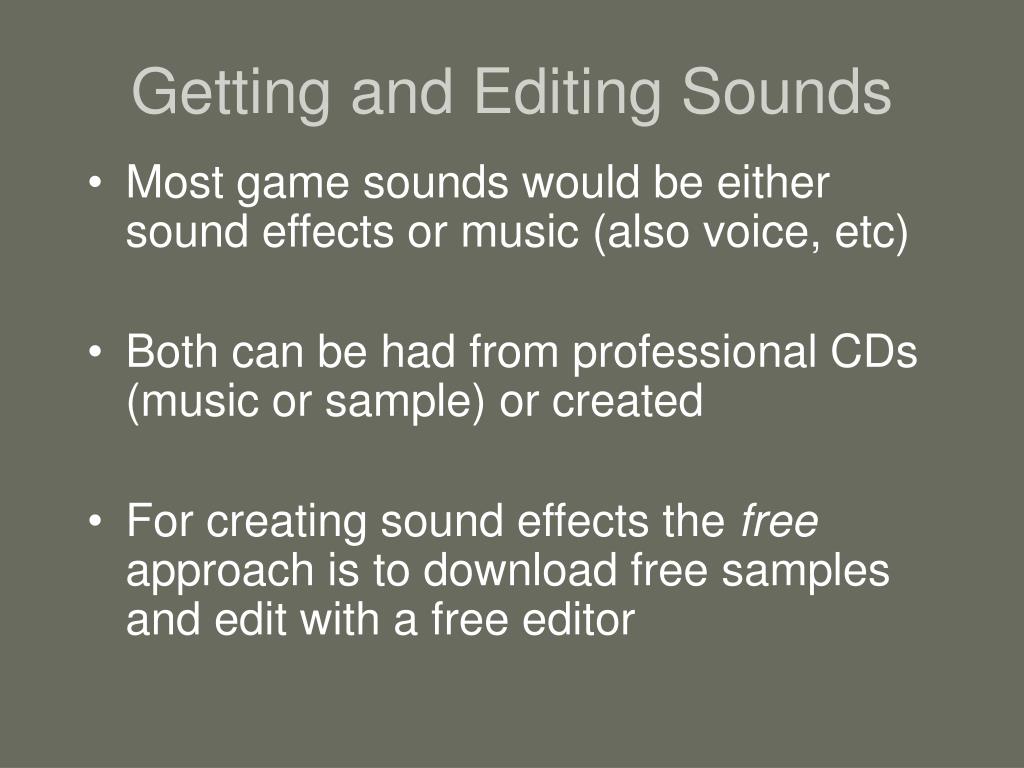

  6. Getting and Editing Sounds • Most game sounds would be either sound effects or music (also voice, etc) • Both can be had from professional CDs (music or sample) or created • For creating sound effects the free approach is to download free samples and edit with a free editor

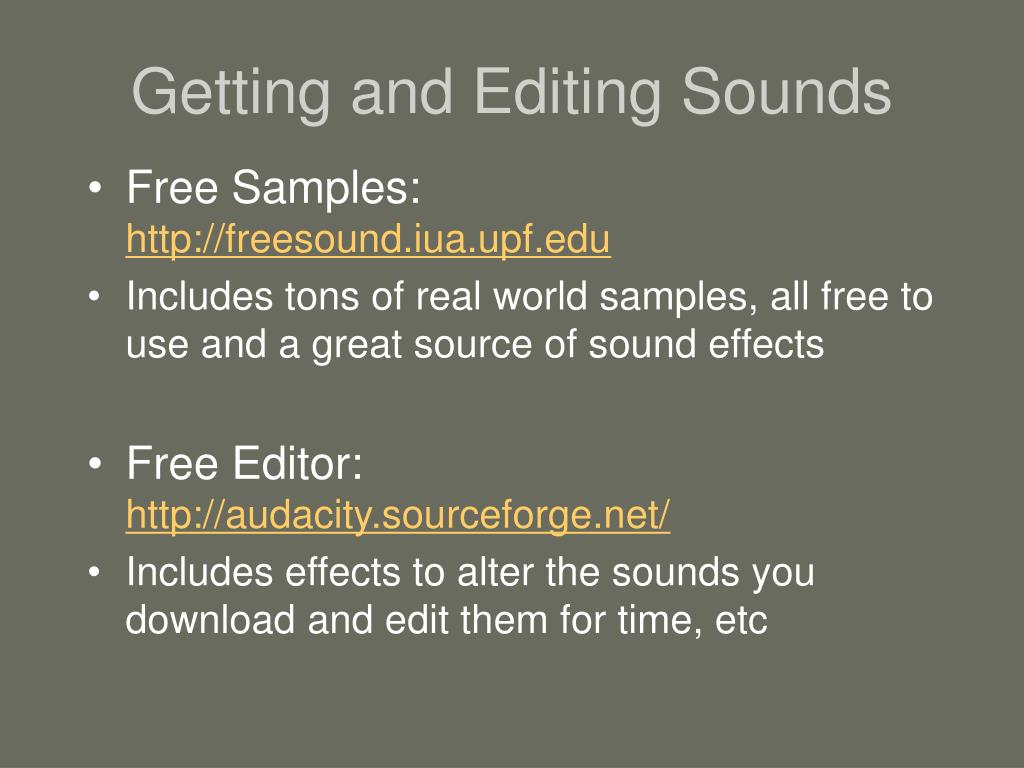

  7. Getting and Editing Sounds • Free Samples: http://freesound.iua.upf.edu • Includes tons of real world samples, all free to use and a great source of sound effects • Free Editor: http://audacity.sourceforge.net/ • Includes effects to alter the sounds you download and edit them for time, etc

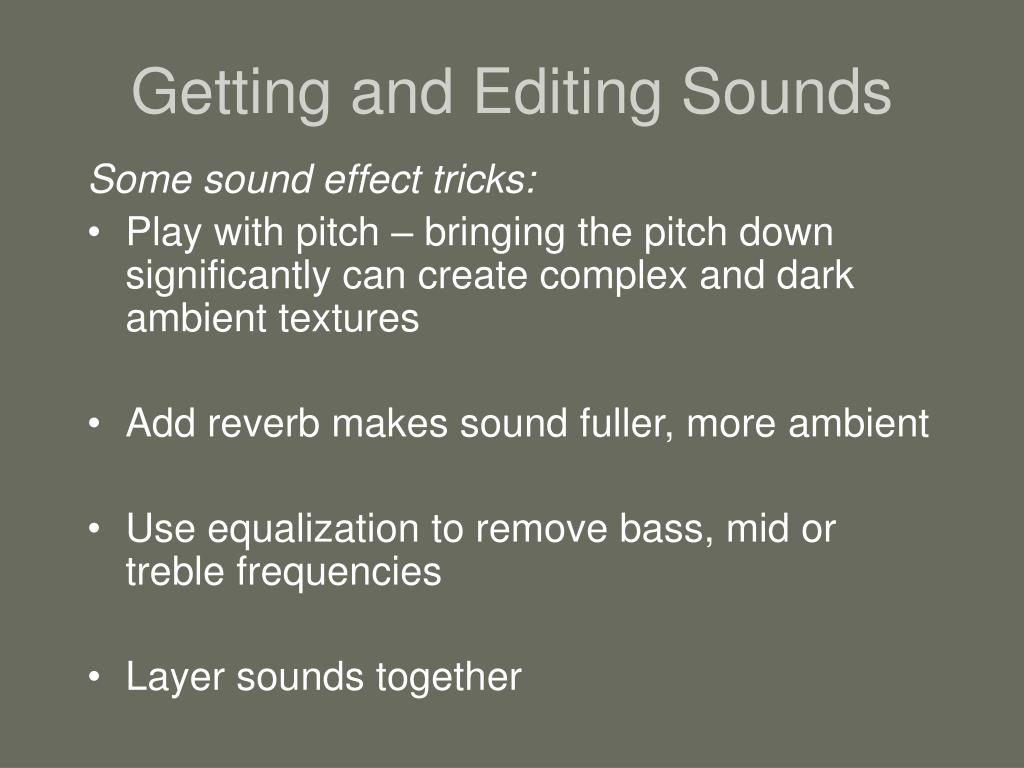

  8. Getting and Editing Sounds Some sound effect tricks: • Play with pitch – bringing the pitch down significantly can create complex and dark ambient textures • Add reverb makes sound fuller, more ambient • Use equalization to remove bass, mid or treble frequencies • Layer sounds together

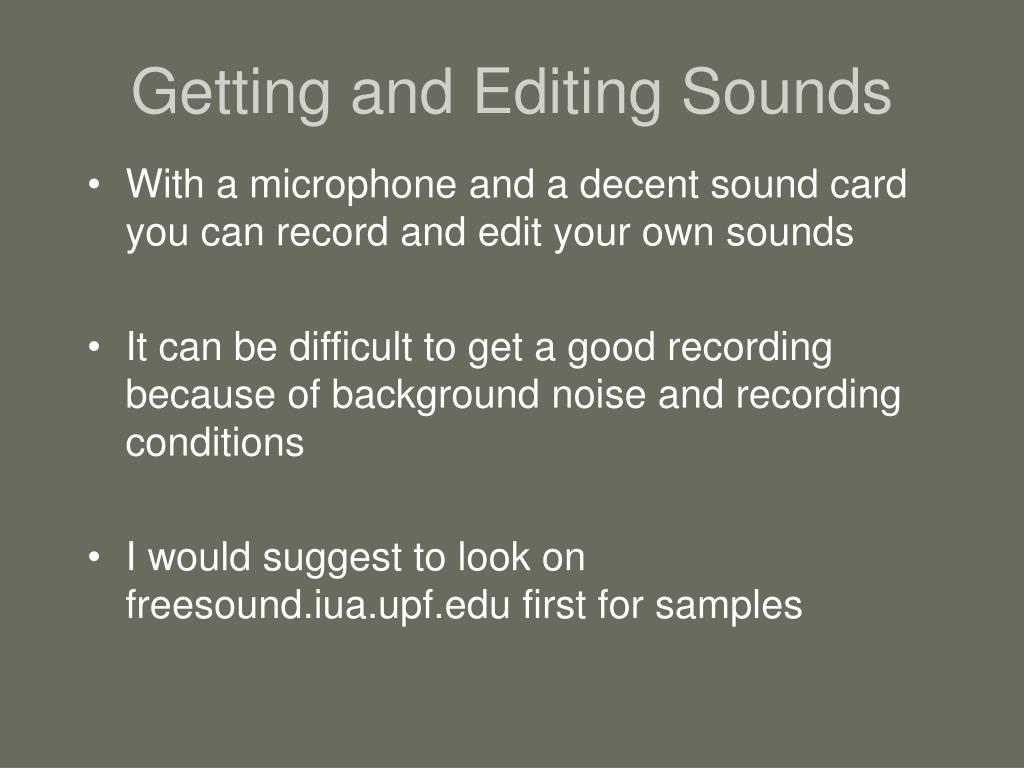

  9. Getting and Editing Sounds • With a microphone and a decent sound card you can record and edit your own sounds • It can be difficult to get a good recording because of background noise and recording conditions • I would suggest to look on freesound.iua.upf.edu first for samples

  10. Getting and Editing Sounds • Original Sound (windchime): • Edited Sound (layered, same sample):

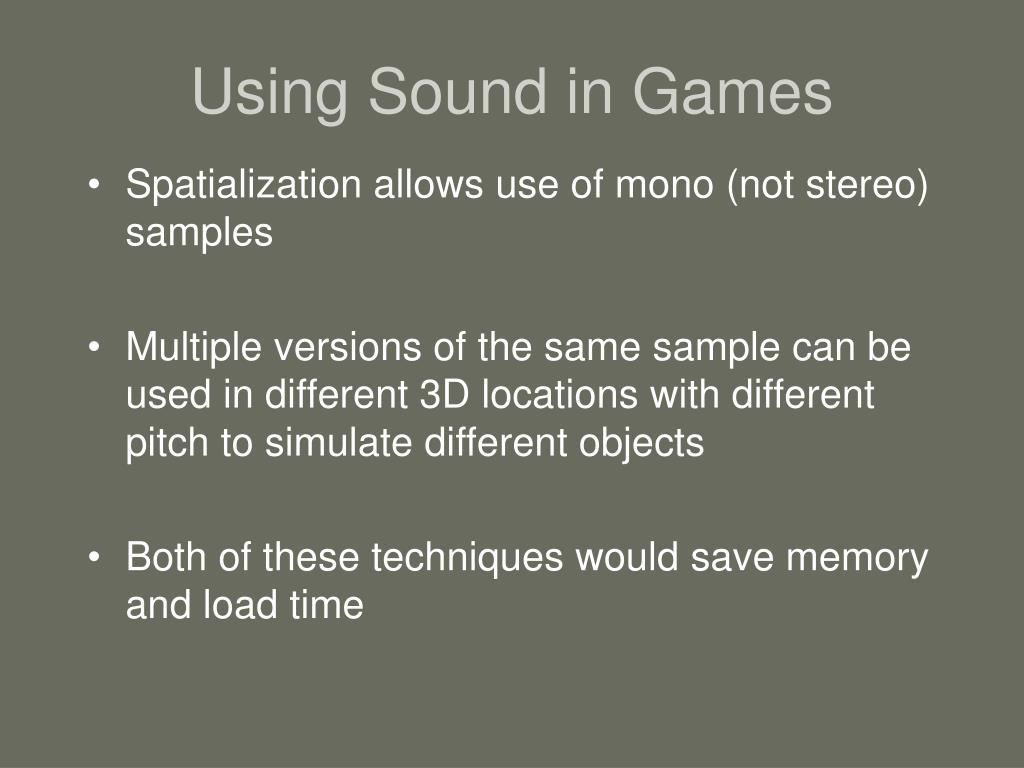

  11. Using Sound in Games • Spatialization allows use of mono (not stereo) samples • Multiple versions of the same sample can be used in different 3D locations with different pitch to simulate different objects • Both of these techniques would save memory and load time

  12. Using Sound in Games • Most sound effects would be triggered by actions, although background textures may be long loops • Interacting with an object (i.e. hitting it) can trigger different samples, or you could change pitch and amplitude on the same sample • You may have 4 different versions of a sound for how hard an object is hit, and add subtle random variations in pitch and amplitude

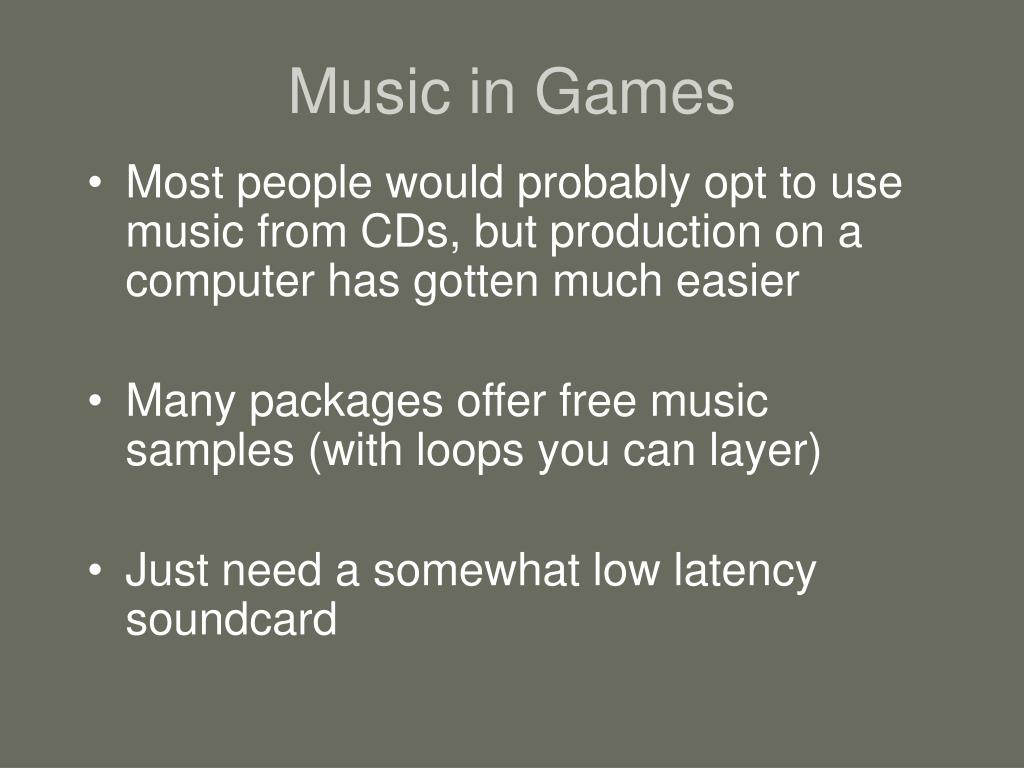

  13. Music in Games • Most people would probably opt to use music from CDs, but production on a computer has gotten much easier • Many packages offer free music samples (with loops you can layer) • Just need a somewhat low latency soundcard

  14. Music in Games • Sony offers ACID XPress for free, which is mostly loop based • Propellerheads’ Reason is one of the most popular all-in-one music production suites (also cross platform) • Looks like a customizable rack of real musical gear and is easy to use

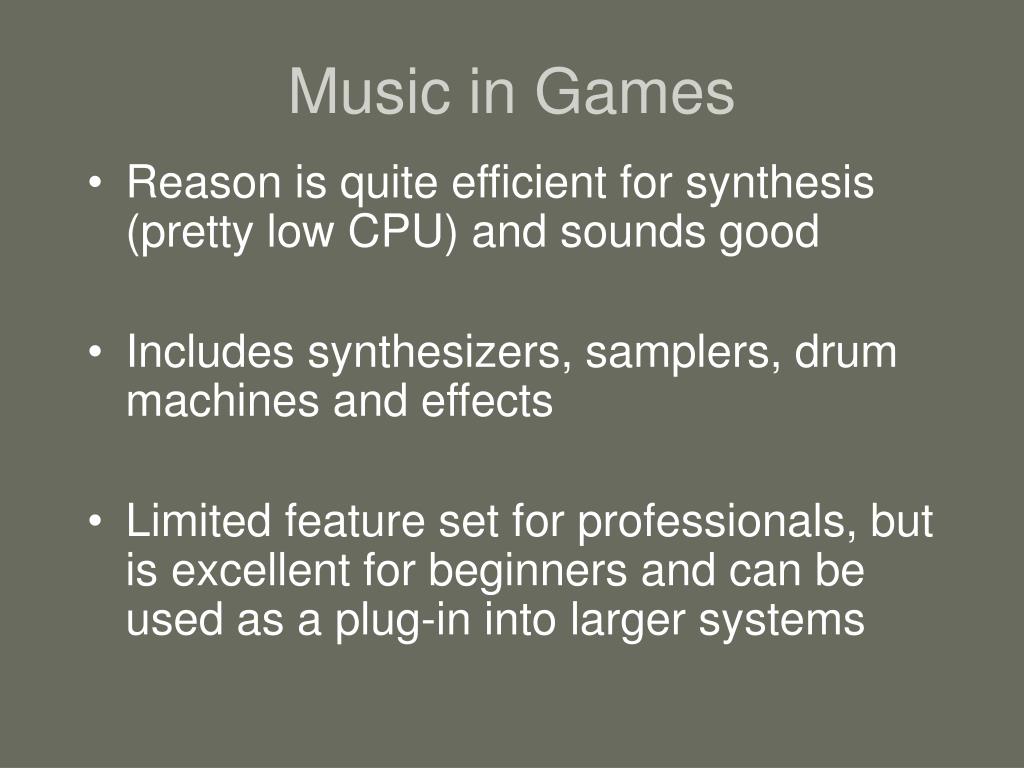

  15. Music in Games • Reason is quite efficient for synthesis (pretty low CPU) and sounds good • Includes synthesizers, samplers, drum machines and effects • Limited feature set for professionals, but is excellent for beginners and can be used as a plug-in into larger systems

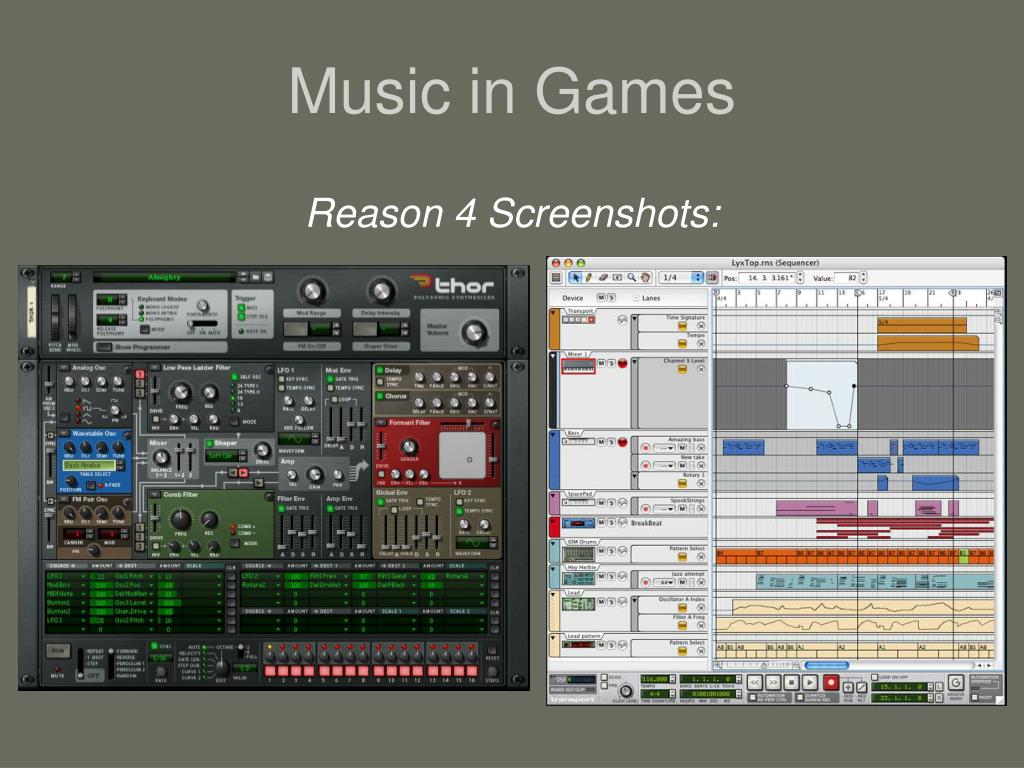

  16. Music in Games Reason 4 Screenshots:

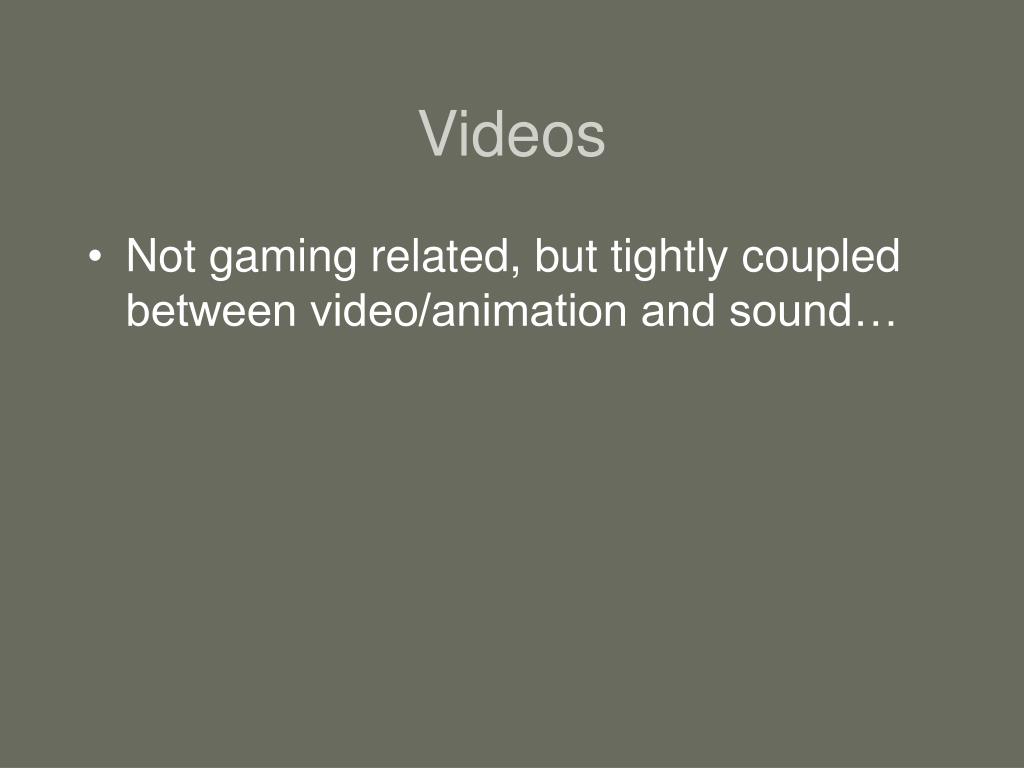

  17. Videos • Not gaming related, but tightly coupled between video/animation and sound…
