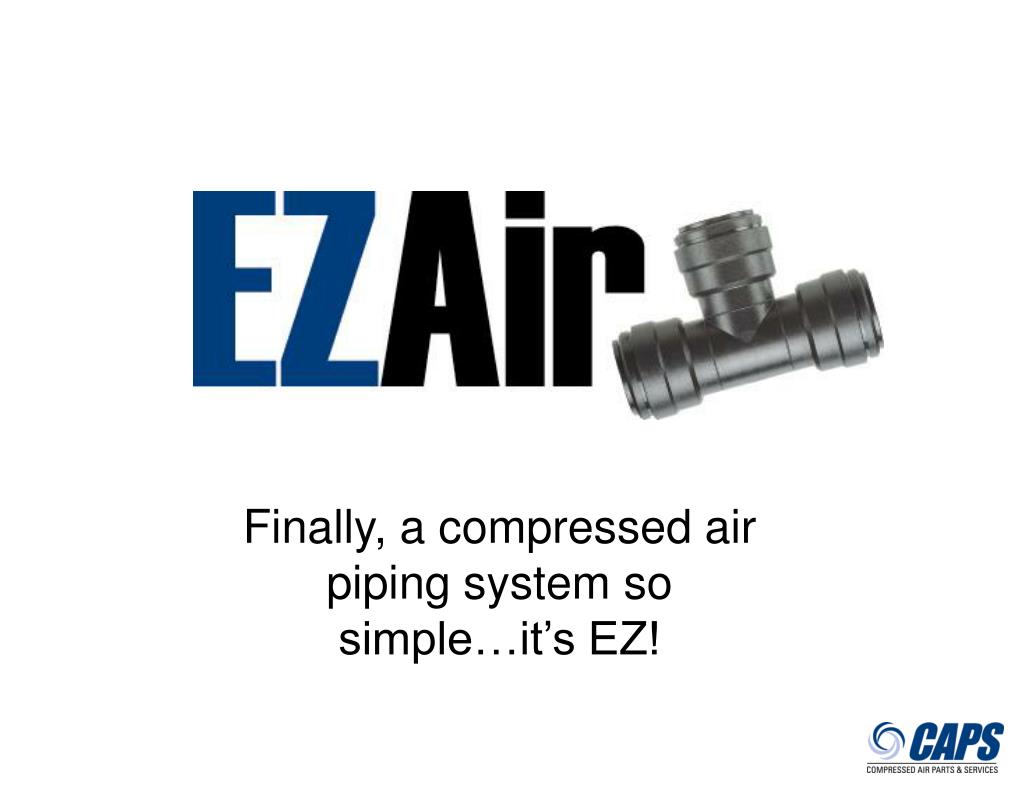

  1. Finally, a compressed air piping system so simple…it’s EZ!

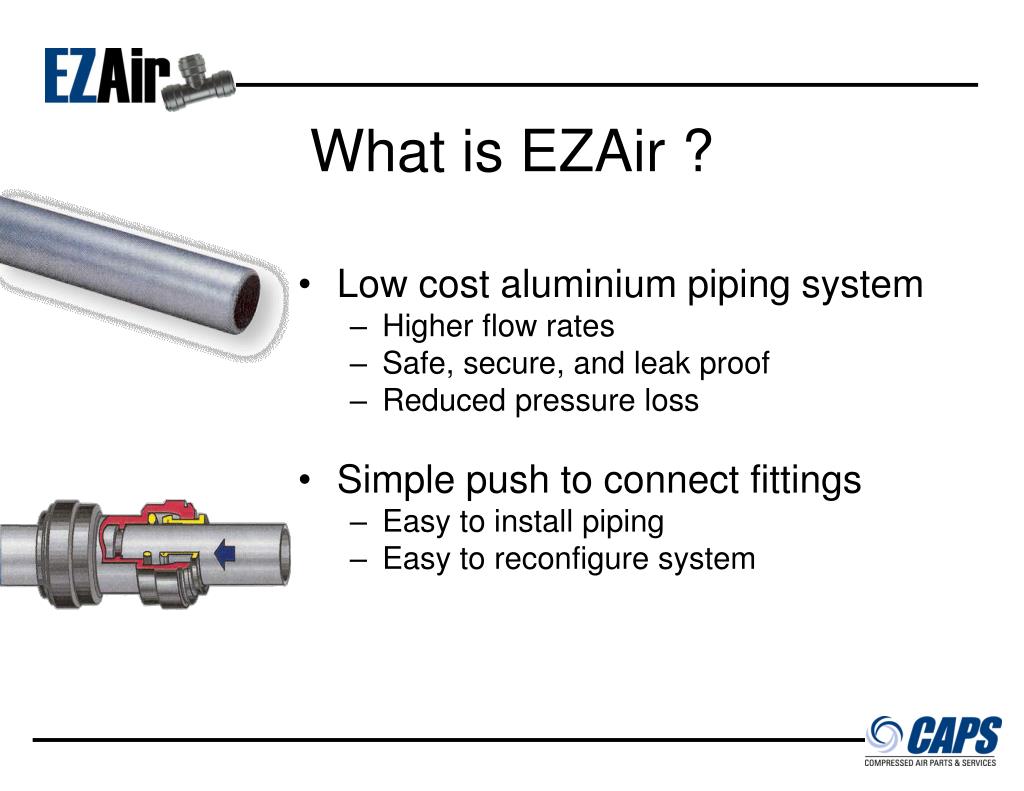

  2. What is EZAir ? • Low cost aluminium piping system • Higher flow rates • Safe, secure, and leak proof • Reduced pressure loss • Simple push to connect fittings • Easy to install piping • Easy to reconfigure system

  3. EZAir Markets • For all compressed air systems downstream of the air receiver • Small to medium body shops • Light industrial manufacturing and assembly • Dealers/resellers

  4. Selling advantages of EZAir • Cost, Cost, Cost • Ease of installation • No skill needed • Little tooling needed (only pipe cutter) • Very light • Very fast to install

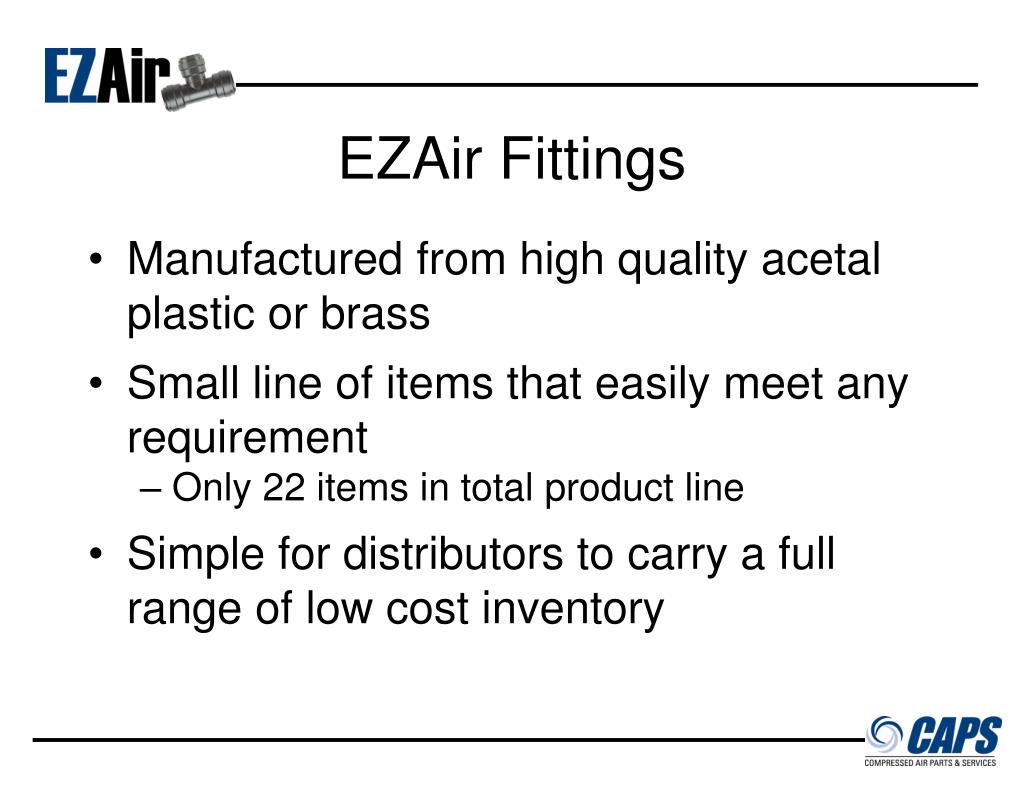

  5. EZAir Fittings • Manufactured from high quality acetal plastic or brass • Small line of items that easily meet any requirement • Only 22 items in total product line • Simple for distributors to carry a full range of low cost inventory

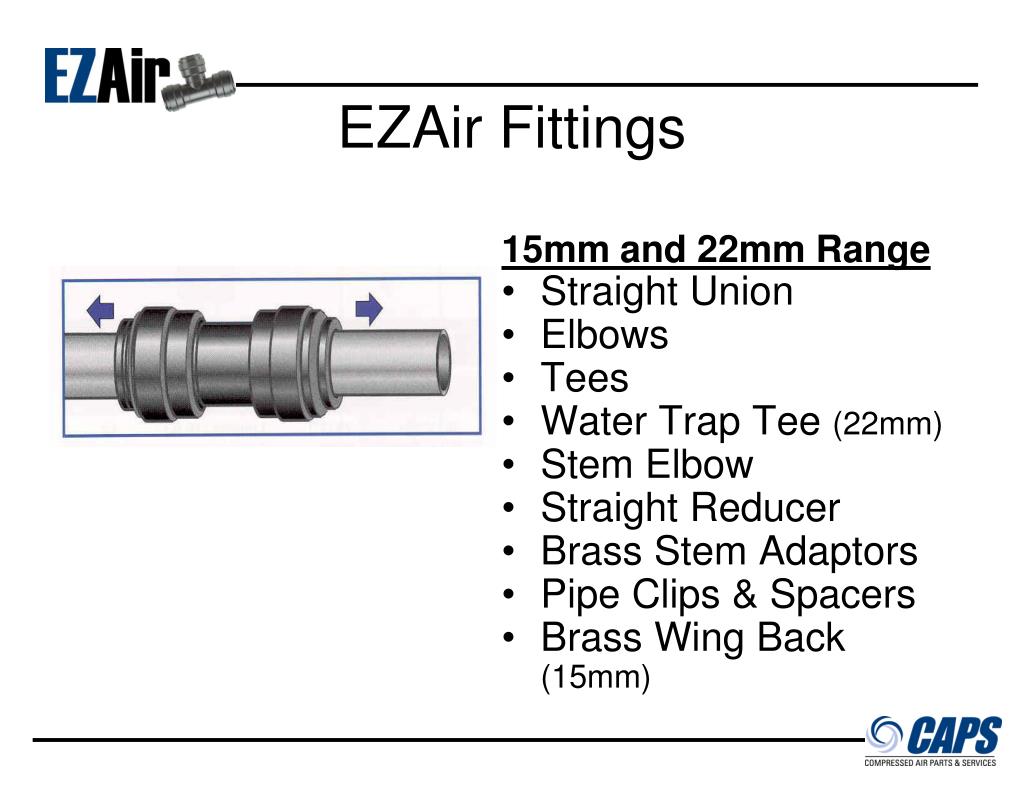

  6. EZAir Fittings 15mm and 22mm Range • Straight Union • Elbows • Tees • Water Trap Tee (22mm) • Stem Elbow • Straight Reducer • Brass Stem Adaptors • Pipe Clips & Spacers • Brass Wing Back (15mm)

  7. EZAir Fittings 28mm Range • Straight Union • Elbows • Tees • Water Trap Converter • Brass Stem Adaptor • Plugs • Pipe Clips & Spacers

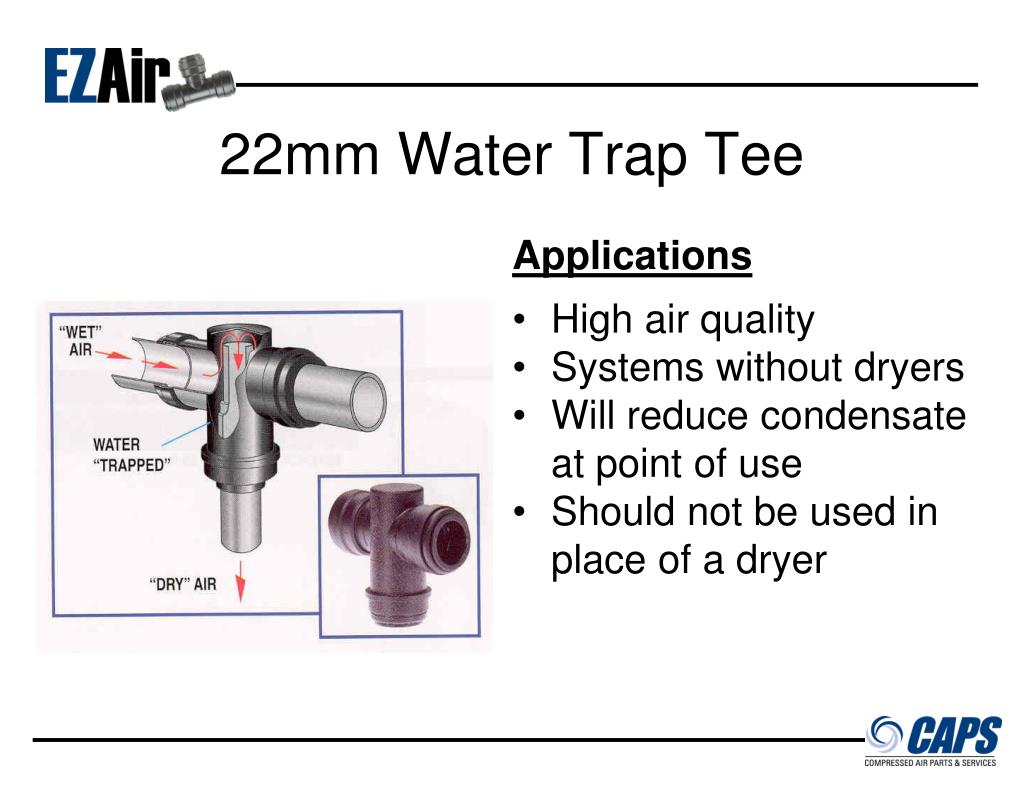

  8. 22mm Water Trap Tee Applications • High air quality • Systems without dryers • Will reduce condensate at point of use • Should not be used in place of a dryer

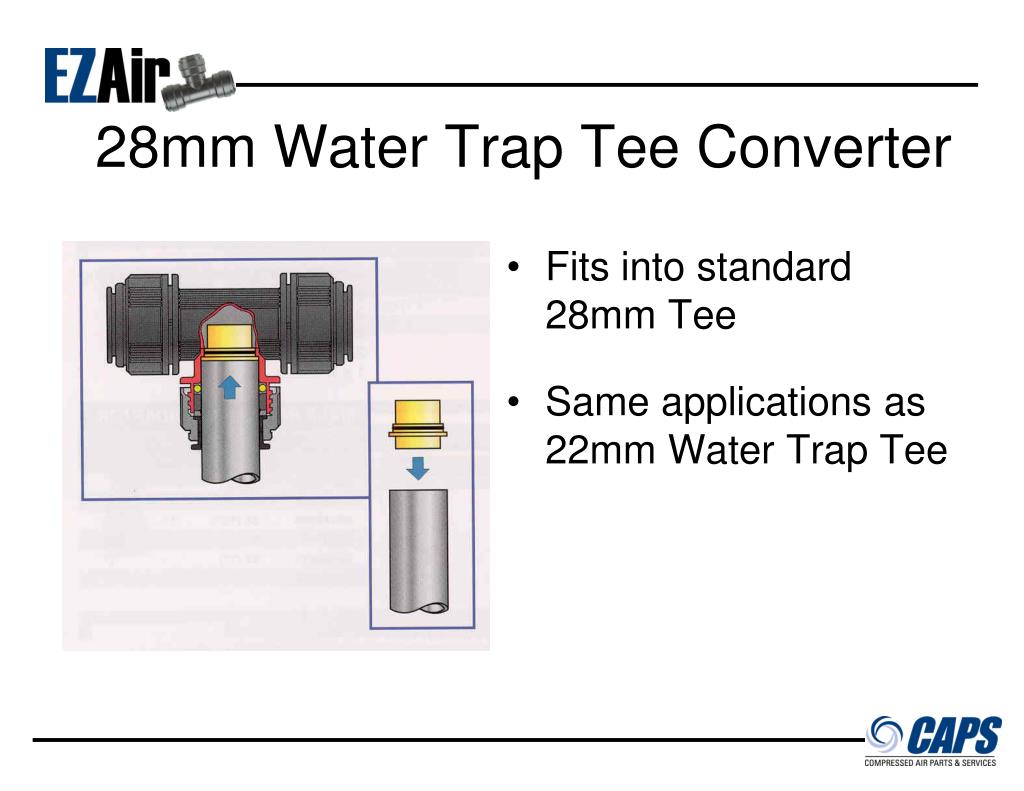

  9. 28mm Water Trap Tee Converter • Fits into standard 28mm Tee • Same applications as 22mm Water Trap Tee

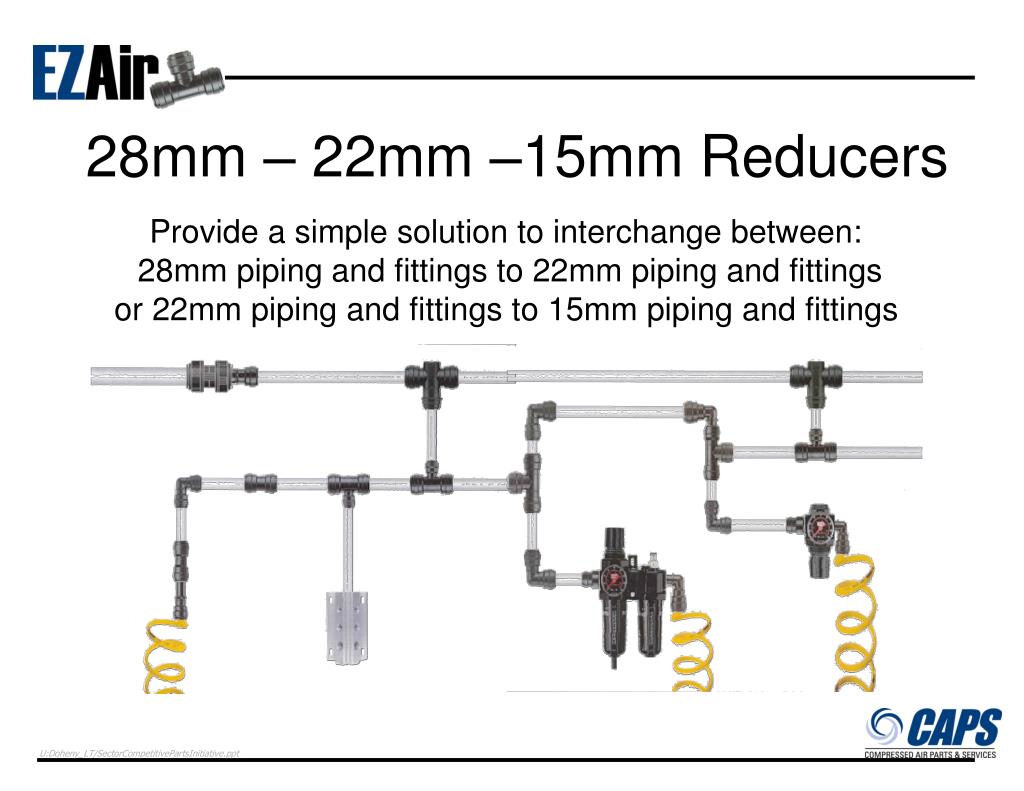

  10. 28mm – 22mm –15mm Reducers Provide a simple solution to interchange between: 28mm piping and fittings to 22mm piping and fittings or 22mm piping and fittings to 15mm piping and fittings

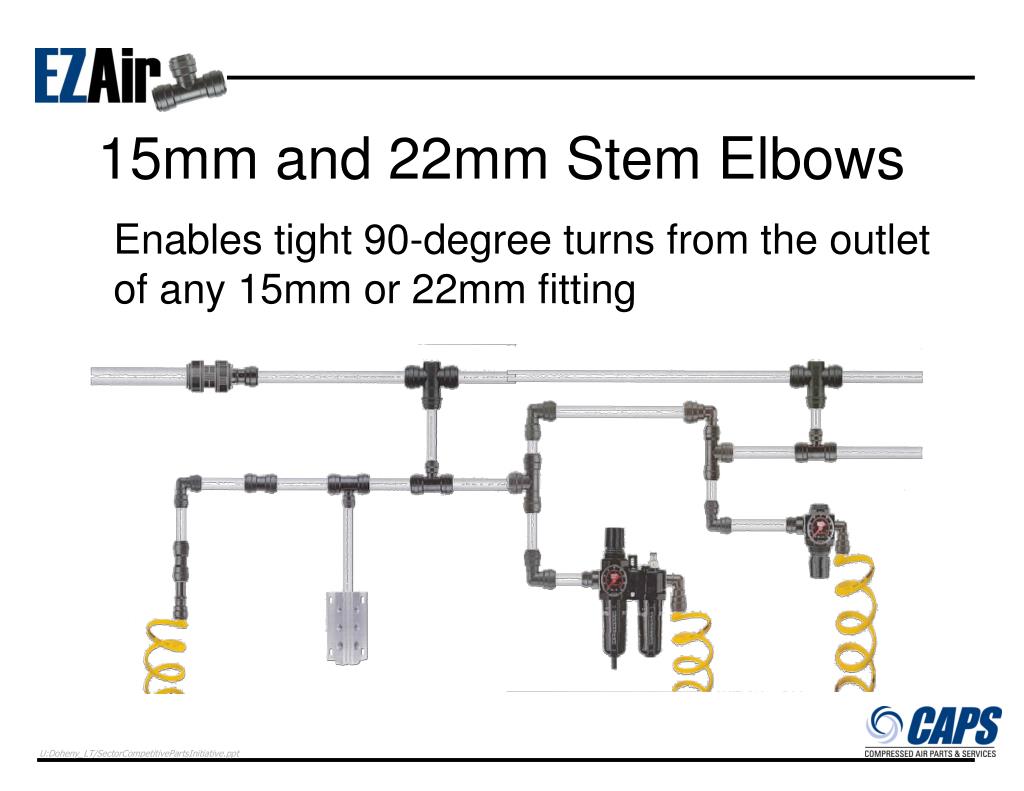

  11. 15mm and 22mm Stem Elbows Enables tight 90-degree turns from the outlet of any 15mm or 22mm fitting

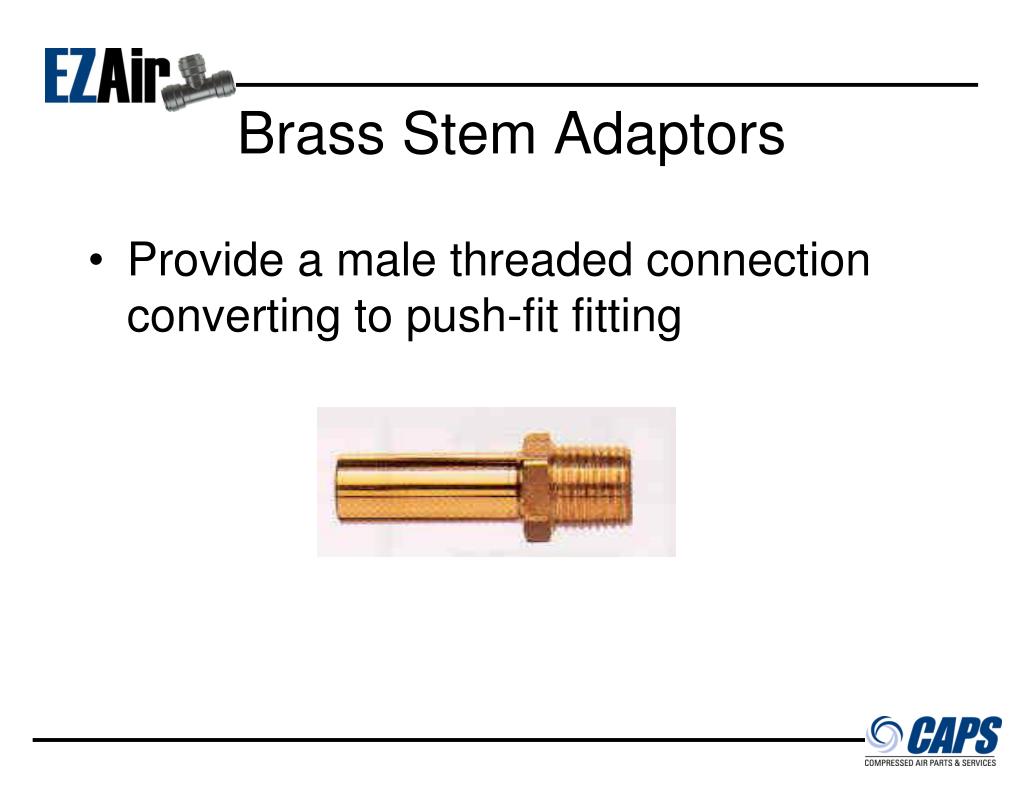

  12. Brass Stem Adaptors • Provide a male threaded connection converting to push-fit fitting

  13. How do the fittings work? • Simple push-to-connect system • Collet gripper has stainless steel teeth that bite into tubing • “O” ring provides permanent leak-proof seal

  14. Tubing • EZAir line promotes use of non-anodized tubing • Anodized tubing is too hard for stainless collet to bite into tubing • Non anodized tubing makes installation simple and requires very little instruction

  15. Non-Anodized Tubing • Achieves better air quality delivery than black steel or galvanized tubing • Equal quality to that of copper tubing • Non-anodized tubing could oxidize if moisture is allowed to lay in the piping • Will build up white powder to self protect against corrosion

  16. EZAir Tubing • 10 foot tubing lengths sold in pack quantities of 10 • Shorter lengths - less handling in warehouse • Lower cost and easier transportation • Less storage space needed, easier for distributors to stock • Tubing can still be formed with pipe bender

  17. Assembly of Pipe & Fittings • It is essential that all installers and users of the EZAir system have a copy of our installation instructions. • It is vital that the procedures stated in the instructions are followed for a safe and secure working system.

  18. Tube Preparation • Tubing must be cut square. • Use a suitable pipe cutter to ensure that the ends of the tubing are free from any burrs that might damage the “O” ring

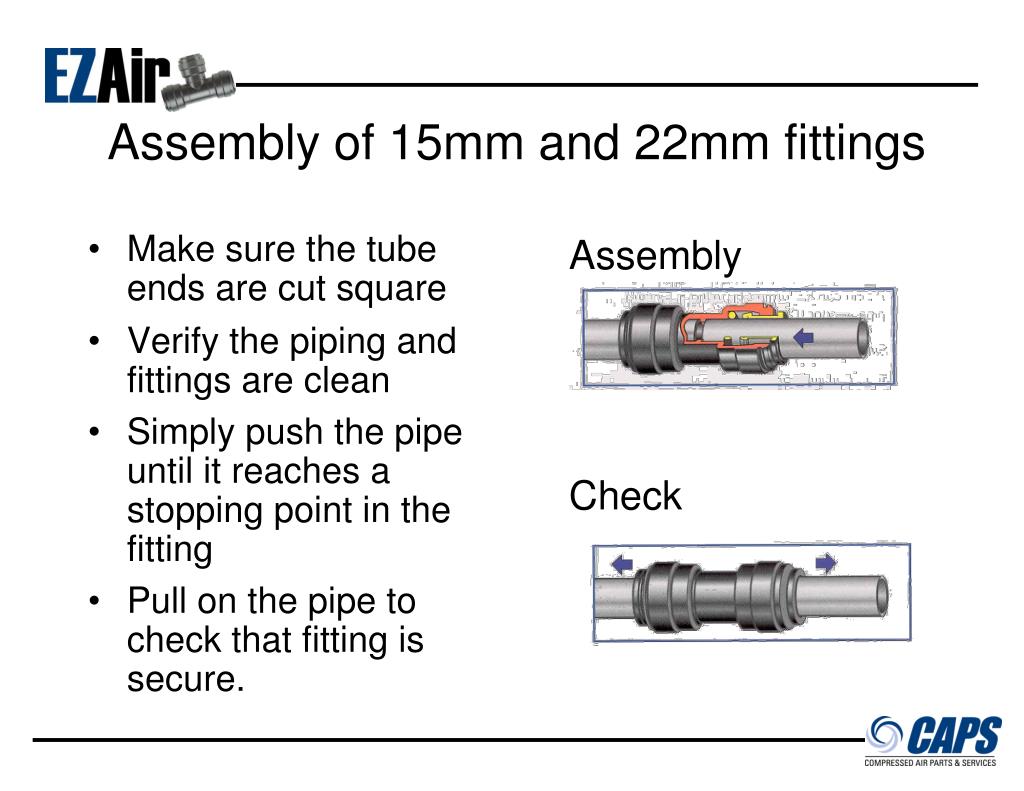

  19. Assembly of 15mm and 22mm fittings • Make sure the tube ends are cut square • Verify the piping and fittings are clean • Simply push the pipe until it reaches a stopping point in the fitting • Pull on the pipe to check that fitting is secure. Assembly Check

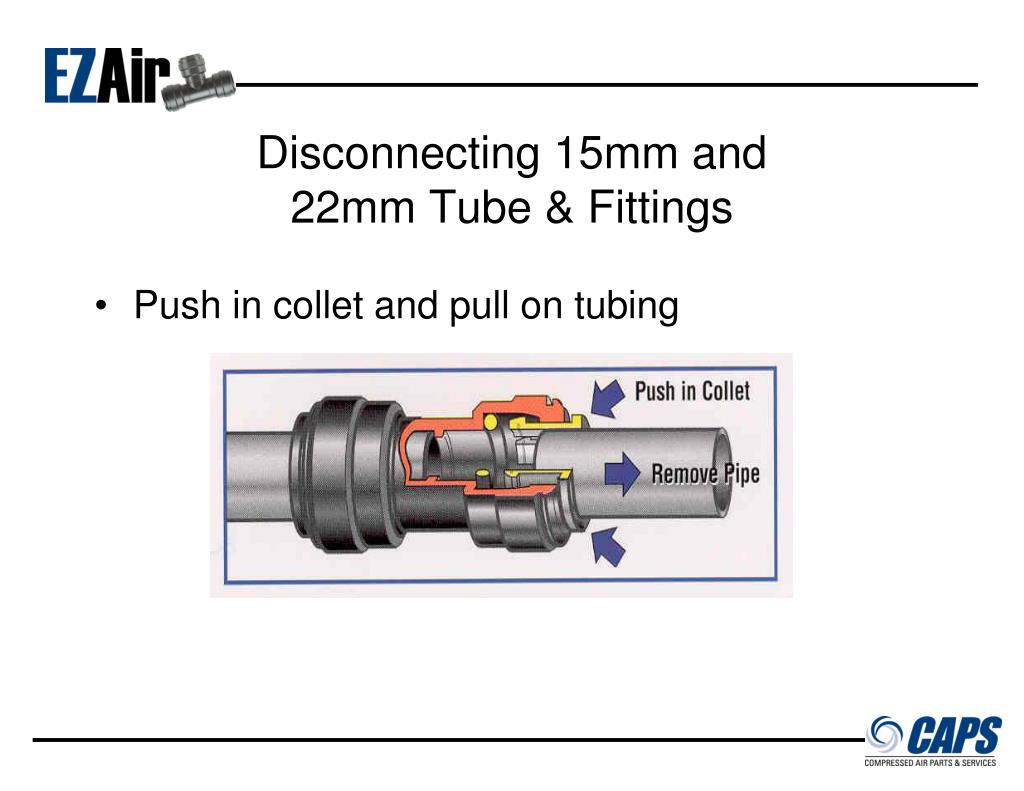

  20. Disconnecting 15mm and 22mm Tube & Fittings • Push in collet and pull on tubing

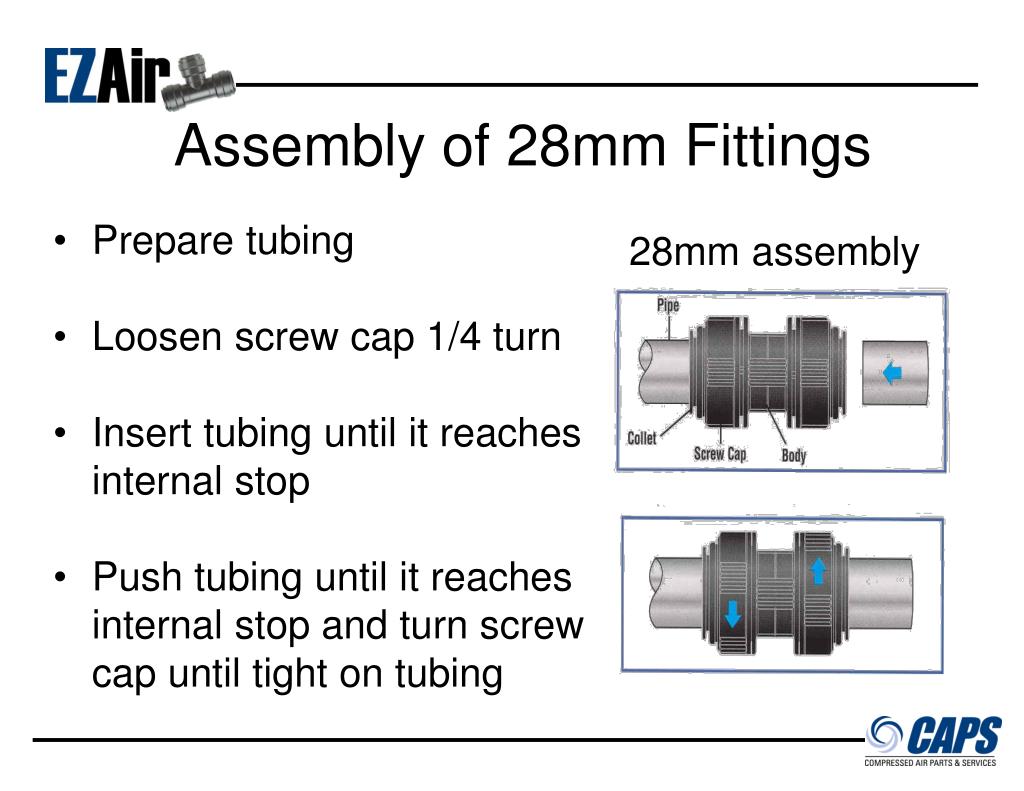

  21. Assembly of 28mm Fittings • Prepare tubing • Loosen screw cap 1/4 turn • Insert tubing until it reaches internal stop • Push tubing until it reaches internal stop and turn screw cap until tight on tubing 28mm assembly

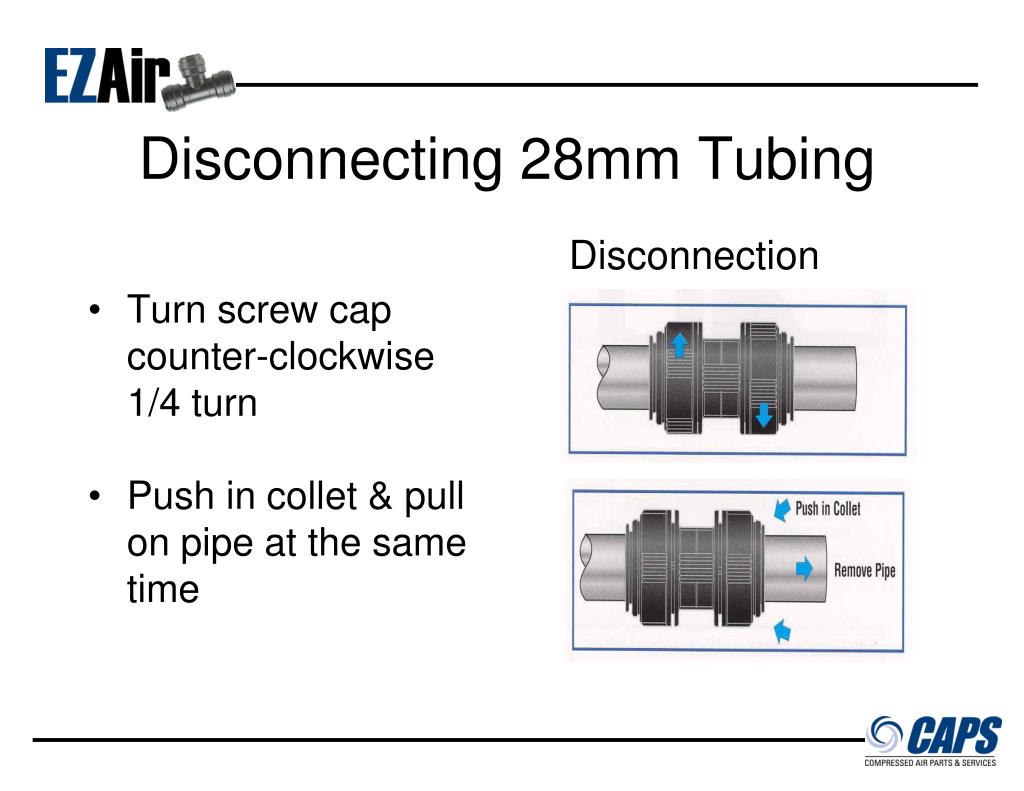

  22. Disconnecting 28mm Tubing • Turn screw cap counter-clockwise 1/4 turn • Push in collet & pull on pipe at the same time Disconnection

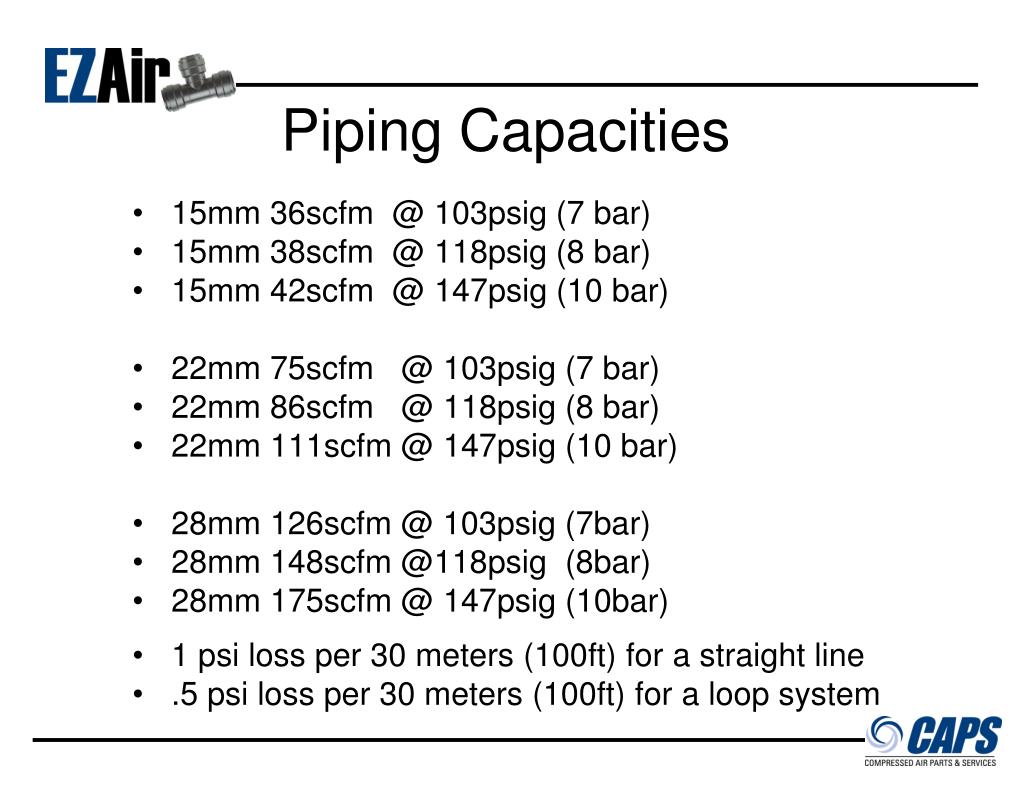

  23. Piping Capacities • 15mm 36scfm @ 103psig (7 bar) • 15mm 38scfm @ 118psig (8 bar) • 15mm 42scfm @ 147psig (10 bar) • 22mm 75scfm @ 103psig (7 bar) • 22mm 86scfm @ 118psig (8 bar) • 22mm 111scfm @ 147psig (10 bar) • 28mm 126scfm @ 103psig (7bar) • 28mm 148scfm @118psig (8bar) • 28mm 175scfm @ 147psig (10bar) • 1 psi loss per 30 meters (100ft) for a straight line • .5 psi loss per 30 meters (100ft) for a loop system

  24. EZAir Testing • Tested to ANSI B31.1 • 4 x burst - 600 psig test • 1.5 times leak - 225psi test • No leakage at any pressure - up to failure • 150psig (10BAR) Maximum working pressure allowed to comply with ANSI B31.1 testing standard

  25. EZAir Endurance Testing • EZAir line tested in temperature chamber between : -20°C (-4°F) to +60°C (+140°F) • Cycle tested every 5 seconds (0-175psig) • Temperature range cycled every 2 hours • Over 1,000,000 cycles completed so far

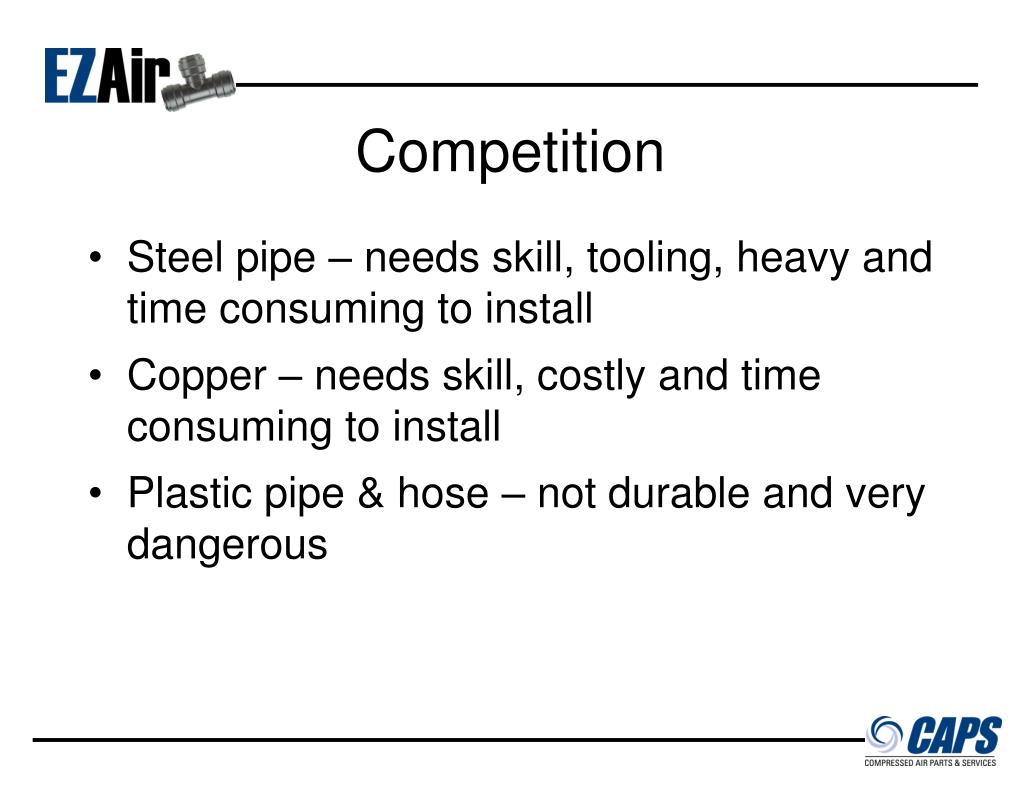

  26. Competition • Steel pipe – needs skill, tooling, heavy and time consuming to install • Copper – needs skill, costly and time consuming to install • Plastic pipe & hose – not durable and very dangerous

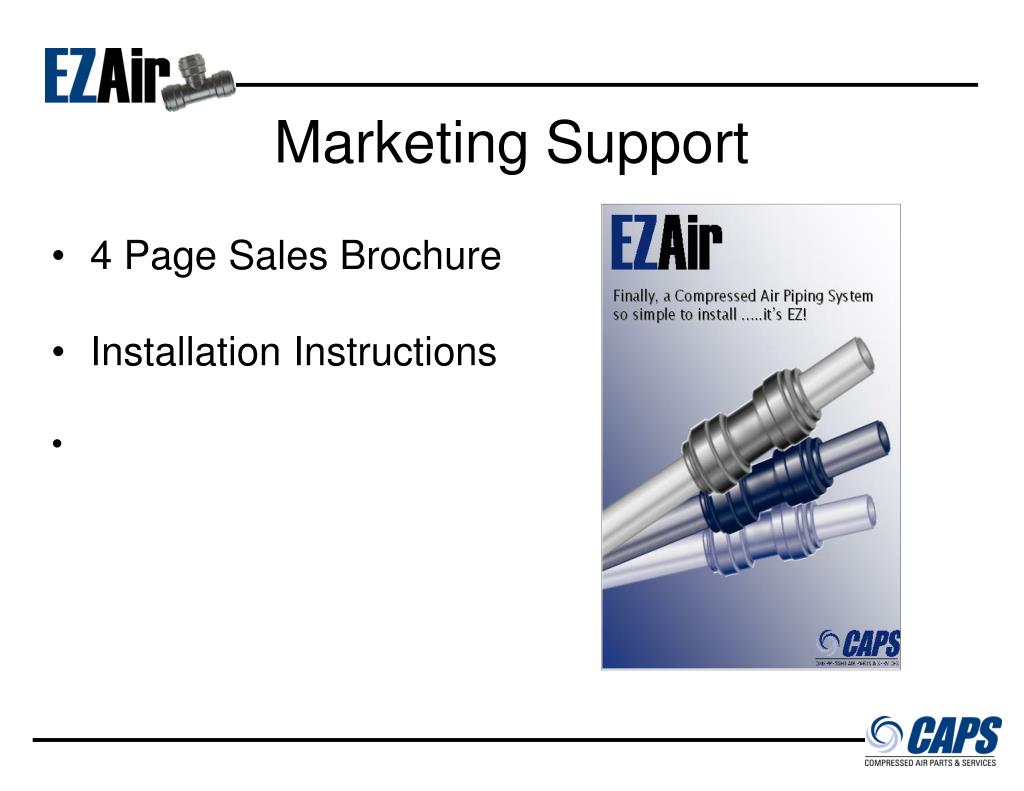

  27. Marketing Support • 4 Page Sales Brochure • Installation Instructions

  28. A Light Industrial Revolution You now have the solution!
