Multiple Sclerosis

906-4. Multiple Sclerosis. Eye Movements. Transient spontaneous primary position upbeat nystagmus with lid nystagmus Rapid bursts of horizontal square wave oscillations opening her eyes to fix on a target. Horizontal gaze evoked rotary (torsional) nystagmus

karena
Download Presentation

Multiple Sclerosis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 906-4 Multiple Sclerosis

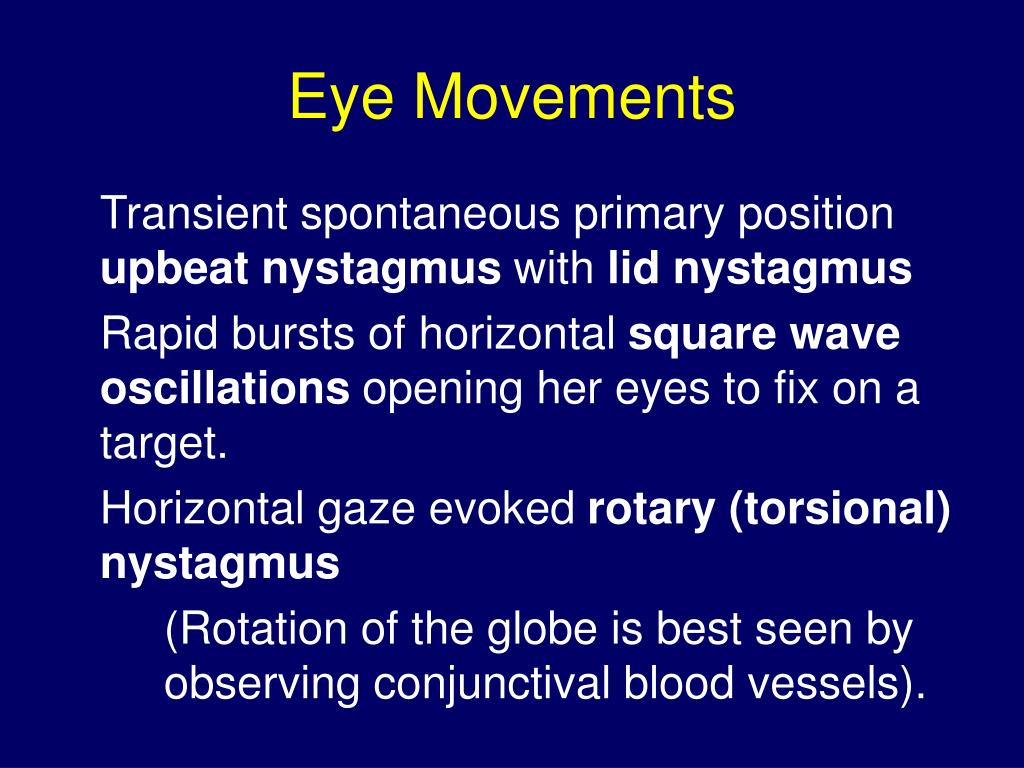

  2. Eye Movements Transient spontaneous primary position upbeat nystagmus with lid nystagmus Rapid bursts of horizontal square wave oscillations opening her eyes to fix on a target. Horizontal gaze evoked rotary (torsional) nystagmus (Rotation of the globe is best seen by observing conjunctival blood vessels).

  3. Eye Movements Gaze evoked unsustained upbeat nystagmus Saccadic pursuit except on downgaze SaccadicDysmetria Hypermetria left gaze to center.

  4. Clinical Features of Upbeat Nystagmus Leigh JR and Zee DS. The Neurology of Eye Movements 4th Edition. Oxford University Press, New York 2006 with permission

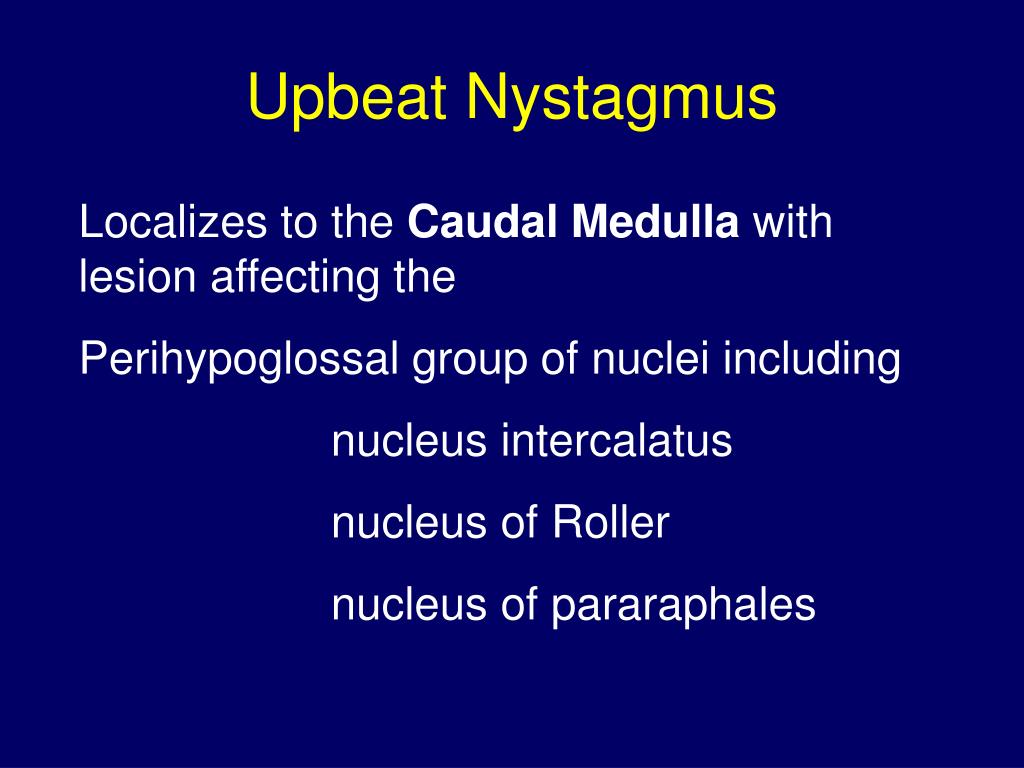

  5. Upbeat Nystagmus Localizes to the Caudal Medulla with lesion affecting the Perihypoglossal group of nuclei including nucleus intercalatus nucleus of Roller nucleus of pararaphales

  6. Upbeat Nystagmus More rostral brainstem lesions may interrupt the ventral tegmental tract containing projections from the vestibular nuclei that receive inputs from the anterior semicircular canal or Involve the brachuim conjunctivum in the rostral pons and Medulla.

  7. Etiology of Upbeat Nystagmus Leigh JR and Zee DS. The Neurology of Eye Movements 4th Edition. Oxford University Press, New York 2006 with permission

  8. Clinical Features of Torsional Nystagmus Leigh JR and Zee DS. The Neurology of Eye Movements 4th Edition. Oxford University Press, New York 2006 with permission

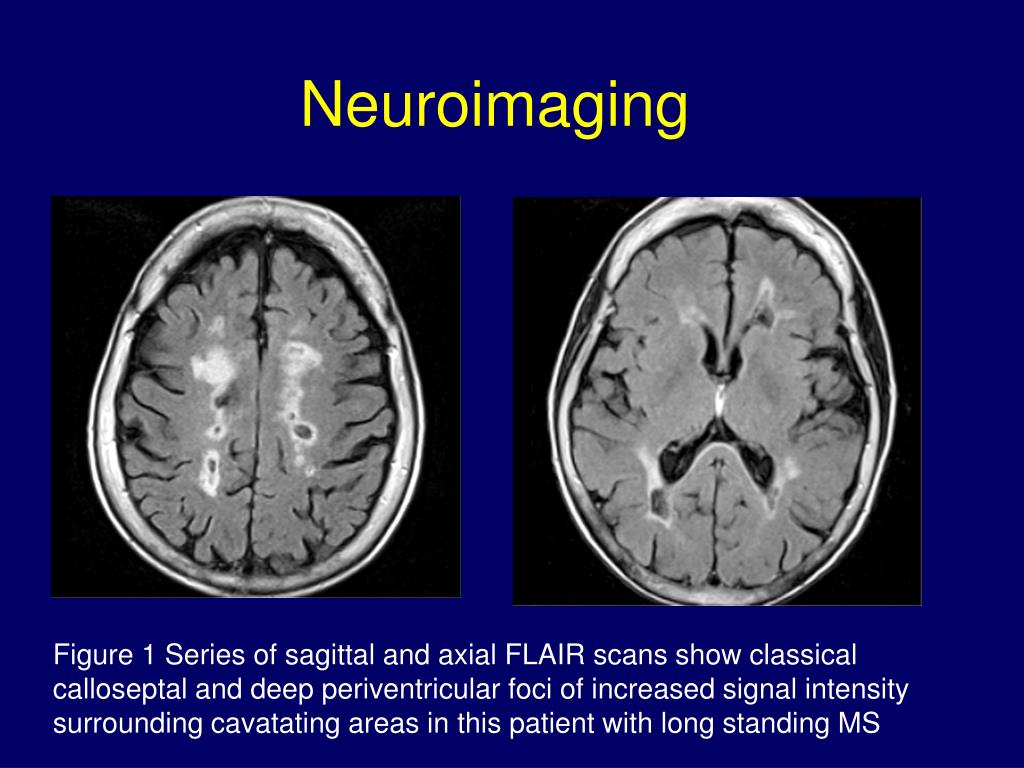

  9. Neuroimaging Figure 1 Series of sagittal and axial FLAIR scans show classical calloseptal and deep periventricular foci of increased signal intensity surrounding cavatating areas in this patient with long standing MS

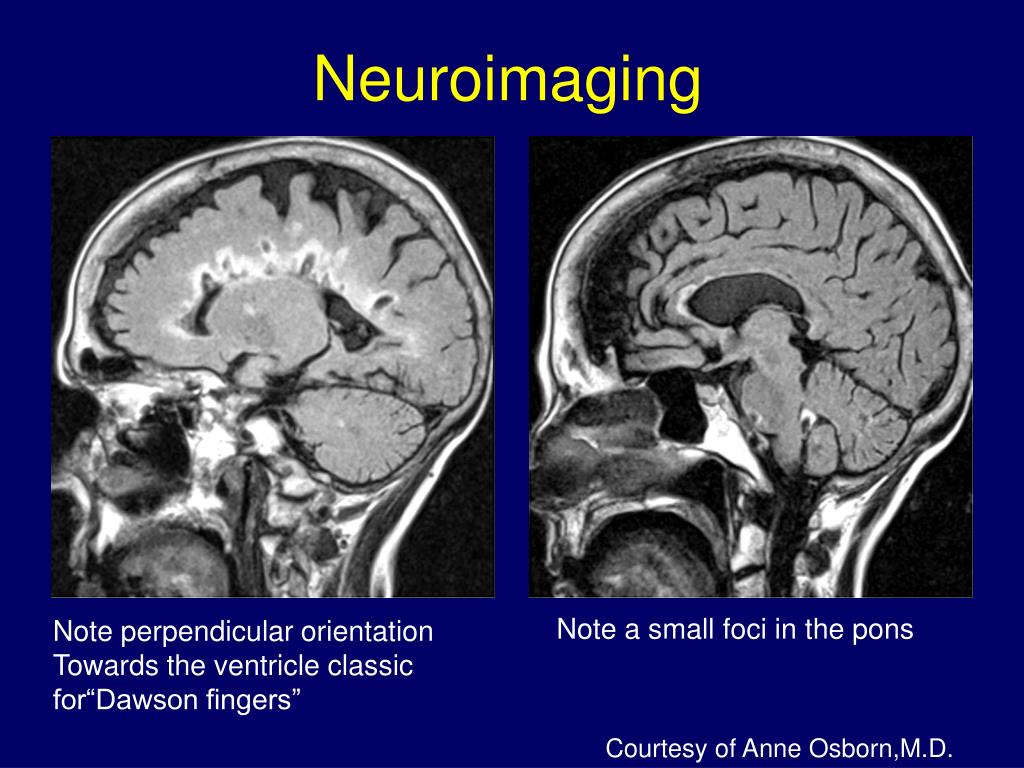

  10. Neuroimaging Note a small foci in the pons Note perpendicular orientation Towards the ventricle classic for“Dawson fingers” Courtesy of Anne Osborn,M.D.

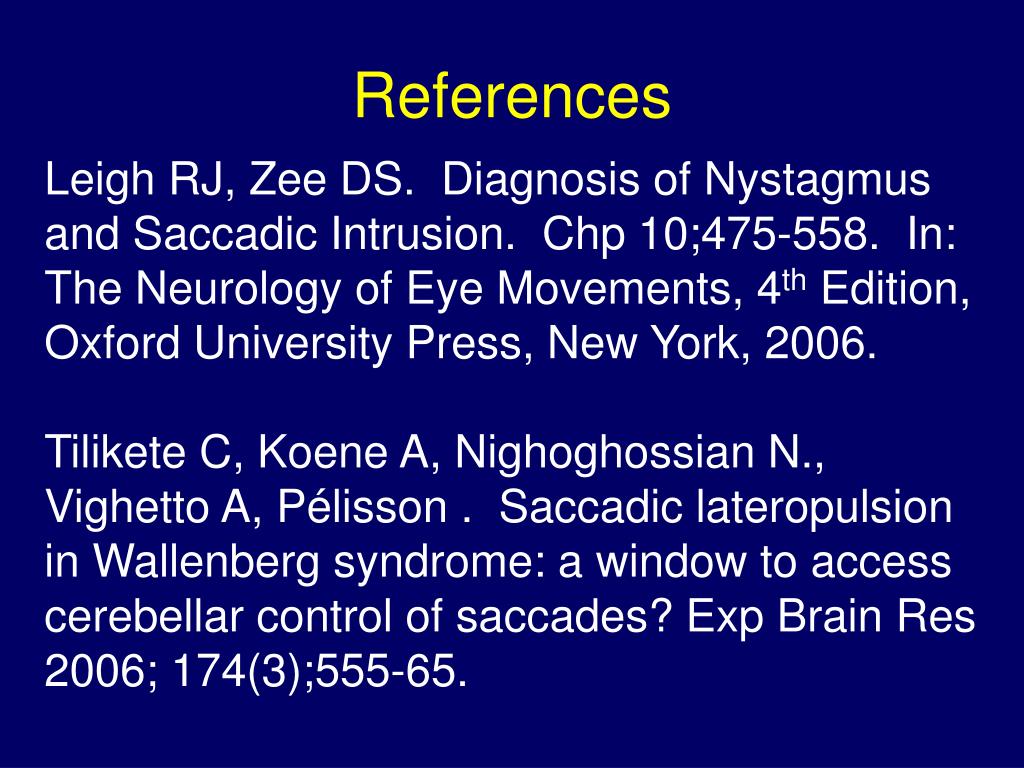

  11. References Leigh RJ, Zee DS. Diagnosis of Nystagmus and Saccadic Intrusion. Chp 10;475-558. In: The Neurology of Eye Movements, 4th Edition, Oxford University Press, New York, 2006. Tilikete C, Koene A, Nighoghossian N., Vighetto A, Pélisson . Saccadic lateropulsion in Wallenberg syndrome: a window to access cerebellar control of saccades? Exp Brain Res 2006; 174(3);555-65.

  12. References Tilikete C. Hermier M. Pelisson D, Vighetto A. Saccadic lateropulsion and primary position upbeat nystagmus: disorders of caudal medulla. Ann Neurol 2002; 52:658-662.

  13. http://www.library.med.utah.edu/NOVEL
