Troubleshooting with


So what is wireshark

So What is WireShark?

  • Open Source Network Tool

  • Packet sniffer/protocol analyzer

0010100100101011101010101


Air pcap hardware

WiFi Packet Sniffing

Association Issues

Air PCAP (Hardware)


Cascade pilot commercial

Cascade Pilot (Commercial)


From the f irehose

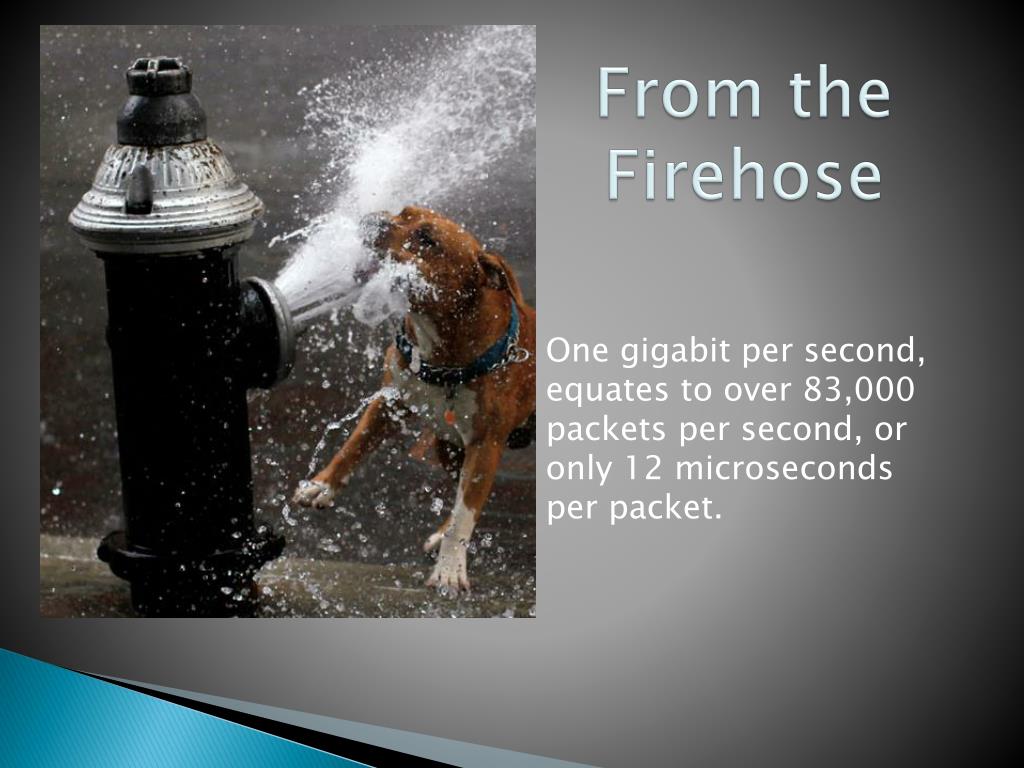

From the Firehose

One gigabit per second, equates to over 83,000 packets per second, or only 12 microseconds per packet.


Wireshark process

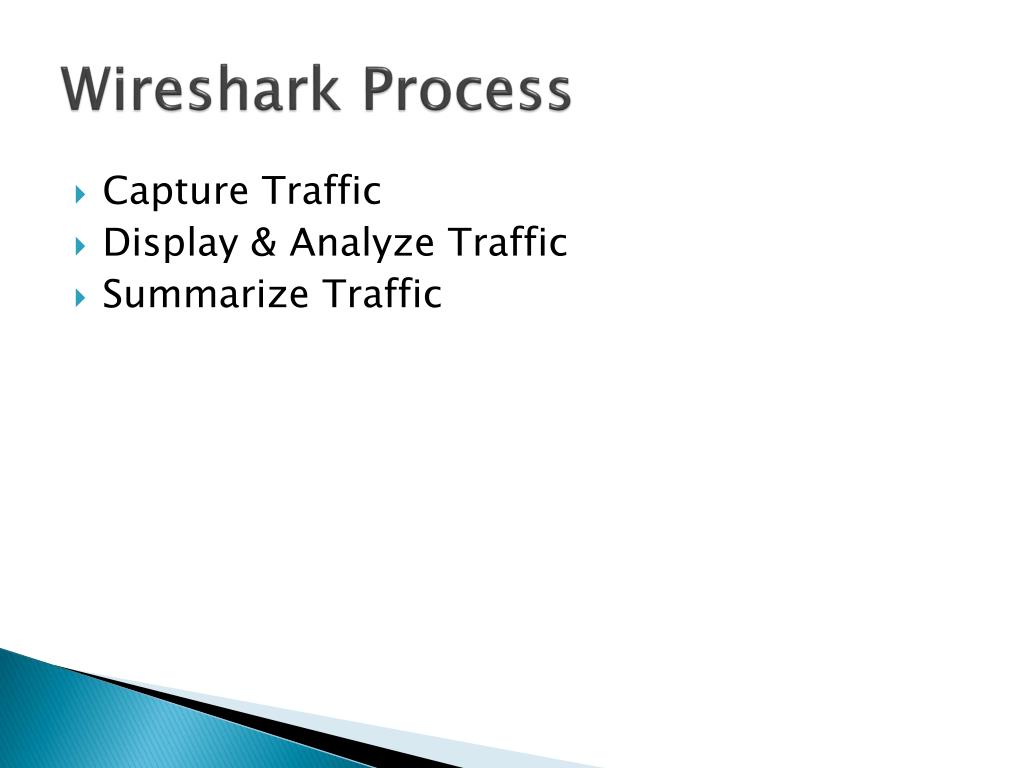

Wireshark Process

  • Capture Traffic

  • Display & Analyze Traffic

  • Summarize Traffic


Where do i put wireshark

Where do I put WireShark?


Location location location

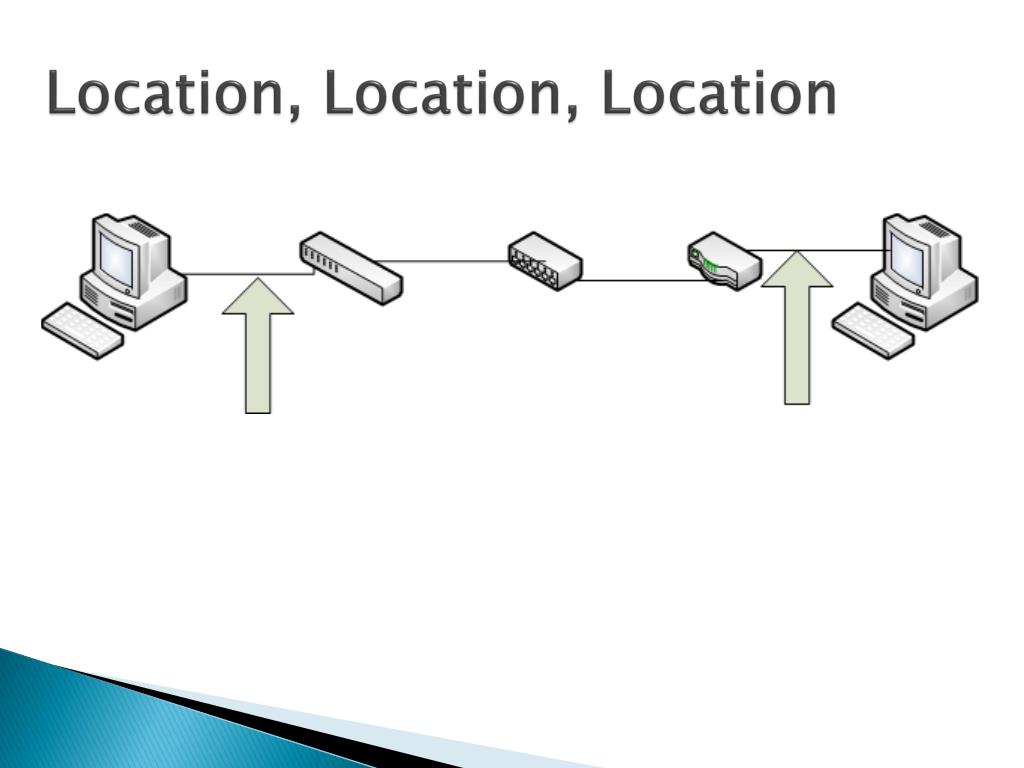

Location, Location, Location


Tss academy

Hub


Switches

Switches


Switch with a span port

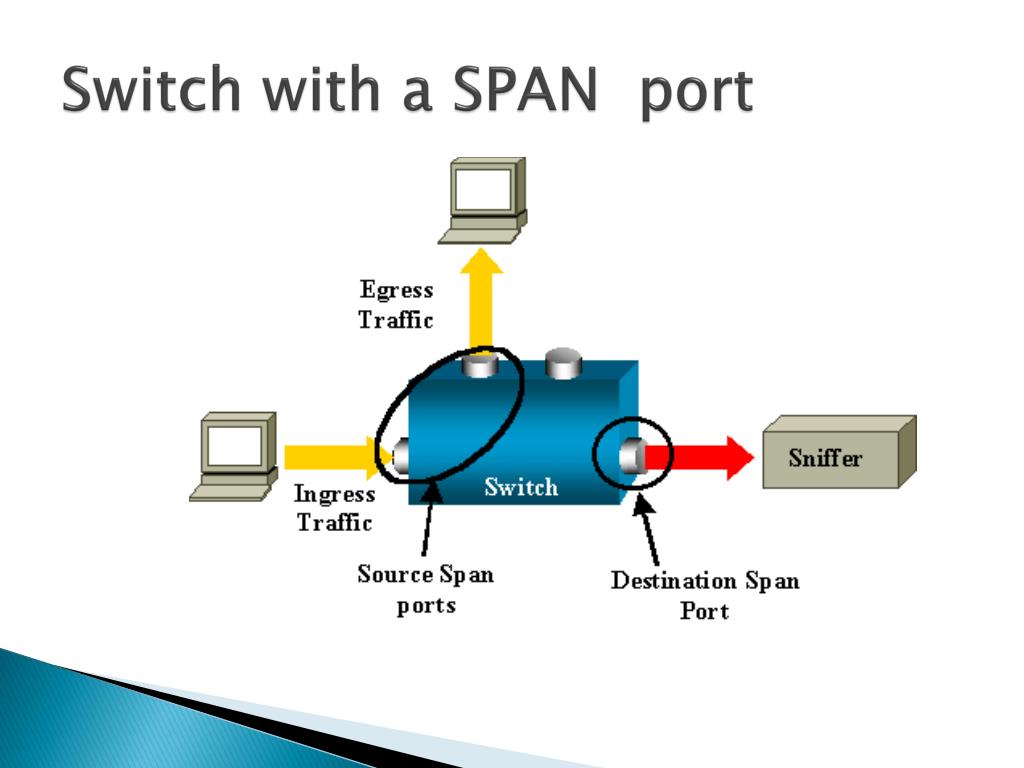

Switch with a SPAN port


Tss academy

TAP


Tss academy

HUBS


Switch

Switch

interface FastEthernet0/1

port monitor FastEthernet0/2


Switch1

Switch

interface FastEthernet0/1

port monitor FastEthernet0/2 rx

Interface FastEthernet0/3

port monitor FastEthernet0/2 tx


Vlan monitoring

VLAN Monitoring

interface FastEthernet0/1

port monitor VLAN1


Promiscuous mode

“Promiscuous” Mode

  • Ethernet Frames are Addressed.

  • Ethernet NICs ignore frames not for them.


Install wireshark on client server

Install Wireshark on Client/Server

  • Wireshark runs on demand.

  • WinPCAP can be disabled in Services.


Selectively ignore traffic

Selectively Ignore Traffic


Capture filter examples

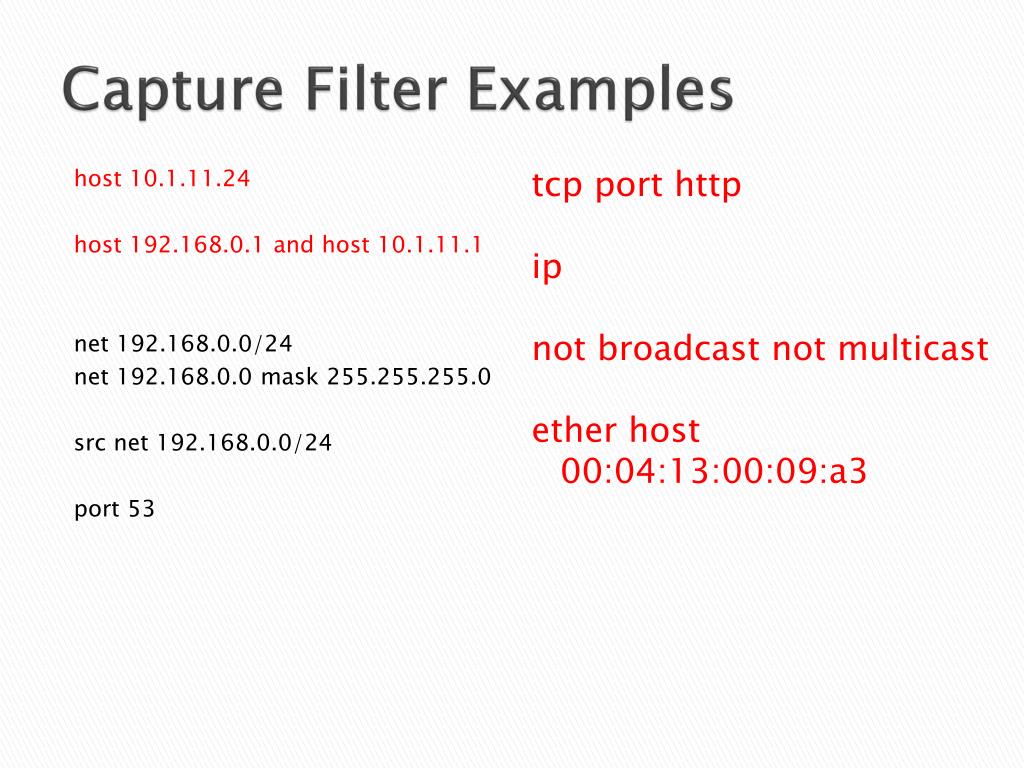

Capture Filter Examples

host 10.1.11.24

host 192.168.0.1 and host 10.1.11.1

net 192.168.0.0/24

net 192.168.0.0 mask 255.255.255.0

src net 192.168.0.0/24

port 53

tcp port http

ip

not broadcast not multicast

ether host 00:04:13:00:09:a3


Capture filter

Capture Filter


Capture options

Capture Options


Capture interfaces

Capture Interfaces


Capturing data capture window

Capturing Data (Capture Window)


Stopping the packet capture

Stopping the Packet Capture


Displaying packets

Displaying Packets


Display post filters

Display (Post) Filters

  • Display filters (also called post-filters) only filter the view of what you are seeing. All packets in the capture still exist in the trace

  • Display filters use their own format and are much more powerful then capture filters


Wireshark display filter cheatsheet packetlife net

Wireshark Display Filter CheatSheet (packetlife.net)


Display filter expression builder

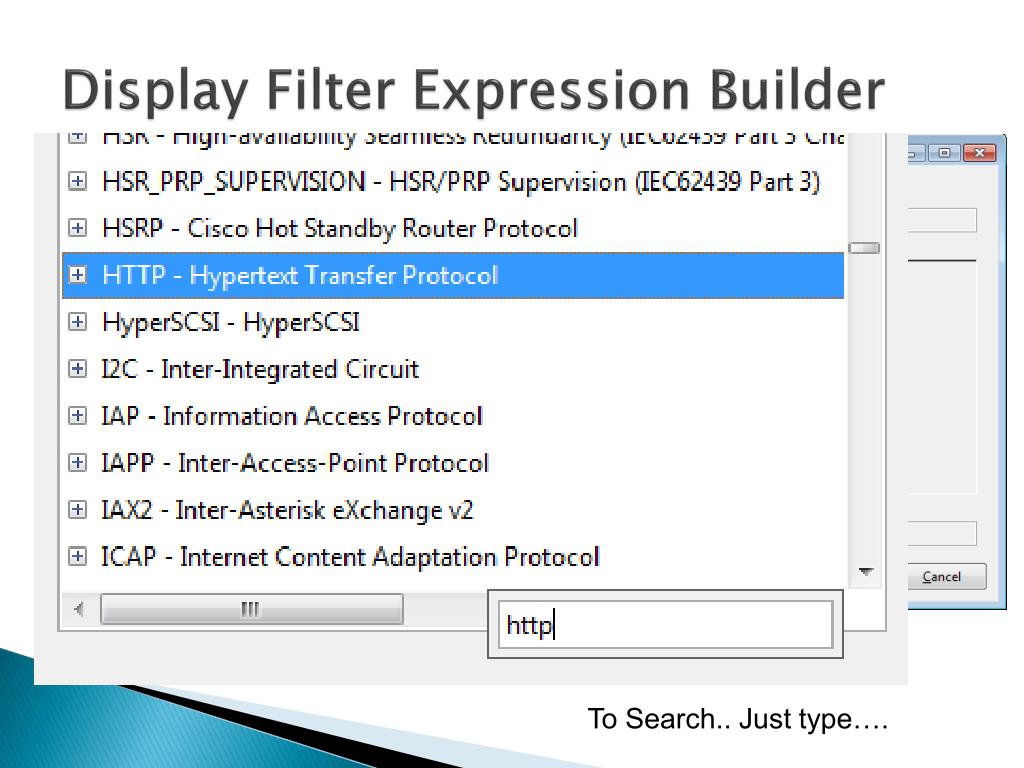

Display Filter Expression Builder

To Search.. Just type….


Display filter examples

Display Filter Examples

ip.src==10.1.11.24

ip.addr==192.168.1.10 && ip.addr==192.168.1.20

tcp.port==80 || tcp.port==3389

!(ip.addr==192.168.1.10 && ip.addr==192.168.1.20)

(ip.addr==192.168.1.10 && ip.addr==192.168.1.20) && (tcp.port==445 || tcp.port==139)

(ip.addr==192.168.1.10 && ip.addr==192.168.1.20) && (udp.port==67 || udp.port==68)


Display example

Display Example

dns.qry.name == "www.youtube.com"

and not dns.resp.addr == 208.70.74.21


Analyzing data

Analyzing Data


Statistics menu

Statistics Menu


I o graph with filters

I/O Graph (With Filters)


Protocol hierarchy

Protocol Hierarchy


Protocol hierarchy1

Protocol Hierarchy


Follow tcp stream

Follow TCP Stream


Follow tcp stream1

Follow TCP Stream

red - stuff you sent blue - stuff you get


Resources credits

Resources & Credits

  • Wireshark WIKI http://wiki.wireshark.org

  • http://ilta.ebiz.uapps.net/ProductFiles/productfiles/672/wireshark.ppt‎

  • www.wiresharkuniversity.com
