Transmission Lines

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

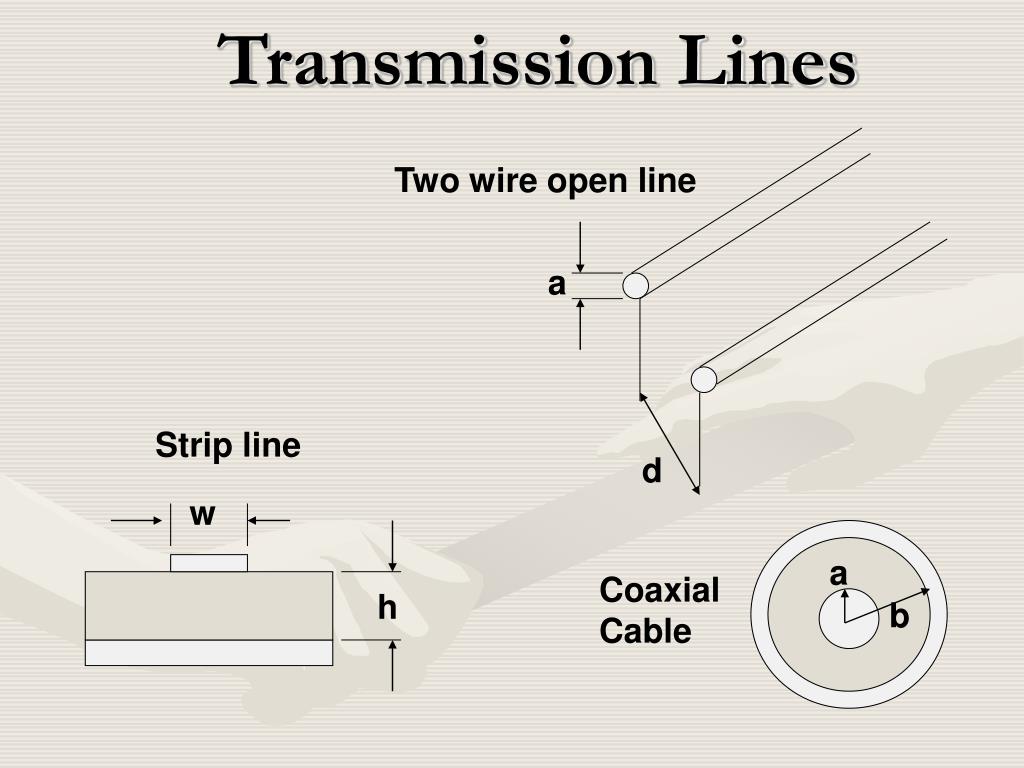

Two wire open line

Transmission Lines

a

Strip line

d

w

a

Coaxial Cable

h

b

Ex = E0 exp (i[kz -t]), Hy = (E0/Z0) exp (i[kz- t]).

- Consider a plane wave propagating along the z-direction in vacuum, and polarized with its electric vector along the x-axis: its magnetic field vector must be directed along the y-axis. Now introduce two infinitely conducting metal planes which block of all of space except the region between x= +a and x= -a, see Figure above. The boundary conditions at x= a that must be
- satisfied by the electric and magnetic fields are:
- (1) the tangential components of E must be zero;
- (2) the normal component of H must be zero.

Ex = E0, V = E0d, Hy = E0=Z0, I=wJs=w(E0/Z0).

The electric field has only an x-component, if edge effects are

neglected, and in the first approximation this component is independent of position across the width of the strip, i.e. Ex is independent of y. Similarly, the magnetic field has only a y-component and this is independent of x and y.

Hy = 0c G(z + ct) = -Ex/Z0

The electric field has a radial component, Er, and the magnetic field has only the component H

independent of the angle .

The field distribution due to a pair of wires

When the switch is closed how long does the lamp take before it lights?

Line Behavior

If we make it easy and let the length of the wires between battery and lamp be 3.108 m, then the time between the switch closing and lamp lighting will be approximately ______s.

http://www.sfu.ca/physics/associate/emeriti/cochran/MAXoutline.html

Does this mean that electrons are traveling at the speed of light?

Does it mean that the mechanism relies on electromagnetic energy being transported from start to finish of the structure?

If so where is the energy stored during transit?

If it is electromagnetic energy that is stored then it has to be stored in inductance for magnetic energy and capacitance for electric energy.

This means that the transmission line has to have an inductance (per unit length) and a capacitance (per unit length).

Low Loss line at High Frequency

Inductance and capacitance are uniformly and continuously distributed as L (Henrys/m) and C (Farads/m) respectively.

When the switch is closed and a voltage V is applied to the line through a source impedance Zs, simple reasoning shows that the C's take a finite time to charge up through the L's; thus, the voltage propagates at a finite rate towards the load i.e. volts do not reach the load instantaneously.

Let L and C be distributed inductance

and capacitance per unit length.

In time t, electric flux q = (C ·x)v ( Q = CV) is

produced in time x/u sec , and

i(amps) = q/ t = Cx• v/ t

(capacitive charging or "displacement" current)

i = Cx• v /(x/ u ) = Cvu (I)

In time t, magnetic flux linkages =(L•x)i

(from = LI) ; are produced in time x/u sec

v(volts) = /t = L•x•i/t=Liu (ind Volts)…(II)

Multiplying I and II:- vi =viCLu2

Or u = 1/ LC ms-1velocity of propagation

Dividing I by II:- i/v =vC/iL or v2/i2 =L/C

v/I = L/C……Characteristic Impedance Z0

v2

L

=

; i2 L = v2C

i2

C

½ Li2 = ½ Cv2

Note:- the equality of Electric and Magnetic field energy in unit length of transmission line.

Rate of energy input to line due to advance of wavefront, is vi watts.

resistive load, connected directly to voltage source. Rate of energy input, due to thermal dissipation in R, is vi watts (also i2R).

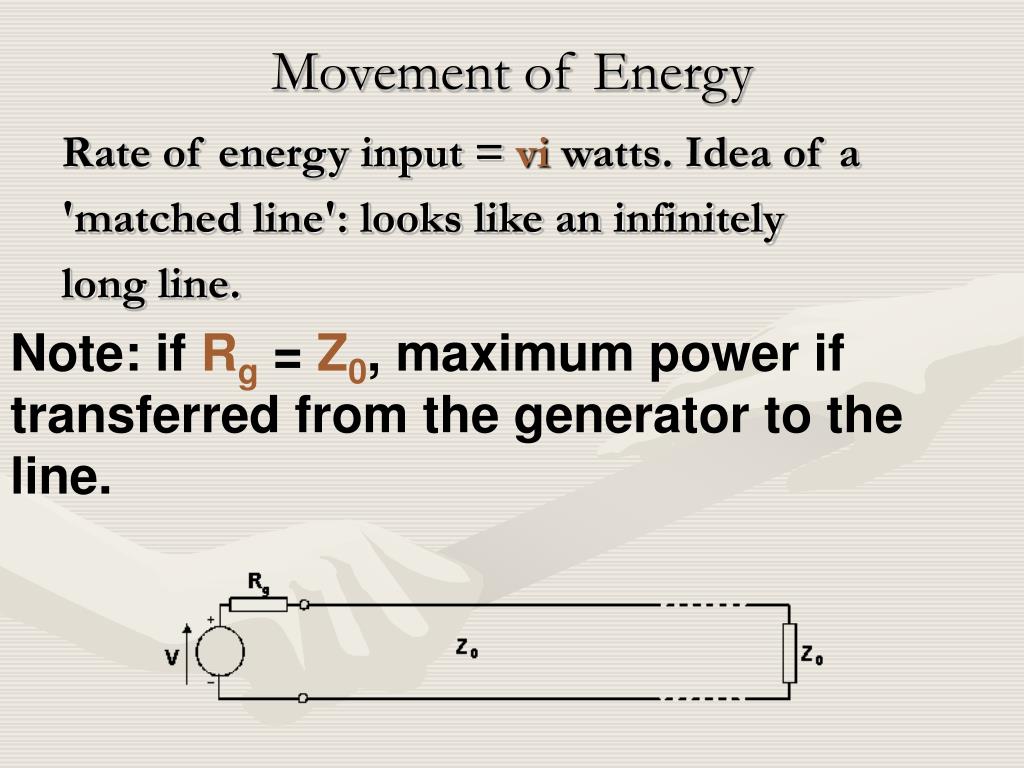

Rate of energy input = vi watts. Idea of a
