Transmission Lines

Transmission Lines Dr. Sandra Cruz-Pol ECE Dept. UPRM

Iin + VL - + Vin - Zg Zo=30+j60 g=a +j b ZL Vg 40 m We’ll solve this problem later, but look at Vin and VL Exercise 11.3 • A 40-m long TL has Vg=15 Vrms, Zo=30+j60 W, and VL=5e-j48o Vrms. If the line is matched to the load and the generator, find: the input impedance Zin, the sending-end current Iin and Voltage Vin, the propagation constantg. • Answers: At high frequencies, We cannot apply regular circuit theory to electric circuits!

Transmission Lines • TL parameters • TL Equations • Input Impedance, SWR, power • Smith Chart • Applications • Quarter-wave transformer • Slotted line • Single stub • Microstrips

Transmission Lines (TL) • TL have two conductors in parallel with a dielectric separating them • They transmit TEMwaves inside the lines

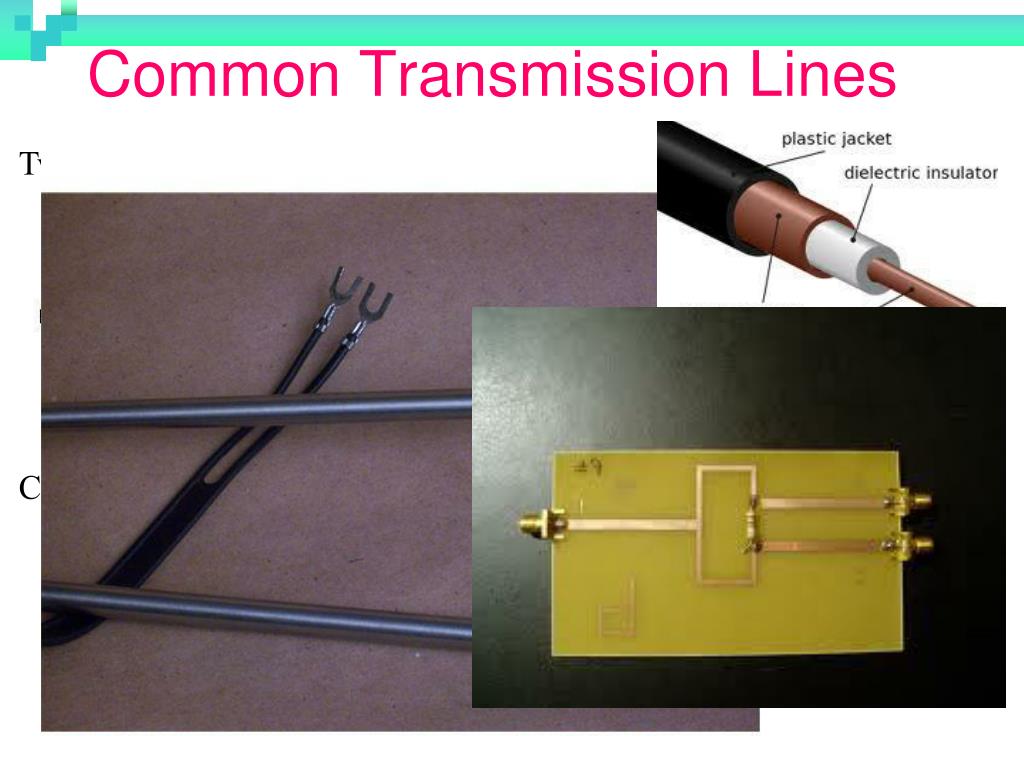

Common Transmission Lines Two-wire (ribbon) Microstrip Stripline (Triplate) Coaxial

Other TL (higher order)[Chapter 12]

Fields inside the TL • V proportional to E, • I proportional to H

Distributed parameters The parameters that characterize the TL are given in terms of per length. • R = ohms/meter • L = Henries/ m • C = Farads/m • G = mhos/m

Common Transmission Lines R, L, G, and C depend on the particular transmission line structure and the material properties. R, L, G, and C can be calculated using fundamental EMAG techniques.

TL representation

Distributed line parameters Using KVL:

Distributed parameters • Taking the limit as Dz tends to 0 leads to • Similarly, applying KCL to the main node gives

Wave equation • Using phasors • The two expressions reduce to Wave Equation for voltage

TL Equations • Note that these are the wave eq. for voltage and current inside the lines. • The propagation constant is g and the wavelength and velocity are

Transmission Lines • TL parameters (R’,L’, G’, C’) • TL Equations (a,b,Zo, …) • Input Impedance, SWR, power • Smith Chart • Applications • Quarter-wave transformer • Slotted line • Single stub • Microstrips

z Waves moves through line • The general solution is • In time domain is • Similarly for current, I

Characteristic Impedance of a Line, Zo • Is the ratio of positively traveling voltage wave to current wave at any point on the line z

Example: • An air filled planar line with w=30cm, d=1.2cm, t=3mm, sc=7x107 S/m. • Find R, L, C, G for 500MHz • Answer See next d w

Common Transmission Lines R, L, G, and C depend on the particular transmission line structure and the material properties. R, L, G, and C can be calculated using fundamental EMAG techniques.

Exercise 11.1 A transmission line operating at 500MHz has Zo=80 W, a=0.04Np/m, b=1.5rad/m. Find the line parameters R,L,G, and C. • Answer: 3.2 W/m, 38.2nH/m, 0.0005 S/m, 5.97 pF/m

Transmission line Transmission line Transmission line Different cases of TL • Lossless • Distortionless • Lossy

Lossless Lines (R=0=G) Has perfect conductors and perfect dielectric medium between them. • Propagation: • Velocity: • Impedance

Distortionless line (R/L = G/C) Is one in which the attenuation is independent on frequency. • Propagation: • Velocity: • Impedance

Summary

Excersice 11.2 • A telephone line has R=30W/km, L=100 mH/km, G=0, and C= 20mF/km. At 1kHz, obtain: the characteristic impedance of the line, the propagation constant, the phase velocity. • Is this a distortionless line? • Solution:

Transmission Lines • TL parameters • TL Equations • Input Impedance, SWR, power (Zin , s, Pave) • Smith Chart • Applications • Quarter-wave transformer • Slotted line • Single stub • Microstrips

Define reflection coefficient at the load, GL

Terminated TL Then, Similarly, The impedance anywhere along the line is given by The impedance at the load end, ZL, is given by

Terminated, Lossless TL Then, Conclusion: The reflection coefficient is a function of the load impedance and the characteristic impedance. Recall for the lossless case, Then

Terminated, Lossless TL It is customary to change to a new coordinate system, z = - l, at this point. -z z = - l Rewriting the expressions for voltage and current, we have Rearranging,

Impedance (Lossless line) The impedance anywhere along the line is given by The reflection coefficient can be modified as follows Then, the impedance can be written as After some algebra, an alternative expression for the impedanceis given by Conclusion: The load impedance is “transformed” as we move away from the load.

Impedance (Lossy line) The impedanceanywhere along the line is given by The reflection coefficient can be modified as follows Then, the impedance can be written as After some algebra, an alternative expression for the impedance is given by Conclusion: For Lossy TL we use hyperbolic tangent

Iin + VL - + Vin - Zg Zo g=j b ZL Vg 2 cm Exercise : using formulas • A 2cm lossless TL has Vg=10 Vrms, Zg=60 W, ZL=100+j80 W and Zo=40W, l=10cm . Find: the input impedanceZin, the sending-end VoltageVin, Voltage Divider:

Anuncios de actividades • Pizza y Pelicula Mar 6 @6pm MissRepresentation • LimpiezacascadaGozalandia Mar 9 @7am • Earth Hour Mar 29 @ Vieques Vercortos, info , registro, etc. en • http://uprm.edu/eventosverdes

Example • A generator with 10Vrms and Rg=50W, is connected to a 75W load thru a 0.8l, 50W-lossless line. • Find VL

SWR or VSWR or s Whenever there is a reflectedwave, a standing wave will form out of the combination of incident and reflected waves. (Voltage) Standing Wave Ratio – SWR=VSWR= s is defined as:

Power • The average input power at a distance l from the load is given by • which can be reduced to • The first term is the incident power and the second is the reflected power. Maximum power is delivered to load if G=0

Three Common Cases of line-load combinations: • Shorted Line (ZL=0) • Open-circuited Line (ZL=∞) • Matched Line (ZL = Zo)

Voltage maxima |V(z)| -z -l/4 -l/2 -l Standing Waves -Short Shorted Line (ZL=0), we had • So substituting in V(z) *Voltage minima occurs at same place that impedance has a minimum on the line

Voltage minima -z -l/4 -l/2 -l Standing Waves -Open Open Line (ZL=∞) ,we had • So substituting in V(z) |V(z)|

-z -l/4 -l/2 -l Standing Waves -Matched Matched Line (ZL = Zo), we had • So substituting in V(z) |V(z)|

Java applets • http://www.amanogawa.com/transmission.html • http://physics.usask.ca/~hirose/ep225/ • http://www.home.agilent.com/agilent/application.jspx?nid=-34943.0.00&cc=PR&lc=eng

Transmission Lines • TL parameters • TL Equations • Input Impedance, SWR, power • Smith Chart • Applications • Slotted line • Quarter-wave transformer • Single stub • Microstrips

The Smith Chart

Smith Chart • Commonly used as graphicalrepresentation of a TL. • Used in hi-tech equipment for design and testing of microwave circuits • One turn (360o) around the SC = to l/2

Network Analyzer What can be seen on the screen?

Smith Chart • Suppose you use as coordinates the reflection coefficient real and imaginary parts. and define the normalized ZL: Gi |G| Gr

Now relating to z=r+jx • After some algebra, we obtain two eqs. • Similar to general Equation of a Circle of radius a, center at (x,y)= h,k) Circles of r Circles of x
