Bellwork

Bellwork. For the following problems, use A(0,10), B(24,0), C(0,0) Find AB Find the midpoint of CA Find the midpoint of AB Find the slope of AB. Bellwork Solution. For the following problems, use A(0,10), B(24,0), C(0,0) Find AB. Bellwork Solution.

Download Presentation

Bellwork

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Bellwork For the following problems, use A(0,10), B(24,0), C(0,0) Find AB Find the midpoint of CA Find the midpoint of AB Find the slope of AB

  2. Bellwork Solution For the following problems, use A(0,10), B(24,0), C(0,0) Find AB

  3. Bellwork Solution For the following problems, use A(0,10), B(24,0), C(0,0) Find the midpoint of CA

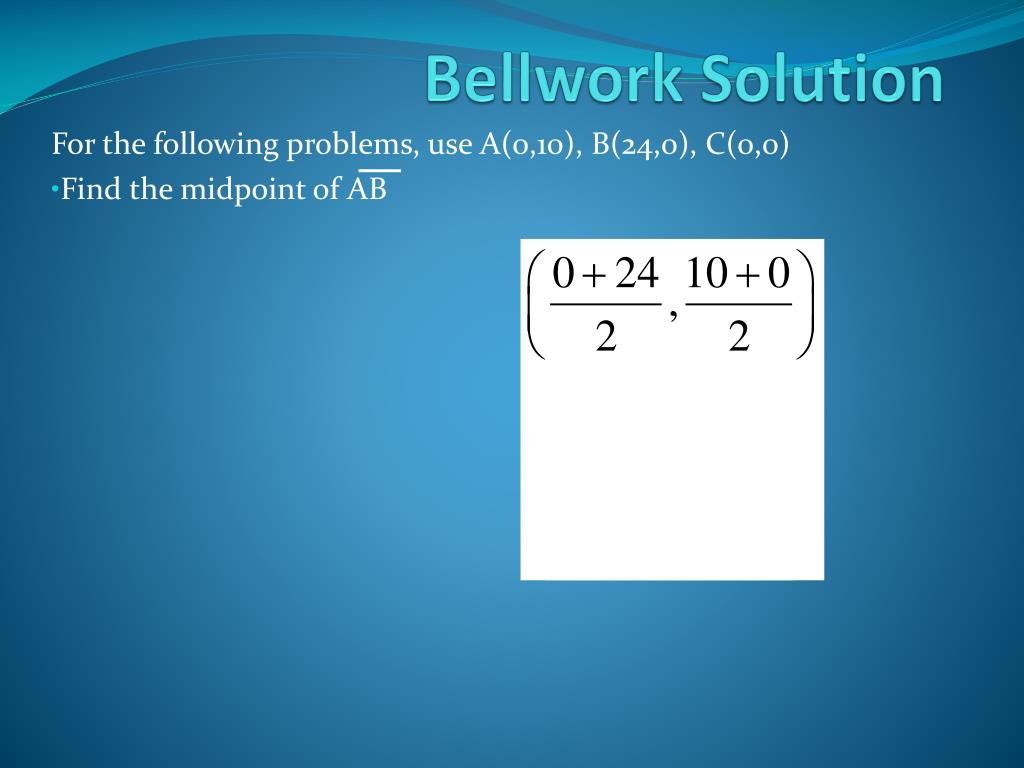

  4. Bellwork Solution For the following problems, use A(0,10), B(24,0), C(0,0) Find the midpoint of AB

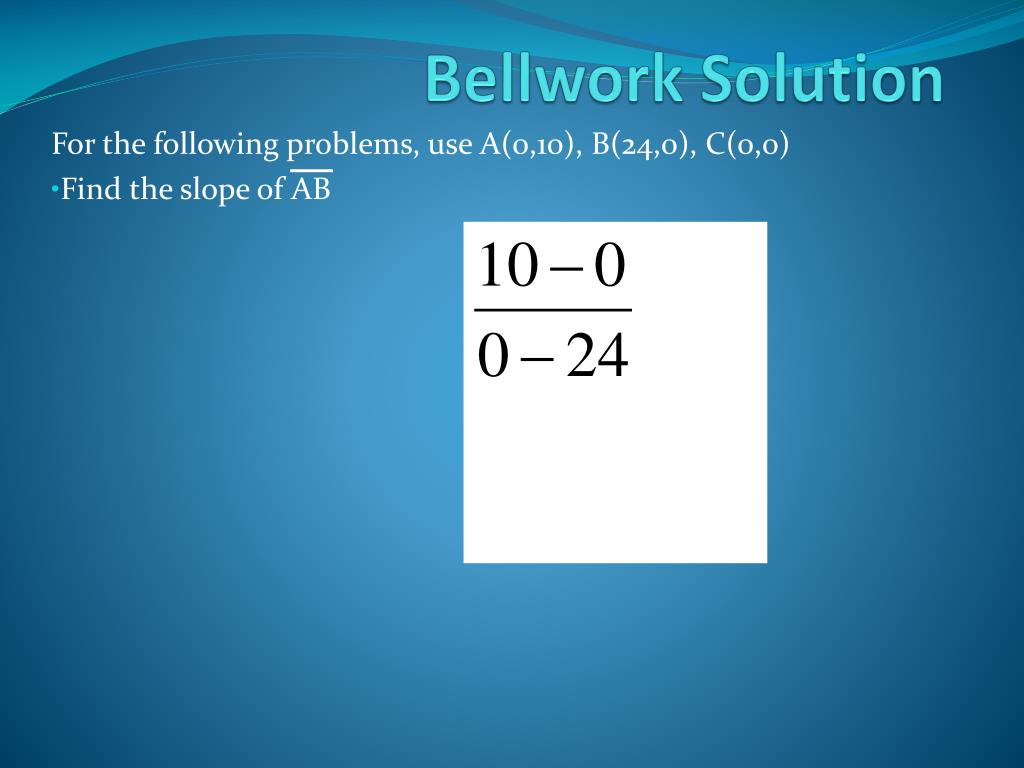

  5. Bellwork Solution For the following problems, use A(0,10), B(24,0), C(0,0) Find the slope of AB

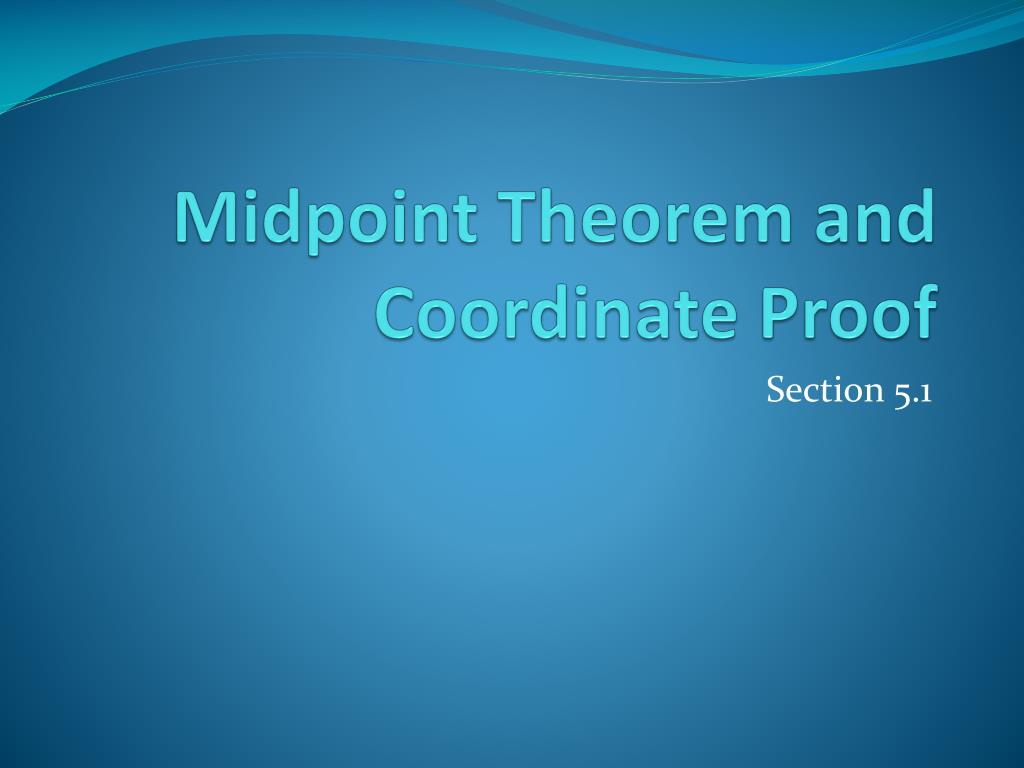

  6. Midpoint Theorem and Coordinate Proof Section 5.1

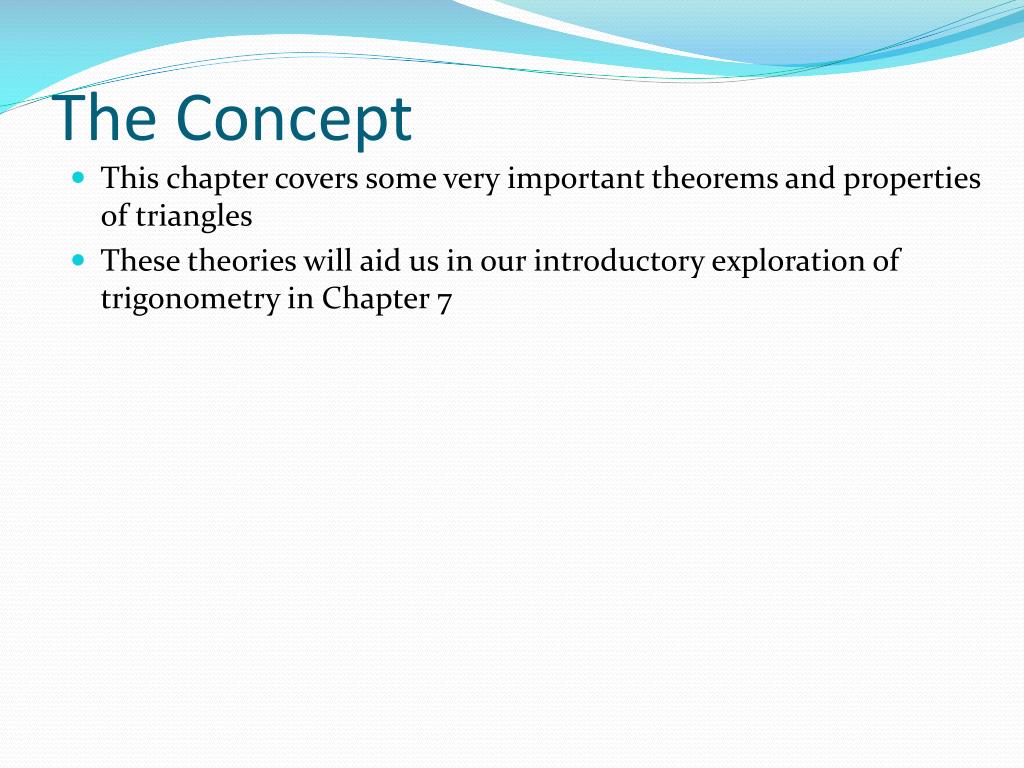

  7. The Concept • This chapter covers some very important theorems and properties of triangles • These theories will aid us in our introductory exploration of trigonometry in Chapter 7

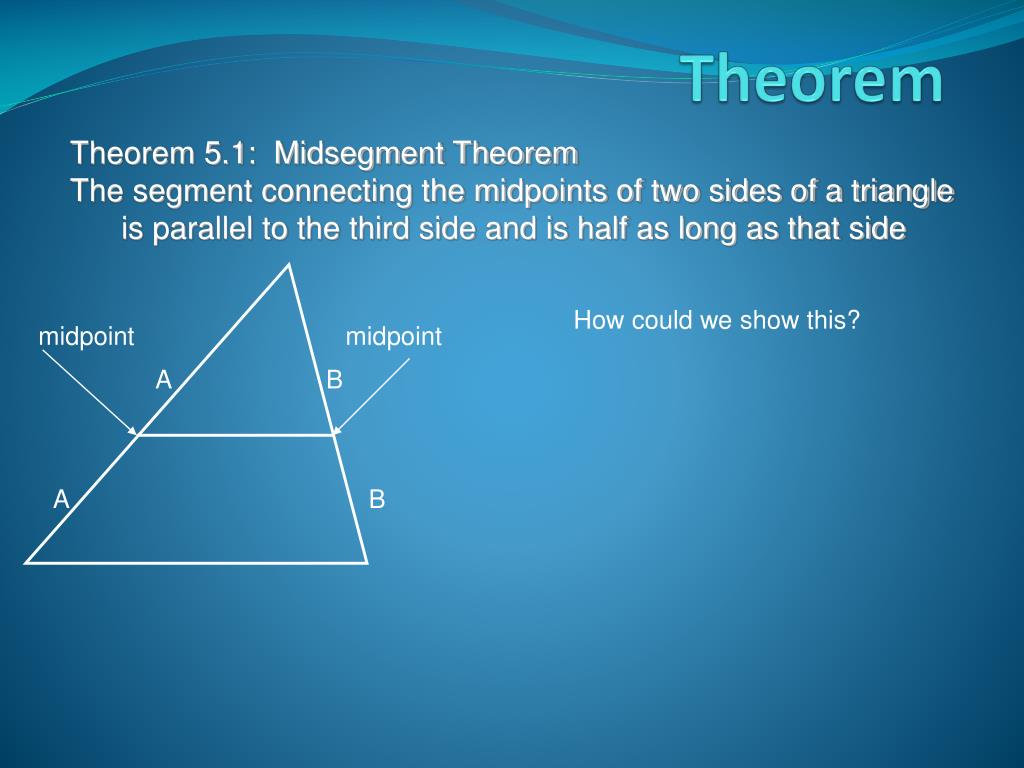

  8. Theorem 5.1: Midsegment Theorem The segment connecting the midpoints of two sides of a triangle is parallel to the third side and is half as long as that side Theorem How could we show this? midpoint midpoint A B A B

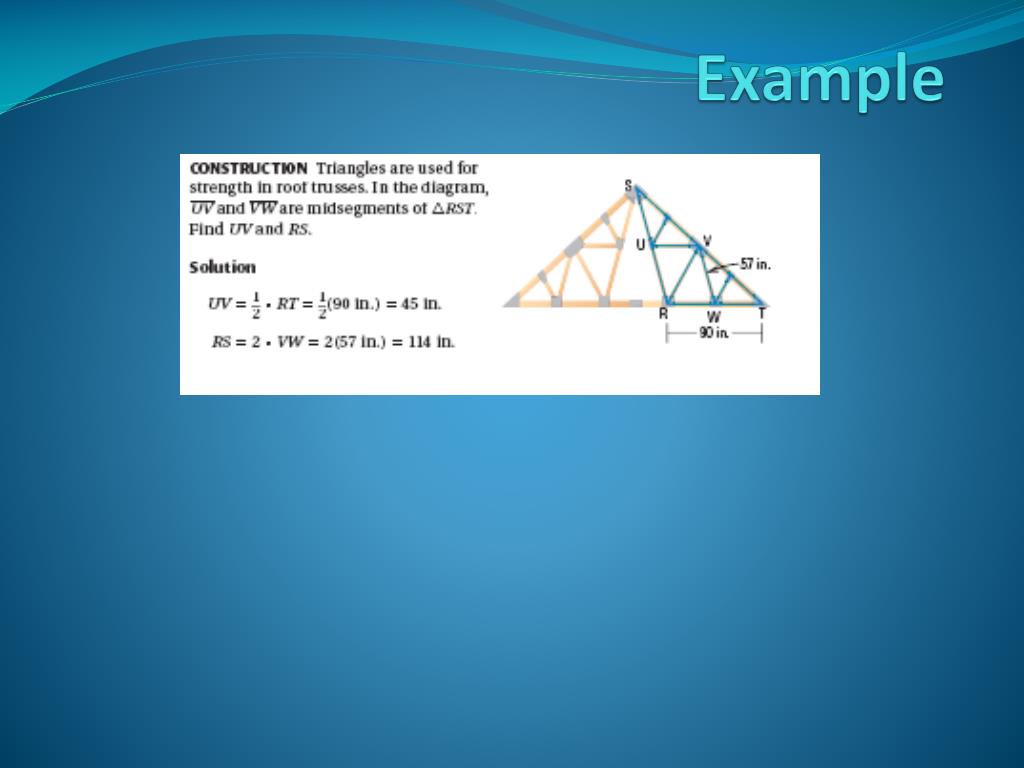

  9. Example

  10. Find AB, if A & B are midpoints Example 3x+8 B A 2x+24 G J

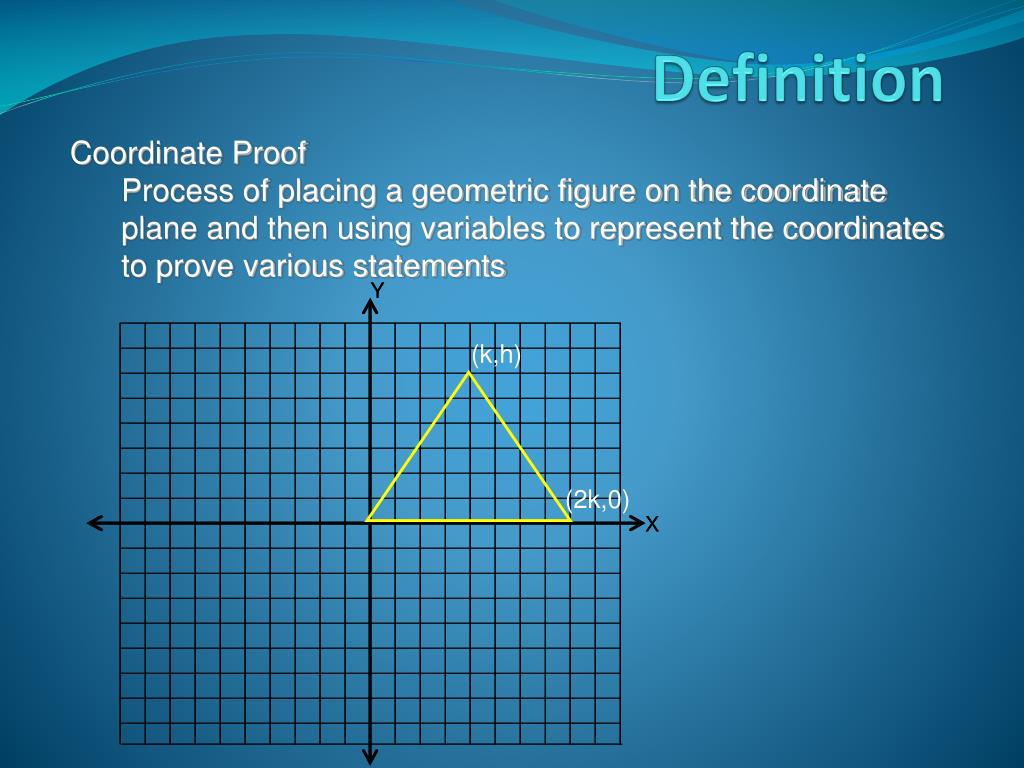

  11. Coordinate Proof Process of placing a geometric figure on the coordinate plane and then using variables to represent the coordinates to prove various statements Definition (k,h) (2k,0)

  12. Example

  13. Homework 5.1 Exercises 1-11, 12-18 even, 24-28 even, 33-39 odd

  14. Prove that Triangle PQR is isosceles Example P (0,k) Q (-h,0) R (h,0)

  15. Midpoint Theorem • Placing a geometric figure on the coordinate plane Most Important Points
