Presentation Transcript


A foundation fieldbus system

A FOUNDATION FIELDBUS System


System302 linking devices

4-20 mA

Discrete I/O

SYSTEM302 - Linking Devices


Linking devices

Linking Devices

WHAT IS A Linking Device?

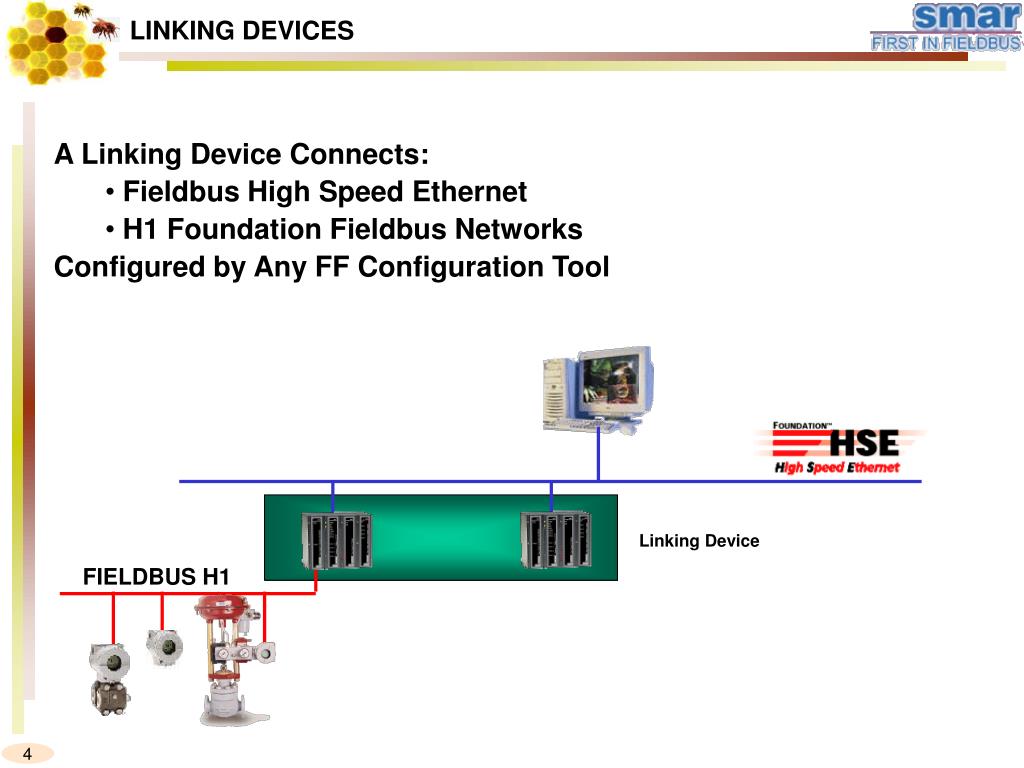

Linking devices1

LINKING DEVICES

  • A Linking Device Connects:

    • Fieldbus High Speed Ethernet

    • H1 Foundation Fieldbus Networks

  • Configured by Any FF Configuration Tool

Linking Device

FIELDBUS H1


Linking devices2

LINKING DEVICES

MAIN FEATURES


A foundation fieldbus system

LAS

Organizes the communication, Passing the token.

Fieldbus Ethernet


Ff bridges between fieldbus networks

FIELDBUS H1

DEVICES ON DIFFERENT NETWORKS

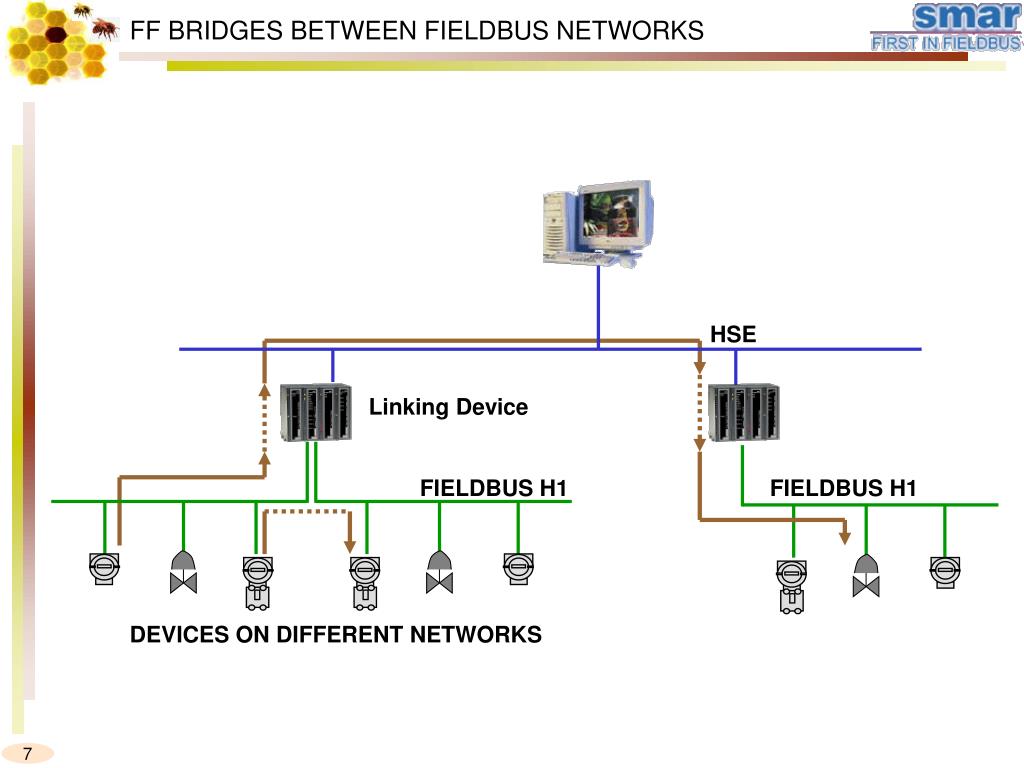

FF BRIDGES BETWEEN FIELDBUS NETWORKS

HSE

Linking Device

FIELDBUS H1

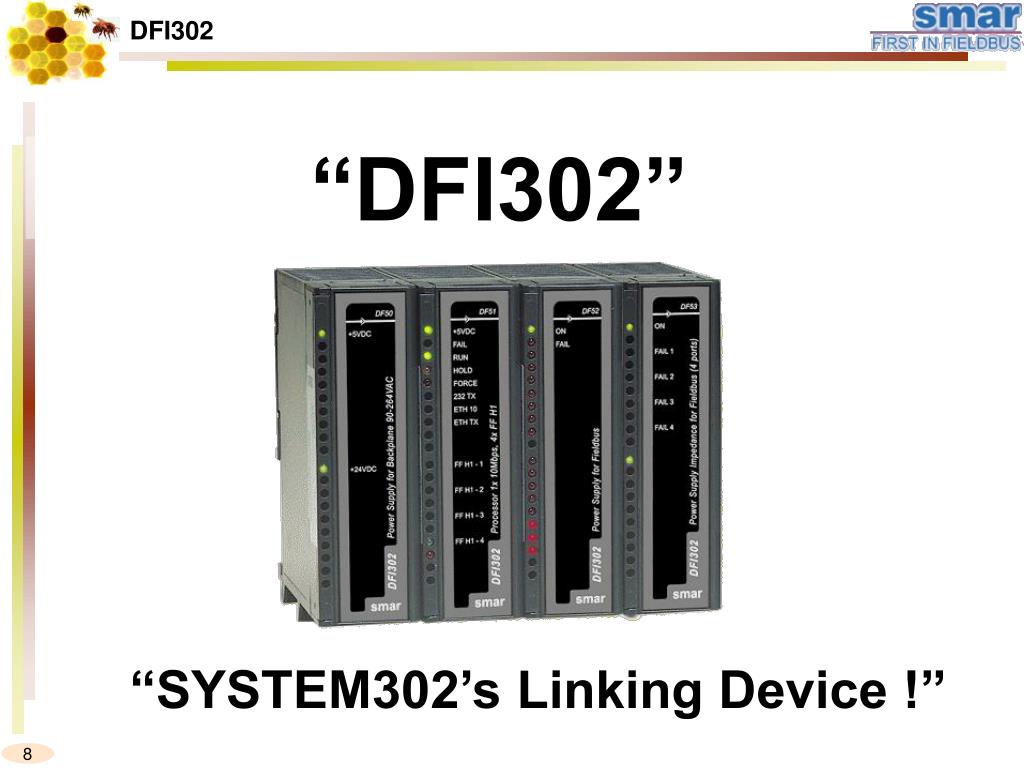

Dfi302

DFI302

“DFI302”

“SYSTEM302’s Linking Device !”

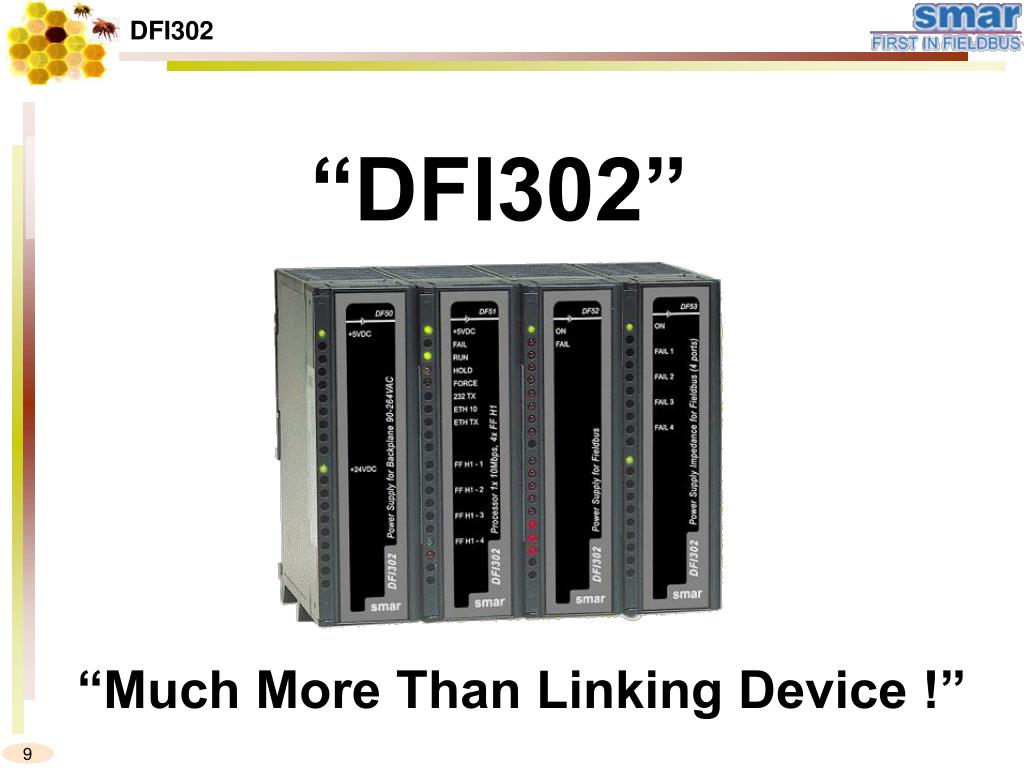

Dfi3021

DFI302

“DFI302”

“Much More Than Linking Device !”


Distribution and scalability

Distribution and Scalability

  • Unique Distributed Modular Design

  • Several Parallel Processors working together, as ONE!!

  • Unlimited Expandability:

    • Unlimited I/O

    • Unlimited Control Capability

    • Extreme Control Performance

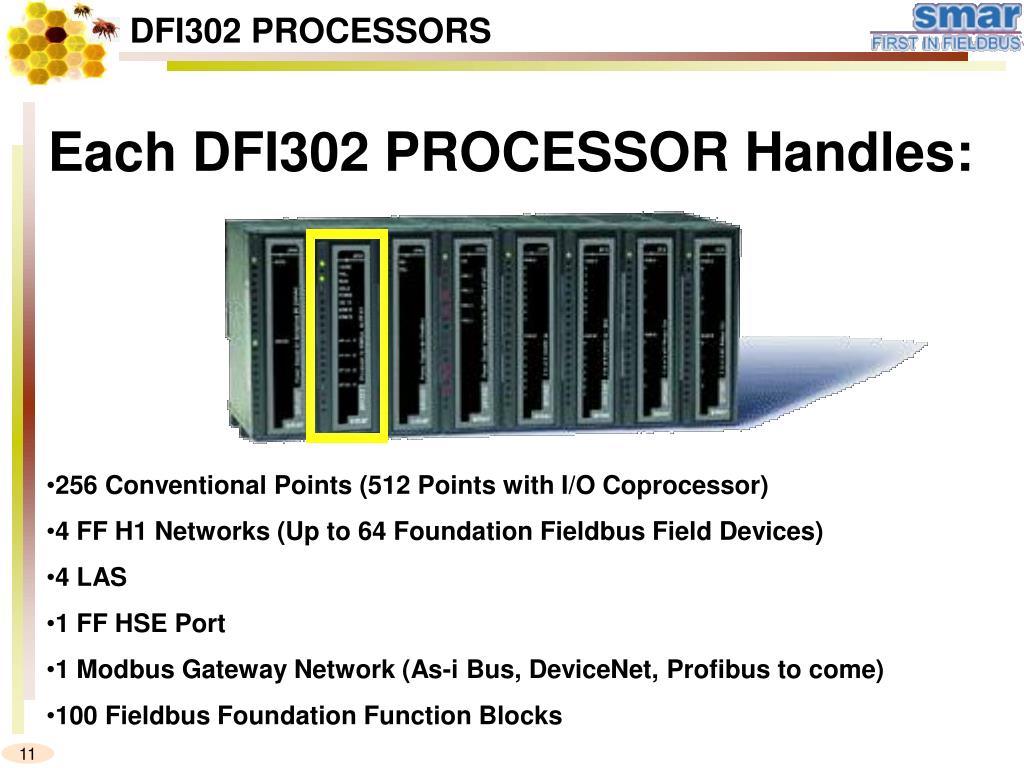

Dfi302 processors

DFI302 PROCESSORS

Each DFI302 PROCESSOR Handles:

  • 256 Conventional Points (512 Points with I/O Coprocessor)

  • 4 FF H1 Networks (Up to 64 Foundation Fieldbus Field Devices)

  • 4 LAS

  • 1 FF HSE Port

  • 1 Modbus Gateway Network (As-i Bus, DeviceNet, Profibus to come)

  • 100 Fieldbus Foundation Function Blocks

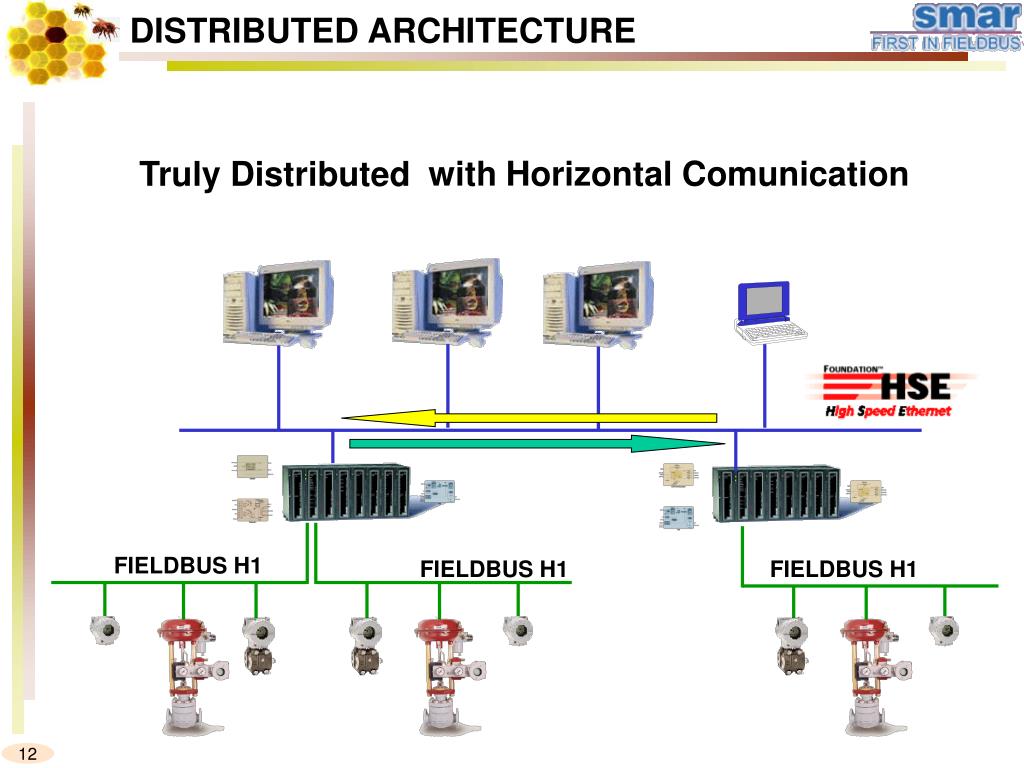

Distributed architecture

DISTRIBUTED ARCHITECTURE

with Horizontal Comunication

Truly Distributed

FIELDBUS H1

FIELDBUS H1

FIELDBUS H1


H1 in a box a dfi302 for 4 h1 networks

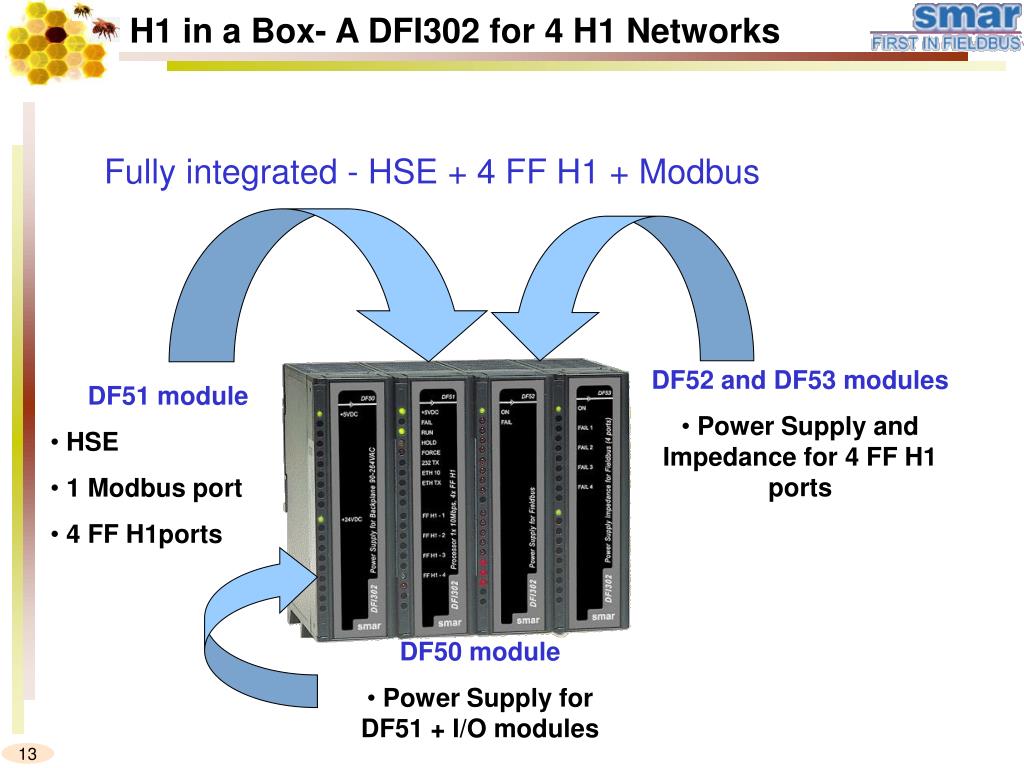

H1 in a Box- A DFI302 for 4 H1 Networks

Fully integrated - HSE + 4 FF H1 + Modbus

  • DF52 and DF53 modules

  • Power Supply and Impedance for 4 FF H1 ports

  • DF51 module

  • HSE

  • 1 Modbus port

  • 4 FF H1ports

  • DF50 module

  • Power Supply for DF51 + I/O modules

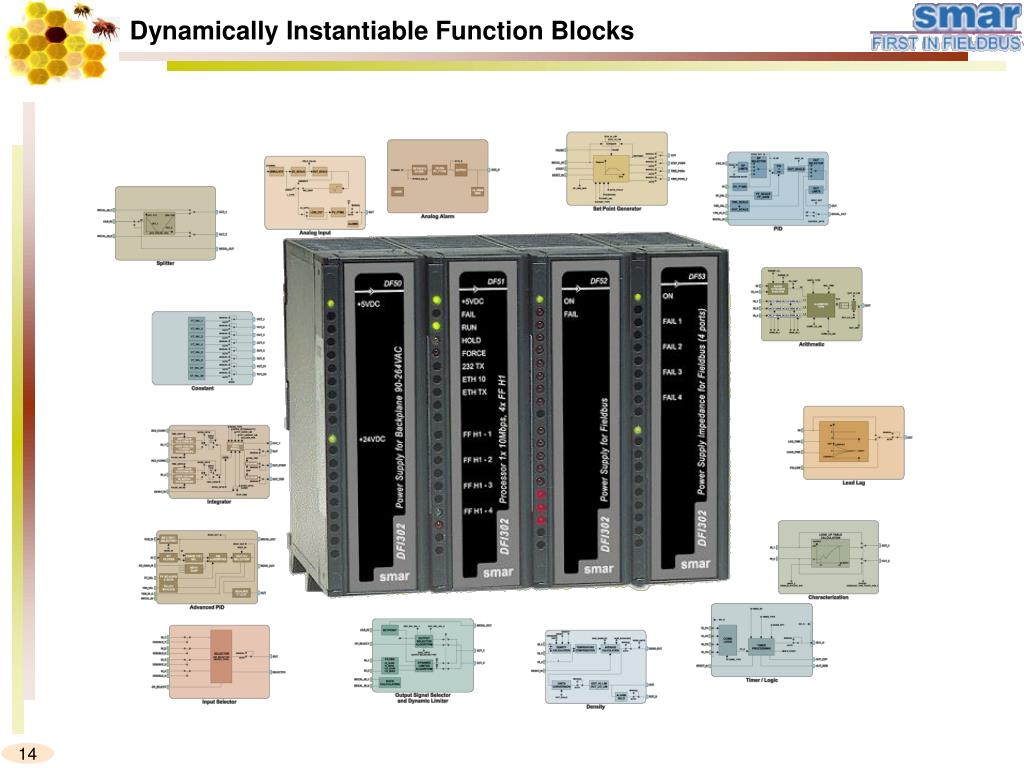

Dynamically instantiable function blocks

Dynamically Instantiable Function Blocks


Available blocks in dfi302

Available Blocks in DFI302

RESOURCE

DESCRIPTION

RS

RESOURCE

TRANSDUCER BLOCKS

DESCRIPTION

DIAG

Diagnostics Transducer

HC

Hardware Configuration Transducer

MBCF

Modbus Configuration

TRD

Transducer

INPUT TRANSDUCER BLOCKS

DESCRIPTION

TEMP

Temperature Transducer

INPUT FUNCTION BLOCKS

DESCRIPTION

AI

Analog Input

DI

Discrete Input

MAI

Multiple Analog Input

MDI

Multiple Discrete Input

PUL

Pulse Input


Available blocks in dfi3021

Available Blocks in DFI302

CONTROL AND CALCULATION

FUNCTION BLOCKS

DESCRIPTION

PID

PID Control

EPID

ENHANCED PID – It has all the standard features

plus : bumpless or hard transfer from a “manual”

mode to an “automatic” mode and bias.

APID

ADVANCED PID – It has all the standard features

plus: bumpless or hard transfer from a

“manual” mode to an “automatic” mode, bias.

Adaptive gain, PI sampling, deadband for error,

special treatment for error, ISA or parallel algorithm,..

ARTH

Arithmetic - 9 predefined equation types

SPLT

Splitter - split ranging and sequencing.

CHAR

Signal Characterizer - 20 points curve

INTG

Integrator

AALM

Analog Alarm

ISEL

Input Selector - 4 inputs

SPG

Setpoint Ramp Generator

TIME

Timer


Available blocks in dfi3022

Available Blocks in DFI302

CONTROL AND CALCULATION

FUNCTION BLOCKS

DESCRIPTION

LLAG

Lead Lag

DENS

Density

CT

Constant

FFET

FLIP-FLOP and EDGE TRIGGER

MBCS

Modbus Control Slave

MBSS

Modbus Supervision Slave

MBCM

Modbus Control Master

MBCS

Modbus Control Slave

AEQU

Advanced Equations

OUTPUT FUNCTION BLOCKS

DESCRIPTION

AO

Analog Output

DO

Discrete Output

MAO

Multiple Analog Output

MDO

Multiple Discrete Output

STEP

Step Output PID


Homogenous environment

Standard programming language

The last language you need to learn

Same everywhere

Easy

Full use of FF

Status: bumpless, shutdown,

Execution synchronization

Homogenous Environment


Dfi302 direct i o access

DI

DO

Pulse

4-20 ma

Profibus DP

Modbus

Other Protocols

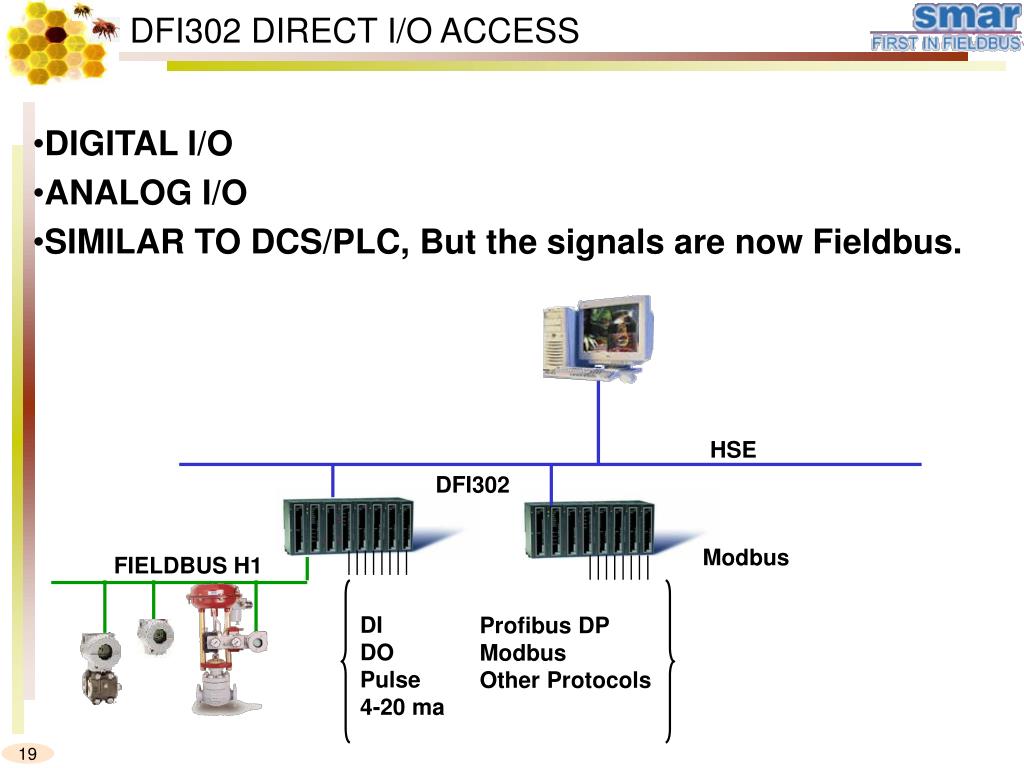

DFI302 DIRECT I/O ACCESS

  • DIGITAL I/O

  • ANALOG I/O

  • SIMILAR TO DCS/PLC, But the signals are now Fieldbus.

HSE

DFI302

Modbus

FIELDBUS H1


I o modules list

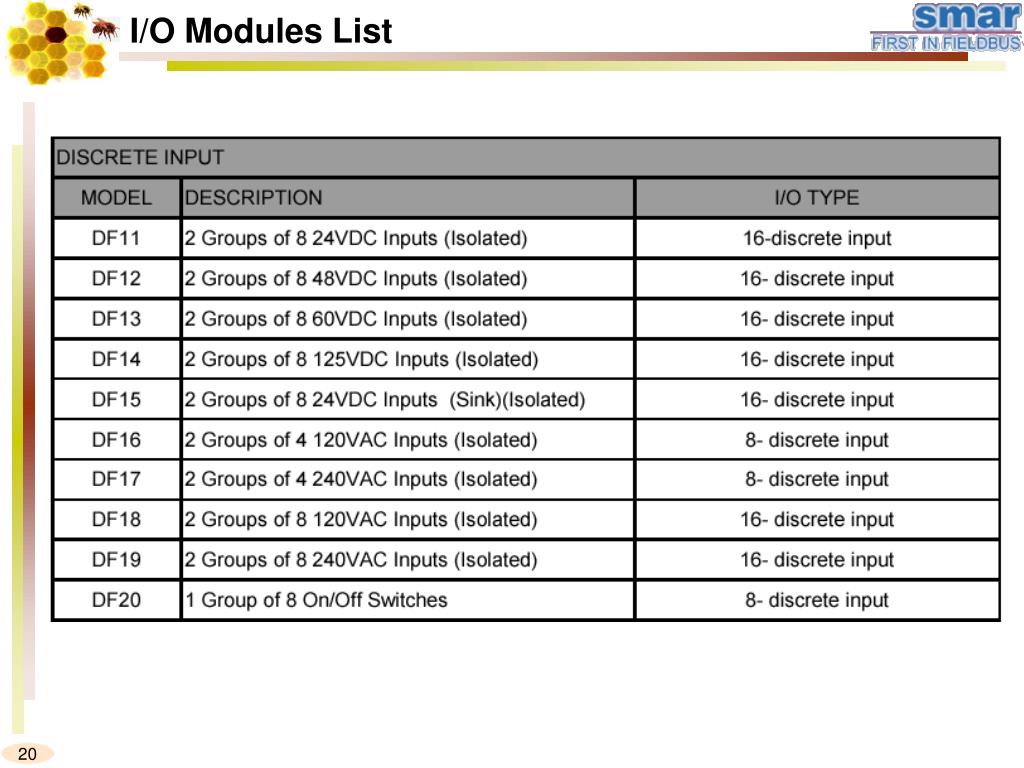

I/O Modules List


I o modules list1

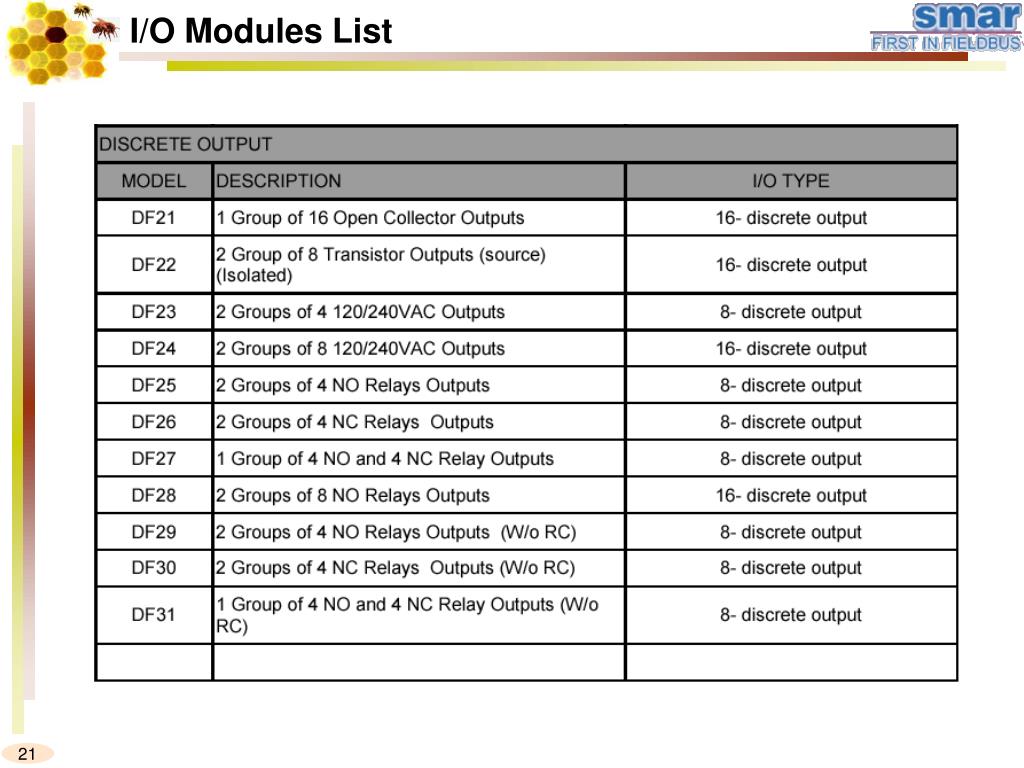

I/O Modules List


I o modules list2

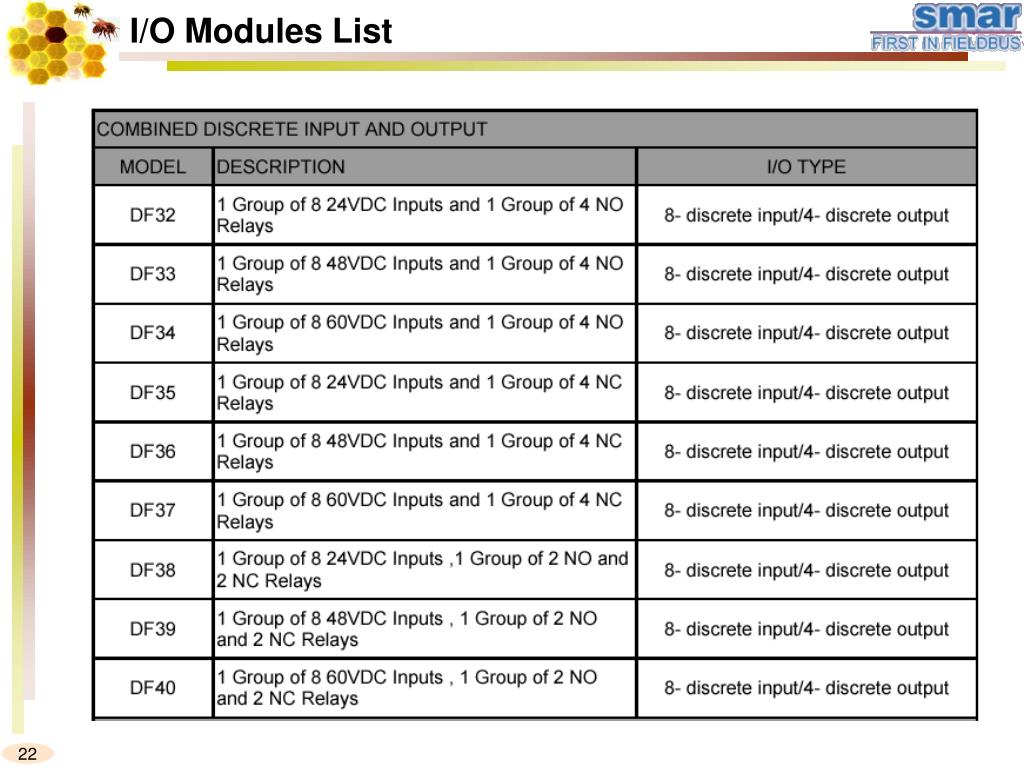

I/O Modules List


I o modules list3

I/O Modules List

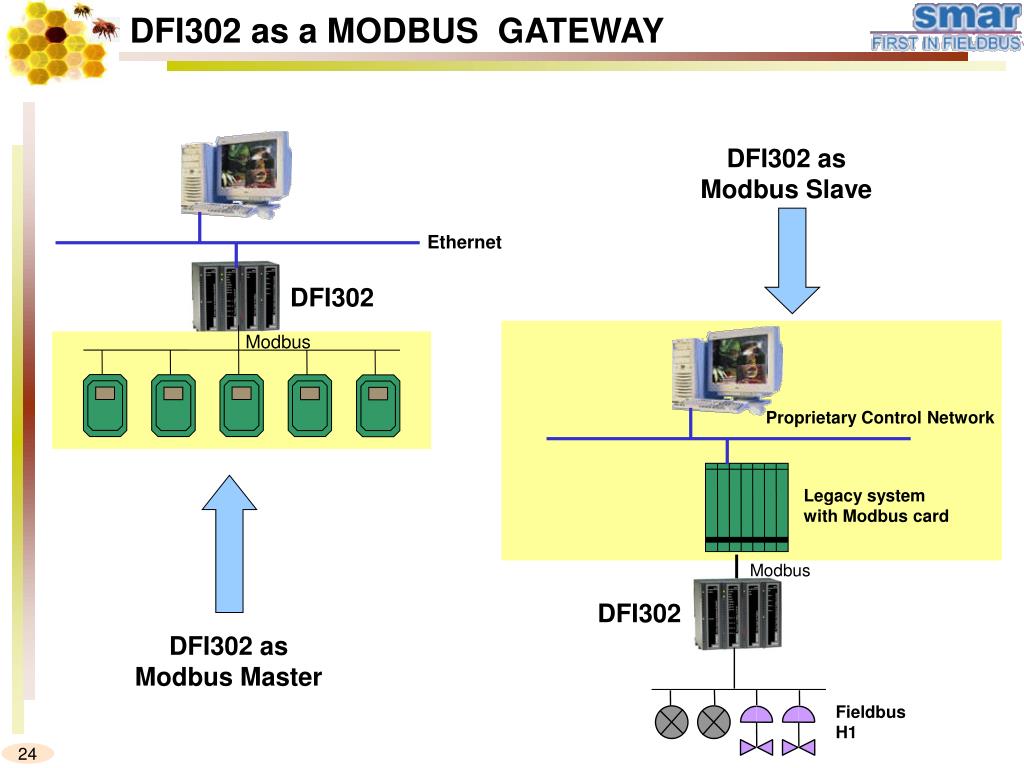

Dfi302 as a modbus gateway

DFI302 as Modbus Slave

Proprietary Control Network

Legacy system with Modbus card

Modbus

DFI302

DFI302 as Modbus Master

Fieldbus H1

DFI302 as a MODBUS GATEWAY

Ethernet

DFI302

Modbus


Modbus tpc ip master slave

MODBUS TPC/IP - Master/Slave

MODBUS TCP/IP

DFI302

LC700 + ENET700

FIELDBUS H1

FIELDBUS H1

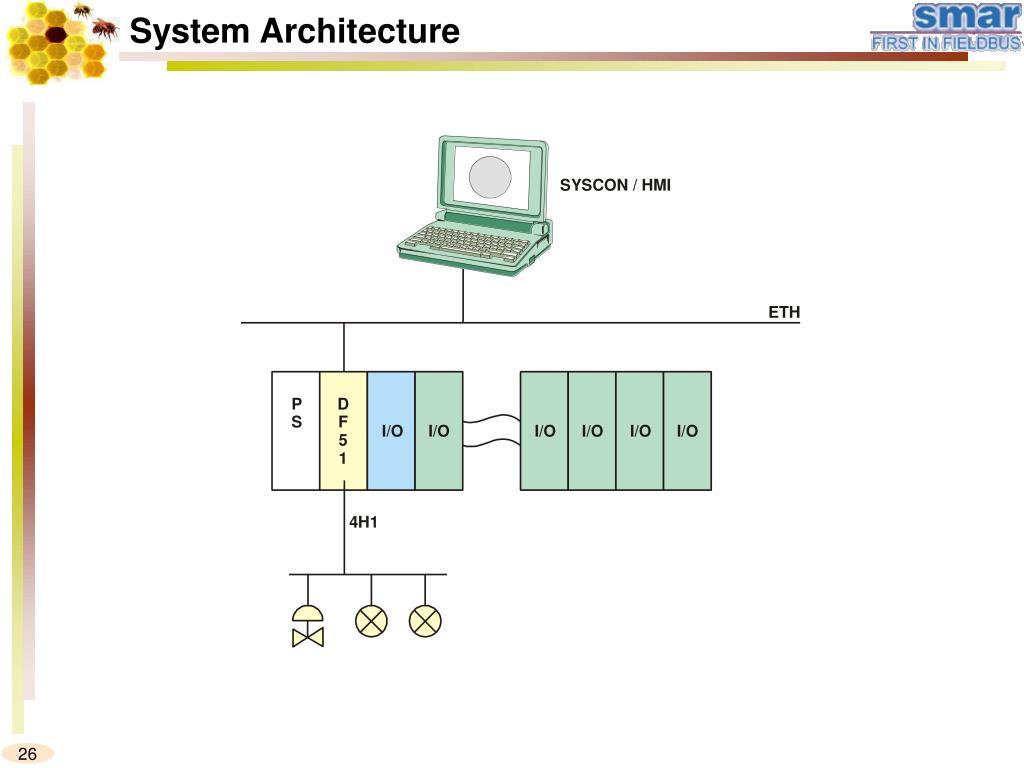

System architecture

System Architecture

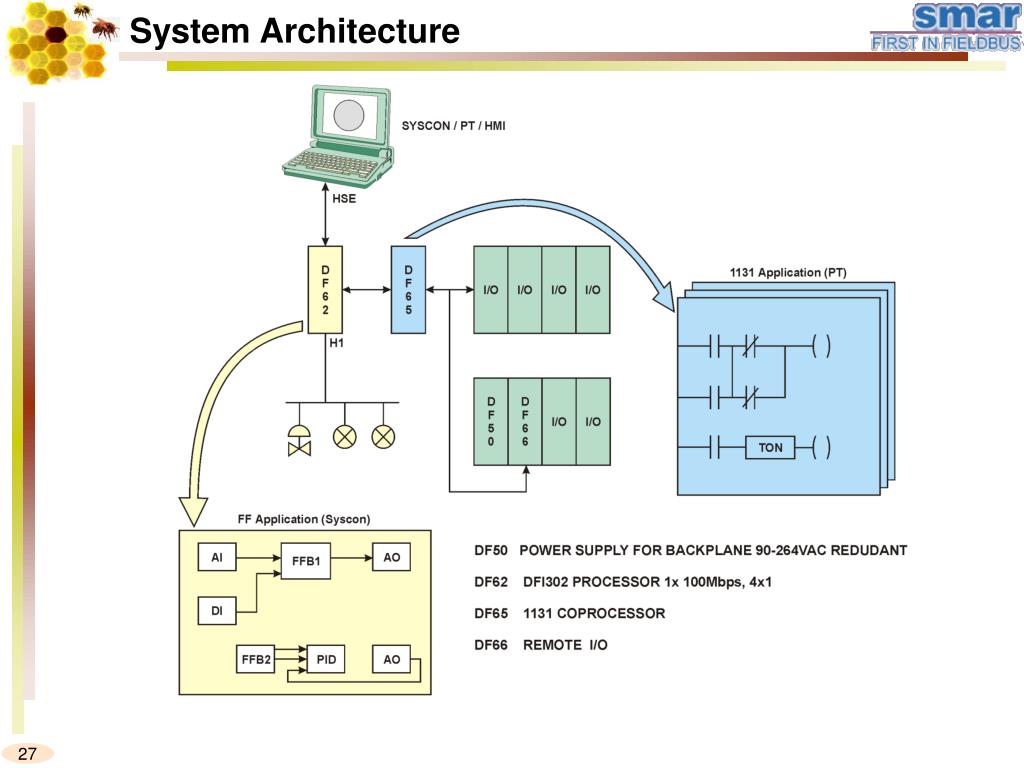

System architecture1

System Architecture

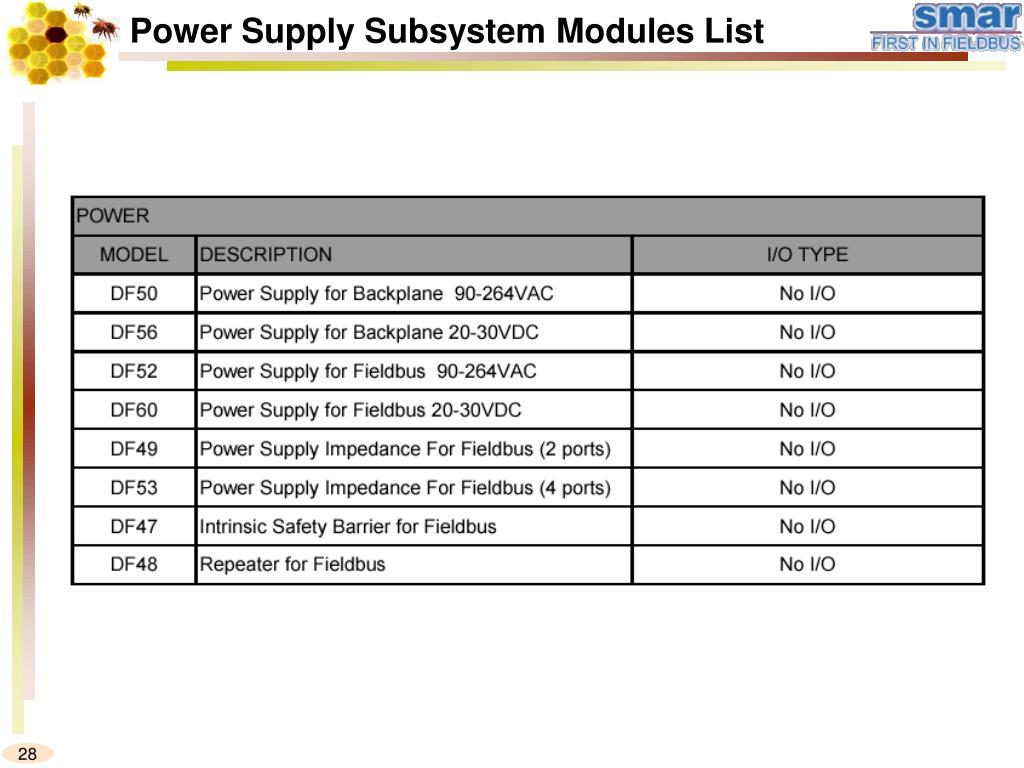

Power supply subsystem modules list

Power Supply Subsystem Modules List

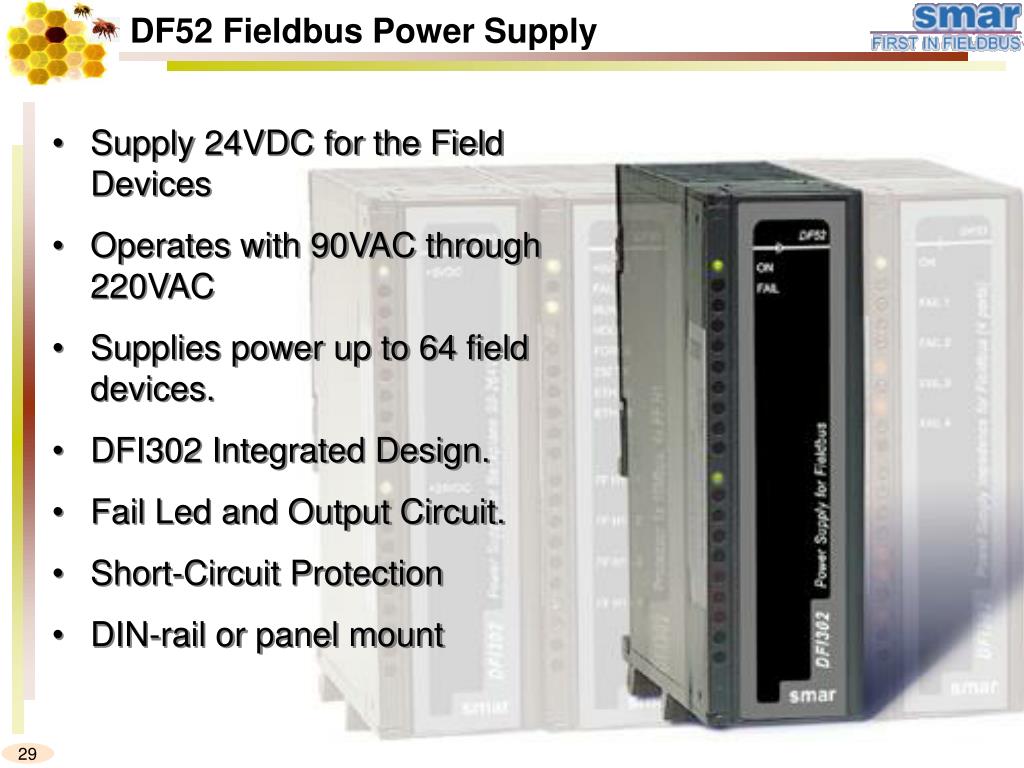

Df52 fieldbus power supply

Supply 24VDC for the Field Devices

Operates with 90VAC through 220VAC

Supplies power up to 64 field devices.

DFI302 Integrated Design.

Fail Led and Output Circuit.

Short-Circuit Protection

DIN-rail or panel mount

DF52 Fieldbus Power Supply

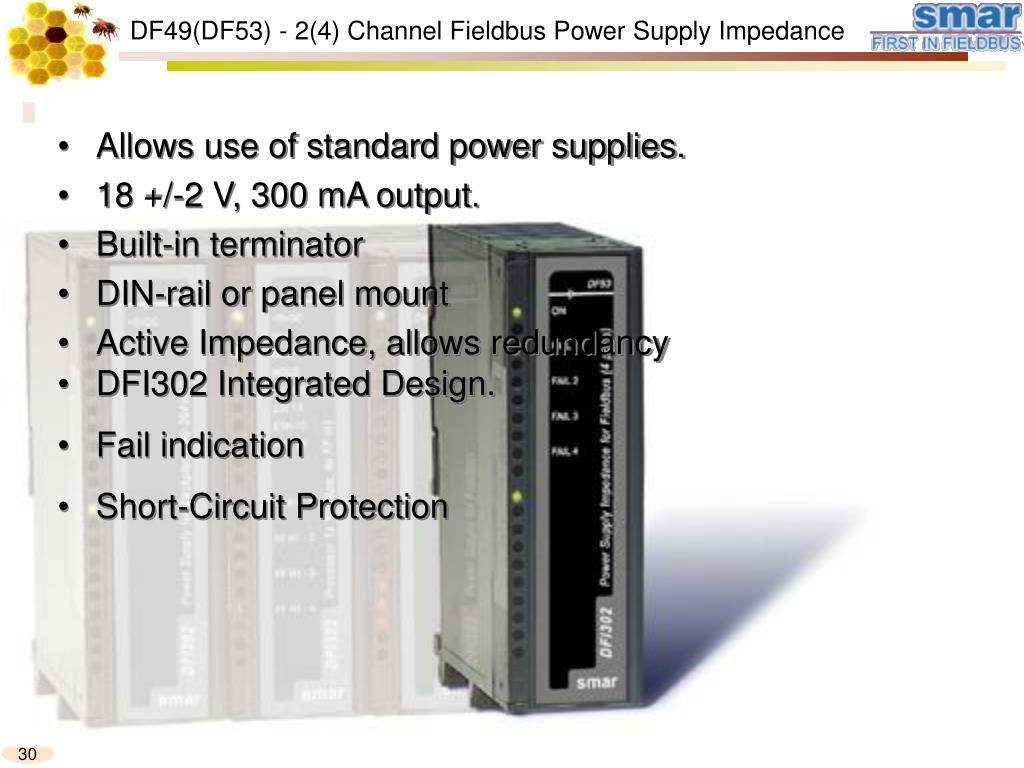

Df49 df53 2 4 channel fieldbus power supply impedance

Allows use of standard power supplies.

18 +/-2 V, 300 mA output.

Built-in terminator

DIN-rail or panel mount

Active Impedance, allows redundancy

DFI302 Integrated Design.

Fail indication

Short-Circuit Protection

DF49(DF53) - 2(4) Channel Fieldbus Power Supply Impedance

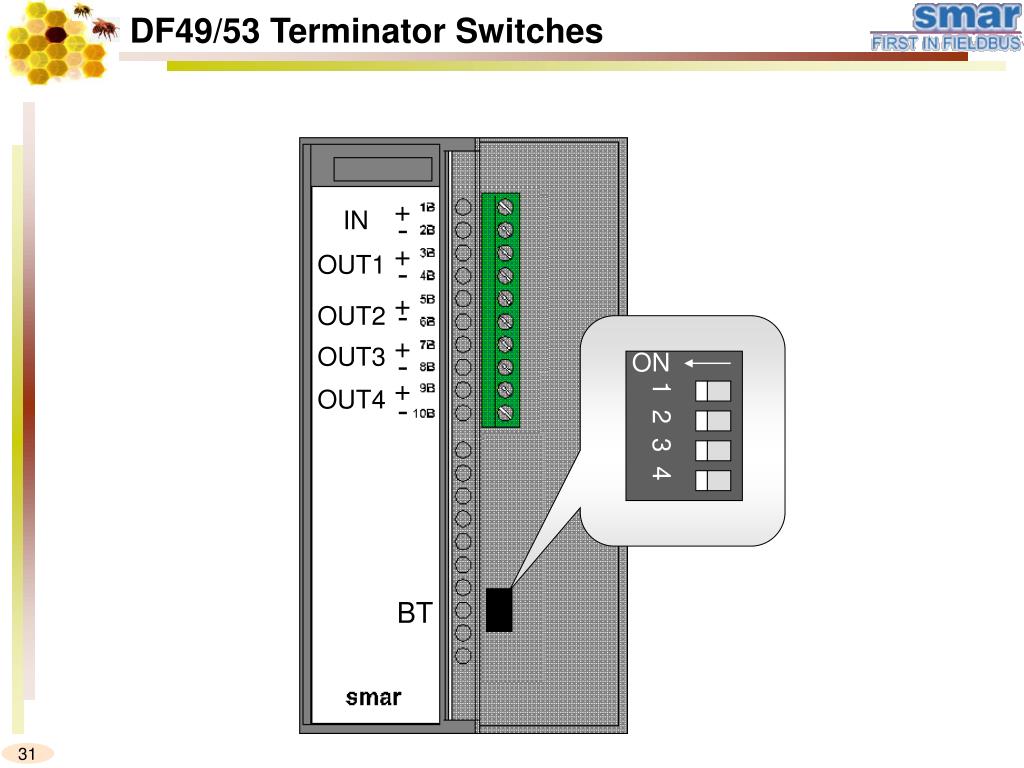

Df49 53 terminator switches

ON

1 2 3 4

DF49/53 Terminator Switches

+

IN

-

+

OUT1

-

+

-

OUT2

+

OUT3

-

+

OUT4

-

BT

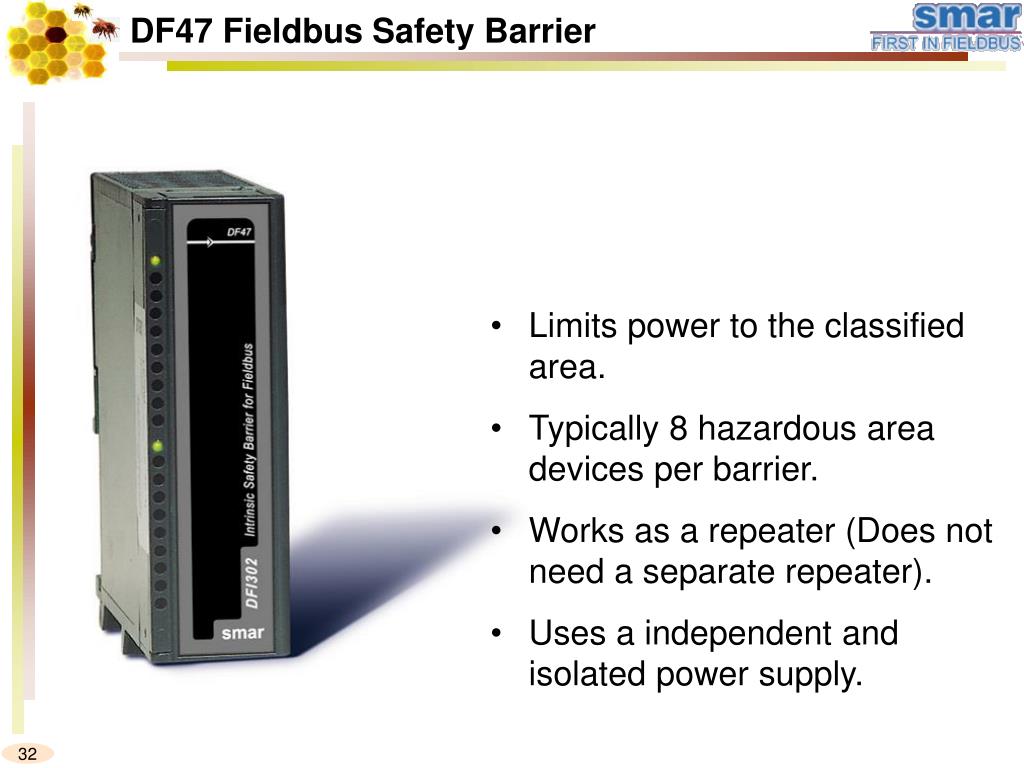

Df47 fieldbus safety barrier

Limits power to the classified area.

Typically 8 hazardous area devices per barrier.

Works as a repeater (Does not need a separate repeater).

Uses a independent and isolated power supply.

DF47 Fieldbus Safety Barrier

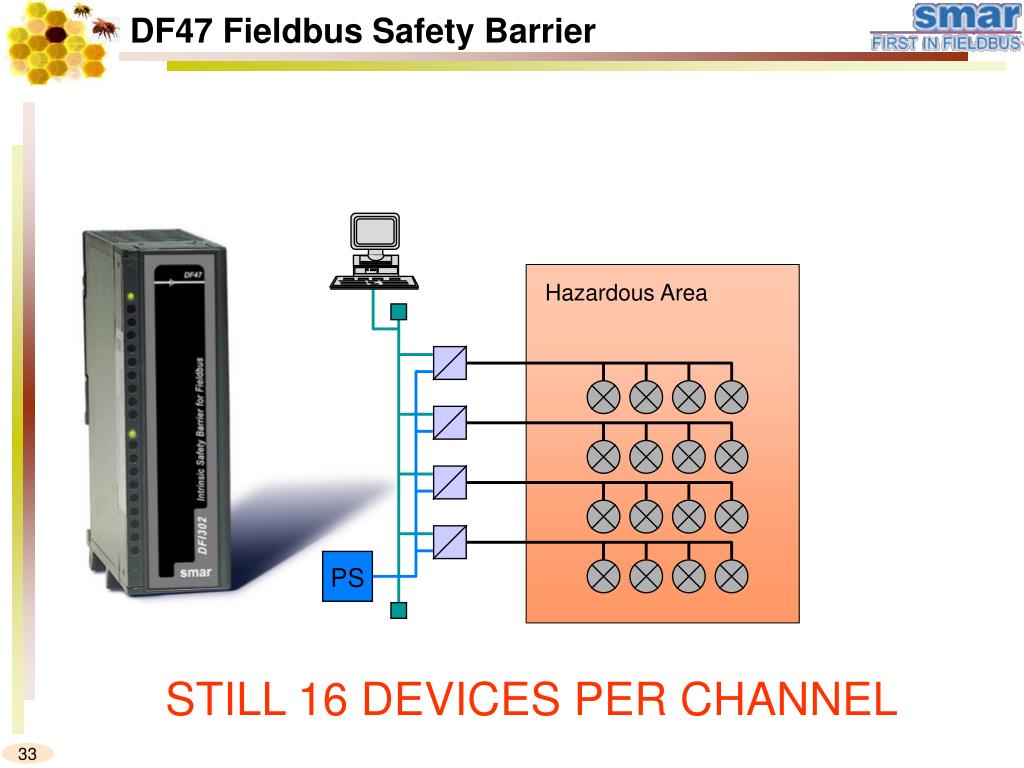

Df47 fieldbus safety barrier1

Hazardous Area

PS

DF47 Fieldbus Safety Barrier

STILL 16 DEVICES PER CHANNEL

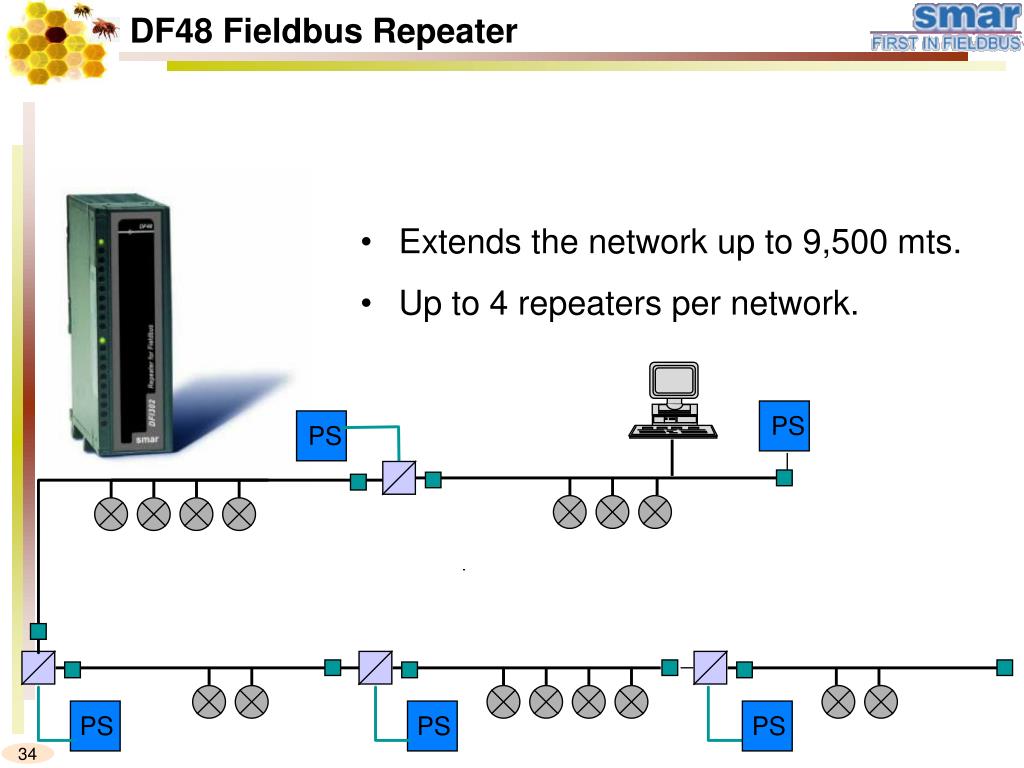

Df48 fieldbus repeater

Extends the network up to 9,500 mts.

Up to 4 repeaters per network.

PS

PS

PS

PS

PS

DF48 Fieldbus Repeater

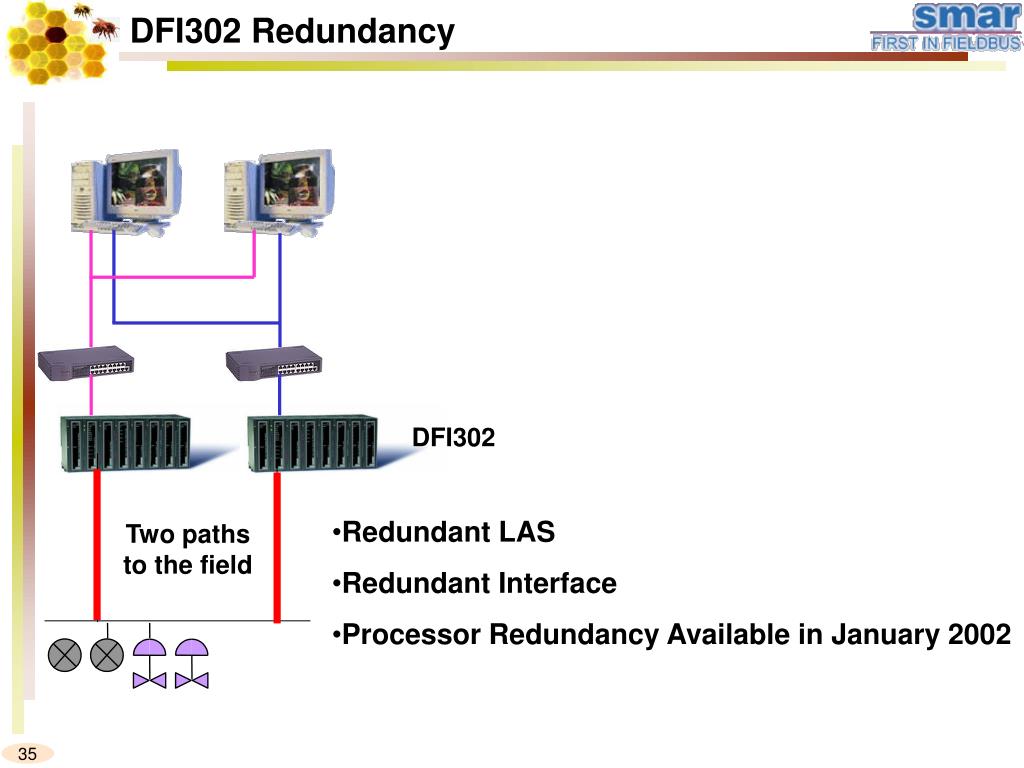

Dfi302 redundancy

Two paths to the field

DFI302 Redundancy

DFI302

  • Redundant LAS

  • Redundant Interface

  • Processor Redundancy Available in January 2002


Choices are everything

Choices are everything!
