Robert Rebich

Brandon Aldecoa

Anas Hussain

Sponsored by:

Team ThumbStart


Project background l.jpg

New cars use keyless entry

Bring bikes up with that trend

Remove the need for keys, cards... etc.

Biometrics are getting cheaper

Fingerprints are the most reliable

Project Background


Project definition l.jpg

Implement fingerprint scanner to be used for ignition of a motorcycle

Train multiple users

Reliability

Ability to withstand road conditions

Security

Project Definition


Project costs l.jpg

Project Costs

  • Design Budget: ~$2000

  • Keep total system cost under $150

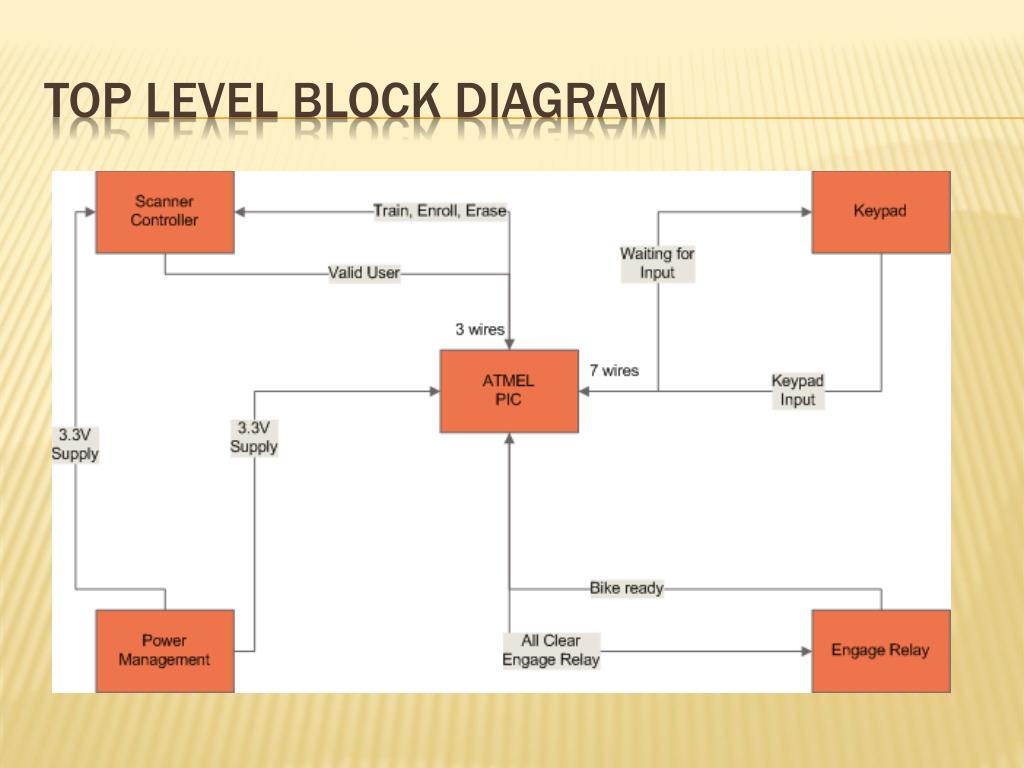

Top level block diagram l.jpg

Top Level Block Diagram


Training systems flow chart l.jpg

Training Systems Flow Chart


Trained user flow diagram l.jpg

Trained User Flow Diagram

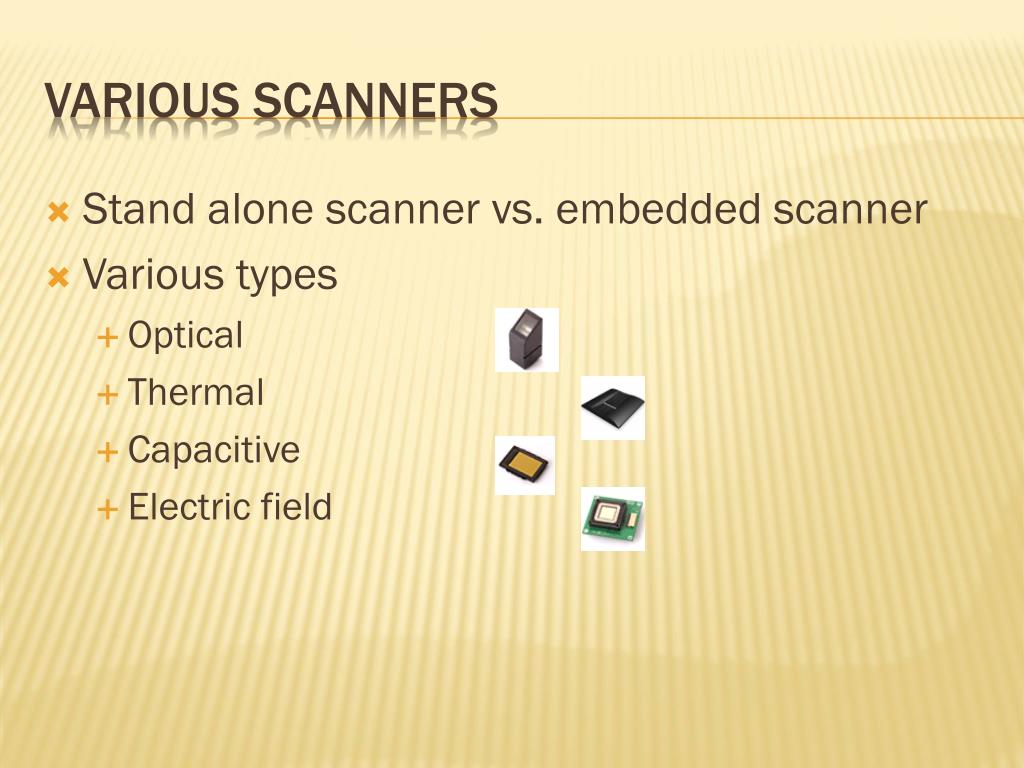

Various scanners l.jpg

  • Stand alone scanner vs. embedded scanner

  • Various types

    • Optical

    • Thermal

    • Capacitive

    • Electric field

Various Scanners


Sfm3010 fc l.jpg

Thermal Scanner

3.3 V power input

Scanner operative range (-40 to 85⁰C)

Module operating range (0 to 70⁰C)

Store 1900 Unique Finger Prints

SFM3010-FC


Atmel avr l.jpg

Currently working with ATmega48

AVR series very similar: code easily ported

Flexibility with memory, I/O, cost

Operating voltage range (2.7V – 5.5V)

ATMEL AVR


Voltage regulation l.jpg

Voltage Regulation

  • Possible options

    • Zener diode voltage regulation

    • Off the shelf regulator

    • LM2937IMP-3.3CT-ND

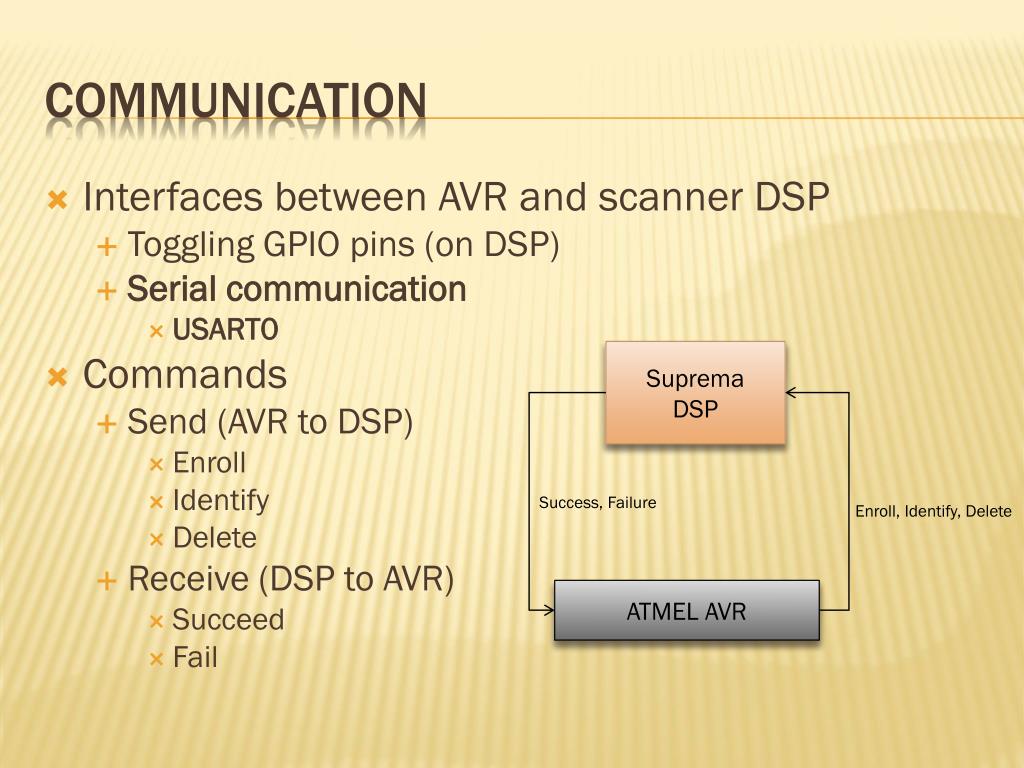

Communication l.jpg

  • Interfaces between AVR and scanner DSP

    • Toggling GPIO pins (on DSP)

    • Serial communication

      • USART0

  • Commands

    • Send (AVR to DSP)

      • Enroll

      • Identify

      • Delete

    • Receive (DSP to AVR)

      • Succeed

      • Fail

Communication

Suprema

DSP

Success, Failure

Enroll, Identify, Delete

ATMEL AVR


Radio frequency ignition control l.jpg

  • Use RF

    • Engage relay

    • Start the bike

  • Ease installation

    • Replace starter relay

    • Wirless: no problem because cable too short

  • Possible back up system

  • Downside: Cost

    • Linx modules cost $8 to $10 per receiver and $5 to $7 per transmitter

Radio Frequency Ignition Control


Back up systems l.jpg

Back-up Systems


Training l.jpg

  • Unique code with every unit

    • inputs code using the keypad

      • begin the enroll process

      • User capable of programming own unique code

  • User trained: system ready for use

  • New user: repeat enrolling

Training


Packaging and positioning l.jpg

  • Early stage

    • Decision about choice of AVR chip

      • Number of I/O ports

        • 11-13 I/O

      • Size of final program

      • Choose ATMEGA48

  • Placing

    • Under seat

    • Keypad over the rest of the electronics

      • Possibly removable

  • Packaged

    • Survive harsh environmental conditions

    • Easy to mount

    • Hidden scanner

    • Small size

Packaging and Positioning


Top view layout l.jpg

Top-view layout


On going issues l.jpg

  • Length of the ribbon cable

    • Currently Suprema only has a two inch cable

    • Would like to extend length to about 1ft

    • Suprema doesn’t have longer cable

    • Longer cable not recommend

    • Communication issues with extended length

  • Heat tolerance of Suprema DSP chip

    • Atmel AVR chips and scanner have industrial temp. ratings, Suprema DSP doesn’t

On Going Issues


Dmfea l.jpg

DMFEA


Questions or comments l.jpg

QUESTIONS OR COMMENTS?

Thank You
