Ch. 3 - Organic Molecules

Inorganic – Chemistry of elements other than carbon Organic – Carbon-based chemistry. Ch. 3 - Organic Molecules. p. 36 text. Inorganic. Organic. Usually with + & - ions. Always contain carbon and hydrogen. Usually ionic bonding. Always covalent bonding. Always with few atoms.

jenn
Download Presentation

Ch. 3 - Organic Molecules

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Inorganic – Chemistry of elements other than carbon Organic – Carbon-based chemistry Ch. 3 - Organic Molecules p. 36 text • Inorganic • Organic • Usually with+ & - ions • Always containcarbon and hydrogen • Usuallyionic bonding • Alwayscovalent bonding • Always withfew atoms • Often quite large, withmany atoms • Often associated with nonliving matter • Usually associatedliving systems

  2. Carbohydrates as structural materials

  3. Carbon Atom • Carbon atoms: • Contain a total of 6 electrons • Only four electrons in the outer shell • Very diverse as one atom can bond with up to four other atoms • Often bonds with other carbon atoms to make hydrocarbons • Can produce long carbon chains like octane • Can produce ring forms like cyclohexane

  4. Octane & Cyclohexane

  5. Functional Groups and Isomers • Functional groups: • Specific combinations of bonded atoms • Attached as a group to other molecules • Always react in the same manner, regardless of where attached • Determine activity and polarity of large organic molecules • Many functional groups, but only a few are of major biological importance

  6. Biologically ImportantFunctional Groups (Fig. 3.2) R R SH OH O O R R C C OH H O R R C H R N H O R OH P OH • Group • Structure • Compound • Significance • Hydroxyl • Alcohols • Polar, forms H-bonds; some sugarsand amino acids Example: Ethanol • Polar, forms H-bonds; some sugarsand amino acids; Example: Ethanol • Aldehydes • Polar; some sugarsExample: Formaldehyde • Carbonyl • Polar; some sugarsExample: Formaldehyde • Ketones • Polar; some sugarsExample: Acetone • Polar; some sugarsExample: Acetone • CarboxylicAcids • Polar, acidic; fats and amino acidsExample: Acetic acid • Carboxyl • Polar, acidic; fats and amino acidsExample: Acetic acid • Polar, basic; amino acidsExample: Tryptophan • Amino • Amines • Polar, acidic; some amino acidsExample: Adenosine triphosphate • Sulfhydryl • Thiols • Disulfide Bonds; some amino acidsExample: Ethanethiol • Polar, basic; amino acidsExample: Tryptophan • OrganicPhosphates • Disulfide Bonds; some amino acidsExample: Ethanethiol • Polar, acidic; some amino acidsExample: Adenosine triphosphate • Phosphate

  7. Isomers • Isomers - organic molecules that have: • Identical molecular formulas, but • Differing internal arrangement of atoms

  8. Macromolecules • Some molecules called macromolecules because of their large size • Usually consist of many repeating units • Resulting molecule is a polymer (many parts) • Repeating units are called monomers • Some examples: • Category • Example • Subunit(s) • Lipids • Fat • Glycerol & fatty acids • Carbohydrates • Polysaccharide • Monosaccharide • Proteins • Polypeptide • Amino acid • Nucleic Acids • DNA, RNA • Nucleotide

  9. Common Foods

  10. Dehydration and Hydrolysis • Dehydration (condensation) - Removal of water molecule • Connects monomers together to make polymers • Glucose monomers condense to make starch • Hydrolysis - Addition of water molecule • Disassembles polymers into monomer parts • Digestion of starch into glucose monomers • Specific enzymes required for each reaction • Accelerate reaction • Are not used in the reaction

  11. Synthesis and Degradationof Polymers

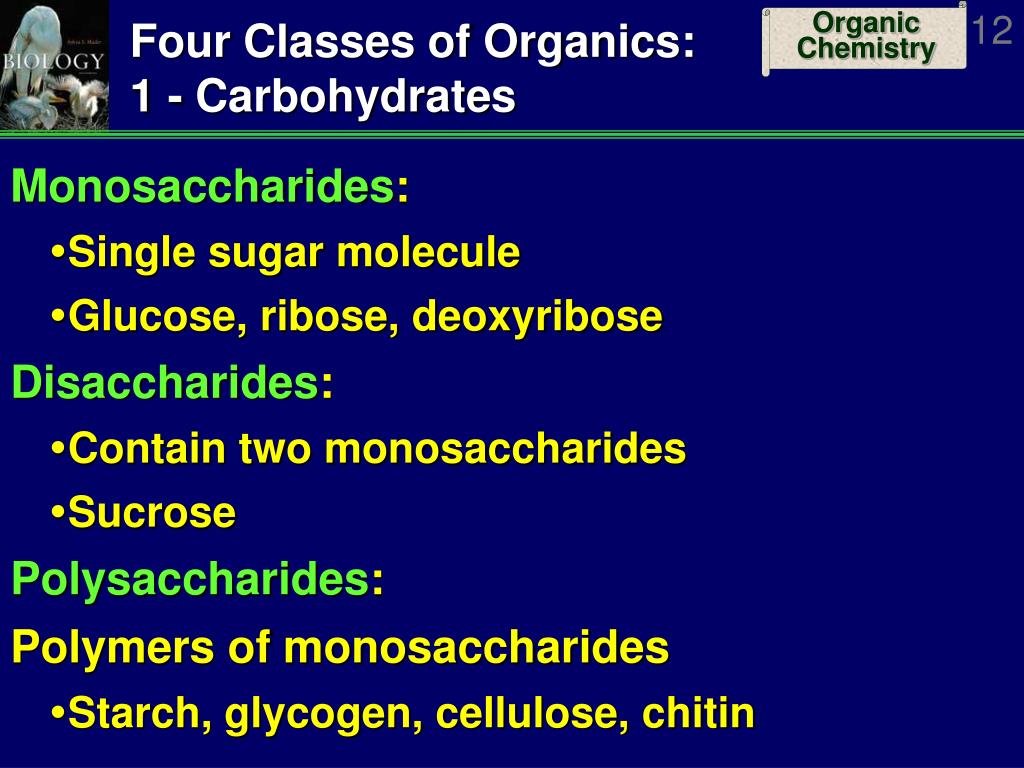

  12. Four Classes of Organics:1 - Carbohydrates • Monosaccharides: • Single sugar molecule • Glucose, ribose, deoxyribose • Disaccharides: • Contain two monosaccharides • Sucrose • Polysaccharides: • Polymers of monosaccharides • Starch, glycogen, cellulose, chitin

  13. Popular Models for RepresentingGlucose Molecules

  14. Synthesis and Degradationof Maltose, a Disaccharide

  15. Carbohydrates Examples:Monosaccharides • Single sugar molecules • Quite soluble and sweet to taste • Examples • Glucose (blood), fructose (fruit) and galactose • Hexoses - Six carbon atoms • Isomers of C6H12O6 • Ribose and deoxyribose (in nucleotides) • Pentoses – Five carbon atoms

  16. Carbohydrates Examples:Disaccharides • Two monosaccharides joined by dehydration Soluble and sweet to taste • Examples • Sucrose • Table sugar, maple sugar • One glucose and one fructose joined together • Maltose • Malt sugar • Two glucoses joined together

  17. Carbohydrates Examples:Polysaccharides (1) • Polymers of monosaccharides • Low solubility; not sweet to taste • Examples • Starch • Polymer of glucose • Used for short-term energy storage • Plant starch • Often branched chain • Amylose, corn starch • Animal starch • Unbranched • Glycogen in liver and muscles

  18. Carbohydrates Examples:Polysaccharides (2) • More polysaccharide examples • Cellulose • Long, coiled polymer of glucose • Structural element for plants • Indigestible by most animals • Chitin • Polymer of glucose • Very resistant to wear and digestion • Arthropod exoskeletons, cell walls of fungi

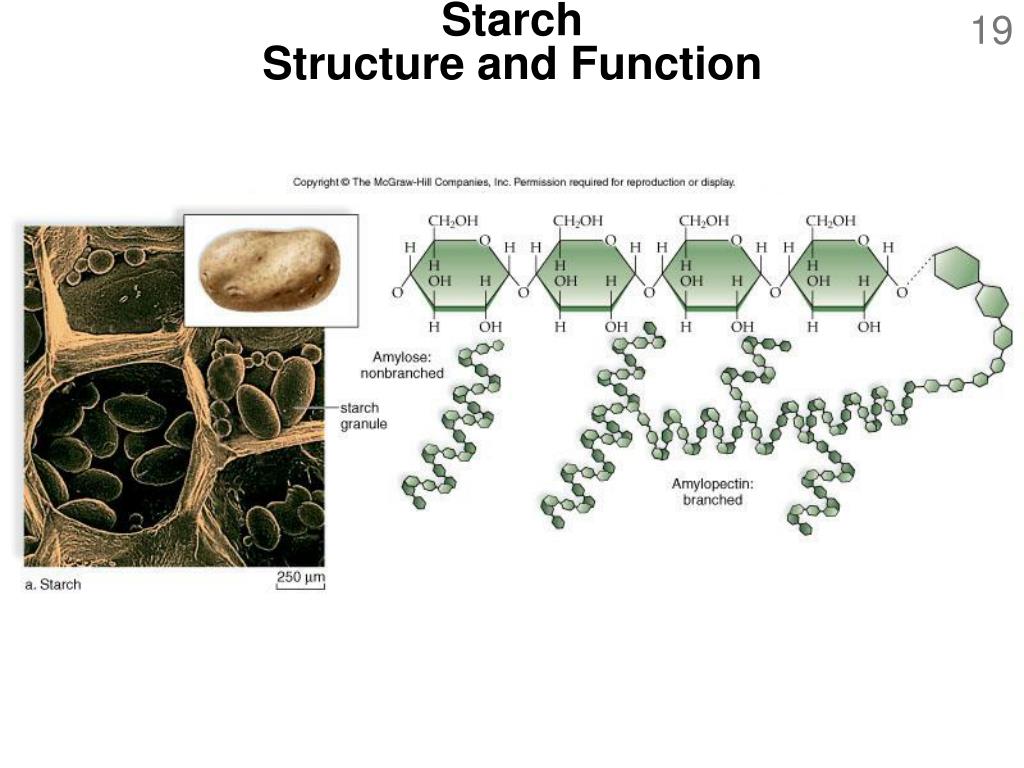

  19. StarchStructure and Function

  20. GlycogenStructure and Function

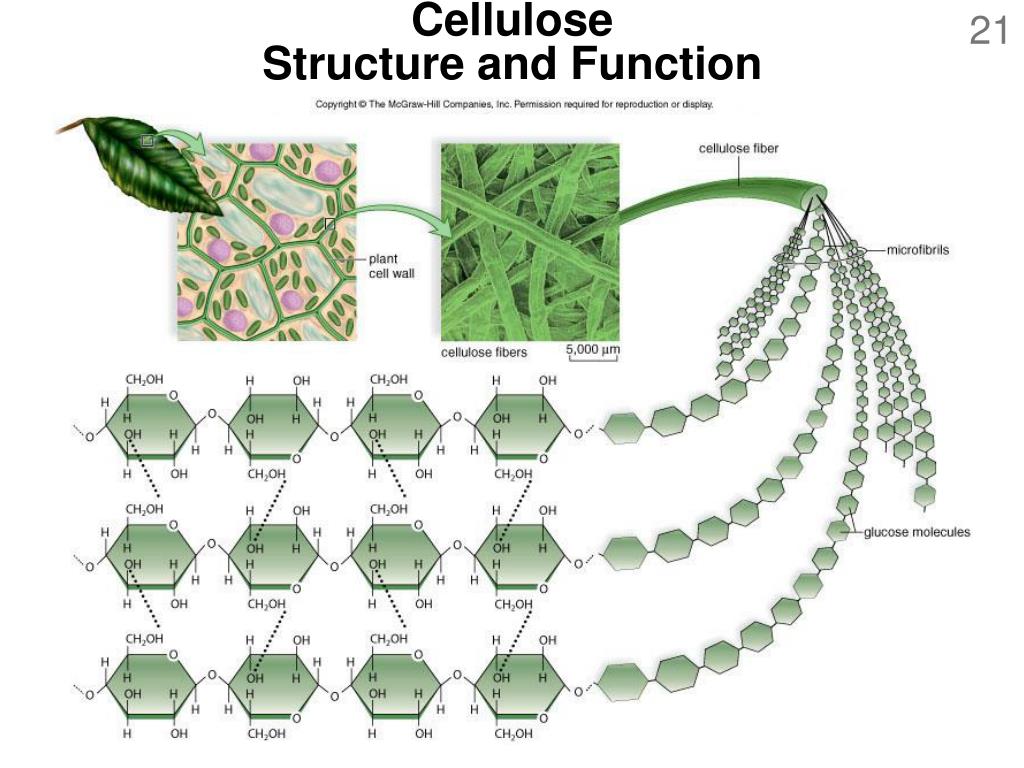

  21. CelluloseStructure and Function

  22. Four Classes of Organics:2 - Lipids • Insoluble in water • Long chains of repeating CH2 units • Renders molecule nonpolar • Types of Lipids • Type • Organismal Uses • Human Uses • Fats • Long-term energy storage & thermal insulation in animals • Butter, lard • Oils • Long-term energy storage in plants and their seeds • Cooking oils • Phospholipids • Component of plasma membrane • No-stick pan spray • Steroids • Component of plasma membrane; hormones • Medicines • Waxes • Wear resistance; retain water • Candles, polishes

  23. Blubber

  24. Types of Lipids:Triglycerides

  25. Types of Lipids:Triglycerides (1) • Triglycerides (Fats) • Long-term energy storage • Backbone of one glycerol molecule • Three fatty acids attached to each glycerol molecule • Long hydrocarbon chain • Saturated - no double bonds between carbons • Unsaturated - 1 double bonds between carbons • Carboxylic acid at one end

  26. Dehydration Synthesis of Triglyceridefrom Glycerol and Three Fatty Acids

  27. Types of Lipids:Phospholipids (2) • Phospholipids • Derived from triglycerides • Glycerol backbone • Two fatty acids attached instead of three • Third fatty acid replaced by phosphate group • The fatty acids are nonpolar and hydrophobic • The phosphate group is polar and hydrophilic • Molecules self arrange when placed in water • Polar phosphate “heads” next to water • Nonpolar fatty acid “tails” overlap and exclude water • Spontaneously form double layer & a sphere

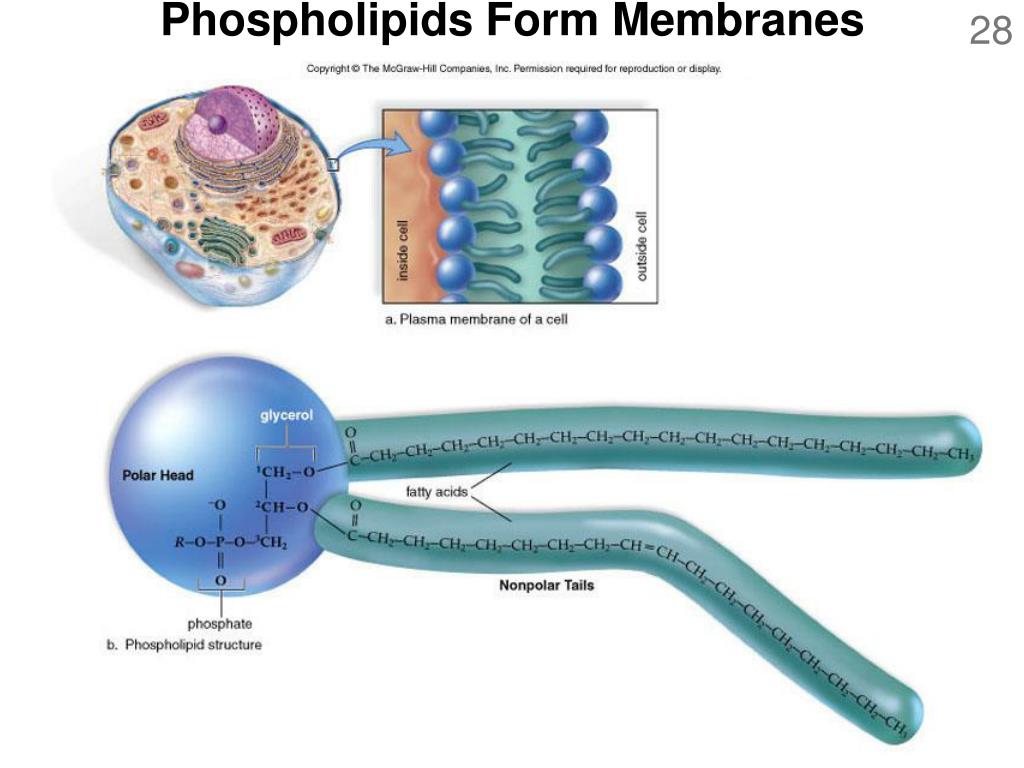

  28. Phospholipids Form Membranes

  29. Types of Lipids:Steroids & Waxes (3) • Steroids • Cholesterol, testosterone, estrogen • Skeletons of four fused carbon rings • Waxes • Long-chain fatty acid bonded to a long-chain alcohol • High melting point • Waterproof • Resistant to degradation

  30. Steroid Diversity

  31. Waxes

  32. Four Classes of Organics:3 -Proteins • Functions • Support – Collagen • Enzymes – Almost all enzymes are proteins • Transport – Hemoglobin; membrane proteins • Defense – Antibodies • Hormones – Many hormones; insulin • Motion – Muscle proteins, microtubules

  33. Protein Subunits:The Amino Acids • Proteins are polymers of amino acids • Each amino acid has a central carbon atom to which are attached • a hydrogen atom, • an amino group –NH2, • A carboxylic acid group –COOH, • and one of 20 different types of –R (remainder) groups • There are 20 different amino acids that make up proteins • All of them have basically the same structure except for what occurs at the placeholder R

  34. Structural Formulas for the20 Amino Acids

  35. Proteins:The Polypeptide Backbone • Amino acids joined together end-to-end • COOH of one AA covalently bonds to the NH2 of the next AA • Special name for this bond - Peptide Bond • Two AAs bonded together – Dipeptide • Three AAs bonded together – Tripeptide • Many AAs bonded together – Polypeptide • Characteristics of a protein determined by composition and sequence of AA’s • Virtually unlimited number of proteins

  36. Synthesis and Degradation of a Peptide

  37. Protein Molecules:Levels of Structure • Primary: • Literally, the sequence of amino acids • Secondary: • The way the amino acid chain coils or folds • Tertiary: • Overall three-dimensional shape of a polypeptide • Quaternary: • Consists of more than one polypeptide

  38. Levels of Protein Organization

  39. Examples of Fibrous Proteins

  40. Protein-folding Diseases • Assembly of AA’s into protein extremely complex • Process overseen by “chaperone” molecules • Inhibit incorrect interactions between R groups as polypeptide grows • Defects in these chaperones can corrupt the tertiary structure of proteins • Mad cow disease could be due to mis-folded proteins

  41. Four Classes of Organics:4 -Nucleic Acids • Polymers of nucleotides • Very specific cell functions • DNA (deoxyribonucleic acid) • Double-stranded helical spiral (twisted ladder) • Serves as genetic information center • In chromosomes • RNA (ribonucleic acid) • Single-stranded • Serves primarily in assembly of proteins • In nucleus and cytoplasm of cell

  42. The Nucleotides ofNucleic Acids • Three components: • A phosphate group, • A pentose sugar (ribose or deoxyribose), and • A nitrogenous base (4 kinds in DNA, 4 kinds in RNA, 3 common to both) • Nucleotide subunits connected end-to-end to make nucleic acid • Sugar of one connected to the phosphate of the next • Sugar-phosphate backbone

  43. Nucleotides

  44. DNA Structure

  45. RNA Structure

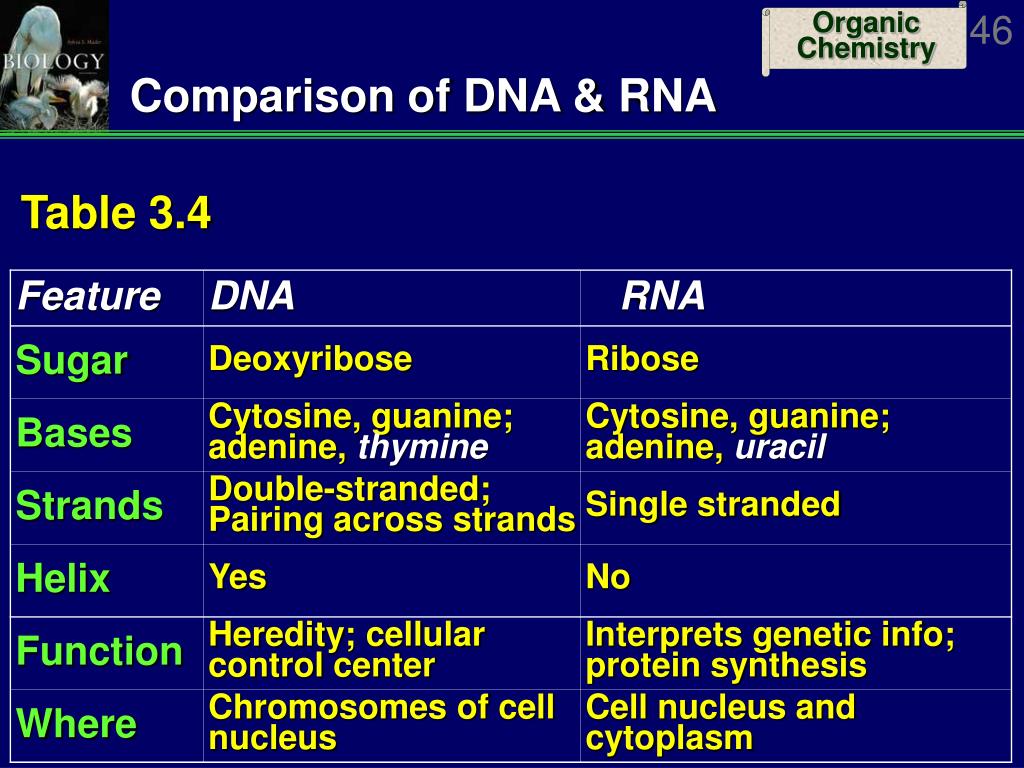

  46. Comparison of DNA & RNA • Table 3.4 • Feature • DNA • RNA • Sugar • Deoxyribose • Ribose • Bases • Cytosine, guanine;adenine, thymine • Cytosine, guanine; • adenine, uracil • Strands • Double-stranded; Pairing across strands • Single stranded • Helix • Yes • No • Function • Heredity; cellular control center • Interprets genetic info; protein synthesis • Where • Chromosomes of cell nucleus • Cell nucleus and cytoplasm

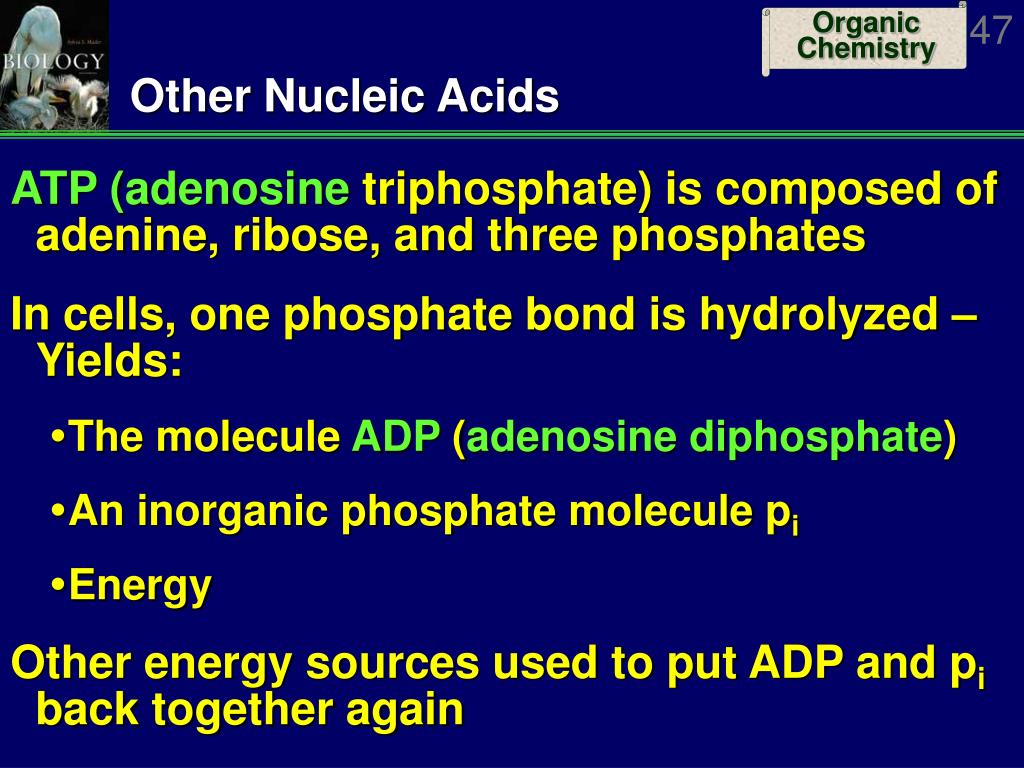

  47. Other Nucleic Acids • ATP (adenosine triphosphate) is composed of adenine, ribose, and three phosphates • In cells, one phosphate bond is hydrolyzed – Yields: • The molecule ADP (adenosine diphosphate) • An inorganic phosphate molecule pi • Energy • Other energy sources used to put ADP and pi back together again

  48. ATP
