  1. Christensen, Chapter 7 X-Ray Beam Restrictors Resident Physics Lectures George David Associate Professor Department of Radiology Medical College of Georgia

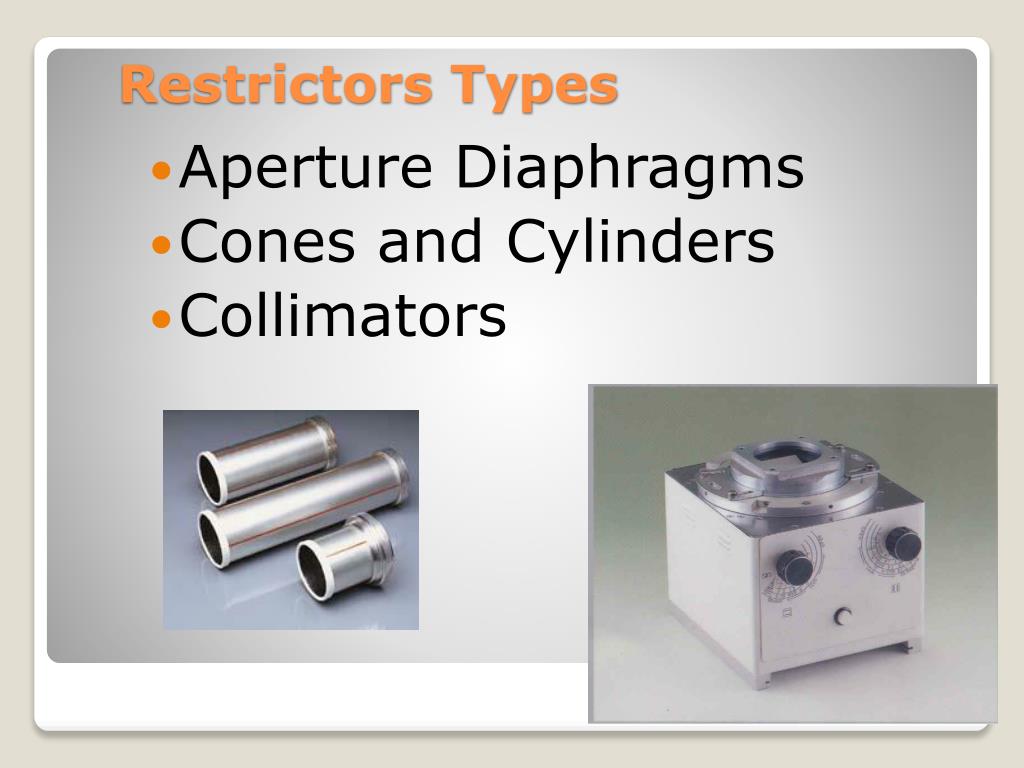

  2. Aperture Diaphragms • Cones and Cylinders • Collimators Restrictors Types

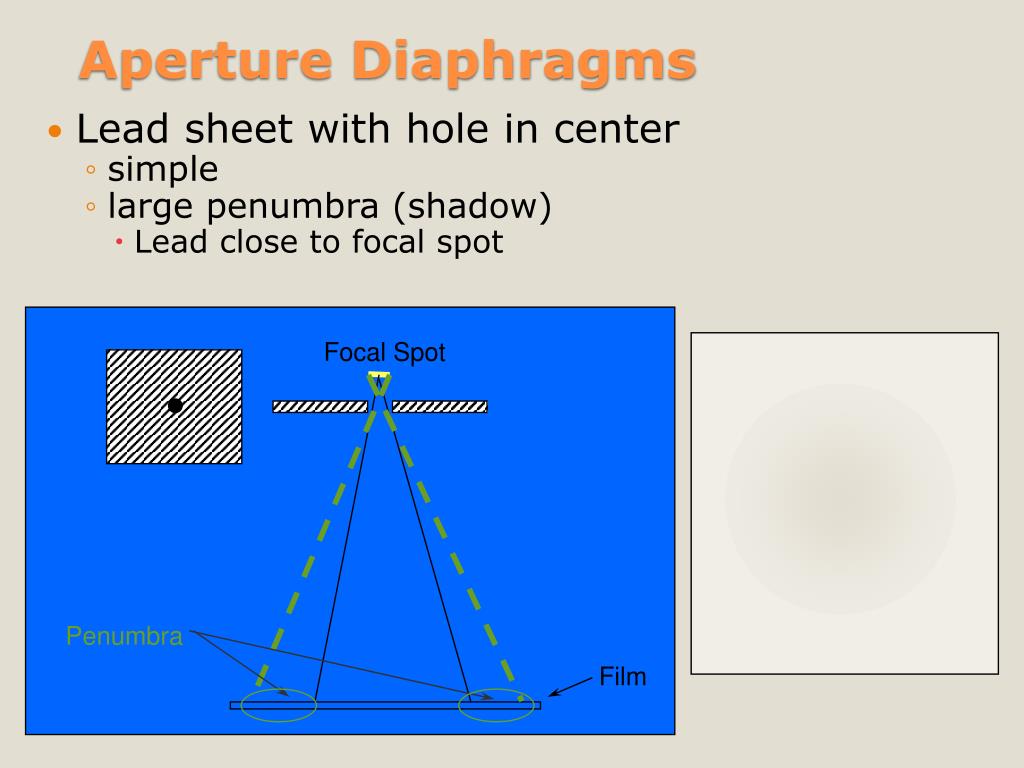

  3. Lead sheet with hole in center • simple • large penumbra (shadow) • Lead close to focal spot Focal Spot Aperture Diaphragms Penumbra Film

  4. Focal Spot Focal Spot Film Film Cones & Cylinders With cone angle as above, this functions as an aperture Reduced Penumbra

  5. Advantages • Provides adjustable rectangular field • fluoro may also have circular field • light beam indicates x-ray field • Configuration • two sets of shutters • longitudinal • transverse • sets may actually have two pairs of shutters operating together Collimators One set; two pairs

  6. Focal Spot Filter Lamp Mirror Shutters (only 1 set shown) • Generally include filter & light Collimators

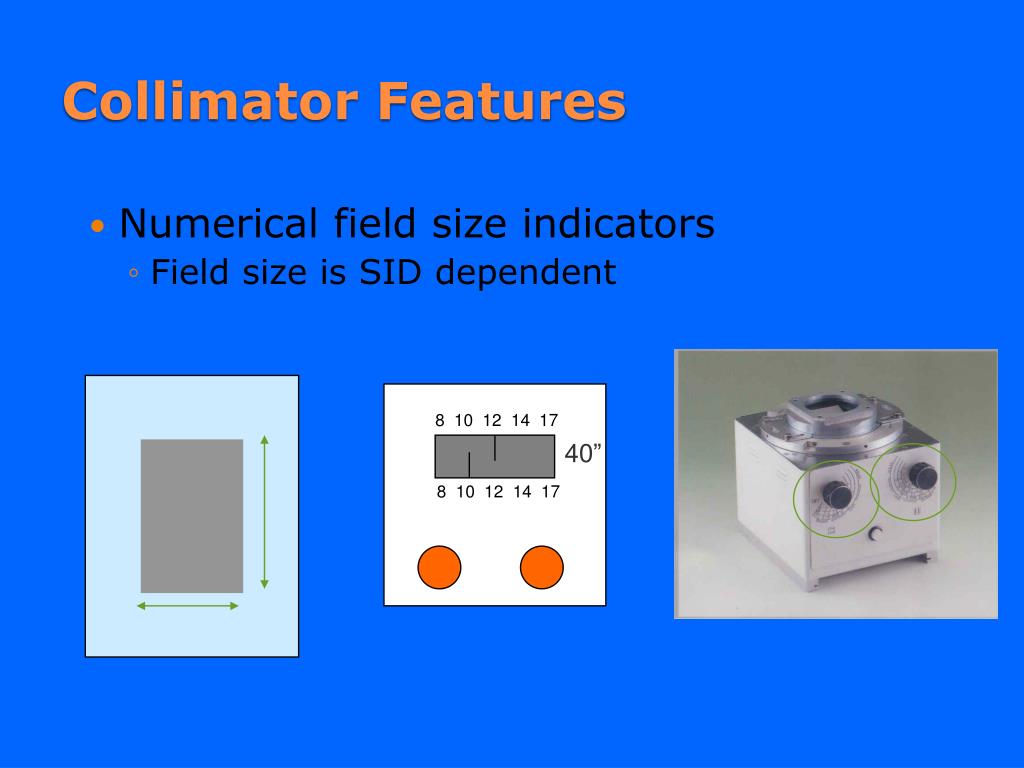

  7. Numerical field size indicators • Field size is SID dependent 8 10 12 14 17 40” 8 10 12 14 17 Collimator Features

  8. Field center indicator (crosshairs) • plastic sheet attached to bottom of collimator • two black lines drawn on it • light projects field center on patient Shutters Crosshairs Collimator Features Bottom of Collimator

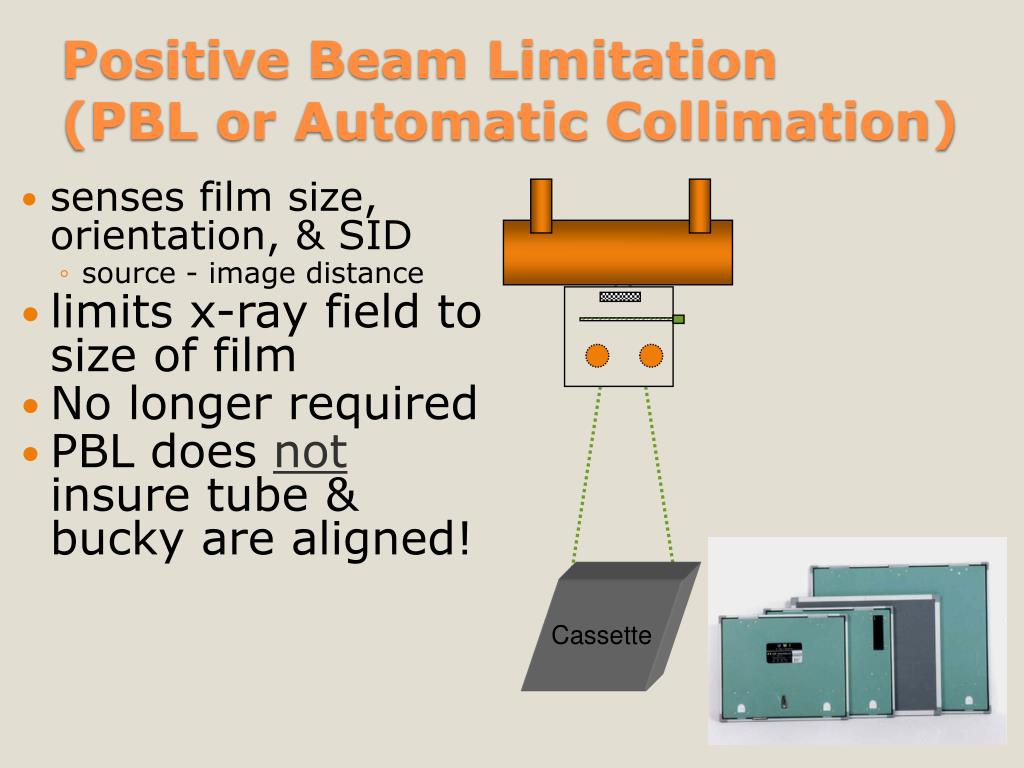

  9. senses film size, orientation, & SID • source - image distance • limits x-ray field to size of film • No longer required • PBL does not insure tube & bucky are aligned! Positive Beam Limitation(PBL or Automatic Collimation) Cassette

  10. X-Ray / Light Field alignment • Alignment of x-ray field to bucky • Field Size Indicator accuracy • PBL accuracy Collimator Checks
