CNS unit 4

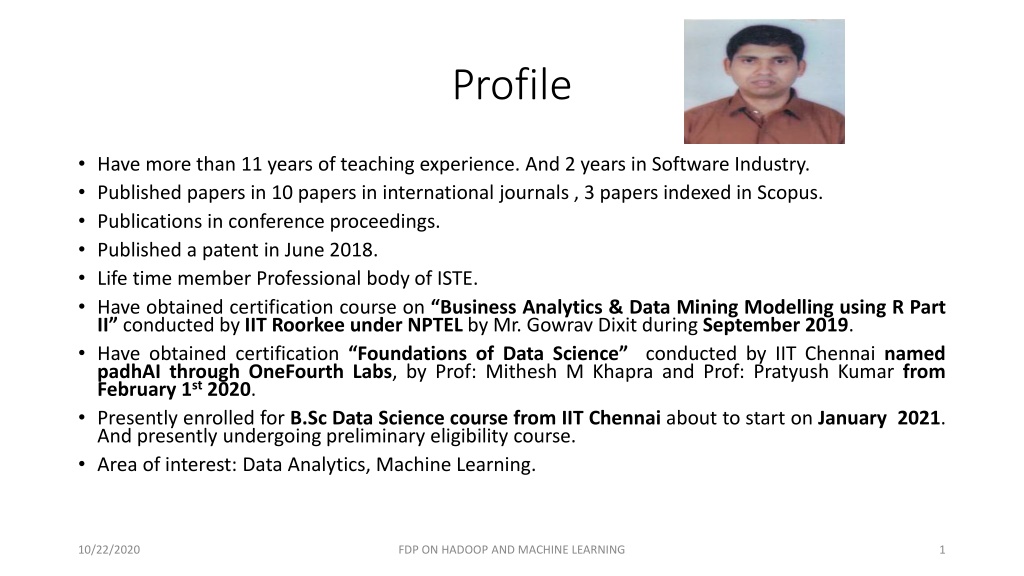

1. Profile • Have more than 11 years of teaching experience. And 2 years in Software Industry. • Published papers in 10 papers in international journals , 3 papers indexed in Scopus. • Publications in conference proceedings. • Published a patent in June 2018. • Life time member Professional body of ISTE. • Have obtained certification course on “Business Analytics & Data Mining Modelling using R Part II” conducted by IIT Roorkee under NPTEL by Mr. Gowrav Dixit during September 2019. • Have obtained certification “Foundations of Data Science” conducted by IIT Chennai named padhAI through OneFourth Labs, by Prof: Mithesh M Khapra and Prof: Pratyush Kumar from February 1st 2020. • Presently enrolled for B.Sc Data Science course from IIT Chennai about to start on January 2021. And presently undergoing preliminary eligibility course. • Area of interest: Data Analytics, Machine Learning. FDP ON HADOOP AND MACHINE LEARNING

2. Cryptography and Network Security (CS8792) By B.Jayaram Assistant Professor, JNN Institute of Engineering Tiruvallur District - 601102

3. UNIT 4 • Authentication requirement – Authentication function – MAC – Hash function – Security of hash function and MAC – SHA –Digital signature and authentication protocols – DSS- Entity Authentication: Biometrics, Passwords, Challenge Response protocols- Authentication applications - Kerberos, X.509

4. Authentication Requirement • Disclosure: Release of message contents to any person or process not possessing the appropriate cryptographic key. • Traffic Analysis: The number of length of messages between parties. (connectionless or connection-oriented) • Masquerade: Insertion of messages into the network from a fraudulent source. Fraudulent acknowledgment also to be noted • Content modification: Changes to the contents of a message. • Sequence modification: Any modification to a sequence of messages between parties • Timing modification: Delay or replay of messages.( Based on connectionless or connection-oriented) • Source repudiation: Denial of transmission of message by source. • Destination repudiation: Denial of receipt of message by destination.

5. Authentication Requirement • In summary, message authentication is a procedure to verify that received messages come from the alleged source and have not been altered. Message authentication may also verify sequencing and timeliness. A digital signature is an authentication technique that also includes measures to counter repudiation by the source.

6. Authentication Function • Message authentication or digital signature mechanism has two levels of functionality. • One function as a Authenticator as function to send messages. • Second one as Authentication protocol: to verify message from the receiver. • This section consists of 3 types of functions to produce a authenticator • Message Encryption: The ciphertext of the entire message serves as its authenticator • Message authentication code (MAC): A function of the message and a secret keythat produces a fixed-length value that serves as the authenticator • Hash Function: A function that maps a message of any length into a fixed-length hash value, which serves as the authenticator

7. Message Encryption • Message encryption by itself can provide a measure of authentication. • The analysis differs for symmetric and public-key encryption schemes.

8. Basic uses of Message Encryption

9. Symmetric Encryption (Fig 11.1 a)

10. Public Key Encryption (Fig 11.1 b)- Confidentiality

11. Public Key Encryption (Fig 11.1 c)- Authentication and Signature

12. Public Key Encryption (Fig 11.1 d)- Confidentiality, Authentication and Signature

13. Message Encryption • It may be difficult to determine automatically if incoming ciphertext decrypts to intelligible plaintext. If the plaintext is, say, a binary object file or digitized X-rays, determination of properly formed and therefore authentic plaintext may be difficult. • For this purpose FCS(Frame Check Sequence) or checksum is used in each message before encryption. • Internal and External Error Control: • In internal error control, an error detecting code also known as frame check sequence or checksum. External error control: In external error control, error detecting codes are appended after encryption

14. Internal and External Error Control

15. Error Control • Error control is done by some protocols. Eg: TCP/IP

16. Message authentication code (MAC) • two communicating parties, say A and B, share a common secret key K. When A has a message to send to B, it calculates the MAC as a function of the message and the key:MAC = C(K,M), where • M = input message • C = MAC function • K = shared secret key • MAC = message authentication code

17. Basic Uses of Message Authentication Code (MAC)

18. Message Authentication (Fig 11.4 a)

19. Message Authentication and Confidentiality – Authentication to plain text - Fig 11.4 b

20. Message Authentication and Confidentiality – Authentication to Cipher text - Fig 11.4 C

21. Message Authentication Code • In general, the MAC function is a many-to-one function. The domain of the function consists of messages of some arbitrary length, whereas the range consists of all possible MACs and all possible keys. If an n-bit MAC is used, then there are 2 power n possible MACs, whereas there are N possible messages with N >> 2 power n. • MAC does not provide a digital signature because both sender and receiver share the same key.

22. Hash Function • Hash function accepts a variable-size message M as input and produces a fixed size output, referred to as a hash code H(M). Unlike a MAC, a hash code does not use a key but is a function only of the input message. The hash code is also referred to as a message digest or hash value.

28. Requirements of Hash Function • Hash function must satisfy the following properties • Hash function can be applied to a block of data of any size. • Hash function produces a fixed length output. • H(x) is relatively easy to compute for any given x, making both hardware and software implementations practical. • For any given value h, it is computationally infeasible to find x such that H(x) = h. This is sometimes referred to in the literature as the one-way property. • For any given block x, it is computationally infeasible to find y not equal to x such that H(y) = H(x). This is sometimes referred to as weak collision resistance. • It is computationally infeasible to find any pair (x, y) such that H(x) = H(y). This is sometimes referred to as strong collision resistance.

29. Simple Hash Functions • are several proposals for simple functions • based on XOR of message blocks • not secure since can manipulate any message to produce a given hash • need a stronger cryptographic function (next chapter)

31. Birthday Attacks • might think a 64-bit hash is secure • but by Birthday Paradox is not • birthday attack works thus: • opponent generates 2m/2variations of a valid message all with essentially the same meaning • opponent also generates 2m/2 variations of a desired fraudulent message • two sets of messages are compared to find pair with same hash (probability > 0.5 by birthday paradox) • have user sign the valid message, then substitute the forgery which will have a valid signature • conclusion is that need to use larger MACs

33. Block Ciphers as Hash Functions • can use block ciphers as hash functions • using H0=0 and zero-pad of final block • compute: Hi = EMi [Hi-1] • and use final block as the hash value • similar to CBC but without a key • resulting hash is too small (64-bit) • due to direct birthday attack and variants

34. Hash Functions & MAC Security • like block ciphers have: • brute-force attacks exploiting • strong collision resistance hash have cost 2m/2 • 128-bit hash looks vulnerable, 160-bits better • MACs with known message-MAC pairs • can either attack keyspace (cf key search) or MAC • Min(2k, 2n) • at least 128-bit MAC and 128-bit key is needed for security

35. Hash Functions & MAC Security • cryptanalytic attacks exploit structure • like block ciphers want brute-force attacks to be the best alternative • have a number of analytic attacks on iterated hash functions • CVi = f[CVi-1, Mi]; H(M)=CVN • typically focus on collisions in function f • like block ciphers is often composed of rounds • attacks exploit properties of round functions

36. Secure Hash Algorithm (SHA) • The Secure Hash Algorithm (SHA) was developed by the National Institute of Standards and Technology (NIST) and published as a federal information processing standard (FIPS 180) in 1993; a revised version was issued as FIPS 180-1 in 1995 and is generally referred to as SHA-1. • SHA is based on the hash function MD4 and its design closely models MD4. SHA-1 is also specified in RFC 3174, which essentially duplicates the material in FIPS 180-1, but addsa C code implementation.

38. Message Digest Generation Using SHA-512

39. Message Digest Generation Using SHA-512 • Step 1: Append padding bits. Paddingis always added, even if the message is already of the desired length. Thus, the number of padding bits is in the range of 1 to 1024. The padding consists of a single 1-bit followed by the necessary number of 0-bits. • Step 2: Append length. A block of 128 bits is appended to the message. This block is treated as an unsigned 128-bit integer (most significant byte first) and contains the length of the original message (before the padding).

40. Message Digest Generation Using SHA-512 • Step 3: Initialize hash buffer. A 512-bit buffer is used to hold intermediate and final results of the hash function. The buffer can be represented as eight 64-bit registers (a, b, c, d, e, f, g, h). • a = 6A09E667F3BCC908 • b = BB67AE8584CAA73B • c = 3C6EF372FE94F82B • c = A54FF53A5F1D36F1 • e = 510E527FADE682D1 • f = 9B05688C2B3E6C1F • g = 1F83D9ABFB41BD6B • h = 5BE0CDI9137E2179

41. Message Digest Generation Using SHA-512 • Step 4: Process message in 1024-bit (128-word) blocks. The heart of the algorithm is a module that consists of 80 rounds; • Step 5: After all N 1024-bit blocks have been processed, the output from the Nth stage is the 512-bit message digest. We can summarize the behavior of SHA-512 as follows: • H0 = IV • Hi = SUM64(Hi-1, abcdefghi) • MD = HN, where • IV = initial value of the abcdefgh buffer, defined in step 3 • abcdefghi= the output of the last round of processing of the ith message block • N = the number of blocks in the message (including padding and length fields) • SUM = Addition modulo 264 performed separately on each word of the pair of inputs • MD = final message digest value

42. SHA-512 Processing of a Single 1024-Bit Block

43. Creation of 80-word Input Sequence for SHA-512 Processing of single block

44. UNIT 4 • Authentication requirement – Authentication function – MAC – Hash function – Security of hash function and MAC – SHA –Digital signature and authentication protocols – DSS- Entity Authentication: Biometrics, Passwords, Challenge Response protocols- Authentication applications - Kerberos, X.509

45. Digital Signatures • A digital signature is an authentication mechanism that enables the creator of a message to attach a code that acts as a signature. The signature is formed by taking the hash of the message and encrypting the message with the creator's private key. The signature guarantees the source and integrity of the message. • Mutual authentication protocols enable communicating parties to satisfy themselves mutually about each other's identity and to exchange session keys. • The digital signature standard (DSS) is an NIST standard that uses the secure hash algorithm (SHA).

46. Properties for Digital Signature • It must verify the author and the date and time of the signature. • It must to authenticate the contents at the time of the signature. • It must be verifiable by third parties, to resolve disputes.

47. Requirements for Digital Signature • The signature must be a bit pattern that depends on the message being signed. • The signature must use some information unique to the sender, to prevent both forgery and denial. • It must be relatively easy to produce the digital signature. • It must be relatively easy to recognize and verify the digital signature. • It must be computationally infeasible to forge a digital signature, either by constructing a new message for an existing digital signature or by constructing a fraudulent digital signature for a given message. • It must be practical to retain a copy of the digital signature in storage.

48. Direct Digital Signature • The direct digital signature involves only the communicating parties (source, destination). It is assumed that the destination knows the public key of the source. A digital signature may be formed by encrypting the entire message with the sender's private key or by encrypting a hash code of the message with the sender's private key. Disadvantage: • The validity of the scheme depends on the security of the sender's private key. (i.e) the sender can send denial information. • Private key might actually be stolen from X at time T. The opponent can then send a message signed with X's signature and stamped with a time before or equal to T.

49. Arbitrated Digital Signature Techniques • Every signed message from a sender X to a receiver Y goes first to an arbiter A, who subjects the message and its signature to a number of tests to check its origin and content. • The message is then dated and sent to Y with an indication that it has been verified to the satisfaction of the arbiter.

50. Arbitrated Digital Signature Techniques X = Sender Y = Recipient A = Arbiter M = Message T = Time Stamp
