Presentation Transcript

Neurogenic voiding dysfunction l.jpg

Neurogenic Voiding Dysfunction

Hann-Chorng Kuo

Department of Urology

Buddhist Tzu Chi General Hospital

Complications of neurogenic voiding dysfunction l.jpg

Complications of Neurogenic voiding dysfunction

  • Severe lower urinary tract symptoms: dysuria, incontinence, retention

  • Urinary tract infection: APN, cystitis, prostatitis, epididymitis

  • Renal function impairment: hydronephrosis, vesicoureteral reflux, renal scarring, ESRD

Objectives of urological care for neurogenic voiding dysfunction l.jpg

Objectives of urological care for neurogenic voiding dysfunction

  • Preservation of renal function

  • Adequate bladder emptying

  • Prevention of UTI

  • Establishment of continence

  • Freedom of catheter

  • Spontaneous voiding

Treatment of nvd l.jpg

Treatment of NVD

  • Based on pathophysiology of NVD

  • Patient’s self-handling capability

  • Family support

  • Convenience of medical care

  • Patient’s will of management

Slide5 l.jpg

Neurogenic Voiding Dysfunction


Symptomatology of neurogenic voiding dysfunction l.jpg

Symptomatology of Neurogenic Voiding dysfunction

Normal micturition l.jpg

Normal Micturition

  • Cortical arousal and initiation of voiding

  • Normal detrusor contractility

  • Normal cortical inhibition before voiding

  • Patent bladder outlet and urethra

  • Coordinated external sphincter during detrusor contraction

  • Volitional contraction of sphincter and interruption of voiding

Normal micturition8 l.jpg

Normal Micturition

Physiology of micturition l.jpg

Physiology of Micturition

  • Micturition reflex center – sacral cords S2-4

  • Micturition center – pons

  • Sensory and motor cortex – frontal lobe

  • Coordination of detrusor and striated sphincter – cerebellum,basal ganglia

  • Affection influence – limbic system

Diagram of micurition reflex l.jpg

Diagram of Micurition reflex

Urodynamic classification nvd l.jpg

Urodynamic Classification NVD

  • Cerebral lesion – detrusor areflexia; detrusor hyperreflexia with coordinated external sphincter

  • Suprasacral cord lesion– autonomic dysreflexia (lesion above T6); detrusor hyperreflexia with external sphincter dyssynergia

Urodynamic classification nvd12 l.jpg

Urodynamic Classification NVD

  • Sacral cord lesion – detrusor areflexia with non-relaxing urethra; atonic urethra

  • Peripheral neuropathy – detrusor areflexia with discoordinated urethral sphincter

Urodynamic findings in neurogenic voiding dysfunction l.jpg

Urodynamic findings in Neurogenic Voiding dysfunction

Cerebral control of micturition l.jpg

Cerebral control of micturition




Classification of nvd krane siroky 1979 l.jpg

Classification of NVD-- Krane & Siroky 1979

  • Detrusor hyperreflexia

    Coordinated sphincter

    Striated sphincter dyssynergia

    Smooth muscle sphincter (BN) dyssynergia

  • Detrusor areflexia –

    Coordinated sphincter

    Non-relaxed striated sphincter

    Denervated striated sphincter

    Non-relaxing smooth muscle sphincter (BN)

Sphincter corrdination in neurogenic voiding dysfunction l.jpg

Sphincter corrdination in Neurogenic Voiding Dysfunction

Urinary tract abnormalitie neurogenic voiding dysfunction l.jpg

Urinary tract Abnormalitie Neurogenic Voiding Dysfunction

Micturition reflex and nervous pathways l.jpg

Micturition reflex and Nervous pathways







Stroke l.jpg


  • Initial retention, bladder neck is closed

  • Detrusor hyperreflexia & incontinence

  • Continence reappears by 6 Mo in 80%

  • Irritative LUTS: DH

  • Dysuria and obstructive LUTS: DHIC,BPO, poor relaxation of external sphincter (frontoparietal & internal capsule lesion)

  • Subcortical lesion: areflexia, retention (47%)

  • Areflexia in 85% hemorrhage, 10% ischemia

Stroke and bladder outlet obstruction l.jpg

Stroke and Bladder outlet obstruction

  • Detrusor hyperreflexia in 82% after stroke, obstruction was noted in 63%

  • Pseudodyssynergia may be a urodynamic finding for obstructive symptoms

  • Incidence of BOO is equally distributed in patients with irritative and obstructive LUTS

  • Prostatectomy should not be done in 1 year after stroke

Detrusor areflexia at initial stage of stroke l.jpg

Detrusor areflexia at initial stage of Stroke

Prostatic obstruction in stroke l.jpg

Prostatic obstruction in Stroke

Pseudodyssynergia in stroke l.jpg

Pseudodyssynergia in Stroke

Intracranial diseases and nvd l.jpg

Intracranial Diseases and NVD

  • Cerebral vascular accidents – DH

  • Parkinson’s disease – DH, ext. sphincter pseudodyssynergia

  • Cerebellar ataxia – DH, DESD

  • Cerebral palsy – normal voiding, DH

  • Dementia – DH, DHIC, DA

  • Recurrent stroke – DH,DHIC, DA

Urodynamic findings in icd l.jpg

Urodynamic findings in ICD

  • Detrusor hyperreflexia – lack of inhibitory effect

  • Detrusor areflexia –initial post-stroke period, failure of initiation ability in chronic case

  • Decreased ability in initiation at small voided volume -- hesitancy

  • Decreased ability of voluntary sphincter contractions -- incontinence

  • Sphincter coordination is normal – no DESD

  • Normal detrusor pressure, low/normal flow

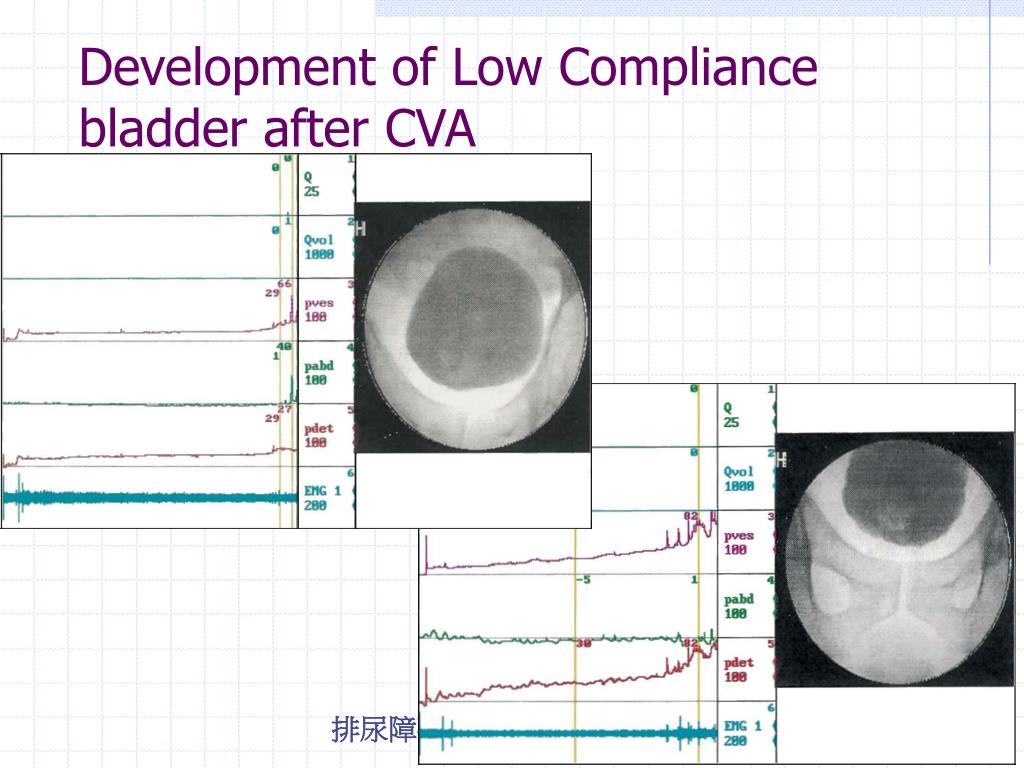

Development of low compliance bladder after cva l.jpg

Development of Low Compliance bladder after CVA

Recovery of detrusor contraction after stroke l.jpg

Recovery of detrusor contraction after stroke

Multiple sclerosis l.jpg

Multiple Sclerosis

  • Detrusor hyperreflexia occurs in 60-70%, DESD in 20-40%, hypocontractility in 15-40%

  • Lower urinary tract dysfuncton affect 80% of MS patients, rising to 96% after 10 years of MS

  • Symptoms wax and wan

  • Incontinence & dysuria the main LUTS

Desd in multiple sclerosis l.jpg

DESD in Multiple Sclerosis

Diabetes mellitus l.jpg

Diabetes mellitus

  • Detrusor hypocontractility in 35%

  • Detrusor hyperreflexia in 55-60%

  • Detrusor areflexia in chronic DM

  • Increased incidence of bladder outlet obstruction in chronic cases

  • When TURP is attempted, prostatic obstruction should be confirmed by videourodynamic study

Low detrusor contractility in diabetes patient l.jpg

Low Detrusor Contractility in Diabetes Patient

Parkinson s disease l.jpg

Parkinson’s Disease

  • Detrusor hyperreflexia and frequency urgency

  • External sphincter pseudodyssynergia results in poor relaxation and difficult initiation of voiding

  • DHIC in severe case

  • Symptoms wax and wan with treatment

Dhic in parkinson s disease l.jpg

DHIC in Parkinson’s disease

Detrusor hyperreflexia with bpo in parkinson s disease l.jpg

Detrusor hyperreflexia with BPO in Parkinson’s disease

Other conditions l.jpg

Other conditions

  • Transverse myelitis – sudden onset of dysuria and retention, reversible, DH, DESD,DA can be found in urodynamics

  • In 39 HIV positive patients 87% had urodynamic abnormality: 62% due to toxoplasmosis encephalitis and DH, half of them could recover after treatment

Bladder neck dysfunction and desd in spinal cord lesion l.jpg

Bladder neck dysfunction and DESD in Spinal cord lesion

Desd and low contractility in incomplete cervical sci l.jpg

DESD and low contractility in Incomplete Cervical SCI

Management of nvd following stroke and icd l.jpg

Management of NVD following stroke and ICD

  • Indwelling Foley catheter in initial stage

  • Clean intermittent catheterization

  • Urodynamic test after recovery of motor function

  • Avoid bladder overdistention to 500ml

  • Trocar cystostomy in male patients

  • Alpha-blocker and urecholine therapy

Clean intermittent self catheterization cic cisc l.jpg

Clean intermittent (self) catheterization (CIC, CISC)

  • Easy to perform when properly instructed

  • Adequate lubrication is necessary

  • Will not exacerbate UTI occurrence

  • Bladder capacity and intravesical pressure should be determined before institution of CIC

Clean intermittent catheter l.jpg

Clean Intermittent Catheter

Indwelling catheter and trocar cystostomy l.jpg

Indwelling catheter andTrocar cystostomy

  • Easy to care in debilitative patients

  • Frequent exchange of catheter is needed

  • Stone formation and symptomatic UTI

  • Contracted bladder and VU reflux

  • Fecal soiling in female patients

  • Surgical complication in trocar cystostomy

  • Mucosal dysplasia and bladder cancer

Trocar cystostomy l.jpg

Trocar Cystostomy





Advantage and disadvantages of trocar cystostomy l.jpg

Advantage and disadvantages of Trocar cystostomy

  • Facilitate voiding training

  • Free of genital tract infection

  • Free of fecal soiling in women

  • Minimally invasive procedure

  • Regular local treatment and replacement

  • Risk of bowel perforation

  • Granuloma formation around catheter

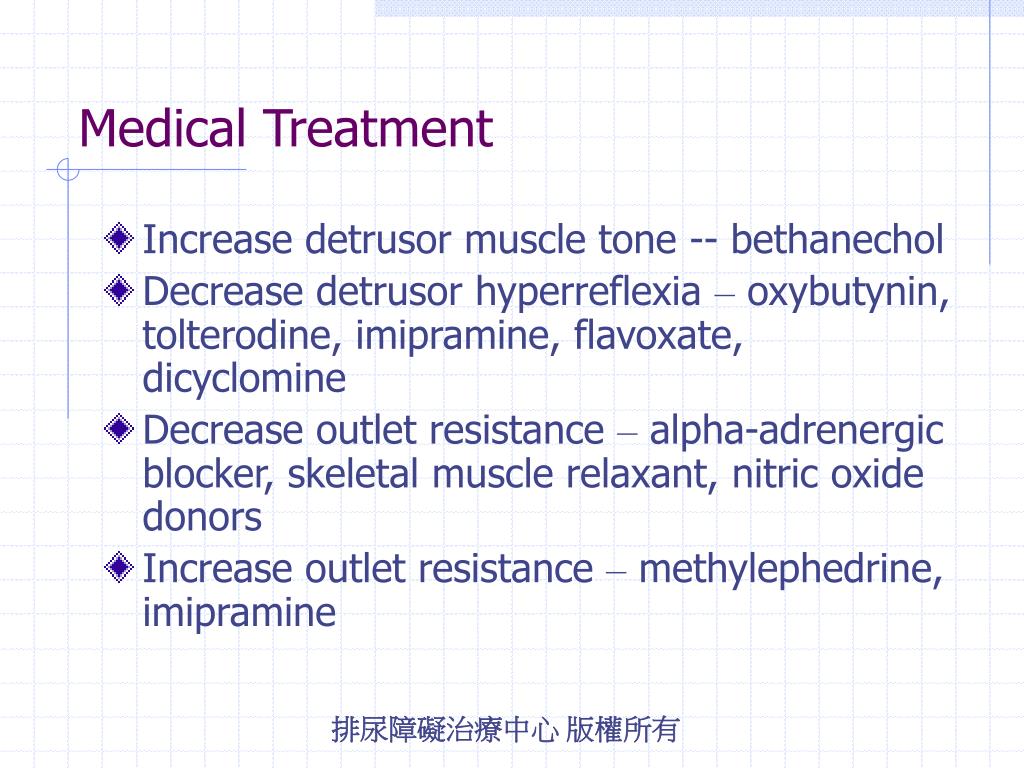

Medical treatment l.jpg

Medical Treatment

  • Increase detrusor muscle tone -- bethanechol

  • Decrease detrusor hyperreflexia – oxybutynin, tolterodine, imipramine, flavoxate, dicyclomine

  • Decrease outlet resistance – alpha-adrenergic blocker, skeletal muscle relaxant, nitric oxide donors

  • Increase outlet resistance – methylephedrine, imipramine

Medical treatment for detrusor instability inadequate contractility l.jpg

Medical treatment for detrusor instability & inadequate contractility

  • Existence of bladder outlet obstruction

  • Residual urine amount

  • Patient’s ability of abdominal straining

  • Patient’s ability of performing CISC

  • General condition

  • Adjust combination of anticholinergics and alpha-blocker

Intravesical therapy for dh l.jpg

Intravesical therapy for DH

  • Intravesical oxybutynin (ditropan)

  • Electromotive treatment of oxybutynin

  • Resiniferatoxin therapy (10-6 ~ -7M RTX)

  • Detrusor injection of botulinum toxin – 200-300 IU Botox or 500 U Dysport injected to detrusor muscles at 20-30 sites

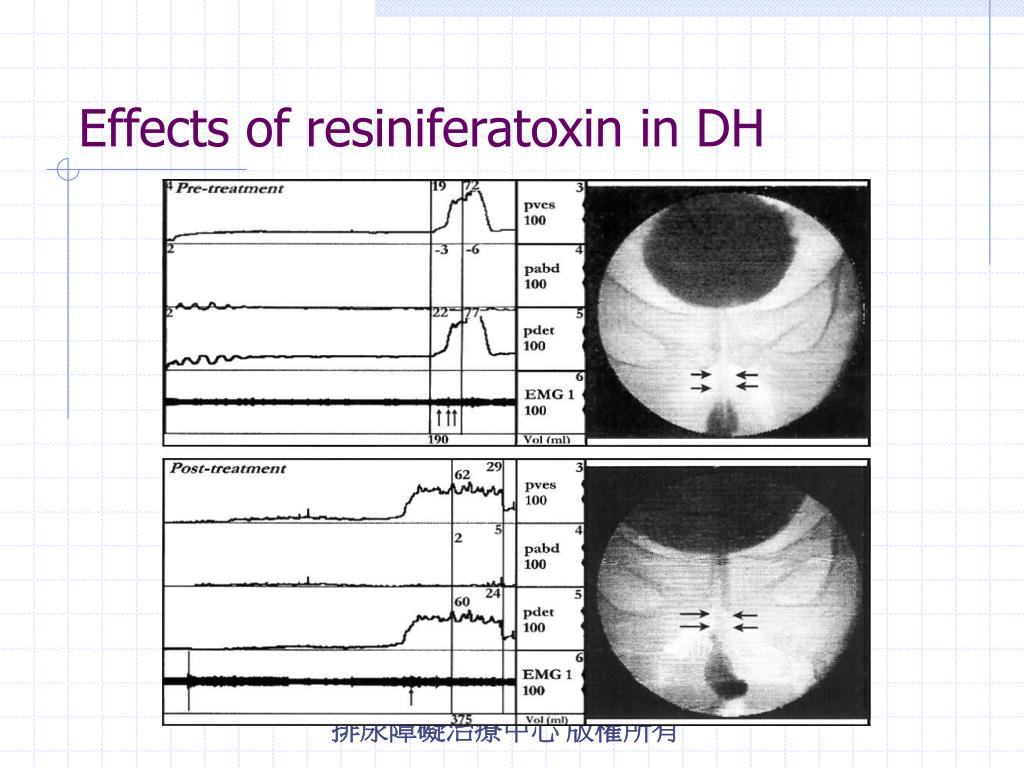

Effects of resiniferatoxin in dh l.jpg

Effects of resiniferatoxin in DH

Idiopathic detrusor failure l.jpg

Idiopathic Detrusor failure

  • Occult neuropathy or myopathy

  • Detrusor underactivity in the elderly

  • Urinary retention developed after major surgery or diseases

  • Bladder overdistention during TURP or major surgery

  • Recovery takes time maybe 3-6 months

Idiopathic detrusor instability underactivity after surgery l.jpg

Idiopathic Detrusor Instability & Underactivity after Surgery

Treatment of idiopathic nvd l.jpg

Treatment of idiopathic NVD

  • Search for bladder outlet obstruction & Peripheral neuropathy, especially in old women

  • CISC or trocar cystostomy

  • Urecholine & alpha-blocker

  • Try nitric oxide donors to facilitate void

  • Periurethral botulinum toxin injection 50- 100 units to avoid catheterization

Botulinum a toxin l.jpg

Botulinum A toxin

Botulinum a toxin injection in woman l.jpg

Botulinum A Toxin Injection in Woman

Cystoscopic urethral injection in men l.jpg

Cystoscopic Urethral Injection in Men





Reduced abdominal voiding pressure after botulinum toxin l.jpg

Reduced abdominal voiding pressure after botulinum toxin

Recovery of detrusor contractility in detrusor underactivity l.jpg

Recovery of detrusor contractility in detrusor underactivity

Surgical treatment for nvd l.jpg

Surgical treatment for NVD

  • TURP in male and TUI-BN in women with NVD due to definite bladder outlet obstruction

  • External sphincterotomy in quadriplegia and chronic debilitative patients

  • Intraurethral stent for high risk patients

  • Urinary diversion

Bpo in a man after stroke l.jpg

BPO in a Man after Stroke

Urinary incontinence exacerbates after turp in dh l.jpg

Urinary incontinence exacerbates after TURP in DH

Considerations in management of neurogenic voiding dysfunction l.jpg

Considerations in management of neurogenic voiding dysfunction

  • Lower urinary tract dysfunction changes with time

  • Avoid overdistention and recurrent cystitis during recovery period

  • Avoid unnecessary surgery

  • Regular urodynamic follow-up and determine proper volume in CIC

  • Do not abandon patients with NVD

Improved detrusor contractility after acute stroke l.jpg

Improved Detrusor contractility after acute Stroke

  • Login
