Lecture 3

Descriptives & Graphing

Lecturer: James Neill

Research Methods & Design in Psychology


Overview l.jpg

Overview

Univariate descriptives & graphs

Non-parametric vs. parametric

Non-normal distributions

Properties of normal distributions

Graphing relations b/w 2 and 3 variables


Empirical approach to research l.jpg

Empirical Approach to Research

A positivistic approach ASSUMES:

the world is made up of bits of data which can be ‘measured’, ‘recorded’, & ‘analysed’

Interpretation of data can lead to valid insights about how people think, feel and behave


What do we want to describe l.jpg

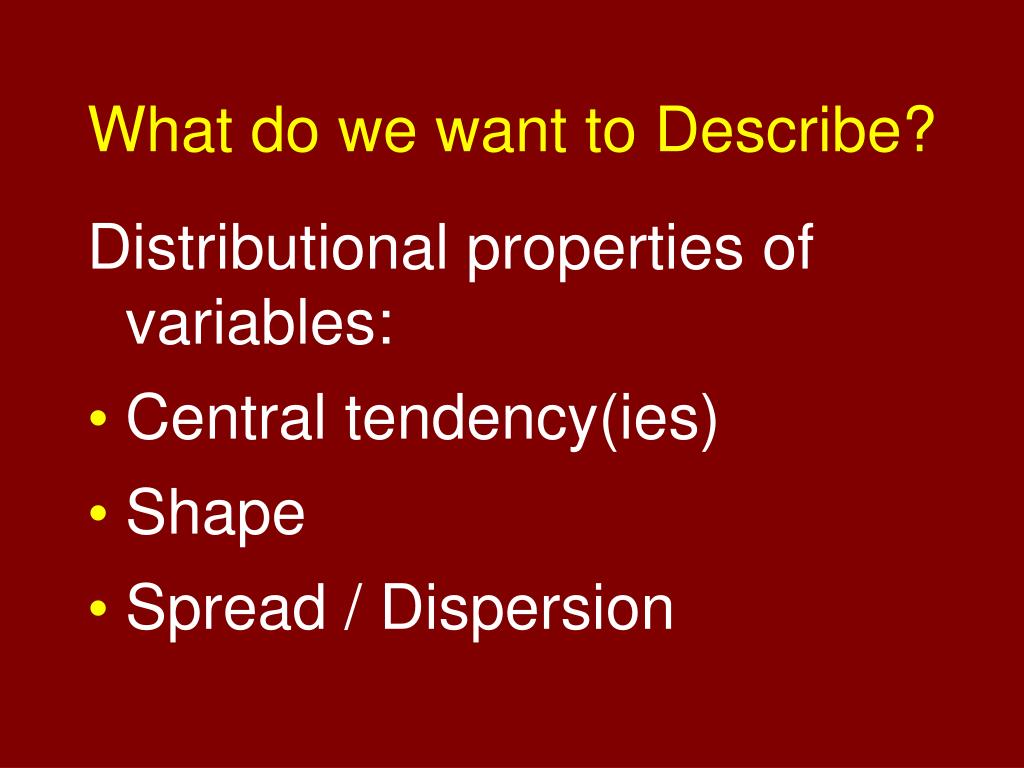

What do we want to Describe?

Distributional properties of variables:

Central tendency(ies)

Shape

Spread / Dispersion


Basic univariate descriptive statistics l.jpg

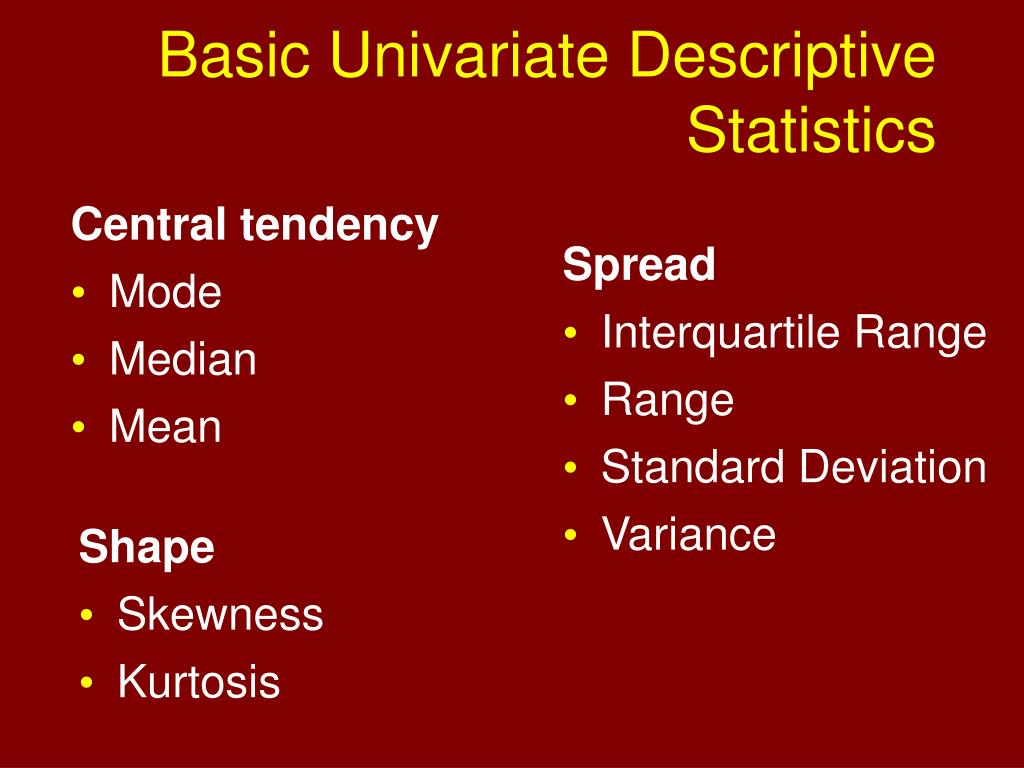

Basic Univariate Descriptive Statistics

Central tendency

Mode

Median

Mean

Spread

  • Interquartile Range

  • Range

  • Standard Deviation

  • Variance

Shape

  • Skewness

  • Kurtosis


Basic univariate graphs l.jpg

Basic Univariate Graphs

Bar Graph – Pie Chart

Stem & Leaf Plot

Boxplot

Histogram


Measures of central tendency l.jpg

Measures of Central Tendency

Statistics to represent the ‘centre’ of a distribution

Mode (most frequent)

Median (50th percentile)

Mean (average)

Choice of measure dependent on

Type of data

Shape of distribution (esp. skewness)


Measures of central tendency8 l.jpg

Measures of Central Tendency

Mode

Median

Mean

Nominal

X

Ordinal

X

X

Interval

X

X

X

Ratio

X?

X

X


Measures of dispersion l.jpg

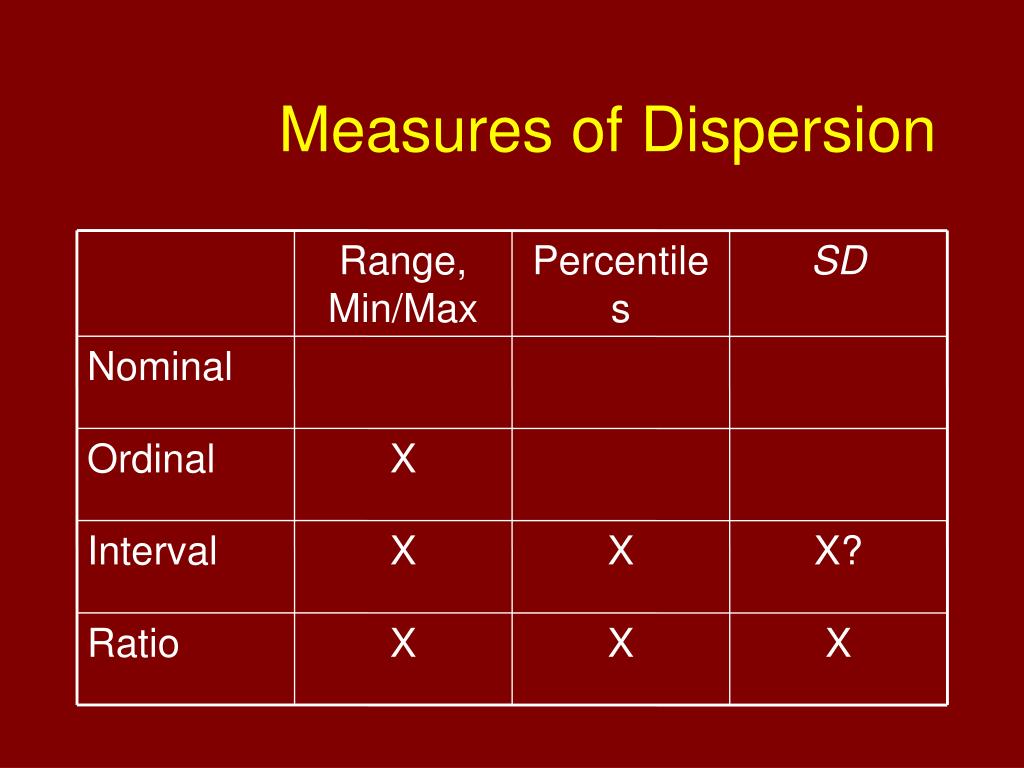

Measures of Dispersion

Measures of deviation from the central tendency

Non-parametric / non-normal:range, percentiles, min, max

Parametric:SD & properties of the normal distribution


Measures of dispersion10 l.jpg

Measures of Dispersion

Range, Min/Max

Percentiles

SD

Nominal

Ordinal

X

Interval

X

X

X?

Ratio

X

X

X


Describing nominal data l.jpg

Describing Nominal Data

Frequencies

Most frequent?

Least frequent?

Percentages?

Bar graphs

Examine comparative heights of bars – shape is arbitrary

Consider whether to use freqs or %s


Frequencies l.jpg

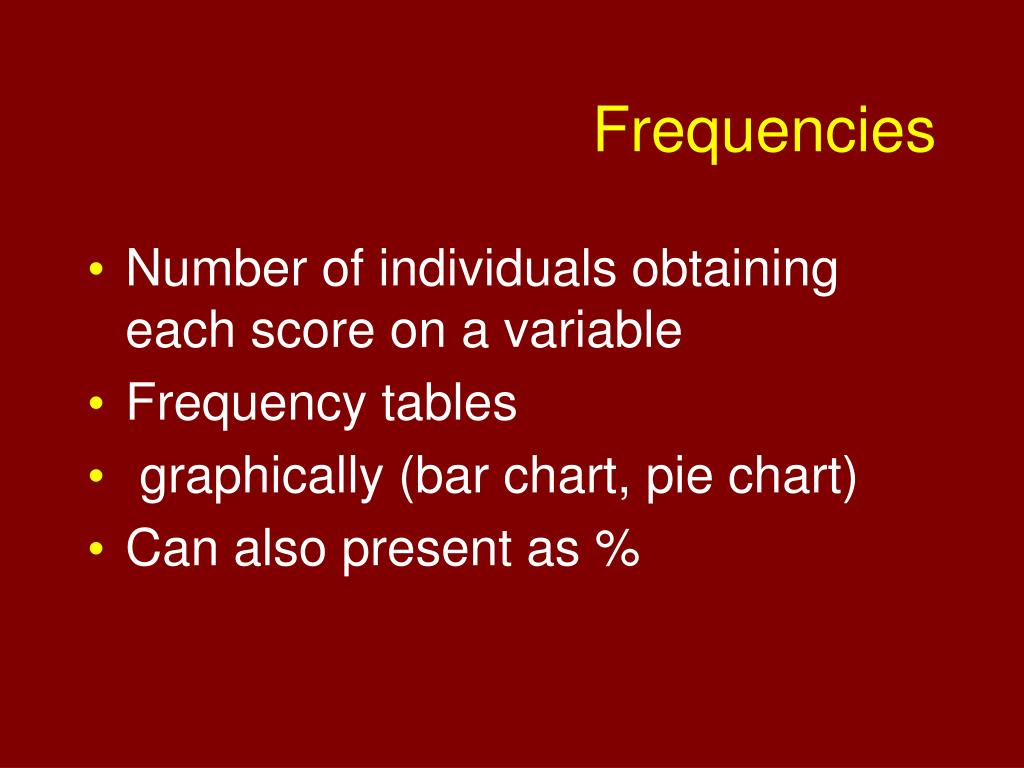

Frequencies

Number of individuals obtaining each score on a variable

Frequency tables

graphically (bar chart, pie chart)

Can also present as %


Frequency table for sex l.jpg

Frequency table for sex


Bar chart for frequency by sex l.jpg

Bar chart for frequency by sex


Pie chart for frequency by sex l.jpg

Pie chart for frequency by sex


Bar chart do you believe in god l.jpg

Bar chart: Do you believe in God?


Bar chart for cost by state l.jpg

Bar chart for cost by state


Bar chart vs radar chart l.jpg

Bar chart vs. Radar Chart


Bar chart vs radar chart19 l.jpg

Bar chart vs. Radar Chart


Slide20 l.jpg

Mode

Most common score - highest point in a distribution

Suitable for all types of data including nominal (may not be useful for ratio)

Before using, check frequencies and bar graph to see whether it is an accurate and useful statistic.


Describing ordinal data l.jpg

Describing Ordinal Data

Conveys order but not distance (e.g., ranks)

Descriptives as for nominal (i.e., frequencies, mode)

Also maybe median – if accurate/useful

Maybe IQR, min. & max.

Bar graphs, pie charts, & stem-&-leaf plots


Stem leaf plot l.jpg

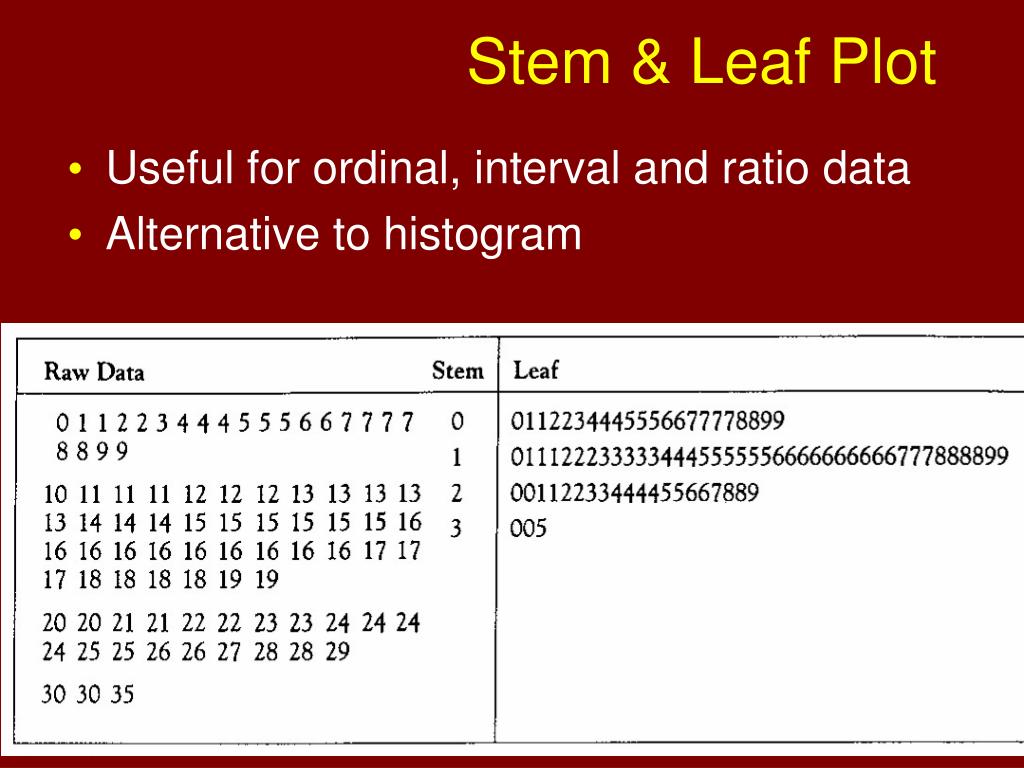

Stem & Leaf Plot

  • Useful for ordinal, interval and ratio data

  • Alternative to histogram


Box whisker l.jpg

Box & whisker

  • Useful for interval and ratio data

  • Represents min. max, median and quartiles


Describing interval data l.jpg

Describing Interval Data

Conveys order and distance, but no true zero (0 pt is arbitrary).

Interval data is discrete, but is often treated as ratio/continuous (especially for > 5 intervals)

Distribution (shape)

Central tendency (mode, median)

Dispersion (min, max, range)

Can also use M & SD if treating as continuous


Describing ratio data l.jpg

Describing Ratio Data

Numbers convey order and distance, true zero point - can talk meaningfully about ratios.

Continuous

Distribution (shape – skewness, kurtosis)

Central tendency (median, mean)

Dispersion (min, max, range, SD)


Univariate data plot for a ratio variable l.jpg

Univariate data plot for a ratio variable


The four moments of a normal distribution l.jpg

The Four Moments of a Normal Distribution

Mean

<-Kurt->

<-SD->

<-Skew

Skew->


The four moments of a normal distribution28 l.jpg

The Four Moments of a Normal Distribution

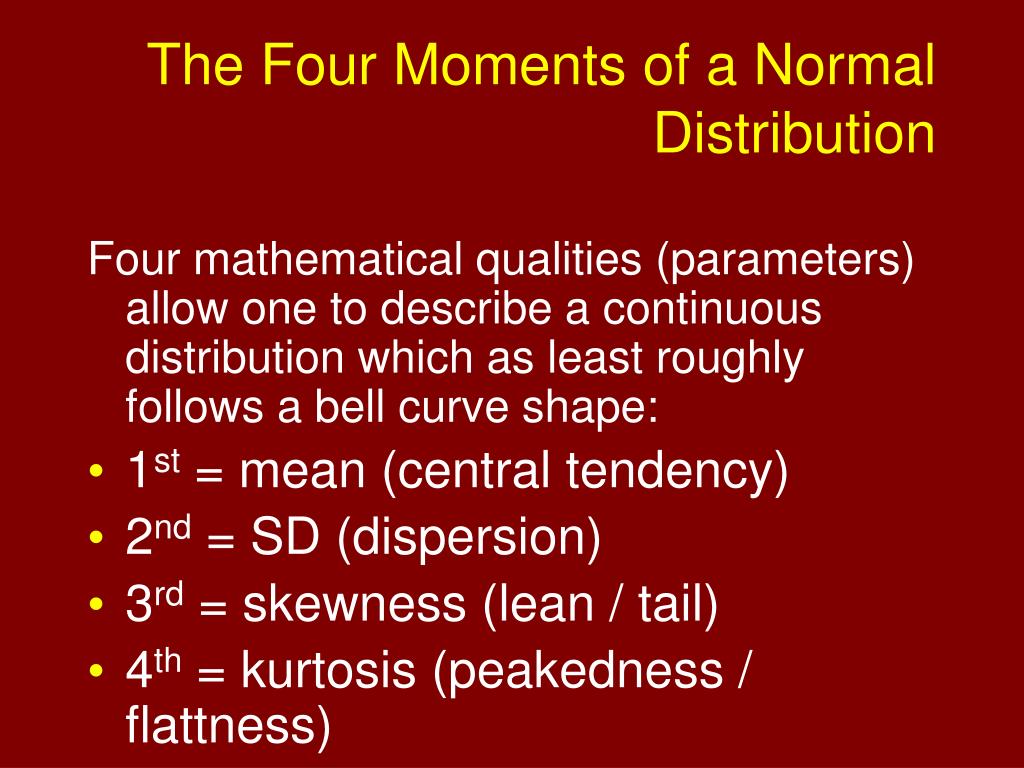

Four mathematical qualities (parameters) allow one to describe a continuous distribution which as least roughly follows a bell curve shape:

  • 1st = mean (central tendency)

  • 2nd = SD (dispersion)

  • 3rd = skewness (lean / tail)

  • 4th = kurtosis (peakedness / flattness)


Mean 1 st moment l.jpg

Mean (1st moment )

  • Average score

  • Mean =  X / N

  • Use for ratio data or interval (if treating it as continuous).

  • Influenced by extreme scores (outliers)


Standard deviation 2 nd moment l.jpg

Standard Deviation (2nd moment )

  • SD = square root of Variance

    =  (X - X)2

    N – 1

  • Standard Error (SE) = SD / square root of N


Skewness 3 rd moment l.jpg

Skewness (3rd moment )

  • Lean of distribution

  • +ve = tail to right

  • -ve = tail to left

  • Can be caused by an outlier

  • Can be caused by ceiling or floor effects

  • Can be accurate (e.g., the number of cars owned per person)


Skewness 3 rd moment32 l.jpg

Skewness (3rd moment )

  • Negative skew

  • Positive skew


Ceiling effect l.jpg

Ceiling Effect


Floor effect l.jpg

Floor Effect


Kurtosis 4 th moment l.jpg

Kurtosis (4th moment )

  • Flatness or peakedness of distribution

  • +ve = peaked

  • -ve = flattened

  • Be aware that by altering the X and Y axis, any distribution can be made to look more peaked or more flat – so add a normal curve to the histogram to help judge kurtosis


Kurtosis 4 th moment36 l.jpg

Kurtosis (4th moment )

Red = Positive (leptokurtic)

Blue = negative (platykurtic)


Key areas under the curve for normal distributions l.jpg

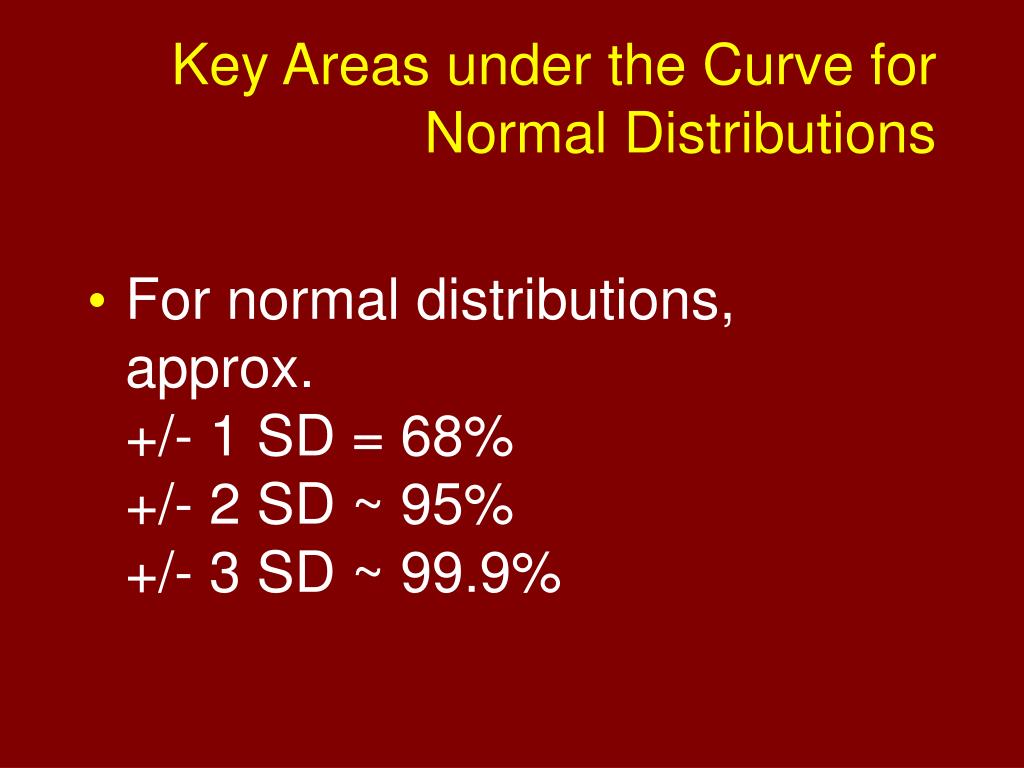

Key Areas under the Curve for Normal Distributions

  • For normal distributions, approx. +/- 1 SD = 68%+/- 2 SD ~ 95%+/- 3 SD ~ 99.9%


Areas under the normal curve l.jpg

Areas under the normal curve


Types of non normal distribution l.jpg

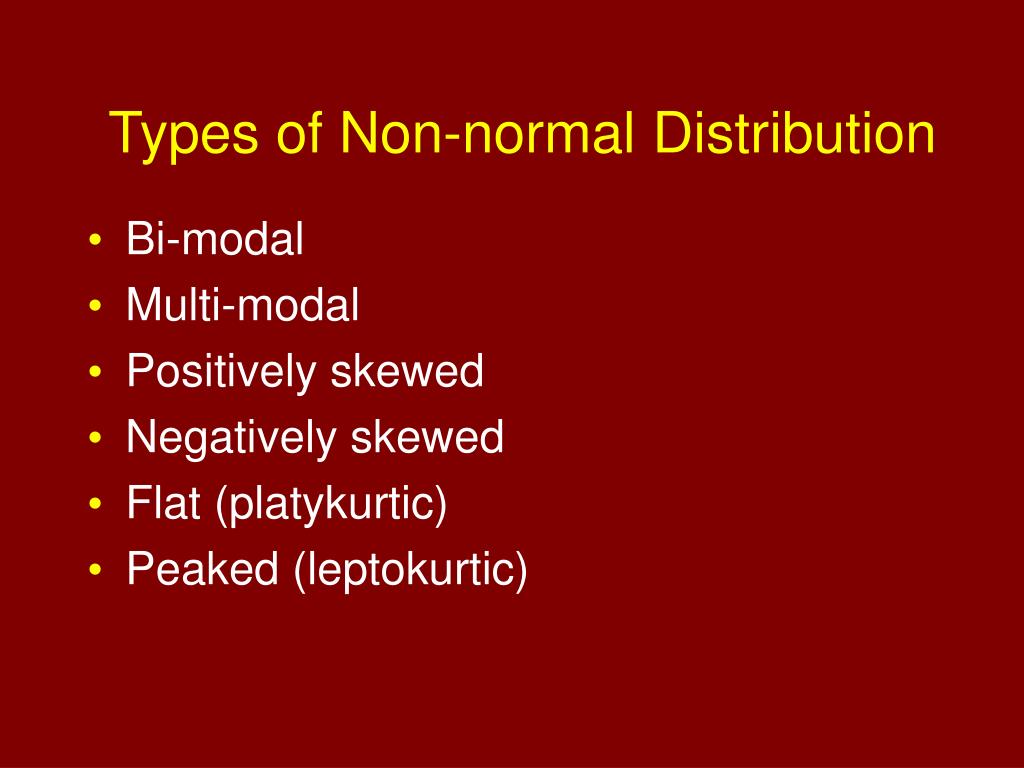

Types of Non-normal Distribution

  • Bi-modal

  • Multi-modal

  • Positively skewed

  • Negatively skewed

  • Flat (platykurtic)

  • Peaked (leptokurtic)


Non normal distributions l.jpg

Non-normal distributions


Non normal distributions41 l.jpg

Non-normal distributions


Rules of thumb in judging severity of skewness kurtosis l.jpg

Rules of Thumb in Judging Severity of Skewness & Kurtosis

  • View histogram with normal curve

  • Deal with outliers

  • Skewness / kurtosis <-1 or >1

  • Skewness / kurtosis significance tests


Histogram of weight l.jpg

Histogram of weight


Histogram of daily calorie intake l.jpg

Histogram of daily calorie intake


Histogram of fertility l.jpg

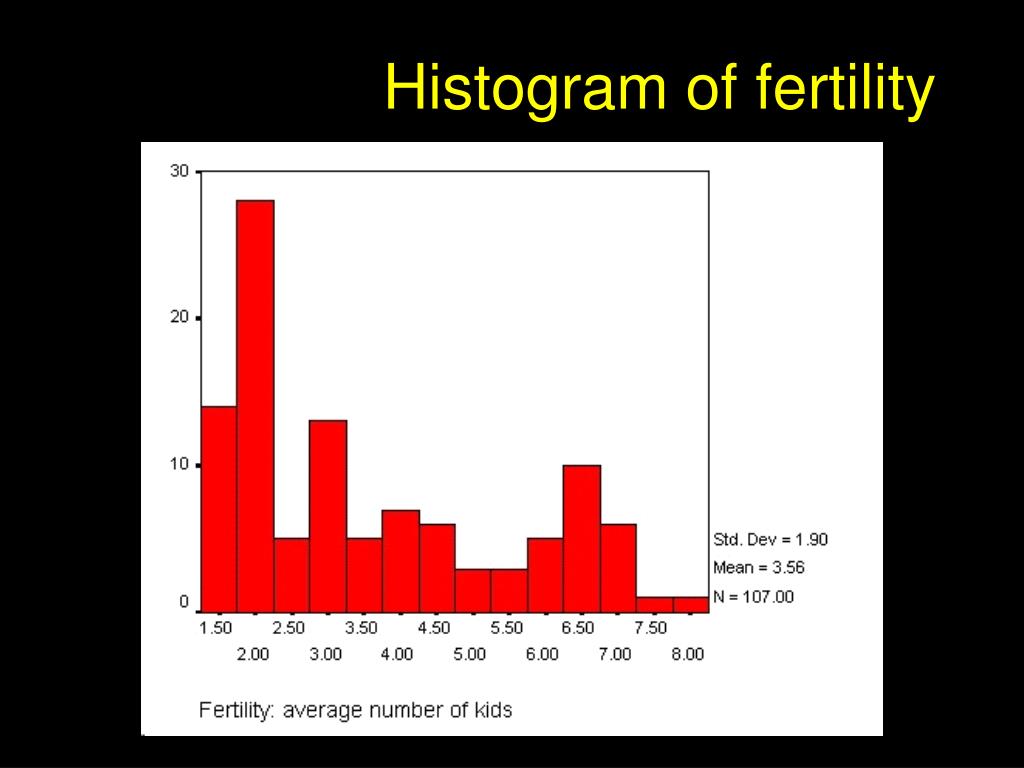

Histogram of fertility


Example normal distribution 1 l.jpg

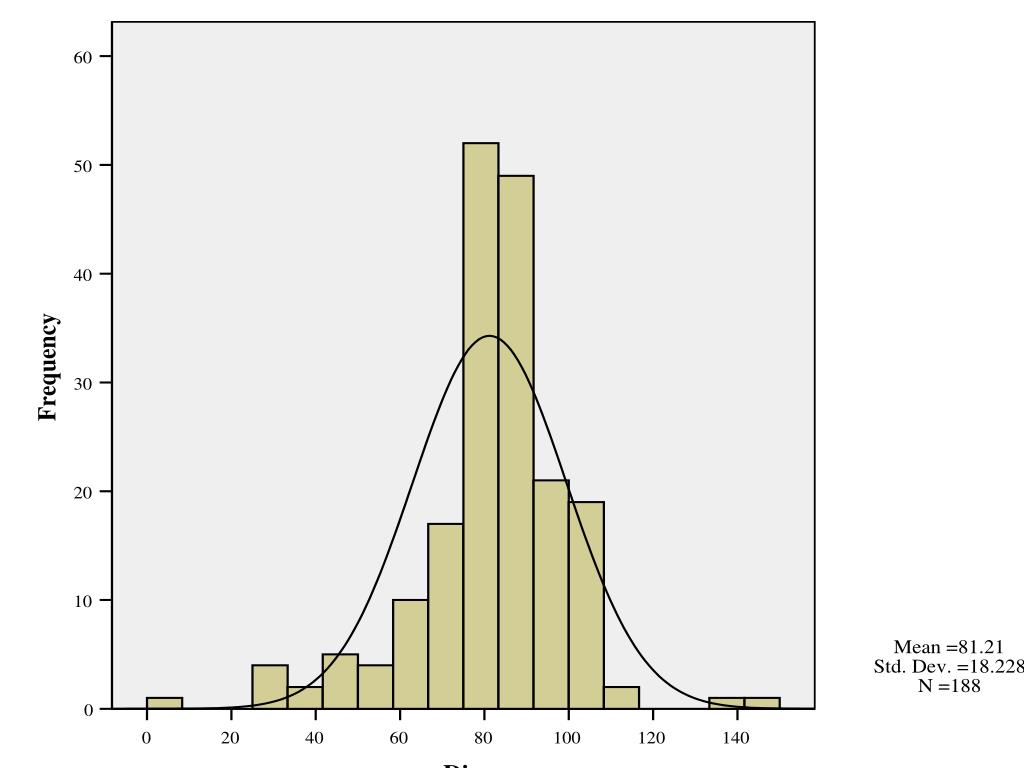

Example ‘normal’ distribution 1


Example normal distribution 2 l.jpg

Example ‘normal’ distribution 2


Example normal distribution 3 l.jpg

Example ‘normal’ distribution 3


Example normal distribution 4 l.jpg

Example ‘normal’ distribution 4


Example normal distribution 5 l.jpg

Example ‘normal’ distribution 5


Skewed distributions the mode median mean l.jpg

Skewed Distributions& the Mode, Median & Mean

+vely skewed mode < median < mean

Symmetrical (normal) mean = median = mode

-vely skewed mean < median < mode


Effects of skew on measures of central tendency l.jpg

Effects of skew on measures of central tendency


More on graphing visualising data l.jpg

More on Graphing(Visualising Data)


Edward tufte l.jpg

Edward Tufte

Graphs:

Reveal data

Communicate complex ideas with clarity, precision, and efficiency


Tufte s guidelines 1 l.jpg

Tufte's Guidelines 1

Show the data

Substance rather than method

Avoid distortion

Present many numbers in a small space

Make large data sets coherent


Tufte s guidelines 2 l.jpg

Tufte's Guidelines 2

  • Encourage eye to make comparisons

  • Reveal data at several levels

  • Purpose: Description, exploration, tabulation, decoration

  • Closely integrated with statistical and verbal descriptions


Tufte s graphical integrity 1 l.jpg

Tufte’s Graphical Integrity 1

Some lapses intentional, some not

Lie Factor = size of effect in graph size of effect in data

Misleading uses of area

Misleading uses of perspective

Leaving out important context

Lack of taste and aesthetics


Tufte s graphical integrity 2 l.jpg

Tufte's Graphical Integrity 2

Trade-off between amount of information, simplicity, and accuracy

“It is often hard to judge what users will find intuitive and how [a visualization] will support a particular task” (Tweedie et al)


Chart scale l.jpg

Chart scale


Chart scale60 l.jpg

Chart scale


Chart scale61 l.jpg

Chart scale


Cleveland s hierarchy l.jpg

Cleveland’s Hierarchy


Volume l.jpg

Volume


Food aid received by developing countries l.jpg

Food Aid Received by Developing Countries


Percentage of doctors devoted solely to family practice in california 1964 1990 l.jpg

Percentage of Doctors Devoted Solely to Family Practice in California 1964-1990


Distortive variations in scale l.jpg

Distortive Variations in Scale


Distortive variations in scale67 l.jpg

Distortive Variations in Scale


Restricted scales l.jpg

Restricted Scales


Restricted scales69 l.jpg

Restricted Scales


Example graphs depicting the relationship between two variables bivariate l.jpg

Example Graphs Depicting the Relationship between Two Variables (Bivariate)


People histogram l.jpg

People Histogram


Separate graphs l.jpg

Separate Graphs


Example graphs depicting the relationship between three variables multivariate l.jpg

Example Graphs Depicting the Relationship between Three Variables (Multivariate)


Clustered bar chart l.jpg

Clustered bar chart


19 th vs 20 th century causes of death l.jpg

19th vs. 20th century causes of death


Demographic distribution of age l.jpg

Demographic distribution of age


Where partners first met l.jpg

Where partners first met


Line graph l.jpg

Line graph


Line graph79 l.jpg

Line graph


Causes of mortality l.jpg

Causes of Mortality


Bivariate normality l.jpg

Bivariate Normality


Exampes of more complex graphs l.jpg

Exampes of More Complex Graphs


Sea temperature l.jpg

Sea Temperature


Sea temperature84 l.jpg

Sea Temperature


Inferential statistical analaysis decision making tree l.jpg

Inferential Statistical Analaysis Decision Making Tree


Links l.jpg

Links

  • Presenting Data – Statistics Glossary v1.1 - http://www.cas.lancs.ac.uk/glossary_v1.1/presdata.html

  • A Periodic Table of Visualisation Methods - http://www.visual-literacy.org/periodic_table/periodic_table.html

  • Gallery of Data Visualization

  • Univariate Data Analysis – The Best & Worst of Statistical Graphs - http://www.csulb.edu/~msaintg/ppa696/696uni.htm

  • Pitfalls of Data Analysis – http://www.vims.edu/~david/pitfalls/pitfalls.htm

  • Statistics for the Life Sciences –http://www.math.sfu.ca/~cschwarz/Stat-301/Handouts/Handouts.html


  • Login
