  1. Welcome Back to Immunohematology Other Antigen Systems Part II – Kell, Duffy, Kidd, MNSs

  2. KellSystem COOH NH2 NH2 COOH Kx K

  3. KellSystem • Main antigens are K (Kell) and its allele, k (Cellano). • Antigens are glycoproteins. • K is second only to D in its immunogenicity. • Antigens are not affected by routine enzymes.

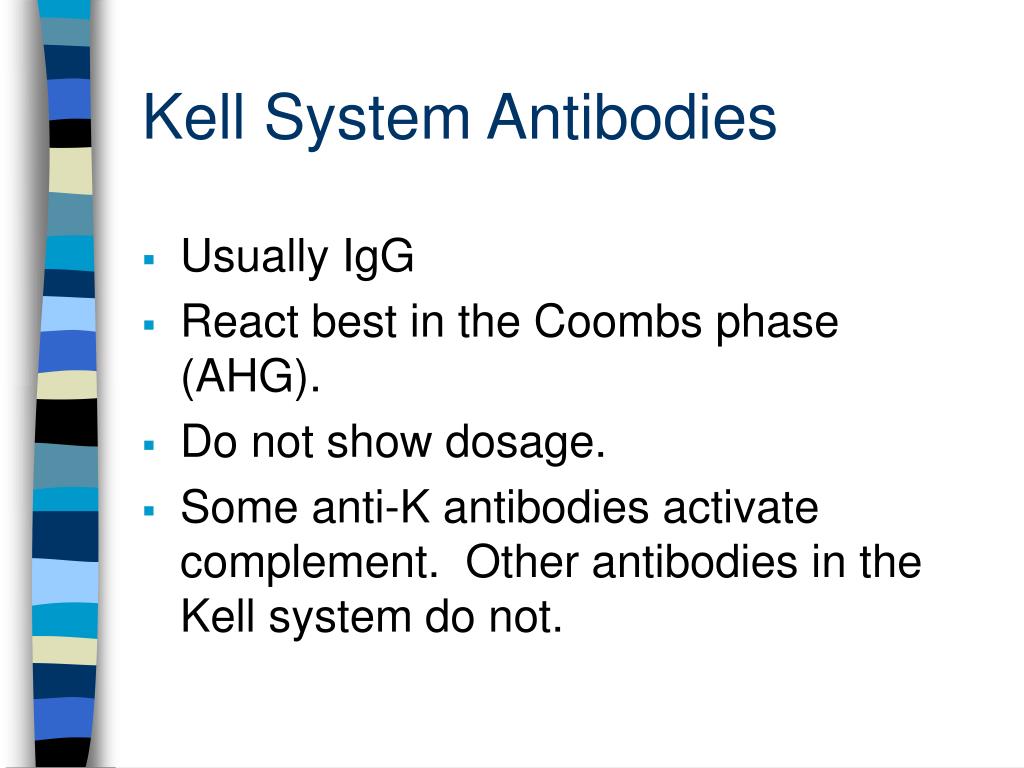

  4. Kell System Antibodies • Usually IgG • React best in the Coombs phase (AHG). • Do not show dosage. • Some anti-K antibodies activate complement. Other antibodies in the Kell system do not.

  5. Dosage • An antibody that reacts stronger with a cell that has homozygous expression of an antigen than it does with a cell showing heterozygous antigen expression is said to show dosage.

  6. Naturally occurring? HTR? HDFN? Clinically significant? No Yes Yes Yes Kell System

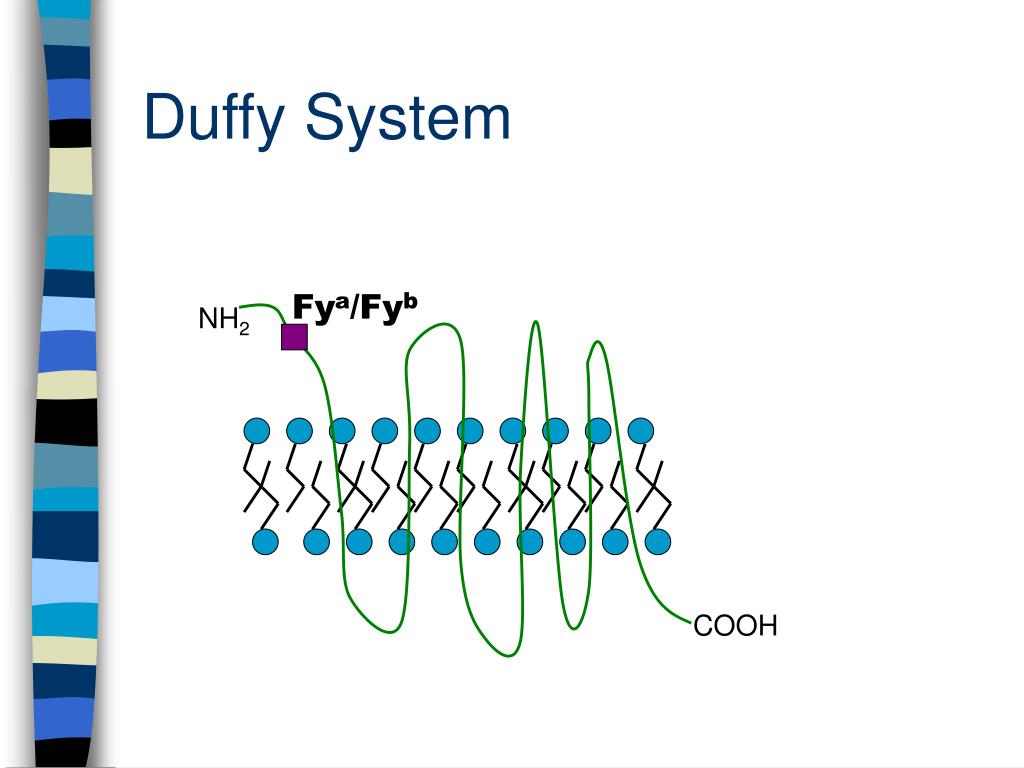

  7. Duffy System Fya/Fyb NH2 COOH

  8. Duffy System • The most common alleles are Fya and Fyb. • Antigens are glycoproteins. • Antigen frequency varies among the races. • 65% of whites are Fya positive, while only 10% of blacks are Fya positive. • The most common phenotype in blacks is Fy(a-b-) at 68%. This phenotype in whites is extremely rare. • Destroyed by enzymes.

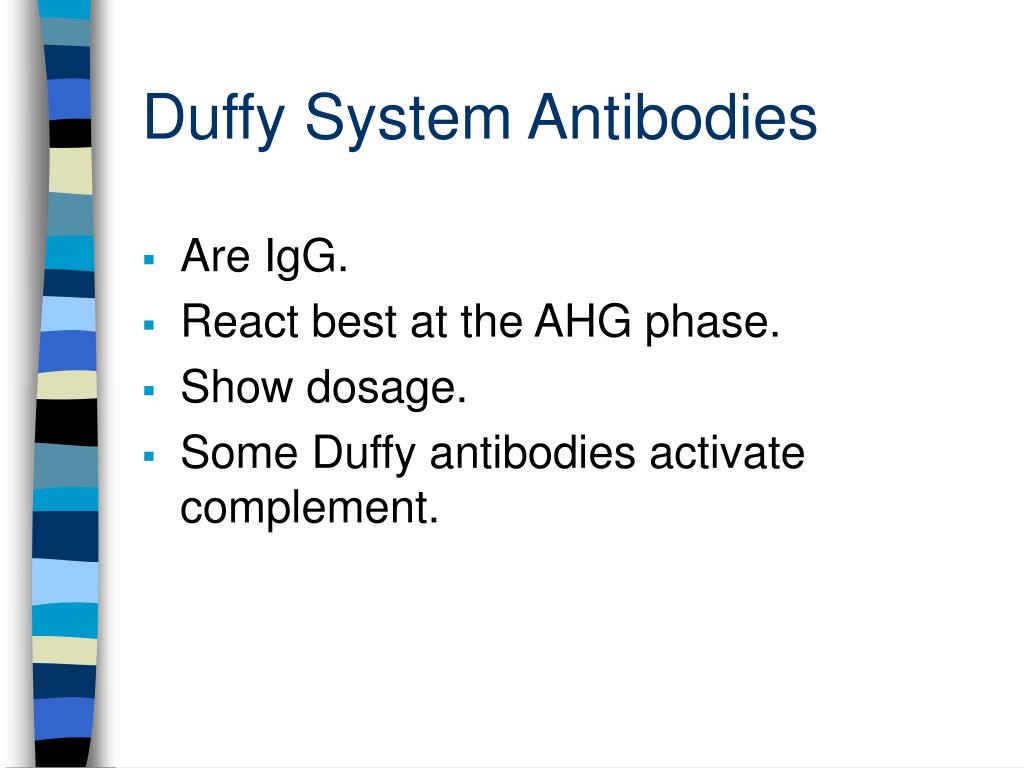

  9. Duffy System Antibodies • Are IgG. • React best at the AHG phase. • Show dosage. • Some Duffy antibodies activate complement.

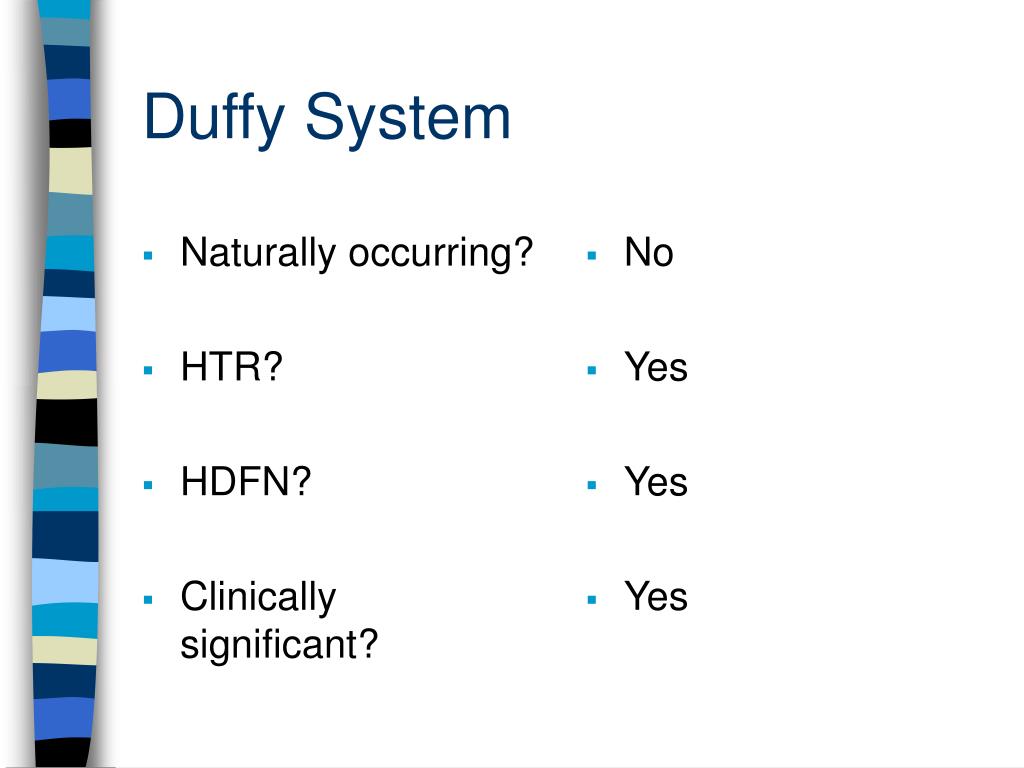

  10. Naturally occurring? HTR? HDFN? Clinically significant? No Yes Yes Yes Duffy System

  11. Kidd System Jka/Jkb NH2 COOH

  12. Kidd System • The major alleles of the Kidd system are Jka and Jkb. • Antigens are glycoproteins. • Antigen frequency varies among races. • Jk(a-b-) phenotype extremely rare. • Not very immunogenic. • Enhanced by enzymes.

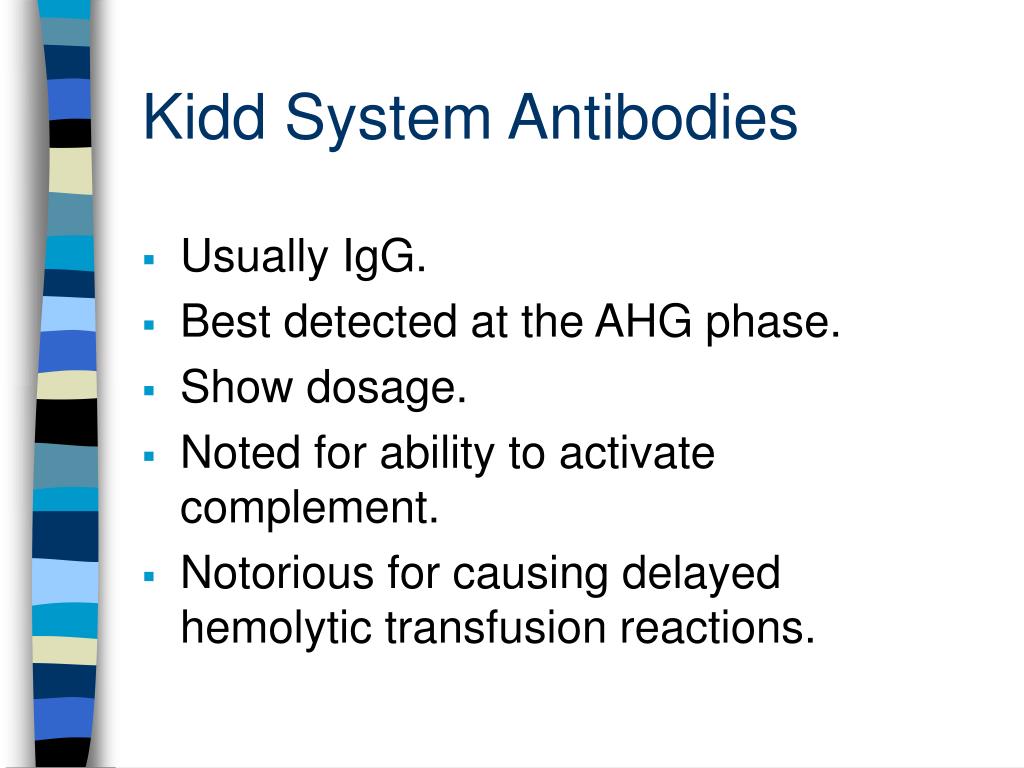

  13. Kidd System Antibodies • Usually IgG. • Best detected at the AHG phase. • Show dosage. • Noted for ability to activate complement. • Notorious for causing delayed hemolytic transfusion reactions.

  14. Naturally occurring? HTR? HDFN? Clinically significant? No Yes Yes Yes Kidd System

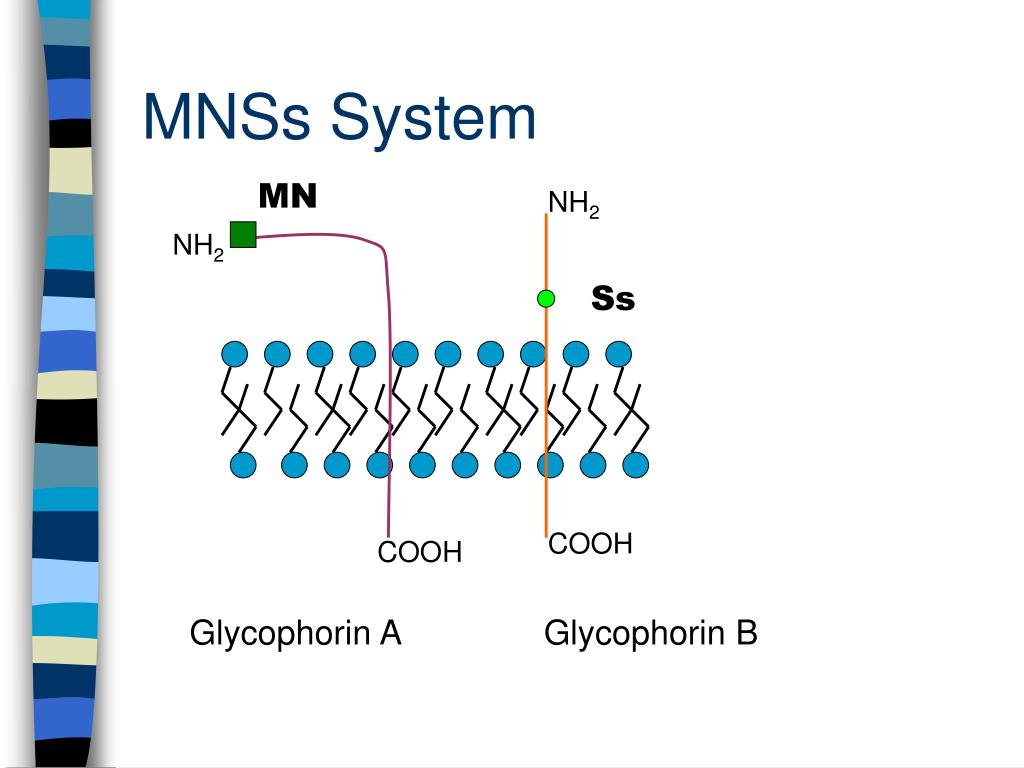

  15. MNSs System MN NH2 NH2 Ss COOH COOH Glycophorin A Glycophorin B

  16. MNSs System • The major antigens of this system are: • M and its allele N • S and its allele s • The most common phenotypes are: • M+N+ • S-s+ • Antigens can be destroyed by enzymes.

  17. MNSs System Antibodies • Anti-M and -N are usually IgM antibodies. • Many examples of IgG anti-M’s. • Anti-M may react over a wide temperature range (wide thermal amplitude). • Anti-N reacts best in saline (immediate spin). • Anti-S and -s are IgG antibodies. • React best at AHG. • Show dosage. • May activate complement.

  18. Naturally occurring? M & N yes S & s usually immune HTR? S & s yes sometimes M, N usually not HDFN? S & s yes M & N no Clinically significant? M & N usually not S & s yes MNSs System
