Caffeic Acid and C. elegans’ Protection Against Toxin Induced Neurodegeneration

Caffeic Acid and C. elegans’ Protection Against Toxin Induced Neurodegeneration. By: Michelle Chyn. Need. Parkinson’s Disease (PD)- 500,000 people in U.S. $6,000,000,000 spent annually for PD treatment. National Institute of Neurological Disorders and Stroke.

inez
Download Presentation

Caffeic Acid and C. elegans’ Protection Against Toxin Induced Neurodegeneration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Caffeic Acid and C. elegans’ Protection Against Toxin Induced Neurodegeneration By: Michelle Chyn

  2. Need • Parkinson’s Disease (PD)- 500,000 people in U.S. • $6,000,000,000 spent annually for PD treatment National Institute of Neurological Disorders and Stroke Figure 1: Cost of PD treatment per person annually Dodel RC, Pepperl S, Köhne-Volland R, Szucs T, Werhahn KJ, Noachtar S, Oertel WH. “Costs of drug treatment of neurologic diseases: Parkinson disease, dystonia, epilepsy.” European Journal of Neurology. Vol. 7. Pp. 479-85 1991.

  3. Need Cont. • Coffee consumption in North America and Europe = 1/3 of the tap water intake http://www.e-importz.com/images/coffee_consumption.gif Figure 3: Coffee Consumption http://www.parkinsonsdecisionaid.eu.com/images/ac/2008/incidence.gif Figure 2: PD in European Countries

  4. Knowledge Base Figure 4: http://en.wikipedia.org/wiki/Basal_ganglia • C. elegans biosynthesize dopamine in the corpus stratum (basil ganglia) (Braugart, 2004)

  5. Knowledge Base Cont. • Copper is a neurotoxin when consumed in excess amounts (Gaggelli et al., 2006) Figure 5: Nerve Synapse http://upload.wikimedia.org/wikipedia/en/a/a6/Chemical_synapse_schema.jpg

  6. Literature Review • Antioxidants in coffee decreases risk of development of age-related diseases (Eskelinen et. al, 2009) • Caffeine intake doesn’t show health benefits (Lopez-Garcia, et. al, 2008) Figure 6: Antioxidant http://pubchem.ncbi.nlm.nih.gov/summary/summary.cgi?cid=689043&loc=ec_rcs

  7. Literature Review Cont. • Caenorhabditis elegans MPP+ model used as PD model for testing anti-PD drugs (Braungart, et al. 2004) Figure 7: Dose-response effect of MPP+ treatment on the mobility of wild-type C. elegans animals. http://content.karger.com/ProdukteDB/produkte.asp?Aktion=ShowPDF&ArtikelNr=80983&Ausgabe=230458&ProduktNr=229093&filename=80983.pdf

  8. Literature Review Cont. • Green Florescent Protein (GFP) florescence shown in dopaminergic neurons of transgenic strains of C. elegans (Braungart, et al., 2004) http://content.karger.com/ProdukteDB/produkte.asp?Aktion=ShowPDF&ArtikelNr=80983&Ausgabe=230458&ProduktNr=229093&filename=80983.pdf Figure 8: GFP expression in dopaminergic neurons of untreated and MPP+ treated worms

  9. Literature Review Cont. • Direct addition of dopamine-2-c did not help increase noradrenaline presence in PD patients (Goodall and Alton, 1969) Figure 9: % noradrenaline recovery after dopamine-2-c infusion http://www.pubmedcentral.nih.gov/picrender.fcgi?artid=297487&blobtype=pdf

  10. Purpose • Observing the effect of caffeic acid on neurotoxin-induced degeneration in C. elegans • H0- caffeic acid will not affect the degeneration rate in the C. elegans • HA- caffeic acid will decrease degeneration in the C. elegans. Hypothesis

  11. Methodology Compounds in Coffee and C. elegans Protection Against Parkinson’s Disease Caenorhabditis elegans egIs1[Pdat-1::GFP] strain from Caenorhabditis Genetics Center (CGC) N=90 Group 3 addition of copper oxide caffeic acid- higher concentration according to LD 50 N=30 Group 2 addition of copper oxide caffeic acid- lower concentration according to LD 50 N=30 Control addition of copper oxide, concentratin according to LD 50 N=30 C. elegans cultured at 20°C in NGM plates in normal oxygen environment. Caffeic acid and MMP+ concentrations inserted in food of E. coli for 3 days at L1 stage. Organisms then moved out into normal NGM plates. Data collected through stereo florescent microscope viewing of GFP florescence on a scale of normal, weak, and none, and area through Adobe Photoshop on the 3rd day. Statistical analysis using SPSS and ANOVA

  12. Protocols Figure 10: Culturing of C. elegans on a petri dish Picture drawn by Victoria Wei • Eggs laid overnight at L4 stage on fresh NGM plates (Mehta, et al, 2009)

  13. Protocols Cont. • N=30 per group, total N=90 • Group 1: Copper oxide • Group 2: Copper oxide and Caffeic acid • Group 3: Copper oxide and Caffeic acid http://www.scq.ubc.ca/wp-content/uploads/2006/07/wormcycle.gif Figure 11: C. elegans growth stages

  14. Protocols Cont. • Data collect on scaled brightness of GFP expression (Braungart, et al., 2004) and area of florescence on Photoshop • Data analysis using SPSS

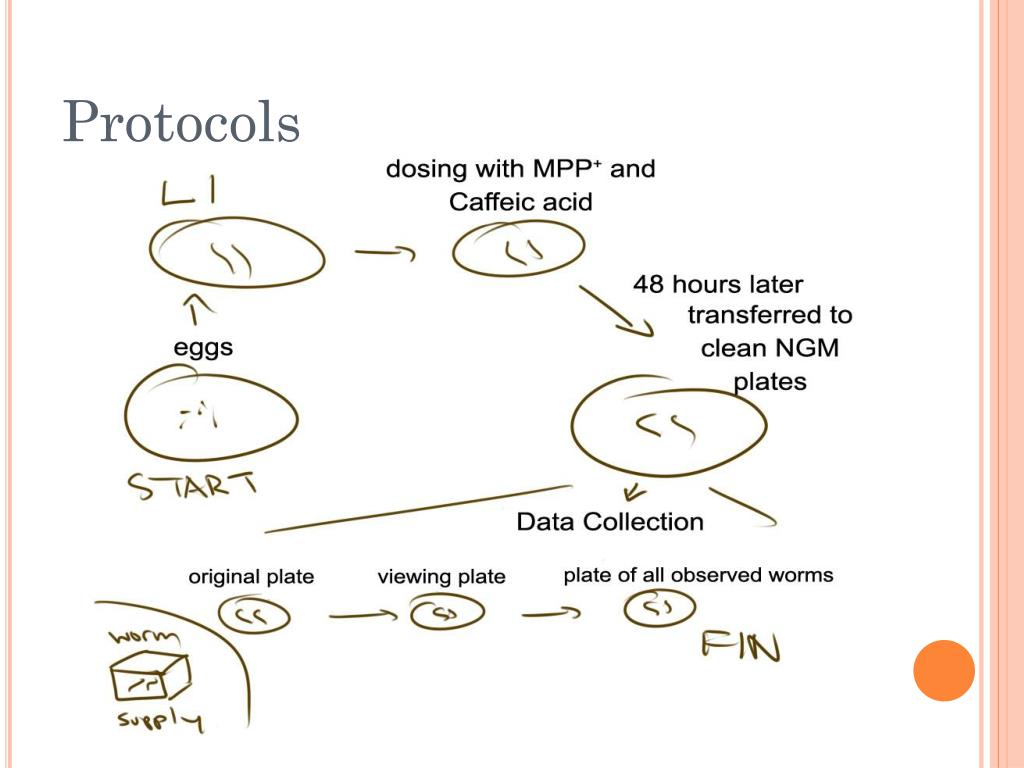

  15. Protocols

  16. Do-Ability • Equipment available: • GFP filter and florescent microscope • UV lamp • Petri dishes • Photoshop • Equipment needed: • C. elegans pdat-1::GFP strain from CGC • E. coli OP50 strain from CGC • Copper, sodium azide, and caffeic acid from Sigma • NGM from Carolina Biological

  17. Budget

  18. Bibliography • American College of Physicians. “Coffee Drinkers Have Slightly Lower Daeth Rates, Study Finds.” ScienceDaily 17 June 2008. 3 May 2009 <http://www.sciencedaily.com/releases/2008/06/080616170839.htm>. • Biology The Dynamics of Life. New York: McGraw-Hill Glencoe, 2004. • Braungart, Evelyn; Gerlach, Manfred; Riederer, Peter; Baumeister, Ralf; and Hoener, Marius C. “Caenorhabditis elegans MPP+ Model of Parkinson’s Disease for High-Throughput Drug Screening.” Neurodegenerative Diseases. 2004. Vol. 1: pgs 175-183. • Brown, Marishka K.; Evans, Joseph L.; Yuan, Luo. “Beneficial effects of natural antioxidants EGCG and α-lipoic acid on life span and age-dependent behavioral declines in Caenorhabditis elegans” Elsevier Science. Vol. 85. pp. 620-628. 2006 • Colleta, Susan. Introduction to C. elegans. Waksman Student Scholars. <http://avery.rutgers.edu/WSSP/StudentScholars/project/introduction/worms.html>. 2009. • “Flavonoids.” Phytochemicals. 2005. 4 May 2009. <http://www.phytochemicals.info/phytochemicals/flavonoids.php>. • Goodall, McC. and Alton, Harold. “Dopamine (3-Hydroxytyramine) Metabolism in Parkinsonism.” The Journal of Clinical Investigation. Volume 48. pp. 2300-2308. 1969. • Halliwell, Barry and Gutterridge, John M.C. “Free Radicals in Biology and Medicine.” Third Edition. Oxford Science Publications. Oxford Unitersity Press. 1999. • Hoch, Daniel B.; Zieve, David. “Parkinson’s Disease.” U.S. National Library of Medicine. January 21, 2009. May 6, 2009. <http://www.nlm.nih.gov/medlineplus/ency/article/000755.htm>. • Jessica C. Greene; Whitworth, Alexander J.; Kuo, Isabella; Andrews, Laurie A.; Feany, Mel B.; Pallanck, Leo J. “Mitochondrial pathology and apoptotic muscle degeneration inDrosophila parkinmutants.” Davidson College Review Papers. 2003. • Karolinska Institute. “Midlife Coffee And Tea Drinking May Protect Against Late-life Dementia”. ScienceDaily 15 January 2009. 3 May 2009. <http://www.sciencedaily.com/releases/2009/01/090114200005.htm>.

  19. Bibliography Cont. • Kiontke, Karin and Sudhaus, Walter. “Ecology of Caenorhabditis species.” WormBook The online review of C. elegans Biology. <http://www.wormbook.org/chapters/www_ecolCaenorhabditis/ecolCaenorhabditis.htm> • Lagasse, Paul. Columbia Encyclopedia. “Coffee”. Columbia University Press. May 2, 2009. • Lopez-Garcia, Esther; van Dam, Rob M.; Li, Tricia Y.; Rodriguez-Artalejo, Fernando; and Hu, Frank B. “The Relationship of Coffee Consumption with Mortality.” Annals of Internal Medicine, June 16, 2008 • Margreet R. Olthof, Peter C.H. Hollman, and Martijn B. Katan. “Chlorogenic Acid and Caffeic Acid are Absorbed in Humans.” Human Nutrition and Metabolism. 2000. <http://jn.nutrition.org/cgi/reprint/131/1/66>. • Nass R, Blakely RD. 2003. The Caenorhabditis Elegans Dopaminergic System: Opportunities for Insights into Dopamine Transport and Neurodegeneration. Annual Review of Pharmacology and Toxicology 43: 521‐544 • Natarajan, K.; Singh, Sanjaya; Burke, Terrence R. Jr.; Grunberger, Dezider. “Caffeic acid phenethyl ester is a potent and specific inhibitor of activation of nuclear transcription factor NF- κB”. Immunology. Vol 93, pp. 9090-9095. August 1996. • “Parkinson’s Disease: Glossary of Parkinson’s Disease Terms.” WebMD. Parkinson’s Disease Health. May 7, 2009. < http://www.webmd.com/parkinsons-disease/parkinsons-glossary?page=3>. • “Parkinson's Disease: Hope Through Research”. National Institute of Neurological Disorders and Stroke. April 24, 2009. May 5, 2009. <http://www.ninds.nih.gov/disorders/parkinsons_disease/detail_parkinsons_disease.htm> • Shanam, Shai. “Worming into the cell: Viral reproduction in Caenorhabditis elegans.” Proceedings of the National Academy of Sciences. Vol. 103. n. 11. pgs. 3955-3956. • Sutphin GL, Kaeberlein M (2009). Measuring Caenorhabditis elegans Life Span on Solid Media. JoVE. 27. <http://www.jove.com/index/details.stp?id=1152> • Tipton KF, Singer TP. “Advances in our understanding of the mechanisms of the neurotoxicity of MPTP and related compounds.” J Neurochem 1993;61:1191–1206.
