Presentation Transcript


Echinoderms early chordates

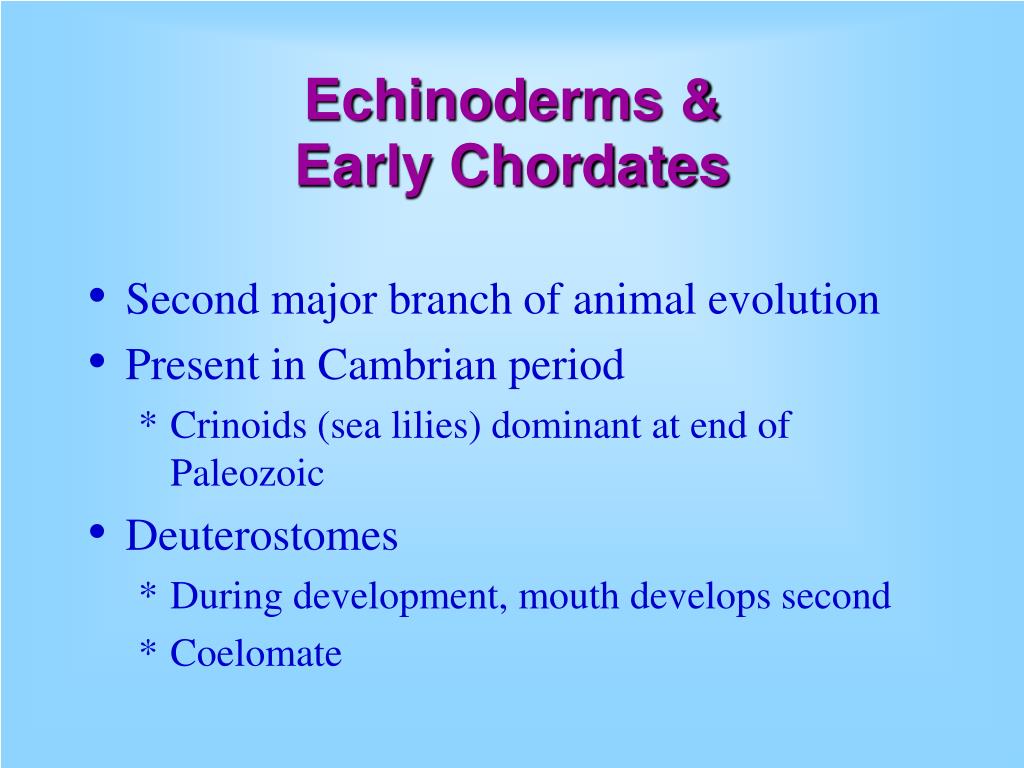

Echinoderms &Early Chordates

  • Second major branch of animal evolution

  • Present in Cambrian period

    • Crinoids (sea lilies) dominant at end of Paleozoic

  • Deuterostomes

    • During development, mouth develops second

    • Coelomate


Embryological development

Protostome – blastopore becomes mouth

Deuterostome – blastopore becomes anus

Embryological development

gastrulation in sea urchin


Echinoderm pluteus larvae

Echinoderm “pluteus” larvae

brittle star

sea cucumber

sea lily

sea urchin

sea star


Echinoderm diversity

Echinoderm diversity

(also sea cucumbers)


Echinoderm characteristics

Echinoderm characteristics

  • adults have secondary radial symmetry

  • spiny “skin” (calcium plates below skin)

  • water vascular system

    • movement

    • circulation

  • complete gut

  • entirely marine

    • only phylum


Lower chordates

Lower Chordates

  • Phylum Chordata includes us

  • Several subphyla are invertebrate (i.e. lack a skeleton)

    • Urochordates

    • Cephalochordates


Chordate characteristics

Chordate characteristics

  • notochord – at least in embryo

  • dorsal, hollow nerve cord

  • pharynx (feeding “basket”) - at least in embryo

  • segmented musculature

  • post-anal tail - at least in embryo

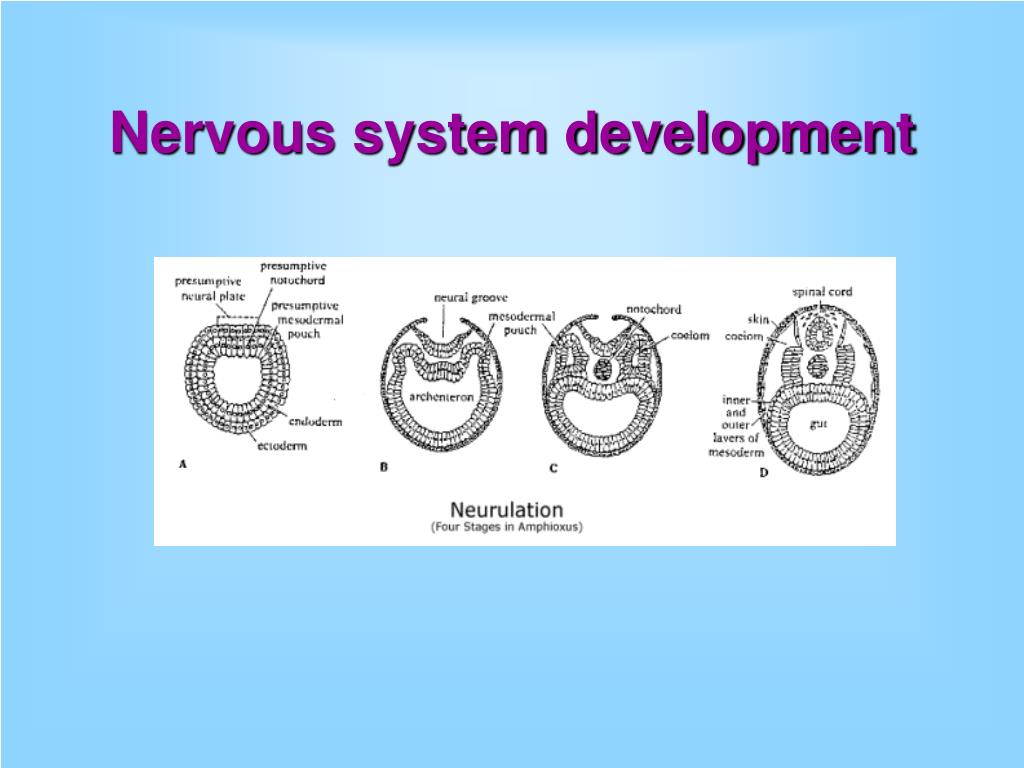

Nervous system development

Nervous system development


Urochordates

Urochordates

  • “tail chordates”

    • notochord only in tail

  • sea squirts

  • larval stage has chordate characteristics

  • adult loses them and becomes a sessil, filter feeder

adult larva


Cephalochordates

Cephalochordates

  • “head chordates”

    • notochord extends into head

  • lancelets

  • adults have chordate characters

  • filter feeders


Burgess shale fauna

Burgess Shale fauna

  • Pikaia gracilens

    • earliest known primitive chordate

    • about 40 mm in length and swam above the sea-floor

    • only 60 specimens have been found to date.

1 cm

Pikaia animation
