Geoffrey fox community grids lab indiana university gcf indiana

Remarks onGrids e-ScienceCyberInfrastructureand Peer-to-PeerNetworksLos AlamosSeptember 23 2003

Geoffrey Fox

Community Grids Lab

Indiana University

[email protected]


What is high performance computer

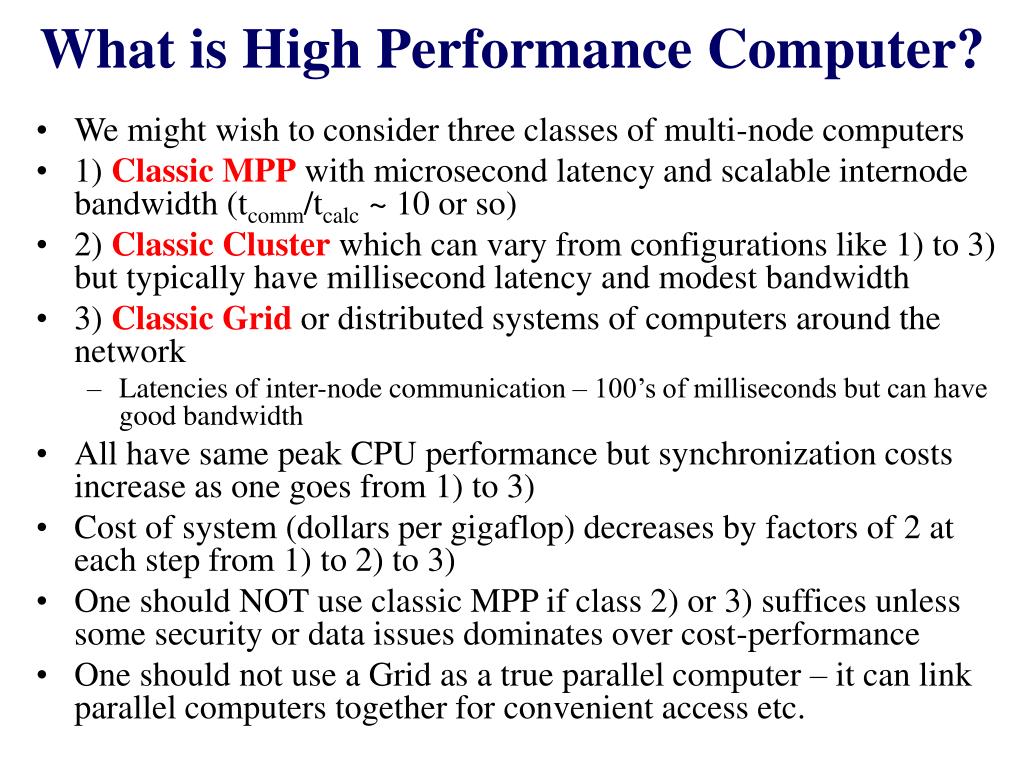

What is High Performance Computer?

  • We might wish to consider three classes of multi-node computers

  • 1) Classic MPP with microsecond latency and scalable internode bandwidth (tcomm/tcalc ~ 10 or so)

  • 2) Classic Cluster which can vary from configurations like 1) to 3) but typically have millisecond latency and modest bandwidth

  • 3) Classic Grid or distributed systems of computers around the network

    • Latencies of inter-node communication – 100’s of milliseconds but can have good bandwidth

  • All have same peak CPU performance but synchronization costs increase as one goes from 1) to 3)

  • Cost of system (dollars per gigaflop) decreases by factors of 2 at each step from 1) to 2) to 3)

  • One should NOT use classic MPP if class 2) or 3) suffices unless some security or data issues dominates over cost-performance

  • One should not use a Grid as a true parallel computer – it can link parallel computers together for convenient access etc.


What is a grid i

What is a Grid I?

  • Collaborative Environment (Ch2.2,18)

  • Combining powerful resources, federated computing and a security structure (Ch38.2)

  • Coordinated resource sharing and problem solving in dynamic multi-institutional virtual organizations (Ch6)

  • Data Grids as Managed Distributed Systems for Global Virtual Organizations (Ch39)

  • Distributed Computing or distributed systems (Ch2.2,10)

  • Enabling Scalable Virtual Organizations (Ch6)

  • Enabling use of enterprise-wide systems, and someday nationwide systems, that consist of workstations, vector supercomputers, and parallel supercomputers connected by local and wide area networks. Users will be presented the illusion of a single, very powerful computer, rather than a collection of disparate machines. The system will schedule application components on processors, manage data transfer, and provide communication and synchronization in such a manner as to dramatically improve application performance. Further, boundaries between computers will be invisible, as will the location of data and the failure of processors. (Ch10)


What is a grid ii

What is a Grid II?

  • Supporting e-Science representing increasing global collaborations of people and of shared resources that will be needed to solve the new problems of Science and Engineering (Ch36)

  • As infrastructure that will provide us with the ability to dynamically link together resources as an ensemble to support the execution of large-scale, resource-intensive, and distributed applications. (Ch1)

  • Makes high-performance computers superfluous (Ch6)

  • Metasystems or metacomputing systems (Ch10,37)

  • Middleware as the services needed to support a common set of applications in a distributed network environment (Ch6)

  • Next Generation Internet (Ch6)

  • Peer-to-peer Network (Ch10, 18)

  • Realizing thirty year dream of science fiction writers that have spun yarns featuring worldwide networks of interconnected computers that behave as a single entity. (Ch10)

  • Technology on which to build CyberInfrastructure (NSF)

  • High Performance Computing World’s view of the Web

The Grid for my purposes is “best practice” in all of this!


Taxonomy of grid functionalities

Taxonomy of Grid Functionalities


Classes of computing grid applications

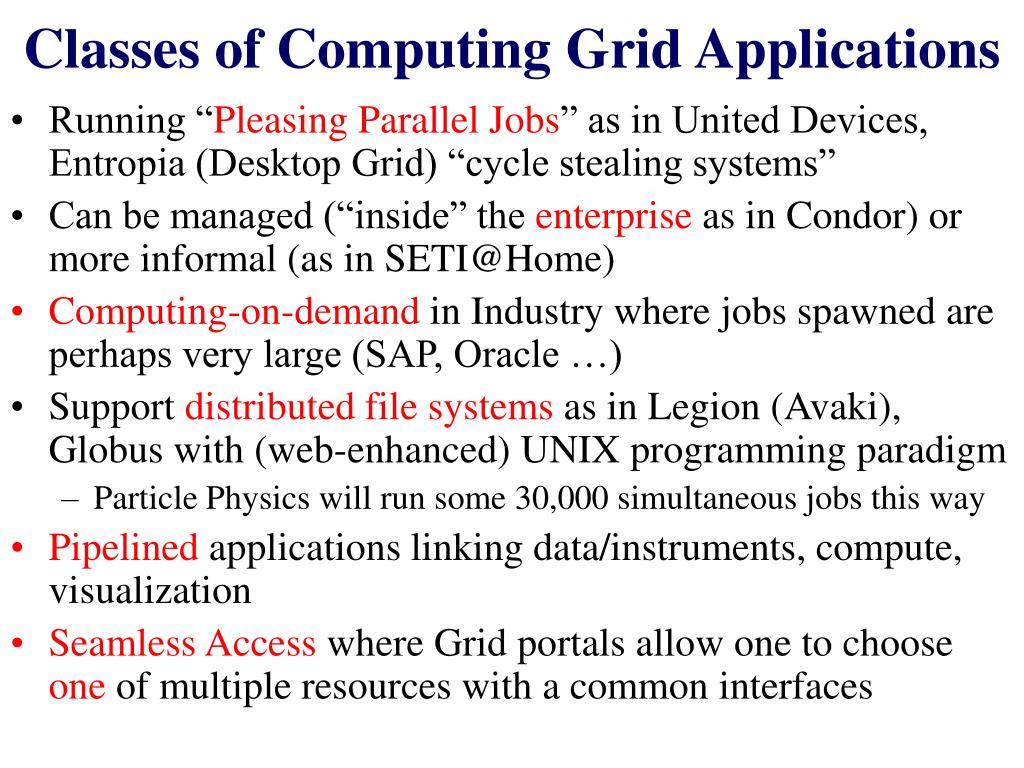

Classes of Computing Grid Applications

  • Running “Pleasing Parallel Jobs” as in United Devices, Entropia (Desktop Grid) “cycle stealing systems”

  • Can be managed (“inside” the enterprise as in Condor) or more informal (as in [email protected])

  • Computing-on-demand in Industry where jobs spawned are perhaps very large (SAP, Oracle …)

  • Support distributed file systems as in Legion (Avaki), Globus with (web-enhanced) UNIX programming paradigm

    • Particle Physics will run some 30,000 simultaneous jobs this way

  • Pipelined applications linking data/instruments, compute, visualization

  • Seamless Access where Grid portals allow one to choose one of multiple resources with a common interfaces


Information knowledge grids

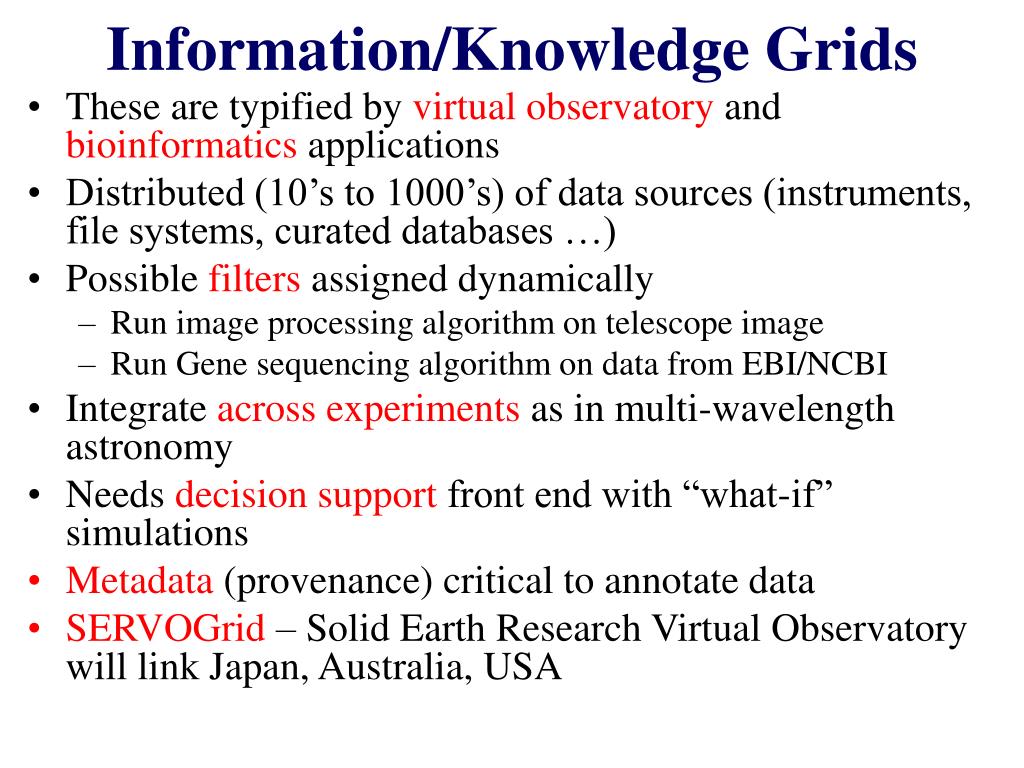

Information/Knowledge Grids

  • These are typified by virtual observatory and bioinformatics applications

  • Distributed (10’s to 1000’s) of data sources (instruments, file systems, curated databases …)

  • Possible filters assigned dynamically

    • Run image processing algorithm on telescope image

    • Run Gene sequencing algorithm on data from EBI/NCBI

  • Integrate across experiments as in multi-wavelength astronomy

  • Needs decision support front end with “what-if” simulations

  • Metadata (provenance) critical to annotate data

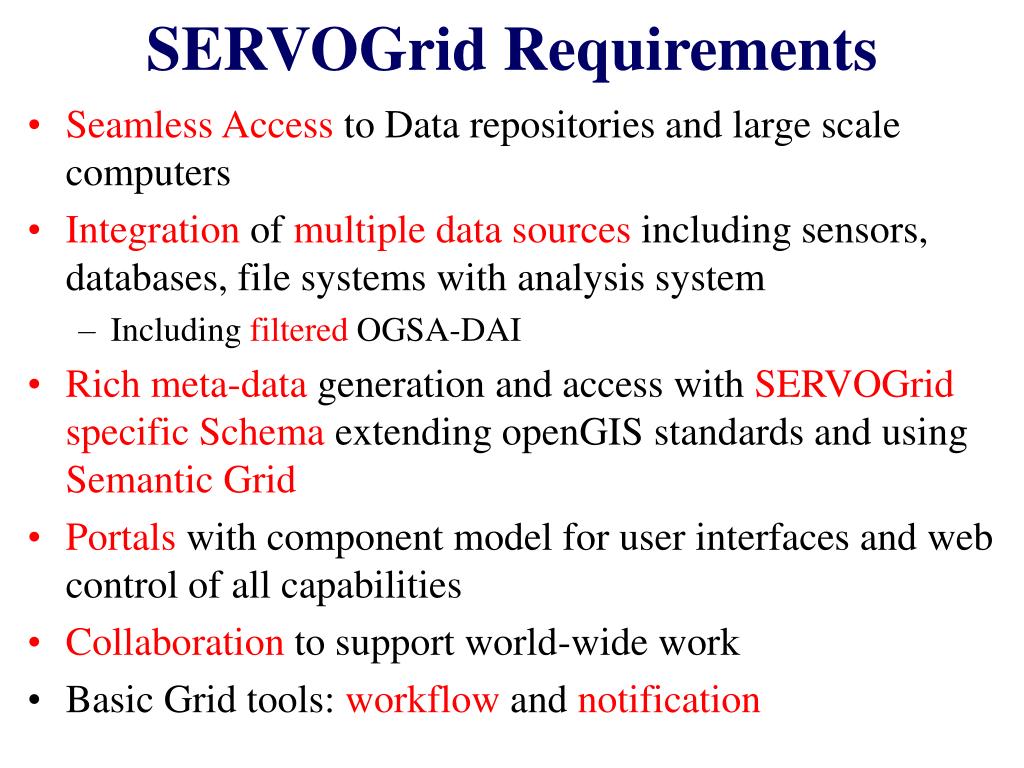

  • SERVOGrid – Solid Earth Research Virtual Observatory will link Japan, Australia, USA


Servogrid caricature

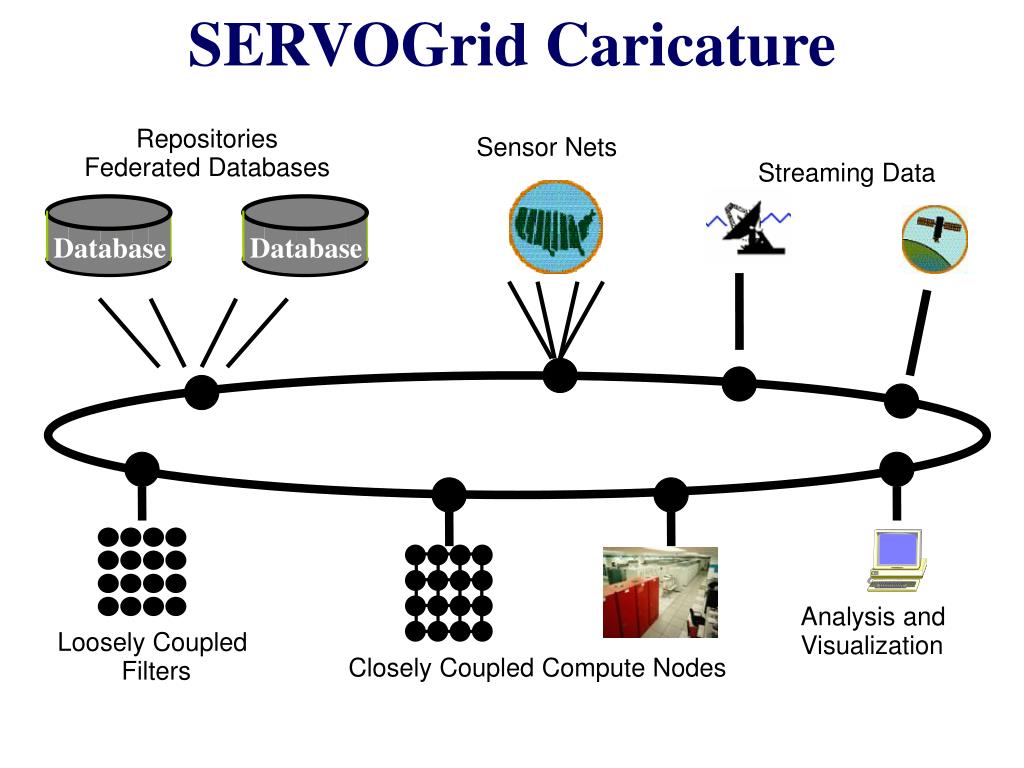

SERVOGrid Caricature

RepositoriesFederated Databases

Sensor Nets

Streaming Data

Database

Database

Analysis and Visualization

Loosely Coupled Filters

Closely Coupled Compute Nodes


Sources of grid technology

Sources of Grid Technology

  • Grids support distributed collaboratories or virtual organizations integrating concepts from

  • The Web

  • Agents

  • Distributed Objects (CORBA Java/Jini COM)

  • Globus, Legion, Condor, NetSolve, Ninf and other High Performance Computing activities

  • Peer-to-peer Networks

  • With perhaps the Web and P2P networks being the most important for “Information Grids” and Globus for “Compute Grids”


The essence of grid technology

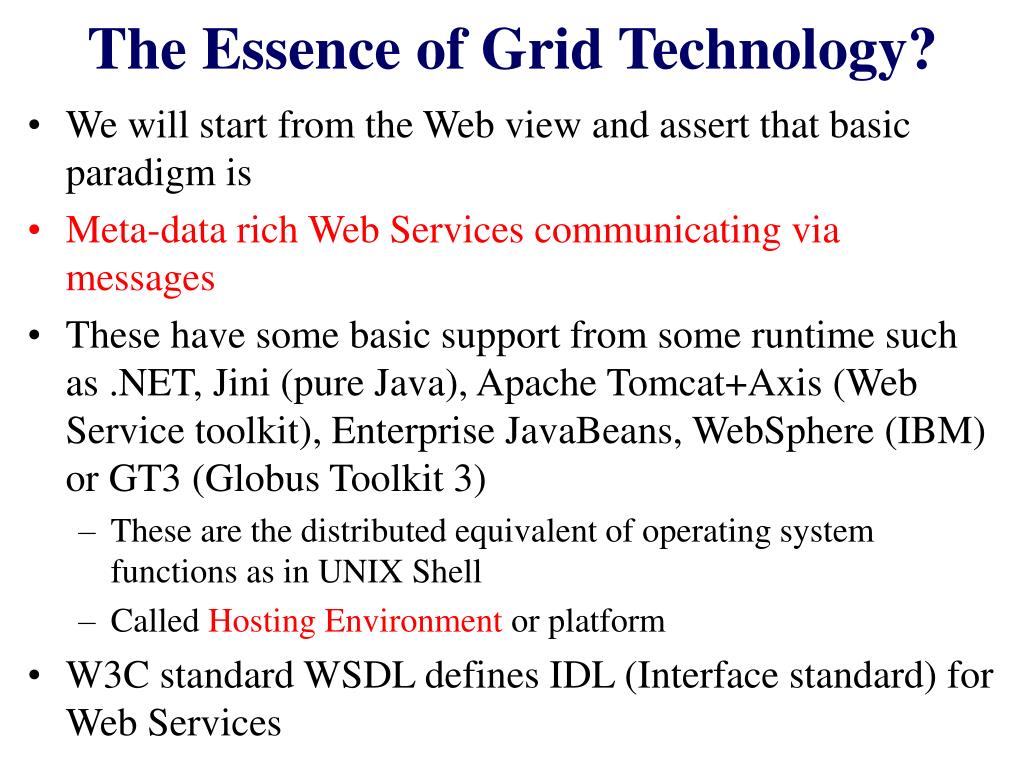

The Essence of Grid Technology?

  • We will start from the Web view and assert that basic paradigm is

  • Meta-data rich Web Services communicating via messages

  • These have some basic support from some runtime such as .NET, Jini (pure Java), Apache Tomcat+Axis (Web Service toolkit), Enterprise JavaBeans, WebSphere (IBM) or GT3 (Globus Toolkit 3)

    • These are the distributed equivalent of operating system functions as in UNIX Shell

    • Called Hosting Environment or platform

  • W3C standard WSDL defines IDL (Interface standard) for Web Services


Services and distributed objects

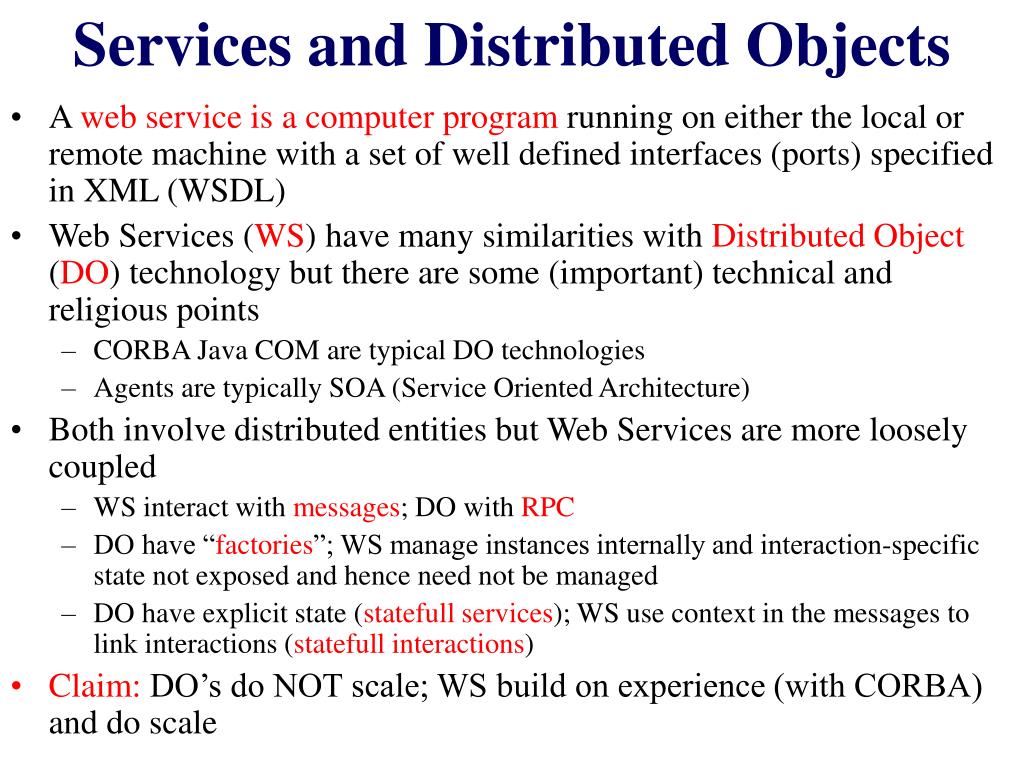

Services and Distributed Objects

  • A web service is a computer program running on either the local or remote machine with a set of well defined interfaces (ports) specified in XML (WSDL)

  • Web Services (WS) have many similarities with Distributed Object (DO) technology but there are some (important) technical and religious points

    • CORBA Java COM are typical DO technologies

    • Agents are typically SOA (Service Oriented Architecture)

  • Both involve distributed entities but Web Services are more loosely coupled

    • WS interact with messages; DO with RPC

    • DO have “factories”; WS manage instances internally and interaction-specific state not exposed and hence need not be managed

    • DO have explicit state (statefull services); WS use context in the messages to link interactions (statefull interactions)

  • Claim: DO’s do NOT scale; WS build on experience (with CORBA) and do scale

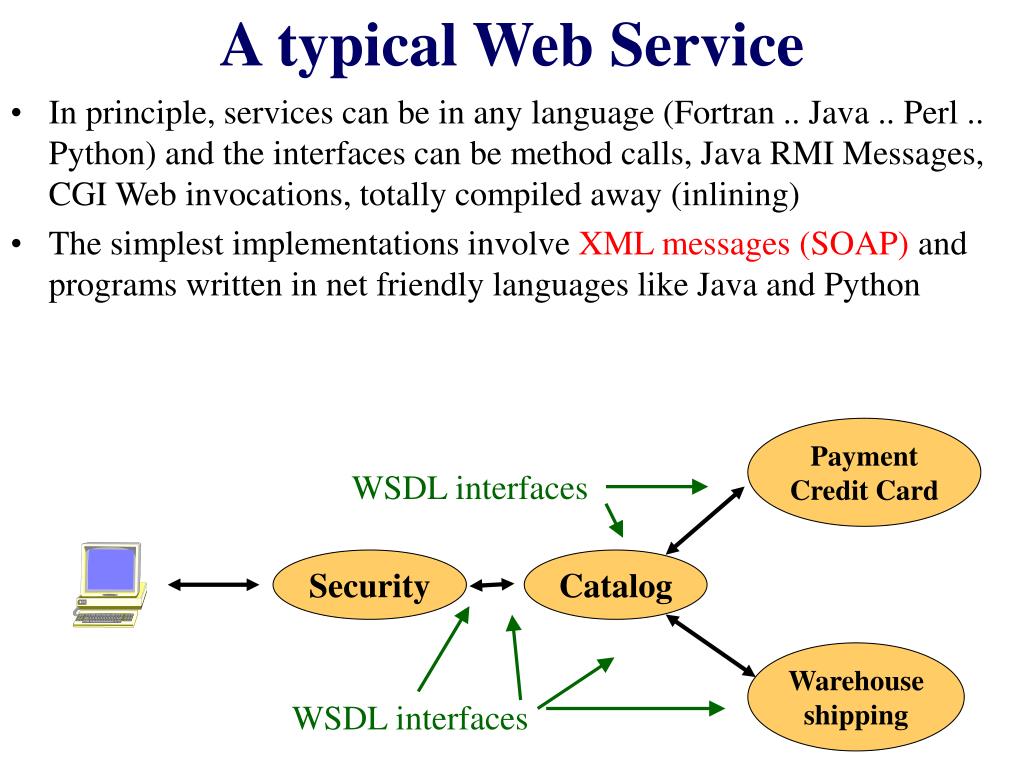

A typical web service

A typical Web Service

PaymentCredit Card

WSDL interfaces

Security

Catalog

Warehouse

shipping

WSDL interfaces

  • In principle, services can be in any language (Fortran .. Java .. Perl .. Python) and the interfaces can be method calls, Java RMI Messages, CGI Web invocations, totally compiled away (inlining)

  • The simplest implementations involve XML messages (SOAP) and programs written in net friendly languages like Java and Python


Details of web service protocol stack

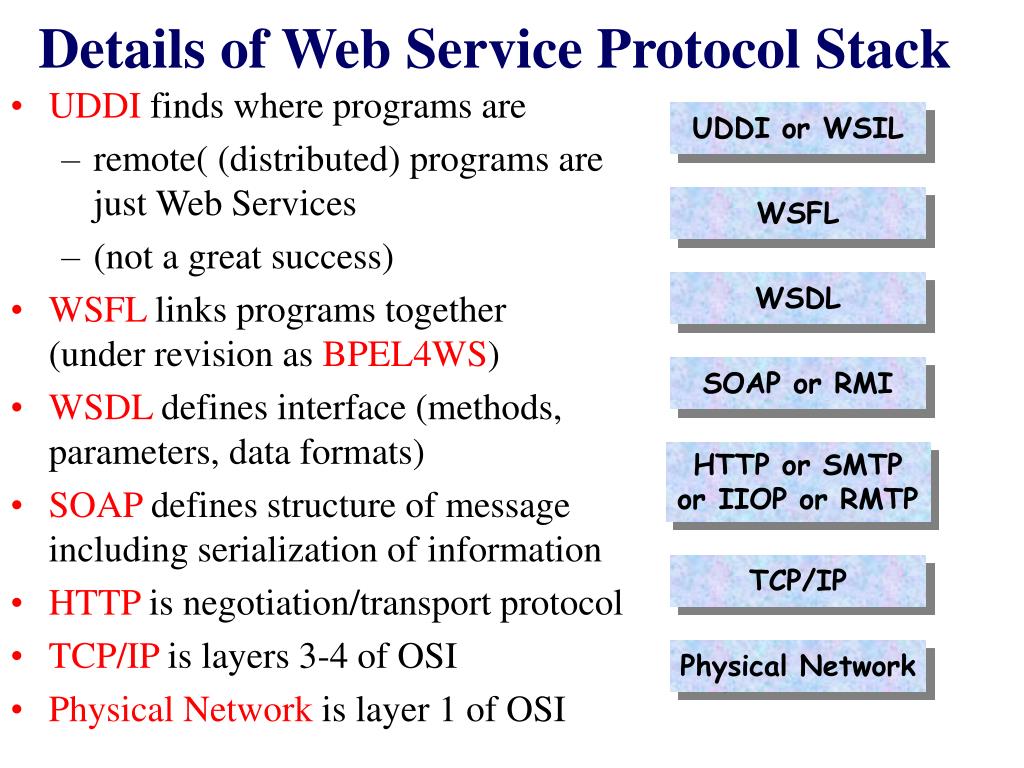

Details of Web Service Protocol Stack

UDDI or WSIL

WSFL

WSDL

SOAP or RMI

HTTP or SMTP or IIOP or RMTP

TCP/IP

Physical Network

  • UDDI finds where programs are

    • remote( (distributed) programs are just Web Services

    • (not a great success)

  • WSFL links programs together(under revision as BPEL4WS)

  • WSDL defines interface (methods, parameters, data formats)

  • SOAP defines structure of message including serialization of information

  • HTTP is negotiation/transport protocol

  • TCP/IP is layers 3-4 of OSI

  • Physical Network is layer 1 of OSI


What are system and application services

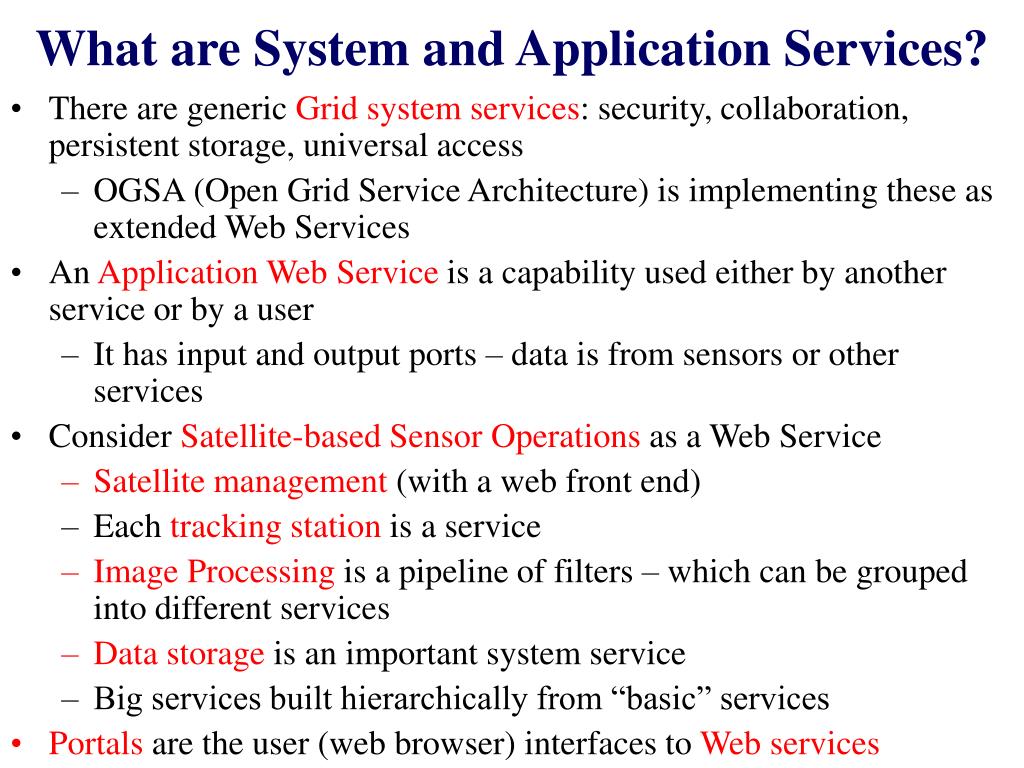

What are System and Application Services?

  • There are generic Grid system services: security, collaboration, persistent storage, universal access

    • OGSA (Open Grid Service Architecture) is implementing these as extended Web Services

  • An Application Web Service is a capability used either by another service or by a user

    • It has input and output ports – data is from sensors or other services

  • Consider Satellite-based Sensor Operations as a Web Service

    • Satellite management (with a web front end)

    • Each tracking station is a service

    • Image Processing is a pipeline of filters – which can be grouped into different services

    • Data storage is an important system service

    • Big services built hierarchically from “basic” services

  • Portals are the user (web browser) interfaces to Web services


Application web services

Application Web Services

Prog1WS

Prog2WS

Filter1WS

Filter2WS

Filter3WS

Build as multiple interdisciplinaryPrograms

Build as multiple Filter Web Services

Sensor Data as a Webservice (WS)

Simulation WS

Simulation WS

Data Analysis WS

Data Analysis WS

Sensor ManagementWS

Visualization WS

Visualization WS

  • Note Service model integrates sensors, sensor analysis, simulations and people

  • An Application Web Service is a capability used either by another service or by a user

    • It has input and output ports – data is from users, sensors or other services

    • Big services built hierarchically from “basic” services


What is happening

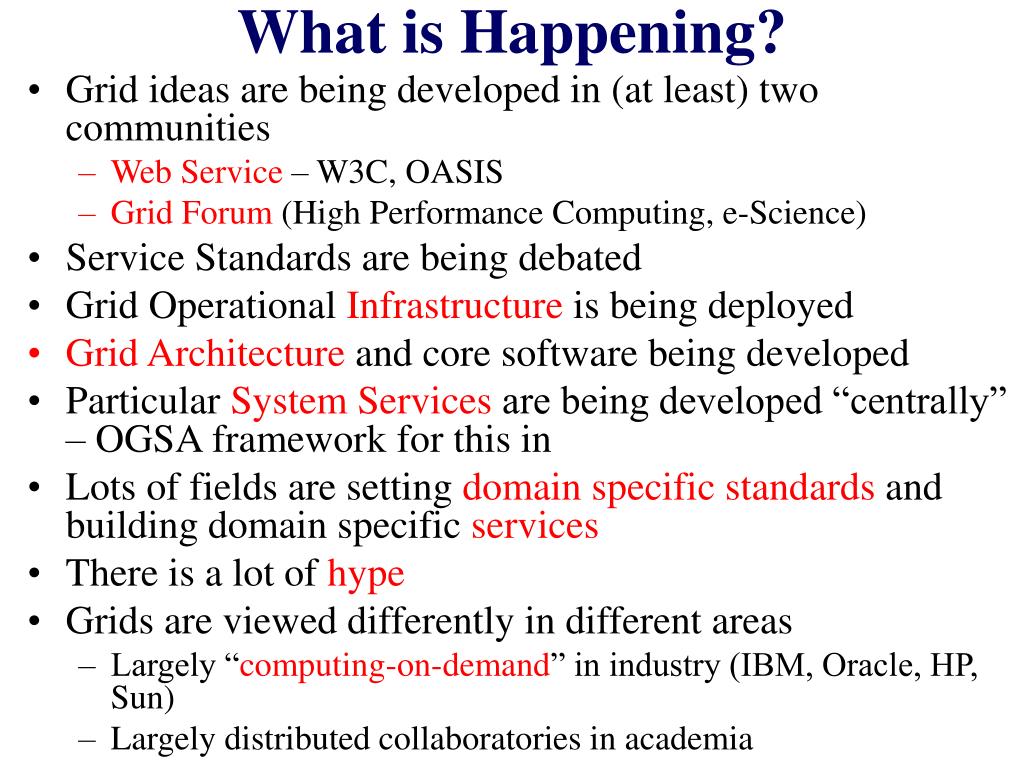

What is Happening?

  • Grid ideas are being developed in (at least) two communities

    • Web Service – W3C, OASIS

    • Grid Forum (High Performance Computing, e-Science)

  • Service Standards are being debated

  • Grid Operational Infrastructure is being deployed

  • Grid Architecture and core software being developed

  • Particular System Services are being developed “centrally” – OGSA framework for this in

  • Lots of fields are setting domain specific standards and building domain specific services

  • There is a lot of hype

  • Grids are viewed differently in different areas

    • Largely “computing-on-demand” in industry (IBM, Oracle, HP, Sun)

    • Largely distributed collaboratories in academia


Grid applications

Grid Applications

  • Cope with Data Deluge – Moore’s law for detectors

  • Astronomy – virtual observatories

  • Biology – distributed repositories and filtering

  • Chemistry – online laboratories

  • Earth/Environmental Science – distributed sensors

  • Engineering – distributed monitors

  • Health – medical instruments and images

  • Particle Physics – analyze LHC data

  • Gridsourcing – animation in China, software in India and design/leadership in USA

    • Basketball coaching in Indiana, players in China

    • Teachers in Los Alamos, students in universities

  • Command andControl for DoD

  • Federation of Information systems and modeling and simulation

  • Problem Solving Environment and Software Integration


Geoffrey fox community grids lab indiana university gcf indiana

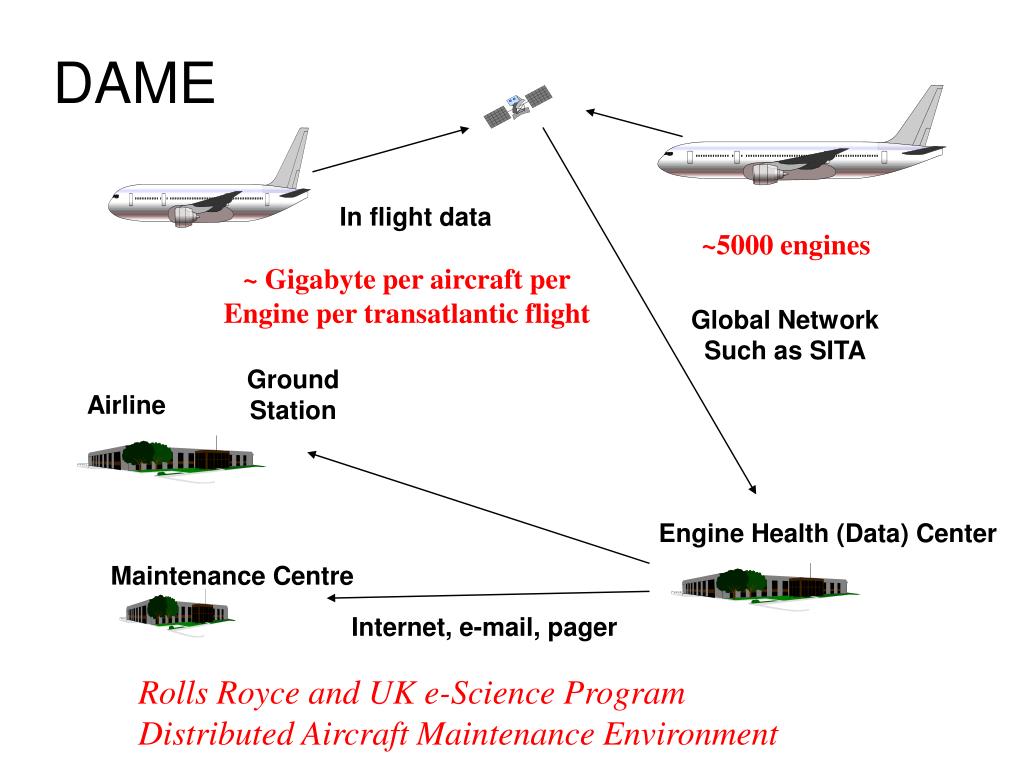

DAME

In flight data

~5000 engines

~ Gigabyte per aircraft per

Engine per transatlantic flight

Global Network

Such as SITA

Ground Station

Airline

Engine Health (Data) Center

Maintenance Centre

Internet, e-mail, pager

Rolls Royce and UK e-Science ProgramDistributed Aircraft Maintenance Environment

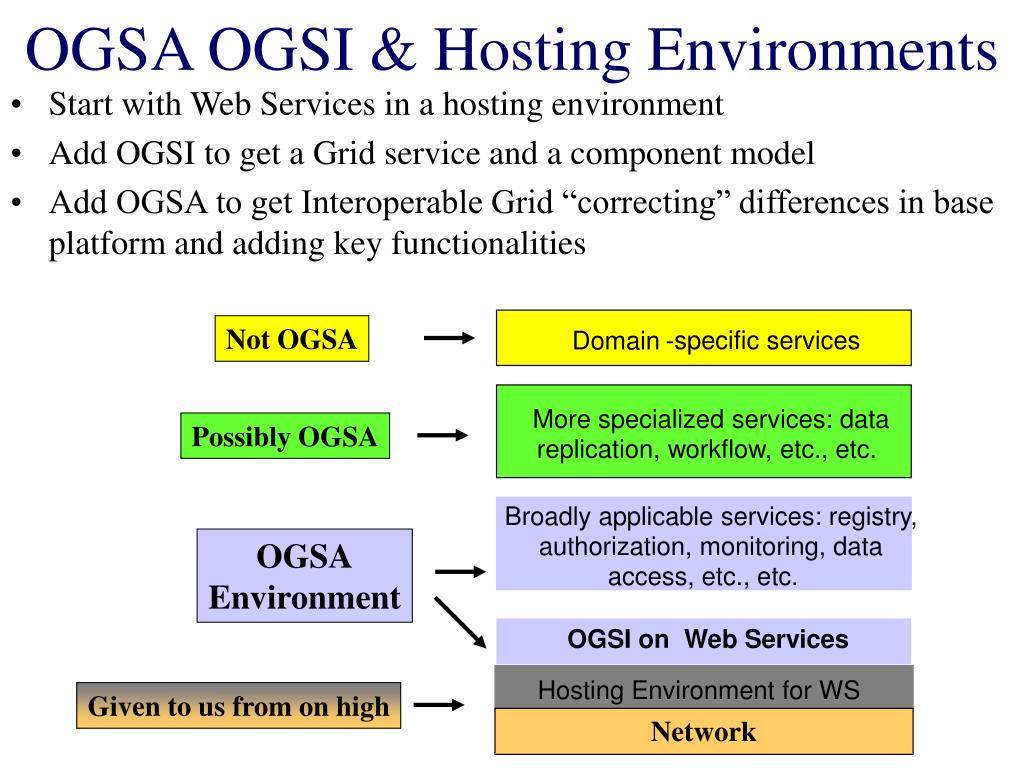

Ogsa ogsi hosting environments

OGSA OGSI & Hosting Environments

Not OGSA

specific services

Domain

-

More specialized services: data

Possibly OGSA

replication, workflow, etc., etc.

Broadly applicable services: registry,

OGSA

Environment

authorization, monitoring, data

access, etc., etc.

OGSI on Web Services

Hosting Environment for WS

Given to us from on high

Network

  • Start with Web Services in a hosting environment

  • Add OGSI to get a Grid service and a component model

  • Add OGSA to get Interoperable Grid “correcting” differences in base platform and adding key functionalities


Ogsi open grid service interface

OGSI Open Grid Service Interface

  • http://www.gridforum.org/ogsi-wg

  • It is a “component model” for web services.

  • It defines a set of behavior patterns that each OGSI service must exhibit.

  • Every “Grid Service” portType extends a common base type.

    • Defines an introspection model for the service

    • You can query it (in a standard way) to discover

      • What methods/messages a port understands

      • What other port types does the service provide?

      • If the service is “stateful” what is the current state?

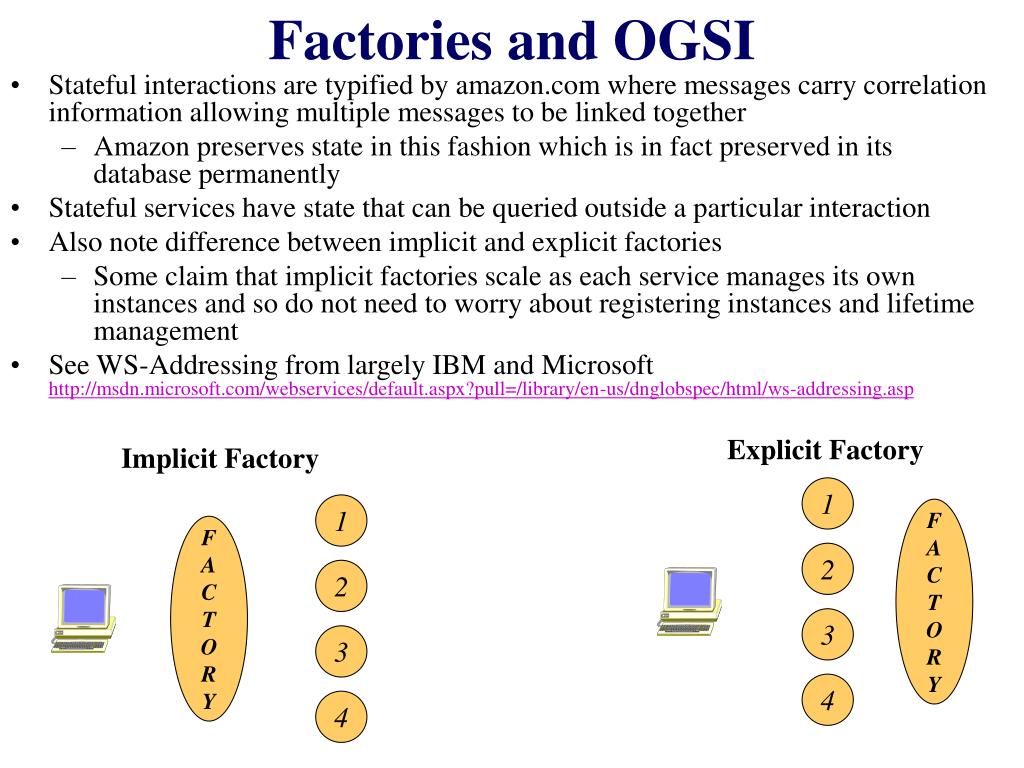

  • Factory Model

  • A set of standard portTypes for

    • Message subscription and notification

    • Service collections

  • Each service is identified by a URI called the “Grid Service Handle”

  • GSHs are bound dynamically to Grid Services References (typically wsdl docs)

    • A GSR may be transient. GSHs are fixed.

    • Handle map services translate GSHs into GSRs.

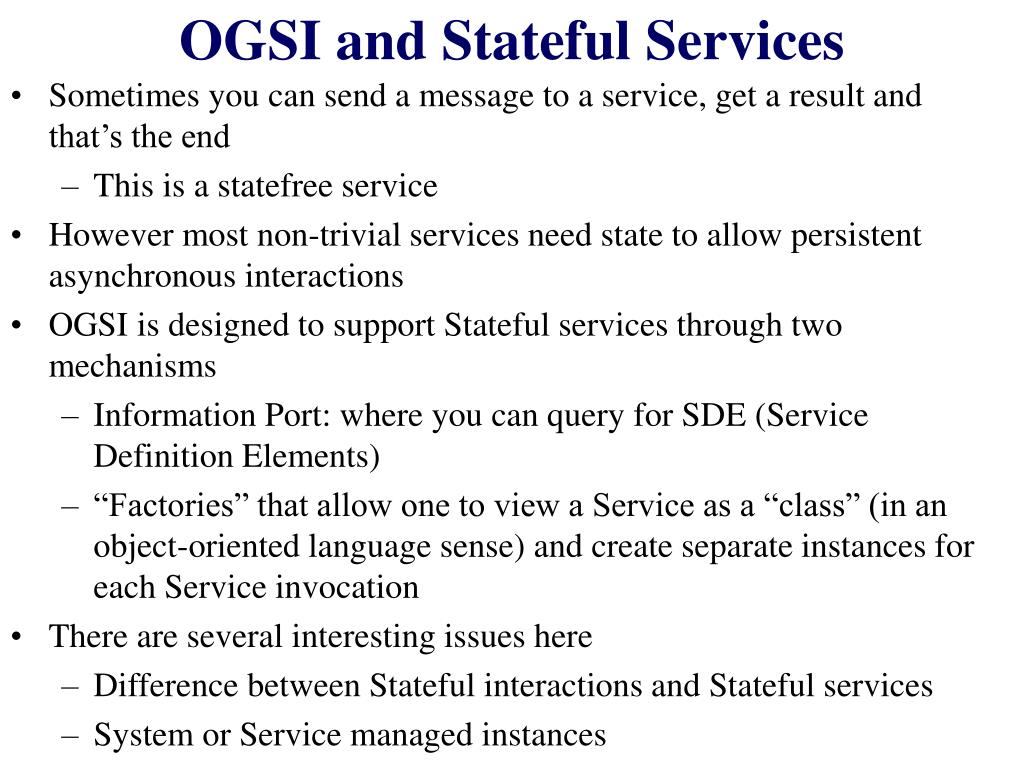

Ogsi and stateful services

OGSI and Stateful Services

  • Sometimes you can send a message to a service, get a result and that’s the end

    • This is a statefree service

  • However most non-trivial services need state to allow persistent asynchronous interactions

  • OGSI is designed to support Stateful services through two mechanisms

    • Information Port: where you can query for SDE (Service Definition Elements)

    • “Factories” that allow one to view a Service as a “class” (in an object-oriented language sense) and create separate instances for each Service invocation

  • There are several interesting issues here

    • Difference between Stateful interactions and Stateful services

    • System or Service managed instances


Factories and ogsi

Factories and OGSI

1

1

F

A

C

T

O

R

Y

F

A

C

T

O

R

Y

2

2

3

3

4

4

  • Stateful interactions are typified by amazon.com where messages carry correlation information allowing multiple messages to be linked together

    • Amazon preserves state in this fashion which is in fact preserved in its database permanently

  • Stateful services have state that can be queried outside a particular interaction

  • Also note difference between implicit and explicit factories

    • Some claim that implicit factories scale as each service manages its own instances and so do not need to worry about registering instances and lifetime management

  • See WS-Addressing from largely IBM and Microsofthttp://msdn.microsoft.com/webservices/default.aspx?pull=/library/en-us/dnglobspec/html/ws-addressing.asp

Explicit Factory

Implicit Factory

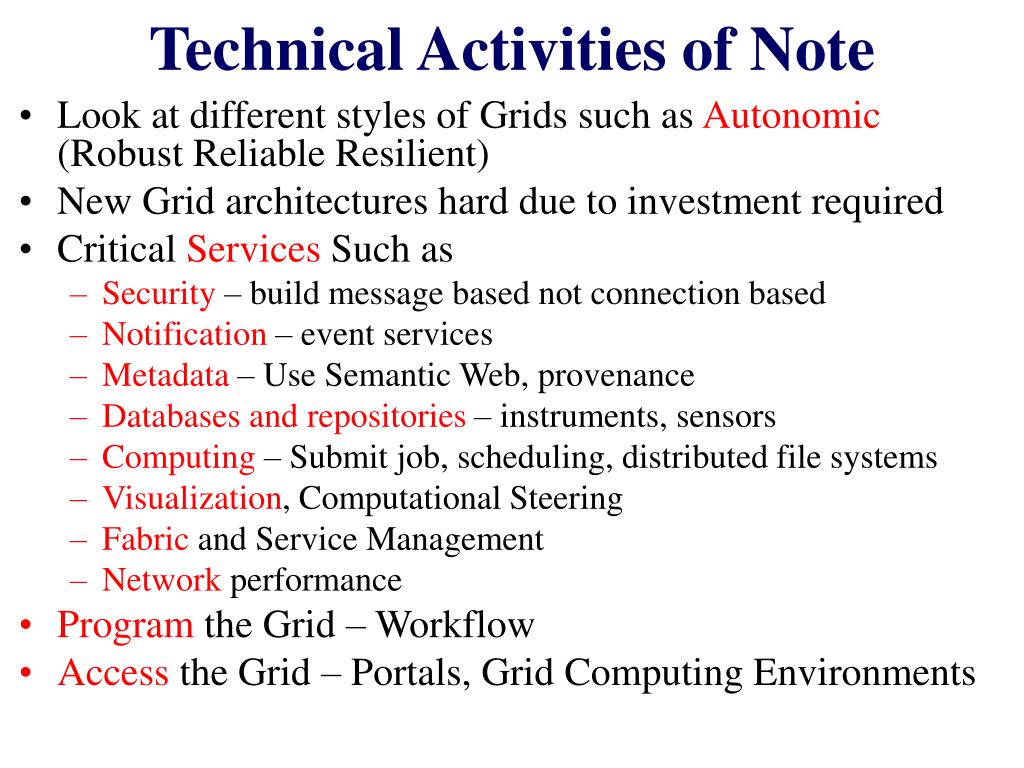

Technical activities of note

Technical Activities of Note

  • Look at different styles of Grids such as Autonomic (Robust Reliable Resilient)

  • New Grid architectures hard due to investment required

  • Critical Services Such as

    • Security – build message based not connection based

    • Notification – event services

    • Metadata – Use Semantic Web, provenance

    • Databases and repositories – instruments, sensors

    • Computing – Submit job, scheduling, distributed file systems

    • Visualization, Computational Steering

    • Fabric and Service Management

    • Network performance

  • Program the Grid – Workflow

  • Access the Grid – Portals, Grid Computing Environments

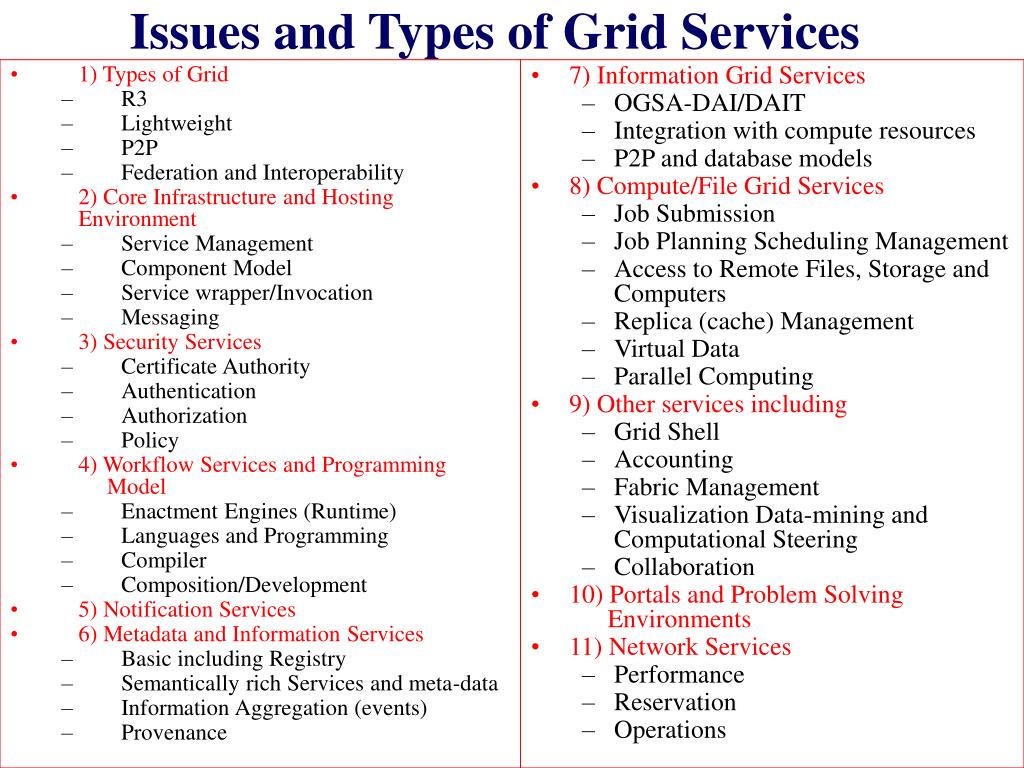

Issues and types of grid services

Issues and Types of Grid Services

1) Types of Grid

R3

Lightweight

P2P

Federation and Interoperability

2) Core Infrastructure and Hosting Environment

Service Management

Component Model

Service wrapper/Invocation

Messaging

3) Security Services

Certificate Authority

Authentication

Authorization

Policy

4) Workflow Services and Programming Model

Enactment Engines (Runtime)

Languages and Programming

Compiler

Composition/Development

5) Notification Services

6) Metadata and Information Services

Basic including Registry

Semantically rich Services and meta-data

Information Aggregation (events)

Provenance

7) Information Grid Services

OGSA-DAI/DAIT

Integration with compute resources

P2P and database models

8) Compute/File Grid Services

Job Submission

Job Planning Scheduling Management

Access to Remote Files, Storage and Computers

Replica (cache) Management

Virtual Data

Parallel Computing

9) Other services including

Grid Shell

Accounting

Fabric Management

Visualization Data-mining and Computational Steering

Collaboration

10) Portals and Problem Solving Environments

11) Network Services

Performance

Reservation

Operations


Geoffrey fox community grids lab indiana university gcf indiana

Remote Grid Service

Remote Grid Service

1: Plan Execution

4: Job Submittal

Data

Data

10: Job

Status

1: Job Management Service

(Grid Service Interface to user or program client)

2: Schedule and control Execution

8: VirtualData

3: Access to Remote Computers

6: File and

Storage

Access

7: CacheDataReplicas

5: Data Transfer

Technology Components of (Services in)a Computing Grid

9: Grid MPI

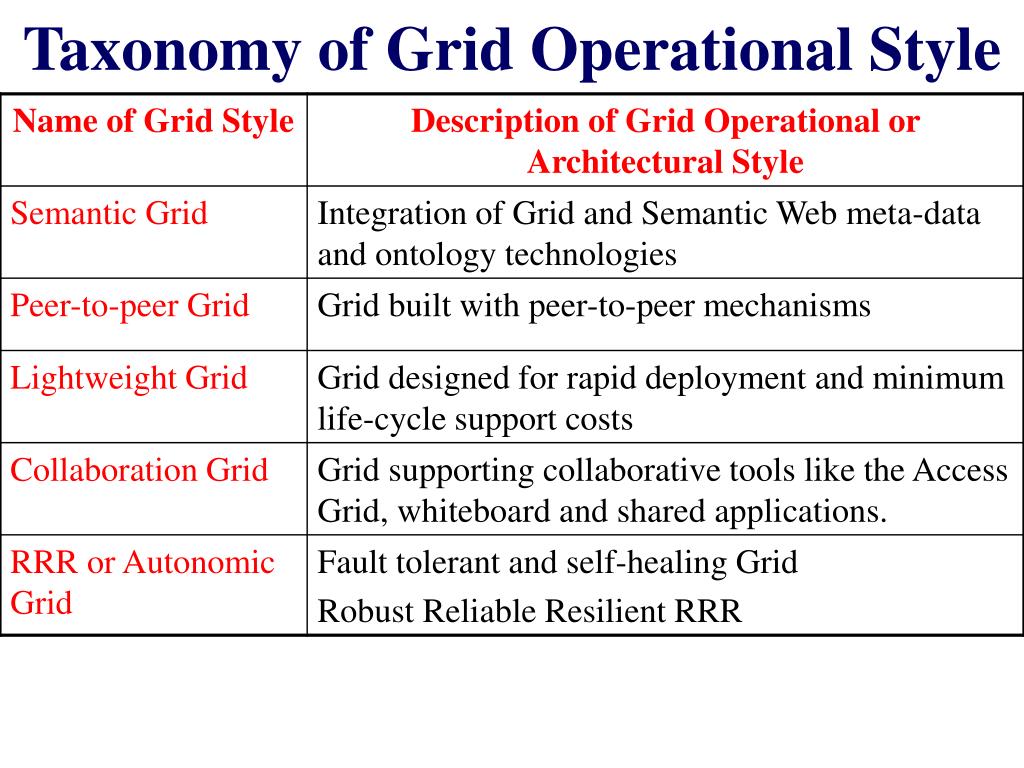

Taxonomy of grid operational style

Taxonomy of Grid Operational Style

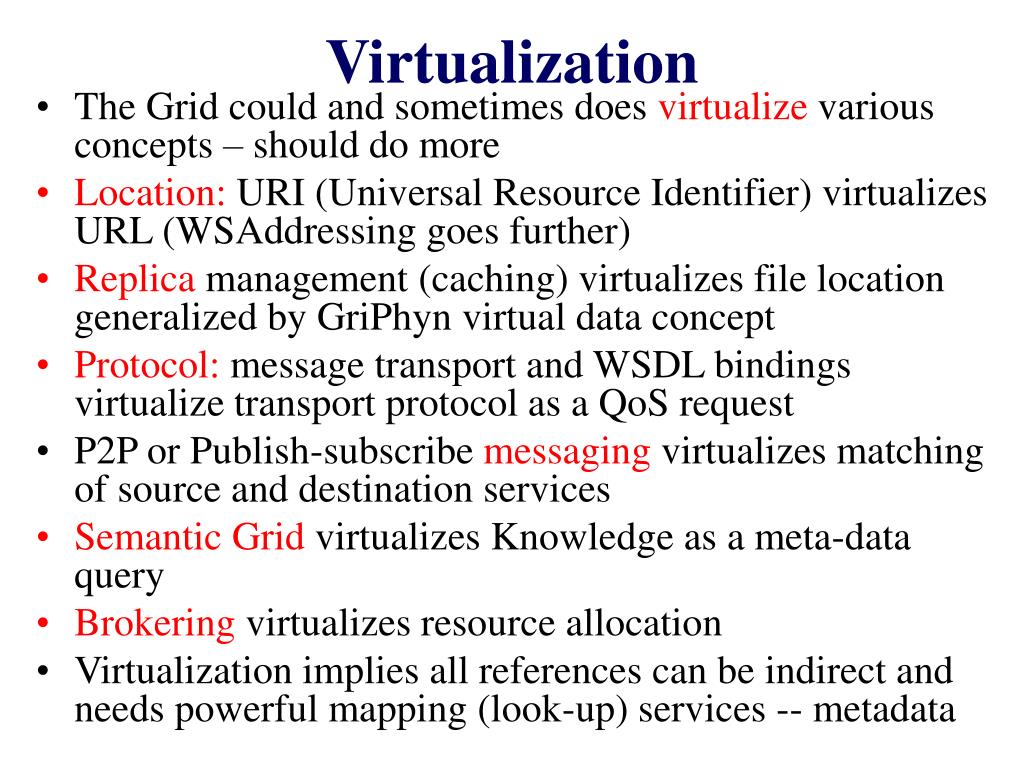

Virtualization

Virtualization

  • The Grid could and sometimes does virtualize various concepts – should do more

  • Location: URI (Universal Resource Identifier) virtualizes URL (WSAddressing goes further)

  • Replica management (caching) virtualizes file location generalized by GriPhyn virtual data concept

  • Protocol: message transport and WSDL bindings virtualize transport protocol as a QoS request

  • P2P or Publish-subscribe messaging virtualizes matching of source and destination services

  • Semantic Grid virtualizes Knowledge as a meta-data query

  • Brokering virtualizes resource allocation

  • Virtualization implies all references can be indirect and needs powerful mapping (look-up) services -- metadata

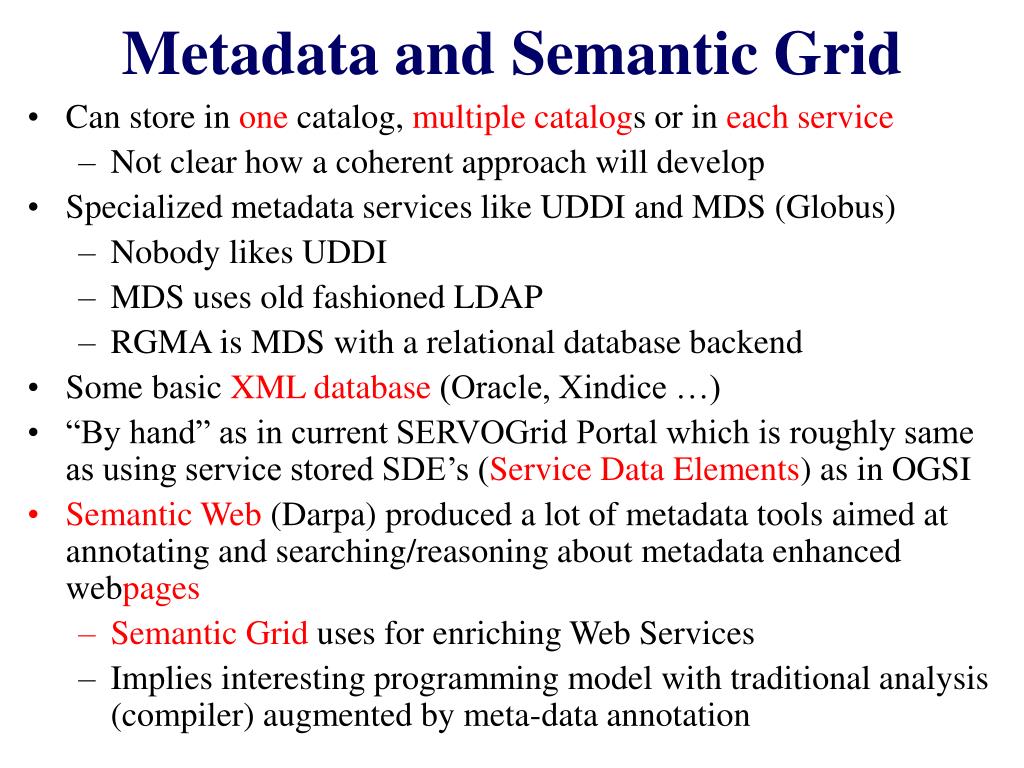

Metadata and semantic grid

Metadata and Semantic Grid

  • Can store in one catalog, multiplecatalogs or in each service

    • Not clear how a coherent approach will develop

  • Specialized metadata services like UDDI and MDS (Globus)

    • Nobody likes UDDI

    • MDS uses old fashioned LDAP

    • RGMA is MDS with a relational database backend

  • Some basic XML database (Oracle, Xindice …)

  • “By hand” as in current SERVOGrid Portal which is roughly same as using service stored SDE’s (Service Data Elements) as in OGSI

  • Semantic Web (Darpa) produced a lot of metadata tools aimed at annotating and searching/reasoning about metadata enhanced webpages

    • Semantic Grid uses for enriching Web Services

    • Implies interesting programming model with traditional analysis (compiler) augmented by meta-data annotation

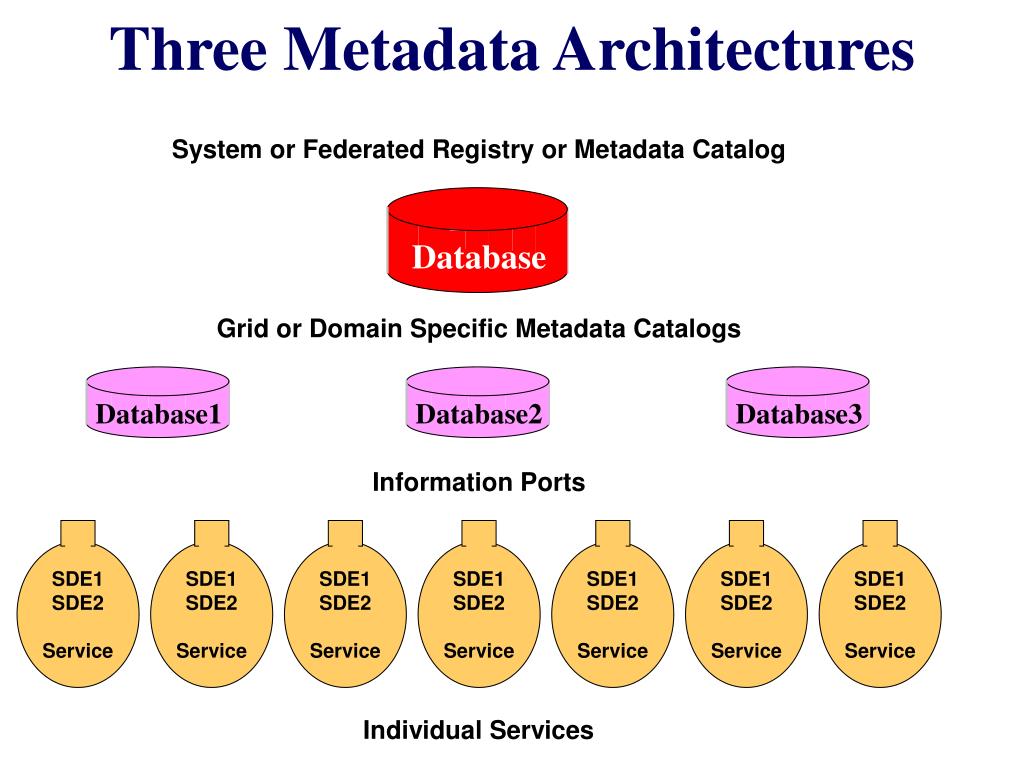

Three metadata architectures

Three Metadata Architectures

System or Federated Registry or Metadata Catalog

Grid or Domain Specific Metadata Catalogs

Database1

Database2

Database3

Information Ports

SDE1SDE2Service

SDE1SDE2Service

SDE1SDE2Service

SDE1SDE2Service

SDE1SDE2Service

SDE1SDE2Service

SDE1SDE2Service

Database

Individual Services


Geoffrey fox community grids lab indiana university gcf indiana

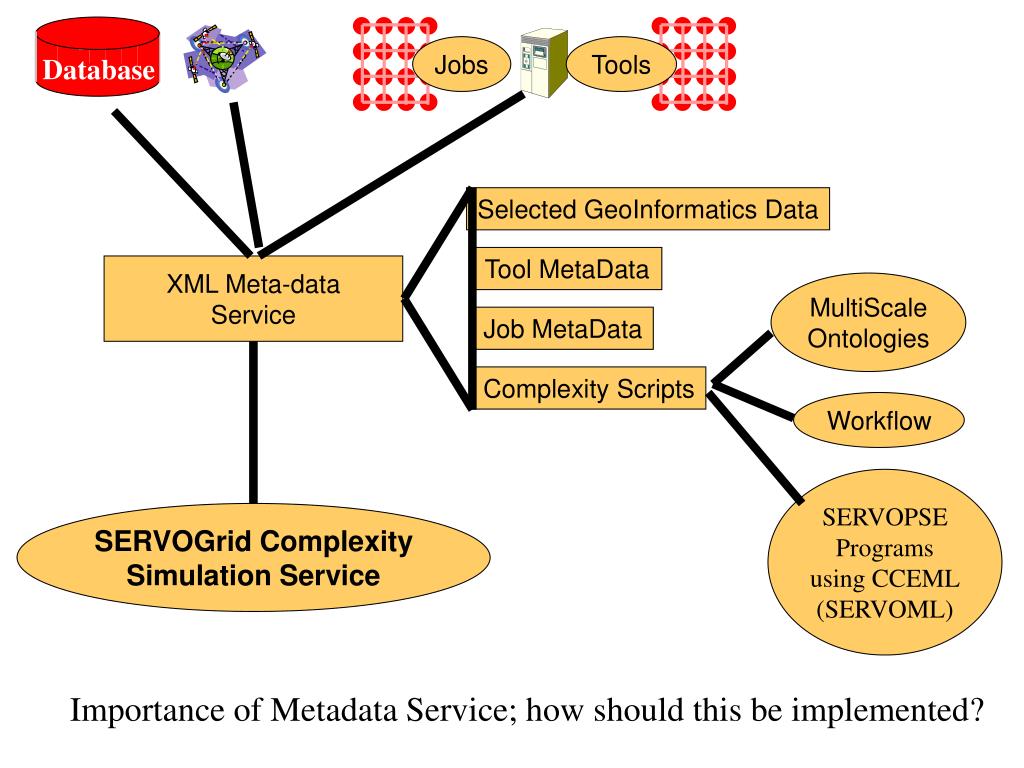

Jobs

Tools

Database

Selected GeoInformatics Data

Tool MetaData

XML Meta-dataService

MultiScale

Ontologies

Job MetaData

Complexity Scripts

Workflow

SERVOPSE Programs

using CCEML(SERVOML)

SERVOGrid ComplexitySimulation Service

Importance of Metadata Service; how should this be implemented?


Servogrid requirements

SERVOGrid Requirements

  • Seamless Access to Data repositories and large scale computers

  • Integration of multiple data sources including sensors, databases, file systems with analysis system

    • Including filtered OGSA-DAI

  • Rich meta-data generation and access with SERVOGrid specific Schema extending openGIS standards and using Semantic Grid

  • Portals with component model for user interfaces and web control of all capabilities

  • Collaboration to support world-wide work

  • Basic Grid tools: workflow and notification

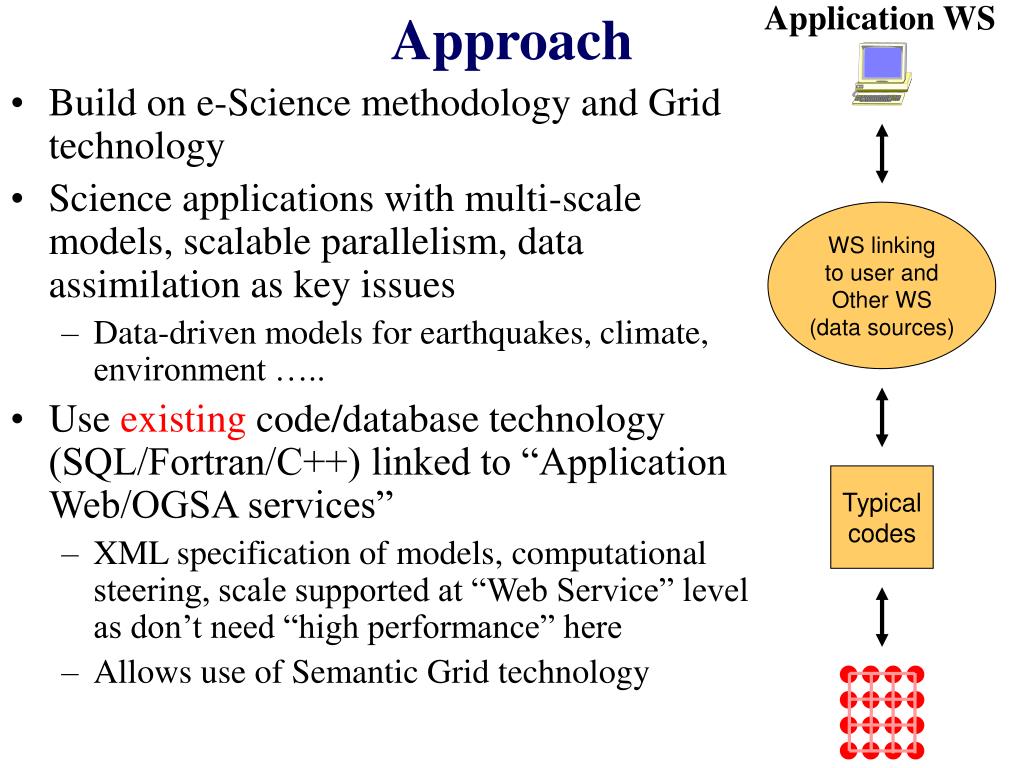

Approach

Application WS

Approach

WS linking

to user and

Other WS

(data sources)

Typicalcodes

  • Build on e-Science methodology and Grid technology

  • Science applications with multi-scale models, scalable parallelism, data assimilation as key issues

    • Data-driven models for earthquakes, climate, environment …..

  • Use existing code/database technology (SQL/Fortran/C++) linked to “Application Web/OGSA services”

    • XML specification of models, computational steering, scale supported at “Web Service” level as don’t need “high performance” here

    • Allows use of Semantic Grid technology


Integration of data and filters

Integration of Data and Filters

WSDL

Of Filter

OGSA-DAI

Interface

Filter

DB

  • One has the OGSA-DAI Data repository interface combined with WSDL of the (Perl, Fortran, Python …) filter

  • User only sees WSDL not data syntax

  • Some non-trivial issues as to where the filtering compute power is

    • Microsoft says filter next to data


Geoffrey fox community grids lab indiana university gcf indiana

SERVOGrid Complexity Computing Environment

Database

Parallel

SimulationService

DatabaseService

ComputeService

Sensor

Service

Middle Tier with XML Interfaces

ApplicationService-1

XML Meta-dataService

ApplicationService-2

CCE Control

Portal Aggregation

ComplexitySimulationService

ApplicationService-3

Users

VisualizationService


Geoffrey fox community grids lab indiana university gcf indiana

Data

Data

Filter

Filter

Filter

Data

Filter

Data

OGSA-DAIGrid Services

AnalysisControl

Visualize

Grid

Data

Filter

This Type of Grid

integrates with

Parallel computing

Multiple HPC facilities but only use one at a time

Many simultaneous data sources and sinks

HPC

Simulation

Grid Data

Assimilation

Other Gridand Web Services

Distributed Filters

massage data

For simulation

SERVOGrid (Complexity)Computing Model

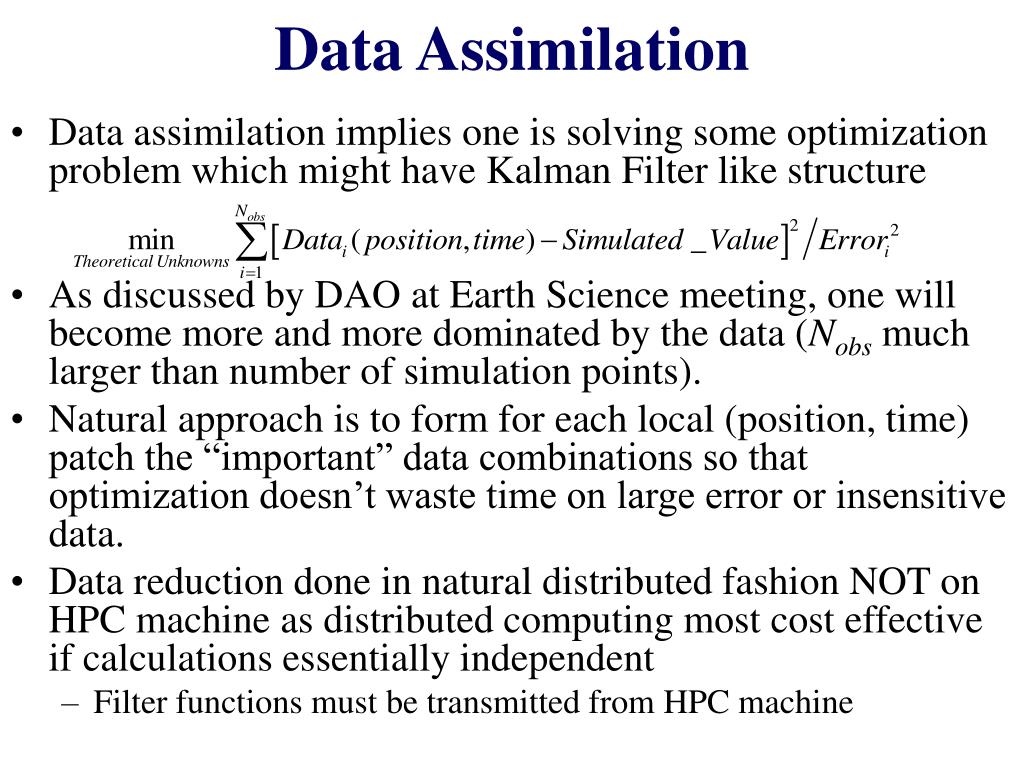

Data assimilation

Data Assimilation

  • Data assimilation implies one is solving some optimization problem which might have Kalman Filter like structure

  • As discussed by DAO at Earth Science meeting, one will become more and more dominated by the data (Nobs much larger than number of simulation points).

  • Natural approach is to form for each local (position, time) patch the “important” data combinations so that optimization doesn’t waste time on large error or insensitive data.

  • Data reduction done in natural distributed fashion NOT on HPC machine as distributed computing most cost effective if calculations essentially independent

    • Filter functions must be transmitted from HPC machine


Distributed filtering

Distributed Filtering

Nobslocal patch >> Nfilteredlocalpatch≈ Number_of_Unknownslocalpatch

In simplest approach, filtered data gotten by linear transformations on original data based on Singular Value Decomposition of Least squares matrix

Send needed Filter

Receive filtered data

Nobslocal patch 1

Filter

Data

Nfilteredlocal patch 1

Geographically

DistributedSensor patches

Nobslocal patch 2

Filter

Data

Nfilteredlocal patch 2

HPC Machine

Factorize Matrixto product of

local patches

Distributed Machine

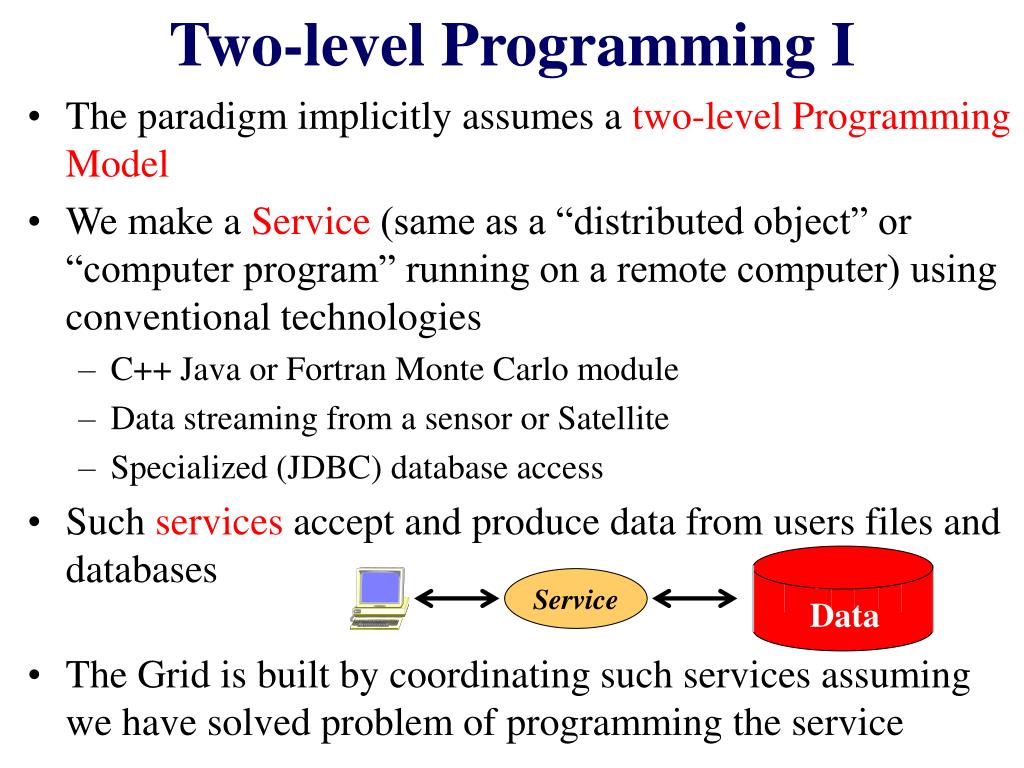

Two level programming i

Two-level Programming I

Service

Data

  • The paradigm implicitly assumes a two-level Programming Model

  • We make a Service (same as a “distributed object” or “computer program” running on a remote computer) using conventional technologies

    • C++ Java or Fortran Monte Carlo module

    • Data streaming from a sensor or Satellite

    • Specialized (JDBC) database access

  • Such services accept and produce data from users files and databases

  • The Grid is built by coordinating such services assuming we have solved problem of programming the service


Two level programming ii

Two-level Programming II

Service1

Service3

Service2

Service4

  • The Grid is discussing the composition of distributed services with the runtime interfaces to Grid as opposed to UNIX pipes/data streams

  • Familiar from use of UNIX Shell, PERL or Python scripts to produce real applications from core programs

  • Such interpretative environments are the single processor analog of Grid Programming

  • Some projects like GrADS from Rice University are looking at integration between service and composition levels but dominant effort looks at each level separately

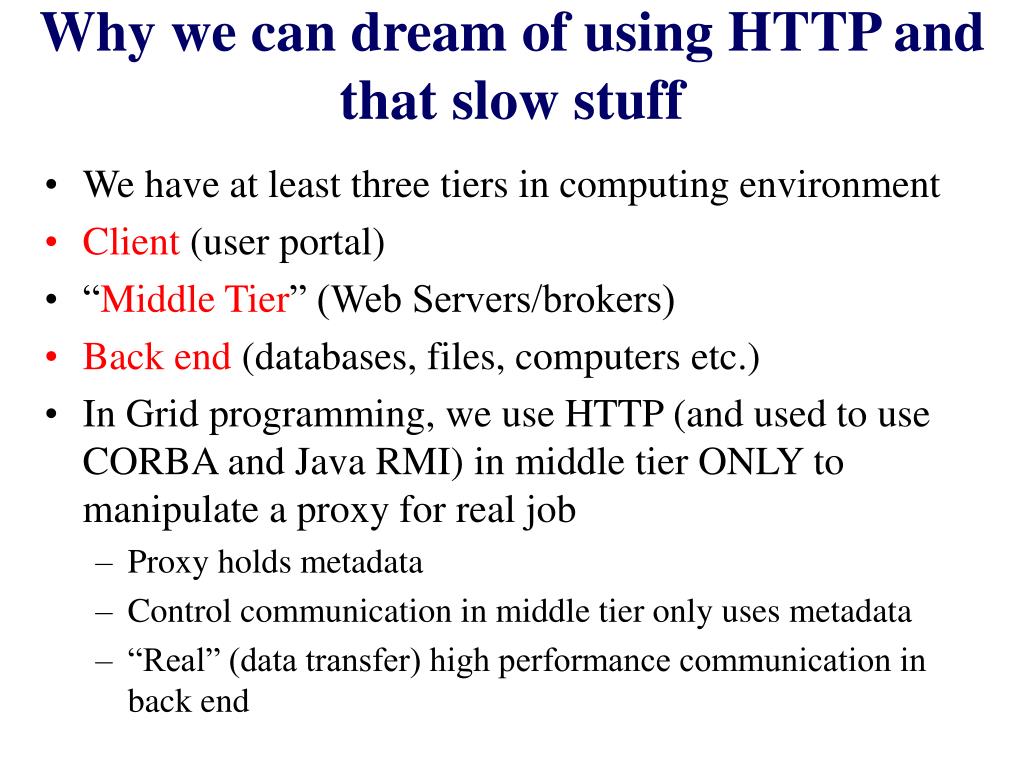

Why we can dream of using http and that slow stuff

Why we can dream of using HTTP and that slow stuff

  • We have at least three tiers in computing environment

  • Client (user portal)

  • “Middle Tier” (Web Servers/brokers)

  • Back end (databases, files, computers etc.)

  • In Grid programming, we use HTTP (and used to use CORBA and Java RMI) in middle tier ONLY to manipulate a proxy for real job

    • Proxy holds metadata

    • Control communication in middle tier only uses metadata

    • “Real” (data transfer) high performance communication in back end


Geoffrey fox community grids lab indiana university gcf indiana

Portal

Services

SystemServices

SystemServices

Application Service

Application Metadata

Middleware

SystemServices

SystemServices

SystemServices

Raw (HPC) Resources

Actual Application

Database

UserServices

GridComputingEnvironments

“Core”Grid

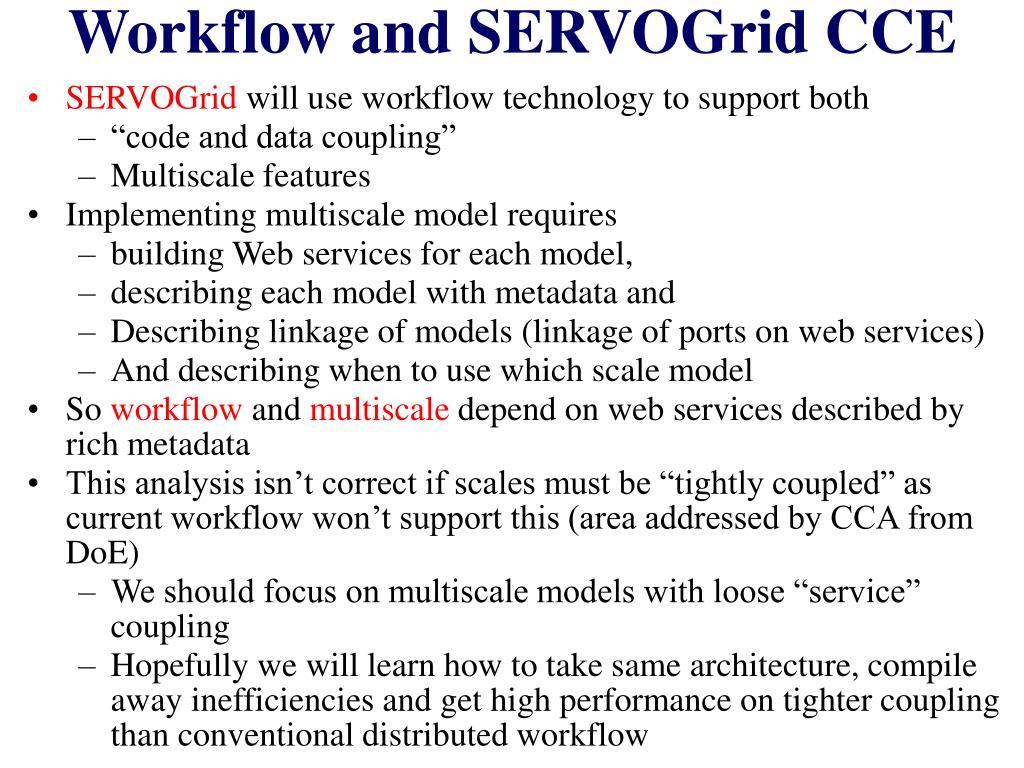

Workflow and servogrid cce

Workflow and SERVOGrid CCE

  • SERVOGrid will use workflow technology to support both

    • “code and data coupling”

    • Multiscale features

  • Implementing multiscale model requires

    • building Web services for each model,

    • describing each model with metadata and

    • Describing linkage of models (linkage of ports on web services)

    • And describing when to use which scale model

  • So workflow and multiscale depend on web services described by rich metadata

  • This analysis isn’t correct if scales must be “tightly coupled” as current workflow won’t support this (area addressed by CCA from DoE)

    • We should focus on multiscale models with loose “service” coupling

    • Hopefully we will learn how to take same architecture, compile away inefficiencies and get high performance on tighter coupling than conventional distributed workflow


  • Login
