Presentation Transcript


Panasonic communications co ltd office network company edition 1 1 11 th july 2007

KX-TDE100/200 System(Version 1.0)

Panasonic Communications Co., Ltd.

Office Network Company

Edition 1.1 11th July, 2007

Chapter 6.12.4GHz CS with LED Status Reference

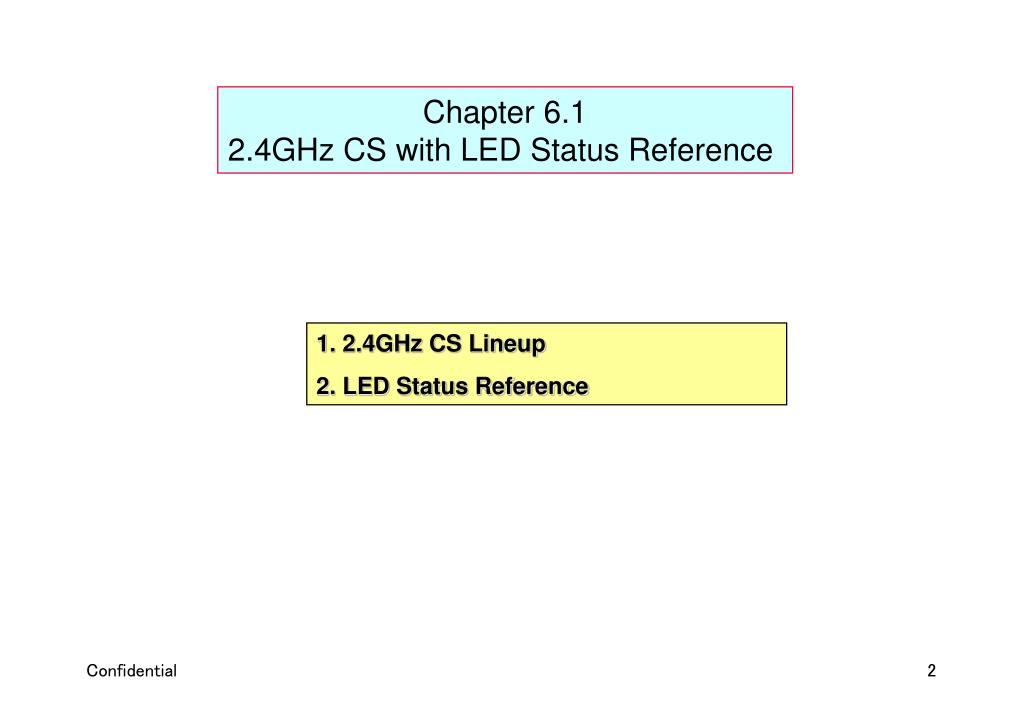

Panasonic communications co ltd office network company edition 1 1 11 th july 2007

Chapter 6.12.4GHz CS with LED Status Reference

1. 2.4GHz CS Lineup

2. LED Status Reference


Panasonic communications co ltd office network company edition 1 1 11 th july 2007

Interface

CS

Ports

Speech Channel

DPT Interface

TDA0141

1

2

TDA0151

1

2

CS Interface

TDA0142

1

3

TDA0152

1

3

1. 2.4GHz CS Lineup


Panasonic communications co ltd office network company edition 1 1 11 th july 2007

2. LED Status Reference

LED Status Reference

OffOff

Green (Solid)Standby/No Calls

Green (Slow Flash)Active Calls

Green (Moderate Flash)2 Active calls/TDA151 (Max)

3 Active calls/TDA152 (Max)

Red (Solid)Initializing/Fault

Red (Flash)OUS/Startup, linking to PBX.

Power Unit Requirements

TDA01514

TDA01524

TDA0151

TDA0152


Panasonic communications co ltd office network company edition 1 1 11 th july 2007

Chapter 6.1 2.4GHz CS with LED Status Reference

Thank you very much !
