Presentation Transcript

Early error detection on word level

Early error detection on word level

Gabriel Skantze and Jens Edlund


Centre for Speech Technology

Department of Speech, Music and Hearing

KTH, Sweden

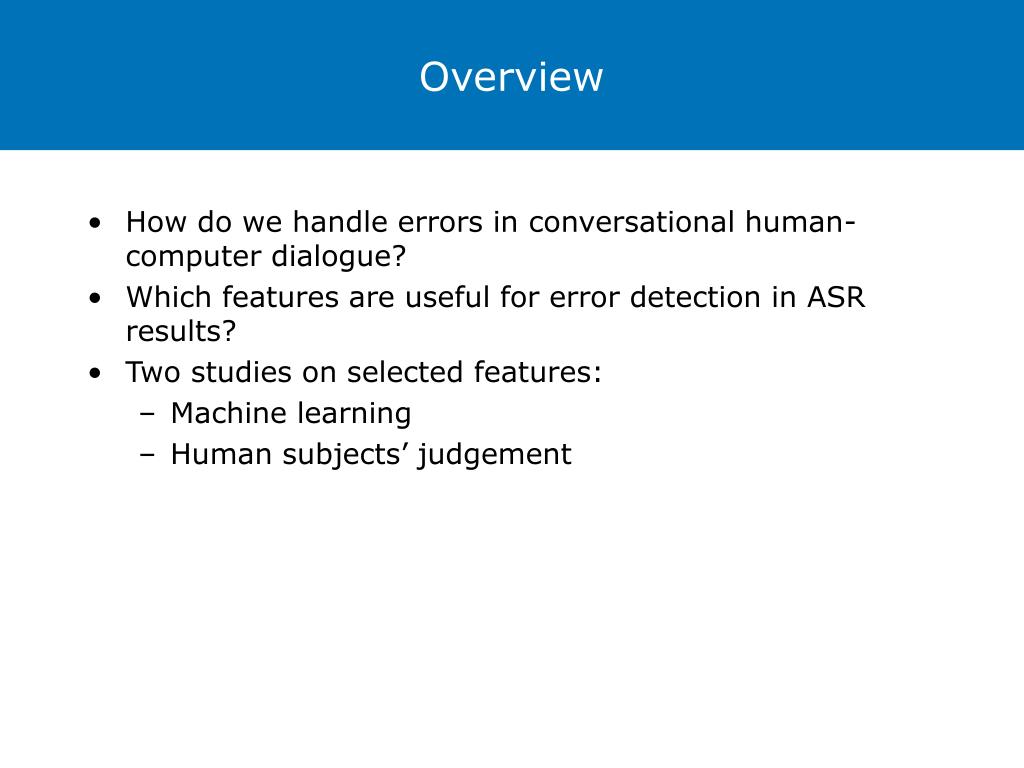

  • How do we handle errors in conversational human-computer dialogue?

  • Which features are useful for error detection in ASR results?

  • Two studies on selected features:

    • Machine learning

    • Human subjects’ judgement

Error detection

Error detection

  • Early error detection

    • Detect if a given recognition result contains errors

    • e.g. Litman, D. J., Hirschberg, J., & Swertz, M. (2000).

  • Late error detection

    • Feed back the interpretation of the utterance to the user (grounding)

    • Based on the user’s reaction to that feedback, detect errors in the original utterance

    • e.g. Krahmer, E., Swerts, M., Theune, T. & Weegels, M. E. (2001).

  • Error prediction

    • Detect that errors may occur later on in the dialogue

    • e.g. Walker, M. A., Langkilde-Geary, I., Wright Hastie, H., Wright, J., & Gorin, A. (2002).

Why early error detection

Why early error detection?

  • ASR errors reflect errors in acoustic and language models. Why not fix them there?

    • Post-processing may consider systematic errors in the models, due to mismatched training and usage conditions.

    • Post-processing may help to pinpoint the actual problems in the models.

    • Post-processing can include factors not considered by the ASR, such as:

      • Prosody

      • Semantics

      • Dialogue history

Corpus collection

Corpus collection









I have the lawn on my right and a house with number two on my left

i have the lawn on right is and a house with from two on left

Study i machine learning

Study I: Machine learning

  • 4470 words

  • 73.2% correct (baseline)

  • 4/5 training data, 1/5 test data

  • Two ML algorithms tested

    • Transformation-based learning (µ-TBL)

      • Learn a cascade of rules that transforms the classification

    • Memory-based learning (TiMBL)

      • Simply store each training instance in memory

      • Compare the test instance to the stored instances and find the closest match

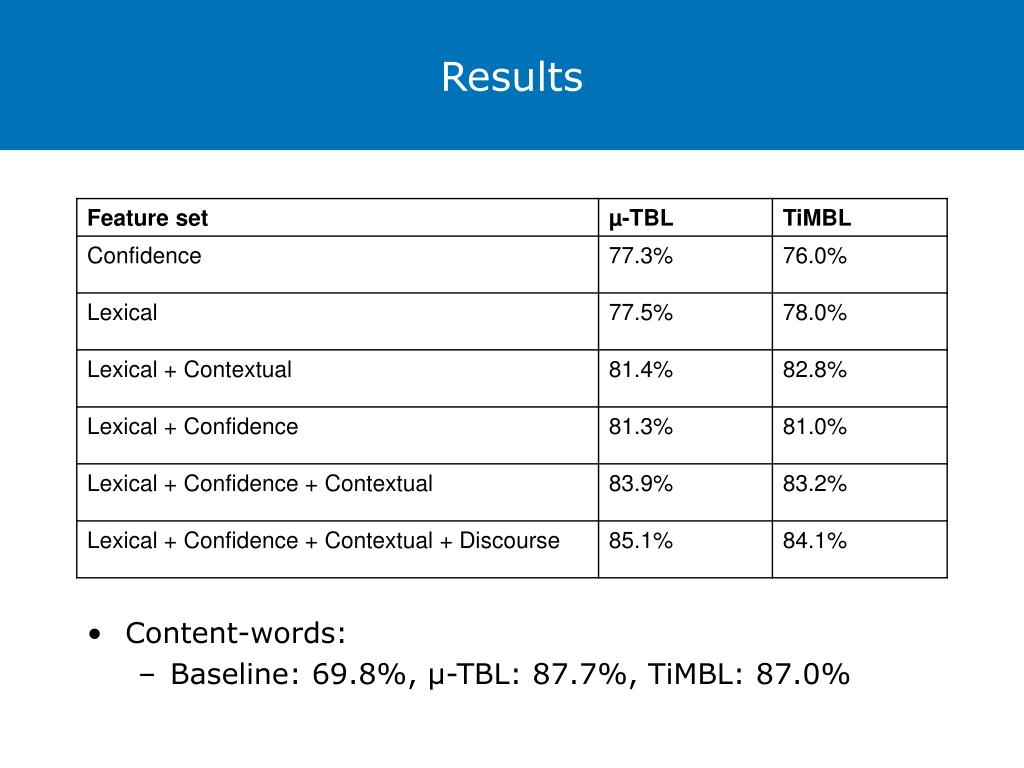

  • Content-words:

    • Baseline: 69.8%, µ-TBL: 87.7%, TiMBL: 87.0%

Rules learned by tbl

Rules learned by µ-TBL

Study ii human error detection

Study II: Human error detection

  • First 15 user utterances from 4 dialogues with high WER

  • 50% of the words correct (baseline)

  • 8 judges

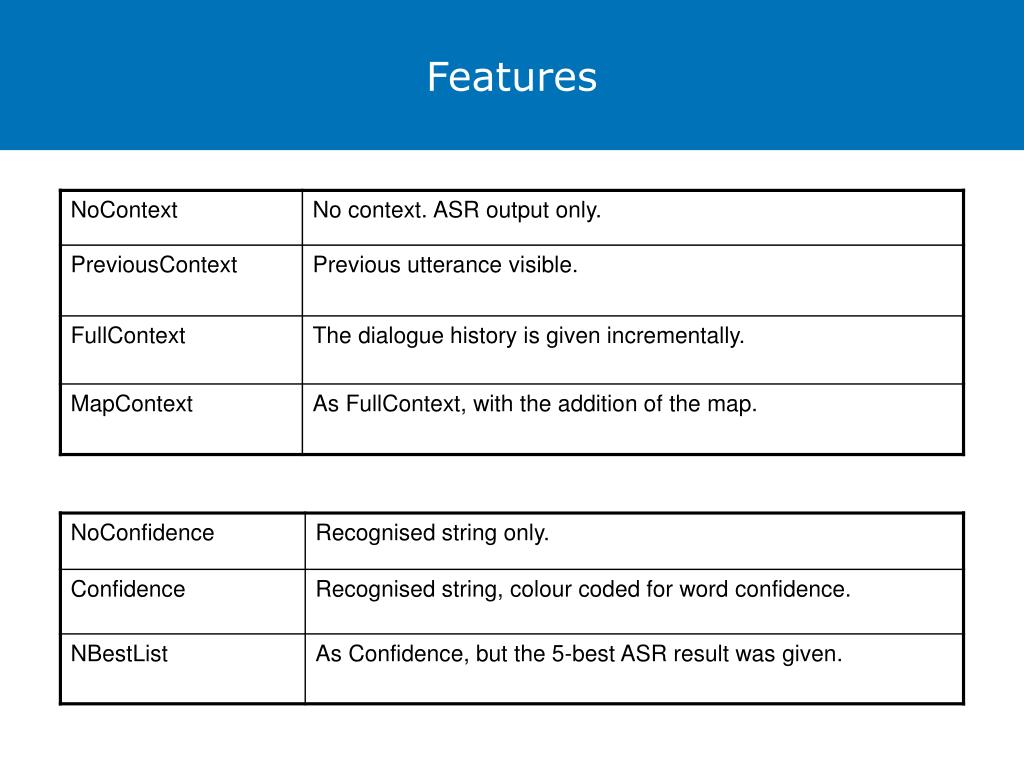

  • Features were varied for each utterance:

    • ASR information

    • Context information



The judges interface

The judges’ interface

Correction field

Dialogue so far

5-best list

Grey scale reflect word confidence

Utterance confidence

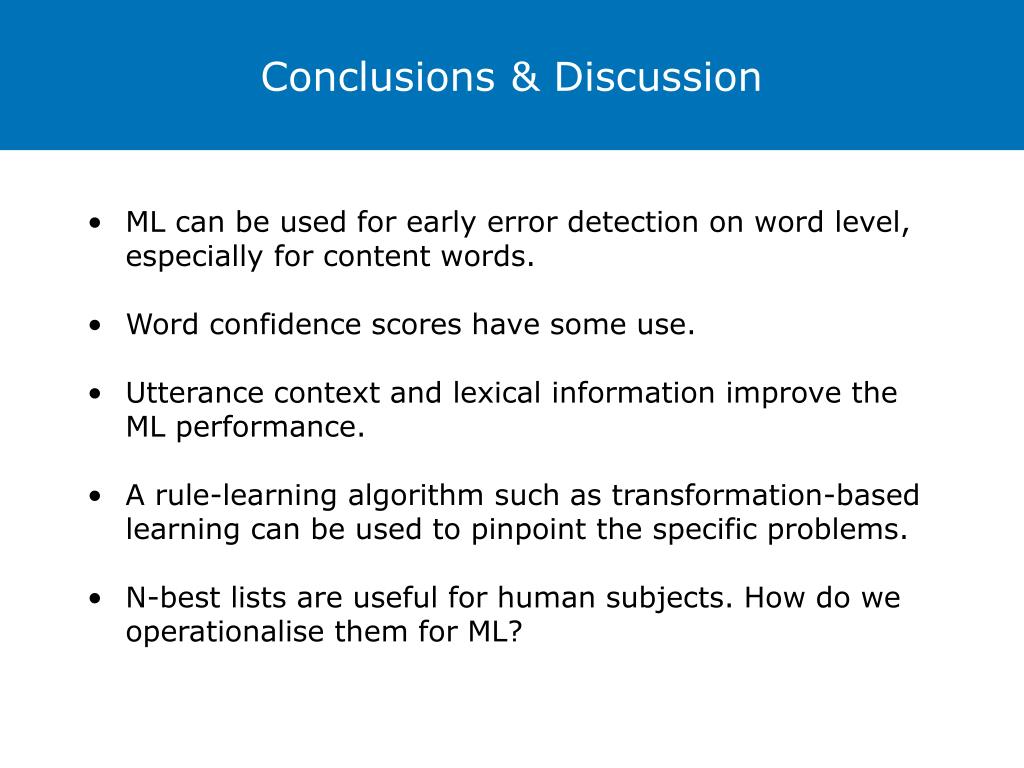

Conclusions discussion

Conclusions & Discussion

  • ML can be used for early error detection on word level, especially for content words.

  • Word confidence scores have some use.

  • Utterance context and lexical information improve the ML performance.

  • A rule-learning algorithm such as transformation-based learning can be used to pinpoint the specific problems.

  • N-best lists are useful for human subjects. How do we operationalise them for ML?

Conclusions discussion1

Conclusions & Discussion

  • The ML improved only slightly from the discourse context.

    • Further work in operationalising context for ML should focus on the previous utterance

  • The classifier should be tested together with a parser or keyword spotter to see if it can improve performance.

  • Other features should be investigated, such as prosody. These may improve performance further.

The end

The End

Thank you for your attention!
